TOWARD ONTOLOGIES AND SERVICES FOR ASSISTING

INDUSTRIAL ROBOT SETUP AND INSTRUCTION

Mathias Haage, Anders Nilsson and Pierre Nugues

Department of Computer Science, Lund University, Box 118, 22100 Lund, Sweden

Keywords:

Industrial robot, ontology, web services, multimodal dialogue.

Abstract:

Achieving rapid, intuitive, and error-free robot setup and instruction is a challenge. We present our work

towards an assistive infrastructure for robot setup and instruction that attempts to address it. In this paper, we

describe the ongoing development of a system that automatically generates multimodal dialogue interaction

from product and process ontologies. The prototype currently generates two modalities, digital paper and

spoken dialogue.

1 INTRODUCTION

Traditional robotics supports long-batch production

and requires skilled personnel to handle setup and in-

struction. On the contrary, new robot markets often

involve shorter series and small and medium enter-

prises. This means that the shift of products is faster

and the change-overs often need to be carried out by

non-experts. This sets new challenges for the robot

user interfaces to be more intuitive and user friendly

in order to reduce number of errors and cost/time

(Haegele, 2007). Such challenges outline the need for

assistive systems within the robot cell to make the op-

erator less dependent on expert knowledge and turn

complex tasks feasible. Examples that could beneﬁt

from assistance include calibration of tools, ﬁxtures,

and workpieces; usage of CAD/CAPP/CAM soft-

ware such as task planners; conﬁguration of process-

speciﬁc software packages, such as the ABB palletiz-

ing PowerPac.

In this paper, we present an assistive infrastructure

for robot setup and instruction that attempts to address

these challenges. We introduce the ongoing develop-

ment of a system based on semantic web technologies

that automatically generates multimodal dialogue in-

teraction. We also describe a prototype that currently

generates two modalities, digital paper and spoken di-

alogue.

The purpose of an assistive system is to enhance

the usability and usefulness of the robot and its

connected resources (sensors, CAD/CAPP/CAM sys-

tems) through:

• The use of semantic standards in information ex-

change, such as RDF/S, OWL, SPARQL, and

SWRL;

• Production documents such as product and pro-

cess data including a semantic layer;

• The deﬁnition of compatible semantic layers so

that they can be used across the relevant tasks,

such as aiding cell calibration and robot instruc-

tion.

• Increased automation of tasks using the seman-

tic layer, such as ﬁnding calibration sequences to

make sure nothing is forgotten.

The roadmap we follow to implement the assis-

tive infrastructure is based on the use of an ontologi-

cal network to encapsulate knowledge about the prod-

uct data and manufacturing processes. It requires the

derivation of ontology concepts that will serve as the

main data source to generate — or refer to — the

complete speciﬁcations and the operating instructions

used to automate information management necessary

for task planning and execution.

2 MULTIMODAL FORM-BASED

DIALOGUE

From the user viewpoint, the operation starts with an

initial selection command from the operator to tell the

machine which work piece to produce and possibly

263

Haage M., Nilsson A. and Nugues P. (2008).

TOWARD ONTOLOGIES AND SERVICES FOR ASSISTING INDUSTRIAL ROBOT SETUP AND INSTRUCTION.

In Proceedings of the Fifth International Conference on Informatics in Control, Automation and Robotics, pages 263-270

DOI: 10.5220/0001505002630270

 SciTePress

from positions and equipment data sensed by devices

on the ﬂoor.

After the initial selection, the system extracts data

from the ontology that enables the operator to conﬁg-

ure the task and the product, and to prepare the task

execution. The conﬁguration step uses a multimodal

interface that lets the operator ﬁll in the different op-

tions. It ends with the monitoring and execution of

the conﬁgured task.

The process ﬂow uses conversion tools such as

transformation rules, inference rules, and the JastAdd

compiler (JastAdd, 2007) to select and convert por-

tions of the ontology. This results in process and

product data divided into conﬁgurable and noncon-

ﬁgurable parts (Figure 1). The extracted data are ﬁrst

formatted as an XML document corresponding to a

production sketch that we call the XML appconf.

From this sketch, the system automatically gener-

ates user interfaces with multiple input modalities for

all the parameters. A ﬁrst demonstration prototype

will be available in Spring 2008.

3 ONTOLOGY MODELING

In computer science, ontologies correspond to hier-

archical models to represent concepts, objects, and

their relationships. They enable systems to (Buitelaar,

2007):

• Encode and interpret data using a rich hierarchical

and relational structure.

• Extract data and integrate them into applications.

• Share data with a common format.

As ontology modeling language, we have chosen the

web ontology language (McGuinness and van Harme-

len, 2007) and the Prot´eg´e toolkit (Prot´eg´e, 2007)

as a data entry and validation tool. Both are well-

established standards in their domain with a large de-

veloper’s community. We are currently using them to

build the ontology of a speciﬁc domain shown in Fig-

ure 2 that serves in the demonstration prototype. This

ontology acts as an advanced data repository for the

product conﬁguration and the production operations.

In the future, we will populate ontologies from man-

ual modeling, speciﬁcation databases, and 3D mod-

els. In addition to what we develop within SMErobot,

the data model we will use could also possibly beneﬁt

from work being carried out at LTH for the SIARAS

project (SIARAS, 2007) on production ontologies.

The conversion pipeline shown in Figure 1 uses

W3C recommendations associated with the semantic

web such as XSLT or SWRL. The choice of these

tools needs some clariﬁcation. We ﬁrst summarize

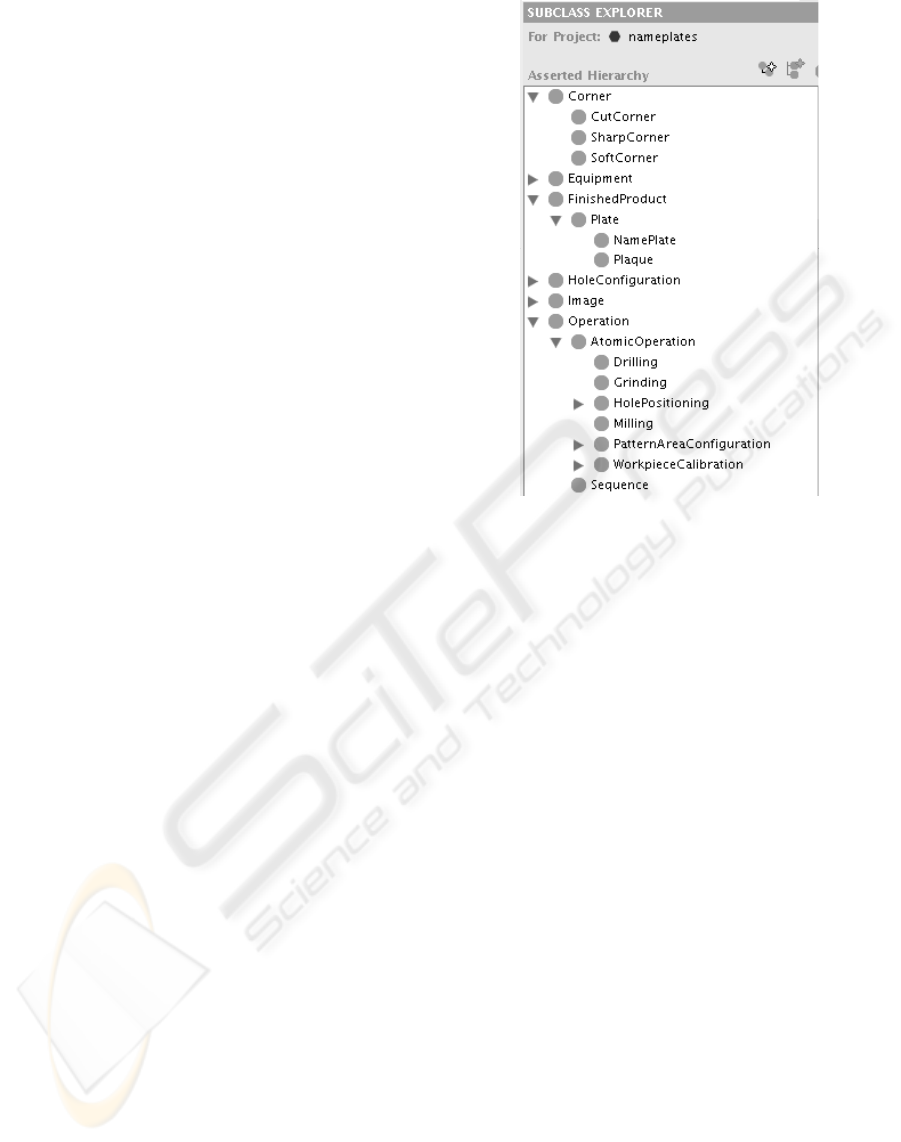

Figure 2: An excerpt of the ontology detailing the operation

hierarchy.

the concepts that are around OWL and then explain

the conversion principles.

3.1 Resource Description Framework -

RDF

OWL is based on the resource description framework,

RDF (RDF, 2007). RDF models statements as triples

in the form of a subject, a predicate (a verb), and an

object. As an example, the statement the milling pro-

cess starts with a calibration can be split into a sub-

ject, the milling process, a predicate, starts with, and

an object, a calibration. Such triples are also named,

respectively, the resource, the property, and the value.

RDF is restricted to binary predicates.

This framework can use two encodings. The ﬁrst

one, called Notation 3, consists of sequences of tex-

tual triples and the second one adopts an XML syn-

tax. The subject – the resource – must be a URI.

The predicate or property, which is also a resource,

is a URI too. The object or value can be a resource

or a literal. To represent the example above, we use

the lrc namespace – Lund Robotics Core – and URI

http://cs.lth.se/lrc/ontologies/1.0/. This URI is still

nonexistent when this article is being written. Using

Notation 3, we can represent the example above as:

@prefix lrc: <http://cs.lth.se/lrc/ontologies/1.0/>.

<#milling_process> lrc:starts_with "calibration";

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

264

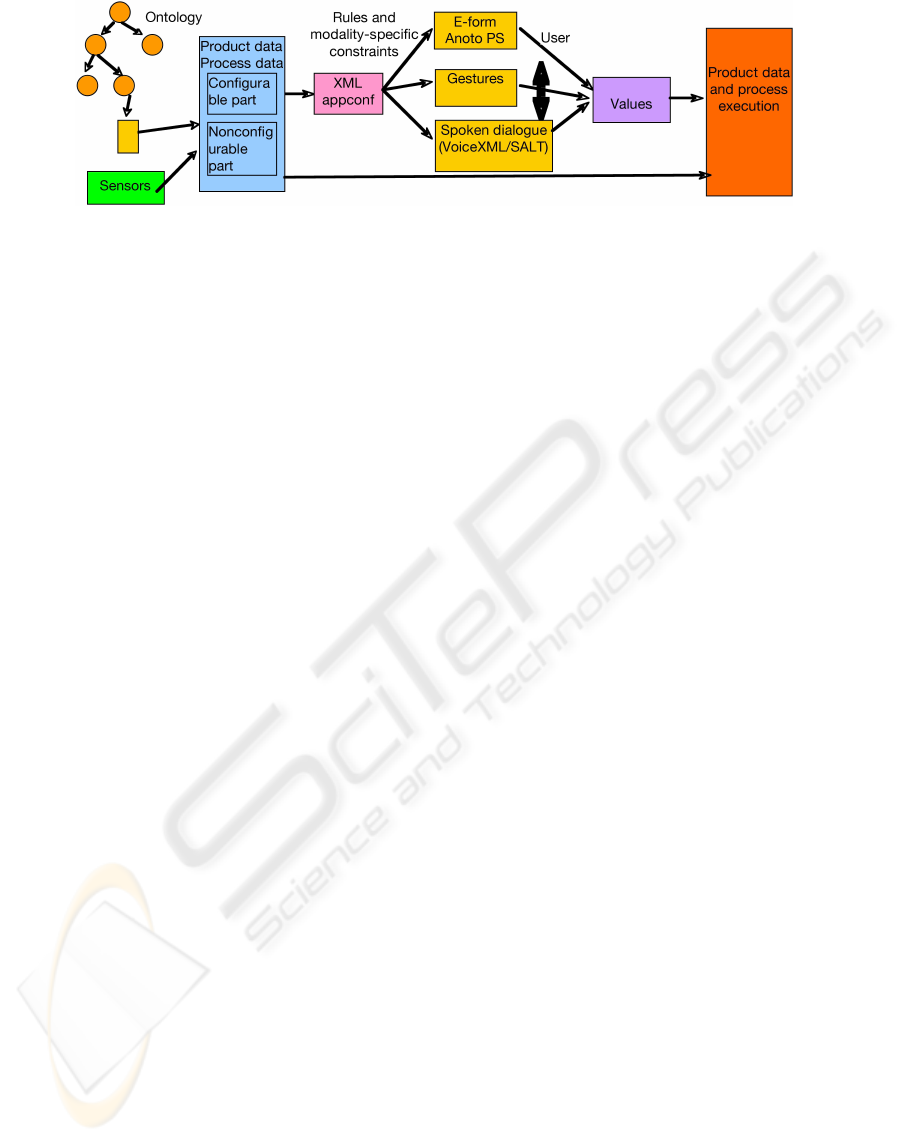

Figure 1: The process workﬂow.

And in XML syntax as:

<rdf:RDF

xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"

xmlns:lrc="http://cs.lth.se/lrc/ontologies/1.0/">

<rdf:Description rdf:about="#milling_process">

<lrc:starts_with>calibration</lrc:starts_with>

</rdf:Description>

</rdf:RDF>

More generally, triples (subject, predicate, ob-

ject) can be encoded in Prolog or Datalog as predi-

cate(subject, object) that is, with the sentence above

as:

starts_with(milling_process, calibration)

3.2 RDF Schema – RDFS

RDF schema, RDFS, is built on RDF and deﬁnes

two predicates that enable the programmer to build

an ontology: rdfs:Class and rdfs:subClassOf (RDFS,

2007). The rdfs:Class element allows to declare a

RDF resource as a class and the rdfs:subClassOf ele-

ment allows to declare subclasses of a class and build

a hierarchy. When a resource has been declared as a

class, we can use rdf:type to create individuals mem-

ber of this class. In addition, RDFS comprises similar

predicates to build a property hierarchy.

In addition, RDFS has constructs to type the sub-

ject and the object of the triples. It corresponds to

the domain and range of a function, and in the case

of RDFS applies to properties. RFDS uses the con-

structs rdfs:domain for the subjects and rdfs:range for

the objects to restrict the values of the two arguments

of a property.

3.3 OWL

Although the combination of RDF and RDFS forms

an ontology language, it lacks some features to build

large, realistic ontologies. They include cardinality

restrictions, Boolean operations on classes, etc. In ad-

dition, RDF and RDFS are not well coupled to logic

and reasoning tools.

The web ontology language, OWL, is an extension

of RDF and RDFS that attempts to complement them

with better logic foundations and a support for practi-

cal reasoning (McGuinness and van Harmelen, 2007).

It comes with three ﬂavors of increasing expressivity

– light, description logic, and full – that are upward

compatible. Only the two ﬁrst ones are guaranteed to

be tractable in practice.

Important constructs of OWL include

the owl:Class, which is derived from the

rdfs:Class, two properties, owl:ObjectProperty

and owl:DatatypeProperty, that relate objects to

respectively another object or a data type value like

a string, an integer, a ﬂoat, etc., owl:Restriction

that enables the programmer to use existential and

universal quantiﬁers and cardinality.

4 PROTOTYPE SETUP

4.1 Nameplate Manufacturing

As described in (SMErobot, 2007b), the ontology

programming approach uses automatically generated

forms to select and conﬁgure both the task and the

product. The prototype selected to demonstrate the

concepts associated with our approach corresponds to

the manufacturing of wood nameplates.

Figure 3 shows a conﬁguration form where the left

column conﬁgures the shape and looks of the plate.

The right column conﬁgures the process for manufac-

turing the plate. In this example it is possible to skip

steps, execute in a stepwise manner, and choose data

acquisition methods for steps involved. The left col-

umn can be ﬁlled out at an earlier date while the right

column is ﬁlled out close to task execution time. The

upper right barcode identiﬁes the process and is pos-

sibly unique to individualize the sheet.

TOWARD ONTOLOGIES AND SERVICES FOR ASSISTING INDUSTRIAL ROBOT SETUP AND INSTRUCTION

265

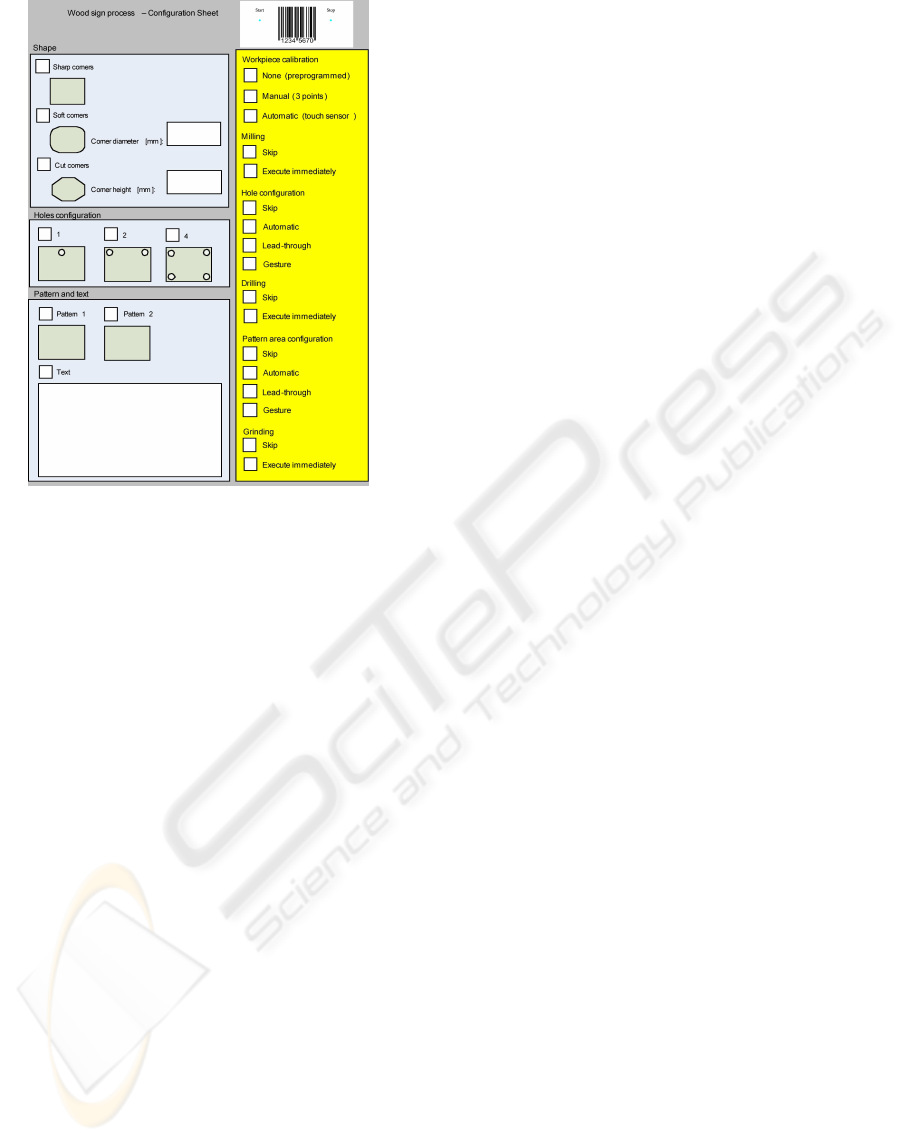

Figure 3: Prototype form for manufacturing wood name-

plates.

4.2 Nameplate Manufacturing Ontology

We have built a prototype ontology to encode the pro-

cess templates and we are developing well-deﬁned

conceptual interfaces toward work cells (equipment,

capabilities, communication) and process data, assist-

ing construction of process templates, and assisting

(manual/automatic) work cell reconﬁguration.

The ontology is restricted to the prototype domain

and Figure 2 shows an excerpt of it. It describes the

ﬁnished products its components, together with pos-

sible features as well as the operations involved in the

manufacturing process of the product.

4.3 Intermediate Appconf

Representation

Given a product to manufacture, the conversion pro-

cess extracts an intermediate, ﬂat representation from

the ontology. This representation is designed to be

modality-independent, which makes it easier to build

user views (forms, speech, gestures). We call it the

application conﬁguration – appconf.

As an example, in the application prototype we

are building, the sheet requires the operator to sup-

ply data, such as the corner shape, the hole conﬁgu-

ration, and the pattern and text (person name for in-

stance). All these items are shown as input areas on

the sheet in Figure 3. The intermediate appconf rep-

resentation has corresponding elements representing

all these conﬁgurable items, for instance the corner

shape.

We give an idea of how to represent the corner

shape options in the XML code snippet below. This

code replicates the possible options, sharp, soft, or cut

corners, with the images to display in the e-form using

the img element and the messages to utter using the

snd element in the case of a spoken dialogue.

<shape>

<one-of>

<name>sharp corners</name>

</option>

<name>soft corners</name>

</option>

<name>cut corners</name>

</option>

</one-of>

</shape>

Using this conﬁguration sketch, presentation

rules, and modality speciﬁc constraints, the conver-

sion process produces displayable forms or spoken

dialogues so that the operator can supply the missing

parameters. Once the operator has ﬁlled in the data,

the corresponding XML fragment is:

<shape>

<name>sharp corners</name>

</shape>

4.4 Methods and Languages to Extract

Information from Ontologies

The conversion pipeline extracts and infers informa-

tion from the ontology and generates the user input

modalities. The appconf conﬁguration sketch is an

XML intermediate document between the ontology

and the user interfaces. Unlike the sketch, the on-

tology is a structured and hierarchical representation,

where features are shared and inherited across a va-

riety of pieces and processes. This means that ex-

traction is not trivial because the representation lan-

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

266

guages involve three complex and intricate layers:

RDF, RDFS, and OWL.

Such a setting requires speciﬁc query languages

and techniques. In addition to the ontology manage-

ment, we need to process other XML documents in

the processing chain such as the appconf sheet to con-

vert them into forms or dialogue programs. We review

here techniques and their application in the manage-

ment of information along the conversion chain. They

include accessing XML nodes, querying RDF triples,

and reasoning about the ontology knowledge. Most

difﬁculties come from the apparent masses of “solu-

tions”. Wikipedia lists not less than 11 different RDF

query languages and ten OWL reasoners! We focus

here on what have become the (likely) standards in

their respective ecosystems.

4.4.1 XSLT

The simplest way to access and transform XML doc-

uments is to use the combination of XPath and the

extensible stylesheet language transformations, XSLT

(XSLT, 2007). XPath enables programmersto express

a path and access nodes in an XML tree, while XSLT

deﬁnes conversion rules to apply to the nodes. A typi-

cal application of XSLT is the transformation of XML

documents into XHTML ﬁles destined to be read by

web browsers.

Provided that the amount of paraphrasing (syn-

tactic variation) is limited, XSLT XPath is fairly us-

able to run the conversions. From studies we have

done, this is the case for the conversion of the app-

conf sketch to the user modalities. We are completing

the implementation and integrating it in the prototype.

However, this is not the case for ontologies. They

are built on OWL, which is built with RDF triples,

which allows reformulating similar structures using

different constructs. Querying ontologies require ei-

ther query languages or reasoning rules. For a justiﬁ-

cation, see (Antoniou and van Harlmelen, 2004), pp.

100-102.

4.4.2 SPARQL

SPARQL (SPARQL, 2007) is a RDF query language.

It enables the programmer to extract RDF triples us-

ing the SELECT keyword where the variables are de-

noted with a question mark preﬁx using a set of condi-

tions deﬁned by the WHERE keyword. It is also pos-

sible to build a new graph using the CONSTRUCT

keyword. SPARQL’s syntax is similar to that of the

SQL language. The query below extracts all the pairs

where ?subject is a subclass of ?object:

SELECT ?subject ?object

WHERE {

?subject rdfs:subClassOf ?object. }

However, as SPARQL makes the join operation

implicit, it bears some resemblance with Prolog as in

this query:

SELECT ?subject ?config

WHERE {

?subject rdfs:subClassOf <#FinishedProduct> .

?prop rdf:type owl:ObjectProperty .

?prop rdfs:range ?config . }

SPARQL is becoming a de facto standard for RDF.

It is a stable language with a quality implementations

from various sources. Competitors include XQuery, a

generic XML query language, which has not gained

acceptance in the RDF community.

4.4.3 SWRL

While SPARQL enables a programmer to extract in-

formation from an ontology, it is only designed for

RDF. In addition, it cannot easily derive logical con-

sequences from its results. To exploit fully the ontol-

ogy knowledge, one needs a reasoning or inferencing

mechanism. This is the purpose of a language like the

semantic web rule language, SWRL (SWRL, 2007).

SWRL rules have a Prolog-like structure. They con-

sist of an antecedent corresponding to a conjunction

of conditions (predicates) and a consequent. When

the conditions are true, the consequent is also true and

can be asserted. In addition to being a inference lan-

guage, SWRL features an extension that lets it act like

a query language, SQWRL.

SWRL is supported from the 3.4 version of

Prot´eg´e in the form of a development environment

with editing tools. This means that we can write,

modify, and to a certain extent validate rules. How-

ever, version 3.4 is still in the beta stage at the time

we are witing this paper. In addition, Prot´eg´e does not

include a full-ﬂedged inference engine. This means

that it cannot by itself execute the rules. It just sup-

plies a bridge that connects to an external module. So

far, Prot´eg´e supports only one inference engine, Jess

(Friedman-Hill, 2007).

4.4.4 JastAdd

JastAdd is not a query language in itself, but a gen-

eral compiler construction tool with some very useful

features; aspect oriented programming and attribute

grammars. Using results from earlier work (Malec

et al., 2007) we can automatically create a parser for

an OWL ontology. Utilizing the aspect-oriented fea-

ture of JastAdd, we can then implement queries in the

form of aspect modules that will be weaved in with

the generated parser at compile time.

TOWARD ONTOLOGIES AND SERVICES FOR ASSISTING INDUSTRIAL ROBOT SETUP AND INSTRUCTION

267

While it does not possess the expressive power of

SWRL, it will enable the user to extract almost any

information from the ontology with just a few 10s of

lines of Java code.

4.4.5 Prolog

Prolog – or Datalog – is a last example of reasoning

tool that could be used to extract information from the

ontology. Some Prolog implementations have a RDF

interface like SWI Prolog that has been used with suc-

cess in semantic web applications (Wielemaker et al.,

2007). It is then possible to query an ontology from a

logic program and to run inference rules on the result.

As Prolog predicates and rules have much in com-

mon with SWRL, logic programs written in Prolog

and SWRL would be very similar and with equiva-

lent performances. Difference would come from the

location of the bridge between the ontology and the

inference engine, at the RDF level for Prolog, at the

OWL level for SWRL.

However, although Prolog is more expressive than

other languages and has a proven record of industrial

applications, Prot´eg´e does not support it. It is not

standardized within the context of the semantic web

either. This makes its choice, at the moment, riskier

than the other options.

4.5 From an Ontology to the Appconf

Sketch

The ﬁrst step of the conversion pipeline generates

the XML Appconf sketch from the ontology. As the

SWRL formalism is more ﬂexible and powerful, as

well as adopted by the semantic web community, we

are using it for this step in the demonstration proto-

type. As inference engine, we are using the built-in

bridge that is for now only coupled to Jess.

However, SWRL is a new feature of Prot´eg´e 3.4

and athough it already supports many abox and tbox

built-in predicates, it is still under active development.

Many of the predicates are not yet implemented. The

beta version status of SWRL pose timetable problems

and we are also using SPARQL to query the ontology

and write the rules.

We wrote rules using both formalisms to extract

information from the ontology. We show below an

example of SWRL rule that ﬁnds all the properties of

the subclasses of FinishedProduct and Figure 4 shows

a screenshot of the editing window in Prot´eg´e. We

also show its counterpart in SPARQL. We embedded

the rules in the Java prototype using the Prot´eg´e API

that resembles SQL drivers.

PREFIX list: <http://jena.hpl.hp.com/ARQ/list#>

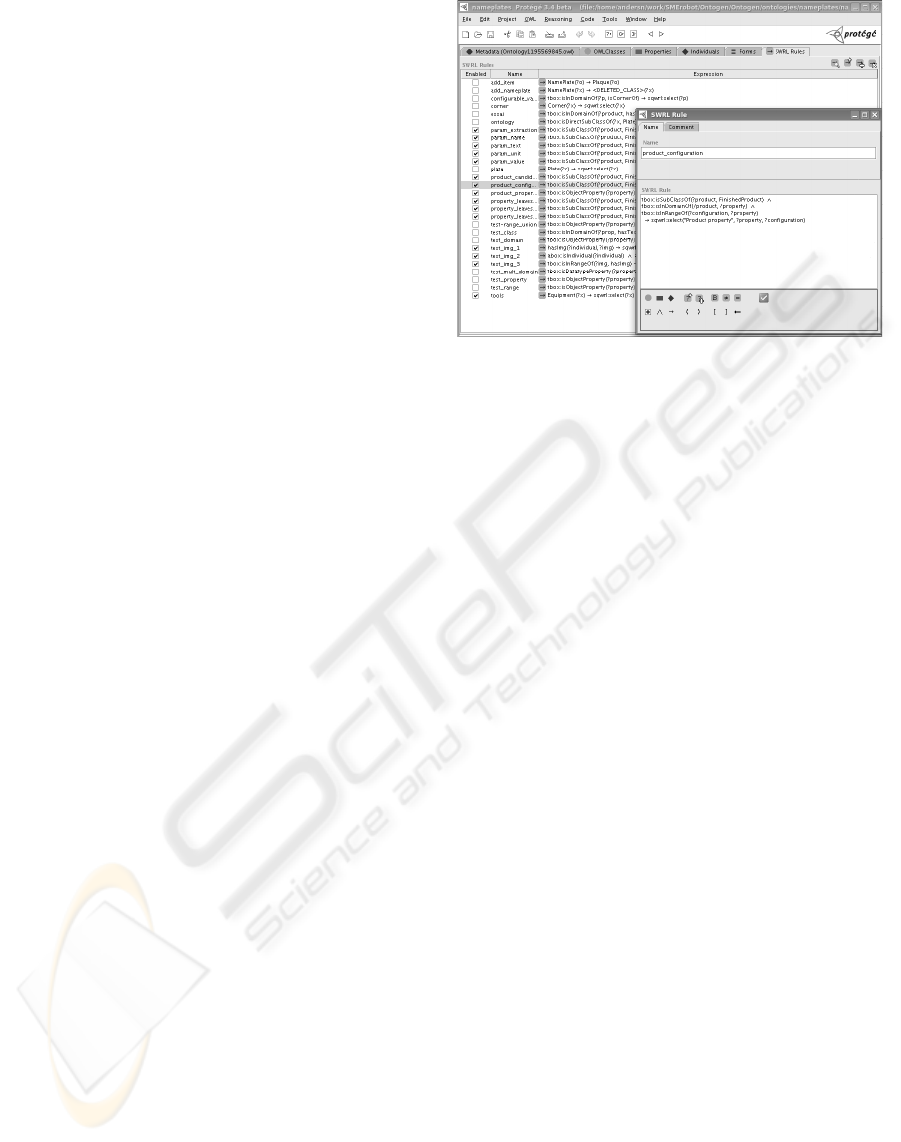

Figure 4: A screenshot of the SWRL interface in Prot´eg´e

and an example of a rule.

SELECT ?product ?configuration

WHERE {

?product rdfs:subClassOf <#FinishedProduct> .

?property rdf:type owl:ObjectProperty .

{{?property rdfs:domain ?product} UNION

{?property rdfs:domain ?union .

?union owl:unionOf ?list .

?list list:member ?product}} .

?property rdfs:range ?configuration}

4.6 From the Appconf Sketch to Input

Modalities

The second step of the conversion pipeline generates

user input interfaces from the XML Appconf sketch.

As ﬁnal products frequently need to be customized

according to the order, the manufacturing operator

will be able to enter a part of the speciﬁcations at

production time. In the demonstration prototype, we

will investigate three conﬁguration modalities that are

core to the SMErobot project (SMErobot, 2007a),

namely E-forms, gestures, and spoken dialogue.

We are developing tools to generate automatically

the work piece production forms, the gesture tracking

and interpretation module, or the dialogue speciﬁca-

tions from the XML Appconf. Before the piece is

manufactured, the operator ﬁlls in the remaining data

corresponding to the ﬁnal piece using the modality

of her/his choice. To ease the interaction, we are in-

vestigating a framework to combine simultaneously

the different modalities so that the operator can use

speech and gestures at the same time for instance.

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

268

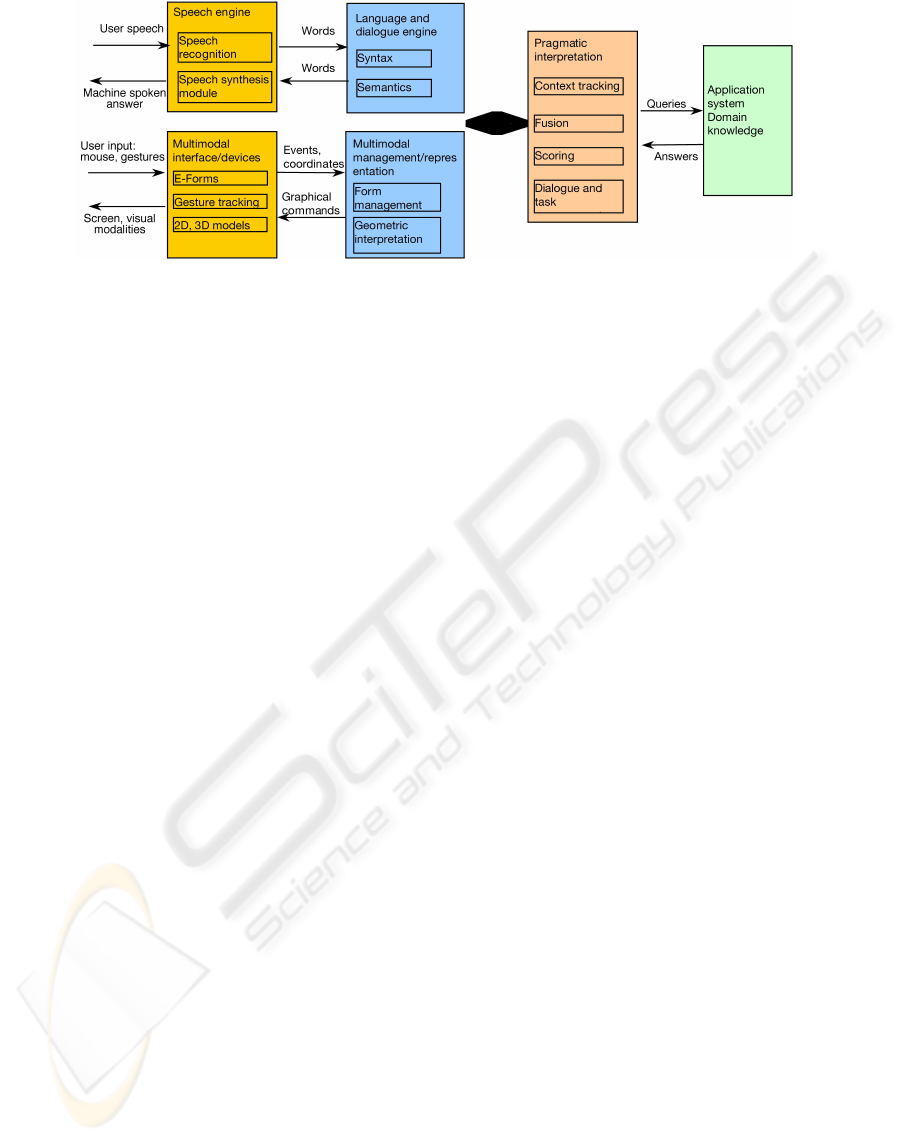

Figure 5: Multimodal dialogue architecture.

4.6.1 Transformation Language

As transformation language to produce the forms and

the dialogue speciﬁcations, we are using XSLT. XSLT

enables to apply transformations to Appconf nodes

accessed via the XPath language. It can produce

XML documents in formats like XHTML for the

forms or VoiceXML for the dialogues. In addition, we

are investigating the XSL-FO page-formatting stan-

dard where the description of a document content uses

objects such as blocks, tables, footnotes, etc. It is

richer than HTML-like descriptions and can be con-

verted to PDF. The conversion of an XSL-FO doc-

ument to a PDF uses a sequence of transformations

that builds the XML tree, produces graphical objects,

renders the objects as text areas with their pixel posi-

tioning, and ﬁnally generates PDF.

4.6.2 VoiceXML

The demonstration prototype includes a voice modal-

ity that enables the operator to conﬁgure the prod-

uct through a dialogue and hence have his hands free

while s/he ﬁlls in the manufacturing options. The di-

alogue uses a system-initiative scheme, which means

that the dialogue structure resemble a form ﬁlling pro-

cedure where the user answers questions posed by the

system.

We have chosen the Voice Extensible Markup

Language, VoiceXML, to generate the dialogues.

(VoiceXML, 2007) is markup language that enables

a programmer to build form-based, goal-oriented dia-

logues (system-initiative mostly). The user ﬁlls ﬁelds

in forms using speech, where the ﬁeld input can be

constrained with a grammar. It is designed to be in-

tegrated in a speech server and supports IP telephony.

As VoiceXML is a standard, the programs should be

portable to any platform that supports this language.

4.7 Perspectives: Multimodal

Management

We will examine possible designs for the multimodal

management architecture such as the one shown in

Figure 5. It is mainly derived from a previous work

of a member of the LTH team (Bersot et al., 1998;

God´ereaux et al., 1998) and a recent system devel-

oped by the Bell labs (Ammicht et al., 2007; Potami-

anos et al., 2007). One input channel corresponds to

the speech recognition module, which transcribes the

user’s speech into a word stream. The language en-

gine then processes the character ﬂow dealing with

syntax, which is constrained by the VoiceXML struc-

ture, and semantics. The semantic module converts

words into a semantic representation that is common

to speech and other types of interaction. The other

channel corresponds to form ﬁlling, which are pro-

cessed by the multimodal manager. The pragmatic

module merges data from both modalities and keeps

track of the context and the application goals. The re-

sulting answers are either converted into speech to the

user by a speech synthesizer or presented visually by

a visualizing module.

The multimodal architecture will use a client-server

architecture and instantiate some of the modules

shown in Figure 5. We are currently deﬁning them. In

the future, it could evolve into an integration platform

enabling partners to plug their applications. As a use

case we consider interactions where the user ﬁlls in

the data using one modality, the corresponding client

sends the data to the server, and the server updates the

context of all the modalities. There are then continu-

ous visual or audio updates of the current context. For

instance, an audio message is synthesized each time

the user has selected an option with the form, to con-

ﬁrm or remind the next actions. Modality switching

could be carried out manually by the user or automat-

ically.

TOWARD ONTOLOGIES AND SERVICES FOR ASSISTING INDUSTRIAL ROBOT SETUP AND INSTRUCTION

269

5 CONCLUSIONS

We have described the design and implemention of an

assistive infrastructure based on the use of an ontolog-

ical network to encapsulate knowledge on the product

data and manufacturing processes. We have imple-

mented a prototype ontology that serves as the main

data source to automatically generate digital forms

and voice dialogues to conﬁgure a wood nameplate

manufacturing process. As a perspective, we intend

to synchronize modalities for a more ﬂexible, efﬁ-

cient user input. A ﬁrst prototype will be available

for demonstration in Spring 2008.

ACKNOWLEDGEMENTS

The work presented in this paper is being ﬁnanced

mainly by the EU FP6 projects SMERobot and

SIARAS. Partner companies within SMErobot with

which we have close cooperation in this work include;

ABB AB, Rinas ApS, and Visual Components Oy.

The respective developer teams behind the soft-

ware tools we are using also deserve to be acknowl-

edged: Prot´eg´e, Jess, and JastAdd.

REFERENCES

Ammicht, E., Fosler-Lussier, E., and Potamianos, A.

(2007). Information seeking spoken dialogue systems

part I: Semantics and pragmatics. IEEE Transactions

on Multimedia, 9(3):532–549.

Antoniou, G. and van Harlmelen, F. (2004). A semantic web

primer. The MIT Press.

Bersot, O., Guedj, P.-O. E., God´ereaux, C., and Nugues,

P. (1998). A conversational agent to help navigation

and collaboration in virtual worlds. Virtual Reality,

3(1):71–82.

Buitelaar, P. (2007). On the role of natural language pro-

cessing in a data-driven approach to the ontology

life-cycle. Keynote talk at TALN, Toulouse, France

(http://olp.dfki.de/ontoselect/).

Friedman-Hill, E. (2007). Jess, the rule engine for the Java

platform. http://herzberg.ca.sandia.gov/, site accessed

December 2007.

God´ereaux, C., Guedj, P.-O. E., Revolta, F., and Nugues, P.

(1998). Virtual Worlds on the Internet, chapter Ulysse:

An interactive, spoken dialogue interface to navigate

in virtual worlds. Lexical, syntactic, and semantic is-

sues, pages 53–70, 308– 312. IEEE Computer Society

Press, Los Alamitos, California.

Haegele, M. (2007). White paper on trends and challenges

in industrial automation.

JastAdd (2007). The JastAdd Compiler-Compiler System.

http://jastadd.cs.lth.se, site accessed December 2007.

Malec, J., Nilsson, A., Nilsson, K., and Nowaczyk, S.

(2007). Knowledge-Based Reconﬁguration of Au-

tomation Systems. In Proceedings of IEEE CASE,

pages 170–175. IEEE.

McGuinness, D. L. and van Harmelen, F. (2007). OWL

web ontology language. http://www.w3.org/TR/owl-

features/, site accessed December 2007.

Potamianos, A., Fosler-Lussier, E., Ammicht, E., and Per-

akakis, M. (2007). Information seeking spoken di-

alogue systems part II: Multimodal dialogue. IEEE

Transactions on Multimedia, 9(3):550–566.

Prot´eg´e (2007). The Prot´eg´e ontology editor and knowl-

edge acquisition system. http://protege.stanford.edu,

site accessed December 2007.

RDF (2007). Resource description framework.

http://www.w3.org/RDF/, site accessed Decem-

ber 2007.

RDFS (2007). RDF schemas. http://www.w3.org/TR/rdf-

schema/, site accessed December 2007.

SIARAS (2007). Skill-based inspection and assembly for

reconﬁgurable automation systems.

SMErobot (2007a). The European robot initiative for

strengthening the competitiveness of SMEs in man-

ufacturing.

SMErobot (2007b). Preliminary description of concepts for

high-level programming methods. Technical Report

Deliverable DR2.6. Deliv.

SPARQL (2007). SPARQL protocol and RDF query lan-

guage. http://www.w3.org/TR/rdf-sparql-query/, site

accessed December 2007.

SWRL (2007). SWRL: A semantic web

rule language combining owl and ruleml.

http://www.w3.org/Submission/SWRL/, site ac-

cessed December 2007.

VoiceXML (2007). Voice extensible

markup language (VoiceXML) 2.1.

http://www.w3.org/TR/voicexml21/, site accessed

December 2007.

Wielemaker, J., Hildebrand, M., and van Ossenbruggen,

J. (2007). Using Prolog as the fundament for ap-

plications on the semantic web. In Proceedings of

the ICLP’07 Workshop on Applications of Logic Pro-

gramming to the Web (ALPSWS-2007), Porto, Portu-

gal.

XSLT (2007). XSL transformations (XSLT) version 2.0.

http://www.w3.org/TR/xslt20/, site accessed Decem-

ber 2007.

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

270
