A WAIT-FREE REALTIME SYSTEM FOR OPTIMAL

DISTRIBUTION OF VISION TASKS ON MULTICORE

ARCHITECTURES

Thomas M

uller, Pujan Ziaie and Alois Knoll

Robotics and Embedded Systems Group, Technische Universt

at M

unchen

Boltzmannstr. 3, 85748 Garching, Germany

Keywords:

Robot Vision, Multithreaded Realtime System, Asynchronous Data Management, Interpretation-Based Prese-

lection, Optimal-Backoff Scheduling.

Abstract:

As multicore PCs begin to get the standard, it becomes increasingly important to utilize these resources. Thus

we present a multithreaded realtime vision system, which distributes tasks to given resources on a single off-

the-shelf multicore PC, applying an optimal-backoff scheduling strategy. Making use of an asynchronous

data management mechanism, the system also shows non-blocking and wait-free behaviour, while data access

itself is randomized, but weighted. Furthermore, we introduce the top-down concept of Interpretation-Based

Preselection in order to enhance data retrieval and a tracking based data storage optimization.

On the performance side we prove that functional decomposition and discrete data partitioning result in an

almost linear speed-up due to excellent load balancing with concurrent function- and data-domain paralleliza-

tion.

1 INTRODUCTION

The multicore integration of off-the-shelf PCs is

clearly observable with recent hardware development.

Correlated to this, algorithms have to be developed

that exploit parallel resources and generate the ex-

pected proportional speed-up with the number of

cores. A computer vision (CV) system is a perfect

prove of the algorithmic concept we present in this

paper, because it requires high computational effort

and realtime performance. The vision system is part

of the JAST (“Joint Action Science and Technology”)

human-robot dialog system. The overall goal of the

JAST project is to investigate the cognitive and com-

municative aspects of jointly-acting agents, both hu-

man and artiﬁcial (Rickert et al., 2007).

Vision processing in the JAST system (Figure 1)

is performed on the output of a single camera, which

is installed directly above the table looking downward

to take images of the scene. The camera provides an

image stream of 7 frames per second at a resolution

of 1024 × 768 pixels. The output of the vision pro-

cess (recognized objects, gestures, and parts of the

robot) has to be sent to a multimodal fusion compo-

nent, where it is combined with spoken input from

the user to produce combined hypotheses represent-

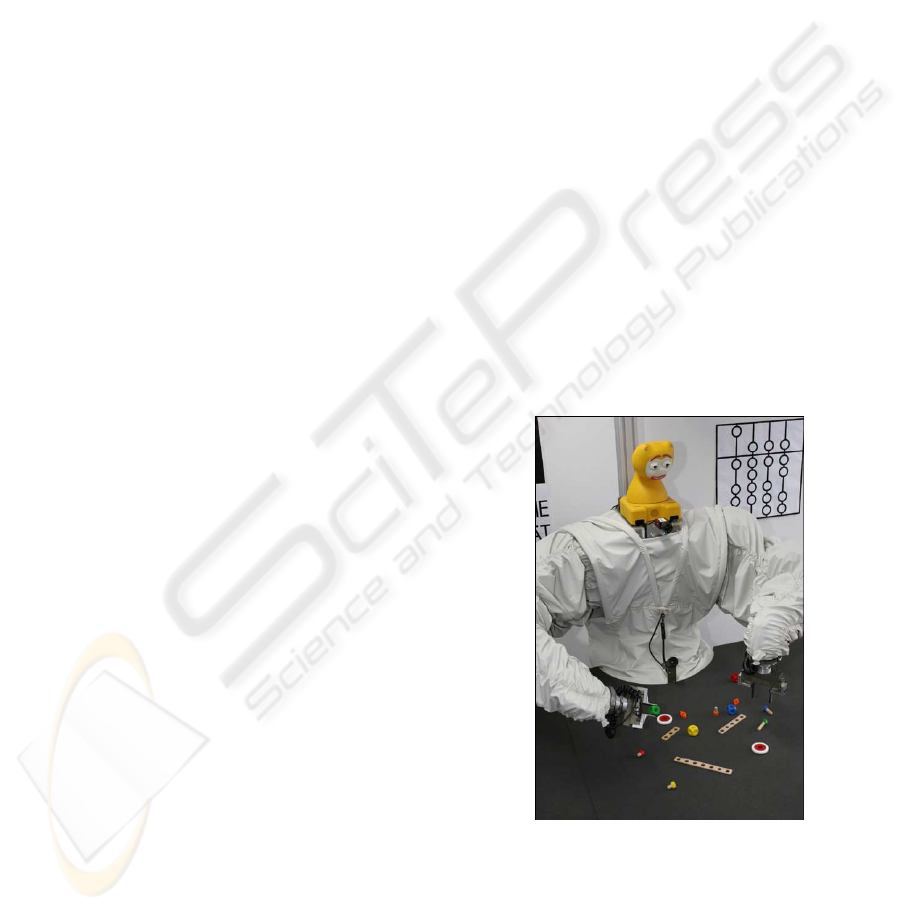

Figure 1: The JAST human-robot interaction system.

ing the user’s requests.

According to our research ﬁeld of interest, the

vision system is required to publish object, gesture,

and robot recognition results simultaneously and in

realtime, although continuous realtime result com-

putation is not feasible. Therefore the JAST vision

301

Müller T., Ziaie P. and Knoll A. (2008).

A WAIT-FREE REALTIME SYSTEM FOR OPTIMAL DISTRIBUTION OF VISION TASKS ON MULTICORE ARCHITECTURES.

In Proceedings of the Fifth International Conference on Informatics in Control, Automation and Robotics - RA, pages 301-306

DOI: 10.5220/0001505403010306

 SciTePress

setup is well suited for investigations on paralleliza-

tion techniques and data ﬂow coordination.We pro-

pose a multithreaded vision system based on a high

level of abstraction from hardware, operating system,

and even lower level vision tasks like morphological

operations.This minimizes the overhead for commu-

nicational tasks, as the amount of data transferred de-

creases in an abstract representation. Furthermore,

the scalability of the system with integration of mul-

tiple cores can be examined soundly by connecting

different machines to the JAST system, each running

a copy of the vision system (details in Section 4).

2 PARALLEL COMPUTATION

On an abstract level two major parallelization scenar-

ios may be identiﬁed: distribution of processing tasks

on multiple machines on one side and distribution of

tasks on a single machine with multiple processors

and / or cores on the other.

Many approaches employing the distributed sce-

nario have been proposed, see (Choudhary and Patel,

1990) for an overview regarding CV or (Wallace et al.,

1998) for a concrete implementation. However, with

recent development in integration of multiple cores

the latter scenario also becomes more relevant. Thus

there is increasing demand for algorithms fully ex-

ploiting parallel resources on a single PC. This is es-

pecially the case, where computational power easily

reaches the limits – e.g. in computer vision.

2.1 Communication

In parallel environments one can generally apply ei-

ther synchronous or asynchronous communication

strategies for data exchange between processes or

threads. Though being robust, due to its blocking

nature a synchronous approach can cause problems

especially for realtime systems where immediate re-

sponses have to be guaranteed. For this case asyn-

chronous non-blocking communication mechanisms

(ACM) have been proposed. With ACMs informa-

tion is dropped when capacities exceed – which is ac-

ceptable as long as the system does not block. Non-

blocking algorithms can be distinguished into being

lock-free and wait-free (Sundell and Tsigas, 2003).

Lock-free implementations guarantee at least one pro-

cess to continue at any time (with the risk of starva-

tion). Wait-free implementations avoid starvation as

they guarantee completion of a task in a limited num-

ber of steps (Herlihy, 1991).

According to (Simpson, 2003), ACMs can be clas-

siﬁed based on the destructiveness of data access. The

classiﬁcation of ACM protocols by (Yakovlev et al.,

2001) distinguishes data access with respect to their

overwriting and re-reading permission. One can ﬁnd

manifold implementations of ACMs regarding each

of these classiﬁcation schemes. Some common im-

plementations, e.g. from (Sundell and Tsigas, 2003)

use lock-free priority queues or employ FIFO-buffers

(Matsuda et al., 2004).

2.2 Parallelization Techniques

According to (Culler et al., 1999) we have to distin-

guish parallelization techniques by means of data-

domain or function-domain. With function-domain

parallelization the overall computation process is di-

vided into stages and each thread works on a sepa-

rate stage. In contrast to this, with data-domain par-

allelization data is partitioned and each partition re-

quires the same computation performed by equally

designed threads (Chen et al., 2007). This distinction

may be correct and worthy for low level vision tasks

like edge detection, but this paper will show, that on

a higher level a carefully modeled CV system does

not require this distinction. Moreover a combined ap-

proach can be derived and, on the basis of an asyn-

chronous data management, a system implementing

both aspects can perform very well in practice.

Aiming this goal, we ﬁrst have to deliberately de-

sign anchor points for distributed computation. Also,

the level of abstraction considering computational

tasks matters in terms of parallelization. In order

to avoid unnecessary overhead regarding communica-

tion and take full advantage of the multicore environ-

ment, we decided to model concurrent computation

on a high level of abstraction. Therefore, we do not

intend to parallelize primitive control-structures – like

for-loops – speciﬁc to a programming language. In-

stead we try to identify major and subsequently minor

tasks of computation (see Fiture 2).

For function-domain parallelization we assume,

that the division into well-deﬁned functional submod-

ules is feasible. In the processing layer of the pro-

posed CV system this is obviously the case, as we can

identify three major functional stages: Preprocess-

ing, Analysis and Interpretation and Postprocessing.

Further reﬁnement divides these stages into subtasks.

Modules implementing a task independently pick a

data partition (also called data item below), analyze it

and write it back. In case new items are created within

the analysis, these are also stored in the corresponding

data management queue (see Section 3).

As the recognition process is decomposable in

the function-domain, we now have to achieve data-

domain parallelization in order to prove our claim.

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

302

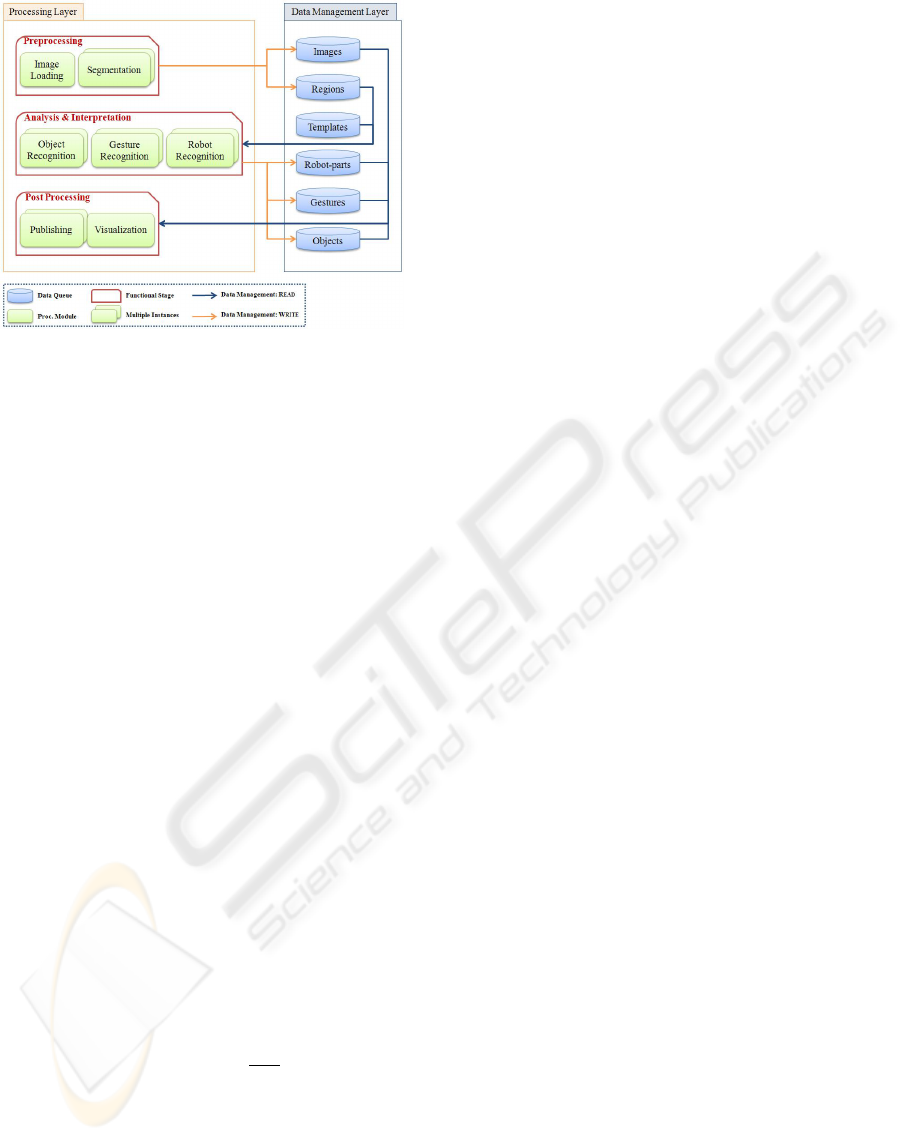

Figure 2: Architectural overview.

Hence we have to specify the functional tasks accord-

ing to the need of multiple instantiation of the pro-

cessing modules. We therefore derive the following

approach from the non-blocking paradigm of ACMs:

as we want to publish cyclicly in realtime, we rather

publish incomplete analysis results of a scene than

waiting for a complete analysis that would block the

system meanwhile. This allows multiple concurrent

module instances for the analysis of data items as long

as the data management is implemented threadsafe

(see Section 3). According to (Chen et al., 2007) we

are thus able to implement data-domain paralleliza-

tion, which is the second part of our claim.

2.3 Scheduling

There is one catch in such an implementation of the

ACM: we risk that a module requests certain data

from the data management, which is not available at

the moment. In this case the data management deliv-

ers a NULL-data item, so modules have to deal with

these items as well.

Therefore we propose an algorithm which, when-

ever a NULL-item is received, tries to suspend module

instances for an optimal amount of time, until a cor-

rect data item is expected to be delivered again. An

incremental back-off time b(c) may be calculated as

follows:

b(c) = min



c ·i,



a · j



(1)

In (1) the parameter c denotes the counter for the

number of tries since the last correct data item has

been received by the module, i denotes the predeﬁned

back-off increment in milliseconds, a is the maximum

age of a data item until it is deleted, j the number of

module instances operating on the same task and n

the current number of items matching the request. If

a NULL-data item is retrieved, c is incremented and

the module is immediately suspended for a time b(c)

again. In case a correct item could be delivered, c is

reset to 0 and the item is processed.

The back-off strategy tries to optimally calculate

suspension periods for instances not needed at the

moment, but at the same time to provide an instance

whenever needed. The ﬁrst argument of min calcu-

lates an incremental amount of time for the module in-

stance to sleep and the second argument represents the

expected mean time until the next correct data item

can be delivered. This value is then used as the maxi-

mum amount of time to suspend a module instance.

3 DATA MANAGEMENT

Implementing an adequate data access strategy for

concurrent requests is crucial for the proposed sys-

tem. The strategy has to ensure integrity and consis-

tency of data and as well provide error management

policies. One also has to consider priorization when-

ever a module requests to write while another simul-

taneously wants to read data from or write data to the

storage. Another important point is the deletion of

data items when they expire.

Considering modularity, we organize data access

in a data management layer (right part of Figure 2).

A natural approach for the implementation is based

on the Singleton design pattern (Gamma et al., 1998).

Singleton implementations only provide a single in-

stance of an object to the overall system, so in our case

any request from an analysis module must call the sin-

gle instance of the data management (DM). Here, de-

rived from common standards (Message Passing In-

terface Forum, 1995), data items are managed in

limited-size priority-queues.

Error handling in the DM layer can be imple-

mented straight forward, as the layer simply delivers

NULL-data items whenever an erroneous request was

received, a queue was empty or no suitable data item

could be found. The error handling approach utilizing

NULL-data items is wait-free, because it completes in

a limited number of steps.

Organizing the single instance in a threadsafe

manner concerning read and write accesses ensures

integrity and consistency. In order to achieve this, the

DM module is organized as a bundle of queues, each

queue for a different type of data item (see Figure 2).

3.1 Data Access

Threadsafe concurrent data access is realized by en-

capsulating synchronization. Concerning ACMs, the

A WAIT-FREE REALTIME SYSTEM FOR OPTIMAL DISTRIBUTION OF VISION TASKS ON MULTICORE

ARCHITECTURES

303

CV system proposed here implements a Pool-ACM in

either classiﬁcation scheme mentioned in Section 2.1.

Regarding the Simpson classiﬁcation, as we do have

non-destructive read operations, but write operations

include deletion of items, and respectively regarding

the Yakovlev classiﬁcation, as we allow overwriting

in a write operation and do not delete items when

reading them from the storage.

Concretely, an instance of a processing module

sends a request for storage or retrieval of a data item

of a certain kind by calling one of the DM operations

provided to the processing layer:

write<Queue>(Item):void

read<Queue>():Item

The retrieval strategy selects a data item to deliver

according to the evaluation of a stochastical func-

tion. The function is based on the asumption that

a data item (re-)detected in the near past must be

prioritized to one that last occured many cycles ago

– as it may have already disappeared or removed.

Since each item in a queue Q has a timestamp, we

weigh the items i ∈ Q according to their age a

now − timestamp(i) such that the weight increases,

the younger items are:

∀i ∈ Q : w

= 1 −

maxage

(2)

A new queue of pointers to data items from the orig-

inal queue is built afterwards. The new queue, on

which the actual retrieval operation is performed, is

ﬁlled with at least one pointer to each data item. In

fact, according to the weight w

of an item i, a number

of duplicates d

of each pointer is pushed to the queue:

∀i ∈ Q : d

argmin

j∈Q

)

· w

(3)

Subsequently the random selection on the pointer

queue is performed where more recent items are pri-

oritized automatically as more pointers to the corre-

sponding data-items exist.

3.2 Locking

Before applying the weight to the items of a queue,

we have to exclude elements that match the precondi-

tion described below. As an item cannot be altered by

two processing modules concurrently, we introduce a

locking-mechanism for items. Nevertheless the “non-

blocking” nature of data access can still be guaranteed

due to the error handling approach described earlier.

Before a data item is delivered to the processing layer,

the state of the item is changed to locked. Locked

items are not allowed to be delivered to any other in-

stance and so are excluded from the weighting step.

Releasing the lock is in responsibility of the module

processing the item.

Another important problem to discuss is the be-

haviour of the system in case of concurrent WRITE or

READ operations concering a speciﬁc queue. Con-

current READ operations are allowed at any time,

but in case a WRITE operation is requested all re-

trieval requests and concurrent WRITE requests must

be blocked meanwhile. Therefore the system has to

implement a mechanism utilizing cascaded mutual

exclusions.

Again a single operation may be blocked, but the

overall system is not. If a mutex can not be aquired

at the moment, in case of a READ operation a NULL-

item is delivered and in case of a WRITE operation no

operation is executed. This behaviour is conform to

the deﬁnition of an asynchronous non-blocking algo-

rithm, as it is wait-free.

3.3 Enhancements

In order to enhance performance of READ operations,

we introduce the concept of Interpretation-Based Pre-

selection. We assume that certain data items are not

relevant for dedicated tasks. For example a gesture-

recognition module could only be interested in a re-

gion, that enters the scene from the bottom (Ziaie

et al., 2008) or a visualization module might only dis-

play objects from within the last 100ms, but skipping

gestures totally.

In order to completely leave the relevance deci-

sion to the processing modules, we propose a mecha-

nism evaluating a predicate, that is passed within the

request. According to the predicate the exlusion step

before weighting a queue’s items is adapted: now not

only locked, but also items that do not match the pred-

icate are removed. Thus the search space for retrieval

can be restricted, but the non-deterministic selection

algorithm can still be applied. We now extend the

trivial retrieval deﬁnition from Section 3.1 to the fol-

lowing:

read<Queue>(Predicate):Item

Predicate is a non-empty binary predicate that

evaluates to True or False on each data item of

the speciﬁed queue. Processing modules are al-

lowed to use item attributes for the implementation

of their own predicates. For sophisticated predicate

designs some items provide state attributes for track-

ing or attributes indicating the status of the analysis

(analyzedBy<module>). We call these attributes

Priority Attributes.

An enhancement strategy for WRITE operations

can also be implemented by our data management

module. Considering that data items in a queue are

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

304

timed, it is possible to track them from one cycle

to the following. Therefore we deﬁne a compare-

method that is applied automatically on a storage re-

quest. The method evaluates symbolic or meta at-

tributes like classiﬁcation, color, approximate posi-

tion, number of points or width and height. Whenever

the DM module receives a storage request for a for-

merly recognized item, only neccessary attributes are

updated, all priority attributes (especially the unique

id) instead are kept. For example, considering an item

ﬁxed and fully analyzed, the existing item just gets all

non-priority attributes (such as the timestamp, posi-

tion, etc.) updated, but the updated item is not marked

for analysis again.

4 RESULTS AND CONCLUSIONS

For the evaluation of the system a dual core Intel



,Pentium IV system and a quad core Intel

 ,Xeon

system were utilized. For comparison the hardware

conﬁgurations using a sequential version of the sys-

tem are also shown. We used a sample video with

a resolution of 1024 × 768 and a duration of 30 sec-

onds at a sampling rate of 7 frames per second. The

results refer to the analysis without data maintenance

enhancements and postprocessing switched off.

Performance results shown in the tables below are

only approxmiate values due to high dependency on

the scenes that have to be analyzed. The more objects

exist, and the more complex objects get (in the JAST-

project also object assemblys are to be analyzed) the

longer the analysis takes. In case there are very few

objects or the scene remains static, overall analysis is

possibly performed in realtime. This would be con-

tradicting on of our preconditions from Section 1, so

for our evaluation video we feed the system with dy-

namic input data, like humans continuously moving

objects on the table and the robot picking pieces.

In Table 1 the ﬁrst column describes the hardware

conﬁguration, the second column shows the total sys-

tem load and the third column, the (mean) LOAD RA-

TIO, weighs the core with highest against the core

with the lowest load.

Table 1: Total core utilization.

CONFIGURATION CPU % LOAD RATIO

Dual Core (seq.) 52.12 8.20

Dual Core (parallel) 84.13 1.03

Quad Core (seq.) 27.55 36.32

Quad Core (parallel) 51.63 1.07

The values shown in the table were computed

from 5-10 averaged samples, each taken with mpstat

over a period of ﬁve seconds. For example a mean ra-

tio of 36.32 on the quad core is caused by an average

load of 93.84% on the core with highest load com-

pared to only 2.58% on the core with lowest load. The

total utilization in this conﬁguration clearly shows

that de facto only one core is used for processing

while the others remain idle. In contrast to this, one

can see an almost optimal distribution in the parallel

scenarios with a load ratio of around 1.0.

Table 2 shows the processing performance of the

hardware conﬁgurations described above. Now the

reason for the quad core parallel conﬁguration only

having a total load of 51.63 % becomes clear: there

is simply nothing to do for the machine as the input

video is only sampled at 7 frames per second.

Table 2: Performance of Processing.

CONFIGURATION TIME FREQUENCY

Dual Core (seq.) 228.7s 0.92fps

Dual Core (parallel) 30.0s 3.57fps

Quad Core (seq.) 196.6s 1.07fps

Quad Core (parallel) 30.0s 6.95fps

Processing with the sequential version of the sys-

tem is slightly faster on the quad core compared to

the dual core machine due to internal OpenCV par-

allelization and scheduling of the operating system.

But still it is only capable of processing the video in

≥ 3 minutes. Regarding this, another important prop-

erty of the asynchronous parallel version becomes

clear: processing a 30s-video only takes 30 seconds.

This can be achieved because of the non-blocking be-

haviour. In case computing power exceeds (see sec-

ond row of Table 2) the asynchronous implementation

drops frames, regions and objects from data queues in

order to keep the system from blocking. We ﬁnd that

the system still reaches the desired realtime publish-

ing frequency, but the results published are not com-

plete. In fact we see, that it takes a few cycles until

each region extracted from a frame is analyzed and

results are present.

Normally this does not inﬂuence the result, as

items can be tracked. But in case of quickly moving

objects, it remains as a drawback, because the sim-

ple feature-based tracking method applied in the cur-

rent system often fails to map these objects correctly

in a sequence of frames. Consequently, the system

assumes items having appeared and begins the analy-

sis: the new items are locked (although they are just

duplicates of existing ones) and computing power is

wasted. This problem particularly occures for quick

hand movements. The worst case would be a mov-

ing hand shortly occluding formerly recognized ob-

jects, as both the hand and the objects are probably

A WAIT-FREE REALTIME SYSTEM FOR OPTIMAL DISTRIBUTION OF VISION TASKS ON MULTICORE

ARCHITECTURES

305

lost and their regions need to be redetected and rean-

alyzed completely.

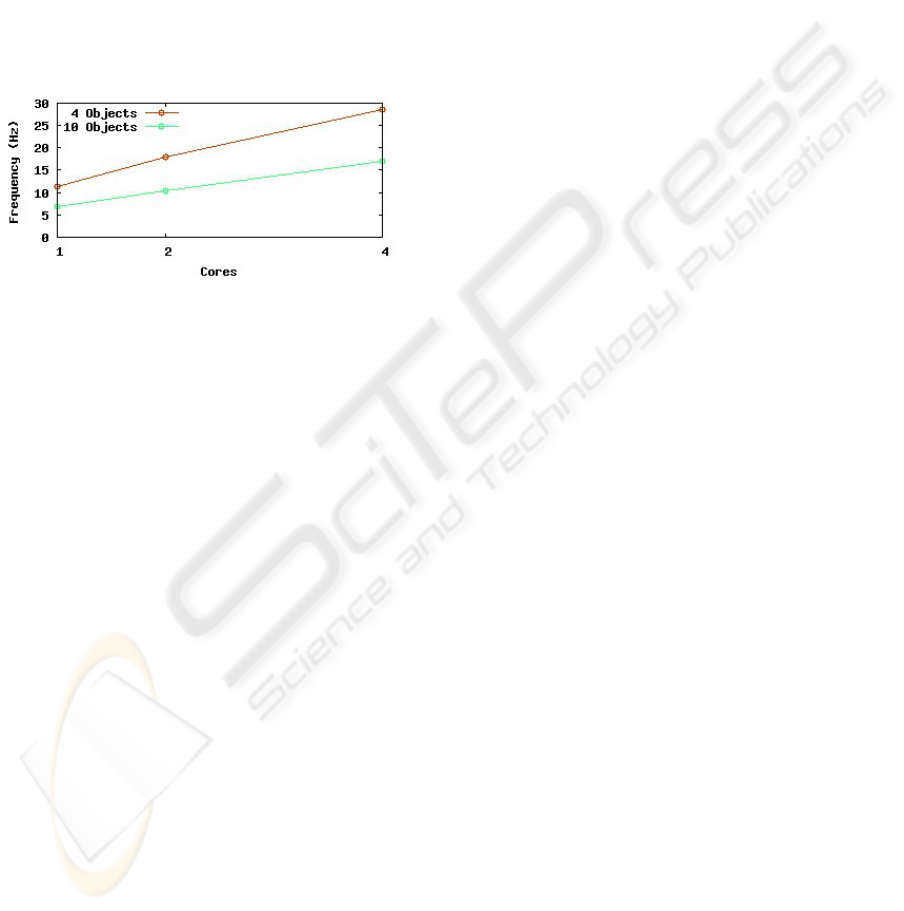

Figure 3 shows a performance estimation for the

analysis frequency in two input scenes. As we expect,

the results show, that parallelizing in the data domain

produces almost linear performance gain with the

number of processors. This can be achieved, because

heavy computing is mainly done within the analy-

sis and interpretation stage, where tasks can be dis-

tributed very well. In Figure 3 the measuring points

for one core are inferred from performance of sequen-

tial version, as we have seen in Table 1 that only one

core is used there.

Figure 3: System performance with data domain paral-

lelization.

Still to mention is that with the data manage-

ment enhancement from Section 3.3 the performance

even in a sequential version of the system improves

up to 25 Hz as long as the extracted regions can be

tracked. When the scene changes, computational ef-

fort is needed, so the performance decreases. Here

the advantage of the multithreaded system becomes

clear: due to function domain parallelization and non-

blocking behaviour the system still publishes in real-

time, although the results may be incomplete.

A further factor inﬂuencing the system perfor-

mance is the system conﬁguration. The vision sys-

tem conﬁguration can be customized via an XML ﬁle.

Here one can specify the number of module instances.

This corresponds to a priorization within the data do-

main: one could for example start a larger number

of objectrecognition modules while on the other hand

just starting one or two gesturerecognition modules.

Due to the scheduling strategy of the operating sys-

tem, the objectrecognition would be prioritized in this

case.

ACKNOWLEDGEMENTS

This research was supported by the EU project JAST

(FP6-003747-IP), http://www.euprojects-jast.net/.

REFERENCES

Chen, T. P., Budnikov, D., Hughes, C. J., and Chen, Y.-

K. (2007). Computer vision on multi-core processors:

Articulated body tracking. pages 1862–1865. Intel

Corporation, IEEE ICME.

Choudhary, A. N. and Patel, J. H. (1990). Parallel Archi-

tectures and Algorithms for Integrated Vision Systems.

Kluwer.

Culler, D. E., Singh, J. P., and Gupta, A. (1999). Paral-

lel Computer Architecture: A Hardware/Software Ap-

proach. Morgan Kaufmann Publishers.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J.

(1998). Design Patterns: Elements of Reusable

Object-Orientated Software. Addison-Wesley Profes-

sional Computing Series.

Herlihy, M. (1991). Wait-free synchronization. ACM

Transactions on Programming Languages and Sys-

tems (TOPLAS), 13(1):124–149.

Matsuda, M., Kudoh, T., Tazuka, H., and Ishikawa, Y.

(2004). The design and implementation of an asyn-

chronous communication mechanism for the mpi

communication model. pages 13–22. IEEE ICCC.

Message Passing Interface Forum (1995). MPI, A Message-

Passing Interface Standard. Technical report, Univer-

sity of Tennessee, Knoxville, Tennessee.

Rickert, M., Foster, M. E., Giuliani, M., By, T., Panin, G.,

and Knoll, A. (2007). Integrating language, vision,

and action for human robot dialog systems. Proc.

ICMI.

Simpson, H. R. (2003). Protocols for process interac-

tion. volume 150, pages 157–182. IEE Proceedings

on Computers and Digital Techniques.

Sundell, H. and Tsigas, P. (2003). Fast and lock-free con-

current priority queues for multi-thread systems. Int.

Parallel and Distributed Proc. Symp.

Wallace, A. M., Michaelson, G. J., Scaife, N., and Austin,

W. J. (1998). A dual source, parallel architecture

for computer vision. The Journal of Supercomputing,

12(1-2):37–56.

Yakovlev, A., Xia, F., and Shang, D. (2001). Synthe-

sis and implementation of a signal-type asynchronous

data communication mechanism. pages 127–136. Int.

Symp. on Advanced Research in Async. Circuits and

Systems.

Ziaie, P., M

uller, T., Foster, M. E., and Knoll, A. (2008).

A na

ıve bayes classiﬁer with distance weighting for

hand-gesture recognition. CSICC.

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

306
