(A) VISION FOR 2050

The Road Towards Image Understanding for a Human-Robot Soccer Match

Udo Frese

Deutsches Forschungszentrum f¨ur K¨unstliche Intelligenz (DFKI), 28359 Bremen, Germany

Tim Laue

SFB/TR 8 Spatial Cognition, Faculty 3 - Mathematics and Computer Science, Universit¨at Bremen, 28359 Bremen, Germany

Keywords:

Vision, Recognition, Image Processing, State Estimation, Sensor Fusion, Robot Soccer, Sport Robotics.

Abstract:

We believe it is possible to create the visual subsystem needed for the RoboCup 2050 challenge – a soccer

match between humans and robots – within the next decade. In this position paper, we argue, that the basic

techniques are available, but the main challenge will be to achieve the necessary robustness. We propose to

address this challenge through the use of probabilistically modeled context, so for instance a visually indistinct

circle is accepted as the ball, if it ﬁts well with the ball’s motion model and vice versa.

Our vision is accompanied by a sequence of (partially already conducted) experiments for its veriﬁcation. In

these experiments, a human soccer player carries a helmet with a camera and an inertial sensor and the vision

system has to extract all information from that data, a humanoid robot would need to take the human’s place.

1 INTRODUCTION

Soon after establishing the RoboCup competition in

1997, the RoboCup Federation proclaimed an ambi-

tious long term goal.

“By mid-21st century, a team of fully au-

tonomoushumanoidrobot soccer players shall

win the soccer game, comply with the ofﬁ-

cial rule of the FIFA, against the winner of the

most recent World Cup.”

Kitano and Asada (1998)

Currently, RoboCup competitions take place ev-

ery year. Within a deﬁned set of different sub-

competitions and leagues, incremental steps towards

this big goal are made (RoboCup Federation, 2008).

Although, a rapid and remarkable progress has been

observed during the ﬁrst decade of these robot com-

petitions, it is not obvious, if and how the ﬁnal goal

will be reached. There exist rough roadmaps, e.g. by

Burkhard et al. (2002), but in many research areas,

huge gaps must be bridged within the next 40 years.

While this is obvious for several areas, e.g. actu-

ator design and control, we claim that the situation is

surprisingly positive for vision:

Within the next decade, it will be possible to

develop a vision system that is able to pro-

vide all environmental information necessary

to play soccer on a human level.

Annual RoboCup competitions are always bound to

strict rule sets (deﬁned for the state of the art of

the competing robots) and demand competitive robot

teams. Thus only incremental progress adapting to

actual rule changes (which continuously rise the level

of complexity) is fostered. By developing the afore-

mentioned vision system independently of these com-

petitions, we hope to set a new landmark which could

guide the incremental development.

Because a real human level soccer robot will not

be available for a long time, our vision is accompa-

nied by a (partially already conducted) set of experi-

ments that verify our claim without needing a robot.

This paper is organized as follows: Section 2

roughly identiﬁes the challenges for playing robot

soccer and compares them to the state of the art in

robotics. In Sect. 3 we explain, why the basic tech-

niques for the vision system are available. We argue,

why the remaining challenge is robustness, for which

we present our idea of a solution in Sect. 4. Finally,

a sequence of experiments to verify our claim is de-

scribed in Sect. 5.

317

Frese U. and Laue T. (2008).

(A) VISION FOR 2050 - The Road Towards Image Understanding for a Human-Robot Soccer Match.

In Proceedings of the Fifth International Conference on Informatics in Control, Automation and Robotics - RA, pages 317-322

DOI: 10.5220/0001506803170322

 SciTePress

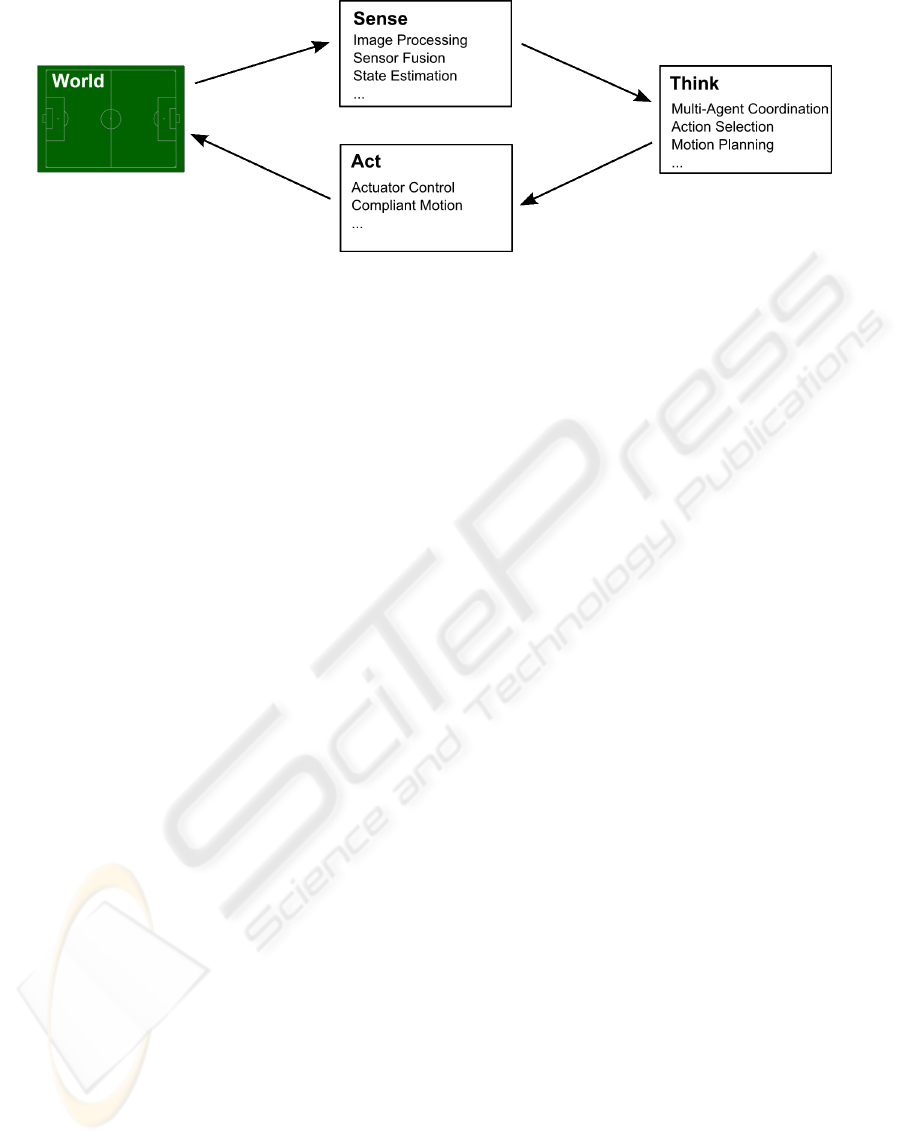

Figure 1: The Sense-Think-Act cycle roughly depicting major tasks for playing soccer with a humanoid robot.

2 CHALLENGES FOR PLAYING

SOCCER

The global task of playing soccer consists of several

different, interdepending challenges. We roughly cat-

egorize them according to the Sense-Think-Act cy-

cle (see Fig.1). This should be considered as a possi-

ble architecture for illustration. In the following, the

challenges are described in reverted order but with de-

creasing degree of difﬁculty.

2.1 Challenges for Actuation

The hugest obvious gap may be observed in the ﬁeld

of actuation. Nowadays, the probably most advanced

humanoid robot, Honda’s ASIMO, is capable of run-

ning at a top speed of six kilometers per hour (Honda

Worldwide Site, 2007). This is an impressive result,

but still more than ﬁve times slower than the top speed

of a human soccer player. A similar gap regarding

kicking velocity has been pointed out by Haddadin

et al. (2007). They showed that a state-of-the-art

robot arm (with a conﬁguration comparable to a hu-

man leg) is six times slower than required to acceler-

ate a standard soccer ball to an adequate velocity. It is

still an open issue, whether today’s motor technology

could be developed further on enough, or if more efﬁ-

cient actuators, e.g. artiﬁcial muscles, will be needed.

Since soccer is a contact sport leading to physical

human-robot interaction (Haddadin et al., 2007), not

only direct position control but also approaches for

compliant motion, such as impedence control, need

to be taken into account.

Additionally, the problems of energy efﬁcency

and power supply need to be solved. The ASIMO

robot for example is, according to Honda Worldwide

Site (2007), capable of walking (with a speed of less

than three kilometers per hour) for 40 minutes.

2.2 Challenges for Thinking

In this area, two different aspects may be distin-

guished: motion planning and high-level multi-agent

coordination. The latter is a research topic in the

RoboCup Soccer Simulation League since a while

and has reached a remarkable level. Dealing with

the offside rule as well as playing one-two passes are

standard behaviors, complex group tasks as playing

keepaway soccer serve as a testbed for learning algo-

rithms (Stone et al., 2005). This area could be consid-

ered to be already quite close to human capabilities.

On the other hand, when playing with real hu-

manoid robots, sophisticated methods for motion

planning are needed. The current research frontier on

humanoid motion control is balancing and dynamic

foot placement for walking robots. Algorithms for

full-body motion planning exist (Kuffner et al., 2002),

but are subject to restrictions that make them inappli-

cable to tasks as playing soccer.

Here is a big gap to human level soccer. As an

example consider volley-kicking. The player has to

hit the ball exactly at the right time, position, and ve-

locity, with a motion compatible to the step pattern,

allowing balancing and considering opponents. Last

but not least, all this must happen in real-time.

2.3 Challenges for Sensing

According to Kitano and Asada (1998), it is evident

that the robots’ sensorial capabilities should resemble

the human ones. Thus, we could assume to deal with

data from cameras and inertial sensors emulating the

human eyes and vestibular system. The required in-

formation are estimates of the own position and the

positions of the ball and of other players. In case of

tackles or dribbling, the latter will be needed to be

recognized in more detail (e.g. the positions of the

feet and limbs).

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

318

Current solutions for these tasks and our idea how

to bridge the remaining gap are presented in the fol-

lowing section.

3 THE VISION SYSTEM

Our main thesis is that the “sense” part of the

RoboCup 2050 challenge can be realized within a

decade starting from the current state of the art in

computer vision. This is remarkable, since the “act”

and “think” parts are apparently lightyears away from

reaching human level performance and for computer

vision in general, this is also true. The reason, why we

believe such a vision system can be realized, is, that

unlike a household robot for instance, a soccer robot

faces a rather structured environment.

3.1 State of the Art

The objects relevant in a soccer match are the ball,

the goals, the line markings and of course the players.

Ball, goal and line markings are geometrical features,

i.e. circles and lines. There is a large number of algo-

rithms for detecting them in images, from the classi-

cal Hough transform (Davies, 2004) up to a range of

more elaborate methods (Guru and Shekar, 2004).

Recognizing other players is more challenging. It

is particularly difﬁcult because we will probably need

not only the general position but the detailed state

of motion for close range tackling and to infer the

player’s action for tactical purposes. Fortunately, peo-

ple tracking is an important topic in computer vision

with a large body of literature (Price, 2008; Ramanan

and Forsyth, 2003).

Furthermore, soccer scenes are lightly colored

with green lawn and the players wearing colored

clothes of high contrast. In the RoboCup competition,

this idea is taken to an extreme, where most teams

rely on color segmentation on a pixel-per-pixel basis

as their primary vision engine. This will not be pos-

sible for real-world soccer, mainly due to changing

lighting conditions. Still color can provide a valuable

additional cue, at least when looking below the hori-

zon, where objects are in front of green lawn.

The background above the horizon, including the

stadium and the audience is of course also visible and

unfortunately rather undeﬁned. However, if it is rele-

vant for the soccer robot at all, then not for recogni-

tion, but only in the sense of a general landmark. For

this purpose there are nowadays well working tech-

niques, such as the Scale Invariant Feature Transform

(SIFT) (Lowe, 2004).

Overall, understanding a soccer scene from the

player’s perspective seems much easier then for in-

stance understanding an arbitrary household, trafﬁc

or outdoor scene. Indeed there are already half-

automatic systems in the related area of TV soccer

scene analysis, for example the ASPOGAMO system

by Beetz et al. (2006, 2007) prooﬁng that soccer scene

understanding in general is on the edge of being func-

tional.

3.2 Open Problems

So, is a vision system for the RoboCup 2050 chal-

lenge an easy task? We believe it is not. It is sur-

prisingly a realistic task but well beyond the current

state of the art. The ﬁrst problem is, that the camera is

moving along with the head of the humanoid soccer

robot. To predict a ﬂying ball, the orientation of the

camera must be known very precisely. It seems un-

realistic that the necessary precision can be obtained

from the robot’s forward kinematic, since unlike an

industrial robot, a humanoid robot is not ﬁxed to the

ground. So our solution is to integrate an inertial

sensor with the camera and fuse the complementary

measurements of both sensors in a probabilistic least-

square framework.

The second problem is the player’s perspective. It

is much more difﬁcult than the overview perspective

used in TV soccer scene analysis. In the TV perspec-

tive the scale of an object in the image varies by a

factor of about 3 (Beetz et al., 2006, Fig. 5) whereas

in the player’s perspective it can vary by a factor of

250 assuming the distance to an object ranging from

0.5m to 125m. Hence, for instance the people de-

tection algorithm must handle both extreme cases, a

person only the size of a few pixels, where an arm

or a leg maybe thinner than a single pixel and a per-

son much larger than the camera’s ﬁeld of view, only

partially visible. Furthermore, in an image from the

player’s perspective, other players will extend beyond

the green lawn of the ﬁeld into the general back-

ground. Hence it is not possible to search for non-

green blobs as an easy ﬁrst processing step. This can

also happen for a ﬂying ball, which is then particu-

larly difﬁcult to detect.

However, the third and most severe problem is,

that from our experience, most of the academic com-

puter vision systems perform on the level of lab

demonstrators requiring nicely setup scenes and light-

ing conditions and usually considerable parameter

tweaking. So, to summarize, for the vision part of the

RoboCup 2050 challenge, we do not need a new level

of functionality as for many other grand challenges,

but we need a new level of robustness.

(A) VISION FOR 2050 - The Road Towards Image Understanding for a Human-Robot Soccer Match

319

4 ROBUSTNESS THROUGH

CONTEXT

We propose to address the question of robustness by

utilizing probabilistically modeled context informa-

tion, formulating the overall scene understanding and

prediction problem as a global likelihood optimiza-

tion task. This idea in general is not entirely new (Ull-

man, 1995; Binnig, 2004; Leibe et al., 2007), but we

believe it is particularly well suited to this task and

also the task is well suited to study this methodology.

4.1 Data-Driven Bottom-Up Processing

Most current vision systems use a data-drivenbottom-

up approach (Frese et al., 2001; R¨ofer et al., 2005;

Beetz et al., 2007, as examples). Usually, low level

features are extracted from the image and then aggre-

gated through several stages to high level information.

Each stage may incorporate some background know-

ledge at its particular level but does not take informa-

tion from higher levels into account. It simply takes

some input from the previous lower level and passes

the result of the computation to the next higher level.

As an example, a classical Hough transform starts

by classifying pixels as edge or not by thresholding

the result for instance of a Sobel ﬁlter. Similar the

system by Beetz et al. starts by classifying pixels as

lawn or not on the basis of their color. This is a hard

decision taken on the lowest level without any higher

level knowledge, such as the fact that we are looking

for a ball or the ball’s motion model. Such a pixel-

wise classiﬁcation can be very ambiguous. Often we

could, for instance, classify a borderline pixel cor-

rectly as belonging to the ball, although it looks rather

greenish, if we considered the context of the ball or its

motion model. However, in conventional vision sys-

tems, on the low level this knowledge does not exist

and on the higher level, the fact, that this pixel was

borderline in the classiﬁcation, is lost due to commit-

ting to a hard decision on the lower level.

4.2 Global Likelihood Optimization

We believe, that much of the brittleness of current vi-

sion systems originates from this phenomenon. So

our approach for increased robustness is an overall

likelihood optimization. In the example above, the

variables to be optimized would be the 2D image cir-

cle (center, radius) and the 3D position and velocity

of the ball over time. The likelihood would be the

product of the following likelihoods for all images:

1. a motion model likelihood binding the 3D posi-

tions and velocities over time;

Figure 2: Our proposed experiment: Mount a camera and

an inertial sensor on the head of a human soccer player and

use them to extract all the information, a humanoid soccer

robot would need to take the human’s place.

2. a camera model likelihood binding 2D circles to

3D positions;

3. a circle edge likelihood, indicating how much

contrast there is in the image along the outline of

the hypothesized 2D circle;

4. a circle color likelihood, indicating how well the

color inside the 2D circle corresponds to the ball.

The ﬁrst two factors are Gaussians expressing the

models as formulas with uncertainty (Birbach, 2008).

The last two look directly into the image for a speciﬁc

circle, returning a gradual result. In this approach, an

indistinct ball would get a lower likelihood in 3. and

4. but this could be compensated by 1. and 2. if it ﬁts

well to the context of a ﬂying ball.

The problem is understanding an image sequence,

i.e. estimating over time. Indeed, successive images

are linked by a motion model and this provides most

of the context we want to build upon. However, we

propose not to use incremental ﬁlters, such as EKF

or a particle ﬁlter, but to look back into the raw im-

ages of the last few seconds at least. This approach

has surprising advantages. Imagine the ball is kicked,

but during the ﬁrst 100ms there is too little contrast to

the background so it is not detected. Now when it is

detected, there is new information on where the ball

has been before from the ball’s motion model. The

old images are still in memory and tracking the ball

back in time is much less ambiguous than ﬁnding the

ball without context and will probably succeed. Para-

doxically, once the system has detected the ball it has

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

320

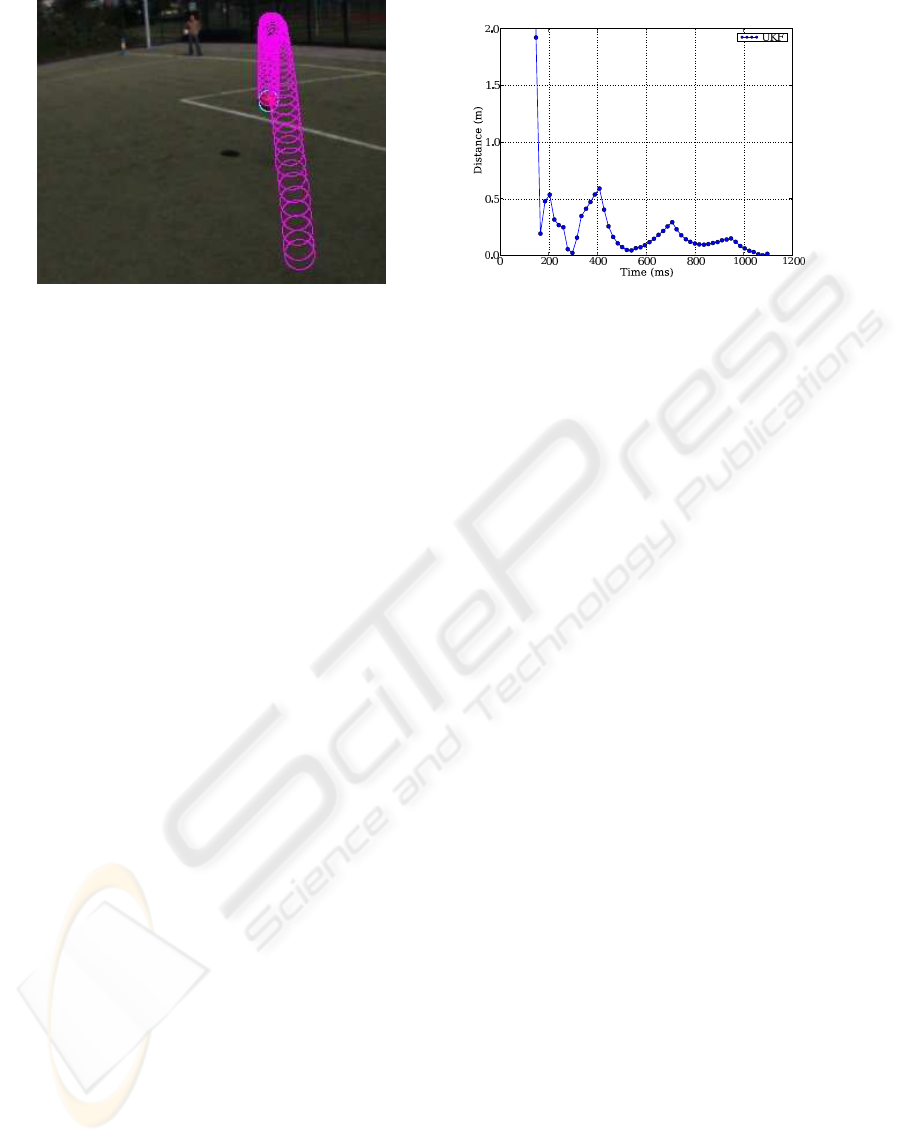

Figure 3: Predicting the trajectory of a ﬂying ball from a moving camera-inertial system. As an initial study, the ball, the lines

and the goal corners have been manually extracted from the images. From this data, the trajectory of the ball is predicted

(left). The right plot shows the error of the predicted touch down point varying over time. It shows, even though the camera

is moving, the prediction is roughly precise enough for interception. See

http://www.sport-robotics.com/icinco/

already observed it for 100ms. The ﬁrst prediction is

not delayed at all, because prior to that the ball must

have been observed for some time anyway.

Overall, we believe that the approach of a global

likelihood optimization directly in the images is an

elegant way to greatly increase robustness.

5 PROPOSED EXPERIMENTS

For a vision to become reality, realistic intermediate

steps are necessary. It would not help, if we build a

vision system now but then had to wait until a hu-

man level soccer robot is available. So we propose

a sequence of experiments, that, without a humanoid

robot, ultimately allows to verify that the proposed

system is appropriate for human level soccer (Fig.2).

5.1 Helmet Camera with Inertial Sensor

The basic idea is to let a human soccer player wear a

helmet with a camera and an inertial sensor and verify,

that the information extracted by the vision system

from the sensor data, would allow a humanoid robot

to take the human’s place.

As a ﬁrst experiment we propose to record data

from a soccer match and run the vision system on that

data ofﬂine. Since it is hard to obtain ground-truth

data, we would use our expert’s judgment to asses,

whether the result would be enough for a humanoid

robot to play soccer. It is very advantageous to work

on recorded data allowing to reproduce results for de-

bugging and analysis and to run the system even if its

still not real-time. Overall, it allows to ﬁrst concen-

trate on functionality and robustness instead of com-

putational efﬁciency and technical integration.

We have already conducted a very ﬁrst experi-

ment (Kurlbaum, 2007; Birbach, 2008), where the

ball and the ﬁeld lines are manually extracted from

the recorded images (available on request). The ball’s

trajectory is predicted by least-square estimation us-

ing the likelihood functions 1. and 2., as well as cor-

responding equations for how the inertial sensor ob-

serves the free motion of the camera (Fig.3). The re-

sults indicate, that if the ball can be detected in the

image with about one pixel precision, the prediction

would be precise enough. We believe that this kind of

studies which deliberately discard essential aspects,

such as integration, real-time computation, or auton-

omy are undervalued by the community who favors

full system approaches. But even from a full system

perspective, it is much more valuable to obtain an ex-

tensive result on a subsystem which then can guide

the full system design than to do another increment

on a full system.

5.2 Motion Capture Suit

Departing from the experiment above, one might ask

whether more sensors are needed than just camera and

inertial. Both human and humanoid robot can derive

their own motion from the joint angles. This provides

the horizontal motion (odometry) and the height over

ground. The horizontal motion facilitates localization

and the height derived from vision is much less pre-

cise. Indeed, we experienced that the uncertain height

is a major part of the error in Fig. 3.

An intriguing idea is to equip the human player

with a tracker-less motion capture suit (Xsens Tech-

nologies B.V., 2007) measuring joint angles. Apart

from providing the kinematic information discussed

above, it also provides the trajectory of both feet. If

(A) VISION FOR 2050 - The Road Towards Image Understanding for a Human-Robot Soccer Match

321

the player hits the ball, one can compare the predicted

ball trajectory with the real foot trajectory and evalu-

ate the precision. This is important since ground truth

is not available.

5.3 Virtual Reality Display

The experiments above have the drawback that they

are evaluated by an expert looking at the vision sys-

tem’s output. The most direct proof that this is all

you need for playing soccer would be to give a hu-

man just that output via a head mounted display and

see whether s/he can play.

The approach is of course fascinating and direct,

but we have some concerns regardingsafety. Anyway,

this experiment becomes relevant only after we are

convinced in principle, that the system is feasible. So

this is something to worry about later.

6 CONCLUSIONS

In this position paper, we have outlined the road to a

vision system for a human-robot soccer match. We

claim that, since soccer is a rather structured environ-

ment, the basic techniques are available and the goal

could be reached within a decade. The main challenge

will be robustness, which we propose to address by

optimizing a global likelihood function working on a

history of raw images. We have outlined a sequence

of experiments to evaluate such a vision system with

data from a camera-inertial system mounted on the

head of a human soccer player.

The reason, we are conﬁdent such a system can

be realized within a decade is the insight that it does

not need general common-sense-reasoning AI. This

is good news for the RoboCup 2050 challenge. But

it suggests that, even when we meet that challenge, it

does not imply we have realized the dream of a think-

ing machine, the whole challenge had started with.

That would not be the ﬁrst time.

REFERENCES

Beetz, M., Gedikli, S., Bandouch, J., Kirchlechner, B.,

v. Hoyningen-Huene, N., and Perzylo, A. (2007). Vi-

sually tracking football games based on tv broadcasts.

IJCAI 2007, Proceedings of the 20th International Joint

Conference on Artiﬁcial Intelligence, Hyderabad, India.

Beetz, M., v. Hoyningen-Huene, N., Bandouch, J., Kirch-

lechner, B., Gedikli, S., and Maldonado, A. (2006).

Camerabased observation of football games for analyz-

ing multiagent activities. In International Conference on

Autonomous Agents.

Binnig, G. (2004). Cellenger automated high content anal-

ysis of biomedical imagery.

Birbach, O. (2008). Accuracy analysis of camera-inertial

sensor based ball trajectory prediction. Master’s thesis,

Universit¨at Bremen, Mathematik und Informatik.

Burkhard, H.-D., Duhaut, D., Fujita, M., Lima, P., Murphy,

R., and Rojas, R. (2002). The Road to RoboCup 2050.

IEEE Robotics and Automation Magazine, 9(2):31–38.

Davies, E. R. (2004). Machine Vision. Theory, Algorithms,

Practicalities. Morgan Kauffmann.

Frese, U., B¨auml, B., Haidacher, S., Schreiber, G., Schae-

fer, I., H¨ahnle, M., and Hirzinger, G. (2001). Off-the-

shelf vision for a robotic ball catcher. In Proceedings

of the IEEE/RSJ International Conference on Intelligent

Robots and Systems, Maui, pages 1623 – 1629.

Guru, D. and Shekar, B. (2004). A simple and robust line

detection algorithm based on small eigenvalue analysis.

Pattern Recognition Letters, 25(1):1–13.

Haddadin, S., Laue, T., Frese, U., and Hirzinger, G. (2007).

Foul 2050: Thoughts on Physical Interaction in Human-

Robot Soccer. In Proceedings of the IEEE/RSJ Interna-

tional Conference on Intelligent Robots and Systems.

Honda Worldwide Site (2007). Honda World Wide —

Asimo. http://world.honda.com/ASIMO/.

Kitano, H. and Asada, M. (1998). RoboCup Humanoid

Challenge: That’s One Small Step for A Robot, One Gi-

ant Leap for Mankind. In International Conference on

Intelligent Robots and Systems, Victoria, pages 419–424.

Kuffner, J. J., Kagami, S., Nishiwaki, K., Inaba, M., and

Inoue, H. (2002). Dynamically-stable Motion Planning

for Humanoid Robots. Auton. Robots, 12(1):105–118.

Kurlbaum, J. (2007). Verfolgung von ballﬂugbahnen mit

einem frei beweglichen kamera-inertialsensor. Master’s

thesis, Universit¨at Bremen, Mathematik und Informatik.

Leibe, B., Cornelis, N., Cornelis, K., and Gool, L. V.

(2007). Dynamic 3D Scene Analysis from a Moving

Vehicle. In IEEE Conference on Computer Vision and

Pattern Recognition.

Lowe, D. (2004). Distinctive image features from scale-

invariant keypoints. International Journal of Computer

Vision, 60(2):91 – 110.

Price, K. (2008). The annotated computer vision bibliogra-

phy. http://www.visionbib.com/.

Ramanan, D. and Forsyth, D. (2003). Finding and track-

ing people from the bottom up. In IEEE Conference on

Computer Vision and Pattern Recognition.

RoboCup Federation (2008). RoboCup Ofﬁcial Site.

http://www.robocup.org.

R¨ofer, T. et al. (2005). GermanTeam RoboCup 2005.

http://www.germanteam.org/GT2005.pdf.

Stone, P., Sutton, R. S., and Kuhlmann, G. (2005). Re-

inforcement Learning for RoboCup-Soccer Keepaway.

Adaptive Behavior, 13(3):165–188.

Ullman, S. (1995). Sequence seeking and counter streams:

A computational model for bidirectional information

ﬂow in the visual cortex. Cerebral Cortex, 5(1):1–11.

Xsens Technologies B.V. (2007). Moven, Inertial Motion

Capture, Product Leaﬂet. XSens Technologies.

ICINCO 2008 - International Conference on Informatics in Control, Automation and Robotics

322
