A CONSTRAINT-AWARE QUERY OPTIMIZER FOR WEB-BASED

DATA INTEGRATION

Jing Lu and Bernhard Mitschang

IPVS, University of Stuttgart, Universitaetsstrasse 38, Stuttgart, Germany

Keywords:

XML, XQuery, Data Integration, Constraints, Semantic Query Optimization.

Abstract:

Web has brought forth opportunities to connect information sources across all types of boundaries. Data inte-

gration is to combine data residing at different sources and providing the user with a uniﬁed view of these data.

Currently users are expecting more efﬁcient services from such data integration systems. This paper describes

a query optimizer, which uses constraints to semantically optimize the queries. The optimizer ﬁrst translates

constraints from data sources into constraints expressed at the global level and stores them in the constraint

repository. Then the optimizer can use semantic query optimization technologies including detection of empty

results, join elimination, and predicate elimination to generate a more efﬁcient but semantically equivalent

query for the user. The optmizer is published as a web service and can be invoked by many data integration

systems. We carry out experiments and ﬁrst results show that performance can be greatly improved.

1 INTRODUCTION

The rising of the web and its subsequent ubiq-

uity make it possible to connect information sources

across all types of boundaries (local, regional, orga-

nizational, etc). Integrating data scattered on the web

has been a challenge faced by many enterprises. It

is especially crucial in large enterprises where a large

variety of web-based applications demand access and

integration of up-to-date information from multiple

distributed and heterogeneous information systems.

Data integration system (DIS) provides the user with

a virtual view, called global schema, which is inde-

pendent from the model and the physical origin of

the sources. Integration wrappers are responsible to

translate the local schema into the global schema, a

global query into a local query and the local query re-

sult back into the result in the global schema. Nowa-

days people are expecting more efﬁcient queries from

data integration systems where query optimization is

greatly different from that in the traditional database

context. First, since the sources are autonomous, the

optimizer may have no statistics about the sources,

or just unreliable ones. Hence, the optimizer cannot

compare between different plans, because their costs

cannot be sufﬁciently well estimated. Second, since

the sources may have different processing capabili-

ties, the query optimizer needs to consider the pos-

sibility of exploiting the query processing capabili-

ties of a data source. Finally, in a traditional system,

the optimizer can reliably estimate the time to transfer

data from the disc to main memory. But in a data inte-

gration system, data is often transferred over a wide-

area network, and hence delays may occur for a mul-

titude of reasons. Therefore, even a plan that appears

to be the best based on cost estimates may turn out to

be inefﬁcient if there are unexpected delays in trans-

ferring data from one of the sources accessed early on

the plan.

The heterogeneity and web-orientation of mod-

ern applications have beneﬁted from the ﬂexibility of

XML and therefore, there appear many XML-based

data integration systems, among which are EXIP (Pa-

pakonstantinou and Vassalos, 2002), Xyleme (Abite-

boul et al., 2001), Silkroute (Fernandez et al., 2000),

XPERANTO (Carey et al., 2000), BEA AquaLogic

(Carey and the BEA AquaLogic Team, 2006), etc. A

major difﬁculty in optimizing queries here is that once

a query is submitted, control over its execution be-

comes no longer possible (Ouzzani and Bouguettaya,

2004). Under this situation, using semantic rules to

minimize the cost of communication becomes more

attractive. Semantic query optimization (SQO) has

been applied to relational and deductive databases

(Chakravarthy et al., 1990). SQO uses the integrity

constraints associated with a database to improve the

Lu J. and Mitschang B. (2008).

A CONSTRAINT-AWARE QUERY OPTIMIZER FOR WEB-BASED DATA INTEGRATION.

In Proceedings of the Fourth International Conference on Web Information Systems and Technologies, pages 87-92

DOI: 10.5220/0001516400870092

 SciTePress

efﬁciency of query evaluation. With SQO more ef-

ﬁciency can be achieved than by only using syntac-

tic query optimization techniques, because syntactic

optimizer does not understand semantic knowledge,

and thus leads to a suboptimal execution for the given

query. Certain queries, which can be answered with-

out any table scan in the database, cannot be detected

by a syntactic optimizer, thus resulting in unneces-

sary database access. Furthermore, syntactic opti-

mizer cannot detect and eliminate semantically re-

dundant restrictions or joins in the queries or intro-

duce some useful restrictions and joins into the query

to reduce the overall cost of query execution, either

(Cheng et al., 1999). Here, we demonstrate that SQO

can also be adapted to XML-based data integration

system. Our contributions include:

• We provide the architecture of the optimizer and

showhow queries to different data integration sys-

tems are optimized by the optimizer.

• We explain how constraints are integrated into

the constraint repository and managed by the op-

timizer. We describe the details of the query

adapter, which is the kernel of the optimizer.

• We implement three SQO techniques of in the op-

timizer: detection of empty results, join elimina-

tion and predicate elimination. We carry out ex-

periments and analyze the performance.

The structure of this paper is: Section 2 presents the

architecture of the semantic query optimizer. Section

3 explains each component in the optimizer. Section

4 discusses three SQO techniques which are imple-

mented in the semantic query optimizer. Experiments

and performance analysis are in section 5. Related

work is presented in section 6. Section 7 gives the

conclusion.

2 ARCHITECTURE

The optimizer should be designed as not being spe-

ciﬁc to a particular data integration system, but be-

ing applicable to different ones. It should have ease

of integration with and adaptation to a data integra-

tion system. To support this, we use Service-Oriented

Architecture (SOA) (Huhns and Singh, 2005). The ar-

chitecture of the semantic query optimizer is shown in

Figure 1. There are altogether three parties which in-

teract with the optimizer: the user of data integration

system, the administrator of the data integration sys-

tem and the administrator of the data sources. They

can call the web services of our semantic query op-

timizer to register constraints, manage constraints, or

optimize queries.

User

DataSource

Admin

DIS

Admin

Data

Integration

System

Constraint

Repository

Query

Adapter

Constraint

Wrapper

Message

Generator

3

7

8

2

5

6

4

1

9

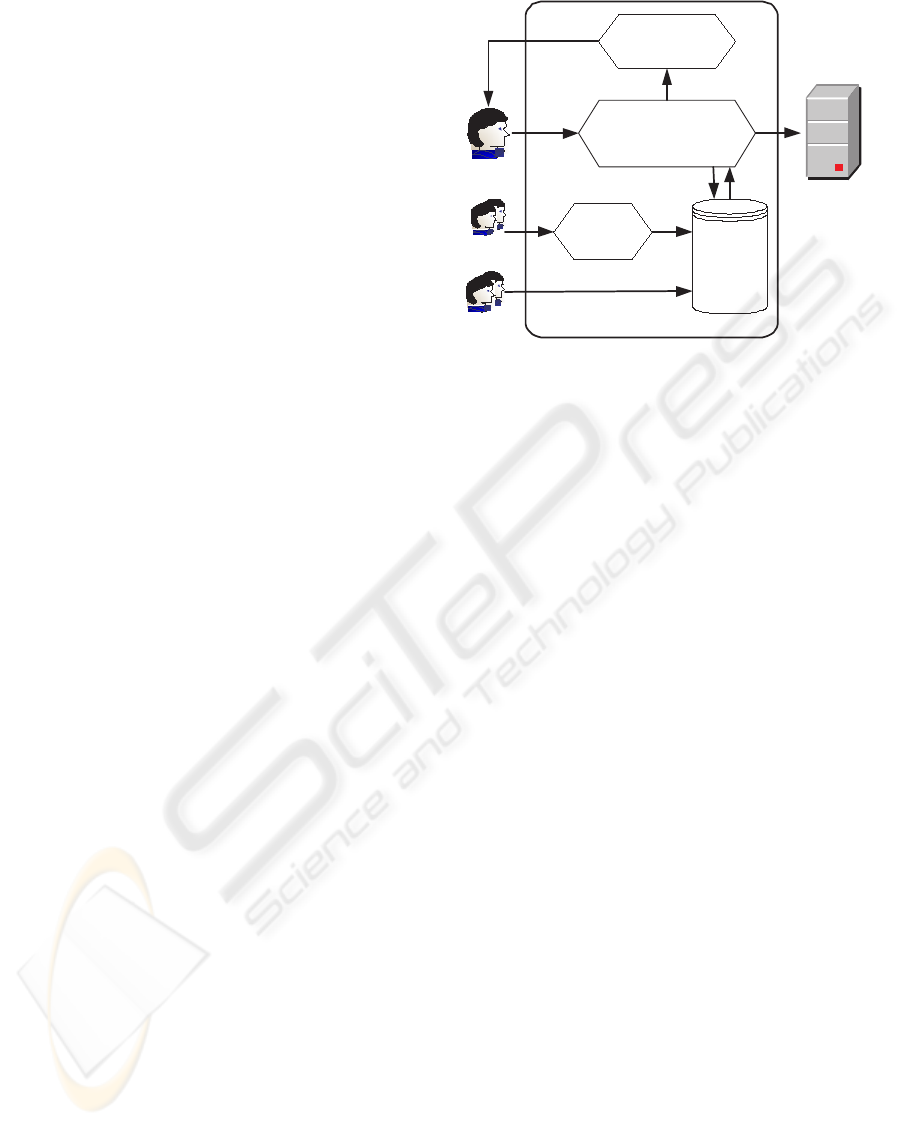

Figure 1: Architecture of the Semantic Query Optimizer.

The data sources can register their constraints to

the optimizer through constraint wrappers (Step 1).

The administrator of the data integration system can

also add or delete global constraints (Step 2). The

constraint wrappers will translate the local constraints

into constraints in global schema with the help of the

schema mapping information. The translated con-

straints will be added into the constraint repository

(Step 3). The data sources can also deregister con-

straints and the constraint wrappers will delete the

corresponding constraints from the constraint repos-

itory. The user can submit the query to the opti-

mizer and the query adapter will accept the query

(Step 4). Then the query adapter will consult the con-

straint repository (Step 5) and check whether there

are constraints related to the query (Step 6). If the

query adapter ﬁnds that there are some applicable

constraints in the constraint repository, the constraints

will be fetched out and compared with the query con-

dition. When the query adapter ﬁnds that there is con-

ﬂict between the query condition and the constraints

so that the query will return empty result, a message

will be generated (Step 8) and the user will be in-

formed (Step 9). When there is no conﬂict, the query

adapter will try to ﬁnd whether there is possibility to

optimize the query using the constraint information.

If there exists the possibility, the query adapter will

generate a new query and send it to the query pro-

cessor of the data integration system (Step 7). More

details about the query adapter will be given in section

3.3.

WEBIST 2008 - International Conference on Web Information Systems and Technologies

3 COMPONENTS

3.1 Constraint Wrapper

In order to make the semantic query optimizer under-

stand, the constraints from typically heterogeneous

data sources should be translated into constraints ex-

pressed at a global level in a global schema. Our con-

straint wrappers borrow the ideas from data integra-

tion wrappers. We have relational constraint wrapper

for relational constraint mapping, XML wrapper for

XML ﬁles, etc. We also provide a special way for

those data sources which lack constraint mechanisms

to submit constraints. These data sources include web

services, HTML ﬁles, text ﬁles, etc. We permit them

to submit predicate-like constraints. Constraint map-

ping depends on schema mapping. When translating

constraints, the data integration system must provide

schema mapping information. After the translation by

the constraint wrapper, the constraints are expressed

in the global schema. The details of the constraints

in a global schema are given in (Lu and Mitschang,

2007).

3.2 Constraint Repository

Constraint repository is the general constraint stor-

age, where the local constraints expressed in global

schema (translated by the constraint wrapper), the

global domain constraints and the global referential

constraints are stored. The global domain constraints

which spread multiple data sources and the global ref-

erential constraints between the data sources are de-

ﬁned, for example, by the data integration system ad-

ministrator.

3.3 Query Adapter

Query adapter consists of four components: query

decomposer, constraint fetcher, conﬂict detector, and

query reformulator, as illustrated in Figure 2. Gener-

ally, the query adapter accepts an XML query from

the user as input. Then it uses the semantic knowl-

edge stored in the constraint repository to generate a

semantically equivalent but more efﬁcient query.

Query Decomposer. The query decomposer takes

an XML Query from the user as input and decom-

poses the query into three parts: condition part, data

source part and result return part. It forwards the

query condition part and the data source part to con-

straint fetcher (Step 1), the query condition part to

conﬂict detector (Step 2), and the whole query to

query reformulator (Step 3).

Query

Constraint

Repository

Optimized

Query

Query De-

composer

Conflict

Detector

Constraint

Fetcher

Query Re-

formulator

1

5

7

4

2

3

Message

Generator

6

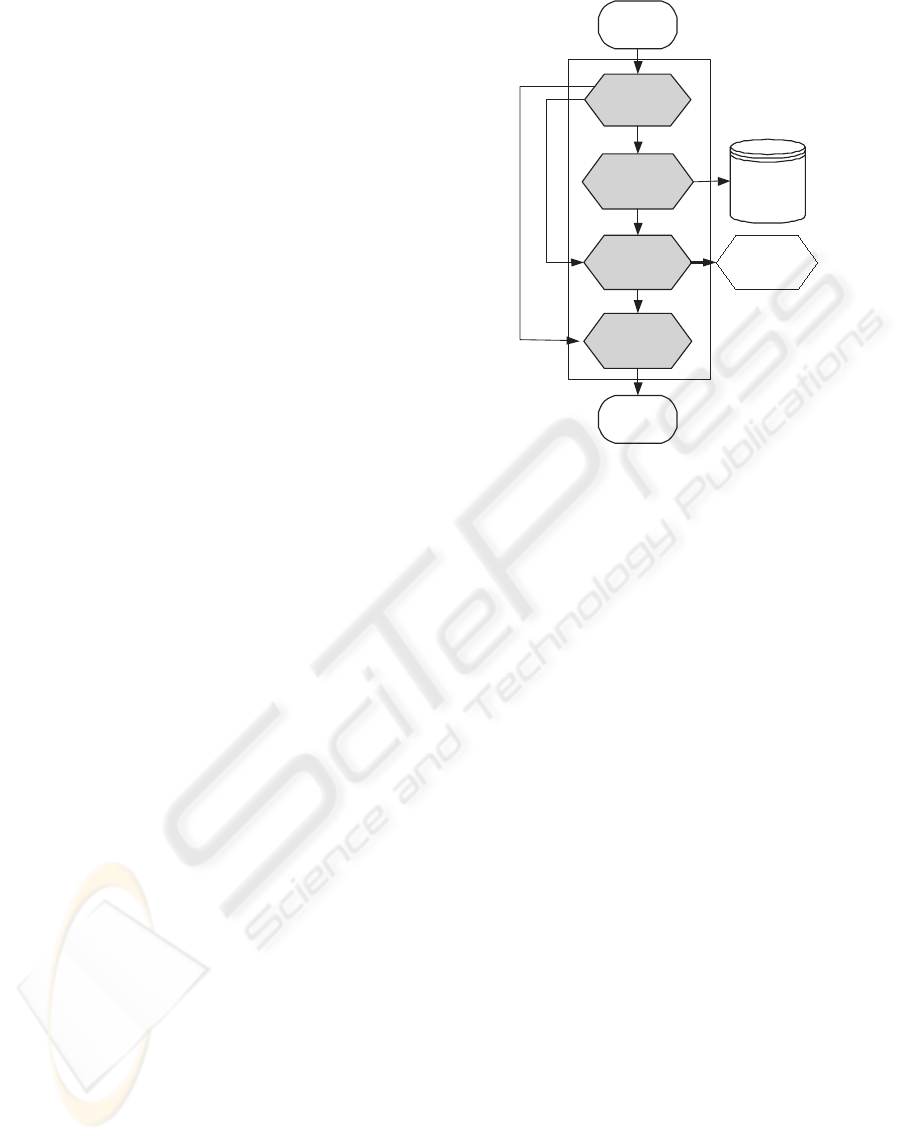

Figure 2: Components and Processing of Query Adapter.

Constraint Fetcher. The constraint fetcher

searches the constraint repository to ﬁnd the related

constraints (Step 4) and forwards the constraints to

conﬂict detector (Step 5).

Conﬂict Detector. The conﬂict detector takes query

condition and the constraints as input. The constraints

and the query condition can be arbitrary literals. Both

the query condition part and the constraints are trans-

formed into DNF (Disjunctive Normal Form). Con-

ﬂict detector builds a constraint DNF tree. Then it

uses the constraint DNF tree to evaluate the query

condition. If there is a conﬂict, it will inform the mes-

sage generator and an error message is sent to the user

(Step 6). If there is no conﬂict, query reformulator

will be invoked (Step 7).

Query Reformulator. If the conﬂict detector ﬁnds

no conﬂict, the query reformulator will check whether

there exist possibilities to eliminate joins or predi-

cates. Query reformulation rules are discussed in sec-

tion 4.

4 QUERY REFORMULATION

RULES

There are ﬁve SQO techniques most often discussed

in literature: predicate introduction, join introduction,

predicate elimination, join elimination, and detection

of empty results (Cheng et al., 1999). The ﬁrst two

A CONSTRAINT-AWARE QUERY OPTIMIZER FOR WEB-BASED DATA INTEGRATION

are based on the index mechanism of RDBMS. Due

to the fact that in an XML-based data integration sys-

tem the data sources are often non-relational and most

of them do not have an indexing mechanism, these

two techniques are not considered. Join elimination,

predicate elimination and detection of empty results

are used as the premier query reformulation rules in

our optimizer.

Detection of Empty Results. When the conﬂict de-

tector detects that there is a conﬂict between con-

straints and the query so that the query will return an

empty result set, the messager generator will inform

the user about the detection result.

Predicate Elimination. The main idea of predicate

elimination is that if a predicate is known by the con-

straints to be true, it can be eliminated from the query.

We use the constraint DNF tree and the query condi-

tion DNF tree again to test whether there exists possi-

bility to eliminate predicates. If the domain predicate

of query condition is subsumed as true by each leaf in

the constraint DNF tree, we can eliminate the domain

predicate from the query condition.

Join Elimination. The main idea of join elimina-

tion is that when a query contains a join for which

the result is known a priori, it does not need to be

evaluated, for example, when the two attributes of the

join are related by a referential integrity constraint.

The query transformer takes the selected referential

constraints and the query condition as input to see

whether there exist redundant joins. The ﬁrst step is

to extract the attributes in the query condition part.

Then the query reformulator will ﬁnd all the data

sources that have these attributes. The query refor-

mulator will search the constraints which are ﬁltered

out according to the query condition and result part.

When there are referential constraints, the query re-

formulator will build a reference chain, where the fa-

ther source is the source the primary key belongs to,

and the child source is the data source the foreign key

belongs to. The query reformulator will search the

reference chain and extract all the attributes from the

query return part. If there is no attribute from the ﬁrst

data source in the query return part and there is no

attribute from the ﬁrst data source in the query condi-

tion part except the primary key in the join, the join

between the primary key and the foreign key will be

eliminated.

Table 1: Performance of Detection of Empty Results.

Q DV OrT(s) OpT(s) RB

Q1 1000 0.059 0 90.77%

5000 1.112 0 95.77%

15000 2.234 0 97.90 %

Q2 1000 0.875 0 94.06%

5000 3.906 0 98.67%

15000 12.469 0 99.58 %

5 EXPERIMENTS

We used BEA Weblogic as the application server,

BEA LiquidData as the data integration system

(BEA-Systems-Inc, 2003), Tamino XML Server

(Software-AG,2006) as constraint repository, Apache

Tomcat (The-Apache-Software-Foundation, 2006) to

run the web service. We used DB2 as relational data

source and XML ﬁles as another non-relational data

source to carry out our experiments. Five data sources

are used to participate in the whole experiments:

• A DB2 database CSCO, with two tables:

EuropeCustomer and EuropeCustomerOrder,

referenced by CustomerID;

• A DB2 database CSC, with one ta-

ble EuropeCustomerR, the replication of

EuropeCustomer in CSCO;

• A DB2 database CSO, with one tabble

EuropeCustomerOrderR, the replication of

EuropeCustomerOrder in CSCO. There is a

global referential constraint: two replication

tables are referenced by CustomerID.

• An XML ﬁle AmericanCustomer.xml.

• An XML ﬁle AmericanCustomerOrder.xml.

There is a global refential constraint: two XML

ﬁles are referenced by CustomerID.

5.1 Performance

We use 1000, 5000, and 15000 records respectively

in the data sources for testing. We use the following

abbreviations in the performance tables: Q: Query;

DV: Data Volume; OrT: Original Time(s); OpT: Opti-

mized Time(s); RB: Relative Beneﬁt(%).

We design two queries, Q1 and Q2, which

are built to return empty result by our optimizer.

Q1 is queried over only the relational database

CSCO, while Q2 is queried over only the XML ﬁle

AmericanCustomerOrder.xml. The performance re-

sults are shown in Table 1.

We design three queries: Q3, Q4 and Q5,

whose joins are eliminated by our optimizer.

WEBIST 2008 - International Conference on Web Information Systems and Technologies

Table 2: Performance of Join Elimination.

Q DV OrT(s) OpT(s) RB

Q3 1000 0.922 0.314 50.65%

5000 1.982 0823 51.36%

15000 5.712 2.609 51.86 %

Q4 1000 1.687 0.272 75.52%

5000 4.489 0.92 76.36%

15000 11.953 2.588 77.17 %

Q5 1000 1.86 0.797 48.92%

5000 7.672 3.714 49.60%

15000 23.266 11.487 49.97 %

Table 3: Performance of Predicate Elimination.

Q DV OrT(s) OpT(s) RB

Q6 1000 0.731 0.603 11.35%

5000 1.724 1.412 15.49%

15000 2.812 2.241 18.71 %

Q7 1000 1.02 0.812 15.39%

5000 4.945 3.701 24.13%

15000 15.301 10.885 28.53 %

Q3 is queried only over the relational database

CSCO, Q4 is queried over two relational

databases, CSC and CSO, and Q5 is queried

over two XML ﬁles, AmericanCustomer.xml and

AmericanCustomerOrder.xml. The performance

results are shown in Table 2.

We design two queries, Q6 and Q7, whose pred-

icates are partially eliminated by our optimizer. Q6

is queried over the relational database CSC and Q7

is queried over the XML ﬁle AmericanCustomer.xml.

The performance results are shown in Table 3.

From the performance tables we can see that the

larger the data volume is, the more improvement we

obtain.

5.2 Discussion

When the queried data sources are only RDBMSs,

it is possible that after join elimination or predicate

elimination the eliminated joins or predicates include

attributes which are indexed in the RDBMSs. Ex-

ploiting the index typically enhances query perfor-

mance. If that predicate or join is eliminated, this

efﬁcient access might not be chosen anymore. Our

optimizer might generate a suboptimal query. Again

in the experiments we ﬁnd that when the query is re-

lated only to one RDBMS and we submit the same

query for many times, the query execution becomes

always quicker. This is because of the caching mech-

anism of RDBMS. So we conclude that when the un-

derlying data source of the query is only one RDBMS,

applying our optimizer might decrease the execution

efﬁciency.

We conclude, that it is not worth applying our op-

timizer when the data volume is small and when the

query execution cost is expected to be low. However,

when the data volume is large or when the query ex-

ecution cost is expected to be high, our optimizer be-

comes very useful. Normally in the data integration

system, most of the data sources are not RDBMSs,

so our optimizer works very well. The reason is that

the non-relational data sources typically lack indexing

mechanism and normally the query execution cost is

very high.

6 RELATED WORK

In (Shenoy and Ozsoyoglu, 1989) a user speciﬁed

query is optimized by describing a scheme to utilize

semantic knowledge. The semantic is represented as

function-free clauses in predicate logic. The scheme

uses a graph theoretic approach to identify redun-

dant joins and restrictions in a given query. An opti-

mization algorithm is presented which eliminates re-

dundant nonproﬁtable speciﬁcations. Relationships

among entity schema, semantics and query form the

basis of the algorithm. This work uses subset con-

straints and implication constraints, while we use in-

tegrity constraints. This work uses the index of a

database while we do not rely on indexes.

An implementation of predicate introduction and

join elimination in DB2 universal database is de-

scribed in (Cheng et al., 1999). Only referential con-

straints and check constraints are used. This work is

targeted to DB2 and ours is to XML-based DIS. In ad-

dition, it depends on the indexing mechanism of DB2.

A system focusing on semantic query optimiza-

tion for query plans of heterogeneous multi database

systems is presented in (Hsu and Knoblock, 2000).

This approach reduces the cost of query plans gen-

erated by an information mediator by eliminating un-

necessary joins in a conjunctivequery of arbitrary join

topology. The optimization here is targeted to query

plan generated by the mediator while ours is targeted

to the query generated by the users. This optimizer

must be embedded in the query mediator while ours

is built on top of the query mediator and thus provides

better extendability and ﬂexibility.

An intelligent system using tool-supported tech-

niques to optimize mediated queries is proposed by

(Beneventanoet al., 2001). The techniquesrely on the

availability of integration knowledge including: local

source schemata, a virtual mediated schema and its

mapping descriptions while we rely on the integrity

A CONSTRAINT-AWARE QUERY OPTIMIZER FOR WEB-BASED DATA INTEGRATION

constraints.

An approach in which an ontology with a database

is exploited to capture semantics for the query trans-

formation process is proposed by (Necib and Freytag,

2005). A set of rewriting rules relying on seman-

tic information extracted from the ontology associ-

ated with the database are developed. This approach

allows to rewrite a query into another one which is

not necessary equivalent but can provide more mean-

ingful result satisfying the user’s intention while our

approach aims at providing a semantically equivalent

query. This approach can only be applied in a single

database while ours can be used in a data integration

system.

7 CONCLUSIONS

In this paper we present a semantic query optimizer

for XML-based data integration systems. Constraints

from different data sources are translated into con-

straints expressed in global schema through con-

straint wrapper and stored in the constraint reposi-

tory. Global constraints can be deﬁned and stored too.

Queries submitted by the users will be optimized se-

mantically in the semantic query optimizer using con-

straints in the constraint repository. We implement

three semantic query optimization techniques: detec-

tion of empty results, join elimination, and predicate

elimination. We carry out experiments to test the per-

formance. The results are very promising. We ana-

lyze the performance issues and conclude that the se-

mantic query optimizer works best when the underly-

ing data sources are mixed, i.e., not purely relational

DBMSs, and when the data volume is large, as typi-

cally is the case in real world scenarios.

REFERENCES

Abiteboul, S., Segouﬁn, L., and Vianu, V. (2001). Rep-

resenting and querying xml with incomplete informa-

tion. In Proceedings of the Twentieth ACM Symposium

on Principles of Database Systems. ACM Press.

BEA-Systems-Inc (2003). Bea liquiddata for we-

blogic, building queries and data views. In

http://edocs.bea.com/liquiddata/docs81/

querybld/index.html.

Beneventano, D., Bergamaschi, S., and Mandreoli, F.

(2001). Extensional knowledge for semantic query

optimization in a mediator based system. In Interna-

tional Workshop on Foundations of Models for Infor-

mation Integration.

Carey, M., Florescu, D., Ives, Z., Lu, Y., Shanmugasun-

daram, J., Shekita, E., and Subramanian, S. (2000).

Xperanto: Publishing object-relational data as xml. In

Proceedings of the Third International Workshop on

the Web and Databases (WebDB).

Carey, M. and the BEA AquaLogic Team (2006). Data de-

livery in a service-oriented world: The bea aqualogic

data services platform. In Proc. of ACM SIGMOD

Conf. on Management of Data. ACM Press.

Chakravarthy, U., Grant, J., and Minker, J. (1990). Logic-

based approach to semantic query optimization. In

ACM Transactions on Database Systems (TODS).

ACM Press.

Cheng, Q., Gryz, J., Koo, F., Leung, T. Y. C., Liu, L., Qian,

X., and Schiefer, K. B. (1999). Implementation of two

semantic query optimization techniques in db2 univer-

sal database. In Proceedings of the 25th International

Conference on Very Large Data Bases.

Fernandez, M., Tan, W., and Suciu, D. (2000). Silkroute:

Trading between relations and xml. In 9th Interna-

tional World Wide Web Conference.

Hsu, C. and Knoblock, C. A. (2000). Semantic query

optimization for query plans of heterogeneous multi-

database system. In IEEE Transactions on Knowledge

and Data Engineering, VOL. 12, NO. 6. IEEE Press.

Huhns, M. and Singh, M. (2005). Service-oriented comput-

ing: Key concepts and principles. In IEEE Internet

Computing, 1(9). IEEE Press.

Lu, J. and Mitschang, B. (2007). Dis-cs: Improving enter-

prise data integration by constraint service. In ISCA

20th International Conference on Computer Applica-

tions in Industry and Engineering (CAINE 07).

Necib, C. B. and Freytag, J. C. (2005). Semantic query

transformation using ontologies. In 9th International

Database Engineering and Application Symposium

(IDEAS 2005). IEEE Press.

Ouzzani, M. and Bouguettaya, A. (2004). Query process-

ing and optimization on the web. In Distributed and

Parallel Databases. Kluwer Academic.

Papakonstantinou, Y. and Vassalos, V. (2002). Architecture

and implementation of an xquery-based information

integration platform. In Bulletin of the IEEE Com-

puter Society Technical Committee on Data Engineer-

ing, vol. (25). IEEE Press.

Shenoy, S. T. and Ozsoyoglu, Z. M. (1989). Design and im-

plementation of a semantic query optimizer. In IEEE

Transactions on Knowledge and Data Engineering.

Vol 1, No 3. IEEE Press.

Software-AG (2006). Number one in xml management:

Tamino xml server. In Technical Factsheet.

The-Apache-Software-Foundation (2006). Apache tomcat

6.0. In http://tomcat.apache.org.

WEBIST 2008 - International Conference on Web Information Systems and Technologies
