A NEW APPROACH TO RECYCLE WEB CONTENTS

The DOM Tree as the Support for Building New Web Pages

Luis Álvarez Sabucedo and Luis Anido Rifón

Telematics Engineering Department, Universidade de Vigo, Spain

Keywords:

Interoperability, web contents, DOM tree.

Abstract:

After an initial period of populating the web with a large amount of resources; a new situation has to be

faced in the scope of the WWW: the over production of web contents. Currently, there is a lot of resources

available in the web and new approaches are scanned to improve some features. In particular, this paper tackles

the reusability of contents. The aim of this paper is an alternative method to provide a simple and effective

manner to reuse contents in order to create new web resources. This approach is based on the use of the DOM

tree that deﬁnes the web resource to build up new web pages. The presented method involves minor changes

on the server side and no change at all on the client side. Besides, this proposal can take advantage of resources

already developed using on-the-ﬂy technologies.

1 INTRODUCTION

Over an initial period of time, in the mid 90s, a lot

of contents for the Internet were developed. In fact,

we were witnesses of an exponential growing of web

contents on a myriad of different web sites. There-

fore, the Internet community soon foresees the prob-

lem of the lacking of contents moving to the excess of

contents. In order to overcome that situation, during

these last years, a research trend in Web environments

is related to information retrieval, interoperability and

content reuse. Brieﬂy, we can outline some of the

more outstanding: the use of metadata, the develop-

ment of data standards formats (e.g. RSS standard),

intelligent agents, crawlers, etc. All of them provide

suitable solutions that overcome limitations on the ex-

cessive amount of information and improve the cur-

rent situation where nearly no interoperability would

be possible if not measures were taken in the short

term.

As a consequence and to overcome the presented

scenario, we propose the development of a platform

that provides agent users with server side process-

ing support. Using this platform we will be able to

reuse contents in a standard way regardless of particu-

lar technologies. The ﬁnal goal we are looking for is a

suitable way to compose contents in a single web page

from contents already available in other web sites and

resources already developed.

In the insofar developed technologies/initiatives,

we notice the existence of a gap of functionality not

yet fulﬁlled as this is not possible just by using server

side programming deliver this service. So, the main

goal for this project is to provide a suitable and simple

way to recover partially documents and therefore, be

able to compose new web contents in a collage fash-

ion. Our proposal will deal with those requirements: a

server-side simple support for partial data retrieval in

web environments, i.e., XML-like contents. In order

to achieve this goal we propose the use of URL (Uni-

versal Resource Locator)(Network Working Group,

2007) schemas with some upgrade to be able to ad-

dress a single certain node included in any document

available as web content. As web browsers, in gen-

eral, allow us to introduce any URL with nearly no

pattern ﬁltering, the only needed upgrade is concern

the web server, which must be able to deal with this

enhanced URL schema.

As all web pages may be deﬁned in terms of its

DOM (Document Object Model) tree(Mozilla, 2007),

we can re-make new web contents just by mixing

nodes from different web resources, see Figure 1. In

order to do this, we just need to be able to address

nodes in the DOM tree remotely from the web server

responsible for content providing. With this idea in

mind, when a user agent requests a web page from

a server, this server must collect nodes from those

servers where contents are actually stored and com-

284

Álvarez Sabucedo L. and Anido Rifón L. (2008).

A NEW APPROACH TO RECYCLE WEB CONTENTS - The DOM Tree as the Support for Building New Web Pages.

In Proceedings of the Fourth International Conference on Web Information Systems and Technologies, pages 284-289

DOI: 10.5220/0001519202840289

 SciTePress

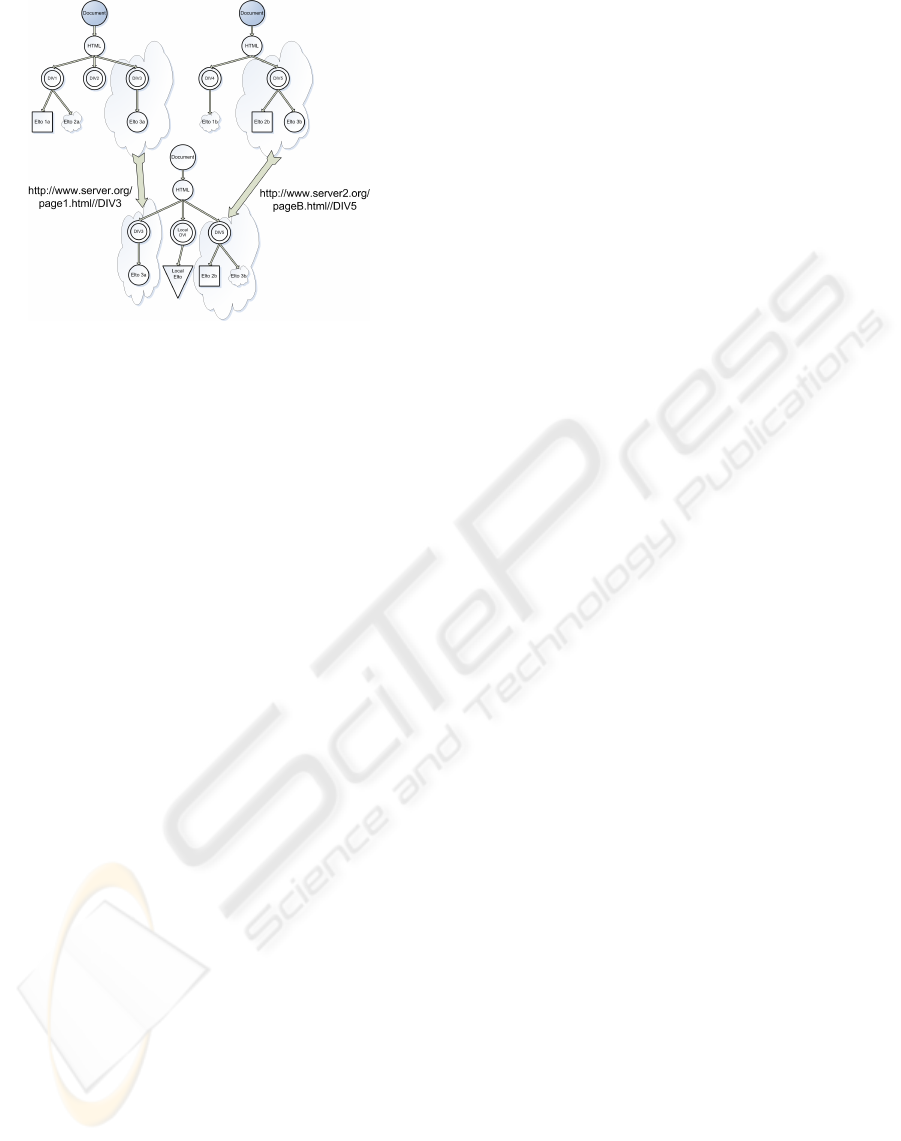

Figure 1: Merging DOM trees.

pose the ﬁnal submission that must be provided in re-

sponse to the original request by the user agent. This

works properly as any web content can be rendered

from and to a DOM tree.

Thus, we can compose live the new page from

contents recollected all over the World Wide Web,

i.e., there is not intermediate steps, contents are gath-

ered in a full automatic fashion to make up new con-

tents.

It is important to bear in mind that the page is

made of several already existing nodes, no matter

where they come from. It is possible to include

contents created dynamically from any DBMS (Data

Base Management System) by using any technology,

static contents or what ever that can be accessed as a

DOM tree. As a consequence, by using just HTML

and no server side technologies to develop dynamic

contents, we are providing contents that may change

according its original sources.

The advantage from other technologies already

available, those are brieﬂy described later on, is re-

lated to provide support with no need to update soft-

ware on the client side or contents themselves on the

server: just by upgrading web server functionalities

we can meet the requirements as we will show.

This paper, therefore, will present a simple solu-

tion to contribute in the general trend towards a more

accessible Internet with little cost. The idea for this

contribution lies on the selective recovery of informa-

tion from already existing web contents with no mod-

iﬁcation on legacy information systems.

The rest of this paper is organized as follows.

Firstly, we will introduce a key concept for the pro-

posal in this paper: DOM trees. Then, we will

present our proposal and all technical details will be

addressed. Later on, we will discuss details related to

the implementation of the proposal. Once the devel-

opment is completed, we will show the testing phase

by mean of some examples deployed for testing pro-

poses. Finally, some conclusions are included.

2 DOM TREE

This contribution takes place in the current Web envi-

ronment where a lot of on going solutions are being

carrying out to solve the presented problem. To be

able to manage ourselves in the context of the present

proposal, we must deal with a key concept: DOM.

The DOM tree is just a simple way to lay out con-

tents from a HTML page. This representation is con-

ceptual, so there are several ways to present it; nev-

ertheless, the most usual way to do it is by mean of

a tree-like form diagram, as already shown in Figure

1. Valid DOM trees always have a root node for the

document itself and pending nodes to render the full

page. This structure may be as complex as desired

and, obviously, it will get larger as contents get more

and more complex.

Once an agent has already downloaded a web

page, it can create automatically the corresponding

DOM tree. Likewise, the agent can get/update any

piece of the information by accessing the proper node.

In order to implement that functionality, there are al-

ready plenty of software libraries that make it easy to

parse it in order to look for information and change

values. To accomplish this particular issue about ac-

cessing and updating information from DOM tree in

the client side, we must take the DOM initiative from

W3C(W3C, 2007a) into account. According to the

W3C, this project is

a platform- and language-neutral interface that

will allow programs and scripts to dynami-

cally access and update the content, structure

and style of documents.

By using this project, it will be possible to ﬁlter data

on the client side by using a standard API for all client

agents. The main aim for this project is to support

transformation of contents on the client side by using

user agents, mainly, web browsers.

This solution will not fulﬁl our needs as far as the

point for this project is to express an API to access

information on the client side, but it does not allow to

compose contents as requested.

3 THE PROPOSAL

As previously stated, our solution will provide a

server side mechanism to recover contents from the

A NEW APPROACH TO RECYCLE WEB CONTENTS - The DOM Tree as the Support for Building New Web Pages

285

server and submit that information to the client. This

development must allow us to reuse contents already

developed and insert them into a new page without

client side processing. The solution proposed to the

present problem involves minor modiﬁcations on the

server processing and no client changes at all. As a

case of use we may refer, for instance, to any blog

where it is needed to introduce information from any

other web site with no modiﬁcation on the latter as we

will not be able to perform such modiﬁcations to fulﬁl

our needs. This platform will allow users to pick up

a certain node from any web resource by addressing

the proper node in the DOM tree and inserting it on

its own DOM tree (see Figure 1). The result, as we

will show on the testing phase, is a new web resource,

a web page, where information collected from several

external web sites is available.

To achieve this goal we need to perform two ma-

jor, and almost unique, upgrades in current systems:

• Upgrade the requested URL format to express

nodes in a DOM tree.

• Insert a module on web server to collect just the

requested data.

So far, when an agent user requests a web re-

source, no matter if this is an HTML page, a ﬂash

element or an image; it just sends an URL to ask for

the desired resource as it is known as a ﬁle in its own

ﬁlesystem. But we need to be able to express an el-

ement from the DOM tree in the requested resource,

of course, a HTML/XHTML or XML-based resource.

We may consider this new requested condition as a re-

ﬁnement of the previous situation.

At ﬁrst sight, we could think of two already in

use solutions such as Xpath(W3C, 2007b) or the

use of notation similar to anchors in HTML, i.e.,

f ile.html#node1. We dismiss the ﬁrst option due to

the high level on complexity that would introduce in

further development phases. The latter option is more

suitable due to its simplicity and meeting the required

conditions for this solution. The applied criterion is to

keep the system as simple as possible while it meets

the requested capabilities. We chose the following

format:

http://server.org/resource.xhtml//node1

By using this format, we mean that the de-

sired resource is just node1, an element in the ﬁle

resource.xhtml located in the server server.org. Main

reasons to choose this format are:

• This schema for URLs ﬁts with the current speci-

ﬁcations provided in the RFC about URL.

• As far as we can determine the resource with no

possible misunderstanding, we are able to know

what is the real request from the user agent. We

can assure this as far as we completely detached

the ﬁle containing the node from the node itself

by the double ‘/’. As a result, there is not overlap

with any other possible request and no misunder-

standing is possible.

• Most of already working web clients are able to

manage this pattern to address contents with no

changes.

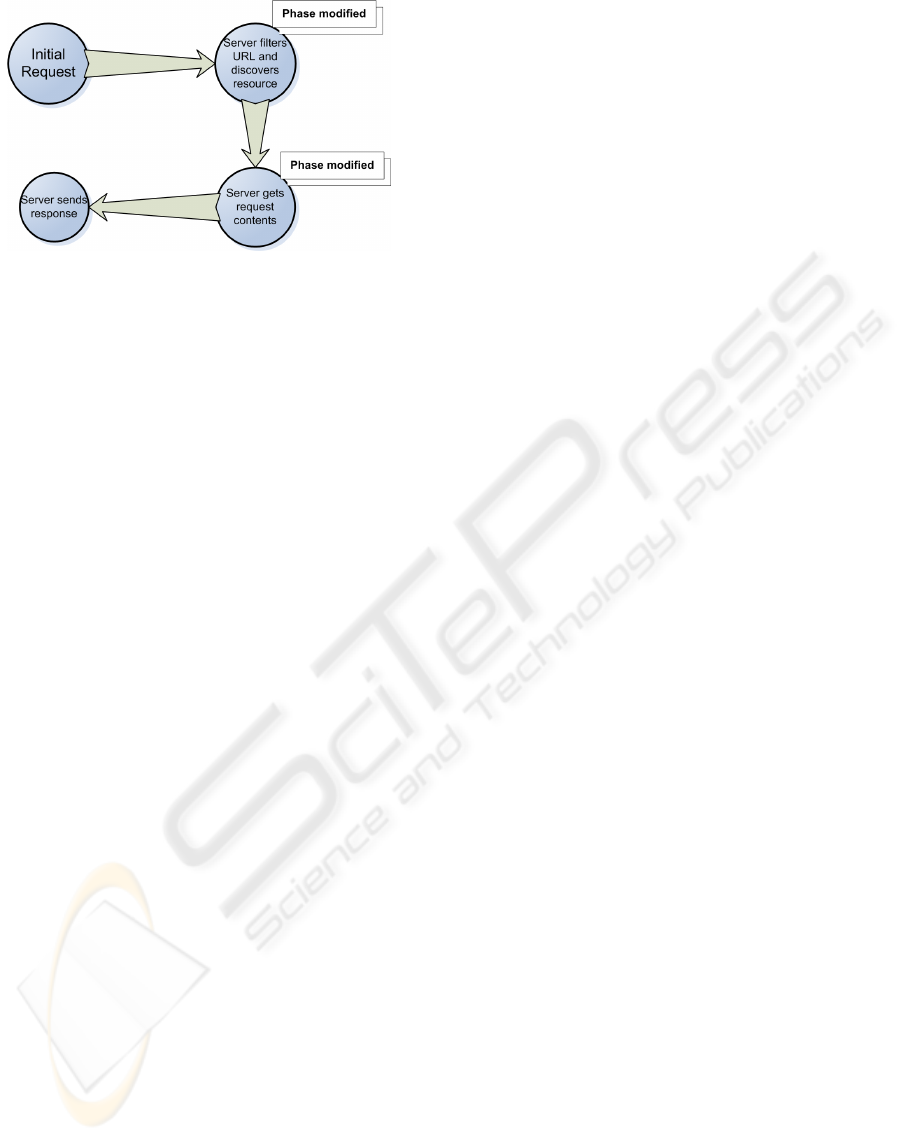

There is a remaining issue not solved yet. The

remaining problem is about the delivery of contents

themselves. Current web servers process each request

by performing the requested operation on the proper

ﬁle o ﬁles by mean of a HTTP connection. At this

point, we would like to outline that HTTP protocol

has nothing to do with contents themselves. This pro-

tocol is just responsible for the submission of con-

tents through data networks despite any other consid-

eration.

To properly deliver this solution, we must mod-

ify the performance of web server but not the HTTP

protocol itself that will remain providing exactly the

same functionalities. Instead of ﬁnding the requested

ﬁle and submitting it, our web server must deal with

an additional problem: parsing the ﬁle and gathering

the requested information. This server must get the

ﬁle and process it until it just gets the desired piece of

information, the desired node. The implementation

of this behaviour does not require a large amount of

resources. By using already developed tools we can

ﬁnd the proper node and submit it in a quite simple

way, as described in the next section.

4 SOME NOTES ON

DEVELOPMENT

Insofar, we have presented the ideas required to im-

plement this system. The only software implemen-

tation required is an enhancement on the web server.

In this way, the client software, mainly browsers, will

need no upgrade to be able to use this additional fea-

ture.

In order to test the proposed schema, we decide to

implement this mechanism by modifying an already

working server. So the ﬁrst decision we had to face

was the election of the right web server to work with.

The ﬁnal selected web server was Tornado(Neil Con-

way, 2007). The main reasons for this selection are:

• This software is provided under GPL(Free Soft-

ware Foundation, Inc., 2007) license, so we are

allowed to modify source code to fulﬁl our needs.

WEBIST 2008 - International Conference on Web Information Systems and Technologies

286

Figure 2: Server processing requests.

• The software platform where this project is being

developed, actually is an ongoing project, is Java.

So we can get advantage of an OOP (Object Ori-

ented Programming) code where a lot of resources

are available to work with little effort for integra-

tion in our project.

• The project has the right state of maturity, i.e., it

is big enough to provide functional result but not

huge enough to introduce too much work on mod-

ifying the source code for the new requested capa-

bilities.

Independently of the selected web server, the

needed changes in the work ﬂow diagram of the web

server (see Figure 2) are:

• Deal with the requested URL to discover the real

requested information and to improve the man-

agement of error message with regard to the ex-

istence of the requested resources.

• Filter the response to the client in order to send

just the proper piece of information.

To fulﬁl the functionality from the ﬁrst point, we

just locate the proper piece of code and ﬁlter the ﬁnal

part of the URL to properly search for the resource

requested.

p r i v a t e F i l e t r a n s l a t e U R I ( S t r i n g u r i )

throws HTTPException

{ { . . .

/ ∗ We n e e d t o p a r s e t h e in c o m i n g

r e q u e s t t o g e t t h e d e s i r e d nod e ∗ /

S t r i n g r elU RI =

u r i . s u b s t r i n g ( u r i . ind exOf ( ’ / / ’ , 7 ) ) ;

/ / G e t t i n g t h e r e l a t i v e URI

S t r i n g re que ste dN o de =

relURI . s u b s t r i n g

( rel URI . l a s t I n d e x O f ( ’ : ’ ) + 1 ) ;

/ / G e t t i n g t h e r e q u e s t e d node

. . . } . .

/ ∗ When t h e URL i s p r o p e r l y l o c a t e d ,

we can c h e c k i f t h e r e q u e s t e d f i l e

a c t u a l l y e x i s t s ∗ /

i f ( r e q u e s t F i l e . e x i s t s ( ) == f a l s e )

throw new

HTTPException (HTTP .NOT_FOUND) ;

. .

An interesting point in this situation is related to

the error message in case of no resource available. We

may make a distinction between two different cases.

We can deal with the situation where no resource is

available because there is no the requested ﬁle and

submit, therefore, the 404 error message. But also, it

is possible to ﬁnd the ﬁle but we may not be able to

send any piece of information due to the inexistence

of the requested node or even due to the improper

composition of the ﬁle as they may be not XHTML

or HTML compliant. We decided to use the same er-

ror message, as far as we are dealing with a partial

document as if it was a full document. Nevertheless,

other options are also possible.

There is only an issue left to implement this solu-

tion: parse the ﬁle and recover the right node. In our

case, a Java project, this may be solved by using any

of the existing libraries for DOM processing. In our

case, we decide to use de library jaxen(The Werken

Company, 2007). Obviously, this improvement is the

previous step to the ﬁnal submission of the informa-

tion to the client agent. In our case, the resultant piece

of code is as follows:

p u b l i c s t a t i c Node Get Co nte nt

( S t r i n g requ ested Node , O b j e ct doc )

{ Node node = n u l l ;

t r y {

/ ∗ We d e c l a r e an o b j e c t fr om c l a s s

DOMXPath t o g e t t h e d e s i r e d nod e ∗ /

XPath xp a th = new

DOMXPath( r e qu e st e dN ode ) ;

/ ∗ We g e t a l i s t w i t h a l l no des w i t h t h e

p r o p e r name ∗ /

L i s t v a l u e = x pa t h . s e l e c t N o d e s ( doc ) ;

/ ∗ I n c a s e o f more t h a n on e node , we

s u b m i t j u s t t h e f i r s t one I t wou ld be

p o s s i b l e t o s e n d a l l o f t he m ∗ /

I t e r a t o r r e s u l t I t e r = v a l u e . i t e r a t o r ( ) ;

i f ( r e s u l t I t e r . hasN ext ( ) ) {

node = ( Node ) r e s u l t I t e r . n e xt ( ) ; }

}

/ ∗ D e f a u l t e x c e p t i o n h a n d l i n g ∗ /

c a t c h ( X Pa t hS yn t ax Ex c ep ti o n e ) {

throw new

HTTPException (HTTP .NOT_FOUND) ; }

c a t c h ( J a x e n E x c e ptio n e ) {

throw new

HTTPException (HTTP .NOT_FOUND) ; }

r e t u r n node ;

}

A NEW APPROACH TO RECYCLE WEB CONTENTS - The DOM Tree as the Support for Building New Web Pages

287

When the information is already located, we only

need to serialize it and submit it through a TCP

socket. With quite little additional upgrade on this

code and the one responsible for data serialization,

we could provide more options to recover different

parts of the document. Nevertheless, no more fea-

tures will be developed so far in order to get feedback

from users to improve further developments. So far,

just support for recovering a certain node in the re-

quested document is provided. As this project gets

support and on-line experience provides feedback, we

will develop support for more advanced queries.

5 AN EXAMPLE

In order to test the already developed project, we de-

ployed several experiences. As our server is so far the

only one with these capabilities, the ﬁrst step in this

testing process was to clone some web pages from the

Internet to our own server. The ﬁrst obvious test is to

request for some particular element from the DOM

tree. This test was successfully accomplished with no

special incidences.

The ﬁrst serious attempt to test our system consists

of a simple web page, as explained in the introduction,

where contents were address using our new schema;

we, therefore, developed a web page made, mainly, of

frames.

By using this concept we can compose any web

content as they can be accessed by mean of its DOM

tree. It is important to notice that the DOM tree cor-

responding to this source code, at ﬁrst glance, may

seem to be quite simple, but we may be dealing with

a huge structure.

One of the main constrains for web design using

this technique is due to limitations to use of exter-

nal addresses. To access external resources, the only

suitable tag included in the HTML 4.01 speciﬁcation

is the tag f rame so we are forced to use it. In this

situation, it would be very suitable to be able to use

other tags, such as div to reference external resources.

As this tag provides a certain position to place certain

contents and it is widely supported for laying out with

CSS, it would quite useful to be able to use it as con-

tainer for external resources.

But the most interesting test was about its func-

tion as a real interoperability booster. As previously

stated, the aim in this project is to allow the content in-

terchange in the World Wide Web. The expected way

this tool is going to be use is to include contents from

several web resources in just one single new web re-

source, mainly, a web page. To achieve this goal, we

designed a web page with contents both, from its own

and externally located. In the insofar web pages, it is

a quite usual practice to include as contents for frames

someone else’s full web page; an application for this

project is to allow web designer to include just a sin-

gle piece of an existing web page in their own web

sites.

Several concerns may arise on content presenta-

tion. DOM tree nodes do not just include informa-

tion about data but also about presentation so prob-

lems may arise if no measures are taken. During the

design of the test page some resources had to be de-

voted to ﬁx presentation bugs. These problems may

get worse when dealing with contents poorly format-

ted or even wrong. So we must bear in mind problems

on placing external HTML code on new pages.

The key concept to achieve a higher level of con-

tent reusability involves merging different DOM trees

from several sources into a new single tree where all

the information is stored. Besides, these transforma-

tions are not in the scope of the ﬁnal client, which

just will ask for a simple web resource, neither in the

scope of the HTML designer that just ask for con-

tents in a simple way regardless of where they are al-

located. The only needed tool to build up contents is

the use of frames as previously presented.

It is important to notice that this goal could be

accomplished just by using other already developed

technologies, but by using this technique we can pro-

vide these contents with no need of dynamic contents

or client side processing.

6 CONCLUSIONS

The main idea of this paper is to propose an alter-

native way to reuse contents in a cost-effective way.

As the only needed changes are on to the software in-

stalled in web serves, not in the information itself, and

no changes in client side, this technique can spread

quickly with nearly no efforts in the short term and

support legacy information systems. This proposal

deals with is related to partial recover, server side pro-

cessing of static contents. In this particular situation

we could not ﬁnd any suitable solution in terms of

simplicity with short time-to-market.

The main goal in our proposal is to provide web

developers with the chance to reuse contents from al-

ready existing web contents. This is possible with

no changes on the contents themselves. To be able

to perform this operation we mix different DOM tree

in a single new tree. The undertaken steps to fulﬁll

our proposal are related with information recovery by

sending pieces of ﬁles on HTTP channels. It, there-

fore, is possible to build up contents just by using

WEBIST 2008 - International Conference on Web Information Systems and Technologies

288

HTML code depending on the external contents refer-

enced in our source code. Web designers do not need

to take care of availability of those resources or even

if there is installed on that server an engine for dy-

namic contents. Thus, it is possible to reuse partially

contents with no need to program anything neither on

the server where contents are stored nor on the client

side. The only requirement is use of the URL where

the desired content is located. This idea makes possi-

ble to reuse contents from legacy information systems

with no extra efforts.

Before hand, the main goal for this initiative was

to upgrade web server capabilities and provide a new

way to increase interoperability among web contents.

This goal was completely achieved: web contents can

be shared in a new way rendering a higher integration

level. Nevertheless some concerns must be taken into

account. A part from legal issues about contents un-

der copyright, some problems about design may arise

if contents are provided under poor HTML coding.

ACKNOWLEDGEMENTS

We want to thank “Ministerio de Educacción y Cien-

cia” and “Xunta de Galicia” for their partial support to

this work under grants TIN2007-68125-CO02-02 and

"Diseño y desarrollo de un marco semántico para el

modelado de servicios en la administración pública.

Aplicación a la provisión de servicios frente al ciu-

dadano.” (PGIDIT06PXIB322285PR).

REFERENCES

Free Software Foundation, Inc. (2007). Gnu

general public license. Web available.

http://www.fsf.org/licenses/gpl.htm

Mozilla (2007). Gecko dom reference. Web available.

http://www.mozilla.org/docs/dom/domref/.

Neil Conway (2007). Tornado http server. Web available.

http://tornado.sourceforge.net/

Network Working Group (2007). Rfc 1738 - uni-

form resource locators (url). Web available.

http://www.faqs.org/rfcs/rfc1738.html.

The Werken Company (2007). jaxen: universal java xpath

engine. Web available. http://jaxen.codehaus.org/.

W3C (2007a). Document object model. Web available.

http://www.w3.org/DOM/.

W3C (2007b). Xml path language. Web available.

http://www.w3.org/TR/xpath.

A NEW APPROACH TO RECYCLE WEB CONTENTS - The DOM Tree as the Support for Building New Web Pages

289
