IMPLEMENTING CONTENT SHARING AND SESSION

HAND-OFF BETWEEN WEB BROWSERS

An Integration of SIP Stack into Mozilla Firefox Web Browser

Michael O. Adeyeye and Neco Ventura

Department of Electrical Engineering, University of Cape Town, Private Bag X3, Rondebosch 7701, South Africa

Keywords: Web Browser, Session Mobility, User Agent Client Architecture.

Abstract: A new idea referred to as HTTP (Hypertext Transfer Protocol) Mobility is introduced into web browsing. It

entails transferring existing web session between Web Browsers or User Agents. This HTTP mobility will

be achieved by extending present-day Web Browsers to support Session Initiation Protocol (SIP). Both

HTTP and SIP are application layer protocols in the OSI (Open System Interconnection) Layer Model. SIP

can be used to establish, modify and terminate multimedia sessions or calls. It has been chosen because it

has clearly defined session mobility types namely Third-party Call Control and Session Hand-off. This

paper identifies the modifications that will be made to the present-day Web Browsers Architectures and

exhaustively explains the implementation of HTTP Mobility with the aid of SIP Stack integration. The two

services that can be provided between two user agents during HTTP Mobility are Content Sharing and

Session Hand-off.

1 INTRODUCTION

Though HTTP can be made stateful (Kristol and

Montulli, 2000), session continuity between User

Agents has been achieved by varying approaches

resulting in the need for standardization. Session

Initiation Protocol (SIP) is a signalling protocol that

has been adopted for the IP Multimedia Subsystem

(IMS) by the 3rd Generation Partnership Project

(3GPP). It has been extended to provide instant

messaging and presence services through SIP Instant

Messaging and Presence Leveraging Extensions

(SIMPLE) (Campbell et al, 2002). The intention of

this research is to implement HTTP Session

Mobility based on SIP Mobility (Shacham, 2007).

Mozilla Firefox web browser will be used to

implement the client side of this research because it

is FOSS, has rich documentations on the internet and

a large community of contributors.

2 THE PROPOSED HTTP

SESSION MOBILITY SERVICE

In this research, HTTP session mobility using SIP

will be achieved by extending the capabilities of a

User Agent Client and implementing a SIP

Application Server which provides HTTP session

transfer or content sharing without violating

HTTP/1.1 security. This scheme is referred to as a

Hybrid-based Architectural Scheme whereby the

client and the proxy or application server are

modified and improvised respectively. This service

can be adapted to the 3G IMS because it also uses

SIP for signaling and communication with the

application server. The HTTP session transfer and

content sharing will be achieved using SIP Session

Hand-off and Third-party Call Control respectively.

Excerpt of HTTP messages can be sent in the form

of SIP instant messages.

3 DISCUSSIONS

3.1 The User Agent Client Architecture

Fig. 1 shows the modifications made to a User

Agent Client Architecture. The bold rectangular

boxes and the SIP stack represent parts of the

architecture that will be extended and a new feature

that will be integrated respectively. The Extension

found in HTML Manager represents the User

Interface (UI). When buttons on the UI are clicked,

278

O. Adeyeye M. and Ventura N. (2008).

IMPLEMENTING CONTENT SHARING AND SESSION HAND-OFF BETWEEN WEB BROWSERS - An Integration of SIP Stack into Mozilla Firefox

Web Browser.

In Proceedings of the Fourth International Conference on Web Information Systems and Technologies, pages 278-282

DOI: 10.5220/0001525302780282

 SciTePress

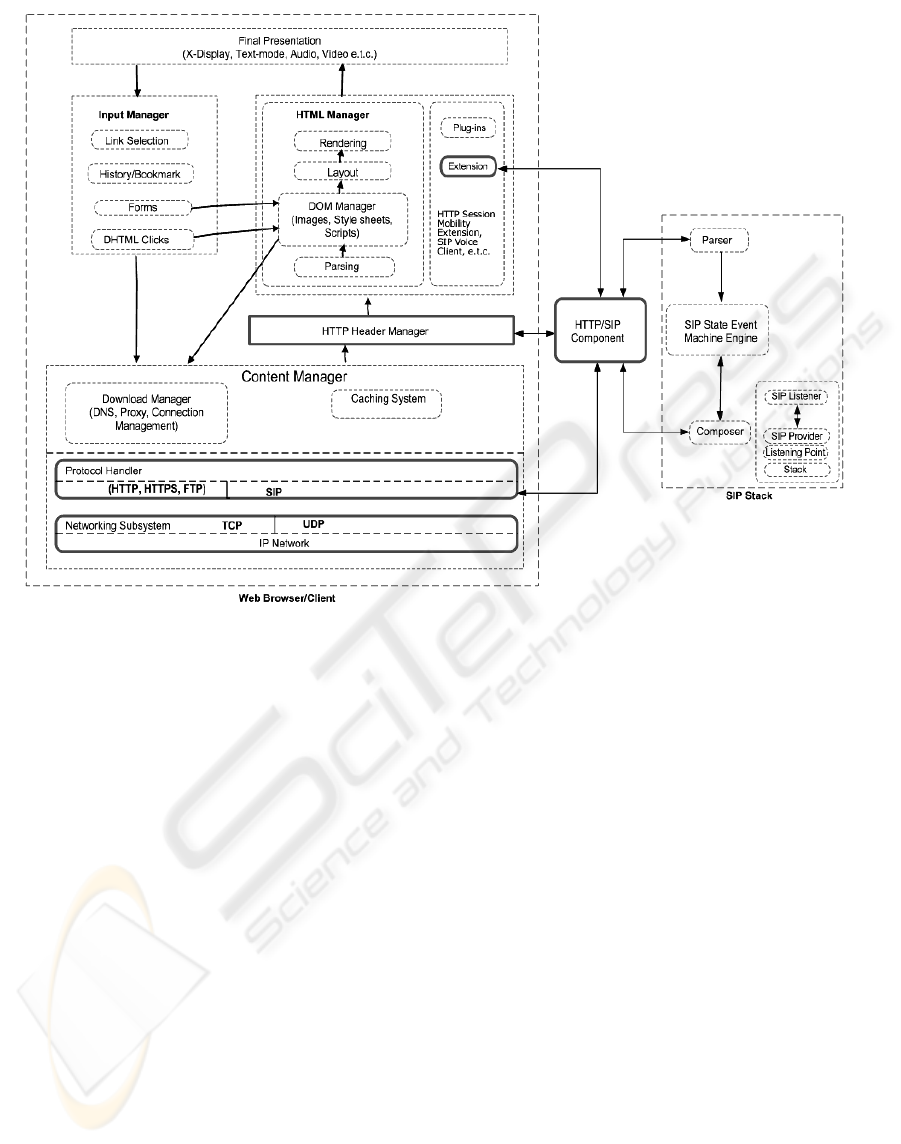

Figure 1: The User Agent Client Architecture.

they trigger events such as registering the client and

sending excerpt of the HTTP request/response

in form of SIP MESSAGE. It can be sent as a

session mode Instant Messaging (IM) (Campbell et

al, 2002) or a page mode IM. These processes take

place inside the HTTP/SIP Component block. SIP

transactions are handled by the SIP Stack and work

seamlessly with the HTTP/SIP Component which

helps in building the SIP messages. The HTTP

Header Manager is required to interact with the

HTTP/SIP Component by providing the HTTP

Request/Response excerpts. The Protocol Handler

implements new SIP protocol alongside with the

existing protocols such as HTTP and HTTPS. In the

same manner, the Networking Subsystem integrates

User Datagram Protocol (UDP) which is required

during the SIP transactions. The other blocks such as

Input Manager remain unmodified.

3.2 The Mozilla Firefox Extension

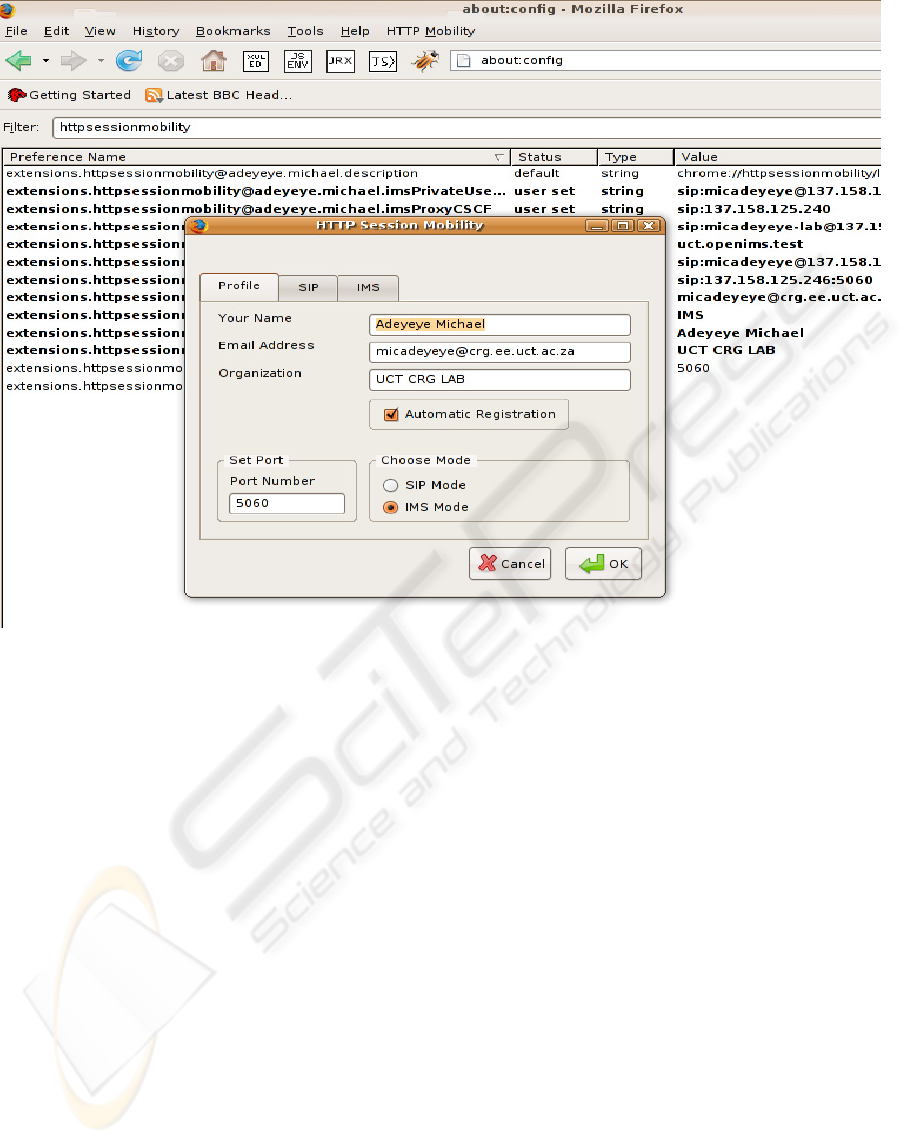

Fig. 2 shows the UI of the extension which is

currently under development. The two supported

services are Content Sharing and Session Transfer.

Content sharing refers to the process of sending

same Universal Resource Locator (URL) to another

User Agent. It does not require transferring session

objects like cookies or hidden elements between

User Agents. Session Transfer requires identifying

which mechanism has been used to make HTTP

stateful connection to a web server. It requires

transferring session objects like cookies, URL and in

some cases information in the entire HTTP

Response. When Session Transfer is performed, the

initiator loses stateful connection to the web server

and he will be required to log in again should he

want to continue.

Fig. 2 also shows the Preferences window where the

User Agent can be used in an IMS context or with a

SIP AS.

3.2.1 The Implementation and its Toolkits

These are customized User Agents in which

additional functionalities are provided such as

integrating SIP stack into them. It is required that the

excerpts of the HTTP request/response header are

sent in an XML format. There will be predefined

tags that wrap up information such as URL

(Universal Resource Locator), session ID or cookies

IMPLEMENTING CONTENT SHARING AND SESSION HAND-OFF BETWEEN WEB BROWSERS - An Integration

of SIP Stack into Mozilla Firefox Web Browser

279

Figure 2: The Mozilla Firefox Extension.

information per request. The UAC is an extension to

existing web browsers. It will query the XML,

extract the relevant information and insert it into the

web browser where appropriate.

The proof of concept will be based on Mozilla

related technologies. The needed software is

classified as Free and Open Source Software

(FSOSS) and Mozilla Corporation™ has a large

community of developers and contributors that can

help in the implementation.

Some of the toolkits are Cross-Platform Component

Object Model (XPCOM), Cross-Platform Interface

Definition Language (XPIDL) and Cross-Platform

Front End (XPFE). Mozilla web browser Firefox has

over 600 components which were writing as

XPCOM and seamlessly integrated into it. XPCOM

makes it possible to write language-agnostic

components thereby separating the implementation

from the interface (David, 2002). Some of the

components required in this implementation are the

Preferences Manager (Components.classes

[‘mozilla.org/preferences-service;1’]), the

Authentication Component (Components.classes

[‘@mozilla.org/loginManager;1’]) and the Cookies

Component (Components.classes [‘Component

@mozilla.org/cookieService;1’]). Fig. 2 shows the

User Interface of the extension after installing on

Mozilla web browser Firefox. There are numerous

Application Program Interfaces (APIs) to help

integrate SIP stack into an application. Examples are

Osip, Exosip and reSIProcate. Recently, a Mozilla

based SIP Client called Zap (Zap, 2007) and Mozilla

thunderbird extension for telephony services called

Cockatoo (Cockatoo, 2007) integrated a SIP stack.

This project will leverage on these existing solutions

in order to prove the concept.

3.2.2 The Implementation Plan

Fig. 3 shows the flowchart of how this solution will

be implemented. Where a user has successfully

registered with the SIP AS and makes a request,

typically a session hand-off, the mechanism used in

making HTTP stateful has to be detected. There are

many ways of making HTTP stateful. These include

the use of session IDs or cookies, use of HTML

hidden fields and URL encoding (Hal, 2002). The

UAC and the SIP AS will have the intelligence to

WEBIST 2008 - International Conference on Web Information Systems and Technologies

280

detect what mechanism is used to make HTTP

stateful. This feature will help in determining what

excerpt of the HTTP header request needs to be

transferred. For example, cookies or session ID and

its associated URL can be encapsulated and sent

between two UACs. Since web applications can

implement more than one of these mechanisms, it

will be ideal to search for all relevant information

such as cookies, HTML hidden fields and transfer all

with the entire URL via SIP MESSAGE.

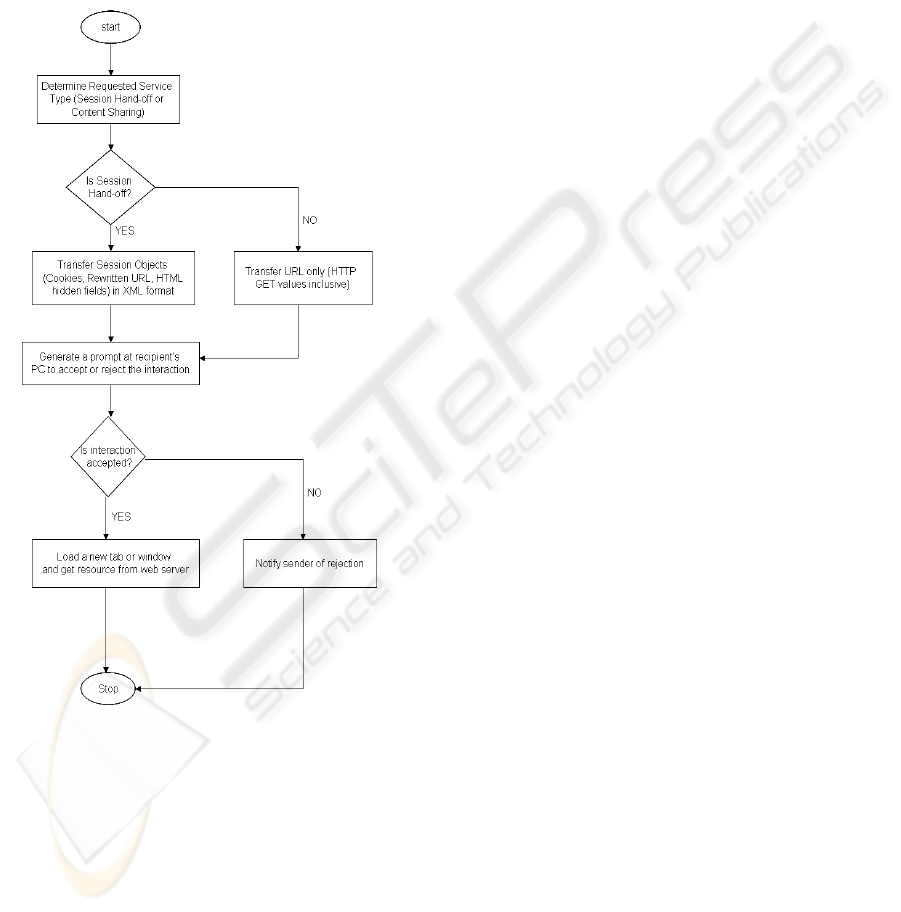

Figure 3: Flowchart of Content Sharing and Session Hand-

off.

Fig. 4 shows the XML document format as message

carrier. A native code in JavaScript or C++ will be

written to extract necessary information from the

message carrier and pass to the appropriate XPCOM

in the browser. The built-in XML parser in Mozilla

Firefox Web Browser can also be used to extract the

necessary information from the message carrier. In

addition to detecting what mechanism is used,

another open problem is how session transfer can be

achieved when accessing a secured website that

implements security measures like SSL. Though

SSL works between the Application Layer and the

Transport Layer of the OSI Layer Model and helps

encrypt data before transmission, there would be

need to use a protocol such as TLS to encrypt data

transferred between two UACs whenever it is

discovered that SSL is used on a website whose

content is about to be shared or handed-off. SIP

supports most of the security features available in

HTTP such as TLS, SMIME and SSL. Logically, it

can be assumed that there will not be a problem

since the extension works at the Application Layer

where raw HTTP Header Request and Response are

formed and transferred.

<http-session>

<encodedURL>http://www.adinterax.com/request

.php</encodedURL>

<cookie_name>adxf</cookie_name>

<cookie_content>80047@1@799.98629@817.80072@

1@804.98706@7@817.8258@</cookie_value>

<cookie_domain>.adinterax.com</cookie_domain

<cookie_path>/</cookie_path>

<cookie_sendFor>Any type of

connection</cookie_sendFor>

<cookie_expires>30/12/15

17:01:16</cookie_expires>

</cookies>

<element_name>categories</element_name>

<element_value>Microsoft</element_value>

<element_size>15</element_size>

</http-session>

Figure 4: Message Carrier in XML format.

4 CONCLUSIONS

In this paper, only the client-side implementation

strategies have been discussed. Also effort has been

made to reduce assumptions that could make the

paper vague and doubtful of its implementation. It is

expected that many built-in interfaces/components

of Mozilla Firefox Browser will be used. These

include nsIPromptservice interface which will be

used in creating prompt messages for users,

nsIDOMDocument interface which will be used in

tracing HTML Hidden fields and XBL (XML

Binding Language) which will be used in

automatically launching new tabs when an

acceptance of Content Sharing or Session Hand-off

request is made by clicking OK button of a prompt

message.

IMPLEMENTING CONTENT SHARING AND SESSION HAND-OFF BETWEEN WEB BROWSERS - An Integration

of SIP Stack into Mozilla Firefox Web Browser

281

How Content-Sharing and Session Hand-off are

mapped to Third Party Call Control and Session

Hand-off SIP mobility types respectively has been

discussed in another paper owing to restriction in the

number of pages of this paper. This is a research

work in-progress which aims at developing an

extension with a SIP stack for a web browser and a

SIP Application Server in order to achieve Content

Sharing and Session Hand-off. At present, effort is

on integrating a SIP stack into the User Agent or

Web Browser (Mozilla Firefox). Both of them are

two autonomous applications and their integration

requires an API that provides another abstraction of

the SIP Stack so that the web browser can interact

with it. The SIP Stack already provides a layer of

abstraction by hiding the daunting task of composing

SIP messages from scratch but making it possible to

generate the SIP messages through simple

procedural or object-oriented programming.

REFERENCES

D. Kristol, L. Montulli, 2000. “HTTP State Management

Mechanism,” IETF RFC 2109.

B. Campbell, J. Rosenberg, H. Schulzrinne, C. Huitema,

D. Gurle, 2002. “Session Initiation Protocol (SIP)

Extension for Instant Messaging,” IETF RFC 3428.

R. Shacham, H. Schulzrinne, S. Thakolsri, W. Kellerer,

2007. “Session Initiation Protocol (SIP) Session

Mobility,” Internet-Draft.

B. Campbell, R. Mahy, C. Jennings, 2007. “The Message

Sessions Relay Protocol (MSRP),” Internet-Draft.

David Boswell, Brian King, Ian Oeschger, Pete Collins,

Eric Murphy, 2002. Creating Applications with

Mozilla, O’Reilly Press, USA, First Edition.

Mozilla based Sip Client “Zap”, 2007. http://

www.croczilla.com/zap.

Mozilla based Telephony Extension “Cockatoo”, 2007.

http://cockatoo.mozdev.org.

Hal Berghel, 2002. “Hijacking the Web,”

Communications of the ACM, Vol. 45 No. 4.

WEBIST 2008 - International Conference on Web Information Systems and Technologies

282
