DECENTRALIZED DIAGNOSIS FOR BPEL WEB SERVICES

Lina Ye and Philippe Dague

LRI, Univ. Paris-Sud, CNRS and Gemo, INRIA Saclay, Parc Club Orsay Universit´e

4 rue Jacques Monod, bˆat G, Orsay, F-91893, France

Keywords:

BPEL Web services, Petri nets, consistency-based diagnosis, causal model, decentralized diagnosis.

Abstract:

This paper proposes a decentralized diagnosis approach for BPEL Web services, where a local diagnoser is

provided to each BPEL service and should cooperate with a coordinator. It should noted that there is no global

model in this approach but local model for each service. The strategy of local consistency-based diagnosis

consists in abstracting diagnostic knowledge base from data dependencies contained in the enriched BPEL

Petri net model of each service and then reasoning from the observations with a set of local possible source

faults. The coordinator has to put together all the local diagnosis information from local diagnosers and infer

global diagnoses.

1 INTRODUCTION

Self-healing software is one of the important

challenges for Information Society Technologies

research. Our paper proposes a decentralized

diagnosis approach for BPEL Web services,

in the context of the EU project WS-Diamond

(http://wsdiamond.di.unito.it), whose goal is to

design a framework for self-healing Web services

by adopting artiﬁcial intelligence methodologies to

solve the diagnosis problem by supporting online

detection and identiﬁcation of faults.

Considering a complex Web service, due to its

data oriented nature, we focus on data semantic faults,

which are the most difﬁcult to identify but the most

critical by their consequences since Web services are

components that use messages to interact with each

other and messages are mostly a data structure. In

fact, many subtle faults on data cannot be identiﬁed

at the time when they happen and are thus difﬁcult

to diagnose. Generally, data are propagated through

the interactions and then are used to elaborate other

data or control decisions, like branching conditions.

In other words, during the transmission through part-

ner instances, data may propagate a dysfunction until

an exception is thrown when a logical data contradic-

tion is detected. The contradictioncan be either a mis-

match of some data values or some wrong data. This

kind of dependencymakes it difﬁcult to predict the re-

lationship between the source fault and the symptom.

For example, let us consider a data fault caused by a

discrepancy in the semantic of the date format: in a

travel agency service, a customer deﬁnes his itinerary

by French format, like from (6/2/07) to (10/2/07)

for hotel reservation, while hotel service uses English

format for interpretation. Then the user will raise an

exception, saying that the amount of the hotel cost is

exaggerated (4 months instead of 4 days). To detect

and explain such kind of faults, model-based diagno-

sis (Hamscher et al., 1992) is adopted here owing to

its capability of detecting more effectively the unan-

ticipated or hidden faults in the context of Web ser-

vices. However, it should be noted that Web services

are a novel area of applications for model-based diag-

nosis and no such characterization is available from

the literature.

The rest of this paper is organized as fol-

lows. Section 2 brieﬂy presents the modeling of

BPEL(Business Process Execution Language) ser-

vices. In section 3, a decentralized diagnosis ap-

proach is proposed, including the strategy of local di-

agnosis based on consistency-based perspective and a

protocol for global diagnosis. At last the conclusion

is given in section 4.

2 BPEL SERVICES MODELING

BPEL is a standard Web service composition lan-

guage, deﬁned to support the development of com-

283

Ye L. and Dague P. (2008).

DECENTRALIZED DIAGNOSIS FOR BPEL WEB SERVICES.

In Proceedings of the Fourth International Conference on Web Information Systems and Technologies, pages 283-287

DOI: 10.5220/0001525402830287

 SciTePress

plex applications based on the orchestration of sim-

pler ones. It offers a set of structured activities to

order the execution of the basic ones and thus con-

trol the process ﬂow. (Li et al., 2007) has already

precisely described a method for generating automat-

ically enriched BPEL Petri net models with data de-

pendencies from their BPEL code. The essential idea

is to use places to represent the most elementary parts

that compose a message (using its Xpath decomposi-

tion) as well as the activation status and to use tran-

sitions to represent activities. More importantly, to

enrich each transition of the BPEL Petri net with a set

of dependency relations between its input and output

parameters, three data dependency relations for Web

service diagnosis at high level are considered, deﬁned

in (Ardissono et al., 2005): FW(a,x, y) describes the

relation that the output variable y of the activity a is a

copy of the input variable x, regardless of the correct-

ness of the behavior of a; SRC(a,y) means that the

output variable y is created by the activity a, indepen-

dently of its input variables; EL(a, {x

...x

},y) ex-

presses the case that the output variable y is computed

from the input variables x

...,x

by the activity a.

By modeling BPEL services in this way, it is possible

to get all data dependencies in services such that our

diagnosis result concerns all possible source faults.

3 DECENTRALIZED DIAGNOSIS

FOR BPEL SERVICES

Web services, as all other applications, are subject

to dysfunctions, such as a faulty composed service,

an incoming message mismatching the interface, etc.

The symptom is that exceptions are thrown at the

places where the process cannot be executed. To han-

dle these faults, the current mechanism is a throw-

and-catch one, which is very preliminary since it

relies on the empirical knowledge of the developer

while various causes of the exception may be un-

known to him. So, with this mechanism, we cannot

obtain a sound and complete diagnosis, especially for

semantic faults. For example, when an exception is

thrown, then not only the service that throws the ex-

ception should be suspected, but the one that gener-

ates the data and also all the services that modify the

data should be suspected. Whereas a current Web ser-

vice exception can only report about where the ex-

ception happens. As said before, since the seman-

tic faults are the most difﬁcult and the most critical

ones to diagnose, our approach focus on determin-

ing the exact source faults that are possibly respon-

sible for this kind of exceptions. For this, three types

of source faults, which may cause semantic faults in

Web services, are taken into account: a basic Web

service (black box) with abnormal behavior; a wrong

input data from the user; and an interface fault, which

means that the shared messages between two coop-

erating Web services become different and thus the

dysfunction can be engendered as a result.

3.1 Architecture

We propose a decentralized diagnosis approach in

this paper, considering its efﬁciency in Web services

context. Figure 1 describes our architecture. For

each BPEL service W

, there is a local diagnoser

performing local diagnosis inference by adopting

consistency-based approach, based on the model of

as well as local observations, that are logged by

the monitoring platform. In addition, there is also a

coordinator, which is considered as a separated Web

service that receives local diagnosis results from local

diagnosers to decide about the global diagnoses by re-

solving local diagnosis conﬂicts. Here it is worth not-

ing that there is no global model for the whole BPEL

process, since the coordinator knows nothing about

local models but their connections. In this sense our

approach is called a decentralized one. Obviously, in

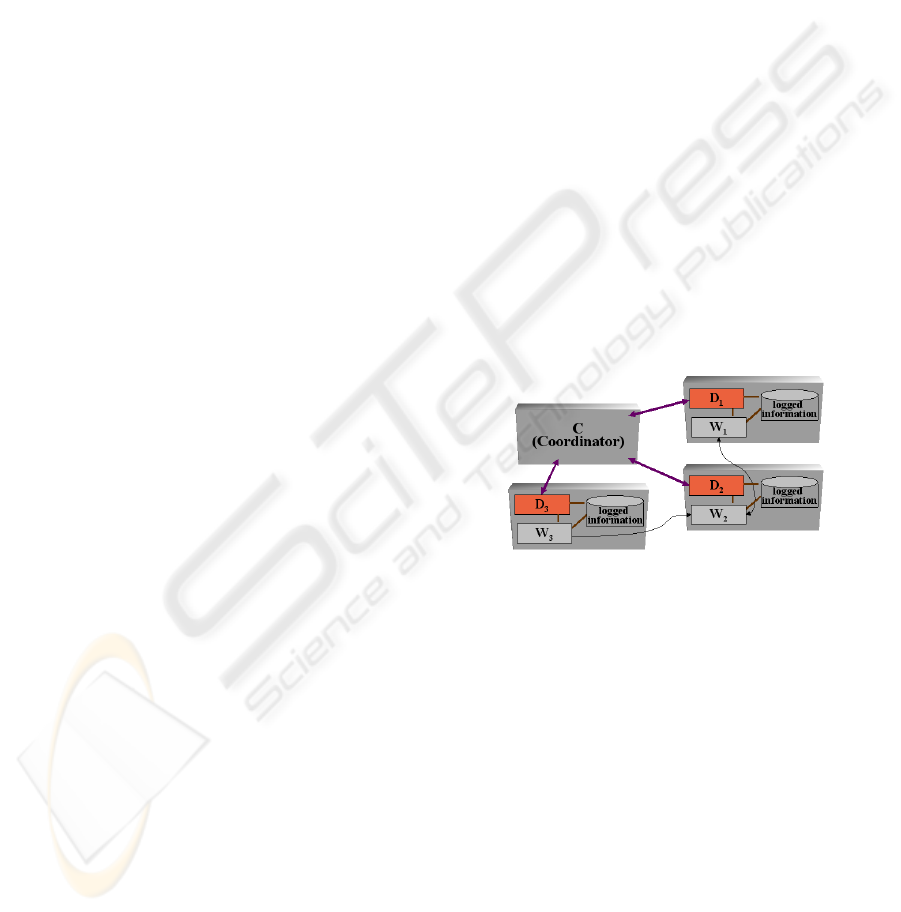

Figure 1: Decentralized diagnosis architecture.

this architecture, for the organization owning the or-

chestrated Web service, the privacy issues can be sat-

isﬁed due to the fact that the model of W

can only be

inspected by the associated local diagnoser D

, which

does not directly interact with other local diagnosers.

3.2 Local Diagnosis for BELL Services

Reiter’s logical theory of diagnosis (Reiter, 1987) is

also referred to as consistency-based diagnosis. In

this approach, a behavioral system model is deﬁned

as a tuple (SD,COMP): SD, the system description,

is constituted of a ﬁnite set of ﬁrst order sentences

describing explicitly the behavior of each given com-

ponent; COMP is a ﬁnite set of constants, meaning

the components that could be faulty. In SD, a distin-

guished predicate

′

means abnormal. For exam-

ple, ab(c) denotes an abnormal component c, while

WEBIST 2008 - International Conference on Web Information Systems and Technologies

284

¬ab(c) expresses the component c working correctly.

An observed behavioral system model is expressed

as a tuple (SD,COMP,OBS), where (SD,COMP) is a

system model and OBS is a set of ﬁrst order formulas

expressing the observations. Generally, a diagnosis is

considered as a hypothesis that certain components of

the system are behaving abnormally, which should be

consistent with what is known about the system and

with the observations. A diagnosis is called minimal

diagnosis, if and only if no proper subset of it is a di-

agnosis at the same time. Usually minimal diagnoses

are often the preferred ones, considering the principle

of parsimony.

Deﬁnition 1. A minimal diagnosis for an observed

system (SD, COMP, OBS) is a minimal subset △ of

COMP such that:

SD∪ OBS ∪ {ab(c)|c ∈ △}

∪ {¬ab(c)|c ∈ COMP\ △}

is consistent.

The above behavioral system model description

SD can be simpliﬁed by using causal system model

description SD

′

(Bauer, 2005). Differently from SD,

′

describes the causal relation that if all input data

and the component/activity itself are correct, then all

its outputs are correct. However, this kind of causal

relations are not precise enough. For Web service di-

agnosis, owing to the availability of the three depen-

dency relations, described in 2, we can get a similar

but more precise system description, denoted as SD

′′

Specially, the causal relations in SD

′′

are obtained

from every data dependency(FW,SRC, EL), while the

causal relations in SD

′

are acquired only from every

component/activity.

Since we have a set of data dependenciesin the en-

riched BPEL Petri net model, it is crucial to transform

them into causal logic formulas for the consistency-

based local diagnosis. Tables 1, 2, 3 describe the

causal relations between input and output parameters

for all kinds of activities by translating each data de-

pendency into causal logic formula. Considering ta-

ble 1, it can be seen that ¬ab(a) in the logic formula

is not concerned. The reason is that in our case, BPEL

code is supposed to be correct, which means that the

behavior of basic BPEL activity is assumed to be nor-

mal, since we focus onlyon semantic faults and not on

program debugging. In addition, due to the fact that

when an exception is thrown, multiple causes could

be possible to explain this exception, depending on

which branch being taken, we adopt online diagnosis

to infer the exact possible sources of the fault. For

this, obs(a), which expresses that basic BPEL activ-

ity a is observed, should be added into the logic for-

mulas. In this way, the logged information of our

monitoring system, like the observed activities, can

be used in the diagnosis process. For example, for the

dependency SRC(a,y), the corresponding logic for-

mula means that if input activation status of activity

a is correct and a is observed, then output y is correct.

Similarly, table 2 can be obtained. The difference is

that for Invoke activity, we have to take the invoked

service into account for SRC and EL dependencies,

since the abnormal behavior of the invoked service

affects the output parameters. Here for the sake of

simplicity, the correct behavior of invoked service,

invoked by Invoke activity a, is denoted as ¬ab(a).

Table 3 is for an additional type of activity, control

activity, which is not a basic BPEL activity and thus

cannot be observed by our monitoring system. So in

3, obs(a) is not concerned. It can be noticed that con-

trol activity has no output data place but only one out-

put activation place, meaning that the role of control

activity is just to control the process ﬂow.

Table 1: The transformation for basic BPEL activity except

Invoke.

Dependencies Causal logic formulas

FW(a,x,y)

¬ab(a.in) ∧ ¬ab(x) ∧

obs(a) → ¬ab(y)

SRC(a,y)

¬ab(a.in) ∧ obs(a) →

¬ab(y)

EL(a,{x

},y)

¬ab(a.in) ∧ ¬ab(x

) ∧

¬ab(x

) ∧ obs(a) → ¬ab(y)

Table 2: The transformation for Invoke activity.

Dependencies Causal logic formulas

FW(a,x,y)

¬ab(a.in) ∧ ¬ab(x) ∧

obs(a) → ¬ab(y)

SRC(a,y)

¬ab(a.in) ∧ ¬ab(a) ∧

obs(a) → ¬ab(y)

EL(a,{x

},y)

¬ab(a.in) ∧ ¬ab(x

) ∧

¬ab(x

) ∧ ¬ab(a) ∧

obs(a) → ¬ab(y)

Table 3: The transformation for control activity.

Dependencies Causal logic formulas

FW(a,a.in,a.out) ¬ab(a.in) → ¬ab(a.out)

EL(a,{a.in, x},

a.out)

¬ab(a.in) ∧ ¬ab(x) →

¬ab(a.out)

For each enriched BPEL Petri net model of a

BPEL service, a set of logic formulas, actually a set of

Horn clauses, can thus be obtained from a set of data

dependencies available in the model. This set of logic

formulas is from now on called Diagnostic Knowl-

edge Base (DKB). When applying the consistency-

based diagnosis technique for complex physical sys-

tems to Web services, this DKB facilitates the calcu-

lation of the minimal diagnoses with OBS and with

DECENTRALIZED DIAGNOSIS FOR BPEL WEB SERVICES

285

the complementary knowledge of a set of possible

sources whose faults can be used to explain the ex-

ception, denoted as PSF. Due to the assumption of

correct BPEL code, we have the following deﬁnition:

Deﬁnition 2. PSF is the set of possible source faults

for a local BPEL service, concerning three types:

• Incorrect input data x from user, denoted as ab(x)

• Faulty basic Web service, invoked by Invoke activ-

ity a, denoted as ab(a)

• Wrong input variable y in Web service W

coming

from shared variable y

′

in another composite Web

service W

, denoted by ab(y).

For the last one, faulty input variable y from an-

other service, it can be temporally considered as local

possible source fault but will be exploited later. De-

tails will be presented in 3.3. Then with DKB and

PSF, similar to deﬁnition 1, we have:

Deﬁnition 3. A minimal diagnosis for an observed

BPEL service (DKB,PSF,OBS) is a minimal subset

△ of PSF such that:

DKB ∪ OBS∪ {ab(c)|c ∈ △}

∪ {¬ab(c)|c ∈ PSF \ △}

is consistent.

3.3 Protocol for Global Diagnosis

In our decentralized diagnosis architecture, each local

diagnoser can interact both with its associated Web

service and with the coordinator, while the coordina-

tor can interact only with local diagnosers. Moreover,

due to the privacy issues, our coordinator C does not

initially have any information on the individual Web

services except their connections, which are obtained

ofﬂine and are at interface level.

This decentralized diagnosis process is started by

a local diagnoser D

that is awakened by an excep-

tion in Web service W

. The whole steps are as the

following:

1. D

infers the local diagnoses for the observed sys-

tem {DKB

,PSF

,OBS

} and sends its result to C.

2. C extends the diagnoses received from D

by pro-

viding each element a of every diagnosis (here

for the sake of generalization, minimal diagnosis

could be single or multiple, which is thus con-

sidered as a list) with local diagnoser D a that

can further explain ab(a). If there is no such lo-

cal diagnoser, then D a is assigned null. When

the diagnosis is △ = {y}, where y is input data

coming from y

′

in another composite Web ser-

vice W

, then the result of extension should be

△

′

= {Inf(y

′

,y), null} or △

′

= {y

′

}, due to

the fact that abnormal y could be caused by the

interface fault or by the local possible source fault

in W

. Here ab(In f(y

′

,y)) denotes the fault of

interface between y in W

and y

′

in W

when the

value is transmitted from y

′

to y. In particular,

for △

′

= {Inf(y

′

,y), null}, the observed informa-

tion can be used to verify or disapprove it. For

example, if the values of the shared variables are

observed different, then this interface fault is ver-

iﬁed. Otherwise, it should be excluded. When

the diagnosis is △ = {a}, a being input data from

user or Invoke activity invoking a basic Web ser-

vice, then it is extended as △

′

= {a,null} , since

no local diagnoser can be further required to ex-

plain ab(a).

3. If there exist other local diagnosers for further re-

quest, C triggers one, for example D

, by sending

ab(y

′

) as an exception in W

. D

then performs

local diagnosis and sends its result to C.

4. C extends the diagnoses from D

and then makes

diagnosis update by replacing {y

′

} with the

extended result of D

. After this, C continues to

look for next local diagnoser. If there is any, the

process turns to step 3. Otherwise, the process

terminates. Finally, we can get all the global diag-

noses from the ﬁnal diagnoses in C.

Alg1 formally illustrates our diagnosis process.

Table 4: Meaning of major symbols in the algorithm.

Symbol Meaning

H or H a

a list of candidate minimal di-

agnoses, subsets of (∪

PSF

)

ITF

a set of interfaces between

shared variables in different ser-

vices

ISV

a set of input variables in PSF

from another composite Web

service

list.next()

returns the ﬁrst element of a list

list.remove(element)

removes an element from the

list

list.add(element)

adds an element to a list

(Var)

returns a set of local minimal

diagnoses for W

inferred by D

with the exception on Var

list.extend()

extends a list, details precisely

described in step2

H.update(a,H a)

returns the result of replacing a

with H a in H

Alg 1. Input: Variable y

in W

where rises the excep-

tion. Output: F, the list of global minimal diagnoses

△

, where △

is a subset of ((∪

PSF

)

(∪

ITF

) \

∪

ISV

). Initially, F is empty.

H = D

);

H.extend();

while H! = null do

{T = H.next();

WEBIST 2008 - International Conference on Web Information Systems and Technologies

286

if (for each element a in T, D a = null), then

{F.add(T);

H.remove(T);}

else

for each element a in T, do

if (D a! = null), then

{H a = D a(a);

H a.extend();

H.update(a, H a);}

}

return F

4 CONCLUSIONS

In this paper, a cooperative decentralized diagno-

sis approach for complex Web services is proposed.

BPEL Web services are chosen as our application due

to their popularity and perspective. For each individ-

ual activity, grey box is adopted, which means that we

do not model its internal behavior but the correlation

between its input and output parameters. Thus we can

infer how the correct/incorrect status of input param-

eters can affect the correct/incorrect status of output

parameters. Obviously, our approach greatly reduces

the computation complexity thanks to local diagno-

sis algorithm relying on Horn clauses inference and

global diagnosis based on decentralized architecture.

The details of our experimentations on real BPEL ex-

amples (in the framework of project WS-Diamond)

are omitted due to lack of space. In addition, our

approach can be easily extended to handle multiple

exceptions, especially for independent exceptions in

different paralleled branches. In this case, each ex-

ception should be diagnosed independently and then

the synthesized diagnoses are the union of all the di-

agnoses. Since we focus on the minimal diagnoses,

we remove the synthesized diagnoses that are super-

sets of other ones. Furthermore, it is straightforward

to extend our diagnosis architecture to multi-layered

hierarchies. For example, a coordinator can be de-

signed to be able to act as a local diagnoser for an-

other coordinator at higher level.

There are similar approaches in the literature. In

(Bauer, 2005), the problem of contradicting ﬁrst or-

der system descriptions with observations is reduced

to propositional logic, which is similar to our DKB.

However, they have experiencedk-satisﬁability by us-

ing state-of-the-art SAT solvers to determine conﬂict

sets and minimal diagnoses, which is avoided in our

approach since our DKB is made up of Horn clauses

and thus permits direct deduction. (Ardissono et al.,

2005) has proposed a similar decentralized model-

based diagnosis approach for Web services. Their

global diagnoser does not initially have any informa-

tion on the individual Web services such that the com-

munications between local diagnoser and global di-

agnoser should contain the information about diag-

nosis and interactions (like connection information).

Differently, our coordinator has the knowledge about

the connections between services, which lightens the

communication ﬂow since just diagnosis information

should be considered. However, this knowledge does

not violate the privacy issues since it is at interface

level and thus the coordinator still does not know the

internal details of services. In addition, they just have

proposed the characterization of local diagnoser op-

erations without providing speciﬁc algorithms. While

in ours, since BPEL services are chosen as the appli-

cation, local diagnosis algorithm is precisely deﬁned.

(Yan and Dague, 2007) has introduced an approach

similar in its principle but different in its implementa-

tion: automata are used instead of Petri nets for mod-

eling; trajectories in the synchronized product of the

automaton model and the observations are used in-

stead of data dependencies; the diagnostic algorithm

is centralized instead of being decentralized.

REFERENCES

Ardissono, L., Console, L., Goy, A., Petrone, G., Picardi,

C., Segnan, M., and Dupr´e, D. T. (2005). Enhanc-

ing web services with diagnostic capabilities. Proc. of

European Conference on Web Services (ECOWS-05),

pp. 182-191, Vaxjo, Sweden, IEEE.

Bauer, A. (2005). Simplifying diagnosis using lsat: a propo-

sitional approach to reasoning from ﬁrst principles.

In vol 3524 of Lecture Notes in Computer Science.

Proc. of the 2005 International Conference on Inte-

gration of AI and OR Techniques in Constraint Pro-

gramming for Combinatorial Optimization Problems

(CP-AI-OR), Springer-Verlag.

Hamscher, W., Console, L., and de Kleer, J. (1992). Read-

ings in Model-based Diagnosis. Morgan Kaufmann.

Li, Y., Melliti, T., and Dague, P. (2007). Modelling bpel

web services for diagnosis: towards self-healing web

services. Proc. of the 3rd International Conference

on Web Information Systems and Technologies, pages

297-304, Barcelona, Spain.

Reiter, R. (1987). A theory of diagnosis from ﬁrst princi-

ples. Artiﬁcial Intelligence, 32(1), 57-96.

Yan, Y. and Dague, P. (2007). Monitoring and diagnosing

orchestrated web service processes. Proc. of the 2007

IEEE International Conference on Web Services.

DECENTRALIZED DIAGNOSIS FOR BPEL WEB SERVICES

287
