SEMANTIC TURKEY

A New Web Experience in between Ontology Editing and Semantic Annotation

Francesca Falluchi, Maria Teresa Pazienza, Noemi Scarpato and Armando Stellato

DISP, University of Tor Vergata, Via del Politecnico 1, Rome, Italy

Keywords: Semantic Browsing, Semantic Annotation, Semantic Bookmarking, Ontology Editing.

Abstract: In this work we describe Semantic Turkey, a Semantic Extension for the popular web browser Mozilla

Firefox. Semantic Turkey can be used to keep track of relevant information from visited web sites and

organize collected content according to a personally defined ontology. In this sense, Semantic Turkey can

be seen both as an advanced semantic bookmarking system as well as an ontology editing assistant, which

allows domain experts and ontology developers to build ontologies starting from the very raw source of

information which they find on the web. The open architecture of Semantic Turkey and the specific three-

layered approach of its design also allows for scaling the basic personal desktop application embodied by

this tool up to a distributed framework for collaborative semantic annotation and ontology editing. This

paper describes the architecture and the functionalities of the Semantic Turkey extension for Firefox, and

describe possible evolutions for future improvement of the tool.

1 INTRODUCTION

While new solutions for Semantic Desktops and

Innovative Browsing of file systems (Leaftag

project; Wheeler, 2005) are arising in these days,

one of the instruments which is mostly correlated to

WWW – the Web Browser – and which should be

more prone to the wind of innovation blowing from

the Semantic Web, remains confined to its old

fashioned interaction modalities. Web browsers

currently offer no more than the classical services –

for collecting and organizing bookmarks and for

retrieving the history of past navigation activity –

which we have been used to since the beginning of

the Web. The web is however not the same of ten

years ago: today much of the information which is

intended to be public can be accessed even (if not

solely) from the WWW so that every web user is

exposed to a huge amount of knowledge and data

which is difficult to manage and retrieve. New

paradigms are thus necessary to support users in web

browsing and in the process of collecting and

retrieving the data which is observed during

navigation.

In this work we describe Semantic Turkey, a

Semantic Extension for the popular web browser

Mozilla Firefox (Firefox home page), which can be

used to annotate information from visited web sites

and organize this information according to a

personally defined ontology. Semantic Turkey

should not be addressed as a “Semantic Web

Browser” (whatever the nature of this term, which

will probably take shape in the near future): in its

current form, it is intended as a personal desktop

solution for organizing and managing the relevant

information which is observed during web

navigation. So, considering it under different

perspectives and according to different needs, it

could both be adopted as an advanced replacement

for the traditional “Bookmarks” menu, offering clear

separation between knowledge data (the WHAT)

and web links (the WHERE), as well as an assistant

for ontology developing, allowing users to easily

grab information from the web and build new

concepts, objects and relations to produce new

ontologies or populate existing ones. As an

additional possibility, the architecture of the tool has

been conceived to allow for an easy scale-up to a

distributed and collaborative framework for

semantic annotation and ontology editing.

2 RELATED WORKS

As an evidence of the great interest in the matter,

several actions have been undertaken in the last

Falluchi F., Teresa Pazienza M., Scarpato N. and Stellato A. (2008).

SEMANTIC TURKEY - A New Web Experience in between Ontology Editing and Semantic Annotation.

In Proceedings of the Fourth Inter national Conference on Web Information Systems and Technologies, pages 90-97

DOI: 10.5220/0001526600900097

 SciTePress

years towards the realization of so called Semantic

Browsing solutions for the Web. In this section we

will briefly recall a few of them, also addressing

other topicalities like advanced bookmarking

systems and services and semantic annotation tools.

The Haystack (Quan & Karger, May, 2004) web

client, developed at the MIT laboratories, was

conceived as an application that could be used to

browse arbitrary Semantic Web information in much

the same fashion as a Web browser can be used to

navigate the Web. Standard point-and-click

semantics let the user navigate over aggregation of

RDF repositories from different arbitrary locations.

The application has been built as an extension for

the popular Integrated Development Environment

Eclipse (Eclipse Platform Technical Overview); this

choice facilitates extension of the tool thanks to

Eclipse flexible plug-in mechanism, but requires the

user to adopt Eclipse as a platform for browsing the

web and collecting data from it: a negative aspect for

the average user, who would just prefer to rely on

his trusted personal web browser and try out other

features which are not too invasive for his usual way

of working.

An opposite approach is being followed by

Magpie (Dzbor, Domingue, & Motta, 2003), which

is deployed as a plug-in for the Microsoft Internet

Explorer Web Browser. In its first incarnation,

Magpie allowed for semantic browsing, intended as

the parallel navigation of purely “exposed” web

content and of its associated semantic layer (an

ontology associated to the web resource, which

semantically describes its content). Magpie also

allows for collaborative semantic web browsing, in

that different persons may gather information from

the same web resource and exchange it on the basis

of a common ontology. Recent work on Magpie

(Dzbor, Motta, & Domingue, 2004) extended the

platform more and more towards the vision of the

Semantic Web as “an open web of interoperable

applications” (Berners-Lee, Hendler, & Lassila,

2001), by allowing bi-directional exchange of

information among users and services, which can be

opportunistically located and composed, either

manually (web services) or automatically (semantic

web services).

From (part of) the same authors of Haystack,

comes Piggy-Bank (Huynh, Mazzocchi, & Karger,

November, 2005), an extension for the Firefox web

browser (Firefox home page) that lets Web users

extract individual information items from within

web pages and save them in RDF, replete with

metadata. Piggy Bank then lets users make use of

these items right inside the same web browser.

These items, collected from different sites, can then

be browsed, searched, sorted, and organized,

regardless of their origins and types. Piggy-Bank

users may also rely on Semantic Bank, a web server

application that lets them share the Semantic Web

information they have collected, enabling, as for

Magpie, collaborative efforts to build sophisticated

Semantic Web information repositories from daily

navigation through their enhanced web browser.

Though not being directly related to the category

of “semantic browsing” solutions, it is however

impossible to not mention recent trends in “social

bookmarking” tools. The most popular one,

del.icio.us (del.icio.us.), is a service for building

personal collections of bookmarks and access them

online. It is possible, through the same service, to

add links to a collection of bookmarks, to categorize

the related sites with keywords, and to share the

personal collection with other users. Google

recently offered a similar solution with its Google

Notebook (Google Notebook). The idea is quite

simple: open a scratch electronic paper from within

your web browser, and let the user add not only

bookmarks, but write complete multimedia

comments (by using Google Page Creator

technology (Google Page Creator)), which can also

be shared with other people (currently, this sharing

service is not yet active).

What lacks from the previous approaches (with

the possible exception of Magpie which, on the other

hand, realizes different objectives) is a really

integrated environment extending a web browser

with (light) knowledge management facilities and

efficient retrieval of acquired information, all put at

the hands of the user on its workstation (in

opposition to current trends promoting service-based

utilities which suppose an always-online working

environment and entirely “webbed” user interfaces).

3 MOTIVATIONS AND APPROACH

Semantic Turkey had been initially developed as a

prototype for an advanced bookmarking system

(Griesi, Pazienza, & Stellato, 2007) with information

management capabilities centered around modern

Semantic Web knowledge representation models and

technologies.

Our idea was to offer a sort of “semantic

notepad” with basic functionalities for:

1. capturing information from web pages – both by

considering the page as a whole, as well as by

selecting portions of their text – and annotating

it with respect to a personal ontology

2. editing the above ontology for classifying the

annotated information and for better

characterizing its interests according to its

descriptive properties (attributes and relations)

SEMANTIC TURKEY - A New Web Experience in between Ontology Editing and Semantic Annotation

3. navigating the structured information as an

underlying semantic net which, populated with

the many relationships which bind the annotated

objects between them, eases the process of

retrieving the knowledge which was buried by

the past of time

In particular, we coined the expression Semantic

Bookmarking to indicate the process of annotating

information from (web) documents, to acquire new

knowledge and represent it through knowledge

representation standards. In this sense, Semantic

Turkey differentiated from similar, previously

described, tools, as it offered a lightweight structure,

which completely exploits the infrastructure of the

hosting web browser (with respect to, for example,

the complex completely-web based interface of

Piggy-Bank) and which grants the user a good

control over its personal knowledge model (while,

e.g. Magpie only adopts ontologies which have been

defined elsewhere). In the process of reengineering

the original prototype and releasing it to the

community, we made a further step in strengthening

its unique combination of semantic annotation and

editing functionalities, endowing it with full

ontology editing and import capabilities, an even

more modular and flexible architecture allowing for

different ontology technologies to be plugged at

need and a versatile knowledge model for

coordinating user/domain and application-driven

information.

4 ARCHITECTURE

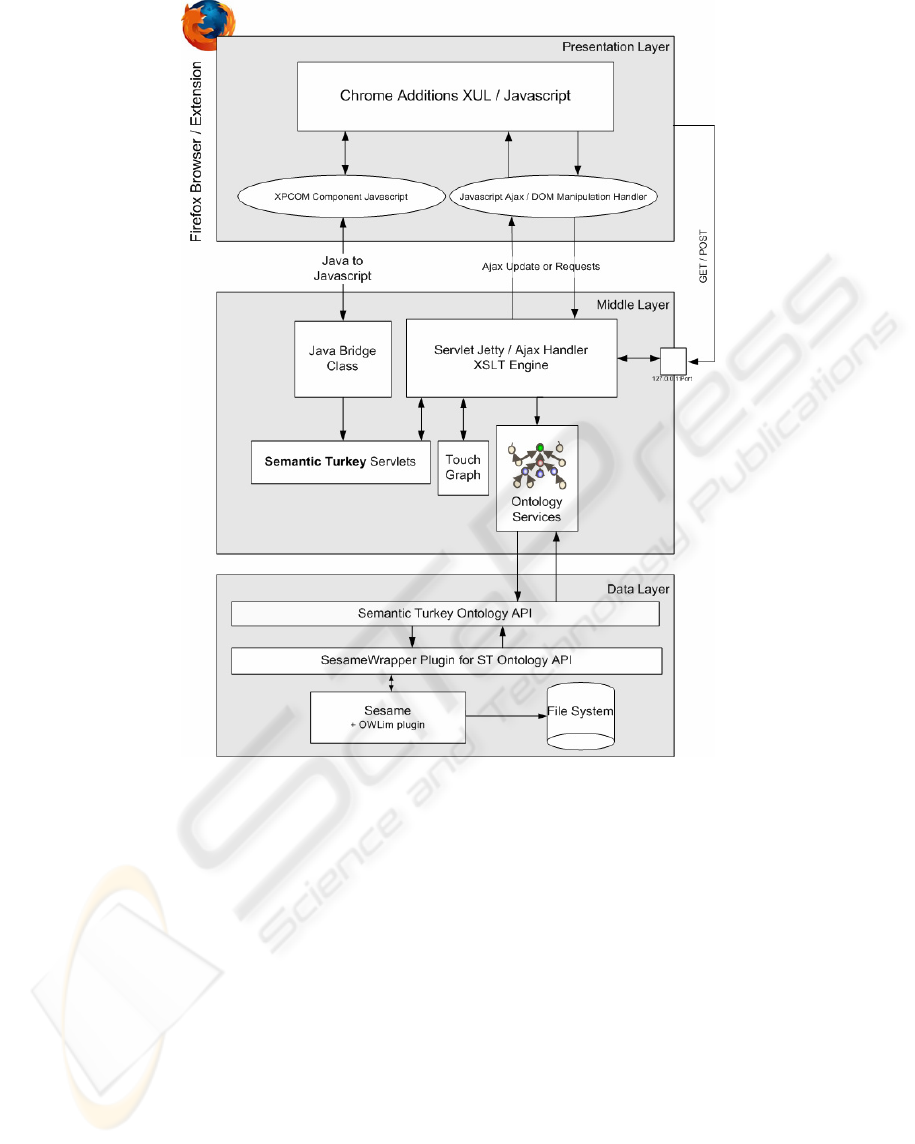

The architecture (Fig. 1) of Semantic Turkey follows

a three layered design, with the presentation layer

embodying the true Firefox extension and the other

two layers built around java technologies for

administering the business logic and data access.

Everything relating user interaction is directly

managed by the Firefox extension, thanks to a

solution directly integrated in the browser. This

approach has two main advantages: total reuse of the

functionalities of a well assessed, stable and

complete software for web browsing, and a non

invasive offer for the user, who can still use the web

browser he has been acquainted with.

The second layer, the service layer, is realized

through a collection of Java Web Services,

published through the Web Server “Jetty” (Jetty Java

HTTP Servlet Server). Jetty is implemented entirely

in Java, and the architecture foresees its use as an

embedded component. This means that the Web

Server and the Web Application run in the same

process, without interconnection overheads and

other sort of complications.

4.1 Architectural Layers

The following sections describe more in detail the

three layers which constitute the architecture of

Semantic Turkey

Presentation Layer. The User Interface has been

created through a combined use of the XML User

Interface Language XUL (XML User Interface

Language (XUL) Project), XBL (Extensible Binding

Language) and Javascript language.

The UI physically appears as a set of Firefox

sidebar, representing ontological information. User

requests are handled through the Ajax (Garrett,

2005) paradigm: the data – in XML format – is thus

mainly exchanged between the two layers in an

asynchronous way, to preserve good performance

and to not penalize the activity of the browser.

Javascript XPCOM (XPCOM) components have

been developed and the Simile Java Firefox

Extension (Simile Java Firefox Extension) has been

adopted for linking the chrome part and the Java part

to start the Jetty embedded java server.

Middle Layer. This layer offers services which may

be invoked through http requests submitted

according to the Ajax paradigm, thus enabling

communication between the client (Firefox

extension) and the server. The server receives the

requests coming from the client by GET or POST

http calls, carries out the operations associated to

these calls, and in case replies with an XML

response. If a call implies the return of a XHTML

page, a XSLT transformation is being performed, in

order to decouple the data model with its

manifestation in the presentation layer.

The majority of invocations to the server are

being completed in an asynchronous way, so that,

independently from the workload that is subjected

the server, the browser can continue to respond to

the user. This is a crucial issue for the usability of

the application: expensive computations blocking

normal behavior of the browser would otherwise not

be tolerated by the user.

Besides supporting the communication with the

client, the middle layer provides the functionalities

for definition, management and treatment of the

data. Several objects are described through an

ontological model (see next section), to represent

both pure conceptual knowledge as well as

application required information.

Data Layer. It is mainly constituted by the

component for managing the ontology. This has

recently been rewritten as a series of dedicated API

for accessing ontological data: these offer both RDF

WEBIST 2008 - International Conference on Web Information Systems and Technologies

triple-level access methods as well as more object

oriented facilities, which have been appreciated in

RDF libraries like Jena (McBride, 2001). Semantic

Turkey API constitute an interface which can be

implemented by building wrappers for existing

ontology libraries, so that we could easily select

those which best fit the needs of a given situation

(like working with small or large repositories, on a

local or collaborative environment etc…) without

having to modify the whole application. The first

implementation of these API has been developed as

a wrapper for Sesame (Broekstra, Kampman, & van

Harmelen, 2002) and the OWLIM plugin (Kiryakov,

Ognyanov, & Manov, 2005), which has been added

for reasoning over OWL (Web Ontology Language

webpage) data.

The above architecture easily allow for scaling the

basic personal desktop application embodied by this

tool up to a distributed framework for collaborative

semantic annotation and ontology editing, as either

(or both) the middle and data layer could be ported

with little or no modification at all on a distributed

environment, with extended Firefox clients

accessing remote semantic repositories for

concurrently accessing, annotating and editing

ontological data.

We are currently pre-testing this possibility inside the

Diligent (IST-004260) project, where data from web

pages coming from different sites relating to the geospatial

domain, will be semantically annotated according to a set

of reference ontologies defined in the Impect portal

(http://dl14.di.uoa.gr/gridsphere/gridsphere).

The objective is to populate Diligent internal

repository with data coming from multiple sources

thanks to mass collaborative work of several

annotators. Keeping track of annotations’

provenance is also necessary so that eventual

reputation/validation mechanisms could be

subsequently raised on top of this knowledge.

Figure 1: Semantic Turkey Architecture.

SEMANTIC TURKEY - A New Web Experience in between Ontology Editing and Semantic Annotation

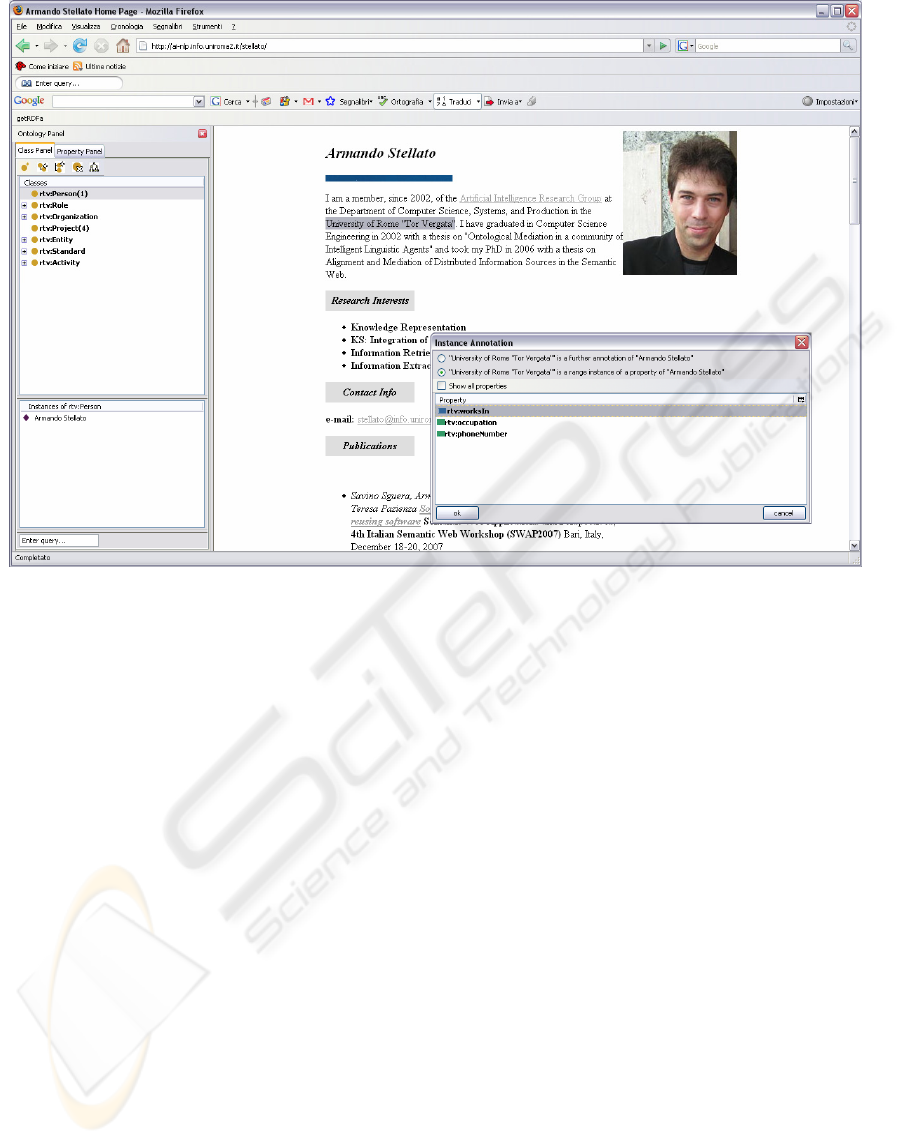

Figure 2: Building an ontological knowledge base through semantic annotations.

4.2 Knowledge Management

With respect to its former prototype, Semantic

Turkey offers now a complete ontology editing

environment, allowing users to import, edit and

merge ontological data coming from different

RDF/OWL sources. What has been maintained in

this version is the main separation between the

explicit knowledge managed by the user and the one

which guides system’s behavior. This last set,

defined as Application Ontologies, at present state

solely includes the Annotation Ontology: a set of

concepts which are used to keep track of user

annotations from the web, but could be expanded

according to future extensions of Semantic Turkey.

These, among the others, include the concepts:

– WebPage (subClassOf Document) concept

for storing information about the annotated

pages (mainly their URL and title), that is,

the pages where part of the text is annotated

with respect to the ontology and thus added to it

as a new individual

– SemanticAnnotation containing the

annotations performed by the user, described by

their URL, annotated object etc… these can be

both TextualAnnotations (for text

annotated from the web page) as well as

ImageAnnotations (for grabbed images)

The annotations also keep track of the different

possible lexicalizations that a same object may have

exposed into different web pages. Application

Ontologies are invisible to the user, their content is

however made implicitly accessible through

dedicated functionalities offered by the tool (or

viewed explicitly through settings of the platform).

5 USER INTERACTION

Semantic Turkey offers editing operations for

populating the personal ontology with annotations

from visited web sites, as well as search and

navigation functionalities which facilitate the

recovery of already acquired knowledge.

5.1 Main Functionalities

The user may interact with the ontology panel to

modify its personal ontology, through a series of

operations, which we describe here, organized into

categories.

WEBIST 2008 - International Conference on Web Information Systems and Technologies

Interaction with the Browser. These mainly

include drag&drop operations (Figure 2) which

allow to annotate information from the visited sites.:

1. Drag and drop of a selection of a text from an

html document displayed in the browser, on the

icon that represents a class, in order to create an

individual of that class. The selection will

become the local name of the new individual,

which will be shown inside the instances panel.

2. Drag and drop of a selection of text from an

html document, on the icon that represents an

individual, in order to ad a further bookmark for

that individual, or to characterize a property

which that individual owns. A specific window

will open, prompting the user to choose the

appropriate functionality. In the first case, a new

semantic annotation is taken for the individual,

with a new webpage as a bookmark for it and

the new textual occurrence of that individual in

the observed page. In the other case, the user

can choose a property for enriching the

description of the chosen individual through the

selected text. If the selected property is an

owl:ObjectProperty, the selection will become

the name of a new individual created as an

instance of the range class of the chosen

property, or a further annotation for an existing

individual. In both cases, the two individuals are

bound through the selected property. In case of

an owl:Datatype or owl:AnnotationProperty, a

new value will be added.

3. Drag and drop of a selection of text from an

html document, on the icon that represents an

individual, in order to define a further

lexicalization for that individual. The user can

choose, from the same panel described before, if

the selection characterizes a range of a property

or a new observed lexicalization (see section 0).

These functionalities have been conceived to speed

up typical series of operations which characterize

both the worlds of ontology development and

semantic annotation. For example, the second one

which has been described above performs, in case of

an object property, the creation of a new instance,

its annotation with the current web page and the

assertion of a relationship between the new

individual and the selected one, at the cost of just a

drag&drop and a selection.

Direct Ontology Editing. These functionalities

operate exclusively on the ontologies, as it should be

important for the user to integrate the knowledge

acquired through semantic bookmarking with

information he could get through other media. All

typical ontology editing operations (Figure 3) are

carried out through buttons and context menus

associated to the nodes of the tree, in a way much

similar to traditional ontology editing tools, like

Protégé (Gennari, et al., 2003) or TopBraid

Composer (TopBraid Composer). By offering

complete interaction with the ontology via the XUL

interface (instead of an HTML interface, like in

Piggy-Bank), the user is not diverted from his

current navigation (i.e. the main browser panel is

still focused on the visited web page, which would

otherwise be replaced by the HTML UI) and may, at

the same time, maintain its attention over the

observed web page. Extended support for natural

language descriptions of ontology objects is also

present in the system, allowing for explicit

representations of the same objects through different

synonimical expressions, or translation for different

idioms, thus accounting for multilinguism.

Semantic Navigation. As an additional feature, the

user may graphically explore the ontology, thanks to

the SemanticNavigation component (Figure 4): a

customized version of the TouchGraph library

(Touchgraph Development Page). A Java applet will

be loaded on a new tab of the browser, displaying

the graph view of the ontology, allowing the user to

navigate its content. The nodes of the graph will be

displayed in different manners, according to the

nature of the ontological entity: classes, properties or

individuals. By dragging the mouse pointer on a

node that represents an individual, it is possible to

open a popup window, which contains the URLs of

the pages where that instance has been annotated.

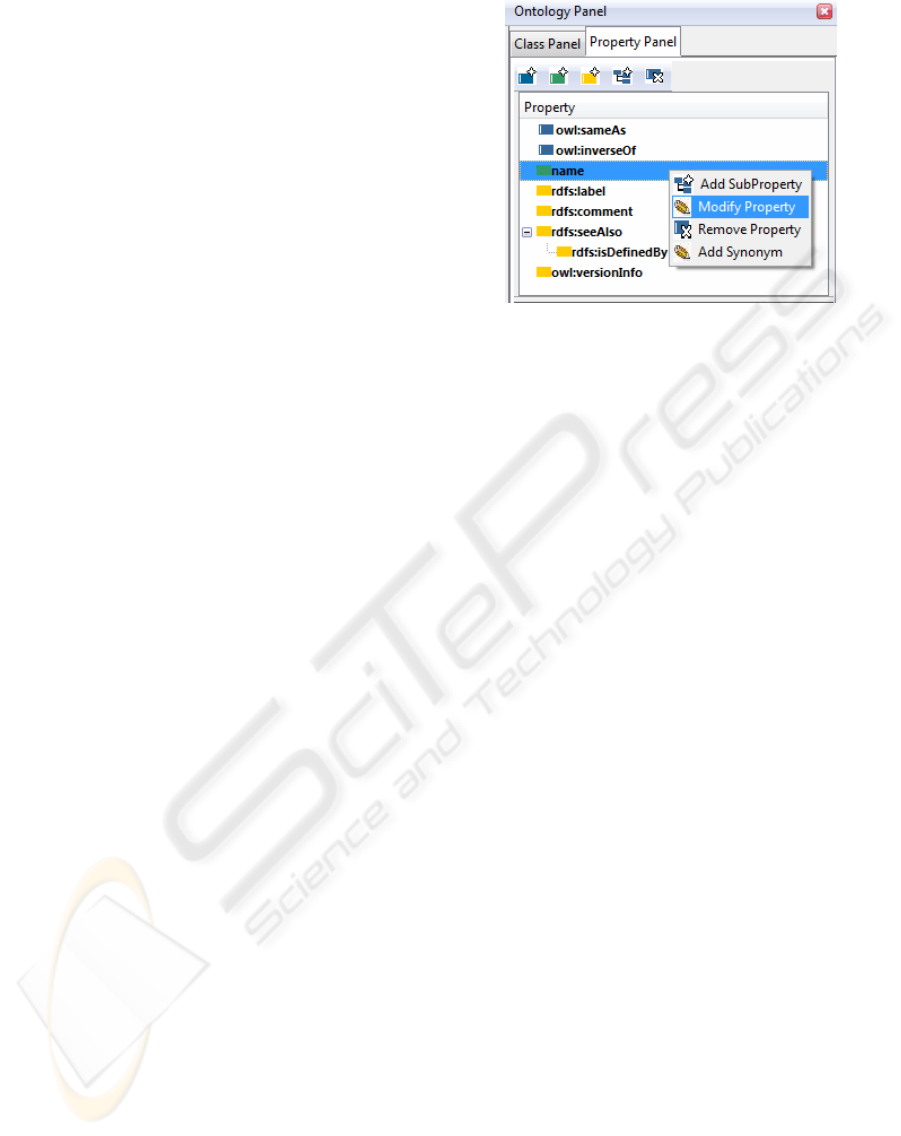

Figure 3: Editing properties in ST.

SEMANTIC TURKEY - A New Web Experience in between Ontology Editing and Semantic Annotation

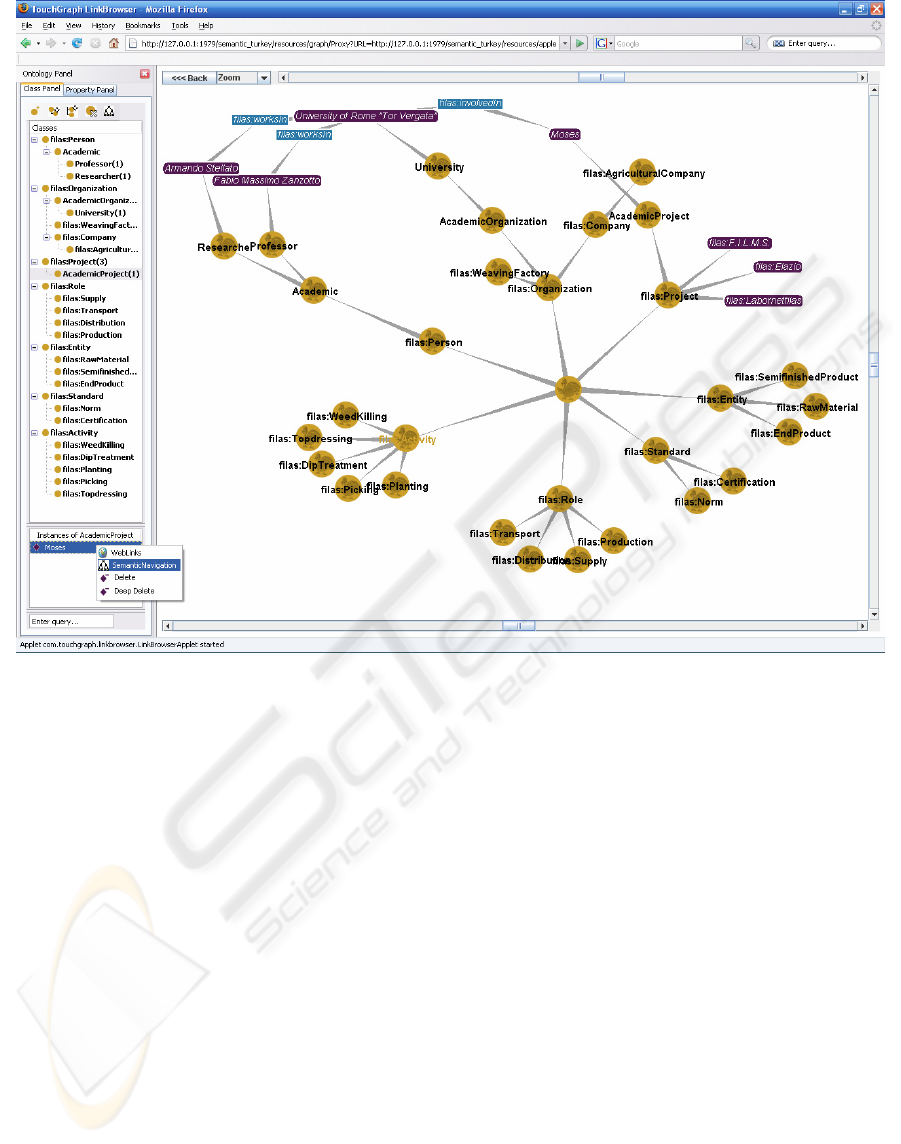

Figure 4: Semantic Navigation of Ontology Data.

6 CONCLUSIONS

In this paper we have described Semantic Turkey, a

web browser semantic extension which could

support ontology developers, domain experts,

annotators or just simple web users in a variety of

tasks which require managing information extracted

from web sources.

ST’s possible areas of intervention, which include

semantic annotation, ontology editing and semantic

bookmarking, are the result of a unifying solution

which considers the definition, collection,

organization and management of knowledge not

completely separated from the analysis of the

information sources where the same knowledge is

acquired and then elicited. Trying a direct

comparison with other recent similar works is thus a

difficult task, as ST distinguishes for the unique

characterization of its approach: it is obviously not

an ontology editing tool, though we felt that adding

basic ontology editing functionalities was a key

feature for a semantic bookmarking system which

considers customization to user needs as much a

strong point as reuse of existing material. The

annotation aspect is limited to bookmarking

(reporting just the page where a given object has

been annotated), though it could be extended in

extracting specific information about the exact

location – inside the page – of the annotated text,

thus making ST suitable for tasks like

semantic/linguistic annotation. Again, it would

differentiate from its many predecessors, e.g. Melita

(Ciravegna, Dingli, Petrelli, & Wilks, 2002), for the

completeness of its annotation possibilities –

whereas most of them just allow for annotating text

with respect to a hierarchy of classes – and in the

robust web content rendering, as it is implicit in the

adoption of a popular and affirmed web browser.

Probably, a pitfall of so a versatile system would

reside in the danger of becoming a jack-of-all-trades

and a master of none: ST captures a good trade-off

on knowledge representation and user interaction to

offer a solid Semantic Web bookmarking platform,

whereas its predecessors bear identifying

functionalities associated to their main objectives:

user-driven learning for Melita, web services for

WEBIST 2008 - International Conference on Web Information Systems and Technologies

Magpie, annotation repositories for Piggy Bank etc...

all of these feature are difficult to maintain in a

single platform even when it potentially allows for

their integration. For this reason, we decided to open

up the system to possible extensions, by introducing

a dedicated plug-in framework which accounts for,

and is able to coordinate at best, the hybridization of

the several technologies which characterize the

architecture of Semantic Turkey.

Next research directions will exploit the new

extension framework to add advanced functionalities

for automatically extracting knowledge from web

sources and interact with the user on how to use it

for populating/enriching ontologies; we intend also

to explore innovative solutions expressly dedicated

to a collaborative working environment and also

consider diverse kind of media sources.

ACKNOWLEDGEMENTS

We would like to dedicate this work to the memory

of the late Donato Griesi, who implemented the first

prototype of Semantic Turkey. We hope you can be

proud of where it has gone now...

REFERENCES

Berners-Lee, T., Hendler, J. A., & Lassila, O. (2001). The

Semantic Web: A new form of Web content that is

meaningful to computers will unleash a revolution of

new possibilities. Scientific American , 279 (5), 34-43.

Broekstra, J., Kampman, A., & van Harmelen, F. (2002).

Sesame: A Generic Architecture for Storing and

Querying RDF and RDF Schema. The Semantic Web -

ISWC 2002: First International Semantic Web

Conference (pp. 54-68). Sardinia, Italy: Springer

Berlin / Heidelberg.

Ciravegna, F., Dingli, A., Petrelli, D., & Wilks, Y. (2002).

User-system cooperation in document annotation

based on information extraction. 13th International

Conference on Knowledge Engineering and

Knowledge Management, EKAW02. Springer Verlag.

del.icio.us. (n.d.). Retrieved from : http://del.icio.us/

Dzbor, M., Domingue, J., & Motta, E. (2003). Magpie:

Towards a Semantic Web Browser. 2nd International

Semantic Web Conference (ISWC03). Florida, USA.

Dzbor, M., Motta, E., & Domingue, J. B. (2004). Opening

Up Magpie via Semantic Services. 3rd Intl. Semantic

Web Conference (ISWC04). Hiroshima, Japan:

November.

Eclipse Platform Technical Overview. (n.d.). Retrieved

from Eclipse:

http://www.eclipse.org/articles/Whitepaper-Platform-

3.1/eclipse-platform-whitepaper.html

Extensible Binding Language. (n.d.). Retrieved from

http://www.mozilla.org/projects/xbl/xbl.html

Firefox home page. (n.d.). Retrieved from

http://www.mozilla.com/en-US/firefox/

Garrett, J. (2005, February 18). Ajax: A New Approach to

Web Applications. Retrieved from

http://www.adaptivepath.com/publications/essays/arch

ives/000385.php

Gennari, J., Musen, M., Fergerson, R., Grosso, W.,

Crubézy, M., Eriksson, H., et al. (2003). The evolution

of Protégé-2000: An environment for knowledge-

based systems development, . International Journal of

Human-Computer Studies , 58 (1), 89–123.

Google Notebook. (n.d.). Retrieved from

http://www.google.com/notebook

Google Page Creator. (n.d.). Retrieved from

http://pages.google.com

Griesi, D., Pazienza, M. T., & Stellato, A. (2007).

Semantic Turkey - a Semantic Bookmarking tool

(System Description). 4th European Semantic Web

Conference (ESWC 2007). Innsbruck, Austria.

Huynh, D., Mazzocchi, S., & Karger, D. (November,

2005). Piggy Bank: Experience the Semantic Web

Inside Your Web Browser. Fourth International

Semantic Web Conference (ISWC05), (pp. 413-430).

Galway, Ireland.

Jetty Java HTTP Servlet Server. (n.d.). Retrieved from

http://jetty.mortbay.org/jetty/

Kiryakov, A., Ognyanov, D., & Manov, D. (2005).

OWLIM – a Pragmatic Semantic Repository for OWL.

Int. Workshop on Scalable Semantic Web Knowledge

Base Systems (SSWS 2005), WISE 2005. New York

City, USA.

Leaftag project

. (n.d.). Retrieved from

http://www.chipx86.com/wiki/Leaftag

McBride, B. (2001). Jena: Implementing the RDF Model

and Syntax Specification. Semantic Web Workshop,

WWW2001.

Quan, D., & Karger, D. (May, 2004). How to Make a

Semantic Web Browser. Thirteenth International

World Wide Web Conference (WWW2004). New York

City, USA.

Simile Java Firefox Extension. (n.d.). Retrieved from

http://simile.mit.edu/java-firefox-extension/

TopBraid Composer. (n.d.). Retrieved from

http://topbraidcomposer.info/

Touchgraph Development Page. (n.d.). Retrieved from

http://touchgraph.sourceforge.net/

Web Ontology Language webpage. (n.d.). Retrieved from

W3C: http://www.w3.org/TR/owl-features/

Wheeler, S. (2005, April 6). Tenor: A Contextual Linkage

Framework for KDE. Retrieved from

http://websvn.kde.org/*checkout*/trunk/playground/b

ase/tenor/docs/tenor-architecture.pdf?rev=475778

XML User Interface Language (XUL) Project. (n.d.).

Retrieved from http://www.mozilla.org/projects/xul/

XPCOM. (n.d.). Retrieved from

http://www.mozilla.org/projects/xpcom/

SEMANTIC TURKEY - A New Web Experience in between Ontology Editing and Semantic Annotation
