INFRASTRUCTURE FOR SHARING AND EXECUTING

CHOREOGRAPHIES

Alan Massaru Nakai

, Carla Geovana N. Mac

ario

1,2

, Edmundo Madeira

and Claudia Bauzer Medeiros

Institute of Computing, University of Campinas, 13083-970, Campinas, SP, Brazil

Embrapa Agriculture Informatics, 13083-886, Campinas, SP, Brazil

Keywords:

Web Services Choreographies, Interorganizational Business Processes.

Abstract:

The main attractiveness of Web services is their capacity to provide interoperability among heterogeneous

distributed systems. Increasingly, companies and organizations have adopted Web services as a way to in-

teroperate with their business partners. In such a scenario, Web services choreography can be applied in

the speciﬁcation of interorganizational business processes. However, the dynamic nature of business partner-

ships requires mechanisms for agile designing and deploying choreographies. In this paper, we present an

infrastructure that aims to address the above concern. Our approach aims to reach ﬂexibility by providing

mechanisms for sharing, ﬁnding and executing choreographies in a friendly manner for the user. We also

present a prototype implementation.

1 INTRODUCTION

Increasingly, companies and organizations have

adopted Web services to interoperate with their busi-

ness partners. Web services are applications that

are published, located and invoked over the Web.

The major attractiveness of this technology is that it

is based on XML standards and well known Inter-

net protocols, providing facilities for interoperabil-

ity among heterogeneous distributed systems. In the

business scenario, services are building blocks that

are used for the creation of interorganizational busi-

ness processes.

Web services-based business processes can be

speciﬁed as Web service choreographies, which are

conversations among multiple services that interact in

a collaborative fashion to solve a speciﬁc problem.

We envision three central issues that must be faced

in this approach. First, existing proposals for chore-

ography speciﬁcation languages are not directly exe-

cutable. Thus, choreography representations need a

speciﬁc infrastructure to execute them. Second, part-

ners may not be known at speciﬁcation time; hence, it

may be necessary to discover them at execution time.

Finally, the mechanisms for choreography speciﬁca-

tion and deployment must be ﬂexible enough to ac-

complish the changes of very dynamic business envi-

ronments. In this paper, we present an infrastructure

that aims to address the questions above.

In our infrastructure, interorganizational business

processes are described in WS-CDL (Web Services

Choreography Description Language), and performed

by a set of coordination managers that execute WS-

BPEL (Business Process Execution Language for

Web Services) compositions. WS-BPEL is used to

represent the speciﬁc behavior of one choreography

partner and to integrate its public behavior with its

internal logic. The infrastructure comprises a WS-

CDL to WS-BPEL translator that speeds up the gen-

eration of WS-BPEL code to be executed by coordi-

nation managers It reduces the possibility of errors

and inconsistencies in this task. A coordination man-

agement mechanism facilitates the speciﬁcation and

deployment of choreographies, keeping choreography

designers away from details like partner binding and

context control.

A key feature of our infrastructure is a mechanism

for sharing choreography descriptions. This mecha-

nism allows organizations to discover choreography

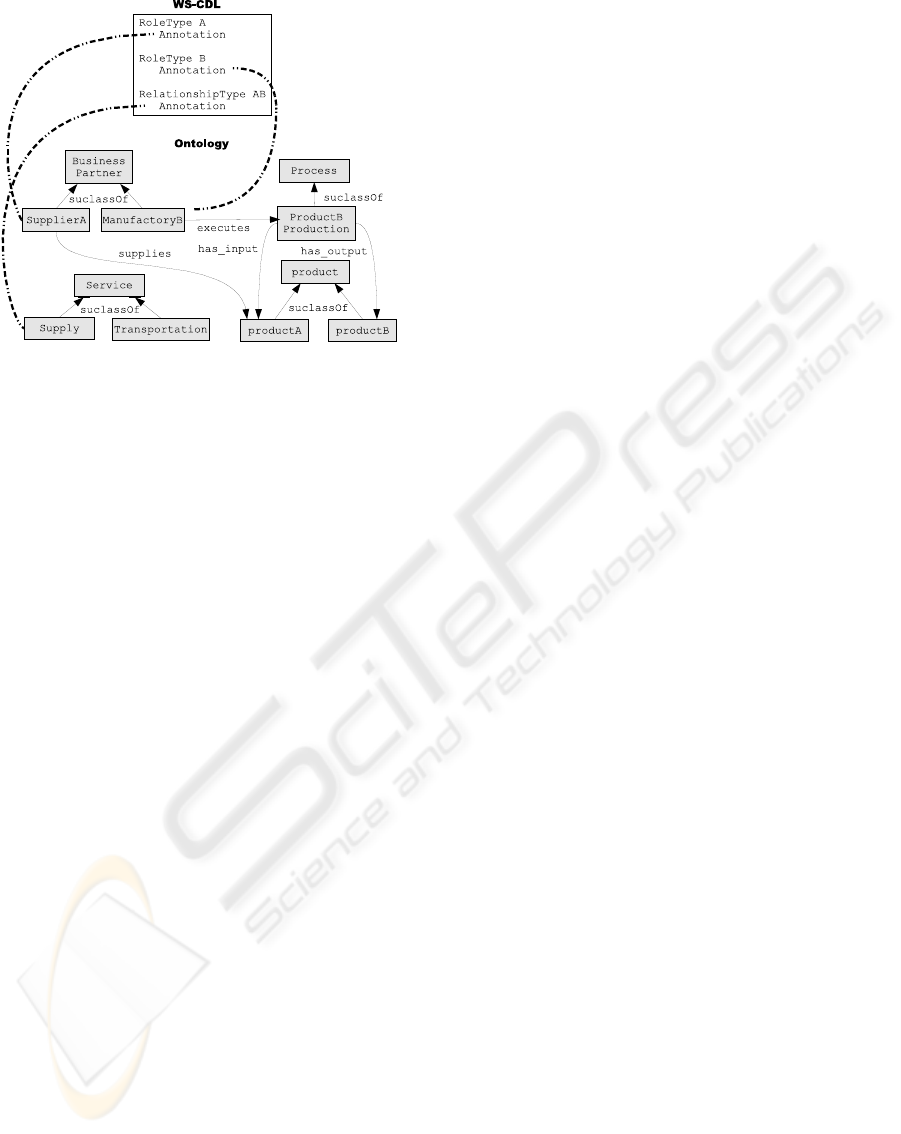

descriptions through the use of semantic annotations

based on ontologies. We believe that choreography

sharing combined with our facilities for deployment

and execution of choreographies allows organizations

not only to adapt friendly to partnership changes, but

also to augment their range of possible partners.

The main contribution of our work is thus an in-

frastructure geared towards helping choreography de-

signers (our users) in the task of choreography speciﬁ-

455

Massaru Nakai A., Geovana N. Macário C., Madeira E. and Bauzer Medeiros C. (2008).

AN INFRASTRUCTURE FOR SHARING AND EXECUTING CHOREOGRAPHIES.

In Proceedings of the Fourth International Conference on Web Information Systems and Technologies, pages 455-460

DOI: 10.5220/0001528104550460

 SciTePress

cation. It allows these users to quickly ﬁnd a choreog-

raphy that matches their necessities, considering both

syntactic and semantic issues. It also supports deploy-

ment and execution of the business’ portion of a pro-

cess, without the need to previously know involved

partners. This fosters ﬂexibility and independence of

each participant in a business environment.

This paper is organized as follows: Section 2

presents some related works; an overview of the pro-

posed infrastructure is showed in Section 3; Sec-

tions 4, 5 and 6 detail our approach for sharing chore-

ographies, discovery partners and coordinating the

choreography execution; Section 7 presents some im-

plementation issues; ﬁnally, in Section 8, we present

conclusions and future works.

2 RELATED WORK

Several papers, e.g. (Chung et al., 2004; Caituiro-

Monge and Rodrguez-Martinez, 2004; Jung et al.,

2004), present solutions for executing Web service

compositions. Chung et al. (Chung et al., 2004)

present an architecture that uses a grammar to spec-

ify business processes. The architecture provides

mechanisms to discover services, bind them to pro-

cesses’ taks, and coordinate them. Caituiro-Monge

(Caituiro-Monge and Rodrguez-Martinez, 2004) in-

troduces a framework for Web services collaboration

in E-Government. In this framework, control data,

which is attached to service requests and results, is

used to control Web service invocations and mes-

sage forwarding. Jung (Jung et al., 2004) proposes

an interface protocol for incorporating existing work-

ﬂows into interorganizational business processes and

an architecture to execute them. In our solution, like

in (Mendling and Hafner, 2005; Diaz et al., 2006),

Web service choreographies are executed through a

set of executable WS-BPEL plans generated from a

WS-CDL choreography description. However, our in-

frastructure adds a coordination logic on top of WS-

BPEL business logic in order to keep the choreogra-

phy designer away from details such as partner dis-

covery and context control.

Following the Semantic Web trend (Berners-Lee

et al., 2001), the Web service community has pro-

posed means to semantically annotate Web services,

allowing their automatic discovery and composition.

Examples of these efforts are SA-WSDL (Semantic

Annotations for WSDL) (W3C, 2007) and OWL-S

(Martin et al., 2004). SA-WSDL is a proposal for in-

creasing the expressivity of WSDL through concepts

of an ontology. OWL-S is a set of constructs, built on

top of OWL, for describing properties and capabili-

ties of Web services in an unambiguous form. In our

infrastructure, we propose the use of semantic annota-

tion at choreography description level in order to help

users to ﬁnd descriptions that match their necessities.

3 OVERVIEW

In our infrastructure, choreographies are represented

in two levels: global views and coordination plans. A

global view is a WS-CDL document that deﬁnes the

role of each participant of a business process. It de-

scribes, from a global point of view, the interactions

among partners, the conditions for interactions to hap-

pen and the set of data exchanged during the collab-

oration. Each global view is assumed to be uniquely

identiﬁed by a URI. In the same way, each role that is

deﬁned in the global view is uniquely identiﬁed by a

URI.

Coordination plans describe the individual behav-

ior of one of the roles deﬁned in a global view. A

coordination plan is composed of a set of instruc-

tions that trigger requests to other partners, process

requests received from other partners and control the

ﬂow of actions for that role. A coordination plan in-

tegrates the external logic deﬁned by a global view

with the internal logic of an individual partner. We

have adopted WS-BPEL for representing coordina-

tion plans.

The constraints deﬁned in a global view enable an

organization to generate a coordination plan that re-

ﬂects its behavior in the corresponding business pro-

cess. A global view ensures that coordination plans

for distinct roles, generated from the same global

view, are interoperable. However, global views do

not deﬁne a partner’s speciﬁc internal logic. So, an

organization that wants to play a role in a business

process described by a global view must generate a

coordination plan skeleton from that global view and

then customize it, including the organization’s inter-

nal logic.

Figure 1 shows our infrastructure. It is composed

of four elements: the choreography repository, the

plan generator, the coordination manager, and the

participant repository.

The choreography repository stores and shares

choreography descriptions. It allows users to pub-

lish and discover choreography descriptions that ful-

ﬁll their business requirements. Any organization that

wants to participate in a choreography can access a

choreography repository to obtain the corresponding

description. Such a description is used as the input

of a plan generator that creates a coordination plan

skeleton. If required, a programmer can customize the

WEBIST 2008 - International Conference on Web Information Systems and Technologies

456

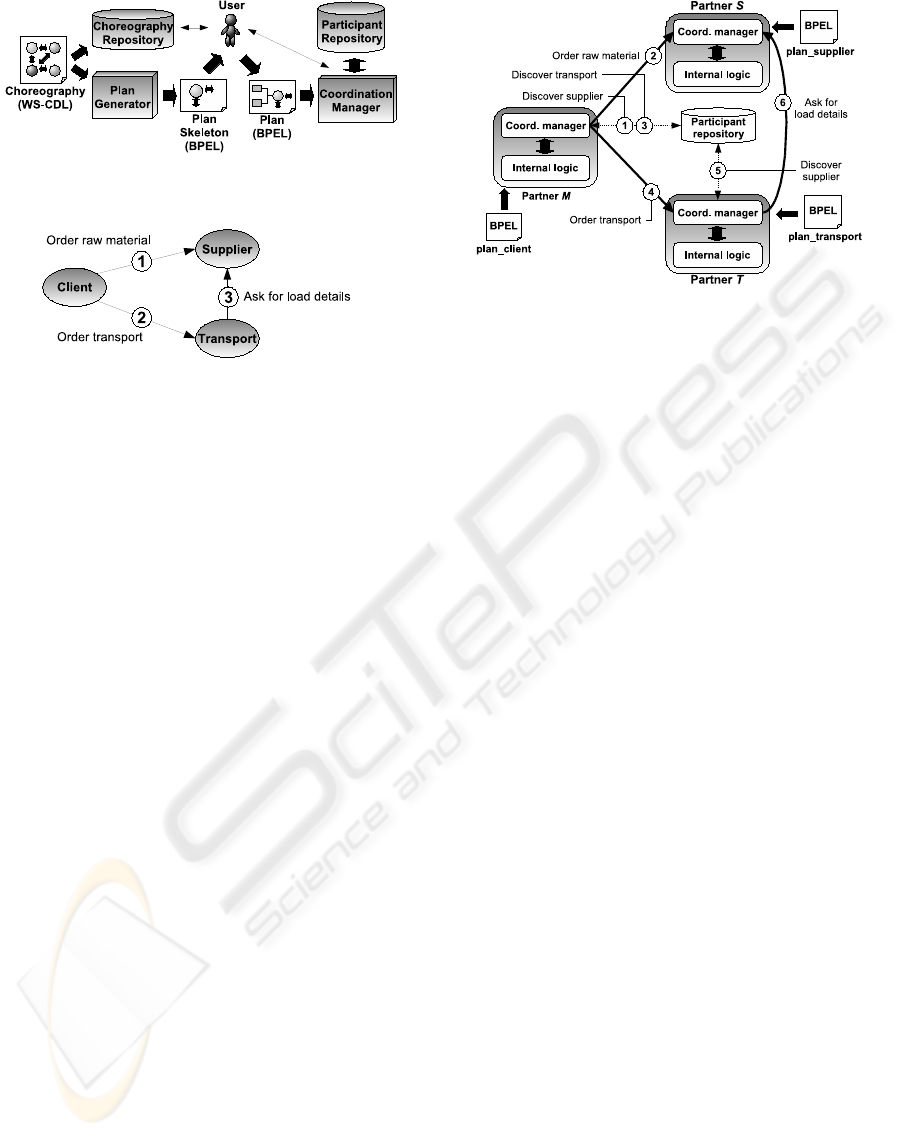

Figure 1: Infrastructure overview.

Figure 2: Example of a simpliﬁed choreography for supply-

ing raw material.

skeleton to include the organization’s internal logic.

Each generated plan implements the logic needed for

playing a role speciﬁed by the global view.

Once the coordination plan is generated, it can be

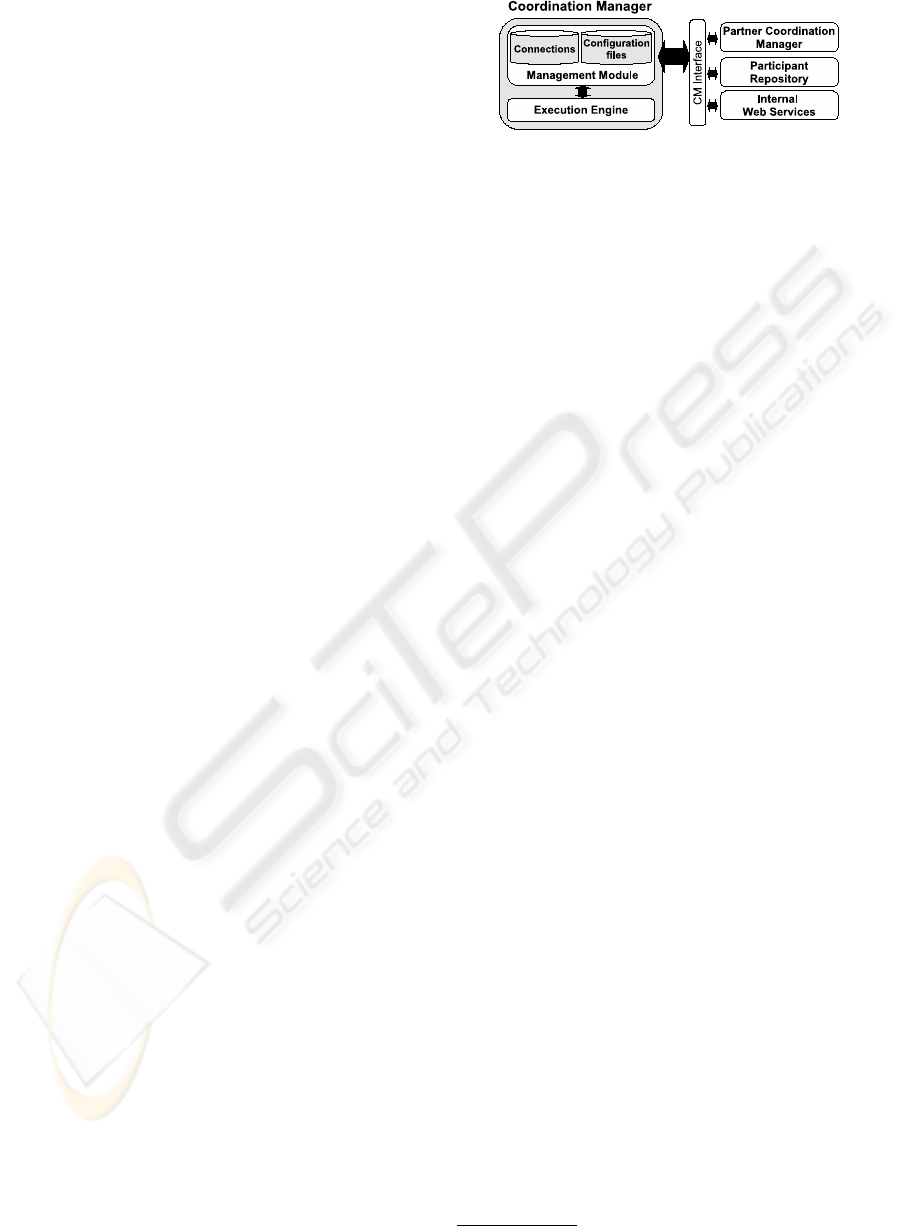

interpreted and executed by a coordination manager.

The latter is also responsible for discovering choreog-

raphy partners. The partner discovery involves the use

of the participant repository that allows coordination

managers (i) to discover a coordination manager that

is able to perform a given choreography role or (ii) to

resolve the endpoint reference of a coordination man-

ager that is already performing such a role.

To illustrate the use of our infrastructure, consider

a simple scenario: a manufactor M needs to imple-

ment a business process to order raw material. There-

fore, M searches in a choreography repository for a

global view that meets its requirements. Assume that

M chose the choreography described in Figure 2.

The choreography example in Figure 2 deﬁnes

three roles: client, supplier, and transport. The client

partner (1) invokes a speciﬁc Web service operation to

order raw material from supplier. Next, client (2) or-

ders transport service from transport. To perform its

portion of the process, transport needs to ask supplier

for load details (3). From the choreography global

view, M generates the coordination plan (plan-client)

for role client and deploys this plan in its coordination

manager.

To execute plan-client, M’s coordination manager

accesses a participant repository to discover partners

that are able to execute coordination plans relative to

roles supplier and transport. After having discov-

ered appropriate partners (consider S and T for roles

supplier and transport, respectively), M’s coordina-

tion manager can invoke their operations, according

Figure 3: Example execution.

to constraints deﬁned by its plan. Partner T’s coor-

dination manager, in its turn, needs to interact with

the participant repository to obtain the endpoint ref-

erence of the speciﬁc partner that is playing the sup-

plier role in the current instance of the choreography

(

). Figure 3 shows an overview of the choreography

execution.

4 SHARING AND REUSING

CHOREOGRAPHIES

Our infrastructure supports choreography sharing and

reuse by means of the choreography repository. This

component allows business partners to publish the de-

scriptions of choreographies they are able to partici-

pate in. Once descriptions are published, other or-

ganizations can access the repository and discover

choreographies that fulﬁll their requirements. Thus,

they can generate their coordination plans and inter-

act with other choreography participants.

In order to help users in choreography discovery,

we propose the addition of semantic annotations to

the WS-CDL descriptions. Our annotations associate

the roles and relationships speciﬁed by WS-CDL with

concepts of an ontology. Figure 4 illustrates our se-

mantic annotation approach. Ontology terms are in

grey boxes and the choreography is speciﬁed in the

WS-CDL box at the top. In the ﬁgure, the annotations

denote, for example, that role “A” is played by “Sup-

plierA”, which supplies products of type “ProductA”.

The semantic annotation allows users to discover

choreography descriptions based on roles and rela-

tionships among these roles. Examples of queries are:

• Return choreographies that include a supplier

of “ProductA” and a manufactory that produces

“ProductB”;

AN INFRASTRUCTURE FOR SHARING AND EXECUTING CHOREOGRAPHIES

457

Figure 4: Semantic annotation.

• Return choreographies that include two partici-

pants related by a “Supply” service.

Our approach considers the similarity of concepts

and properties provided by different ontologies. So,

one can search for choreographies using as basis one’s

particular ontology, without knowing the speciﬁc on-

tology used in WS-CDL annotations. This is done

through a service developed by (Daltio and Medeiros,

2007), which provides means for ontology alignment

and query.

Our semantic annotation can be complemented

by the use of SA-WSDL. The semantic information

added by SA-WSDL can be used for higher gran-

ularity queries involving, for example, details about

the SA-WSDL operations. Moreover, the adoption of

SA-WSDL may facilitate the automatic generation of

coordination plans.

5 RESOLVING PARTNERS

Our infrastructure allows a choreography participant

to resolve partners at execution time with little effort

from choreography designers. Global views and coor-

dination plans can be designed at a partner role level,

regardless of who will play each role. The logic for re-

solving partner’s endpoint references is implemented

by the coordination manager and is almost transparent

for designers. The coordination manager can obtain a

partner endpoint reference in three ways:

• Automatic partner discovery: the coordination

manager searches for partners in a participant

repository using the identiﬁer of the role (chore-

ographyId + roleId) the partner must be able to

play (e.g. interactions involving partner M in Fig-

ure 3).

• Automatic instance discovery: the coordination

manager searches in a participant repository for

the partner that is already playing a role in a

speciﬁc choreography instance (e.g. interaction

among partners T and S in Figure 3). The key

used for searching is the combination of the iden-

tiﬁers of the role and the choreography instance.

• Static binding: the endpoint reference of the part-

ner is deﬁned at deployment time of the coordina-

tion plan.

The coordination manager maintains a conﬁgura-

tion ﬁle for each coordination plan that it is able to

execute. This conﬁguration ﬁle, which is created by

the plan designer, deﬁnes how to resolve the endpoint

reference for each partner.

6 COORDINATION

MANAGEMENT

An important issue when executing choreographies is

to preserve the context of their instances to ensure

that messages arrive to the right instances of coordi-

nation plans. Coordination managers provide a man-

agement abstraction that controls context, in a level

that is hidden from designers. It means that chore-

ography designers can design global views and coor-

dination plans without concerning themselves about

context control.

Interactions between two coordination managers

are preceded by a connection phase. In this phase,

coordination managers agree on the choreography to

be followed, the role to be played by each one, and

the context identiﬁer that distinguishes the choreog-

raphy instance. To connect to a partner, the coordi-

nation manager resolves the partner endpoint refer-

ence (as shown in Section 5) and sends it a connec-

tion proposal. When a coordination manager receives

a connection proposal and it is not already participat-

ing in the related choreography instance, it starts the

appropriate coordination plan and registers the plan

instance in the participant repository.

All application messages – those exchanged by

coordination plan instances – carry, in their head-

ers, data used in context control and message deliv-

ery. Such data includes identiﬁers for: choreography

(ChoreographyID), choreography instance (CIID),

sender partner (SRID - Sender roleID), and destina-

tion partner (DRID - Destination roleID). These data

uniquely identify a connection between two coordi-

nation managers. Through them, the sender coordi-

WEBIST 2008 - International Conference on Web Information Systems and Technologies

458

nation manager can retrieve the endpoint reference of

the destination one from a table of connections. In

other side, the destination coordination manager can

deliver the message to the right coordination plan in-

stance.

7 IMPLEMENTATION ISSUES

In order to validate our infrastructure, we have imple-

mented a prototype. The infrastructure components

were implemented using Java language. In this sec-

tion we present some issues about our implementation

experience.

7.1 Choreography Repository

Our repository is to be implemented as a Web ser-

vice that when it is necessary invokes the Aond

e on-

tology service of (Daltio and Medeiros, 2007). When

a user sends a request for a choreography based on

semantic annotations, the system checks against all

choreographies to investigate (a) which choreogra-

phies have these exact annotations, and (b) if none

is found, which choreographies would have similar or

equivalent annotations. The user provides a reference

to an input ontology and a list of terms in this ontol-

ogy that annotate choreographies. Let O be the ontol-

ogy used to annotate the choreographies in a reposi-

tory, and < O

, {T

} > the user input – source ontol-

ogy, and terms of interest in this ontology.

If O

= O, then step (a) is executed, i.e., looking

for all choreographies that have been annotated with

some T

. All such choreographies are returned to the

user. If O

6= O, then step (b) is executed. The Aond

service is invoked with a request to align O

and O.

This request returns a new (aligned) ontology. An

ontology alignment is the process of determining se-

mantic correspondences between concepts of two on-

tologies, generating a third ontology to represent them

without modifying the original ones. From the align-

ments, the system will check which terms {T

, ..., T

}

in O

are equivalent with terms {O

, ..., O

} in O.

Choreographies annotated with terms in {O

, ..., O

}

are returned to the users.

7.2 Coordination Manager

Figure 5 shows the coordination manager architec-

ture. It is composed of two main components: the

execution engine and the management module. The

execution engine interprets and executes coordination

plans. It issues messages to the management module

Figure 5: Coordination Manager Architecture.

and processes messages that are delivered by it, ac-

cording to the plan ﬂow control. We have adopted a

conventional BPEL engine

in our prototype.

The management module adds the management

logic to the logic deﬁned by coordination plans. This

module is responsible for the interaction with other

coordination managers, participant repositories, and

Web services that represent the internal logic of the

organization. The management module implements

the logic for resolving partner endpoint references,

managing connections, forwarding messages that are

generated by the BPEL engine to destination partners,

and delivering messages that are received from part-

ners.

7.3 Participant Repository

The participant repository was implemented as a sim-

ple Web service that is able to register and discover

endpoint references. We have implemented only the

operations that are needed to validate our automatic

discovery mechanisms and test the coordination man-

ager functionalities.

7.4 Plan Generator

We have speciﬁed a set of rules for translating WS-

CDL global views to BPEL coordination plans. The

central idea of this translation is to generate a coordi-

nation plan skeleton for each role deﬁned in the global

view. For each WS-CDL element that is related to a

speciﬁc role, a BPEL mapping is added in the cor-

respondent skeleton. Although our plan generator is

speciﬁc to our infrastructure, the basic ideas under the

translation rules are applicable to a generic WS-CDL

to BPEL translation. Table 1 summarizes the main

rules for mapping WS-CDL elements to BPEL ele-

ments.

8 CONCLUSIONS

We believe that an important issue in SOA environ-

ments is the ﬂexibility to agilely adapt to business

ActiveBpel, available in http://www.activebpel.org/.

AN INFRASTRUCTURE FOR SHARING AND EXECUTING CHOREOGRAPHIES

459

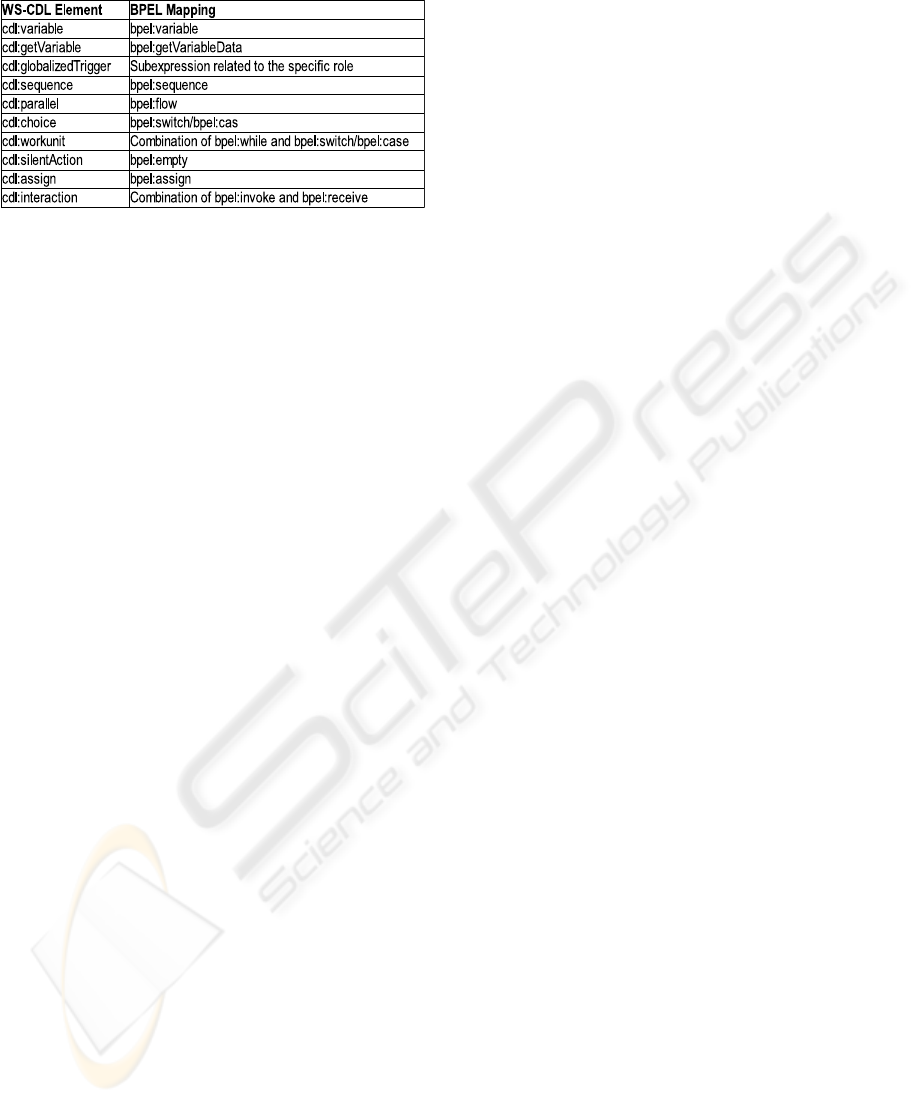

Table 1: Main rules for WS-CDL/BPEL elements mapping.

changes. Our solution aims to meet such ﬂexibil-

ity by providing mechanisms for sharing and ﬁnding

choreography descriptions, based on semantic anno-

tations, and deploying and executing them with small

programming effort. The prototype implementation

shows our infrastructure’s feasibility.

A contribution of our infrastructure is a mecha-

nism that allows automatic partner discovery. This

feature allows business processes to be executed by

distinct conﬁgurations of partners. Another contri-

bution is the separation between business logic and

coordination management. Choreography designers

do not need to worry about the way context control

will be done or which choreography partners are con-

nected to the system. This transparency facilitates the

choreography design.

Our infrastructure also facilitates the deployment

and execution of choreographies. The plan generator

speeds up the generation of coordination plans; be-

sides, it reduces the possibility of errors and inconsis-

tences in this task.

Issues that will be addressed as future work in-

clude: (i) the improvement of WS-CDL semantic an-

notations to provide more reﬁned queries; (ii) the au-

tomatic customization of plan skeletons based on SA-

WSDL semantic annotations; (iii) the improvement

of the coordination manager architecture to deal with

partner authentication, security and authorization is-

sues; and (iv) the provision of fault tolerance.

ACKNOWLEDGEMENTS

The authors would like to thank FAPESP (07/56423-

6), CNPq (472810/2006-5), CNPq WebMaps 2

project, and CAPES for the ﬁnancial support.

REFERENCES

Berners-Lee, T., Hendler, J., and Lassila, O. (2001). The

semantic web. Scientiﬁc American, 284(5):34–43.

Caituiro-Monge, H. and Rodrguez-Martinez, M. (2004).

Net Traveler: A Framework for Autonomic Web Ser-

vices Collaboration, Orchestration and Choreography

in E-Government Information Systems. In ICWS ’04:

Proceedings of the IEEE International Conference on

Web Services (ICWS’04), pages 2–10, Washington,

DC, USA. IEEE Computer Society.

Chung, M. J. et al. (2004). A framework for collaborative

product commerce using web services. In Proceed-

ings of the IEEE International Conference on Web

Services (ICWS’04), pages 52–60.

Daltio, J. and Medeiros, C. B. (2007). Aond

e: An ontol-

ogy web service for interoperability across biodiver-

sity information systems. Master’s thesis, Institute of

Computing - Unicamp, Campinas-SP, Brazil. (in Por-

tuguese).

Diaz, G., M. E. Cambronero, J. J. Pardo, V. V., and Cuar-

tero, F. (2006). Automatic generation of correct

web services choreographies and orchestrations with

model checking techniques. In Telecommunications,

2006. AICT-ICIW ’06. International Conference on

Internet and Web Applications and Services/Advanced

International Conference on, pages 186–192.

Jung, J., Hur, W., Kang, S.-H., and Kim, H. (2004). Busi-

ness Process Choreography for B2B Collaboration.

IEEE Internet Computing, 8(1):37–45.

Martin, D. et al. (2004). Owl-s: Semantic markup

for web services. http://www.daml.org/services/owl-

s/1.1/overview/.

Mendling, J. and Hafner, M. (2005). From inter-

organizational workﬂows to process execution: Gen-

erating BPEL from WS-CDL. Proceedings of OTM

2005 Workshops. Lecture Notes in Computer Science,

3762:506–515.

W3C (2007). Semantic annotations for wsdl

and xml schema - w3c recommendation.

http://www.w3.org/2002/ws/sawsdl/spec/.

WEBIST 2008 - International Conference on Web Information Systems and Technologies

460
