HEADER DETECTION OF DATA TABLES

Towards the Improvement of the Web Navigation for Impared Visual People

Juan Manuel Fernández

, Vicenç Soler

1,2

Dept. Microelectrònica i Sistemes Electrònics, Universitat Autònoma de Barcelona, Cerdanyola del Vallés, Spain

Ciber-BBN: Bioengineering, Biomaterials and Nanomedicine. Campus UAB, Bellaterra, Spain

Jordi Roig

Dept. Microelectrònica i Sistemes Electrònics, Universitat Autònoma de Barccelona, Cerdanyola del Vallés, Spain

Keywords: Web Accessibility, Table navigation, e-integration, Repairing Tools, Disability, WAI, HTML.

Abstract: The advantages of the new era of information are out of the capacities of the people with visual

impairments. This is due to by the lack of sensibility of the Web contents developers and the low use of the

accessibility guidelines. These situations can be solved with technology, and the result of the research

presented in this paper offers a new system of solving one of the most important problems: the data table

navigation. We present a solution that offers excellent results to make the natural complexity of these

elements easy. The system is based on the visualization of the table’s content, in the same manner that uses

a non-disabled person, but without the need made any image processing. The solution can help to us to

obtain the total e-integration.

1 INTRODUCTION

The correct design of a Web site is an unresolved

matter for the current developers. A correct use of

the Word Wide Web Consortium (W3C) standards

makes the navigation become easier and friendly.

The access to the information stored in the Web can

be done in a more efficiently way with the W3C

standards. This lack of use of these standards and

guidelines is a consequence of different causes,

which we will see in this paper. We will talk about

the observance of the specific normative of the

World Content Accessibility Guidelines (WCAG)

(W3C, 1999a) which was made by the World

Accessibility Initiative (W3C, 2007a). This group,

that is a part of the W3C, develops a set of standards

and guidelines to provide a more accessible Web.

The lack of use of the WAI’s proposals makes the

Web lose all its capacity to improve the labour and

social integration of all kind of people.

One of the more important problems that exist in

the field of Web accessibility is the navigation on

tables. HTML tables have a complex nature that

impedes to visual impaired people to obtain the

information contained in these elements. Moreover,

the use of stardards, like WCAG, is very low and

therefore the navigation on tables gets worse.

Thus, we propose a solution to the correct data

table’s navigation, taking into account the stardards

of the Web. Thanks to it, we avoid the use of new

languages or specific software to read the

information of a data table as the most of the

solutions proposed (Yesilada, 2004) (Pontelli and

Son, 2002) (Krüpl and Herzog, 2006) (K. Kottapally

et al., 2003) (Filepp et al., 2002). So, the solution

consists of a detection of header’s rows and

columns, that allows us to offer information

regarding the relationships between the headers and

cells of the table.

2 ACTUAL SITUATION

As we have already commented, the lack of

standard’s uses is a very important problem. The

HTML grammar is the base of the Web, but it is

ignored by the Web site’s developers (Shan et al,

2005). This fact is reinforced by two business facts.

On one hand, the design of Web sites thinking in a

241

Manuel Fernández J., Soler V. and Roig J. (2008).

HEADER DETECTION OF DATA TABLES - Towards the Improvement of the Web Navigation for Impared Visual People.

In Proceedings of the Fourth International Conference on Web Information Systems and Technologies, pages 241-246

DOI: 10.5220/0001529002410246

 SciTePress

specific Web browser. And, on the other hand, the

speed of the changes of the Web site’s content, that

is needed to be profitable. The latter, is well known

in the business world: time-to-market. But in the

Web that is more important because of its speed.

The former is the result of a design based on the

validation of the Web site with a browser but not

with a system like the one offered by the W3C

(Quality Assurance Activity, 2007).

One of the most important errors is the use of

HTML to offer visual information instead of CSS.

The use of both technologies allows us to offer, if

necessary, a different visualization of the

information without changing the structure of the

HTML document. A good example is the use of

tables to distribute the contents of the Web site. This

use is larger than the expected one when we started

the research. Figure 1 shows a comparison over a

randomly group of 487 Web pages. The search of

these Web documents has been done in an automatic

way, totally random. The only condition was that the

Web site had to use the table element.

Use of the HTML Tables

80,11%

19,89%

Data Tables

Layout tables

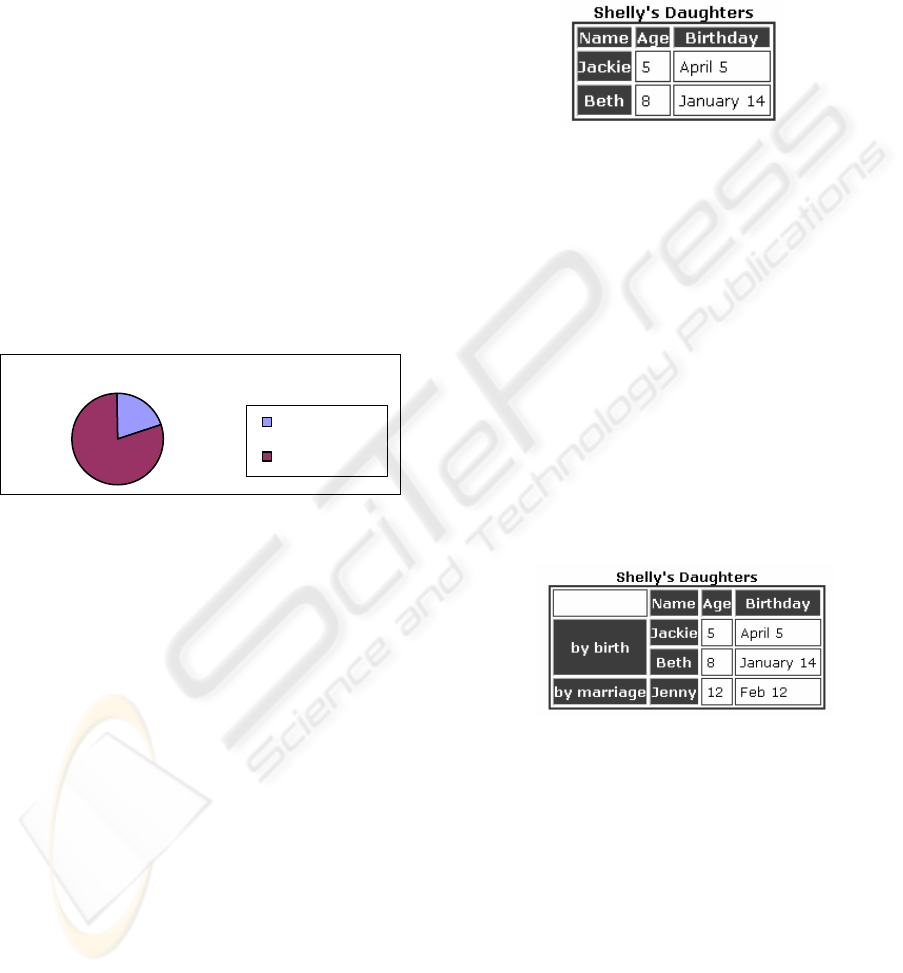

Figure 1: How the HTML tables are used.

Our research is not focused on this problem since

there are alternatives to this problem. For instance,

Chen (Chen and Shen, 2006) proposes an

application to substitute the tables for CSS styles.

3 DATA TABLES

The bi-dimensional nature of a table offers a lot of

information. But this nature makes necessary to

know the header of the row and the column of a cell

to obtain the maximum information. Moreover, this

search is only possible to be done visually and the

helping navigation tools cannot offer this

relationship, making the table to lose its bi-

dimensional structure to a linear list of elements. In

this list, usually the headers appear just at the

beginning and they are very difficult to remember if

the list has a great number of elements. For instance,

if we get row by row the information of the white

cells (not headers) from Table 1 (WebAIM, 2007),

for sure that we will not remember what means

“January 14” in the table. Visually it is clear that it is

Beth’s Birthday, but when read by a voice

synthesizer it is quite difficult to notice it. For this

reason a system that avoids the needing of

converting the tables into lists is necessary.

Table 1: Example of a simple data table.

We propose a system that offers the relationship

between the headers and the content of the cell. We

use HTML standard elements to indicate these

relationships. The HTML attribute scope (W3C,

2000) allows us to mark the relations of the header

with all the cells in a column or row. It is

recommended the use of this attribute in the TH

tags, which mark the header, and the TD tags, which

mark the cells, in simple tables.

In case of a complex table, like Table 2

(WebAIM, 2007), the use of the attributes id and

header is recommended. In this case, the id attribute

marks the headers, and the cells that have any

relation. So, they must contain the value of this

identifier in the value of the header attribute.

Table 2

shows how the header “by birth” affects two rows.

Table 2: Example of a complex data table.

4 PREVIOUS PROPOSED

SOLUTIONS

The solutions proposed nowadays can be classified

in three basic groups. First of all, the group where

the Web browsers adapted to offer correct

navigation in tables is included. The second one

contains proposals based on new languages. These

languages allow a new organization of the

information that marks the relationships among cells

in an unequivocal way. At last, the proposals which

try to modify the content of the document to mark

these relationships.

WEBIST 2008 - International Conference on Web Information Systems and Technologies

242

4.1 Adapted Browsers

In this section we are not going to discuss about

screen readers like JAWS (Freendom Scientific,

2007) or ZoomText (Ai Squared, 2007). With this

software we can use not adapted Web browsers but

the screen readers cannot access the structure of a

table to offer this kind of information.

We are talking about software like a table

browser called EVITA (Yesilada et al., 2004). This

kind of solution has a limited field of use and the

user has to learn how to use it. Our proposal is

totally independent of the Web browser and the user

does not need to learn to use new software.

4.2 New Languages

Enrico Pontelli and Tran Cao Son (2002) propose

the use of Domain Specific Language to express the

content of a table. This content is extracted thanks to

the semantics of the information inside the table.

On the other hand, there exist other languages

XML based that improve the interaction between the

screen reader and the Web site. TTPML (Filepp et

al., 2002) is a language of this kind that offers all the

information to the screen reader in an easy way.

Both of them have the same problem: they are not

standards and the user needs specific software to

obtain the information offered. Our proposal is

based on the W3C standard.

4.3 Header Detection by Means of

Visualization

The Web site developer offers information about the

relationship of the table’s content in a visual way.

We can use this difference between cells to obtain

the header of a table and to relate the different cells.

There exist two approximations to this solution.

The first one is by means of a visual recognition

after the Web page has been displayed by the Web

browser (Krüpl and Herzog, 2006). This system has

the inconvenient that it is strongly dependent of the

Web browser. A Web page designed for another

Web browser can cause problems to the system.

The second approximation, where we are, works

with the source of the Web page. The visualization

of the Web document is marked with HTML and

CSS code and we can access to it independently

from the browser. K. Kottapally et al. (2003)

presented a system that implements this proposal.

The application implements a logic system and a

Hidden Markov Model system. The proposal has

very good results but with a very poor test set which

produces that the systems based on rules, like this

one, can fell on a situation of memorization. On the

contrary, our approximation is not based on rules to

avoid this situation. It is based on a Bayes classifier

and it will be explained in the next section.

5 HEADER DETECTION

As we have commented, it is possible to use the

visualization of the different elements of a table to

establish the existing relationships. To offer this

visual information HTML has a group of tags and

attributes that are specific to offer the visual layout.

The tags structure the table, and they can offer

information on the layout. On the other hand, it is

important the use of the attributes of every tag. For

instance, if we take the tag TH, this tag has 19

different attributes. We can think that there are a

great number of possible combinations, but finally a

subset is only used as we will see later.

In current state of our research, we can only

work with simple data table, but the system can

evolve easily with the method proposed. In this

paper, we present the method for the detection of

columns headers because of space limitations, but

the system is portable to the rows headers.

The first step in the process was to reduce the

number of elements involved in the definition of the

tables. We have made a study to obtain the use of

the different elements of a table. This study was

made over a set of 107 random data tables and the

first point to observe is the difference of the quantity

Distribution of Data Tables

Tables with header

67,29%

Tables without headers 32,71%

0% 10% 20% 30% 40% 50% 60% 70% 80%

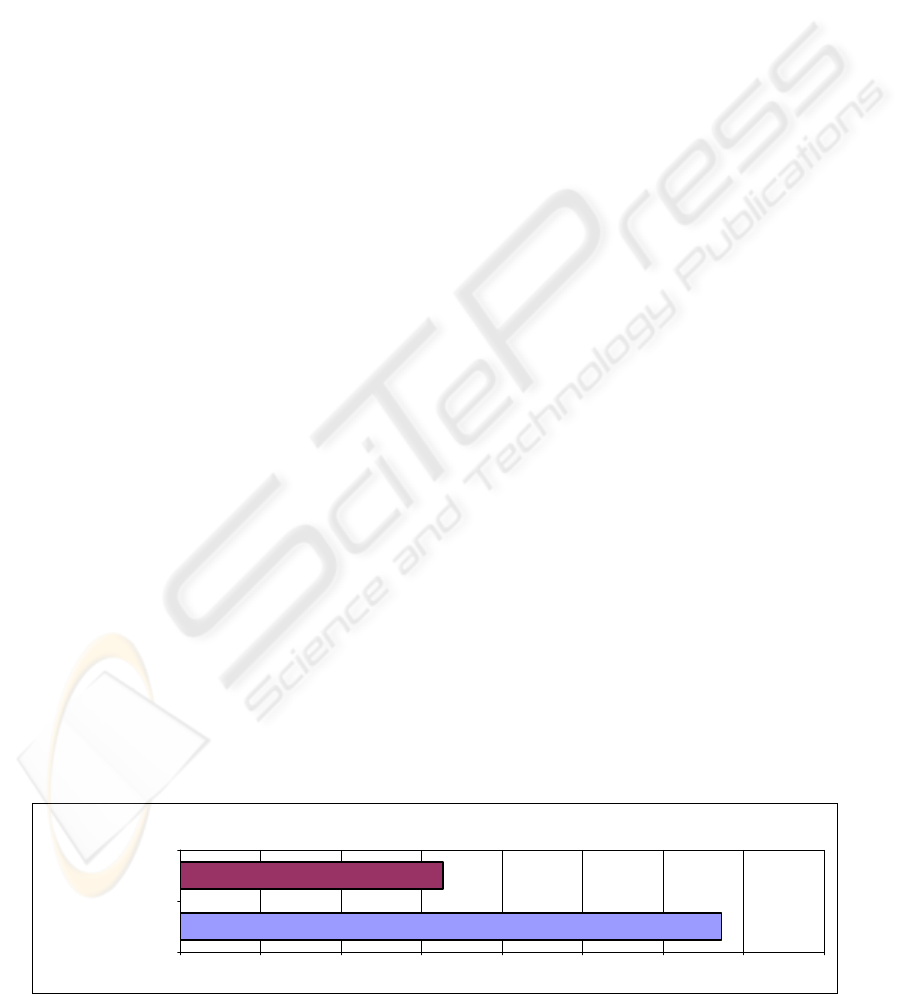

Figure 2: Number of tables with headers.

HEADER DETECTION OF DATA TABLES - Towards the Improvement of the Web Navigation for Impared Visual

People

243

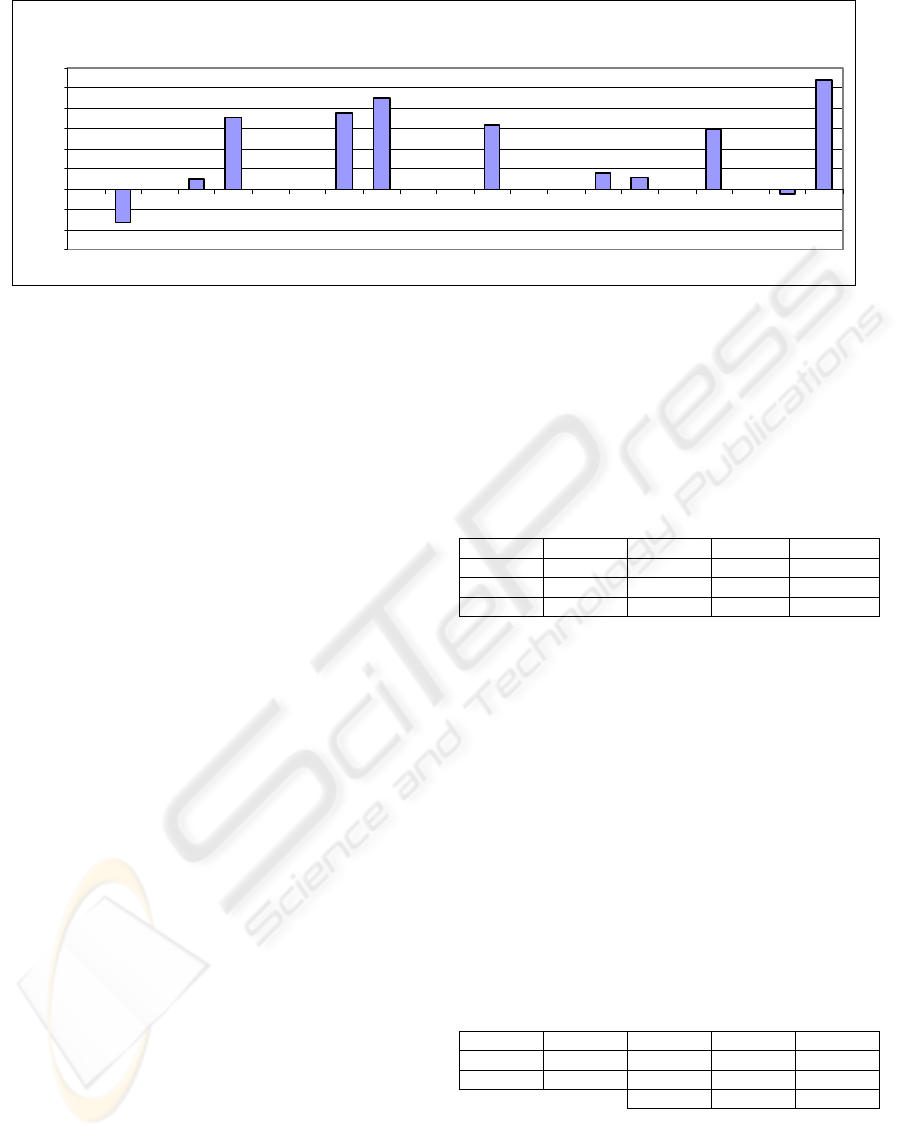

Use of t he TR at t rib ut es

-0,05

0,00

0,05

0,10

0,15

0,20

align bgcolor char charof f class dir id lang style title valign

Figure 3: Distribution of the TR attributes.

of tables belonging to both classes. This effect is

shown in Figure 2. The tables without header are the

most of the part, and they are twice as the tables

with headers. This fact makes, that the dataset was

imbalanced and it is well known that it is a factor

that adds more difficulty to the learning process

(Kubat and Matwin, 1997).

If we continue with the study of the content of

the tables, we can see that all of them have the

header at the first row. This fact is produced because

we focus our study on simple data tables. This study

also offers interesting information like the very low

use of the tags THEAD and TFOOT. These tags are

the responsible ones for indicating the start and the

end of the table, and all the information inside these

tags is marked in an unequivocal way. Both

elements only appear in one of the tables studied but

the TBODY tag, which indicate the content of the

table, appears in 105 tables. In opposition of the use

of THEAD, we can work with the use of TH tag.

This tag marks the cell like a header of row, and it

appears in the 34% of the tables with header.

The study of the attributes has been made only

for the tags which play an important role in the

subset of the tables studied. These tags are TD,

which mark the cells, and TR, which mark the rows.

Figure 3 shows the use of the attributes of the TR

tag. The values are standardized, and a value of ‘1’

is assigned if the value of the first row is completely

different to the rest of values of the table. A value of

‘-1’ means that the value of the first row is the same

at the entire table. The values offered in the Figure 3

are the result of the difference between the average

of the tables with and without headers. That means

that a value far from the 0 is a good indicator

because it means that the attribute is used in this way

the most of the cases.

The same process applied to the rows can be

used with the cells. We compare the horizontally

adjacent cells. This result can be compared with the

rest of the rows and we can know if the row is

visually marked with every cell. We can see the

results in Figure 4.

At last, it is necessary to analyze two situations

really carefully: the use of scope and id/header. Both

situations mark the header of the column, but the use

of these elements is really low (W3C, 2007b) and

none of them is appropriate for the learning system.

Table 3 shows the attributes used in the classifier

system.

Table 3: Results of Studied Subset

TR TD Others

Bgcolor bgcolor TH tag

Class Class

valing

width

We have focused on the attributes of the tags to

obtain information about the visualization of the

table, but it is possible to make these effects inside

the cell. Moreover, this content can offer important

information that marks if the cell is a header. We

work with three elements:

 Tables: Nested tables are not allowed.

 List: If a cell has a list inside, it is a data cell,

not a header cell.

 Headers: The text, inside a section marked with

the header HTML tag can possibly mark a

table header. It is true only if the whole text

inside the cell is also inside the section of the

header.

We rejected the idea of comparing all the content

of a cell to obtain differences between cells because

the same visual effect can be done with different

combinations of HTML elements. The lack of

improvement does not justify the growth of

complexity which would suppose the adding in the

system. Therefore, we only use the data of the

structure and visualization of the table.

Once discussed the attributes we are going to talk

about the system of learning used. We use Naive

WEBIST 2008 - International Conference on Web Information Systems and Technologies

244

Use of the TD attributes

-0,06

-0,04

-0,02

0,00

0,02

0,04

0,06

0,08

0,10

0,12

abbr

axis

backgr

ound

bgcolor

char

charo

ass

lspan

ight

la ng

rowspan

scope

tyle

width

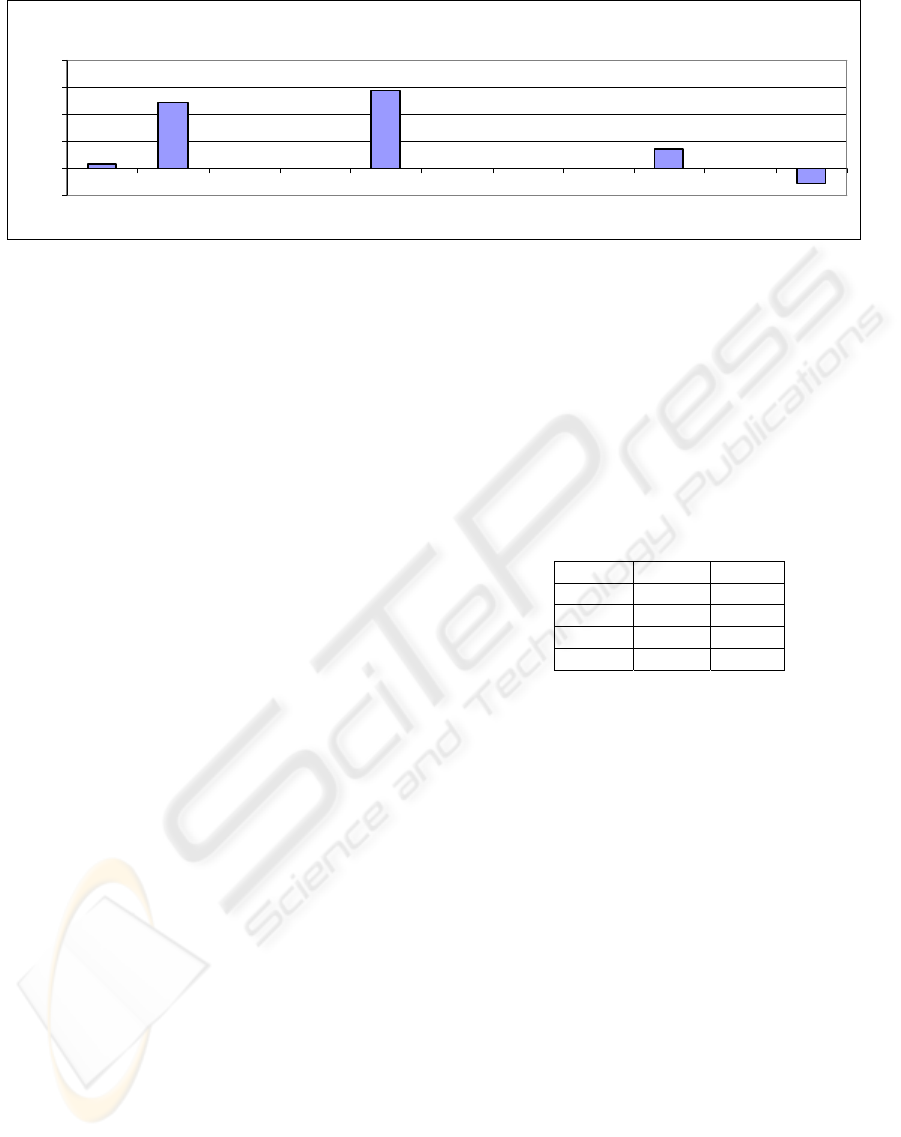

Figure 4: Distribution of the TD attributes.

Bayes, a method of supervised leaning, because it is

very powerful but at the same time it has a temporal

cost and the complexity is very low. Moreover, this

method offers the advantage of not being affected by

the unknown values of the elements (Witten and

Frank, 2005). It is a situation which appears in our

case, because is really difficult that all the attributes

appear in the table’s definition.

6 LEARNING PROCESS AND

RESULTS

The learning process and the tests have been done

using WEKA (Witten and Frank, 2005). This

application allows us to test our set of tables and

selection of attributes in an easy and quickly way.

Furthermore, it is developed in Java and licensed

under a General Public License (GPL) (Free

Software Foundation, 2007), fact allows us to use

the class, that implements the method Naive Bayes,

in the ACTAW platform (Fernández et al., 2007)

which is also GPL licensed. This repairing tool

allows us to obtain all the information contained in a

HTML document and modifies it in an easy way.

After analyzing the results offered by WEKA,

we saw the great number of noise that the set of

tables contain, caused by the tables belonging to the

subset of tables without headers. This fact made us

to decide to classify all the tables without

information, like tables without header. It also

complies with one of the premises of the WCAG,

which is not offer information that can confuse the

user, and this classification does not offer

information of this kind.

It is very important to avoid offering incorrect

information because it can disturb to the user. That

means that the header only will be marked in those

tables which contained them. On the contrary those

tables which were not clearly marked visually, will

be classified as if the would have not headers. With

the selected elements we obtain excellent results as

we can see in Table 4.

Table 4: Results of the studied Subset.

Class Positive Negative % OK % Wrong

Positive 37 3 92.5% 7.5%

Negative 1 10 90.91% 9.09%

Total 92.16% 7.84%

This classification was made with a set of

learning of 50 elements and a set of test composed

by 51 elements. This subset does not offer noise to

the system. And, in both of the subsets, the

percentage of tables with header respect to tables

without them is the same.

With this studied distribution, the number of

tables classified as tables with header when they

really are not, i.e. false positive, is very low. Only

the 7.84% was false positive, and the correct

classification is 92.15%, a very high result.

On the other hand, and to corroborate the good

results, the system has been tested by using Cross

Validation. We use 5 subsets for the validation, and

we can see the results in Table 5.

Table 5: Results of Cross Validation.

Class Positive Negative %Ok %Wrong

Positive 68 4 94.45% 5.55%

Negative 9 20 68.97% 31.03%

Total 87.13% 12.87%

The results are really good. The correct

classification is 87.12%, it is really high and the

false positive is so low enough. In Table 6 we can

see a comparative of the results offered by the cross

validation and the first test In both of them the

HEADER DETECTION OF DATA TABLES - Towards the Improvement of the Web Navigation for Impared Visual

People

245

values of g-means (Kubat and Matwin, 1997), which

is the most used measure to evaluate results in

imbalanced datasets, and the area under the ROC

curve are really good.

Table 6: Results of C. Validation and the studied Subset.

C.Validation Studied subset

G-means 0.8071 0.9170

Positive 0.869 0.941 ROC

Area

Negative 0.869 0.941

7 CONCLUSIONS

We have presented a system of learning that allows

detecting the headers of a table. We can offer the

relationship between the header and the cells under

its scope. This is an important improvement because

it means that the content of the table is not only a list

of elements. The table recovers the bi-dimensional

nature and allows the impaired user to obtain all the

information inside the table.

The proposed solution has been tested with a

heterogeneous set of real Web pages. The selection

of this set was completely random and with it we

can assure that the system does not offer good

results for only a concrete situation. The system

obtains excellent results and improves the results of

the systems developed up to now. Hence, the study

done in Section 4 regarding the previous work has

allowed us to improve some lacks detected in this

subject.

The next step to do will be to include this system

in the ACTAW platform. With this application the

feature can offer easily its help to all kind of people.

REFERENCES

World Wide Web Consortium (W3C) (1999a) Web

Content Accessibility Guidelines 1.0, http://www.

w3.org/TR/WCAG10/ (Retrieved on June 2007)

World Wide Web Consortium (W3C) (2007a) World

Accessibility Initiative (WAI). http://www.w3.org/ WAI/

(Retrieved on June 2007)

Chen Shan, Hong Dan, Vicent Shen. An experimental

study on Validation Problems with existing HTML

Webpages. In Proceeding of International Conference

on Internet Computing, pages 373-379, Las Vegas,

EUA, 2005.

Quality Assurance Activity (W3C) (2007) The W3C

Markup Validation Service. http://validator.w3.org/

(Retrieved on September 2007)

Benfeng Chen, Vicent Y. Shen. Transforming Web Pages

to Become Standard-Compliant through Reverse

Engineering. In Proceeding of Workshop Web for All

in International World Wide Web Conference, pages 14-

22, Edinburgh, UK, 2006.

World Wide Web Consortium (W3C) (2000) HTML

Techniques for Web Content Accessibility Guidelines

1.0, http://www.w3.org/TR/WCAG10-HTML-ECHS/

(Retrieved on June 2007)

Creating Accessible Tables – Data Tables (2007) Web

Accessibility in Mind (WebAIM)

http://www.webaim.org/techniques/tables/data.php

(Retrieved on September 2007)

Kubat, M, Matwin, S. Addressing the Curse of Imbalanced

Training Sets: One-Sided Selection. In Proceedings of

the 14th International Conference on Machine

Learning, 1997.

Freedom Scientific (2007). JAWS for Windows.

http://www.freedomscientific.com/fs_products/softwar

e_jaws.asp (Retrieved on June 2007)

Ai Squared (2007) Ai Squared site. http://www.aisquared

.com/index.cfm (Retrieved on June 2007)

Yeliz Yesilada, Robert Stevens, Carole Goble and Shazad

Hussein. Rendering Tables in Audio: The Interaction

of Structure and Reading Styles. In Proceeding

ASSETS’04, pages 16-23, Atlanta,Georgia, USA,

2004.

Juan Manuel Fernández, Vicenç Soler and Jordi Roig.

Automatic Conversion Tool for Accessible Web. In

Proceedings of the 3rd International Conference on

Web Information Systems and Technologies, pages

459-462. Barcelona, Spain, 2007.

Enrico Pontelli and Tran Cao Son. Planning, Reasoning,

and Agents for Non-visual Navigation of Tables and

Frames. In International ACM SIGCAPH Conference

on Assistive Technologies pages 73-80. Edinburgh,

UK, 2002.

Robet Filepp, James Challenger and Daniela Rosu.

Improving the accessibility of aurally rendered HTML

tables. In International ACM SIGCAPH Conference

on Assistive Technologies pages 9-16. Edinburgh, UK,

2002.

Bernhard Krüpl and Marcus Herzog. Visually Guided

Bottom-Up Table Detection and Segmentation in Web

Documents. In Proceeding of International World

Wide Web Conference, pages 933-934, Edinburgh,

UK, 2006.

K Kottapally, C. Ngo, R. Reddy, E. Pontelli, T.C.Son and

D.Gillan. Towards the Creation of Accessibility

Agents for Non-visual Navigation of the Web. In ACM

Conference Universal Usability, pages 134-141,

Vancouver, Canada, 2003.

World Wide Web Consortium (W3C) (2007b). www-

html@w3.org Mail Archives. http://lists.w3.org/

Archives/Public/www-html/2007May/0416.html

(Retrieved on June 2007)

Ian H. Witten and Eibe Frank. Data Mining: Practical

Machine Learnign Tools and Techniques 2

Edition.

Elsevier, San Francisco, USA 2005.

Free Software Foundation (2007). GNU General Public

License Version 3. http://www.gnu.org/copyleft/

gpl.html (Retrieved on September 2007)

WEBIST 2008 - International Conference on Web Information Systems and Technologies

246
