AN ENHANCED SYSTEM FOR PATTERN RECOGNITION AND

SUMMARISATION OF MULTI-BAND SATELLITE IMAGES

Hema Nair

C.T.R.F., 813, 7

Main, 1

Cross, HAL 2

Stage, Bangalore 560008, India

Keywords: Data mining, pattern recognition, image analysis, feature extraction, blackboard component, linguistic

summary, intelligent system.

Abstract: This paper presents an enhanced system developed in Java

for pattern recognition and pattern

summarisation in multi-band (RGB) satellite images. Patterns such as island, land, water body, river, fire,

urban settlement in such images are extracted and summarised in linguistic terms using fuzzy sets. Some

elements of supervised classification are utilised in the system to assist in the development of linguistic

summaries. Results of testing the system to analyse and summarise patterns in SPOT MS images and

LANDSAT images are also discussed.

1 INTRODUCTION

Data mining includes a broad spectrum of processes

and techniques that analyse raw data to discover

implicit patterns that are useful for decision-making.

Pattern recognition is considered as another form of

data mining because both focus on the extraction of

information or relationships from data. All data

mining techniques are not universally applicable to

all types of multimedia. A particular data mining

technique may be successful with one type of

multimedia such as images, but the same technique

may not be well suited to many other types of

multimedia due to varying structure and content.

In (Zaine et al., 1998), the objective is to mine

internet-based image and video. The results

generated could be a set of characteristic features

based on a topic (keyword), a set of association rules

which associate data items, a set of comparison

characteristics that contrast different sets of data, or

classification of data using keywords. From another

perspective, (Barnard et al., 2003a), (Barnard et al.,

2003b) describe the approach involved in matching

images to text. Their work describes models used for

automatic image annotation, browsing support and

auto-illustration of blocks of text. Such models are

focussed on prediction of words (from an available

pool) that match with specific image regions. At this

juncture, a comparison is made with some other

commercially available software that has similar

functionality. Definiens

eCognition (Definiens

Industrial Profile, 2001) is based on object-oriented

image analysis. Some rules for pattern classification

are employed by the tool. Contextual information

and data are used as input for this process.

Definiens

Professional (Definiens, 2006) works

with panchromatic, multi/hyper-spectral imagery,

infrared, and polarimetric SAR data from space-

borne and air-borne imaging platforms.

A system that classifies and summarises patterns

such as water body, river, land, island, and fire, was

described in (Nair, 2004). The system utilised fuzzy

logic to describe these patterns. (Nair, 2006)

introduced some significant changes to the system.

A few of these changes have been implemented in

C.T.R.F’s

LSGENSYS. LSGENSYS (Linguistic

ummary Generation System) draws upon the

earlier techniques of utilising fuzzy logic, but also

adds a new significant element of user interaction

via the blackboard architecture component

(described in Section 2). This paper is organised as

follows. Section 2 explains the architecture and

design of the system. Section 3 explains the

methodology and approach. Section 4 presents

results of testing the system for image analysis,

pattern recognition and summarisation on

LANDSAT and SPOT MS satellite images. Section

5 presents the conclusions and future work.

Nair H. (2008).

AN ENHANCED SYSTEM FOR PATTERN RECOGNITION AND SUMMARISATION OF MULTI-BAND SATELLITE IMAGES.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - AIDSS, pages 5-10

DOI: 10.5220/0001670000050010

 SciTePress

2 SYSTEM ARCHITECTURE

This paper presents an enhanced version of

LSGENSYS (Nair, 2007). LSGENSYS is an

integrated system that allows the user to analyse

images, extract feature descriptors such as area,

length, location etc of patterns and then use these

descriptors to form linguistic summaries of these

patterns. This system also provides an interactive

environment, wherein, the user may suggest some

possible linguistic summaries for the image patterns.

The system would evaluate the fitness of these user-

summaries. Alternately, the system could, without

user intervention, generate some possible summaries

and evaluate their fitness and suitability with respect

to the image patterns.

The system architecture is shown in Figure 1.

The input image is analysed and some feature

descriptors extracted. These descriptors are stored

thereafter in a relational table in the database. The

blackboard holds the current state in the process of

developing summaries. The user has the choice of

suggesting concepts such as descriptions of area,

length, location of patterns etc. The knowledge base

uses geographic facts to define feature descriptors

using fuzzy sets. It interacts with a built-in library of

linguistic labels, which also interacts with the

summariser as it supplies the necessary labels to it.

The summariser receives input from these

components and performs a comparison between

actual feature descriptors of the image patterns

stored in the database, the concepts suggested by the

user, and the feature definitions stored in the

knowledge base. After this comparison, the

summariser uses the linguistic labels supplied by the

library to formulate some possible summaries for

each pattern/object in the database. These summaries

are stored in the blackboard. From among these

summaries, the most suitable one describing each

pattern is selected by interaction with the engine

(genetic algorithm). As the GA evolves through

several generations, it generates better summaries

(indicated by higher fitness, as defined in Section 4)

which are then stored and indicated on the

blackboard. Thus, the system includes some

elements of supervised classification and

summarisation. The following set of rules is

developed to perform pattern classification and

identification in multi-band satellite images.

1. If a pattern/object is to be classified as an

island, it should have a water envelope

surrounding it such that it has a uniform band

ratio at at least eight points on this envelope

(corresponding to directions E, W, N, S, NE,

NW, SE, SW). Also grey level values on the

envelope could be lower than the grey level

values on the object.

2. If an object does not have an envelope in all

directions as described in rule (1) above, then

it is classified as land.

3. If an object is to be classified as water body

(expanse of water, river), it is necessary that

it should have a uniform band ratio.

4. Fire is classified as a separate pattern. It is

identified by applying colour density slicing

to the image and by viewing the histogram of

the affected area. The histogram would show

a majority of pixels at lower intensity for the

burnt scar area near the fire.

5. The enhanced system presented in this paper

includes the capability to recognise and

summarise urban settlements in an image.

This new rule for classification is described

as follows. Urban settlements are classified

based on their shape and their grey level

intensity. In this paper, an attempt is made to

identify only rectangular and circular-shaped

urban settlements. The shape ratio (defined as

ratio of the area of the urban settlement to the

area of the bounding rectangle or bounding

circle, as the case may be, provided both

shapes equal in perimeter or circumference)

is a major parameter in this classification

process. Shape ratio closest to a value of 1 is

ideal. The grey level intensity (closeness to

white colour, where the triplet (R,G,B) =

(255,255,255), for urban settlement) is

another parameter used in this process.

(Younes et al., 2004) provided the basis for

the development of this criterion. A

percentage of accuracy is calculated (Section

4) and associated with this classification. No

attempt is made to describe the size of the

urban settlement.

The summaries generated by the system for patterns

such as land, island, water body, and river are also

more descriptive as shown in Section 4.

3 APPROACH

The attributes of patterns that are used to develop

their linguistic summaries are area, length, location

(X, Y pixel co-ordinates of centroid of pattern in

image), Additional Information or Pattern Id, grey

level intensity, and Shape Id. These attributes are

calculated /extracted automatically by the GUI tool.

ICEIS 2008 - International Conference on Enterprise Information Systems

The linguistic summary of patterns/objects is

evaluated as follows.

p21

y,...y,yY = (1)

then

truth(y

isF)=μ

):i=1,2,...,p, (2)

where μ

) is the degree of membership of y

in the fuzzy set F and 0 ≤ μ

) ≤ 1. The linguistic

proposition y

is F could be instantiated as for

example, Island is moderately large.

In order to generate such summaries, it is

necessary to formulate fuzzy sets that quantify

area/length attributes of the object/pattern.

Triangular and trapezoidal fuzzy sets (totally twenty

nine sets) have been formulated. The linguistic

description is calculated as follows:

njj2j1j

m...mmT ∧∧=

, (3)


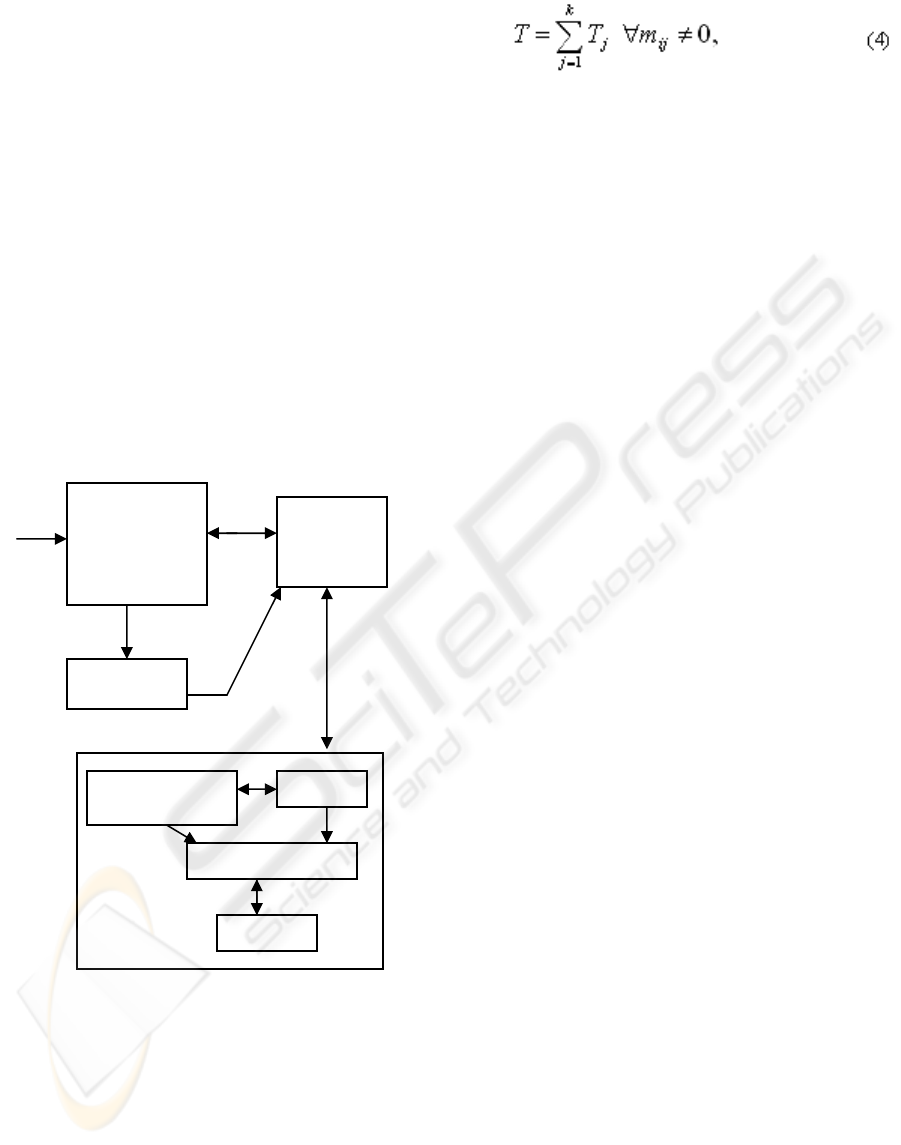

Figure 1: System architecture.

where m

is the matching degree (Kacprzyk,

Ziolkowski, 1986) of the ith attribute in the jth tuple.

∈[0,1] is a measure of degree of membership of

the ith attribute value in a fuzzy set denoted by a

fuzzy label. The logical AND (∧) of matching

degrees is calculated as the minimum of the

matching degrees (Kacprzyk, Ziolkowski, 1986).

T in equation (4) is a numeric value that represents

the truth of a possible set of summaries of the k

objects in the database. The next section discusses

how the GA evolves the most suitable linguistic

summary for all the objects by maximising T.

4 IMPLEMENTATION ISSUES

This section explains the implementation of the

system, including the genetic algorithm approach

and then discusses the results from applying this

approach to analysing images.

4.1 GA Approach

Genetic algorithms are derived from the theory of

evolution. Biological evolutionary theories are

emulated by the genetic algorithm (GA) as it

attempts to solve optimisation problems (Filho et al.,

1994), (Goodman, 1996), (Smith et al., 1994). Each

binary chromosome string in a population represents

a possible linguistic summary for a pattern. Such a

population of strings is manipulated by selection,

cross-over and mutation operators in the GA (Filho

et al., 1994) such that as the GA evolves through

several generations, only those strings with highest

fitness survive. The evaluation or fitness function for

the linguistic summaries or descriptions of all

objects in the table is

f=max(T), (5)

where T is evaluated as shown in the previous

section.

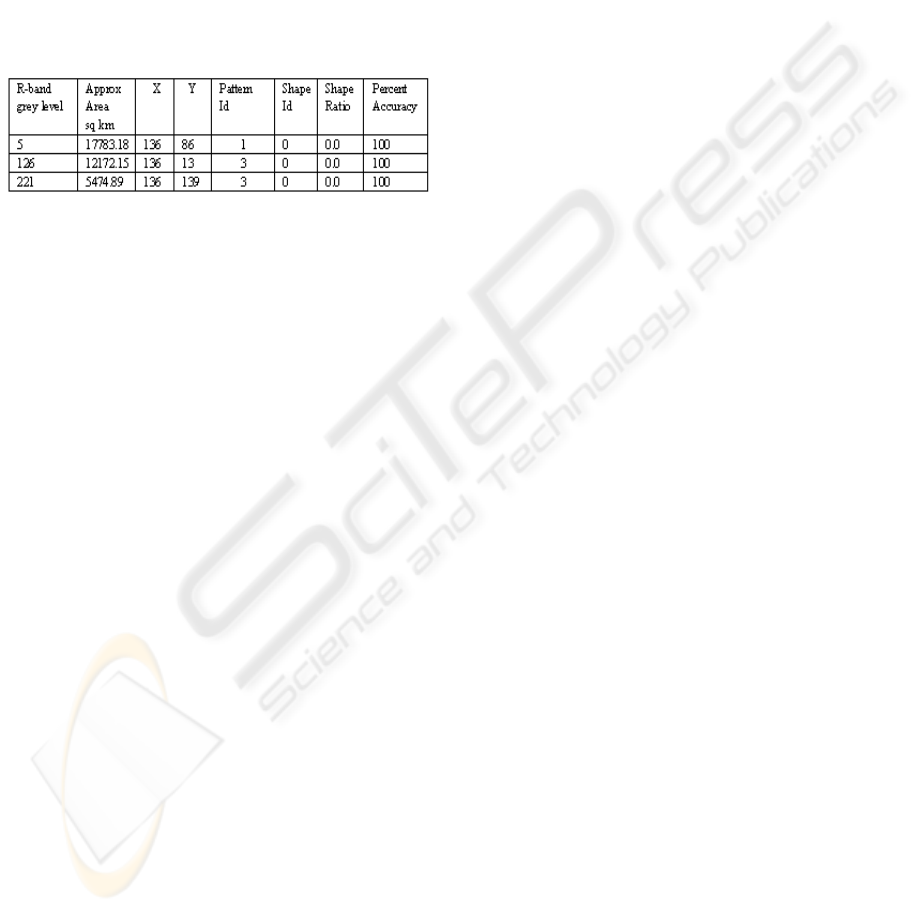

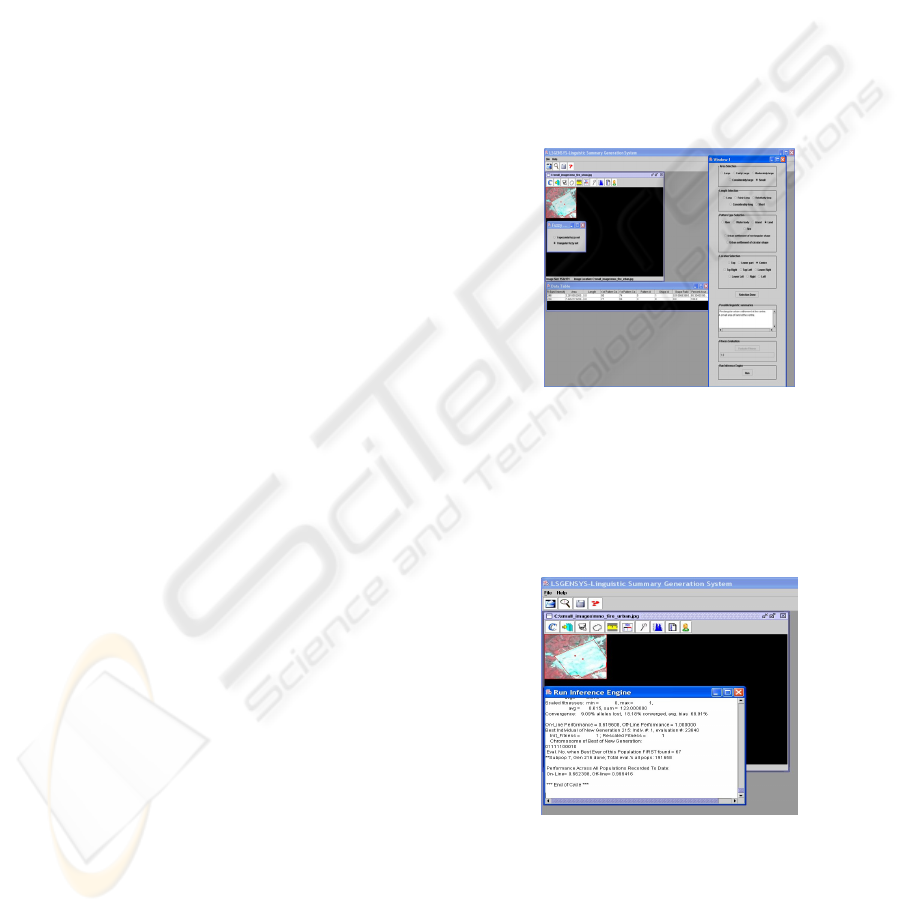

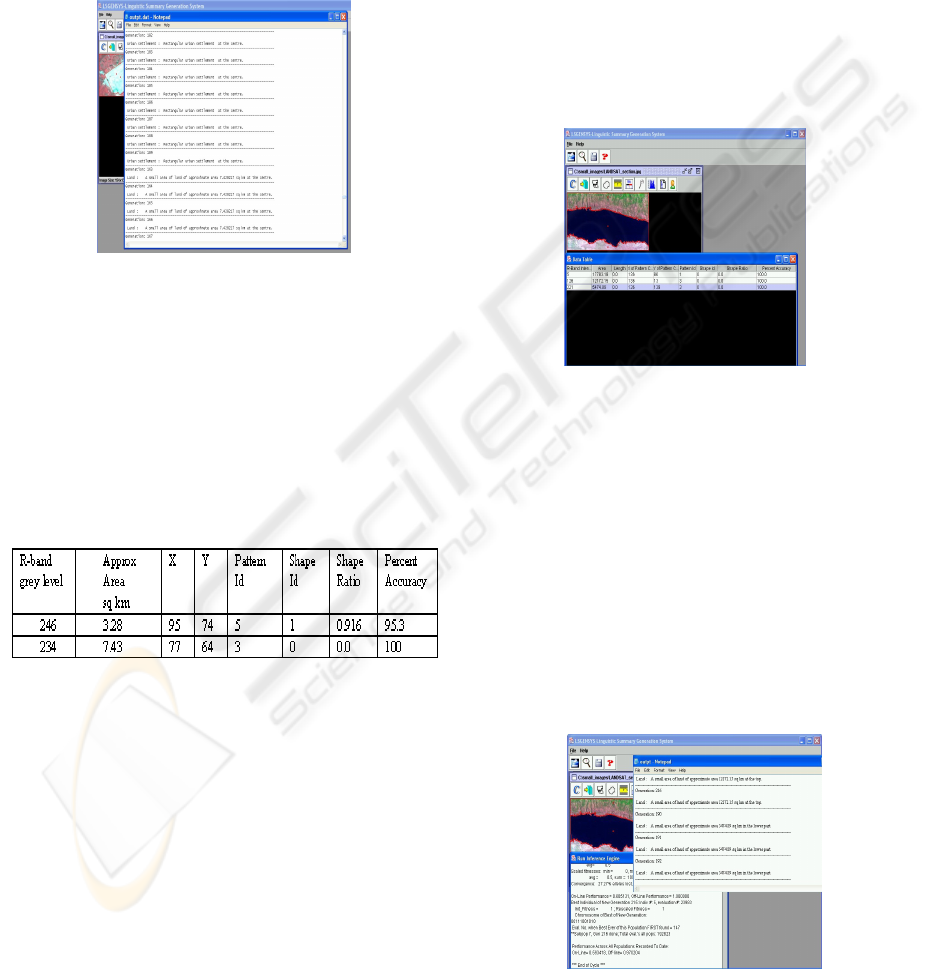

4.2 Results and Discussion

Image objects/patterns are classified at the highest

level into land, water or fire. Land is further

classified into island and other land. Water is further

classified into river and other water body. Urban

settlement is a pattern that can be identified on land

or island. The fuzzy sets that quantify area or length

are defined with reference to geographic facts such

as:

• Largest continent is Asia with area of

44579000 km

• Largest freshwater lake is Lake Superior

with area of 82103 km

Image Analysis

Feature

Extraction GUI

Tool

Database

Blackboard

architecture

Knowledge base

Librar

Summarise

ine

AN ENHANCED SYSTEM FOR PATTERN RECOGNITION AND SUMMARISATION OF MULTI-BAND

SATELLITE IMAGES

• Smallest continent is Australia/Oceania

with area of 7687000 km

• Longest river is the Nile with length 6669

In (6), the triangular fuzzy set for considerably large

expanse of water is shown. The triangular fuzzy set

for fairly large expanse of water is shown in (7).

waterof expanse largely considerab

(x)=1-(55068.66-x)/27034.33,

for 28034.33≤x≤55068.66

=1-(x-55068.66)/27034.33,

for 55068.66≤x≤ 82103

=0, x< 28034.33

=0, x> 82103 (6)

waterof expanse largefairly

(x)=1-(1000-x)/900, for 100≤x≤1000

=1-(x-1000)/27034.33, for 1000≤x≤ 28034.33

=0, x< 100

=0, x> 28034.33 (7)

An example SPOT MS satellite image to be

analysed is shown in Figure 2. Figure 2 shows the

image analysis tool of the system as it extracts the

area attribute of two patterns in the image. These

attributes are calculated and displayed in the data

table in the figure. Pattern id attribute denotes

numbers as follows: 0= River, 1=Water Body,

2=Island, 3=Land, 4=Fire, 5 = Urban settlement. For

urban settlements, Shape ID = 1 indicates an

approximately rectangular urban settlement, and

Shape ID = 2 indicates an approximately circular

urban settlement. Location is indicated by X, Y pixel

co-ordinates of centroid of pattern/object. For river,

its length is the most significant attribute for

calculation, whereas for all other patterns, area is the

most significant attribute for calculation.

The user may choose, at this stage, to interact

with the system and suggest some possible

summaries. The system can evaluate the fitness of

the user-summaries and inform the user if they are

most suitable to describe the image patterns in the

table. After the user chooses triangular fuzzy sets in

the knowledge base, the system displays triangular

fuzzy set definitions in order to guide the user to

select the appropriate fuzzy set for area or for length

of different patterns such as land, island, water body,

river etc. With the aid of these fuzzy set definitions,

the user then constructs some possible pattern

summaries as shown in Window 1. The fitness value

(1.0) of these possible summaries is calculated and

displayed in Window 1. Thereafter, the user may

verify the correctness of these summaries and their

suitability with respect to the image patterns by

running the GA Inference Engine.

Figure 3 shows a snapshot of the GA Inference

Engine as it runs (in the bottom left window) and

evolves the most suitable summaries with higher

fitness, over several generations. The summaries

generated by the engine are captured in a text file as

displayed in the top right window of Figure 4. The

user may also chose to bypass the summary

construction process, and directly invoke the

inference engine (by pressing the Run button in

Figure 2) to construct and generate the most suitable

summaries. This would resemble automatic

classification and description.

Figure 2: The image analysis tool of the system as it

extracts area of patterns in a SPOT MS image.

Approximate scale of image 1: 0.0003764.

The GA is run with following input parameter set.

These parameter values are set after several trial

runs.

Figure 3: Snapshot of the GA Inference Engine as it runs

and evolves the most suitable summaries that fit all the

patterns extracted from the image.

No: of bits in a chromosome string of the

population = 11

Generations per cycle = 27

Population size = 200 strings

ICEIS 2008 - International Conference on Enterprise Information Systems

Probability of cross-over = 0.545

Probability of mutation = 0.001

After 216 generations, the linguistic summaries

generated for the data in Table 1 are:

• Rectangular urban settlement at the centre

• A small area of land of approximate area

7.428217 sq km at the centre

Figure 4: Snapshot of some of the final summaries

generated by the GA Inference Engine.

Table 1 also shows the percentage accuracy of

the classification of the patterns, as per the rules of

classification in Section 2.

Thus, the possible summaries formulated by the

user compare well with the summaries generated by

the inference engine.

Table 1: Data calculated from image in Figure 2.

Figure 5 and Figure 6 show the same procedure as

applied to a LANDSAT image. Table 2 shows the

data calculated from the image patterns. From the

image in Figure 5, the system evaluates the fitness of

the summaries formulated by the user. In this case,

the fitness value calculated is 0.8736. The user-

formulated summaries are:

• A moderately large expanse of water at

the centre

• A small area of land at the top

• A small area of land in the lower part

The GA Inference Engine is invoked by the user to

verify and validate the suitability of the possible set

of summaries. The resulting summaries from the

inference engine are enumerated below. The GA is

run with the same input parameter set as before, with

the exception that cross-over probability is set to

0.548.

After 216 generations, the linguistic summaries

generated for the data in Table 2 are:

• A small area of land of approximate area

12172.15 sq km at the top

• A small area of land of approximate area

5474.89 sq km in the lower part

• A moderately large expanse of water of

approximate area 17783.18 sq km at the

centre.

These summaries match the user-formulated

summaries.

Figure 5: A LANDSAT image is analysed by the system.

Approximate scale of image is 1: 0.952 sq km.

5 CONCLUSIONS AND FUTURE

WORK

This paper has presented an enhanced system

developed in Java for image analysis and pattern

recognition in multi-band satellite images. The

system architecture and design have been described.

The system has been tested successfully with a

SPOT MS image and a LANDSAT image and the

results have been presented and discussed.

Figure 6: For the image in Figure 5, the GA is run and

summaries generated are displayed in top right window.

AN ENHANCED SYSTEM FOR PATTERN RECOGNITION AND SUMMARISATION OF MULTI-BAND

SATELLITE IMAGES

Some directions of future work include:

• Adding a scripting feature that allows the

user to program a sequence of image

analysis instructions in a user-friendly

language

• Adding the provision to upload ground

data in order to help classify more patterns

such as vegetation in satellite images using

supervised classification techniques

• Adding enhancements to image analysis

functions.

Table 2: Data calculated from image in Figure 5.

REFERENCES

Barnard, K., Duygulu, P., Forsyth, D., De Freitas, N., Blei,

D.M., Jordan, M.I., 2003a. Matching words and

pictures. Journal of Machine Learning Research, Vol

3, pp. 1107-1135.

Barnard, K., Duygulu, P., Forsyth, D., 2003b. Recognition

as translating images into text. Internet Imaging IX,

Electronic Imaging.

Definiens Industrial Profile, 2001. Definiens Imaging

GmbH: Object Oriented Classification and Feature

Detection. In IEEE Geoscience and Remote Sensing

Society Newsletter.

Definiens, 2006. Definiens Professional Product Sheet:

http://www.definiens.com .

Filho, J.L.R., Treleaven, P.C., and Alipi, C., 1994. Genetic

Algorithm programming environments. In IEEE

Computer, pp. 28-43

Goodman E.D., 1996. An Introduction to Galopps-the

Genetic ALgorithm Optimized for Portability and

Parallelism System(Release 3.2). Technical Report

No. 96-07-01, Genetic Algorithms Research and

Applications Group, Michigan State University.

Kacprzyk, J., Ziolkowski, A., 1986. Database queries with

fuzzy linguistic quantifers. IEEE Transactions on

Systems, Man and Cybernetics, pp. 474-479.

Nair, H., 2004. A system for interpretation and description

of some patterns in images. International Journal of

Computational Intelligence, 1(4), pp. 368-373.

Nair, H., 2006. Development of summaries of certain

patterns in multi-band satellite images. In

Proceedings of 8

International Conference on

Enterprise Information Systems, pp. 278-284.

Nair, H., 2007. LSGENSYS- An integrated system for

pattern recognition and summarisation of multi-band

satellite images. In Proceedings of 9

International

Conference on Enterprise Information Systems, pp.

478-482.

Smith, R.E., Goldberg, D.E., Earickson, J.A., 1994. SGA-

C:A C-language implementation of a Simple Genetic

Algorithm. TCGA Report No.91002.

Younes, A.A., Truck, I., Akdag, H., Remion, Y., 2004.

Image classification according to the dominant colour.

In Proceedings of 6

International Conference on

Enterprise Information Systems, pp.505-510.

Zaine, O.R., Han, J., Ze-Nian, L., Chee, S.H., Chiang,

J.Y., 1998. MultimediaMiner : A System Prototype

for Multimedia Data Mining. In Proceedings of ACM-

SIGMOD International Conference on Management of

Data (SIGMOD ’98).

ICEIS 2008 - International Conference on Enterprise Information Systems
