GENERALIZATION AND BLENDING IN THE GENERATION OF

ENTITY-RELATIONSHIP SCHEMAS BY ANALOGY

Marco A. Casanova, Simone D.J. Barbosa, Karin K. Breitman and Antonio L. Furtado

Departamento de Informática – Pontifícia Universidade Católica do Rio de Janeiro

Rua Marquês de S. Vicente, 225 – Rio de Janeiro – CEP 22451-900, Brasil

Keywords: Schema Generation, Analogy, Blending, Lattices, Entity-Relationship Model, Logic Programming.

Abstract: To support the generation of database schemas of information systems, a five-step design process is pro-

posed that explores the notions of generic and blended spaces and favours the reuse of predefined schemas.

The use of generic and blended spaces is essential to achieve the passage from the source space into the tar-

get space in such a way that differences and conflicts can be detected and, whenever possible, conciliated.

1 INTRODUCTION

Designers of information systems soon learn that

reusing their previous experience, and also that of

other designers, is a rewarding strategy. Motivated

by this remark, we have been working (Breitman et

al., 2007; Barbosa et al., 2007) on methods and tools

to abstract a pattern that captures the structure of a

database schema regarded as a source schema,

which is then repeatedly used to generate one or

more target schemas. What makes this strategy

viable is the perception of an analogy between

source and target, expressed by “target is like

source”. Additionally, the source schema should be

a typical example among those that are analogously

structured, and the terminology of its underlying

domain should be familiar even to the less expe-

rienced designers. If these requirements are satisfied,

it will be possible to instantiate the positions occu-

pied by variables in the pattern by prompting the

designer to indicate which name in the target schema

being generated correspond to which name in the

example source schema.

In the present paper, we expand our earlier me-

thod and introduce a five-step process that takes four

spaces into consideration – the source, target, ge-

neric and blended spaces, as proposed in (Faucon-

nier & Turner, 1994) for widely different areas. We

adopt the familiar Entity-Relationship (ER) model

(Batini, Ceri & Navathe, 1992) and use the weak

entity concept to illustrate the process.

The diagram in figure 1 represents the four

spaces and shows how they are articulated in view of

the process, whereby, starting from the source, the

target is gradually constructed.

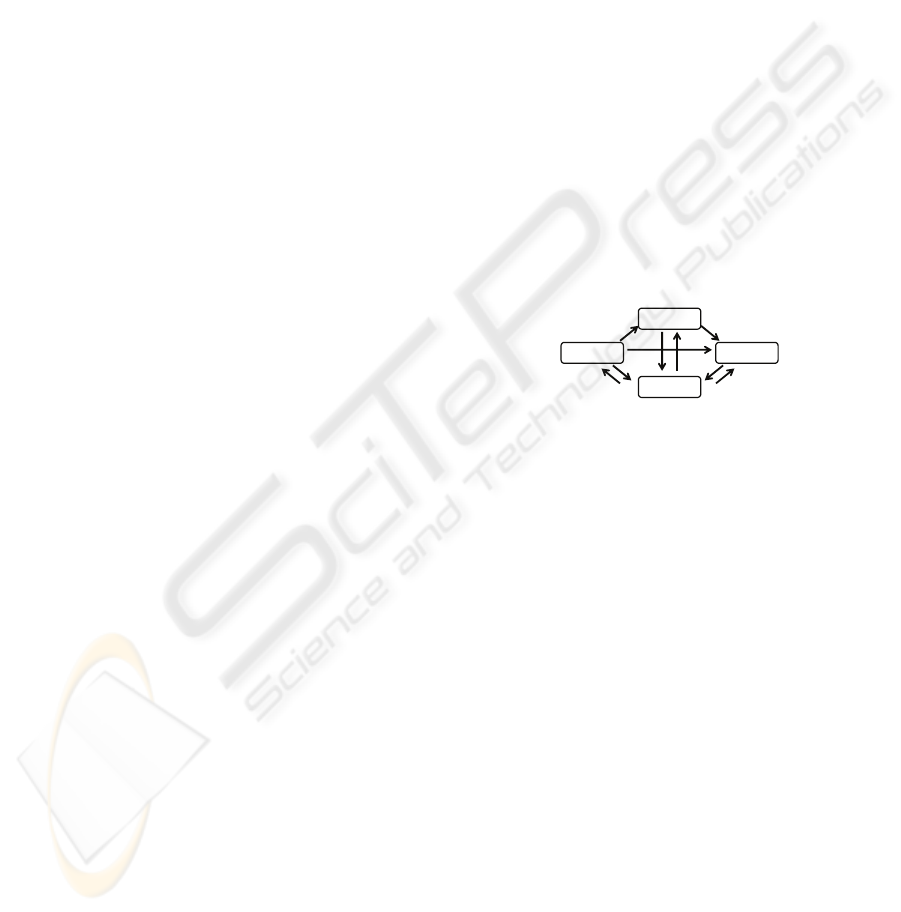

source target

generic

blend

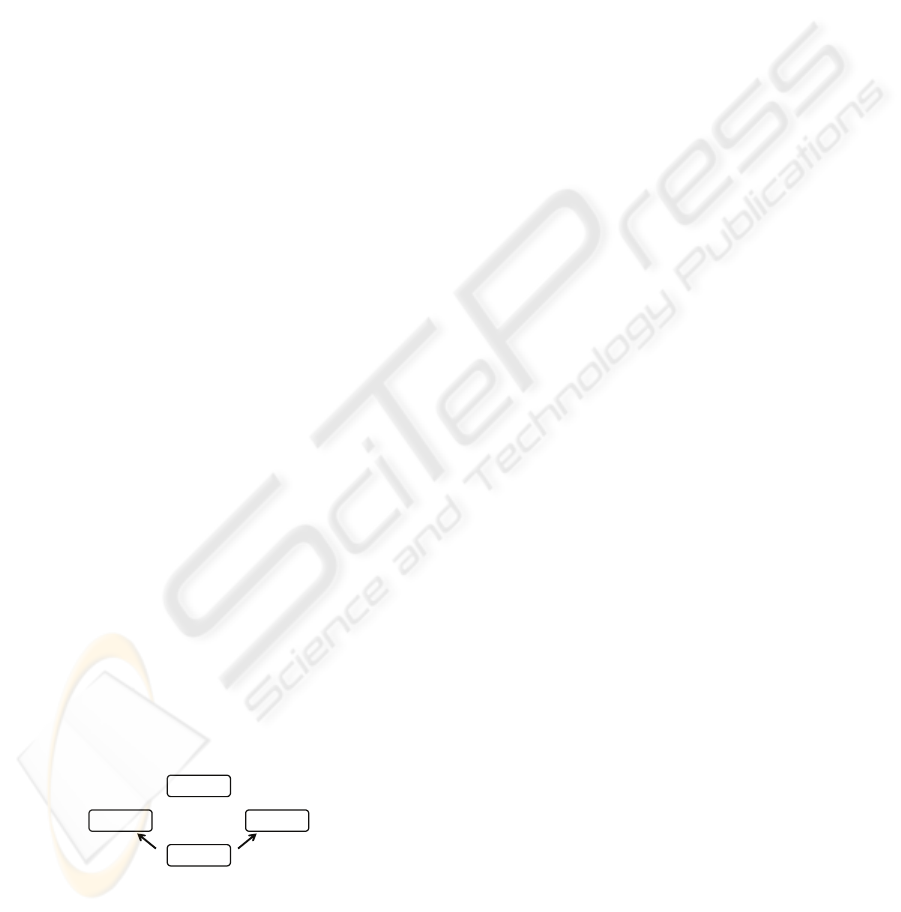

Figure 1: The four-space approach.

Informally, the generic space originates from the

source by importing, in a generalized format, the

elements for which corresponding elements in the

target will eventually be characterized. In practice,

both the source and the target will contain other non-

corresponding elements, since analogy is rarely

bijective. Viewing the diagram as a lattice (MacLane

& Birkhoff, 1967), the generic constitutes the meet

of the source and the target spaces and denotes the

elements that correspond to each other in these two

spaces. By contrast, the blended space reflects the

join of source and target and inherits all their ele-

ments, corresponding or not. The blend is the space

wherein one can detect whatever is incomparable or

conflicting when putting together source and target,

often calling for some form of adaptation (Turner,

1996; Fauconnier & Turner, 2002). Goguen (1999)

formalized blending in category theory.

The text is organized as follows. Section 2 de-

tails the process we propose, section 3 extends it to

operations, and section 4 contains the conclusions.

A. Casanova M., D. J. Barbosa S., K. Breitman K. and L. Furtado A. (2008).

GENERALIZATION AND BLENDING IN THE GENERATION OF ENTITY-RELATIONSHIP SCHEMAS BY ANALOGY.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - ISAS, pages 43-48

DOI: 10.5220/0001672800430048

 SciTePress

2 THE FIVE-STEP SCHEMA-

GENERATION PROCESS

2.1 Example

We adopt a simple example to illustrate the pro-

posed schema generation process. We start with a

schema fragment, specifying

employees and their

dependents, which is probably the most frequently

mentioned illustration of the weak entity concept in

ER modeling. As a fragment, it only needs the ele-

ments relevant to characterize weak entities.

We express schemas with the help of clauses

such as those below that introduce two entity

classes,

employee and dependent:

Schema: Emp_Dep

Clauses --

entity(employee, empno)

attribute(employee, empno)

entity(dependent,

[empno/depno-isdepof-empno,depno])

attribute(dependent, depno)

relationship(isdepof,

dependent/0/n, employee/1/1)

attribute(isdepof, family_tie)

The identifying attribute of employee is empno, whe-

reas

dependent, being a weak entity, relies on the

identifying relationship

isdepof, combined with the

discriminating attribute

depno. The identifying rela-

tionship is 1 to n, being total with respect to

depen-

dent

and partial with respect to employee; these

properties are indicated by associating pairs of

minimum and maximum values for the participation

of instances of each entity in relationship instances:

at least 0 and at most n

dependents can be related

with exactly one

employee. The relationship

isdepof has attribute family_tie, whose values are

spouse and child. Note that the fragment does not

include, as unessential to the characterization of

weak entities, certain basic properties of

employee,

such as those referring to the employment itself.

This schema will be used as the source schema,

wherefrom target schemas based on the weak entity

concept can be derived, through five consecutive

steps, to be described in the sequel. As will be no-

ticed, the process takes into due consideration some

domain-independent consistency rules inherent in

the ER model, such as the following:

1) all entity classes must have identifying

properties;

2) relationships can only be defined between

defined entity classes;

3) the deletion of an entity instance implies

the deletion of all its properties;

4) if a relationship R is total with respect to

one of its participating entity classes E, an

instance of R cannot be deleted if it is the

only one involving a given instance of E.

2.2 Step 1 - Generating the Pattern

From the source schema Emp_Dep, the Weak Entity

pattern is obtained (Fig. 2) by substituting variables

for the names of entities, relationships and attributes.

source target

generic

blend

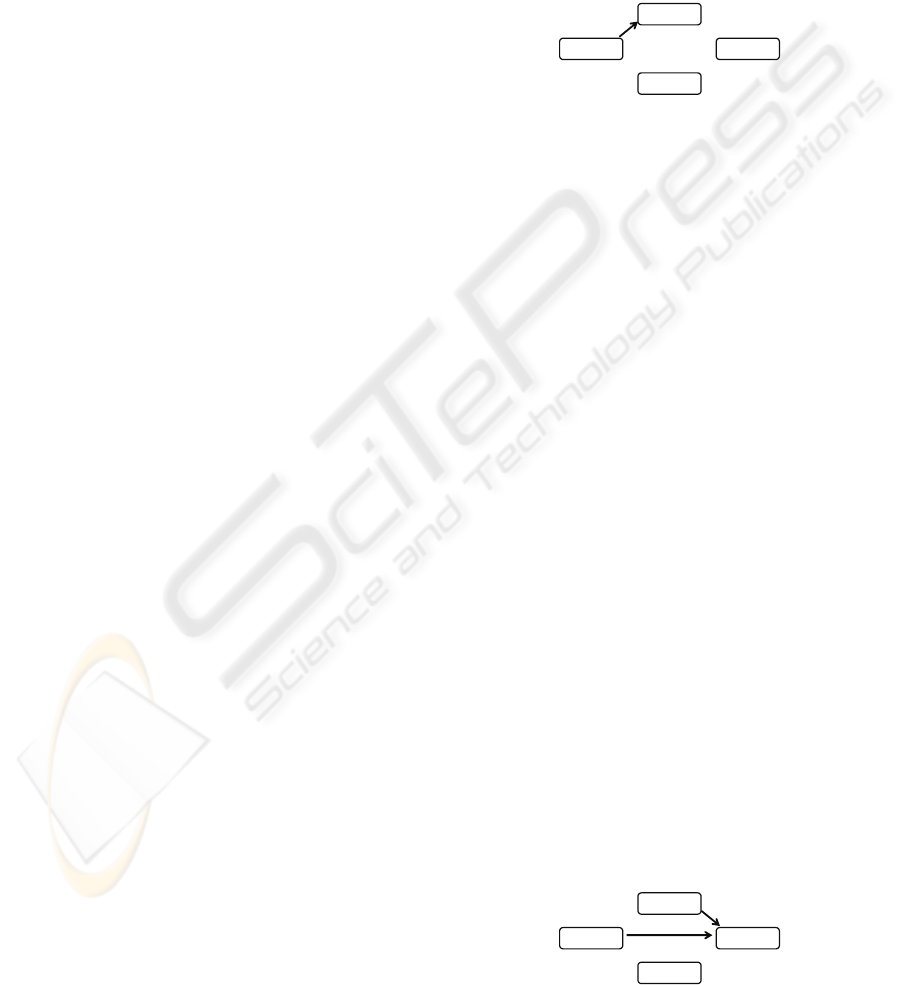

Figure 2: Generating the pattern.

The pattern contains mappings that associate the

introduced variables with the corresponding source

schema names. For example, variable

A refers to

employee wherever it occurs in the pattern.

Pattern: Weak Entity

Example schema: Emp_Dep

Clauses --

entity(A, B)

attribute(A, B)

entity(C, [B/D-E-B, D])

attribute(C, D)

relationship(E, C/0/n, A/1/1)

attribute(E, F)

Mappings --

A:employee

B:empno

C:dependent

D:depno

E:isdepof

F:family_tie

2.3 Step 2 - Generating the Target

Schema

Suppose the designer wants to specify a Bk_Ed

schema, about book editions, and realizes that this

too involves the weak entity concept: the

editions

of a

book are comparable to the dependents of an

employee. The generation (Fig. 3) is basically done

by specializing the clauses of the pattern (in the ge-

neric space), but also referring to the originating

source space, to stress that the names figuring in the

pattern mappings were extracted from it.

Each pattern variable is replaced by an

appropriate name belonging to the underlying

domain of

Bk_Ed.

source target

generic

blend

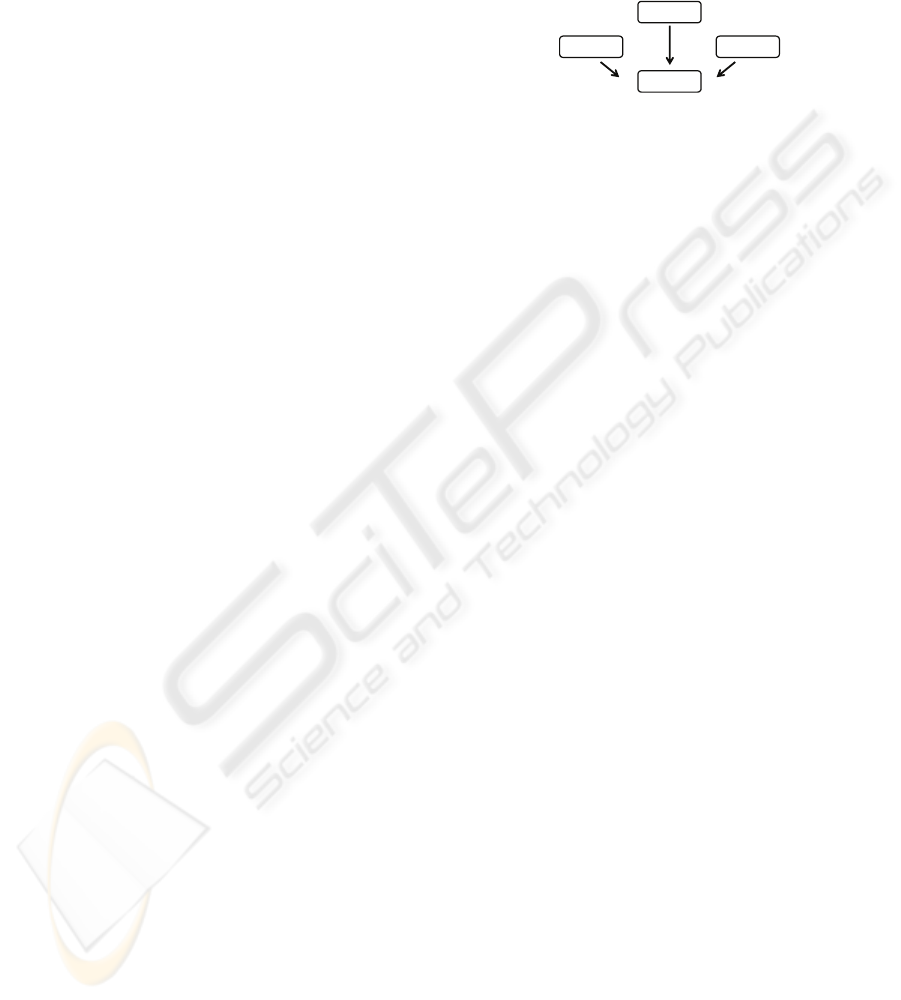

Figure 3: Generating the target schema.

ICEIS 2008 - International Conference on Enterprise Information Systems

Relying on the assumption of an intuitive

understanding of the analogy between the two do-

mains, the designer is prompted to supply the target

schema names through queries of the form:

- What corresponds to <name in source>?

In our example, this would instantiate the pattern

mappings as follows:

employee → book

empno → isbn

dependent → edition

depno → edno

isdepof → isedof

family_tie → nil

We note that the designer may, with limitations,

deny one or more correspondences by replying

nil

as with the attribute

family_tie. This is indeed the

only element in this case that can be absent. Having

informed

book as corresponding to entity employee,

the designer should be aware that the indication of

what corresponds to

empno is mandatory, since no

entity can lack an identifier (cf. ER rule 1, section

2.1). Likewise, if nothing corresponds to

dependent,

the indication of

isedof as corresponding to

isdepof would be an error, because a binary

relationship requires the presence of two par-

ticipating entities (cf. ER rule 2). The absence of

isedof, on the other hand, would defeat the purpose

of the entire process – the weak entity concept

makes no sense without an identifying relationship.

After inspecting the resulting target schema, the

designer's knowledge of the target domain must be

used to check its clauses, with a special attention to:

a) additions to the target schema, that have no

correspondence in the source schema;

b) modifications to be done in the generated

clauses in the target schema.

Suppose that the designer judged that the addition

and the modification below are necessary:

addition:

attribute(book,subject)

modification:

isedof – min-1:1

Then, the

Bk_Ed target schema becomes:

Schema: Bk_Ed

Clauses --

entity(book, isbn)

attribute(book, isbn)

attribute(book, subject)

entity(edition,

[isbn/edno-isedof-isbn, edno])

attribute(edition, edno)

relationship(isedof,

edition/1/n, book/1/1)

2.4 Step 3 - Blending the Source and

Target Schemas

The blended space is pictured as a confluence of the

source and target spaces, taking into consideration

the correspondences in the generic space (Fig.4).

source target

generic

blend

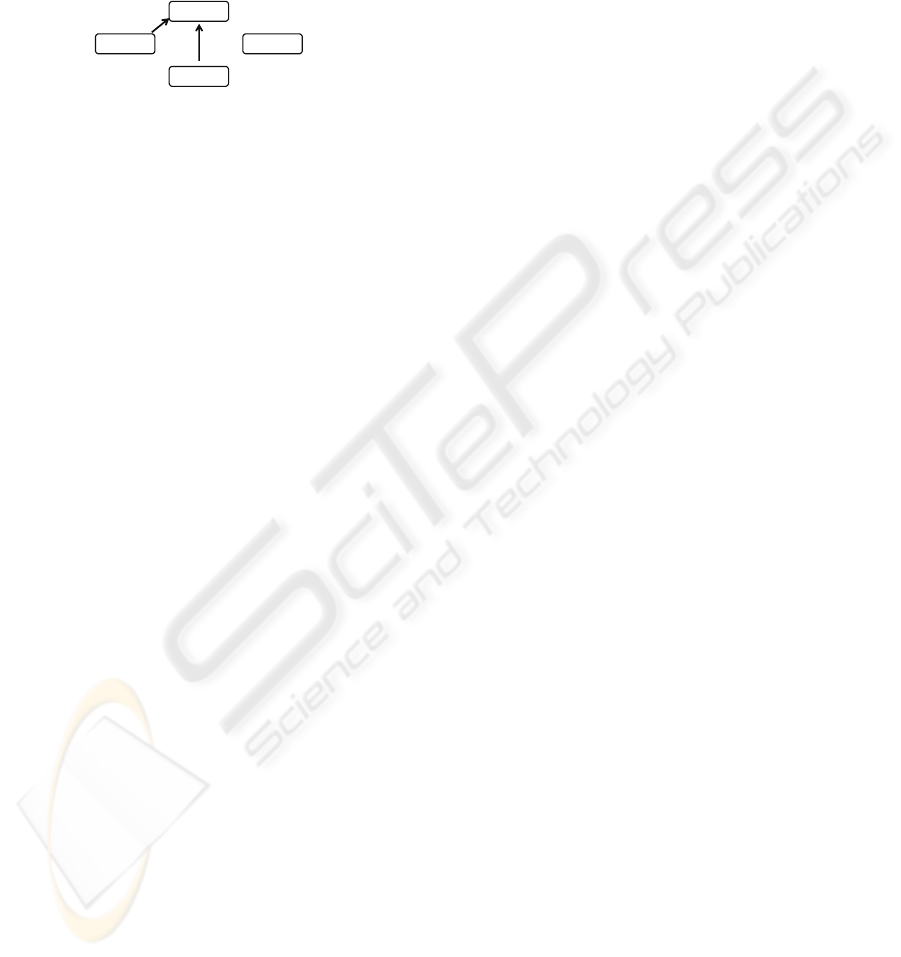

Figure 4: Blending the source and target schemas.

In the database schema-generation process, elements

are obtained by joining each entity and relationship

of the source schema with its counterpart in the tar-

get schema. To begin with, all information about

each entity and relationship, contained in the various

clauses of the two schemas, is collected in separate

frames, structured as lists of property:value pairs.

Each property of an entity E is represented either

by an attribute name, or by a binary relationship

name tagged with 1 or 2 to indicate, respectively,

whether E is the first or the second participant in the

relationship. Since in the present example no re-

strictions are being imposed on the values, all value

positions are filled with an underscore, a usual con-

vention for an anonymous variable. The properties

of a relationship R are similarly represented. They

include the identifying attributes of the two

participating entities, the minimum and maximum

occurrences for the first and for the second

participant, and other relationship attributes if any.

The frames extracted from

Emp_Dep are:

frame of employee =

[empno:_, isdepof/2:_]

frame of dependent =

[depno:_, isdepof/1:_]

frame of isdepof =

[depno:_, empno:_,

min-1:0, max-1:n, min-2:1, max-2:1, fam-

ily_tie:_]

and those taken from the Bk_Ed schema are:

frame of book =

[isbn:_, subject:_, isedof/2:_]

frame of edition =

[edno:_, isedof/1:_]

frame of isedof =

[edno:_, isbn:_,

min-1:1, max-1:n, min-2:1, max-2:1]

We now introduce a join operation on frames,

specifying that, when applied to entity or relation-

ship frames F

and F

, it results in a frame J, whose

property-value pairs comprise:

a) pairs p

from F

, for each property p

not

corresponding to any property in F

;

b) pairs p

from F

, for each property p

not

corresponding to any property in F

;

GENERALIZATION AND BLENDING IN THE GENERATION OF ENTITY-RELATIONSHIP SCHEMAS BY

ANALOGY

c) pairs p

-p

1-2

, for each two corresponding

properties p

and p

in F

and F

, respectively.

Value v

1-2

in item c is obtained by joining the two

values v

and v

, according to the following

criterion: if the values are identical constants, or at

least one of them is a variable, v

1-2

is the result of

their unification (Knight, 1989); otherwise the result

is a term formed by the two values prefixed by an

asterisk to indicate that they are in conflict.

The frames characterizing the blended space are

shown below. Non-corresponding properties and

conflicting values are stressed (in italic, boldface;

the symbol “

∨” denotes the join of two frames):

employee

∨ F

book

[empno-isbn:_,

isdepof/2-isedof/2:_,

subject:_]

dependent

∨ F

edition

[depno-edno:_,

isdepof/1-isedof/1:_]

isdepof

∨ F

isedof

[depno-edno:_,

empno-isbn:_,

min-1:*(0,1),

max-1:n,

min-2:1,

max-2:1,

family_tie:_]

A disclaimer is in order here. We considered only

one simple type of conflict. If the designer is

allowed to perform arbitrary modifications to the

target schema initially obtained by instantiating the

pattern variables (cf. step 2), other types of conflict

may occur, calling for the specification of appropri-

ate criteria to handle them. As noted in (Fauconnier

& Turner, 2002), blending is, in general, a particu-

larly complex task, requiring a great deal of creativ-

ity from the part of the designer, who may have to

devise ad hoc ways to achieve consistency.

2.5 Step 4 - Revising the Target (and

Source) Schemas

The resulting blended space can be reinjected into

the derived target space, and even into the originat-

ing source space, if the designer admits the possibil-

ity of also reconsidering it (Figure 5).

source target

generic

blend

Figure 5: Revising the target (and source) schemas.

A convenient way to call the designer's attention to

what was not used from the source schema is to

display together, in frame format, the entire list of

current properties of each entity and relationship in

the target schema, expanded as the result of

blending. Such frames are directly obtained from the

blend frames by reducing the paired names assigned

to corresponding properties to their original names

in the target space, while, naturally, keeping the

names of the source space properties until now

disregarded:

frame of book

employee

[isbn:_, isedof/2:_, subject:_]

frame of edition

dependent

[edno:_, isedof/1:_]

frame of isedof

isdepof

[edno:_, isbn:_, min-1:1, max-1:n, min-2:1,

max-2:1, family_tie:_]

Surely, the designer may or may not judge appropri-

ate to reconsider what was initially left out, in this

case the relationship attribute

family_tie. Would

there be different "ties" between

edition and book?

With respect to its "parent"

book, an edition may be

classified as

revised, corrected, expanded,

abridged, and also simply as regular, which are

some of the possible values for a new

ed_type

attribute for the

isedof relationship.

The reconsideration of a source schema for

expansion is more rarely desirable, especially if one

wishes to keep it as a fragment containing only the

features necessary to characterize weak entities. But

in the event that the designer wants to examine the

possibility, the blend frames can be alternatively

renamed as follows:

frame of employee

book

[empno:_, isdepof/2, subject:_]

frame of dependent

edition

[depno:_, isdepof/1:_]

frame of isdepof

isedof

[depno:_, empno:_, min-1:0, max-1:n, min-

2:1,max-2:1, family_tie:_]

What can be the "subject" of an employee? The sub-

ject

of a book can be some fictional genre, but it

can also be a professional field, such as

engineer-

ing

, or accounting, which may suggest a new

attribute

profession for the employee entity, with

possible values including

engineer and accountant.

A further reduction of

Emp_Dep to suppress the

family_tie attribute is more likely to happen. This

would become advisable if the attribute is systemati-

cally disregarded in a long series of target schema

generations. Reconsidering a source schema, and

consequently the pattern abstracted from it (as

covered in step 5) is a case of double-loop learning

(Argyris & Schön, 1995): the continuing use of a

model providing clues for its correction and

refinement.

ICEIS 2008 - International Conference on Enterprise Information Systems

2.6 Step 5 - Revising the Pattern

Since the generic space is often intended as a help to

generate a plurality of target spaces, conflicts lo-

cated at the blended space, as well as changes made

at the source space from suggestions motivated by

observing the blend, may entail the reconsideration

of the generic space (Figure 6).

source target

generic

blend

Figure 6: Revising the generic space.

In our example, the blend mirrors the fact that an

identifying relationship must be total with respect to

the weak entity, but no such requirement is imposed

with respect to the entity on which it relies for iden-

tification. So the conflict registered in the prop-

erty:value pair

min-1:*(0,1) of the frame resulting

from the join of

isdepof

with F

isedof

should motivate

the insertion of a hotspot (Pree, 1995) in the Weak

Entity pattern, i.e., a place where the specification

becomes flexible. The adopted notation, using a

question mark as prefix, will signal that the designer

should be queried about the

min-1 property of the

relationship denoted by variable

E, and that the value

supplied must be chosen as 0 or 1.

Moreover, if at step 4 a new attribute such as

profession is added to the source schema, or if the

family_tie relationship attribute is removed from

it, the pattern must be modified accordingly, so that

it will continue to reflect the

Emp_Dep schema. If all

these modifications occur, after deleting the lines

attribute(E, F)

F:family_tie

and adding or modifying three lines (in boldface),

the

Weak Entity pattern would become:

Emp_Dep

Clauses --

entity(A, B)

attribute(A, B)

attribute(A, G)

entity(C, [B/D-E-B, D]) attribute(C, D)

relationship(E, C/?(0,1)/n, A/1/1)

Mappings --

A:employee

B:empno

G:profession

C:dependent

D:depno

E:isdepof

3 TOWARDS THE DESIGN OF

OPERATIONS

In (Furtado et al., 2007) we added, both to schemas

and patterns, clauses defining operations in terms of

their pre- and post-conditions (Fikes & Nilsson,

1971). Without going into details, we now give one

example of the repercussion of conflicts detected at

the blending stage on the design of operations. Sup-

pose that an operation named

end_coverage has

been defined over the source schema, allowing to

remove a

child C of an employee E from the list of

dependents of E, if the birth_year of C (an addi-

tional attribute of

dependent) precedes a currently

determined limit. Note that the deletion of the literal

dependent([E,C]) should cause the deletion of all

properties of the entity instance

C, in view of ER

rule 3. On the other hand, note that the repeated

execution of

end_coverage is allowed, legitimately,

to leave an

employee with no dependents.

end_coverage(C,E)

pre-cond: dependent([E,C]),

family_tie([E,C],child),

birth_year([E,C],Y),

Y < b_ylimit.

post-cond: ¬dependent([E,C]).

Also suppose that, when prompted to determine an

operation corresponding to

end_coverage, the

designer responded with

weed, to represent a practice

known as weeding library collections (Slote, 1997).

Analogously to

end_coverage, weed discards

editions whose year of publication, ed_year (from

birth_year), came before a designated year. A

conservative librarian would very likely demand that

systematic discarding be restricted to

regular

editions, expressed by an attribute

ed_type (from

family_tie), as considered earlier.

However, straightforward renaming and the re-

placement of

child by regular is not sufficient here

to avoid a conflict of the generated

weed operation

when blending, namely, the totality property of

isedof with respect to book, combined here with ER

rule 4. One solution to the conflict is to ensure that

the

book itself remains, by keeping its newest

edition, as illustrated below:

weed(E,B)

pre-cond: edition([B,E]),

ed_type([B,E],regular),

ed_year([B,E],Y),

edition([B,En]),

ed_year([B,En],Yn),

Yn > Y,

Y < ed_ylimit.

post-cond: ¬edition([B,E]).

Further refined versions may specify different values

ed_ylimit for different subjects, in view of con-

GENERALIZATION AND BLENDING IN THE GENERATION OF ENTITY-RELATIONSHIP SCHEMAS BY

ANALOGY

stantly updated studies to determine the period of

obsolescence for publications belonging to each so-

called Dewey class (Kramer, 2002).

4 CONCLUDING REMARKS

We have run experiments with the current version of

the schema-generating process, using an interactive

logic programming tool. Also, although simple, the

weak entity example helped us gain a better

understanding of design by analogy and blending.

Much work remains to be done, especially to

extend the process as described in section 2, in order

to cope with an ampler variety of conflicts, and to

develop semi-automatic algorithms or heuristics to

recommend adequate strategies for handling the dif-

ferent situations that may arise in practice.

A more comprehensive treatment of the schema

generation problem calls for the study of additional

topics. Patterns to model the same concept can be

obtained from different source schemas, perhaps

resulting in distinct versions with permissible

variations, which in turn could be classified and

selected by the designer according to the case on

hand. Moreover, generating additional versions of

the pattern provides a means to check the resulting

patterns for conflicts and integrity constraints.

Early studies on analogy and metaphor (Lakoff

& Johnson, 1980) argued for the use of multiple

sources to characterize a target possessing many

properties, which would naturally be grouped

according to the originating source. The computa-

tional effort of some problem-solving algorithms

could be then reduced, by considering only the

properties that have been derived from a few

designated sources (Holyoak & Thagard, 1996).

When generic and blend represent the confluence

of spaces associated with the same underlying do-

main, they can give rise to new conceptual spaces,

through a process sometimes called categorization

(Fauconnier & Turner, 1994). When different

underlying domains are involved, the resulting blend

is populated with hybrid entities. Conflating persons,

objects or events is a powerful literary practice, and,

surprisingly, offers sometimes intuitive clues to

solve problems, as in the Buddhist monk riddle

expounded in (Turner, 1996). A blend conflating

persons and books, for instance, might make sense

in a Digital Storytelling application aiming to teach

children how to use the facilities of a library. Other

Computer Science areas have drawn significantly

from the notions of analogy (Barbosa & de Souza,

2001) and blending (Imaz & Benyon, 2007).

ACKNOWLEDGEMENTS

This work is partially supported by CNPq under

grants 301497/2006-0 and 311794/2006-8.

REFERENCES

Argyris, C., & Schön, D. A. (1995). Organizational

Learning II: Theory, Method, and Practice. New

Jersey, NJ: FT Press.

Breitman, K. K., Barbosa, S. D. J., Casanova, M. A., &

Furtado, A. L. (2007). Conceptual modeling by

analogy and metaphor. Proceedings of CIKM 2007.

Barbosa, S. D. J., Breitman, K. K., Furtado, A. L.,&

Casanova, M. A. (2007). Similarity and analogy over

application domains. Proceedings of SBBD 2007.

Barbosa, S. D. J., & de Souza, C. S. (2001). Extending

software through metaphors and metonymies.

Knowledge-Based Systems, 14, 15-27.

Batini, C., Ceri, S., & Navathe, S. (1992). Conceptual

Design – an Entity-Relationship Approach. New

Jersey, NJ: Benjamin Cummings.

Fauconnier, G., & Turner, M. (1994). Conceptual

projection and middle spaces. Technical Report 9401,

University of California, San Diego.

Fauconnier, G., & Turner, M. (2002). The Way We Think.

New York, NY: Basic Books.

Fikes, R. E., & Nilsson, N. J. (1971). STRIPS: A new

approach to the application of theorem proving to

problem solving. Artificial Intelligence, 2 (3-4).

Furtado, A.L., Casanova, M.A., Barbosa, S.D.J., &

Breitman, K.K. (2007). Plot mining as an aid to

characterization and planning. Technical Report

MCC 07/07, PUC-Rio.

Goguen, J. (1999). An Introduction to Algebraic

Semiotics, with Application to User Interface Design.

In C. Nehaniv (Ed.) Computation and Metaphor,

Analogy and Agents. Springer-Verlag.

Holyoak, K., & Thagard, P. (1996). Mental Leaps.

Cambridge, MA: The MIT Press.

Imaz, M., & Benyon, D. (2007). Designing with Blends.

Cambridge, MA: The MIT Press.

Knight, K. (1989). Unification: "A Multidisciplinary

Survey". ACM Computing Surveys, Vol. 21, No. 1,

March.

Kramer, P. K. (2002). Weeding as Part of Collection

Development. ISLMA Report. DuPage Library

System.

Lakoff, G., & Johnson, M. (1980). Metaphors We Live By.

University of Chicago Press.

MacLane, S., & Birkhoff, G. (1967) Algebra. MacMillan.

Pree, W. (1995). Design Patterns for Object-Oriented

Software Development. Boston, MA: Addison-Wesley.

Slote, S. J. (1997). Weeding Library Collections: Library

Weeding Methods. Libraries Unlimited.

Turner, M. (1996). The Literary Mind. New York, NY:

Oxford University Press.

ICEIS 2008 - International Conference on Enterprise Information Systems
