RECOGNITION OF VEHICLE NUMBER PLATES

Ondrej Martinsky

Brno University of Technology, Faculty of Information Technology

Bozetechova 2, 61266 Brno, Czech Republic

Keywords: Machine vision, artificial intelligence, neural networks, optical character recognition, OCR, ANPR.

Abstract: This work deals with problematic from field of artificial intelligence, machine vision and neural networks in

construction of an automatic number plate recognition system (ANPR). This problematic includes

mathematical principles and algorithms, which ensure a process of number plate detection, processes of

proper characters segmentation, normalization and recognition. Work comparatively deals with methods

achieving invariance of systems towards image skew, translations and various light conditions during the

capture. Work also contains an implementation of a demonstration model, which is able to proceed these

functions over a set of snapshots.

1 INTRODUCTION

Massive integration of information technologies into

all aspects of modern life caused demand for

processing vehicles as conceptual resources in

information systems. Because a standalone

information system without any data has no sense,

there was also a need to transform information about

vehicles between the reality and information

systems. This can be achieved by a human agent, or

by special intelligent equipment which is be able to

recognize vehicles by their number plates in a real

environment and reflect it into conceptual resources.

Because of this, various recognition techniques have

been developed and number plate recognition

systems are today used in various traffic and security

applications, such as parking, access and border

control, or tracking of stolen cars.

In parking, number plates are used to calculate

duration of the parking. When a vehicle enters an

input gate, number plate is automatically recognized

and stored in database. When a vehicle later exits the

parking area through an output gate, number plate is

recognized again and paired with the first-one stored

in the database. The difference in time is used to

calculate the parking fee. Automatic number plate

recognition systems can be used in access control.

For example, this technology is used in many

companies to grant access only to vehicles of

authorized personnel.

2 MATHEMATICAL ASPECTS OF

NUMBER PLATE

RECOGNITION SYSTEMS

In most cases, vehicles are identified by their

number plates, which are easily readable for

humans, but not for machines. For machine, a

number plate is only a grey picture defined as a two-

dimensional function

),( yxf , where

and

are

spatial coordinates, and

is a light intensity at that

point. Because of this, it is necessary to design

robust mathematical machinery, which will be able

to extract semantics from spatial domain of the

captured image. These functions are implemented in

so-called “ANPR systems”, where the acronym

“ANPR” stands for an “Automatic Number Plate

Recognition”. ANPR system means transformation

of data between the real environment and

information systems.

The design of ANPR systems is a field of

research in artificial intelligence, machine vision,

pattern recognition and neural networks. Because of

this, the main goal of this project is to study

algorithmic and mathematical principles of

automatic number plate recognition systems.

The problematic of number plate area detection

includes algorithms, which are able to detect a

rectangular area of the number plate in original

image. Humans define the number plate in a natural

language as a “small plastic or metal plate attached

136

Martinsky O. (2008).

RECOGNITION OF VEHICLE NUMBER PLATES.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - AIDSS, pages 136-140

DOI: 10.5220/0001673801360140

 SciTePress

to a vehicle for official identification purposes”, but

machines do not understand this definition. Because

of this, there is a need to find an alternative

definition of the number plate based on descriptors,

which will be comprehensible for machines.

The next step in recognition process is the

character segmentation. In most cases, characters are

segmented using the horizontal projection of a pre-

processed number plate, but sometimes these

principles can fail, especially if detected number

plates are too warped or skewed. Then, more

sophisticated segmentation algorithms must be used.

Detected characters can be normalized in many

ways. There are various normalization and detection

methods. At first, character dimensions and

brightness must be normalized to ensure invariance

towards a size and light conditions. Then, a feature

extraction algorithm must be applied on a character

to filter irrelevant data. It is necessary to extract

features, which will be invariant towards character

deformations, used font style etc.

Characters can be classified and recognized by

the simple nearest neighbor algorithm (1NN) applied

to a vector of extracted features, or there is also

possibility to use one of the more sophisticated

classification methods, such as feed-forward or

Hopfield neural networks. Additional heuristic

analyses can be used for elimination of non-

character elements from the plate.

Sometimes, the recognition process may fail and

the detected plate can contain errors. Some of these

errors can be detected by a syntactical analysis of the

recognized plate. If we have a regular expression, or

a rule how to evaluate a country-specific license

plate, we can reconstruct defective plates using this

rule. For example, a number zero “0” can be

automatically repaired to a character “O” on

positions, where numbers are not allowed.

3 PRINCIPLE OF NUMBER

PLATE AREA DETECTION

The first step in a process of automatic number plate

recognition is a detection of a number plate area.

This problematic includes algorithms that are able to

detect a rectangular area of the number plate in an

original image.

Let us define the number plate as a “rectangular

area with increased occurrence of horizontal and

vertical edges”. The high density of horizontal and

vertical edges on a small area is in many cases

caused by contrast characters of a number plate, but

not in every case. This process can sometimes detect

a wrong area that does not correspond to a number

plate. Because of this, we often detect several

candidates for the plate by this algorithm, and then

we choose the best one by a further heuristic

analysis.

The detection of a number plate area consists of

a series of convolve operations. Modified snapshot

is then projected into axes

and y . These

projections are used to determine an area of a

number plate.

We can use a periodical convolution of the

function

with specific types of matrices m to

detect various types of edges in an image:

(

)

(

)

[

]

() ( ) ( )

,,,

, mod , mod

f xy f xy xy

xy x i y j

−−

′

=∗=

⎡

⎤

⋅−−

⎣

⎦

∑∑

(1)

Consequently, we compute a horizontal and vertical

projection for axes

and y :

() ( )

xfxj

−

∑

;

() ( )

yfiy

−

∑

(2)

We can detect the rectangular area of number plate

by an analysis of projection

p and

p . In praxis,

the analysis is proceeded iteratively in multiple

steps. Each step refines the detected area. If there are

multiple candidates for number plate, a heuristic

analysis is used to determine the correct one. We

assume only one step of iterative process:

()

{

}

()

{

}

() ( )

{}

() ( )

{}

() ( )

{}

() ( )

{}

max

arg max arg max

max 0 0.3

min 0.3

max 0 0.3

min 0.3

ix jy

left x x

right x x

top y y

bottom y y

xpiy pj

xiixpipx

xixixpipx

yjjypjpy

jy j y p j p y

≤< ≤ <

′′

=≤<∧≤

′′

=≤<∧≤

′′

=≤<∧≤

′

=≤<∧≤

(3)

4 DESKEWING MECHANISM

The captured rectangular plate can be rotated and

skewed in many ways due to the positioning of

vehicle towards the camera. Since the skew

significantly degrades the recognition abilities, it is

RECOGNITION OF VEHICLE NUMBER PLATES

137

important to implement additional mechanisms,

which are able to detect and correct skewed plates.

The fundamental problem of this mechanism is

to determine an angle, under which the plate is

skewed. Then, deskewing of so evaluated plate can

be realized by a trivial affine transformation.

The amount of skew can be evaluated using the

Hough transformation of evaluated image. Hough

transform is a special operation, which is used to

extract features of a specific shape within a picture.

It is important to know, that Hough transform does

not distinguish between the concepts such as

“rotation” and “shear”. The Hough transform can be

used only to compute an approximate angle of image

in a two-dimensional domain.

Let

(, )

xy be a continuous function. For each

point

[

]

,ab in Hough space, there is a line in the

“XY” coordinate system. We compute a magnitude

of point

[

]

,ab as a summary of all points in the

“XY” space, which lie on the line

ax b⋅+.

Although the space defined by a coordinate

system is always discrete digital computers, we will

assume that it is continuous. Generally, we can

define the Hough transform

()

,hab of a continuous

function

()

xy in the unified coordinate system

as:

() ( )

,,hab f xax bdx=⋅+

∫

(4)

−

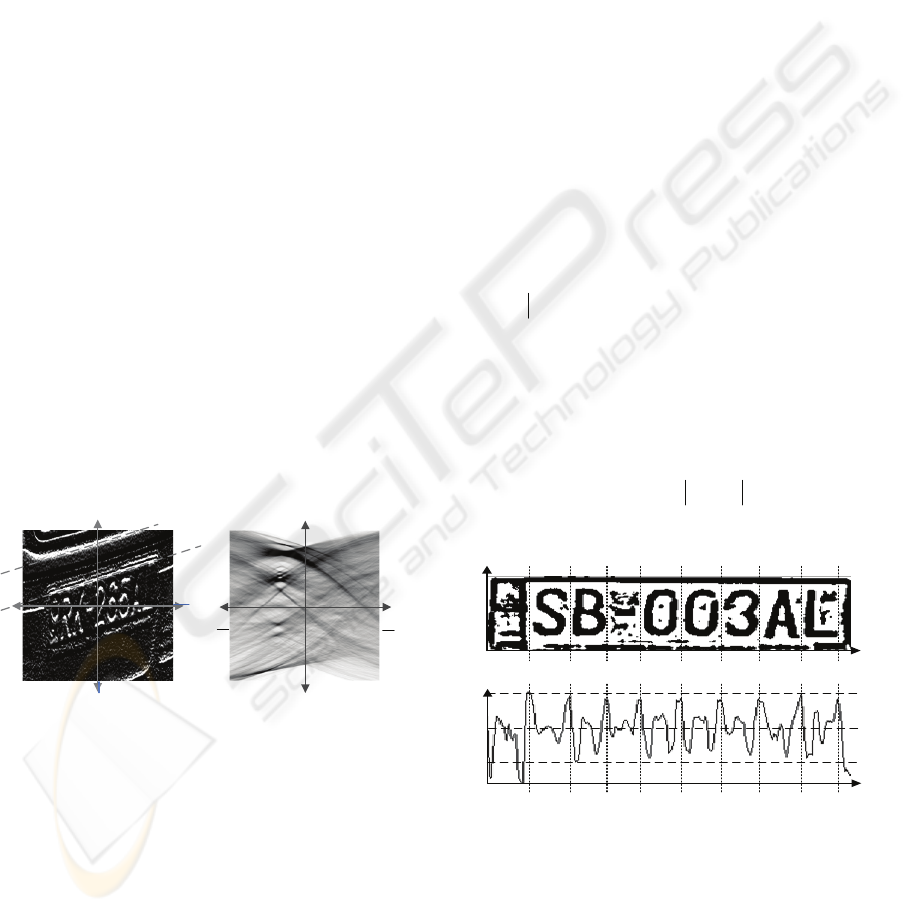

Figure 1: (left) Number plate in the unified “

Y ”

coordinate system after application of the horizontal edge

detection filter (right) Hough transform of the number

plate in the “

” coordinate system.

We use the Hough transform of certain image to

evaluate its skew angle. You can see the Hough

transform on the figure 1b. The pixels with a

relatively high value are marked by a black color.

Each such pixel corresponds to a long white line in

figure 1a. If we assume that the angle of such lines

determines the overall angle, we can find the longest

line as:

(

)

(

)

{

}

,argmax,

ab hab

≤≤

(5)

Then, the overall angle

of image can be computed

(

)

arctan

= .

5 PRINCIPLE OF CHARACTER

SEGMENTATION

After the detection of number plate area, there is a

need to segment it into individual characters. Let this

area to be described by a discrete function

(

)

fxy

before, or

(

)

fxy

′

after the application of adaptive

thresholding.

If characters are not merged together, we can

segment them by the horizontal projection

p of the

function

′

. Let

S to be a set of all points on the

axis, in which the segmentation is possible:

() ()

{

}

{

}

0.3max

Sxpx px=> . Then, the peaks

in horizontal projection

p represent the spaces

between characters. Also, there is necessary to

ensure the following condition for the set

S : The

spacing between characters cannot be less than a

half of expected character width:

(

)

12 1 2 1 2

,: /2

xx S x x x x w¬∃ ∈ ≠ ∧ − <

(6)

(

)

Figure 2: (top) Number plate after application of the

adaptive thresholding. (bottom) Horizontal projection of

plate with detected peaks. Detected peaks are denoted by

dotted vertical lines.

ICEIS 2008 - International Conference on Enterprise Information Systems

138

6 FEATURE EXTRACTION AND

PROCESSING BY NEURAL

NETWORK

There is also a need to extract feature descriptors

from segmented characters. As an extraction method

significantly affects the quality of whole OCR

(optical character recognition) process, it is very

important to choose descriptors, which are invariant

towards deformations of characters caused by a

skew of image. In the first phase of algorithm, we

normalize dimensions of character to

mn× pixels by

a bilinear interpolation. In the second phase we

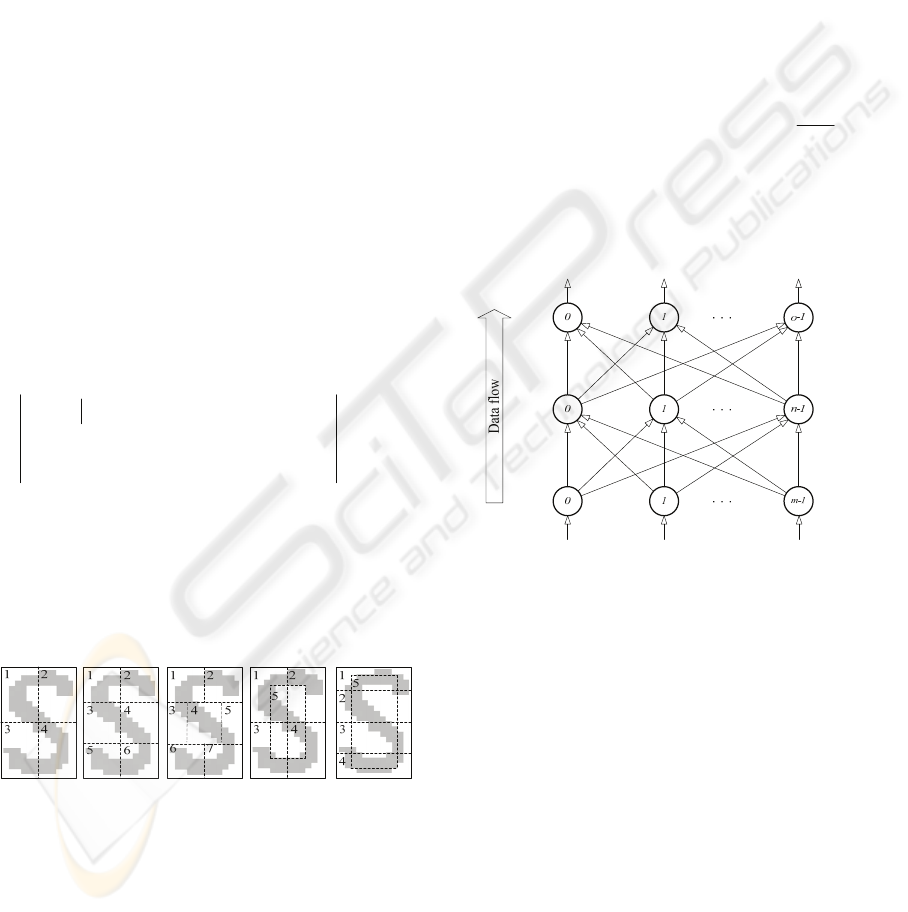

apply the Skeletonization algorithm to extract the

skeleton of resampled character. Then we divide it

into several regions (for example consider six

regions organized to three rows and two columns,

fig 3b). Finally, we count the number of occurrences

of individual edge type for each portion of character.

Let

′′

× to be a size of specific portion of

character. We denote the number of occurrences of

specific type of edge for this portion as a cardinality

of the set of coordinates

(, )

y , in which the pattern

H (corresponding to the specific type of edge)

occurs:

()

(, ) ( 1, )

(, 1) ( 1, 1)

,0 10 1

fxy fx y

xy x m y n

+++

′′

⎧⎫

≤ < −∧ ≤ < −∧

⎪⎪

⎨⎬

⎛⎞

⎜⎟

⎪⎪

⎝⎠

⎩⎭

(7)

where

(

)

H =

(

)

H =

(

)

H =

(

)

H =

are matrices corresponding to patterns

for vertical, horizontal and diagonal edges.

Figure 3: Layouts of regions in the character bitmap. The

regions can be disjunctive as well as they can overlap each

other.

Then, the vector of so chosen descriptors is twenty-

four dimensional (

24m = , six regions, each with

four edge types). This vector is directly mapped to

an input layer of the three-layer backpropagation

neural network. The middle layer contains scalable

number of neurons (typically

14 20n = K ). The

output layer of neural network contains

36o

neurons, each neuron for one character from

alphabet

(,09)AZKK.

The threshold coefficients of neurons on the

middle and output layer are marked as

, or

respectively. The weights of synaptical connections

for

layer are marked as

w .

The propagation of data in NN is performed

according to computational functions of neuron

()

(1)

ii ijj

zg wx

=+ ⋅

⎛⎞

⎜⎟

⎝⎠

∑

and

()

(2)

iijj

wzyg

+⋅=

⎛⎞

⎜⎟

⎝⎠

∑

for the second and third layer, where

is a

sigmoidal activation function

()

−

= . The

output of network is represented by a vector

y ,

which determines the recognized character

i of

alphabet

arg max{ }

≤≤

(2)

−

(1)

−

(0)

−

(1)

,ij

(2)

,ij

Figure 4: Architecture of the three layer feed-forward

neural network.

7 CONCLUSIONS

This project deals with algorithmic and

mathematical aspects of the automatic number plate

recognition systems, such as problematic of machine

vision, pattern recognition, OCR and neural

networks. This paper is based on my thesis

(http://www.fit.vutbr.cz/study/DP/rpfile.php?id=302),

which comparatively describes all implemented

principles and contains demonstration ANPR

software which demonstrates all described

algorithms. This project meets two goals. The first

goal is to provide basic know-how for readers and

allow them to understand these principles in detail.

This work should help readers to implement

RECOGNITION OF VEHICLE NUMBER PLATES

139

generally similar system for character recognition.

This thesis interconnects theory and praxis, and

permits readers to experiment with described

principles in the demonstration model written in

Java

. This was the second goal of this project. (for

more information, see project web site at

http://javaanpr.sf.net)

ANPR solution has been tested on static snapshots

of vehicles, which has been divided into several sets

according to difficultness. Sets of blurry and skewed

snapshots give worse recognition rates than a set of

snapshots, which has been captured clearly. The

objective of the tests was not to find a one hundred

percent recognizable set of snapshots, but to test the

invariance of the algorithms on random snapshots

systematically classified to the sets according to

their properties. The average recognition rate was

about 80%. The system achieves this recognition

rate over a set of static snapshots.

The recognition ability of this system can be

rapidly increased by processing data from video

sequences. The short video sequence contains

several frames of incoming vehicle. The similarity

between these frames makes whole video sequence

very redundant. This redundancy can be used to

increase recognition abilities. If the system has 80%

chance to successfully recognize one frame, then the

overall recognition rate can be up to 99%, if we

process several consequent frames from the video

sequence.

Since processing of video sequence is a difficult

computational operation, it is necessary to use an

appropriate hardware and software platform. The

combination of C-language and DSP processor

should be suitable.

Currently I am developing a modified version of

this algorithm for a practical security application in

Brno in cooperation with Faculty of Information

Technology.

Table 1: Recognition rates of the ANPR system (static

snapshots).

. Number of plates Weighted score

Clear plates 68 87.2

Blurred plates 52 46.87

Skewed plates 40 51.64

Average plates 177 73.02

Table 2: Algorithm complexity and system throughput on

AMD Opteron

(1 GHz) processor architecture.

Snapshot resolution Average time

320x240 0.74 s

640x480 1.17 s

720x576 1.40 s

800x600 1.46 s

ACKNOWLEDGEMENTS

JavaANPR is a part of the research plan “Security-

oriented research in information technology, MSM

0021630528” at Brno University of Technology.

REFERENCES

Gonzalez, R., Woods R., 2002. Digital Image Processing,

Prentice Hall, Upper Saddle River, New Jersey.

Shapiro, V., Dimov, D., Bonchev, S., Velichkov, V.,

Gluhchev, G., 2004. Adaptive License Plate Image

Extraction, International Conference Computer

Systems and Technologies, Rousse, Bulgaria.

Zhang, Y., Zhang, C., 2003. New Algorithm for Character

Segmentation of License Plate, Intelligent Vehicles

Symposium, IEEE.

Fukunaga, K., 1990. Introduction to statistical pattern

recognition, Academic Press, San Diego, USA.

Kuba M., 1995. Neural Networks, Faculty of Informatics,

Masaryk University, Brno, Czech Republic.

Kvasnicka, V., Benuskova, L., Pospichal, J., Farkas I.,

Tino, P., Kral, A. Introduction to Neural Networks,

Technical University, Kosice, Slovak Republic.

Minsky, M., Papert, S., 1969. Perceptons. An Introduction

to Computational Geometry, MIT Press:. Cambridge,

Massachusetts.

Smagt, P., 1990. Comparative study of neural network

algorithms applied to optical character recognition,

International conference on Industrial and engineering

applications of artificial intelligence and expert

systems, Charleston, South Carolina, USA.

Srivastava, R., 1991. Transformations and distortions

tolerant recognition of numerals using neural

networks, ACM Annual Computer Science

Conference, San Antonio, Texas, USA.

ICEIS 2008 - International Conference on Enterprise Information Systems

140
