A PROCESS-DRIVEN METHODOLOGY FOR CONTINUOUS

INFORMATION SYSTEMS MODELING

Alfredo Cuzzocrea

1,2

, Andrea Gualtieri

and Domenico Saccà

1,2

ICAR Institute and

DEIS Department, University of Calabria, Italy

Keywords: Information Systems Methodologies; Information Systems Specification; Process-Driven Methodologies for

Designing Information Systems; Information Systems Engineering.

Abstract: In this paper, we present a process-driven methodology for continuous information systems modeling. Our

approach supports the whole information system life-cycle, from planning to implementation, and from

usage to re-engineering. The methodology includes two different phases. First, we produce a scenario

analysis adopting a Process-to-Function approach in order to capture interactions among components of

organization, information and processes. Then, we produce a requirement analysis adopting a Function-for-

Process and package-oriented approach. Finally, we deduce an ex-post scenario analysis by applying

process mining techniques on repositories of process execution traces. The whole methodology is supported

by UML diagrams organized in a Business Model, a Conceptual Model, and an Implementation Model.

1 INTRODUCTION

As information systems become complex, the need

for a highly-structured and flexible methodology

becomes mandatory, since traditional approaches

(Center for Technology in Government, University

at Albany, 2003) result to be ineffective when

applied to non-conventional cases such as the

modeling of advanced inter-organizational scenarios.

Several information systems modeling techniques

have been proposed during the last decades in order

to cope with complex information systems. A

complete survey can be found in (Giaglis, 2001).

Among the most interesting classes of solutions,

methodologies oriented to processes, which play a

critical role in any organization, introduce several

features that perfectly marry the complexity and the

difficulty of next-generation information systems.

Inspired by these considerations, in this paper we

propose an innovative process-driven methodology

for continuous information systems modeling, which

encompasses a number of aspects of the information

system life-cycle, from planning to implementation,

and from usage to re-engineering.

Our methodology basically founds on software

planning and development methodologies, and it can

be considered as a reasonable alternative to

traditional proposals based on the Waterfall Model

(Royce, 1970). Similarly to lightweight and agile

software development patterns (Cockburn, 2002),

this methodology adopts iterative procedures, and it

is characterized by short recurrent steps that are

target-oriented and suitable to support an adaptive

evolution of the whole information system modeling

phase. In more detail, in our methodology software

planning and development are modeled via

specifying two macro-phases, directly connected to

the concepts of process and function. In the first

phase, we produce a scenario analysis adopting a

Process-to-Function (P2F) approach, where we

capture interactions among components of

organization, information and processes. In the

second phase, we produce a requirement analysis

adopting a Function-for-Process (F4P) approach,

where the development of the information system is

modeled, planned and dynamically reported

according to a package-oriented organization. These

phases are implemented by UML diagrams (Booch

et al., 2005) organized in a Business Model, a

Conceptual Model, and an Implementation Model.

After the implementation and enactment of the

information system, logs of executions are stored

and analyzed by process mining techniques (e.g.,

(Greco et al., 2005)), which aim at extracting useful

knowledge from traces generated by processes of at-

work information systems. This way, we can

produce an ex-post analysis of scenarios, thus

highlighting similarities and differences due to

Cuzzocrea A., Gualtieri A. and Saccà D. (2008).

A PROCESS-DRIVEN METHODOLOGY FOR CONTINUOUS INFORMATION SYSTEMS MODELING.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - ISAS, pages 82-88

DOI: 10.5220/0001677100820088

 SciTePress

diverse execution scenarios of the target information

system.

2 RELATED WORK

The strict relationship among business processes and

information systems has been firstly recognized in

(Davenport & Short, 1990) at early 90’s. Business

processes heavily influence final structure and

functionalities of information systems.

Symmetrically, the development of the information

system influences the design of specific business

processes of the target organization.

According to this evidence, several information

systems modeling methodologies that, like ours, are

focused on processes have appeared in literature

recently. Also, some interesting applications of this

novel class of methodologies have been proposed.

Among such applications, we recall: (i) integration

of process-oriented techniques and Data Warehouses

(zur Muehlen, 2001), (ii) simulation of business

processes to precisely capture information systems

requirements (Serrano, 2003), (iii) process-driven

modeling in the context of e-learning systems (Kim

et al., 2005).

From the straightforward convergence of the

mentioned research efforts and practical

applications, it is reasonable to claim that achieving

a total synergy between the design of business

processes and the development of information

systems should be the goal of any organization, as

stated in (Grover et al. 1994; van Meel et al., 1994;

Tuefel & Tuefel, 1995). Nevertheless, in real-life

organizations business analysts and information

systems engineers very often have distinct roles

within the organization, and, in addition to this, very

often they use different tools, techniques and

terminologies (Earl, 1994). This contributes to make

the achievement of the above-introduced synergy

more difficult, and poses severe drawbacks with

respect to a complete integration between

organizations and information systems.

(Giaglis, 2001) proposes an accurate taxonomy

of business processes and information systems

modeling techniques, also putting in evidence

similarities and differences among the available

alternatives. In (Giaglis, 2001), according to (Curtis

et al., 1992), the following perspectives of an

information systems modeling technique are

systematized: (i) functional perspectives, (ii)

behavioral perspectives, (iii) organizational

perspectives, and (iv) informational perspectives. As

we demonstrate throughout the paper, our proposed

methodology strictly follows this paradigm, and

meaningfully includes all the introduced

perspectives, plus innovative amenities.

Implementation-wise, the methodology we

propose is based on three levels of modeling and

analysis, enriched with a final ex-post analysis of

business process traces. Each level founds on

classical UML diagrams enriched with stereotypes

aiming at carefully modeling even-complex business

processes by means of the so-called UML Profiles.

The above-described constitutes a consolidate

methodology for information systems modeling

techniques. For instance, in (Vasconcelos et al.,

2001) a UML-based framework for modeling

strategies, business processes and information

systems of a given organization is proposed.

Similarly to ours, this framework adopts a multi-

level approach during the modeling phase. Other

proposals based on the usage of specialized UML

profiles for capturing several aspects of modeling

information systems are (Castela et al., 2001; Neves

et al., 2001; Sinogas et al., 2001).

Ex-post analysis of business process traces can

be instead regarded as an innovative aspect of the

methodology we propose. This resembles the work

of Mendes et al. (2003), where scenario evolution is

modeled in terms of a specific process that captures

organizational changes. Contrary to this, in our

methodology scenario evolution is not captured on

the basis of a fixed, a-priori pattern, but instead it is

deduced from the analysis of process traces

originated by the interaction between users and the

system.

Another distinctive feature of our methodology is

represented by the idea of separately modeling the

static knowledge (i.e., the knowledge modeled by

means of Use Case and Class Diagrams) and the

dynamic knowledge (i.e., the knowledge modeled by

means of Activity Diagrams). This amenity if finally

combined with the ex-post analysis illustrated above,

thus allowing us to achieve a powerful tool for

mining and reasoning on processes, and,

consequentially, significantly improving the

modeling capabilities of the methodology we

propose.

3 SCENARIO ANALYSIS

AND THE BUSINESS MODEL

Selection and definition of business processes that

characterize the scenario in which the information

system will operate are milestones of the planning

A PROCESS-DRIVEN METHODOLOGY FOR CONTINUOUS INFORMATION SYSTEMS MODELING

phase. These components are realized within the

Business Model, which is thus an essential input to

the subsequent selection and definition of functions

able to manage information useful for the specific

context in which the information system will

operate.

Scenario analysis is obtained as a combined

result of the study of the target organization,

interviews to members of the organization, reading

of documents, selection of relevant procedures etc.

All these elements are referred and represented in

the Business Model, which is defined as a

formalization of organization processes, actors of

the organization, and information. To efficiently

support this formalization, Business Model is

organized in several components: (i) Process

Schema, which models processes of the information

system; (ii) Actor Schema, which models actors of

the information system; (iii) Archive Schema, which

models archives of the information system. All these

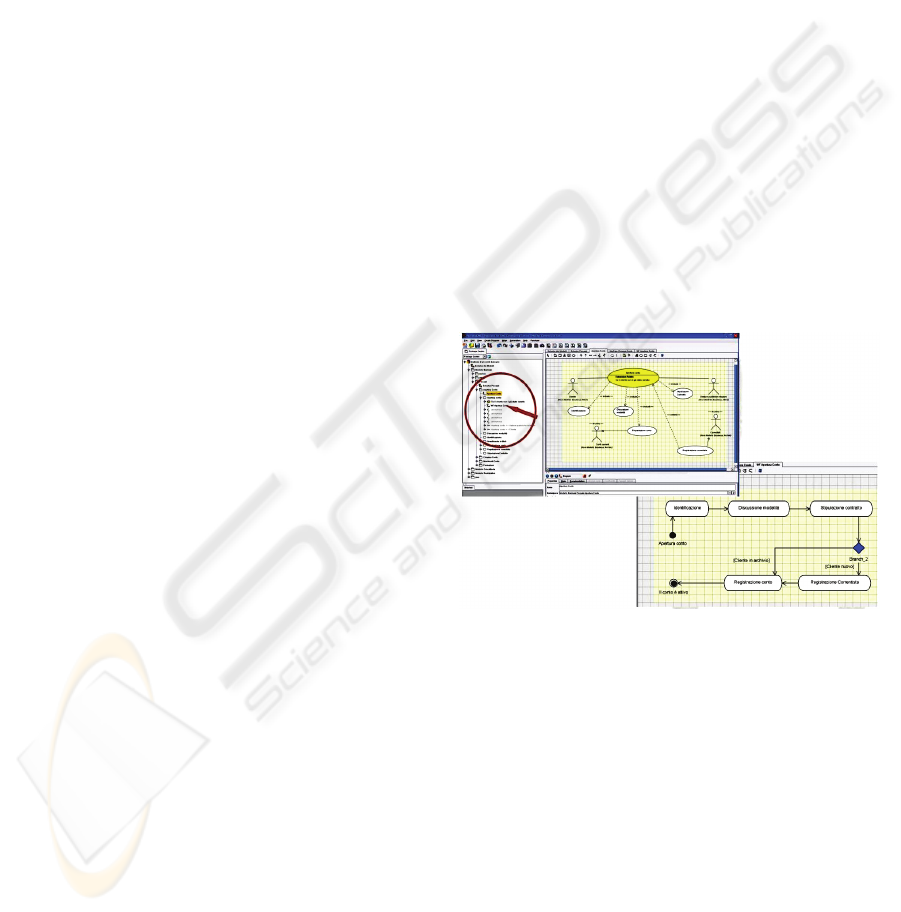

schemas are modeled as UML Use Case Diagrams.

Actors and archives are formalizations of active

and passive entities that interact with processes. We

represent them via adopting stereotypes built on the

native UML actor element. We consider as actors all

the operators (human or automatic) that activate or

enact a process of the organization. An archive is

instead every information source useful for the

execution of a process. In Actor and Archive

Schemas, we model and represent taxonomies and

ontologies (Fensel, 2001) of entities, also in a

hierarchical fashion, in order to permit a meaningful

contextualization of organization and information

elements.

In the Process Schema, processes are modeled by

means of a top-down approach. Specifically, we first

analyze and model processes, and then select sub-

processes that characterize each of them.

Implementation-wise, hierarchies of processes are

obtained by means of packages.

Distinguishing between processes and sub-

processes is a non-trivial engagement, which also

strongly depends on the particular application

context. In our methodology, in order to cope with

this conceptual dichotomy we assert what follows. A

process P is a set of procedures that are finalized to

obtain a goal, starting from the input. A process

involves a number of actors, and requires

information modeled in terms of archives. Finally, a

process is composed by sub-processes. A sub-

process P

is an element of a process P, more

restricted than P, but having the same formalization.

A sub-process models components required for the

release of a sub-service (or sub-product) of the

information system. These components are referred

as the path of execution of the sub-process. Finally, a

sub-process can be structured, i.e. composed itself

by other sub-processes in a hierarchical fashion, or

atomic, i.e. without any sub-sub-process (in this

case, the sub-process is named as activity).

An activity is an atomic element that represents a

specific portion of work, and constitutes a logic step

within a process. To model evolution of activities

within a same process P, we make use of an Activity

Diagram (see Figure 1) that establishes the temporal

order of the activities during the enactment of P.

Top-down analysis focuses on high-level

processes characterizing the information system

scenario. In the visual representation implementing

such analysis, we introduce a package for every

macro-process. Given a macro-process P, the

package contains a Use Case Diagram in which the

use-case element corresponding to P is connected

with use-case elements corresponding to every sub-

process P

of P. To model these connections, we use

the UML constructs include, extend and specialize.

In more detail, for these constructs we assume the

following semantics.

Figure 1: From a Use Case Diagram to the related Activity

Diagram.

A process P “includes” a sub-process P

if, in

every instance of P, an instance of P

is required to

be executed. A sub-process P

“extends” a process P

if, in every instance of P, an instance of P

executed only if a given condition is verified (this

condition is expressed by the so-called extension

point element). A sub-process P

“specializes” a

process P if P

involves all the sub-processes

involved by P, plus other specific activities.

UML associations are used to connect a use-case

representing a process P or a sub-process P

to an

actor A or an archive S. Therefore, we are able to

express that an actor A executes/interacts-with a

process P (or a sub-process P

), and that a process P

ICEIS 2008 - International Conference on Enterprise Information Systems

(or a sub-process P

) requires or modifies

information contained in an archive S during its

execution.

For each process P, we then model the path of

execution of its sub-processes, via associating an

Activity Diagram to P (see Figure 1). As a

consequence, we finally obtain that in the Use Case

Diagram of P we represent a first analysis about the

composition of P, and in the Activity Diagram we

formalize the sequence of execution of activities of

P and express pre-conditions and post-conditions

among activities via conventional UML constructs

join, fork and merge.

This decomposition is replicated for every sub-

process that is itself a structured (sub-)process. To

this end, we select the sub-sub-processes of this sub-

process and connect them to it by means of

constructs include, extend or specialize. Then, we

model the dynamic of the evolution of the sub-

process via linking it to a specific Activity Diagram.

In total, for each process P, we introduce an

Activity Diagram containing sub-processes P

directly connected to P. Furthermore, if a sub-

process P

itself involves sub-sub-processes P

i,j

, their

sequences of execution should be represented by

another Activity Diagram connected to P

Finally, in our methodology the hierarchical

nature of modeling processes is handled as follows.

If a sub-process P

of a process P is too much

articulated to be represented in the main Use Case

Diagram (of P), we introduce a sub-package B

that

contains another Use Case Diagram (of P

). This

allows us to obtain a modular and incremental

process organization that gives us benefits at both

the modeling and visualization tasks. In the main

Use Case Diagram, we represent the sub-package B

and its related sub-process P

, and we connect B

P. As said, the result is a hierarchical and modular

representation of processes (see Figure 2) that can be

easily modified in a specific portion without

conditioning the whole structure of the model.

4 ANALYSIS OF FUNCTIONS

AND THE CONCEPTUAL

MODEL

Scenario analysis describes the context in which the

information system will operate. The next step is to

analyze and model functions supported by the

system in order to facilitate the execution of

processes within the organization. Conceptual

Model is the output of this phase. In the Conceptual

Model, we provide: (i) a formal schema of functions

and users, (ii) a formal schema of data, (iii) a formal

schema of interactions between functions and data.

Furthermore, Conceptual Model also represents

functional blocks and views on data (i.e., schemas of

information sources). Functional blocks are modeled

by use-case packages and taxonomies of actors,

according to an approach similar to the one used to

model processes in the Business Model (see Section

2). Data views are instead represented by means of

Class Diagrams. Therefore, we can state that

Conceptual Model is characterized by two aspects

that capture the overall knowledge of the

information system: (i) static analysis given by the

Data Schema, which describes schemas of

information sources, and View Schema, which

describes views on the latter schemas; (ii) dynamic

analysis given by the User Schema, which models

users, and Function Schema, which models

functions. Both static and dynamic analysis concur

to capture even complex aspects of the information

system, thus adding novel and useful amenities to

traditional information systems design

methodologies.

Figure 2: Modular representation of processes.

Data Schema contains a Class Diagram that

represents a conceptual model of the database

underlying the information system. We use

database-engineering-oriented UML stereotypes

such as <<Table>> and <<Key>> in order to adapt

UML classes and attributes to the goal of

representing database entities, thus modeling a data

schema. Foreign keys and cardinality constraints are

instead represented via UML associations among

classes. At this level, we make use of composition

and aggregation associations, and taxonomies (e.g.,

generalization) to represent logical relations among

database entities. Therefore, Data Schema is a high-

A PROCESS-DRIVEN METHODOLOGY FOR CONTINUOUS INFORMATION SYSTEMS MODELING

level description of the database underlying the

target information system.

View Schema contains a Class Diagram named

as View Catalogue. A view is a portion of database

useful in a specific functional context. Each view is

represented by a package containing a Class

Diagram in which the involved-by-the-view entities

of the database are shown, along with their relations.

In each package, a view is represented by means of

the UML stereotype <<View>>, and can be exported

in the Function Schema to model in more detail the

interaction among functions and data they require or

modify. Also, we associate a documentation to each

view V (see Figure 3), such that this documentation

contains additional information on V like: (i) the

logical name of V; (ii) for each entity, the list of

specific attributes – obtained as a selection of the

whole set of attributes – that are useful in the

specific functional context; (iii) the way used in the

specific context to navigate associations among

entities etc.

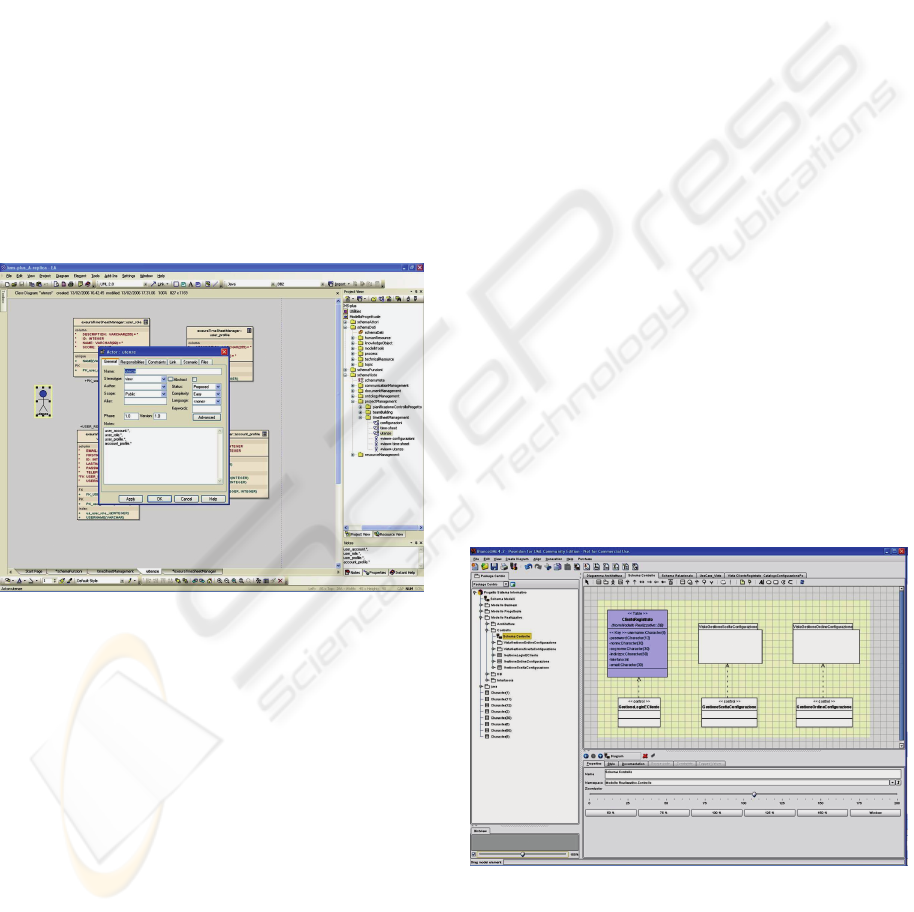

Figure 3: A View and its documentation.

User Schema has the same syntax of the one

relative to the Actor Schema in the Business Model

(see Section 2). While actors are entities (human or

automatic) that activate or enact processes of the

organization (including processes that are not

codified as functionalities of the information

system), users are instead entities (human or

automatic) that properly interact with the

information system in the real-life realization.

Similarly to users, functions in the Function

Schema are modeled by adopting syntax analogous

to the one employed in the Business Model to

represent processes, with the difference that rather

than archives (i.e., generic information sources of

the organization) here we model views involved by

functionalities of the information system, being such

views coming from the View Schema.

5 DEVELOPMENT OF THE

INFORMATION SYSTEM

AND THE IMPLEMENTATION

MODEL

Once requirement analysis is completed and

Conceptual Model is defined, a physical planning of

the information system is necessary. Conceptual

schemas defined in the Conceptual Model are

mapped on the software architecture of the system.

On the basis of the specific information system,

different architectural solutions can be chosen, but

every choice should include at least three tiers: (i) a

Database Level to model information/data sources

of the system; (ii) a Control Level to models

(software) classes implementing the application

logic of system procedures; (iii) an Interface Level

to model forms handling the interaction between

users (human or automatic) and the system.

In order to efficiently support these

requirements, the Implementation Model is

constituted by several components: (i) Architecture,

which contains a representation of physical elements

of the information system (i.e., the software

architecture of the system); (ii) Database, which

implements the Database Level; (iii) Control, which

implements the Control Level; (iv) Interface, which

implements the Interface Level.

Figure 4: A Control Schema.

Similarly to other models of our methodology,

each component is implemented by a package,

according to the following organization.

Architecture component contains a Deployment

ICEIS 2008 - International Conference on Enterprise Information Systems

Diagram where nodes and components of the system

implementation are defined. Furthermore, just like

other constructs of our methodology, it is possible to

define sub-packages in order to obtain a modular

representation. Database component contains a Class

Diagram enriched by stereotypes, named as DB

Schema, which allows us to represent the schema of

data stored in the information/data sources of the

system (i.e., the database underlying the system).

With respect to the Data Schema of the Conceptual

Model, in the DB Schema of the Implementation

Model we model in detail all components of data

tables (e.g., attributes with data type, attribute

domains and checks etc), in a similar way to what

happens in conventional CAD tools for E/R

diagrams, thus obtaining a linear description of the

database underlying the system. Control component

contains a Class Diagram, named as Control Schema

(see Figure 4), in which a catalogue of control

classes is represented. Each control class is

implemented as a UML class with stereotype

<<Control>>, and contains methods used by the

Interface Level to manage data from the Database

Level. Also, each control class refers to one or more

views inherited from the DB Schema on the basis of

their relevance and scope with respect to the specific

functional context. Methods of each control class are

described within the UML class in forms of software

interfaces (e.g., Java-based) and documentation in

free text.

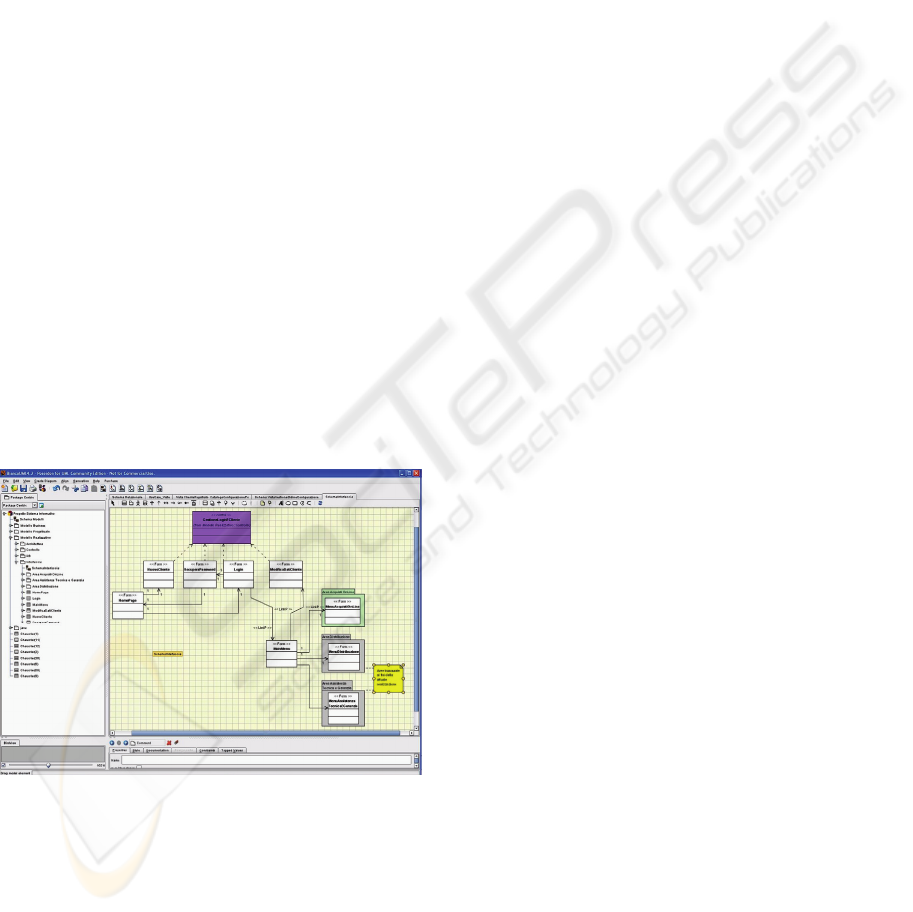

Figure 5: An Interface Schema.

Following the organization of the

Implementation Model, Control Level is invoked by

the Interface Level containing a Class Diagram,

named as Interface Schema (see Figure 5), which

models the interaction between users and the system.

Recall that paths of executions are modeled by

Activity Diagrams of the Conceptual Model. Based

on these paths, in the Implementation Model we

model a sequence of forms, which are UML classes

enriched by specific stereotypes. Specifically, a form

is characterized by three elements that determine the

final representation of such form: (i) entry unit,

which is an area of the form where users submit

input elements to the system via traditional GUI

controls such as text fields, combo boxes, check

boxes etc; (ii) data unit, which is an area of the form

where information derived from the underlying

database (i.e., sets of tuples) is shown; (iii) display

unit, which is an area of the form where static

components are shown (e.g., help textual

information describing how to use form controls).

In our methodology, a form can be a plain form,

a list form, or a recursive form. Plain forms are basic

realizations of the construct form. List forms,

modeled by the UML stereotype <<FormL>>, are

used to represent forms in which sets of tuples are

shown. Recursive forms, modeled by the UML

stereotype <<Form*>>, are used to represent forms

that are shown many times, one for each tuple

corresponding to a specific parameter.

When forms transmitting parameters to other

forms are considered (e.g., during user transactions),

we support this facet of the information system via

appending specific attributes to UML association

constructs. These attributes are described by the

UML stereotype <<LinkP>>. To ensure data

consistency, we simply impose that the type of

transmitted parameters is the same of (appended)

attributes in the related UML class. Finally,

conventional structural links, i.e. links without

embedded parameters, are modeled by the UML

stereotype <<Link>>. It should be noted that this so-

large availability of different UML constructs

provided by our methodology allows us to model

even complex front-ends for process- and data-

intensive information systems.

6 CONCLUDING REMARKS

AND FUTURE WORK

A complete methodology for continuous information

systems modeling has been presented in this paper.

This methodology makes use of several UML-based

diagrams, models and constructs that found on

processes and other entities such as actors, archives,

and functions. These components are able to capture

even complex features of advanced information

systems. The proposed methodology is actually

experimented in Exeura (Exeura, 2008), a spin-off

company of the University of Calabria that operates

A PROCESS-DRIVEN METHODOLOGY FOR CONTINUOUS INFORMATION SYSTEMS MODELING

in the Information Technology (IT) and Knowledge

Management (KM) areas. This experience confirms

us that the proposed methodology results to be

particularly suitable to application scenarios whose

information systems modeling requires high

flexibility and high scalability.

Future work is oriented towards encapsulating

within the proposed methodology innovative aspects

such as the automatic generation of wrappers classes

for distributed and heterogeneous information

sources, and the automatic generation of source code

starting from signatures of control classes.

REFERENCES

Booch, G., Rumbaugh, J., and Jacobson I., 2005. The

Unified Modeling Language User Guide, 2

ed.,

Addison-Wesley, Reading, MS, USA.

Castela, N., Tribolet, J.M., Silva, A., and Guerra, A.,

2001. Business Process Modeling with UML. In Proc.

of the 3

ICEIS Int. Conf., Vol. 2, pp. 679-685.

Center for Technology in Government, University at

Albany, 2003. A Survey of System Development

Process Models, TR CTG.MFA – 003, available at

http://demo.ctg.albany.edu/publications/reports/survey

_of_sysdev/survey_of_sysdev.pdf

Cockburn, A., 2002. Agile Software Development,

Addison-Wesley, Reading, MS, USA.

Curtis, W., Kellner, M.I., and Over, J., 1992. Process

Modeling. In Communications of the ACM, Vol. 35,

No. 9, pp. 75-90.

Davenport, T.H., and Short, J.E., 1990. The New

Industrial Engineering: Information Technology and

Business Process Redesign. In Sloan Management

Review, Vol. 31, No. 4, pp. 11-27.

Earl, M.J., 1994. The New and the Old of Business

Process Redesign. In Journal of Strategic Information

Systems, Vol. 3, No. 1, pp. 5-22.

Exeura – Knowledge Management Solutions,

http://www.exeura.it

Fensel, D., 2001. Ontologies: A Silver Bullet for

Knowledge Management and Electronic Commerce,

Springer Verlag, Berlin, GE.

Giaglis, G.M., 2001. A Taxonomy of Business Process

Modeling and Information Systems Modeling

Techniques. In International Journal of Flexible

Manufacturing Systems, Vol. 13, No. 2, pp. 209-228.

Greco, G., Guzzo, A., Manco, G., and Saccà, D., 2005.

Mining and Reasoning on Workflows. In IEEE

Transactions on Knowledge and Data Engineering,

Vol. 17, No. 4, pp. 519-534.

Grover, V., Fielder, K.D., and Teng, J.T.C., 1994.

Exploring the Success of Information Technology

Enabled Business Process Reengineering. In IEEE

Transactions on Engineering Management, Vol. 41,

No. 3, pp. 276-284.

Kim, K-H, Yoo, H.-J., and Kim, H.-S., 2005. A Process-

Driven E-Learning Content Organization Model. In

Proc. of 4

IEEE ACIS Int. Conf., pp. 328-333.

van Meel, J.W., Bots, P.W.G., and Sol, H.G., 1994.

Towards a Research Framework for Business

Engineering. In IFIP Transactions A: Computer

Science and Technology, Vol. 54, pp. 581-592.

Mendes, R., Mateus, J., Silva, E., and Tribolet, J.M., 2003.

Applying Business Process Modeling to

Organizational Change. In Proc. of the 2003 AMCIS

Int. Conf.

zur Muehlen, M., 2001. Process-Driven Management

Information Systems - Combining Data Warehouses

and Workflow Technology. In Proc. of the 4

ICECR-

4 Int. Conf., pp. 550-566.

Neves, J., Vasconcelos, A., Caetano, A., Sinogas, P.,

Mendes, R., and Tribolet, J.M., 2001. Unified

Resource Modelling: Integrating Knowledge into

Business Processes. In Proc. of the 3

ICEIS Int.

Conf., Vol. 2, pp. 898-904.

Royce, W.W., 1970. Managing the Development of Large

Software Systems. In Proc. of the 1970 IEEE

WESCON Int. Conf., pp. 1-9.

Serrano, A. 2003. Capturing Information System’s

Requirement Using Business Process Simulation. In

Proc. of the 15

ESS Int. Conf.

Sinogas, P., Vasconcelos, A., Caetano, A., Neves, J.,

Mendes, R., and Tribolet, J.M., 2001. Business

Processes Extensions to UML Profile for Business

Modeling. In Proc. of the 3

ICEIS Int. Conf., Vol. 2,

pp. 673-678.

Teufel, S., and Teufel, B., 1995. Bridging Information

Technology and Business: Some Modeling Aspects. In

SIGOIS Bulletin, Vol. 16, No. 1, pp. 13-17.

Vasconcelos, A., Caetano, A., Neves, J., Sinogas, P.,

Mendes, R., and Tribolet, J.M., 2001. A Framework

for Modeling Strategy, Business Processes and

Information Systems. In Proc. of the 5

IEEE EDOC

Int. Conf., pp. 69-80.

ICEIS 2008 - International Conference on Enterprise Information Systems
