SQS:

A SECURE XML QUERYING SYSTEM

Wei Li and Cindy Chen

Department of Computer Science, University of Massachusetts Lowell, One University Ave, Lowell, MA, U.S.A.

Keywords:

XML, access control, cache, query.

Abstract:

Contemporary XML database querying systems have to deal with a rapidly growing amount of data and

a large number of users. As a consequence, if access control is used to protect sensitive XML data at a

ﬁne-grained level, it is inefﬁcient when it comes to query evaluation, since it is difﬁcult to enforce access

control on each node in an XML document when the user’s view needs to be computed. We design and

develop a secure XML querying system, namely SQS, where caching is used to store query results and security

information. Depending on whether there is a cache hit, user queries are rewritten into secure system queries

that are executed either on the cached query results or on the original XML document. We propose a new

cache replacement policy LSL, which updates the cache based on the security level of each entry. We also

demonstrate the performance of the system.

1 INTRODUCTION

XML has been widely used for data sharing and ex-

change over the internet. As a consequence, XML

data security has become an important concern. In

general, there are three major issues of data security:

authentication, authorization and access control. For

access control, there are two major approaches: dis-

cretionary access control and mandatory access con-

trol. Under discretionary access control policy, a user

may “grant” read or modify privilege to another user;

or “revoke” another user’s privilege. The mandatory

access control mechanism uses system wide policies,

and thus cannot be changed by any user.

Since native XML data do not have a normalized

structure, unlike retrieving relational data and pub-

lishing them on the web, querying XML databases is

intrinsically complicated. Despite many efforts by re-

searchers, it remains a question how to evaluate XML

queries efﬁciently while enforcing access control. We

describe and implement a secure XML querying sys-

tem called SQS. The system uses a cache to improve

query execution. Unlike the traditional caching pol-

icy that caches only the query results, the SQS sys-

tem also caches the security information. To the best

of our knowledge, the SQS system is the ﬁrst XML

querying system that uses caching for security in-

formation. When a query Q is executed, the cache

is looked up ﬁrst to check whether there are cached

query results that answer Q, while the system’s ac-

cess control rules are also complied with. If a cache

hit occurs, a composing query C is computed and ap-

plied to the cached query results to render the result

for Q. Otherwise, Q is rewritten into a secure query

and evaluated over the original XML document.

2 RELATED WORK

A number of XML access control models have been

proposed. Based on the components of XML doc-

uments, Bertino et al. (Bertino et al., 2000) sug-

gested using different protection object granularities

such as document/DTD, set of documents, attribute,

(sub)element and link. Damiani et al. (Damiani et al.,

2002) deﬁned authorization strength in their access

control model. If there is a conﬂict between the

authorizations speciﬁed in an XML document and

those speciﬁed in its corresponding schema, those

with a stronger authorization strength will have a

higher priority so to override the others. In Gabil-

lon’s model (Gabillon et al., 2002), access control list

is used to specify authorization. However, since it is

associated with each node, this method suffers when

dealing with large XML documents.

Researchers have developed many techniques for

XML access control. In (Cho et al., 2002), Cho et al.

proposed a method to rewrite a user query with spec-

iﬁed authorizations into an authorized query, there-

fore avoid unnecessary authorization check-ups. In

(Yu et al., 2002), Yu et al. introduced a method called

CAM to enforce XML access control. The compres-

sion by CAM is achieved by taking advantage of the

tree structure of XML database and grouping together

the nodes that have similar accessibility, on a per-user

basis. In (Fan et al., 2004), Fan et al. developed

a view-based XML security model. Access speciﬁ-

cations are enforced during the process of deriving

413

Li W. and Chen C. (2008).

SQS: A SECURE XML QUERYING SYSTEM.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - DISI, pages 413-416

DOI: 10.5220/0001677304130416

 SciTePress

the security view, where a security view is based on

the user view DTD and a function deﬁned via XPath

queries. In (Mandhani and Suciu, 2005), Mandhani

and Suciu proposed a novel technique to cache XPath

views for XML. An algorithm was designed to deter-

mine whether a view can answer a new query. When

it does, a composing query will be computed and ap-

plied to the result of the view to answer the new query.

3 SYSTEM ARCHITECTURE

The SQS system uses a multi-level access control

model. The security levels are speciﬁed using non-

negative integers. The access control rule is simple,

yet robust, which requires that the security level of the

query should be no less than that of the data in order

to be granted access. The access control speciﬁcations

are deﬁned at the document level. In the XML docu-

ments, attribute

SecurityLevel

is added to each el-

ement to indicate its security level. In an XML tree,

the security level is only allowed to increase mono-

tonically from the root to a leaf, which means that no

element has a higher security level than any of its de-

scendants. The system requires that the security level

of each node should be annotated. Although this will

bring the needs for additional space and extra work by

the document owner, it would be acceptable if secure

query evaluations can be improved.

We choose to use XPath query language to navi-

gate down the XML tree and retrieve data. The system

recognizes the XPath queries deﬁned by the following

grammar:

p ::= e | p / p | p // p | p [ q ]

∗

(1)

e is an element name, and predicate q can be equali-

ties, comparisons, or paths.

schema

...

data

query engine

query shredder cache

query

result

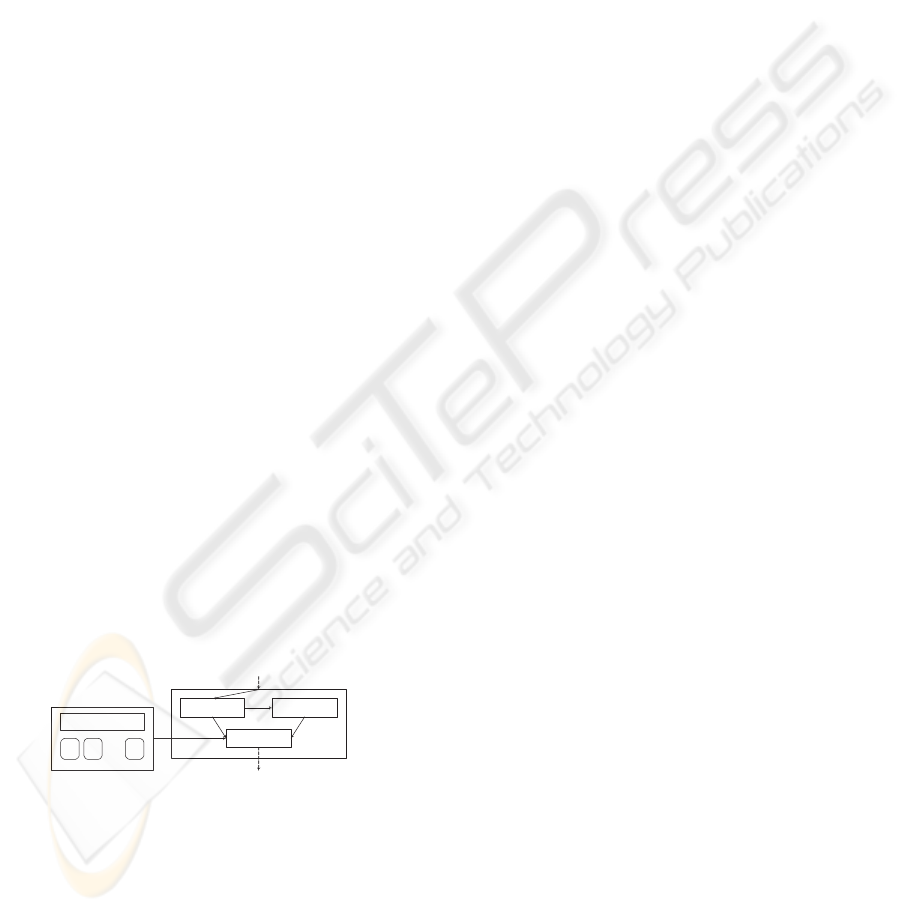

Figure 1: The SQS system architecture.

Figure 1 illustrates the architecture of the system. At

ﬁrst, a new query Q is parsed by the query shredder.

Then, the cache will be looked up to check whether

there is a cached view V that answers the query. If

a cache hit, a composing query C is computed based

on Q and V, then C is evaluated on the result of V by

the query engine; if a cache miss, Q is rewritten into

a secure query Q

. Then Q

is sent to the query engine

and evaluated on the XML document.

4 METHODS

4.1 Query Rewriting

For a non-secure XPath query Q issued by a user at se-

curity level n, we rewrite it into a secure one by adding

a predicate

[@SecurityLevel <=

]

to each node in

Q. However, since in our access control model, the

security level increases monotonically along a path,

we may only need to add the above predicate to each

node appearing after the last axis in the XPath query.

In the system, if the original user query cannot be

answered using the cached views, it will be rewritten

as above and sent to the query engine; if a cached view

can answer the query, the composing query is then

rewritten and evaluated on the cached query result.

4.2 Cache Structure

In the system, a cache is used to store materialized

views and their security information. The cache is

maintained using RDBMS. We selectively adopt the

cache tables in (Mandhani and Suciu, 2005). We also

add columns to indicate query security level, result in-

formation, as well as auxiliary query information that

is used for cache replacement. Therefore, the cache of

the SQS system consists of the following two tables:

• View(viewID, preﬁx, predicate, all-predicates,

comparison-tags, query-security-level, result-

ﬂag, usage-count, timestamp)

• XMLData(viewID, data)

The columns viewID, preﬁx, predicate, all-predicates,

comparison-tags provide the same information as in

(Mandhani and Suciu, 2005). Query-security-level

stores an integer which is the security level of the

query issuer. Result-ﬂag is TRUE or FALSE, which

is an indicator of whether there is non-empty result

associated with the view. Usage-count records the

number of times that this view has been used to an-

swer new queries. Timestamp indicates the time when

the view is last used.

4.3 Cache Lookup

To process a query, we need to ﬁnd a view in the

cache that not only answers the query, but also com-

plies with the access control rules. Note that there

might be a few views in the cache that satisfy the two

constraints. To select the best cached view to answer

query Q at security level S, we develop the following

algorithm based on (Mandhani and Suciu, 2005):

ICEIS 2008 - International Conference on Enterprise Information Systems

414

cache-lookup(Q, S)

for k = n,...,1

EXEC SQL

SELECT View.*

FROM View

WHERE View.preﬁx = Preﬁx(Q, k)

AND (View.predicate = null

View.predicate in ConPreds(Q, k))

AND View.query-security-level >= S

ORDER BY View.query-security-level ASC

examine the returned views in its order;

if some view answers Q, return it and exit;

return null

Preﬁx(Q, k) is the query left after removing from Q

the predicates of the kth axis node and all the axis

nodes after. ConPreds(Q, k) is the concatenation of

all the normalized trees that can map to one of the

predicates of the kth axis node of Q.

In our system, it implies that if user security level

≥ user security level S

, then the result of execut-

ing the same query at S

will contain all that at S

Thus, the predicate View.query-security-level >= S

ﬁlters out those views that would not answer Q even

though by their semantics they could. The returned

views are also sorted since the best view that answers

Q is the one whose query-security-level is greater than

that of Q and is also the closest to that of Q.

4.4 Cache Warmup

In our system, we do not use any particular warmup

policy to populate the cache. The system automati-

cally inserts the newly processed query with its result

into the cache until the cache’s upper limit is reached.

4.5 Cache Update

Insertion happens when a query is processed and

there is still room in the cache. The query result

will be inserted into table XMLData and the system

will automatically assign a unique key for the ﬁeld

viewID. This key is also returned and used in table

View. The ﬁelds preﬁx, predicate, all-predicates and

comparison-tags in table View are computed accord-

ing to (Mandhani and Suciu, 2005). Query-security-

level will be ﬁlled with the security level value of the

query issuer. Result-ﬂag will be TRUE if the query re-

sult is non-empty or FALSE otherwise. Usage-count

is set to “1”. Finally, timestamp is assigned the cur-

rent system time.

Practically the cache has limited storage. When it

is full, it has to eject a certain entry to make room. Our

system supports three cache replacement policies:

• LFU (Least Frequently Used):

The view that has the smallest usage-count will be

ejected from the cache. In case there is a tie, the

system will randomly choose one view to discard.

• LRU (Least Recently Used):

The system selects from the cached views the one

that is least recently used to eject. The auxiliary

column timestamp serves here to indicate which

view has the oldest timestamp value.

• LSL (Lowest Security Level):

The view that has the lowest security level value

will be chosen to eject.

Unlike LFU and LRU, LSL is special for our system.

Intuitively, the view at a high query security level may

potentially be able to answer many queries that have a

lower security level, as long as semantically this view

answers those queries.

Besides insertion and replacement, update hap-

pens to the view chosen to answer the new query. It

includes increasing the usage-count ﬁeld by “1” and

assigning timestamp the newest system time value.

5 EXPERIMENTS

5.1 Experimental Setup

This section assesses the performance of the SQS sys-

tem. The system is implemented in Java. All exper-

iments are performed on a 2.80GHz Intel Pentium

IV machine with 512 MB of RAM running Linux.

All experimental XML documents are generated us-

ing XMark. XPath queries are also generated based

on the DTD of the documents. The cache of the SQS

is maintained by Apache Derby DB. Galax XQuery

processor is used to process the XPath queries.

5.2 Results and Analysis

Effect of Cache Size on Cache Hit Rate

As shown in Figure 2, when there are relatively fewer

cache entries, LSL gives the best cache hit rate, while

LFU the worst. As the cache size increases, the cache

hit rate increases as well, but the pace of the increase

is getting slower and slower. When the cache size is

very large, all three replacement policies have virtu-

ally the same cache hit rate. Further increase of the

cache size becomes undesirable.

The reason why LSL gives a better cache hit

rate than the other two is because the views with

higher query-security-level tend to be more general

thus “better” than those with lower query-security-

level. The more “good” views in the cache, the higher

SQS - A SECURE XML QUERYING SYSTEM

415

the cache hit rate. Since LSL can select those views

with higher query-security-level to keep, it will in-

crease the chance of a cache hit.

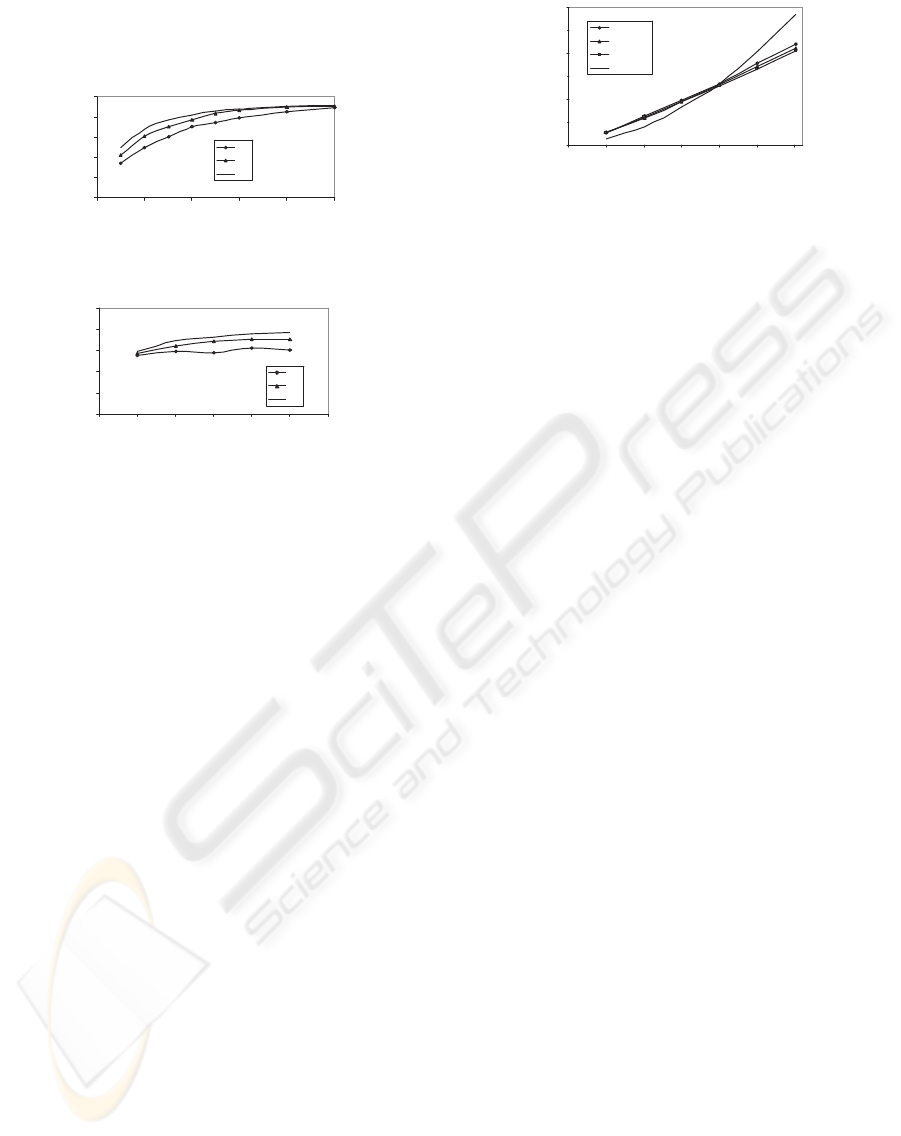

40%

50%

60%

70%

80%

90%

0 1000 2000 3000 4000 5000

Number of records in cache

Cache hit rate

LFU

LRU

LSL

Figure 2: Cache size vs. cache hit rate.

40%

50%

60%

70%

80%

90%

0 10000 20000 30000 40000 50000 60000

Number of queries

Cache hit rate

LFU

LRU

LSL

Figure 3: Number of queries vs. cache hit rate.

Effect of Number of Queries on Cache Hit Rate

As in Figure 3, the cache hit rate does increase as the

number of queries processed increases. This is due to

the reason that repeated query evaluation and cache

update statistically select those “bad” views to eject

and leave the cache with more “good” views. As the

number of “good” views becomes larger and larger,

the cache hit rate increases. Among the three cache

replacement policies, LSL gives the highest cache hit

rate while LFU the worst.

Effect of XML File Size on Average Query Process-

ing Time

For comparison, the same query ﬁle is also processed

under similar conditions but without using the cache.

Figure 4 shows an obvious fact that as the XML ﬁle

size increases, the curve without the cache increases

at a much faster pace than those with the cache. The

separation between the one without the cache and

those with the cache is expected to be much greater

as the XML ﬁle size gets larger. The time saving ra-

tio is about 15% and 25% when the document size is

around 25 MB and 30 MB, respectively.

Note that when the XML ﬁle size is small, the av-

erage query processing time is even shorter without

the cache. This is because processing a query using

then cache introduces the overheads of cache lookup

and cache update. When the XML ﬁle is small, pro-

cessing queries without the cache is quick enough to

overcome the overheads caused by using the cache, so

it takes shorter time.

0

500

1000

1500

0 5000 10000 15000 20000 25000 30000

XML file size (KB)

Average query processing time (ms)

LFU

LRU

LSL

W/O Cache

Figure 4: XML ﬁle size vs. average query processing time.

6 CONCLUSIONS

We designed and developed the SQS system, where

the cache stores both query results and query secu-

rity information. Its content can be efﬁciently looked

up and repeatedly used to answer new queries. We

discussed the factors affecting the cache hit rate and

the average query processing time. Our study showed

that LSL is currently the best cache replacement pol-

icy, and the cache can signiﬁcantly improve the sys-

tem performance on secure query evaluation.

REFERENCES

Bertino, E., Castano, S., Ferrari, E., and Mesiti, M. (2000).

Specifying and enforcing access control policies for

XML document sources. World Wide Web Journal.

Cho, S., Amer-Yahia, S., Lakshmanan, L., and Srivastava,

D. (2002). Optimizing the secure evaluation of twig

queries. In Proceedings of the 28th VLDB Conference.

Damiani, E., di Vimercati, S. D. C., Paraboschi, S., and

Samarati, P. (2002). A ﬁne-grained access control sys-

tem for XML documents. ACM TISSEC.

Fan, W., Chan, C., and Garofalakis, M. (2004). Secure

XML quering with security views. In Proceedings of

ACM SIGMOD.

Gabillon, A., Munier, M., Bascou, J. J., Gallon, L., and

Bruno, E. (2002). An access control model for tree

data structures. In 5th Information Security Confer-

ence.

Mandhani, B. and Suciu, D. (2005). Query caching and

view selection for XML databases. In Proceedings of

the 31th VLDB Conference.

Yu, T., Srivastava, D., Lakshmanan, L., and Jagadish, H.

(2002). Compressed accessibility map: Efﬁcient ac-

cess control for XML. In Proceedings of the 28th

VLDB Conference.

ICEIS 2008 - International Conference on Enterprise Information Systems

416
