DIAMOUSES

An Experimental Platform for Network-based Collaborative Musical Interactions

Chrisoula Alexandraki, Panayotis Koutlemanis, Petros Gasteratos

Department of Music Technology and Acoustics, Technological Education Institute of Crete, Rethymnon Crete, Greece

Demosthenes Akoumianakis, Milolidakis Giannis, Vellis George, Kotsalis Dimitris

Department of Applied Informatics and Multimedia, Technological Education Institute of Crete, Heralion Crete, Greece

Keywords: Distributed music performance, networked music rehearsal, distributed music improvisation, remote music

education.

Abstract: DIAMOUSES is an on-going research and development project aiming to establish a platform supporting

distributed and collaborative music performance. DIAMOUSES is designed to host a variety of application

scenarios, including music rehearsal, music improvisation and music education, thus offering a tailorable

enterprise-wide solution for organizations offering network-based music performance services. This paper

presents the architectural underpinnings of DIAMOUSES and elaborates on the set-up and the results of a

recent pilot experiment in music rehearsal.

1 INTRODUCTION

In recent years, music performance (rehearsals,

improvisation, musical education, etc) has explored

advanced communications-oriented infrastructures

and computer-mediated tools in an attempt to

facilitate a more social music making. As music

performance is a form of expression, it is not

surprising that such social music making has striking

similarities to conversation in that it involves

information sharing, co-presence and multimodal

exchanges, as it combines musical signals with

verbal and visual cues. Consequently, researchers

have embarked on various research strands to

investigate tools and possible technological setups

for collaborative musical interactions. Specifically, a

variety of tools have been proposed such as

symbolic representations for music scores

(Selfridge-Field, 1997; Legh, 2006; Steyn, 2006;

Steyn, 2002; Good, 2001; Good, 2002), music

scripting languages (Castan, 2006), toolkits (jfuege)

and music notation software (Brandorff et al., 2005),

while a range of setups have been explored for group

music improvisation (Bryan-Kinns, 2004), instant

composition (Jordà, 2001), musical dictations

(Tremblay and Champagne, 2007), etc.

On the other hand, substantial work is being

devoted on suitable network infrastructures which

envisage enabling of remote cooperation among

musicians. Barbosa reports that the first efforts in

network computer music begin as early as the 1970s

with the commercialization of personal computers in

the United States (Barbosa, 2003). In subsequent

research works the main focus is on exploring

structures in which the end-to-end latency can be

tolerable for musicians performing the same piece of

music. The suggested approaches are concerned

either with the use low bandwidth signals, such as

MIDI, OSC or other forms of alternative

representations for music (Gresham-Lancaster,

1998; Lazzaro, 2001), or the experimentation with

bidirectional audio transmission in Local Area

Networks and unidirectional audio transmission in

WANs (e.g. audience receiving high quality audio

orchestral performances through the network)

(Sawchuck, 2003).

In this paper our primary target is to report on

recent results of a research and development project,

namely DIAMOUSES, which seeks to support

network based music collaboration in various

application scenarios. Our current focus is on

describing both the technological set-up and the

software tools used to facilitate collaborative music

Alexandraki C., Koutlemanis P., Gasteratos P., Akoumianakis D., Giannis M., George V. and Dimitris K. (2008).

DIAMOUSES - An Experimental Platform for Network-based Collaborative Musical Interactions.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - HCI, pages 30-37

DOI: 10.5220/0001679100300037

 SciTePress

rehearsals. Rehearsing music in a distributed

environment where musicians are physically

separated and communicate through the network

poses strict requirements on two equally significant

issues: a) the reliability of the underlying

technological infrastructure and b) the effectiveness

of the supporting collaborative environment. The

technological infrastructure should provide smooth

and low-latency signal transition as well as the

ability to transmit audio signals of adequate sound

quality. The collaborative environment on the other

hand, must provide the means for sharing

multimedia objects (e.g. scores, metronomes, etc.)

and for enhancing virtual co-presence in

collaborative performance.

The rest of the paper is structured as follows. The

following section presents the methodology of the

project and describes three reference scenarios that

have been the starting point of the specification of

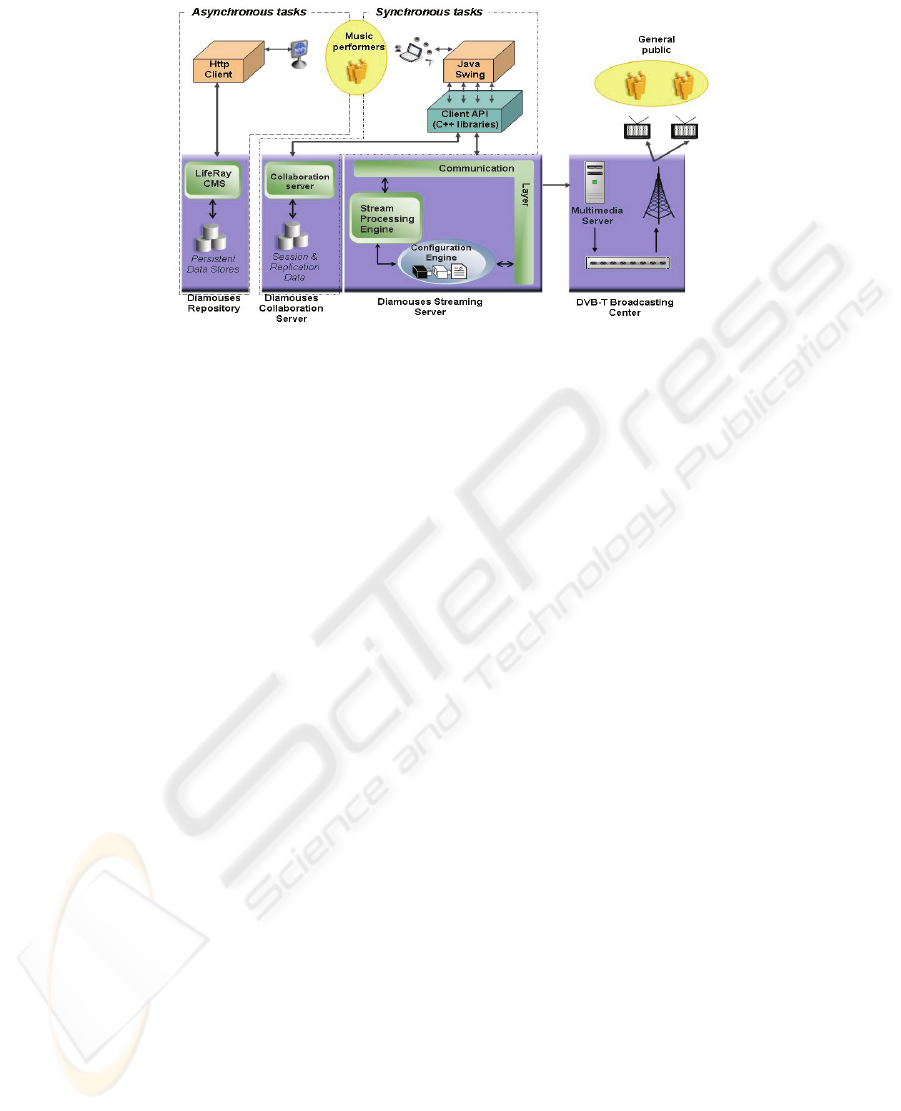

the DIAMOUSES platform. Then the overall

architecture of the system is presented highlighting

how DIAMOUSES addresses the challenges set. In

the following section, we elaborate on collaborative

music rehearsal which constitutes one of the

scenarios currently being evaluated. Finally, the

paper concludes with a brief discussion of recent

results and an outline of on-going and future work.

2 METHODOLOGY

The main challenge for DIAMOUSES derives from

the intention to establish an integrated platform,

allowing for remote collaboration throughout a

distributed live music performance environment.

Specific technical targets include the setup of the

music collaboration environment, the support for

innovative forms of musical expression through

sensor based interaction and the combination of

heterogeneous networks (IP and DVB) in the same

platform in order to simultaneously support various

routing schemes in signal transition (i.e.

broadcasting, multicasting and unicasting).

2.1 Requirements Gathering

Gathering user requirements and technical

specifications for the DIAMOUSES framework was

facilitated by an exploratory survey using

questionnaires, site visits, and literature review.

Specifically, user requirements were gathered

through a questionnaire-based survey targeting two

groups of potential users of the system, namely

specialists in music (i.e. performers, tutors,

composers, conductors and recording engineers) and

the casual users (i.e. the general public) as the

potential audience of a distributed music

performance. The outcomes of this investigation

have been very enlightening both in terms of design

and technical specifications.

Regarding the requirements of the music

specialists, it was anticipated that they would greatly

vary according to the genre of the music performed.

In short, the data gathered confirmed that

performing classical and contemporary music

requires the presence of a musical score whereas

musicians of pop/rock and electronic music would

generally prefer to perform from memory than

having any other means of deciphering the flow of

the music. However, musicians of the pop/rock

genre had a strong requirement for using an acoustic

metronome when remotely performing a piece.

Another important finding of the requirement

analysis of the musicians was that in all music

genres bilateral visual communication among

musicians is considered necessary during

performance. In the perspective of the

DIAMOUSES platform, this requirement denoted

that, in addition to audio, video communication

should also be provided to every participant in the

distributed performance.

Furthermore, musicians were questioned about

their preference in the sound reproduction system

used for monitoring the performance. The data

gathered indicate a strong preference in using a

multi-channel sound reproduction system instead of

conventional stereo one. This is consistent with the

findings of other studies (Sawchuck, 2003), which

conclude that sound reflections from the surrounding

area are desirable in the context of a networked

performance.

Users belonging to the second group (i.e. the

audience) were questioned about their preference in

facilities for watching and listening to a distributed

music performance, their interest in the content of

the provided metadata and the provision of a video-

on-demand service relating to the performance. It

appeared that users did not have a clear preference

on the video display, since they showed equal

interest in the alternatives provided, which were

television, computer terminal, video projection.

However, they showed a clear preference for a

surround speaker system (of type 5.1 or 7.1), instead

of a conventional stereo one. Regarding the

information content of metadata provided, they

showed a higher interest in information regarding

the music performed (e.g. musicological aspects),

rather than information about the participating

DIAMOUSES - An Experimental Platform for Network-based Collaborative Musical Interactions

performers. Additionally, there was a high interest

for video on demand services relating to a

distributed performance.

2.2 Technical Specifications

The technical specifications for the DIAMOUSES

platform were compiled by qualitative analysis of

prior research efforts and the up-to-date technologies

and software tools on the broader area of multimedia

streaming. The general results of this study were that

network-based music performances require precise

control on minimising the various latencies

introduced in the entire process of capture, network

transmission and playback of audio signals. Other

outcomes of this study include the specification of

the network bandwidth demand, the accuracy in

stream synchronisation and the tolerance in data

errors that are due to network packet loss.

The above requirements depend on the

information content of the data exchanged in the

network distributed environment. The DIAMOUSES

approach deals with three types of data content,

namely audio, video and control data. In respect

with audio data, CD audio (i.e. raw PCM sampled at

44.1 kHz, 16 bit-resolution, stereo) is the quality

threshold for the DIAMOUSES experiments.

Regarding video data, DIAMOUSES uses low

quality video for the visual communication among

the musicians (i.e. MPEG-4 or MJPEG format), in

order to compensate for bandwidth demand, and

high quality MPEG-2 for the communication with

the audience in the digital TV infrastructure. The

term ‘control data’ is used to refer to the various

symbolic sound and music representations, which

may be used as a low bandwidth alternative for

uncompressed audio. The project is primarily

investigating control data derived from MIDI

instruments and experimental mechanical sensors,

which are being used for providing gestural control

to electronic instruments (Wright, 2001).

2.3 Reference Scenarios

To streamline the design of DIAMOUSES, scenarios

were used to provide early reflections and

envisionment. Scenario elaboration focused on a

range of criteria with the most prominent being the

operational intent (i.e. live performance, rehearsal,

master class or remote studio recording session); the

underlying roles undertaken by the participating

users (i.e. performers, conductors, composers, tutors,

engineers) and the type of music being performed.

Additional parameters, which affect the technical

requirements of an application scenario, include the

content of the data (audio, video, control) exchanged

among participants and the underlying network

infrastructure (i.e. wireless or wired, local or wide

area networks).

Although DIAMOUSES is implemented as a

generic platform to enable various application

scenarios with diverse requirements, the evaluation

of the system under development will be based on

three well defined scenarios. The selection of these

particular scenarios, which are described in the

remaining part of this section, was based on four

criteria. The selected scenarios should (a) combine

as many of the interaction parameters as possible;

(b) comply with the results of the user requirement

analysis, (c) they should be technically feasible to

achieve with the existing network infrastructures;

and finally (d) they should be scalable in terms of

the number of users participating in the scenario as

well as in terms of the geographical spread of the

connected participants. Scaling the geographical

spread of an application scenario is mainly related to

the efficiency of the underlying network

infrastructure. Since the entire implementation of

DIAMOUSES is independent of the lower layers of

the TCP/IP network model, the scenarios we define

here can be scaled to a broader geographical spread

when appropriate network infrastructures become

available.

2.3.1 Distributed Music Rehearsal

The first scenario to be evaluated concerns a

distributed music rehearsal in the range of a Local

Area Network (LAN). In this scenario, musicians

communicate via a streaming server with high

quality audio streams. The server is responsible for

delivering the audio signals from each musician

located at a certain network node to the other

musicians that have been registered as the recipients

of the audio stream transmitted from the first node.

This mechanism for information exchange is based

on a so called ‘relay network’. In addition to audio,

video streams are exchanged among the participants.

The distributed music rehearsal scenario is further

elaborated in the next sections of the paper.

2.3.2 Distributed Music Performance

The second scenario concerns a distributed music

performance experiment based on control data and

video data. Participating musicians are connected

through a Wireless LAN. MIDI data and OSC data

are exchanged in the local network through the

ICEIS 2008 - International Conference on Enterprise Information Systems

Figure 1: Diamouses overall architecture.

server. The audio synthesis (i.e. the conversion of

control data to audio) takes place at the receiving

end through appropriate hardware and software

equipment (i.e., tone generators). Visual

communication among participants is provided

through low quality video. Furthermore, as depicted

in figure 1, this scenario utilises a pilot digital TV

platform which is exploited in the DIAMOUSES

framework. The subscribers of this DVB-T network

may receive the multiplexed video and audio

streams on their TV receivers through a live

broadcast at the time of the performance, or through

a video-on-demand service after the end of the

performance.

2.3.3 Remote Music Education

The third experiment aims to examine a remote

music education scenario based on the

DIAMOUSES platform. In this scenario a music

tutor is connected through the Internet with

distributed members of a master class and they

communicate using audio and video streams. The

research focus in this scenario is placed on exploring

the interfaces that are necessary for conducting a

remote music lesson (theory), exercising with

replicated visual representations of music scores and

finding the appropriate quality of the audio stream

that can be transferred on the Internet with tolerable

delay and data loss.

3 DIAMOUSES ARCHITECTURE

Figure 1 depicts the overall architecture of the

DIAMOUSES platform. As shown on Figure 1,

music performers’ collaboration may be either

synchronous, during a collaborative performance, or

asynchronous, in order to schedule their

performance events or share various sources of

information. Synchronous tasks are carried out

through the communication with a Streaming Server,

whereas asynchronous tasks are provided through a

portal, which is supported by a Content Management

System (CMS). As shown on the right-hand side of

the figure, the audience of the synchronous

performance is served through a digital TV network.

The DIAMOUSES Streaming Server consists of

three main modules: the communication layer, the

configuration engine and the stream processing

engine. The communication layer is responsible for

receiving multimedia streams from all the connected

participants and transmitting them back either as a

combined stream (in the case of multicasting) or as

separate streams (in the case of a relay network).

The configuration engine takes care of the

various configurations that need to be done on the

server (i.e. broadcasting, multicasting, unicasting).

Among other things, it defines the network

addresses and the network ports for the incoming

and outgoing multimedia streams (i.e. the

transmitters and the receiver of the information).

The stream processing engine is responsible for

all the processing that needs to be done after a

stream is received at the server and before it is sent

back to the participants that have been registered as

receivers of this stream. Depending on the scenario,

stream processing may include stream

synchronisation, stream mixing or multiplexing,

error correction and data storage of the incoming

streams in multimedia files. These files are

necessary for allowing DIAMOUSES to offer video-

DIAMOUSES - An Experimental Platform for Network-based Collaborative Musical Interactions

on-demand services through the DVB platform, after

the end of the live broadcast.

The component denoted as Client API in Figure

1 is the low level application software running on

the performer side. This software is responsible for

capturing audio video and control streams,

transmitting these streams to the network, receiving

the streams representing the contribution of the other

musicians and finally reproducing the streams on the

client hardware (i.e. soundcard, speakers, and

computer screen). This component is implemented

as a low level module aiming at minimising the

latencies that are introduced in the various phases of

the above process. The Client API communicates

with a higher level component developed in Java

Swing, which provides the performer with the GUI

shown on Figure 2.

The DVB-T broadcasting centre constitutes the

pilot digital TV platform exploited by the project. It

has a one-way communication with the

DIAMOUSES Streaming Server. The purpose of

this communication is to send the multimedia

streams of the combined performance of the

distributed musicians to the subscribers of the digital

TV network during a live broadcast. In addition, the

streaming server communicates with the DVB-T

centre in order to send the multimedia files stored in

the streaming server, so that they are available for

offering video-on-demand services. All the

processing of the audio and video streams (i.e.

transcoding, multiplexing, etc.) that is necessary

prior to broadcasting occurs at the DVB-T

broadcasting centre.

4 COLLABORATIVE MUSIC

REHEARSAL

DIAMOUSES groups engaging in music rehearsals

can be seen as ‘local’ communities of practice.

Although such communities share common ground

with conventional web communities of interest, they

are also characterized by distinct features.

Specifically, they are task-specific and knowledge-

intensive in the sense that members need to possess

common ground, share data of various types, and

contribute towards the creation of new knowledge

(codified musical experiences). Moreover, the

community resources vary from traditional

document-based materials to multimedia objects (i.e.

video, sonic objects, etc). In this effort both personal

and group learning prevails as the prime social

objective. Moreover, accomplishing the common

goals is strongly dependent upon situational aspects

and the wider community context.

Music has traditionally served as a natural

mechanism for community formation. Indeed music

choice frequently serves as a means for community

formation and establishing identity (Frith and

Goodwin, 1990). Moreover, in recent years a

number of ‘music communities’ have been formed

to facilitate promotion and distribution of music. In

both these cases, the community serves as a common

place for communication, exchange of opinion and

sharing of (pre-recorded sonic) artefacts.

In DIAMOUSES the notion of ‘music community’

holds a slightly different connotation. DIAMOUSES

communities are virtual social spaces for conducting

collaborative work. In this context, communication

and sharing may be important, but they are not the

only tasks to be supported. DIAMOUSES

communities can be considered as ‘squads’ formed

around a digital medium to achieve a common goal

(i.e. rehearsal, live performance, learning, etc). In

doing so, each member of the squad undertakes a

distinct role which is characterized by social as well

as tasks-specific parameters. Such roles include the

conductor, the musician, the observer, all having

distinct responsibilities and access rights. Goal

achievement assumes willingness to participate,

while it is primarily dependent upon the

collaborative contributions of all partners. Such

contributions in turn utilize resources which can be

classified as generic or shared (i.e. music scores) or

neighbourhood-specific (i.e. musical instruments).

To attain the goal, the group undergoes distinct

stages such as formation (i.e. registering as members

of the squad), establishing common ground by

sharing information, exchanging opinion on certain

aspects of the task (i.e. range of musical instruments,

tempo), setting norms (i.e. what is to be done, when

and how) and finally performing towards

accomplishing the common objectives. These stages

are typically translated into distinct tasks of two

primary types, namely personal/synchronous tasks

carried out by members during music rehearsals and

community-oriented/asynchronous tasks carried out

prior to or after music rehearsals. As these tasks are

distinct, different tools have been designed to

support them.

4.1 The CMS for Asynchronous Tasks

Community-oriented / asynchronous tasks are hosted

by a suitably customized version of the LifeRay

Content Management System. This is an open-

ICEIS 2008 - International Conference on Enterprise Information Systems

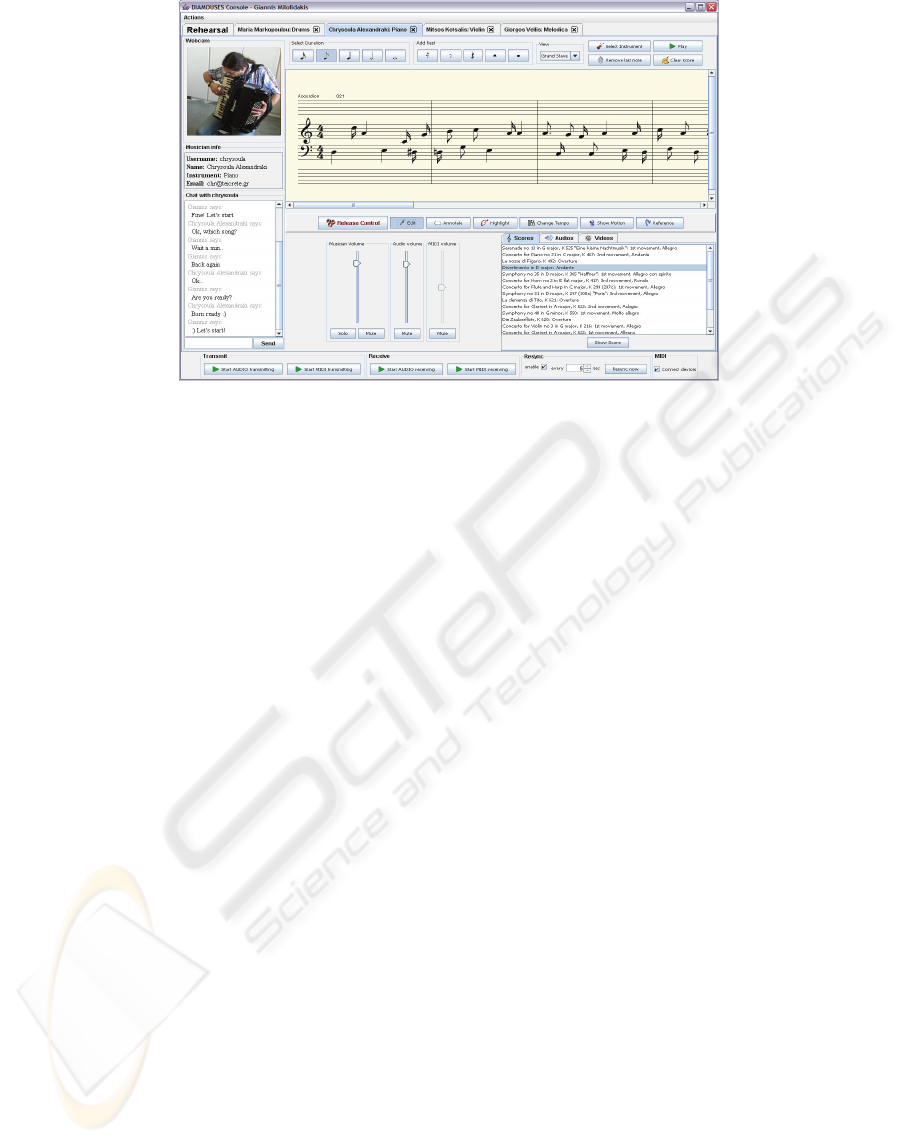

Figure 2: The user interface of the rehearsal application.

source Java based CMS which makes use of portlets

for content management. Access to the contents is

role-based. Thus, visitors can create an account

using the LifeRay registration system, manipulate

this account and obtain access to the CMS content.

Conductors and musicians represent roles with

additional access rights. Specifically, they are

entitled to download application suites which allow

them to take part in music performances (i.e.

rehearsals, improvisation, music education, etc). To

facilitate access to these tools, an electronic

registration system has been developed using Ajax

to allow these advanced roles to register and obtain

access to the additional resources. A dedicated portal

has also been developed as a container for

rehearsals. It is open for registered participants and

acts as a reference point, hosting shared objects and

sonic artefacts generated and deposited by the group.

4.2 Synchronous Rehearsal Application

To take part in a rehearsal, all partners use a

dedicated application depicted in Figure 2. It should

be noted that the version of the user interface shown

on Figure 2 represents a superset of what is actually

needed and used during music rehearsals. This is

because the application is designed having in mind

the requirements of the other reference scenarios.

This application is separate from the CMS to

alleviate latency problems. During a rehearsal, each

participant has visual access to a remote site through

a camera and can control various aspects of the

remote user’s performance such as the volume of the

signal received from a remote site, by using the

sliders at the bottom-centre. It turned out that this

was the dominant tasks during the rehearsal.

However, participants can carry out additional tasks.

Specifically, they may choose to view the musical

score which occupies the middle part of the screen

and is uploaded from the corresponding CMS room.

This is a ‘shared’ object which can be manipulated

either in private or through synchronous sessions. In

case of synchronous sessions (foreseen primarily for

the remote music education scenario) the object is

replicated across the connected clients and remains

synchronized at all times. This is facilitated by a

floor manager undertaking runtime permission

assignments. At any time, participants can exchange

messages (i.e. chat) and explore background

materials (i.e. musical scores, audio files, video, etc)

deposited as shared resources in the corresponding

CMS room. The graphical user interface (GUI) is

implemented using Java Swing and dedicated Java

music APIs. The communication of the Client API

and the GUI is implemented in Java Native Interface

(JNI).

5 THE PILOT SET-UP

The pilot music rehearsal scenario was conducted in

the Department of Music Technology and Acoustics

(MTA) of the T.E.I. of Crete in October 2007. For

the purposes of the rehearsal scenario, three

professional musicians were invited. The scenario

involved rehearsal with both acoustic instruments

and MIDI instruments. The musical piece and the

music instruments used in the rehearsal were a

choice of the musicians. They chose to perform a

Greek song (“Mia thalassa mikri”, Dionysis

DIAMOUSES - An Experimental Platform for Network-based Collaborative Musical Interactions

Savvopoulos), with accordion, guitar and

saxophone. The same piece was rehearsed with

acoustic accordion guitar and saxophone as well as

with a MIDI accordion, a MIDI guitar and a MIDI

saxophone.

5.1 Musician Apparatus

Each of the three musicians was connected to the

network through a portable PC running Linux

distribution Centos 5 (see Figure 3). In addition to

the portable PC, each musician was equipped with

an external USB soundcard (for providing better

audio quality than the quality provided by the laptop

built-in soundcard), a microphone, a MIDI tone

generator, a pair of speakers and a network camera.

A sound console was used for allowing simultaneous

playback of the output of the soundcard (i.e. the

audio streams arriving from the network), and the

output of the MIDI tone generator (i.e. the MIDI

streams arriving from the network, after converted to

sound). This was occasionally necessary for the

musicians in order to talk to each other while tuning

their MIDI instruments. The experiment was

broadcasted through wall projection of the live video

feed from the three musicians (see Figure 4) to a

number of group members watching the experiment.

Figure 5 presents one of the musicians (namely the

accordionist) during the audio rehearsal experiment.

Video communication among musicians was

provided through the GUI of the client software

(Figure 2).

5.2 Network Topology

The three musicians were distributed in three

different buildings in the campus network of the

MTA Department and they were connected through

the DIAMOUSES Streaming Server, which was

located at the same building as one of the musicians.

The provided network connection was a 100Mbps

Local Area Network connection. For the streaming

server a customised version of Darwin Streaming

Server was used, running on Red Hat Enterprise

Linux 5.

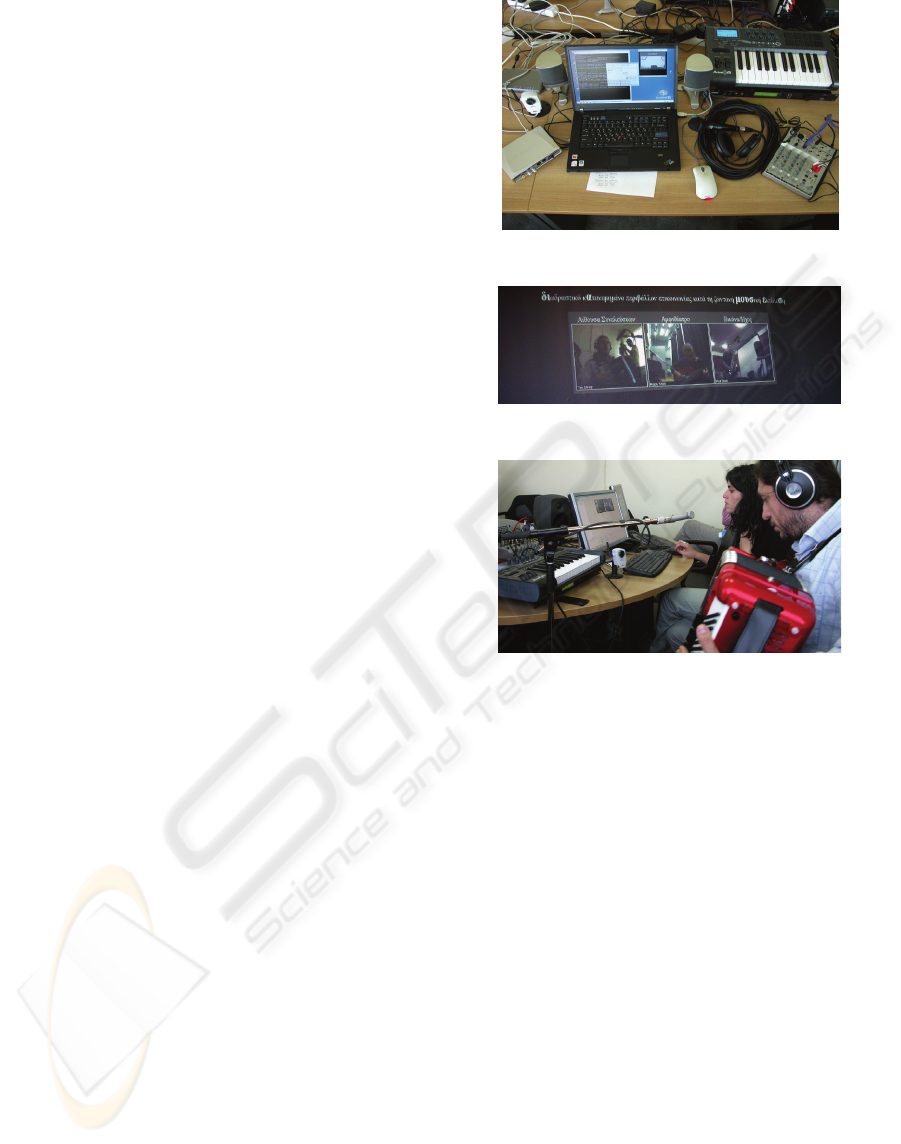

Figure 3: Musician apparatus.

Figure 4: Video projection of the musicians.

Figure 5: One of the partners during rehearsal.

5.3 Data Transmission

As mentioned before, two experiments were

conducted: the “audio rehearsal” and the “MIDI

rehearsal”. In the audio rehearsal, each musician was

sending to the server the audio stream captured

through their microphone. The server was relaying

back the audio streams captured from the

microphones of the other two performers. Mixing

was performed on the client side. In addition to the

audio streams, each musician was receiving the live

video stream captured from the network cameras of

the other two performers. It was found that video

quality had to be reduced in order to avoid distortion

in the audio stream, which was perceived as clicks

(data loss).

In the MIDI rehearsal, each musician was

sending the MIDI stream produced at their MIDI

instrument, which was connected to the USB

soundcard. The client software was sending this

MIDI stream to the server. The MIDI streams of the

other two performers which were relayed from the

server back to the musician, were fed to the MIDI

ICEIS 2008 - International Conference on Enterprise Information Systems

tone generator through the USB soundcard. Video

streams from the other participants were received at

the site of each performer directly from the network

cameras. In the MIDI experiment, no data loss was

observed when raising the video quality. Table 1

following table denotes the data formats used for the

multimedia streams, their quality characteristics and

the resulting data rates.

Table 1: Data transmission rates.

Data Audio Video Control

Format Raw PCM MJPEG MIDI

Quality

48kHz

16-bit

stereo

320x240

14fps

N/A

Data rate 1.536 Mbps 630kbps 31.25ks

6 DISCUSSION & CONCLUSIONS

The analysis of data gathered during the experiment

provided valuable insights to the task of conducting

network-based music rehearsals. Specifically, the

overall latency in the transmission of audio and

MIDI signals was not noticeable from the musicians

and it was estimated in the order of 10msec. With

regards to data loss, it turned out that there were no

significant errors when the bitrate of the video

streams was kept low. Raising the quality of the

video streams resulted in distortion in the audio

signal playback, which we presume was due to

network packet loss. Another technical issue that

was causing problem in the communication among

musicians was the fact that when one of the

musicians was executing a program change event at

a certain MIDI channel, the event was propagated

through the network to the equipment of the other

participants. This undesirable effect implies that

MIDI data should be filtered before sent to the

server or before arriving to the target receivers.

Overall, musicians were excited about the

experience they had, and they said that they would

be glad if they had the opportunity to use this

platform for rehearsing with their band from home.

The final evaluation of the system will be based on

both QoS measures and on user feedback. We expect

to measure latency and data loss in various

configurations. In addition, as there is evidence that

both tempo and acoustic properties of the

instruments (i.e. timbre) greatly affect the success of

the experiment (Sawchuck 2003), we plan to

experiment with different types of music and

instruments.

REFERENCES

Barbosa, A., 2003. Displaced Soundscapes: A Survey of

Network Systems for Music and Sonic Art Creation,

Leonardo Music Journal - Volume 13, MIT Press, 53-

59.

Brandorff, D., Lindholm, M., Christensen, HB., 2005. A

Tutorial on Design Patterns for Music Notation

Software, Computer Music Journal, 29:3, 42–54, MIT.

Bryan-Kinns, N., 2004. Daisyphone: The Design and

Impact of a Novel Environment for Remote Group

Music Improvisation, in Proceedings of ACM

DIS’2004 Conference, August 1–4, 2004, Cambridge,

MA, USA.

Castan, G., 2006. MusiXML, http://www.music-

notation.info/en/musixml/MusiXML.html.

Good M., 2001. MusicXML Definition.

http://www.recordare.com/xml.html [2001].

Good M., 2002. MusicXML in practice: Issues in

translation and analysis. Proceedings of the 1st

International Conference MAX2002 Musical

Application Using XML, Milan, Italy, September

Computer Science Department, State University of

Milan: Milan, 47–54.

Gresham-Lancaster, S., 1998. The Aesthetics and History

of the Hub: The Effects of Changing Technology on

Network Computer Music, Leonardo Music, Journal 8

(1998), 39–44.

Jordà, S., 2001. New Musical Interfaces and New

Musicmaking Paradigms. New Instruments for

Musical Expression Workshop, (Seattle).

Lazzaro, J., Wawrzynek, J. 2001. A Case for Network

Musical Performance, in Proceedings of ACM

NOSSDAV ’01, NY, June 2001, 157–66

Legh, M., Montgomery, L., 2006. 4ML a Music & Lyrics

Markup Language. http://www.4ml.org.

Selfridge-Field, E., 1997. Beyond MIDI: The Handbook

of Musical Codes. MIT Press: Cambridge, MA.

Steyn, J., 2006. Music markup language.

http://www.musicmarkup.info [June 2006].

Steyn J., 2002. Framework for a music markup language.

In 1st International Conference on MAX2002 Musical

Application Using XML, State University of Milan,

22–29, Milan, Italy.

Tremblay, G., Champagne, F., 2007. Marking musical

dictations using the edit distance algorithm, Software

Practice & Experience, 37:207–230

Sawchuk, A.A., Chew, E., Zimmermann, R.,

Papadopoulos C., Kyriakakis, C., 2003. From Remote

Media Immersion to Distributed Immersive

Performance, in Proceedings of the ACM SIGMM

2003. Workshop on Experiential Telepresence.

Wright, M., Freed, A., Lee, A., Madden, T., Momeni, A.,

2001. Managing Complexity with Explicit Mapping of

Gestures to Sound Control with OSC. Proceedings of

the International Computer Music Conference,

Habana, Cuba.

DIAMOUSES - An Experimental Platform for Network-based Collaborative Musical Interactions
