AN INTEGRATED MODEL FOR MANAGERIAL AND

PRODUCTIVE ACTIVITIES IN SOFTWARE DEVELOPMENT

Daniel Antonio Callegari, Maurício Covolan Rosito, Marcelo Blois Ribeiro and Ricardo Melo Bastos

Fac. Informática, PUC-RS, Av. Ipiranga 6681, Porto Alegre, Brazil

Keywords: Project Management, Software Development Process, Integrated Model, Project Planning, PMBOK, RUP.

Abstract: Software organizations are constantly looking for better solutions when designing and using well-defined

software processes for the development of their products and services. However, many software

development processes lack for more support on project management issues. This work proposes a model

that integrates the concepts of PMBOK and RUP, helping process integration and assisting managers in the

decision making process during project planning. We present the model and the results from a qualitative

exploratory evaluation of a tool that implements the proposed model, conducted with project managers from

nine companies.

1 INTRODUCTION

The increasing concern on software development

quality drives organizations towards the adoption of

software engineering models. Some of the most

desirable characteristics of these models include the

ability to capture software development best

practices, flexibility to handle many types of

projects, and good management support. The lack of

specific methodologies for software project

management and the increasing number and

complexity of projects in organizations contribute to

an increase in project management problems

(Kerzner, 2000; Pressman, 2001).

The development of software products requires

the planning and execution of activities defined in

accordance to the scope of the project, where it is

necessary to deal with both managerial and technical

issues. However, most management models or

guides are not software-specific. In addition, those

management models are generally more related to

industrial and manufacturing activities. The majority

of software development processes, by their turn,

generally provide just an adequate set of practices

that supports the suggested activities and associated

workflows.

Previous work in the area has presented

interesting outcomes, but a tight integration of

management and software processes with practical

results is still an open question (Henderson-Sellers et

al., 2000; Henderson-Sellers et al., 2001; Rehman &

Hussain, 2007; Schwalbe, 2002).

This paper presents a model that integrates

project management to software development

processes named Software Planning Integrated

Model (SPIM). The model includes a set of rules

for the integrated planning of managerial and

productive activities in the context of software

development. SPIM joins the concepts of the Project

Management Body of Knowledge Guide (PMBOK)

(PMI, 2000) and one of the most well-known

software development processes, the Rational

Unified Process (RUP) (Kruchten, 2000) to extend

the proposal presented in (Callegari & Bastos,

2007). While the PMBOK provides a management

perspective of the solution, the technical view is

obtained from RUP. Hence, when applying project

management knowledge together with the

appropriate software process for a given

organization, we can obtain a more complete and

integrated flow of activities and their dependencies.

This paper is organized as follows: we first

present an overview and the motivation for the

research. A brief introduction of the base models is

available in section 3. The SPIM model and its

evaluation are discussed in sections 4 and 5,

respectively. Finally, section 6 presents the

conclusions and future work.

Study developed by the Research Group of the PDTI

01/2008, financed by Dell Computers of Brazil Ltd. with

resources of Law 8.248/91.

Antonio Callegari D., Covolan Rosito M., Blois Ribeiro M. and Melo Bastos R. (2008).

AN INTEGRATED MODEL FOR MANAGERIAL AND PRODUCTIVE ACTIVITIES IN SOFTWARE DEVELOPMENT.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - DISI, pages 25-32

DOI: 10.5220/0001683200250032

 SciTePress

2 OVERVIEW AND MOTIVATION

As in (Kerzner, 2000), according to many empirical

studies the effectiveness of an organization depends,

in part, on the success of its projects.

Project management means applying knowledge,

skills, tools and techniques to the project’s activities,

in order to meet or exceed the needs and

expectations of the interested parties (stakeholders).

Project management has the goal of finishing a

project inside schedule and within the defined

budget, according to a previously arranged set of

specifications. These elements characterize the triple

constraint of project management: scope, time and

cost. A well succeeded project, thus, means fitting

these three objectives and satisfying the sponsors. In

addition, a project is a temporary endeavor with the

goal of producing a unique product or service.

Generally, a project is directed to a specific result

and involves the coordinated execution of inter-

related activities. More than that, projects are

planned, executed and controlled by people, and

they are constrained by limited resources (PMI,

2000).

Project management in a software development

environment is defined as the management of people

and other resources by a project manager in order to

plan, analyze, design, build, test and maintain an

information system (Schwalbe, 2002). In order to

accomplish these goals, a project manager needs

some kind of support, generally based on a project

management methodology to handle many singular

project variables, responsibilities and tasks.

From the point of view of software, a software

development process (SDP) is a set of activities and

related results that lead to the software production

(Jacobson, Booch & Rumbaugh, 2001). The

importance of having a standard SDP relies on the

fact that it becomes the guide for the execution of all

projects inside an organization. Therefore, many

processes or guides such as RUP, Extreme

Programming (XP) (Beck, 2004), Microsoft

Solutions Framework (MSF) (Hundhausen, 2005)

and OPEN Process Framework (Graham,

Henderson-Sellers & Younessi, 1997) are being used

as a common ground when designing standard

software development processes in organizations.

Despite that, RUP, for instance, does not cover

essential project management needs such as people

management and subcontract management. In the

other hand, OPEN presents a set of activities and

techniques that address areas such as quality, cost

estimates and management metrics. Nevertheless

both models were found to lack enough support on

essential knowledge areas of project management,

namely procurement, communication and human

resources.

Fundamentally, past and present work on the

literature indicates the importance of using well

defined software processes in organizations.

Meanwhile, there seems to be not enough work in

fulfilling the lack of project management issues in

those processes. Software development processes

generally provide just a set of practices that deal

with certain activities and workflows related to

management.

2.1 Related Work

In (Henderson-Sellers et al., 2000), RUP and OPEN

are examined from a project management point of

view and evaluated whether they meet acceptable

standards in process support, project management

guidelines, and full lifecycle description for object-

oriented software development. The authors

conclude that both processes are deficient in some of

the standard project management areas of

knowledge, like procurement management,

communications management and personnel

management. In order to support the full suite of

project management techniques, further extensions

to these areas of knowledge seem to be desirable.

A qualitative evaluation is performed on the

public domain component of RUP and on OPEN in

(Henderson-Sellers et al., 2001). The authors focus

their comparison on aspects of the process

architecture and underpinning metamodel, on the

concepts and terminology used and on the support

for project management. The authors conclude that

the metalevel architecture of RUP leads to some

dilemmas in terms of the lack of support for a truly

iterative development. OPEN offers more extensive

support in the area of cross-project suites of

application development and maintenance and also

more extensive support in metrics and quality

considerations.

In (Rehman & Hussain, 2007), four important

project management methodologies or frameworks –

PRINCE2, RUP, Agile Development Methods and

MSF – were compared to PMBOK. The authors

conclude that all the methodologies or frameworks

discussed have some common tools and procedures.

They also propose a combined approach to achieve

better results.

ICEIS 2008 - International Conference on Enterprise Information Systems

2.2 The Integrated Model Approach

Some types of managerial activities in software

projects are inherent to the process and they do not

appear at the moment we are planning the project.

These activities (or their dependencies) are just the

activities that most of the time cause an important

slip in schedule and do not necessarily add another

input in the project’s risk list.

When planning a software project, it is likely that

the manager does not have all relevant information

up front, which forces him to interact with other

departments in the organization. Hence, the flow of

activities in an individual project is usually related to

other common activity flows of the organization

(here named enterprise workflows). Both flows are

executed in parallel and may interfere in project

schedule and cost. As a consequence, we need a

solution that can provide a greater level of

integration among the concepts and the models from

these two areas. More than that, the desired solution

should allow the development of tools to support the

decision making process regarding technical and

managerial planning.

By analyzing how project management

knowledge can help improving current software

development processes we can derive new tools for

supporting different levels of automation in the

planning and execution of activities inside a

software project.

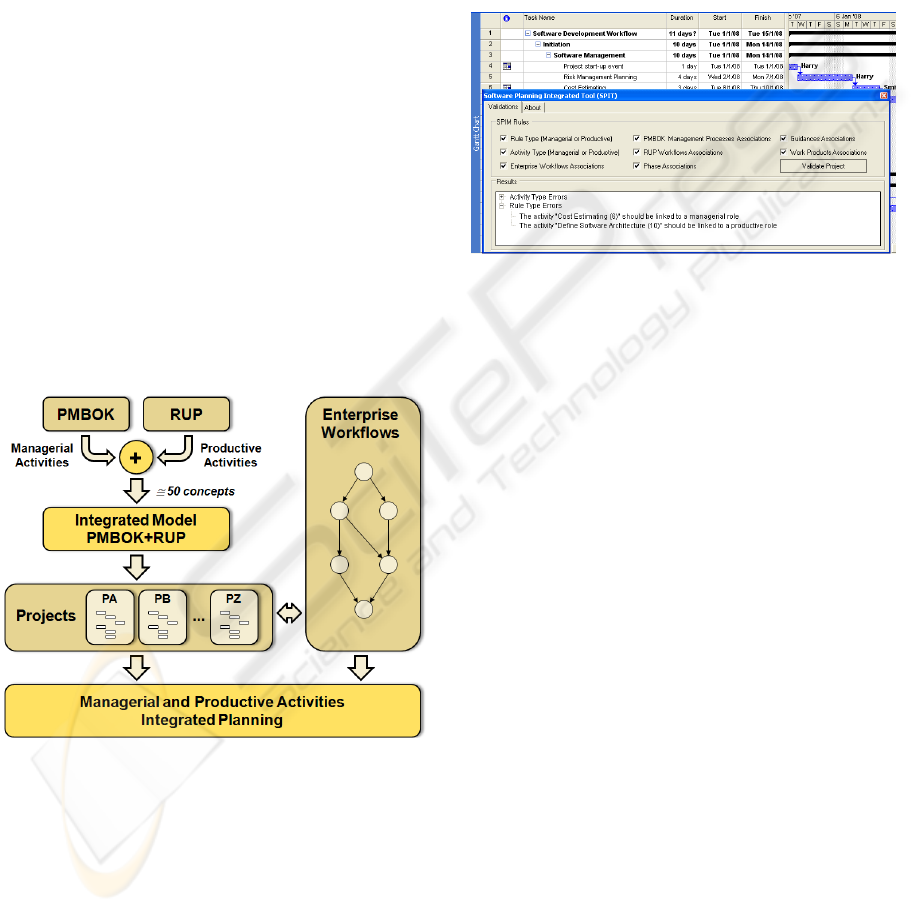

The proposed model (SPIM) defines three

different types of activities. The first two belong to

the project’s workflow: Activities directly related to

the construction of the product are called productive

activities. Activities that are only necessary to

coordinate the construction of the product are

referred to as managerial activities. Finally, any

other activities that do not belong to an individual

project’s activity workflow (and may be else shared

by other projects) are called management

supporting activities (the latter are part of the

Enterprise Workflow component of the model,

detailed in section 4).

Following this definition, we can find potential

dependency relations between the activities in both

workflows. As an example, the activity of deploying

a system’s database (which fits in the project’s

workflow) may depend on the acquisition of the

server by the responsible department (this activity

fits in the shared workflows of the company). As a

consequence, the project manager needs continuous

support in order to keep track of these kinds of

dependencies (here, deploy the database is a

productive activity, while acquisition is a

management supporting activity). Since each project

is unique, it is not feasible to build a universal

software project “template”; instead, we can provide

tools that help performing and constantly validating

a plan, based on the three types of activities, on the

resources and on related work products. Hence, the

final goal of the SPIM model is to help managers to

solve problems related to the inadequate definition

and inter-relation of activities in a software project.

3 INTEGRATING PMBOK AND

RUP MODELS

The Project Management Body of Knowledge Guide

provides the best practices on project management

that are applicable to the vast majority of the

projects in many areas (PMI, 2000). Despite being a

well accepted guide, the PMBOK is not a process in

the strict sense, as it does not define actions nor it

states how they must be followed and executed for

the correct development of a project. The PMBOK

Guide also does not include a metamodel.

Nevertheless, a base model was presented previously

in the form of a UML class diagram in (Callegari &

Bastos, 2007) and covers concepts from general

structures such as Organization, Program and

Project, as well as the most important ones for our

current problem, such as Activities, Stakeholders,

Roles, Deliverables, and associated classes.

The Rational Unified Process (RUP) is referred

to as an iterative software development process

based on the SPEM meta-model (Kruchten, 2000;

Jacobson, Booch & Rumbaugh, 2001). Its models

cover concepts such as Artifacts, Roles, Disciplines,

Activities, Phases, WorkflowDetails and

ToolMentors.

According to (Henderson-Sellers et al., 2000), RUP

does not attempt to cover all aspects of project

management and it does not cover issues such as

managing people, managing budget, and managing

contracts. This is understandable because RUP

evolves from the unification of methods for software

development, and not from project management

processes. Because we can express PMBOK’s

concepts in the same representation as the RUP

models, it is possible to compare and semantically

integrate both models, which originated the initial

PMBOK+RUP model. Figure 1 presents part of the

model. More information can be obtained in

(Callegari & Bastos, 2007).

AN INTEGRATED MODEL FOR MANAGERIAL AND PRODUCTIVE ACTIVITIES IN SOFTWARE

DEVELOPMENT

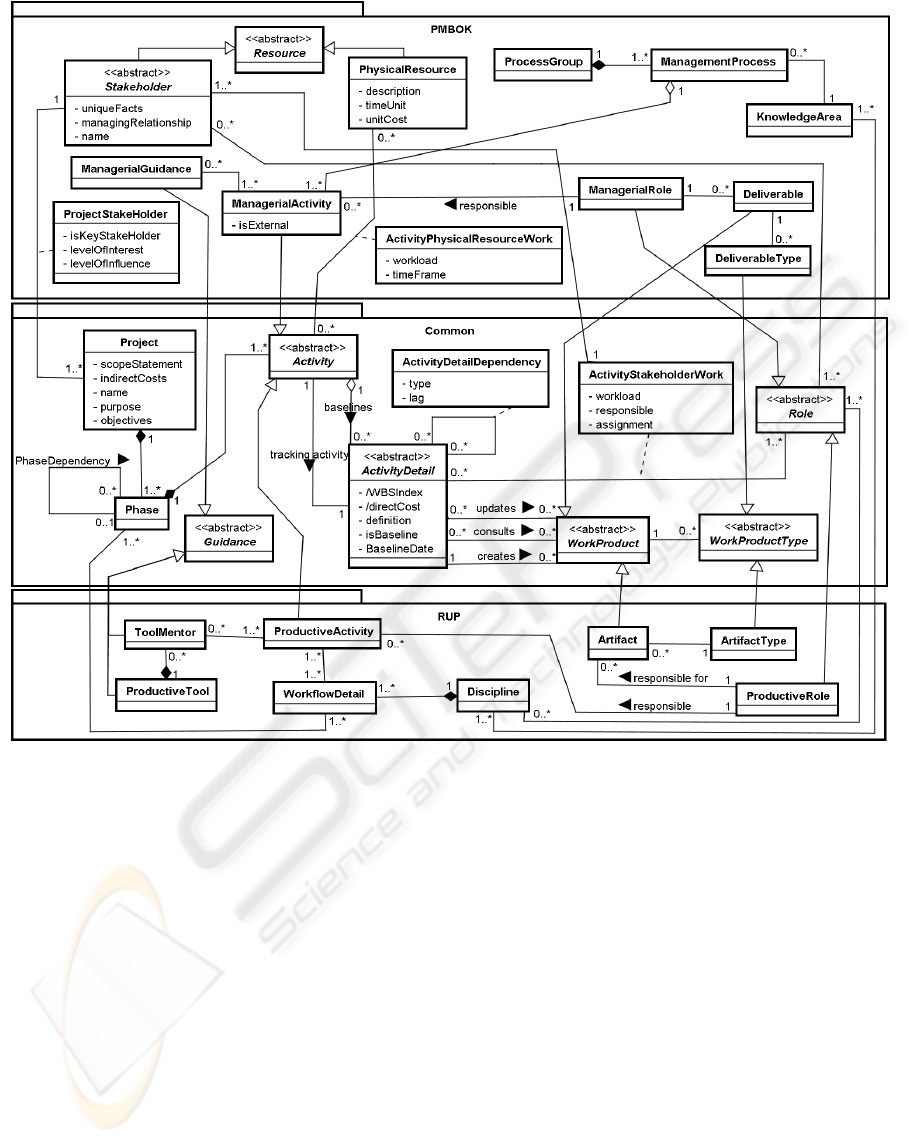

Figure 1: Part of the PMBOK+RUP model, from which SPIM is derived (more details not shown due to space reasons).

The detailed analysis of the PMBOK and RUP

models allowed us to identify relationships among

the elements of each model. When designing the

integrated model, some of the main goals were: (a)

to allow the integrated planning of the product and

management of the project; (b) to distinguish the

types of activities and work products; (c) to allow

the integrated scheduling of managerial and

productive activities; and finally, (d) to distinguish

the possible relations between an activity and an

artifact (create/update/consult).

It is important to note that when performing an

integration of two models, the following conditions

can occur: (a) an overlapping of concepts (two

classes with the same concept on each model), in

this case it is possible to transform them into a single

concept inside a “common” package; (b) a

relationship of concepts (a class of one of the

original models relates to some other class on the

other original model, but they do not represent the

exact same concept), in which case we must create

an association between them; and (c) classes with

independent and distinct concepts from each

original model, in which case we must leave each

class in its own package.

As a consequence, the PMBOK+RUP integrated

model is composed of three packages: one for the

project management concepts, one for software

development processes concepts and finally a

common package that holds the concepts that cross

both models.

The model covers nearly 50 classes. It maps the

software Lifecycle concept as a set of Phases. The

Disciplines split the process elements in subject

areas. The Roles are played by the Stakeholders (a

kind of Resource) in order to produce, consult or

modify Artifacts of a project. The Activities are

supported by tools or guides (generally called

activity Guidance) and keep references to the

artifacts they handle.

ICEIS 2008 - International Conference on Enterprise Information Systems

The model also has two specialized classes

ProductiveRole (in the RUP package) and

ManagerialRole (in the PMBOK package)

indicating roles with productive and managerial

responsibilities respectively. The base Role class is

located in the Common package.

This intermediate model served as an important

input for the SPIM model. Its analysis has originated

implicit and explicit verification rules. The implicit

rules can be directly obtained from the integrated

model by means of the UML diagram semantics.

The explicit rules were added to assure the

consistency of the SPIM model and some are

described in the next section.

4 SPIM - SOFTWARE PLANNING

INTEGRATED MODEL

The PMBOK+RUP model was used as the base

conceptual structure for the development of the

Software Planning Integrated Model. It is also

necessary to cover specific issues regarding the

process of planning the activities for a software

project. Figure 2 synthesizes the elements of the

SPIM model.

Figure 2: Projects are based on the PMBOK+RUP model,

and SPIM integrates them to other workflows.

The idea behind the SPIM model comes from the

need to solve the problems listed in sections 1 and 2.

SPIM was conceived to reduce the complexity in

visualizing the interdependencies of both enterprise

workflows and the individual project’s workflow of

activities. Activities inside the enterprise workflow

component are shared by some or all the projects the

company is running, and they consume resources

other than those already allocated to the projects.

One of the benefits to use such integrated

approach is the ability to anticipate needs coming

from different sources (e.g. projects and a support

department itself, for instance) and reschedule the

affected activities automatically.

From all rules of SPIM, eight of them were

evaluated in this work. The rules were implemented

in a tool called SPIT (Software Planning

Integrated Tool) as an Add-in for a commercial

project planning software.

Figure 3: The SPIT tool working as an Add-in for a

commercial project planning software.

All information needed to perform the

validations in SPIM is stored in custom fields inside

the commercial product. Figure 3 presents a

snapshot of SPIT in action. As mentioned before, the

management supporting activities are part of the so

called enterprise workflows. Each enterprise

workflow is a set of activities that can be consumed

by (and run in parallel to) one or more projects.

SPIM allows each instance of an enterprise

workflow to be registered as a management

supporting activity in software development

projects. Thus, the proposed model aims to assist the

identification of dependencies between the activities

in both workflows (Figure 4). A workflow engine

must constantly update and inform projects about the

duration of each instance of the enterprise

workflows. The example in Figure 4 is represented

in PERT networks notation (Burke, 2001): arrows

represent activities and circles represent events

between activities.

In this example, the activity D in a software

project depends on both the activity C (which can be

either productive or managerial) and one of the

enterprise workflows. The curved arrow is a

management supporting activity which indicates that

all the activities on the specific enterprise workflow

(W1, W2, W3 and so on) must be finished before we

can move on to activity D (assuming activity C has

also finished). Therefore, a management supporting

activity is actually a kind of virtual activity that

AN INTEGRATED MODEL FOR MANAGERIAL AND PRODUCTIVE ACTIVITIES IN SOFTWARE

DEVELOPMENT

represents an entire execution of one of the

enterprise workflows (isExternal attribute of the

ManagerialActivity class in Figure 1).

Figure 4: Interdependency between an enterprise

workflow and a software project workflow.

The company can define a set of reusable

enterprise workflows, such as “hardware

acquisition”, “hiring new people”, “work

environment setup”, and so on. Each reference to an

enterprise workflow represents new instances of the

corresponding “W” activities. Other departments

update the activities’ information, and the affected

projects are then rescheduled. All the rules as well as

the concepts behind SPIM were evaluated in a series

of interviews with experienced software project

managers from 9 distinct companies. The next

section describes this evaluation in detail.

5 MODEL EVALUATION

In order to evaluate the concepts behind the SPIM

integrated model with respect to its acceptance and

applicability, we have conducted a qualitative

exploratory research involving 12 experienced

project managers who work for a total of nine

software development companies (detailed

information is omitted for confidentiality).

All participants received a brief training on the

SPIM model and were given the chance to ask prior

questions. Then they were presented the same

project description and were asked to plan the

corresponding project by using the SPIT Add-In.

After that, they answered a survey. The results are

being used to refine the model.

Data acquisition was taken during November

2007 by means of a questionnaire produced in

accordance to Rea and Parker (2005).

The survey had 33 questions where the first 8

captured the organizational profile, the following 10

were focused on the managers individual knowledge

mapping and the remaining were used to estimate

the SPIM model’s contributions in the planning

process from the project managers’ point of view.

The subjects in the survey had an average of 12.25

years of professional experience (min=7; max=20).

The involved companies were distributed in

different information technology segments (three

software factories, two mobile technology

development companies, two web development

companies, one government institution and one

research and development center). Together these

companies sum up to 1620 IT-related professionals,

in which 90 are project managers and 823 are

software developers. In addition, these companies

have an average IT market experience of more than

13 years. As we can see in Table 1, an initial

analysis reveals a wide disparity in size and

organizational structure, resulting in a standard

deviation value of 155.34, which characterizes an

adequate sample for our analysis.

Table 1: Criteria regarding the profile of the 9 companies.

Criteria Avg. Std. Dev.

IT market time (years) 13,33 8,25

No. of IT-related professionals 140,22 155,34

No. of project managers 10,00 8,06

No. of developers 91,44 125,85

-- -- --

Software process is RUP-based 67% -

Management is PMBOK-based 100% -

Table 2: Perceived benefits in performing the integrated

planning of managerial and productive activities.

Question %

Reduction in time during the project’s

elaboration process.

58%

Identification of the dependencies between the

management supporting activities and the

production activities.

100%

Identification and measuring of the indirect

costs of the project, due to the management

support activities.

67%

Access to enterprise workflow information. 40%

The capacity of avoiding distortions during

planning when support activities are involved.

100%

5.1 Survey Results

An initial analysis of the questions regarding the

profile of the companies reveals that almost 67% of

them adopt some kind of RUP-based software

development process. Also, all of them adopt (fully

or at some level) the concepts found on the PMBOK

Guide in their projects. This confirms another aspect

of the questionnaire, which reveals that 100% of the

subjects received formal project management

training and, thus, indicates all subjects are qualified

to use the SPIM model.

In addition to the professional experience of the

subjects, the average experience on project

management was 5.04 years, ranging from 1 to 12

ICEIS 2008 - International Conference on Enterprise Information Systems

Table 3: A set of validation rules from the SPIM model and their evaluation by the managers.

Rule Average Std. Dev.

1 Any given activity cannot create, modify or consult one same artifact at a given time.

These operations must be made by distinct activities.

3.75 0.75

2 Managerial and management supporting activities cannot produce or modify productive,

but only managerial work products. They can still consult productive work

products, though.

4.42 0.79

3 Productive activities cannot produce or modify managerial work products, but only

productive work products. They can still consult managerial work products, though.

4.42 0.79

4 Any given activity is only allowed to consult or modify a work product that has already

been created by a preceding activity.

4.08 0.90

5 The role of the stakeholder associated to an activity must be compatible to the type of the

activity (productive or managerial).

4.25 0.87

6 The value of informing the related guidance, whether productive or managerial, for each

activity.

3.83 1.03

7 Managerial and management supporting activities must have at least one management-

related stakeholder fulfilling their roles.

4.50 0.67

8 A productive activity must have at least one productive-related stakeholder fulfilling

its roles.

4.42 0.67

(3.43 standard deviation; half of the sample being

superior to 7 years). This indicates a wide range of

experience regarding project management of the

subjects. Together with the information of formal

project management training, this data seems to

explain the fact that 58% of the sample declared

their experience in project management as

“advanced” while the remaining 42% declared it as

being “moderate”. Besides, 83% of the subjects

measured their knowledge on RUP as “moderate” or

“advanced”.

We begin the analysis of the SPIM model with

the respondents’ evaluation of the direct benefits in

performing the integrated planning of managerial

and productive activities in a software project. The

results are shown in Table 2.

According to the second and the last rows in

Table 2, all managers found that the integrated

planning allows the identification of the hidden

dependencies between the management supporting

activities and the production activities, while

avoiding frequent distortions in the planning of the

projects due to the uninformed use of resources from

the management supporting activities.

Moreover, some interviewees mentioned the

possibility of keeping compliancy with the

development and organizational processes, as well

as the advantage of prior identification of the timing

some activities demand for avoiding schedule slip of

dependent productive activities.

Respondents evaluated each of the 8 selected

rules according to the following ordinal scale: 1-

none, 2-low, 3-moderate, 4-high and 5-very high

(Table 3). The general average value for the selected

rules was 4.20, which suggests a great level of

acceptance of the rules proposed in the SPIM model.

In addition, this number increases to 4.47 if we

consider only managers who have more than 7 years

in project management experience.

In spite of the high scores, rules #1 and #6 were

considered as providing the lowest benefits among

all the rules (respectively, 3.75 and 3.83, which can

be interpreted as “near to high”). In the other hand,

rules #2, #3, #7 and #8 had the highest average score

for all the rules, near to 4.5 points, so as being

recognized as the most favorable ones. The rules that

have shown the lowest disparity in the answers

where #7 and #8, resulting in a standard deviation

value of 0.67. The rule associated with the highest

divergence in opinions was #6, which considers the

activity’s guidance. These numbers reveal the

relative importance of all the issues that must be

considered when performing the verification of the

project’s plan in accordance to the model and should

indicate which items demand more specific concern.

The visibility of management supporting

activities together with the activities in the software

project (whether productive of managerial) was also

identified as a strong benefit of SPIM by 58.33% of

the interviewees. When questioned whether or not

they agreed on the distinct nature of the three types

of activities, all of the respondents answered they

considered the distinction of the three activities a

very important aspect. Besides, all respondents also

agreed that the obscurity in identifying management

supporting activities during project planning can

negatively affect the project. It is important to note

that all questions were answered without the

intervention of the interviewer.

AN INTEGRATED MODEL FOR MANAGERIAL AND PRODUCTIVE ACTIVITIES IN SOFTWARE

DEVELOPMENT

In reply to an open question, some managers

mentioned the ease of validating some of the rules

directly from the project planning tool as an

important factor in SPIM. In reply to another open

question, nearly 60% of the respondents mentioned

the fact that many times the project manager only

perceives the need to have asked another department

some information earlier in time just at the very

moment the team must execute a project’s activity

that depends on that other department (e.g. acquiring

new equipment or hiring a new programmer are

common examples). These observations confirm the

relevance in building this integrated model.

As a final consideration, all the interviewed

project managers found that the SPIM model

contributes in identifying the dependencies of the

activities between the project flow and the support

management flow, which allows the prediction of

the needs that come upon the organizational support

areas during the planning of the project, resulting in

a more accurate plan and schedule.

The results collected in the survey reaffirm the

benefits the SPIM model provides in solving the

problems related to the inadequate definition of tasks

(increase in cost and delays in projects, for instance)

due to the obscurity in visualizing the

interdependency between the organization’s and

project specific workflows.

6 CONCLUDING REMARKS AND

FUTURE WORK

This paper presented a proposal to integrate the main

concepts of the PMBOK to a model of software

development process (in this case RUP). First, we

have identified the importance of project

management activities during a software

development project. Then we noticed the lack of

information on management practices in most

software development processes used nowadays.

After an individual analysis of each base model, we

proposed a model that covers both perspectives into

a single integrated model. Later, we have analyzed

the results from a series of interviews with

experienced project managers, based on a real tool.

This work contributes with some interesting

findings that reaffirm the goal of designing a support

tool that help software project managers in planning

software development projects. We believe that is

possible to extend this integration model to other

software development processes because, in

accordance to (Sommerville, 1995), different models

of software development processes share

fundamental concepts. A previous study of

integration involving the OPEN process framework

(in place of RUP) also reiterates the applicability of

the model. The next steps include the generalization

of this approach to other software process models, as

well as the development of a multi-criteria resource

selection mechanism for software projects.

REFERENCES

Beck, K., 2004. Extreme Programming Explained:

Embrace Change. Addison-Wesley, 2

edition.

Burke, R., 2001. Project Management: Planning and

Control Techniques. John Wiley & Sons, 3

edition.

Callegari, D., Bastos, R., 2007. Project Management and

Software Development Processes: Integrating RUP

and PMBOK. In ICSEM - International Conference on

Systems Engineering and Modeling, IEEE, pp. 1-8.

Graham, I., Henderson-Sellers, B., Younessi, H., 1997.

The OPEN Process Specification. Addison-Wesley.

Henderson-Sellers, B., Dué, R., Graham, I., Collins, G.,

2000. Third generation OO processes: a critique of

RUP and OPEN from a project management

perspective. In ASPEC - Seventh Asia-Pacific

Software Engineering Conference, pp. 428-435.

Henderson-Sellers, B., Collins, G., Dué, R., Graham, I.M.,

2001. A Qualitative Comparison of Two Processes for

Object-Oriented Software Development. In

Information and Software Technology, vol. 43, no. 12.

Hundhausen, R., 2005. Working with Microsoft Visual

Studio 2005 Team System. Microsoft Press.

Jacobson, I., Booch G., Rumbaugh, J., 2001. The Unified

Software Development Process. Addison Wesley.

Kerzner, H., 2000. Applied project management: best

practices on implementation. USA: Wiley & Sons.

Kruchten, P., 2000. The Rational Unified Process: An

Introduction. Addison-Wesley, 2

edition.

Pressman, R., 2001. Software Engineering: a

practitioner's approach. McGraw-Hill, 5

edition.

PMI - Project Management Institute., 2000. PMBOK

Guide: A Guide to the Project Management Body of

Knowledge, 3

edition.

Rea, L. M., Parker, R., 2005. Designing and Conducting

Survey Research: A Comprehensive Guide. Jossey-

Bass, 3

edition.

Rehman, A., Hussain, R., 2007. Software Project

Management Methodologies/Frameworks Dynamics

"A Comparative Approach". In ICIET – Internatinal

Conference on Information and Emerging

Technologies, Karachi, Pakistan, pp. 1-5.

Schwalbe, K., 2002. Information Technology Project

Management, Thomson Learning. Canada, 2

edition.

Sommerville, I., 1995. Software engineering, Addison-

Wesley. 5

edition.

ICEIS 2008 - International Conference on Enterprise Information Systems
