A METADATA-DRIVEN APPROACH FOR ASPECT-ORIENTED

REQUIREMENTS ANALYSIS

Sérgio Agostinho, Ana Moreira, André Marques, João Araújo

CITI / Departamento de Informática, Universidade Nova de Lisboa, 2829-516 Caparica, Portugal

Isabel Brito

Dep. de Engenharia, Instituto Politécnico de Beja, 7800-050 Beja, Portugal

Ricardo Ferreira, Ricardo Raminhos, Jasna Kovačević, Rita Ribeiro

UNINOVA – Instituto de Desenvolvimento de Novas Tecnologias, 2829-516 Caparica, Portugal

Philippe Chevalley

ESA/ESOC P.O. Box 299, 2201 AZ Noordwijk, The Netherlands

Keywords: XML, Metadata Repository, Aspect-Oriented Software Development, Requirements Analysis, Early

Aspects.

Abstract: This paper presents a metadata-driven approach based on aspect-oriented requirements analysis. This

approach has been defined in cooperation with the European Space Agency in the context of the “Aspect

Specification for the Space Domain” (ASSD) project. ASSD aims at assessing the applicability and

usefulness of aspect-orientation for the space domain (ground segment software projects in particular),

focusing on the early stages of the software development life cycle. This paper describes a rigorous

representation of requirements analysis concepts, refines a method for handling early aspects, and proposes

a client/server architecture based on a metadata repository.

1 INTRODUCTION

Aspect-Oriented Software Development (AOSD)

aims at providing improved modularisation and

composition techniques to handle crosscutting

concerns (Kiczales et al., 1997). Crosscutting

concerns are encapsulated in separate modules,

called aspects, and composition (or weaving)

mechanisms are later used to weave them back to the

base modules.

The ASSD approach proposed in this paper is an

application of the metadata concepts introduced in

previous work (Marques et al., 2007). The approach

itself is a refinement of the Aspect-Oriented

Requirements Analysis (AORA) framework (Brito

& Moreira, 2003a, 2003b), a pioneer method in the

domain. The ASSD approach addresses the

identification, separation, representation and

composition of crosscutting concerns at the

requirements level. This early identification can

provide a way to take into account options, tradeoffs

and other decisions before the implementation or

even the architectural design is derived.

The architecture and client tools that provide an

actual concretization of the ASSD method are a

refinement of previous work (Ferreira, Raminhos &

Moreira, 2005). The architecture of the system relies

on a Metadata Repository (Ferreira, Moura-Pires,

Martins & Pantoquilho, 2005; Ferreira & Moura-

Pires 2007) for supporting the approach definitions,

to automatically generate specific documentation,

and to provide the means for creating reusable

catalogues (Chung, Nixon, Yu, & Mylopoulos,

2000).

This paper is organized as follows. Section 2

introduces the ASSD project and the base concepts

that support the approach. Section 3 describes the

129

Agostinho S., Moreira A., Marques A., Araújo J., Brito I., Ferreira R., Raminhos R., Kova

cevi

c J., Ribeiro R. and Chevalley P. (2008).

A METADATA-DRIVEN APPROACH FOR ASPECT-ORIENTED REQUIREMENTS ANALYSIS.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - ISAS, pages 129-136

DOI: 10.5220/0001684101290136

 SciTePress

ASSD model including the automatic document

generation. Section 4 discusses the architecture

implemented, i.e., infrastructure and client tools.

Section 5 reports related work in the area and

Section 6 discusses the case studies used in the

validation of ASSD and draws some conclusions.

2 ASSD PROJECT AND MAIN

CONCEPTS

The ASSD project (UNINOVA, 2007) aims at

assessing the applicability and usefulness of aspect-

orientation, focusing on the early stages of the

software development life cycle. The project was

developed for ESA in the scope of space domain,

ground segment systems in particular, namely ESA

Contract 19556/06/NL/JD/na.

ASSD was tested with two operational projects

of the ground segment which followed a

“traditional” object-oriented requirements analysis

for their specification. A previous version of the

Metadata Repository employed in the ASSD

architecture was also analysed using the ASSD

method. In order to exemplify some of the ASSD

system functionalities and graphical capabilities the

performed aspect analysis for the Metadata

Repository component will be briefly described. A

full analysis of this software component is outside

the scope of the paper due to space limitations.

The ASSD approach is supported by XML

technologies, namely XML Schema, which is used

in the rigorous and non-ambiguous representation of

supporting metadata concepts: Stakeholder,

Stakeholder Requirement, System Requirement,

Concern, Decomposition Node, System, and Test

Case (Figure 1).

A Stakeholder describes an entity (e.g. person,

company, university) responsible for defining the

main capabilities (Stakeholder Requirements) of a

software application, usually during elicitation

meetings. The concept’s metadata is mainly

descriptive regarding the contacts of the entity, e.g.

address(es) and email(s).

A System Requirement refers to a technical

requirement that allows an efficient mapping

between a possible non-technical Stakeholder

Requirement to a requirement that is non-ambiguous

in its interpretation and can be understood by the

development team. Depending on the elicited

Stakeholder Requirements, these may be collapsed

in one, or expanded in multiple System

Requirements. Both concepts contain prioritization

attributes that classify the requirement’s importance

within the devised System.

A Concern groups similar, or closely, related

System Requirements. A concern refers to a

property which addresses a certain problem that is of

interest to one or more stakeholders and which can

be defined as a set of coherent requirements. The

concern’s metadata contains a textual description,

specifies navigation relations to similar concerns and

some may have negative and positive contributions

to others. Since concerns may be as abstract as

required (e.g. Security, Performance), concerns can

be decomposed based on the definition of

Decomposition Node. The Decomposition Node

concept is used to define a tree-based structure

where the root node indicates a possible

operationalization – an actual concretization of a

possible abstract concern (Chung et al., 2000) – and

where each child node indicates a refinement for that

node. Simple logic operators may be used for

defining the operationalization tree.

System

Stakeholder

Decomposition

Node

Concern

System

Requirement

Stakeholder

Requirement

Test Case

Figure 1: Concept’s main relations.

The System concept represents an abstraction

for a real software application or component,

functioning as an integrator concept within ASSD; it

joins together information about the concerns the

application responds to, the stakeholders involved

and the concern priorities defined by each

stakeholder. Other metadata describes the context in

which the system is applicable, the consequences

resulting from the system usage and presents a set of

examples whether the system had been previously

applied with success. Furthermore, the System

concept holds information describing how the

system will be tested and validated using the Test

Case concept.

A Test Case defines the tests to be performed to

guarantee that the System Requirements and

Stakeholder Requirements have been correctly

ICEIS 2008 - International Conference on Enterprise Information Systems

130

implemented. It specifies the profile for the tester as

well as the requirements that shall be validated by

the test execution. In spite of being successfully used

in the project, this concept is out of the scope of

early aspects, and therefore it is no further discussed

in this paper.

The main relations for the proposed concepts

are depicted in Figure 1, where each arrow

represents a reference relation. The System concept,

representing a collection of interacting and

interrelated elements, links together Concern,

Stakeholder, Stakeholder Requirement and System

Requirement, making all system dependent

information stored in the main System concept. All

references linking the System concept to the

independent concepts are intended to promote

reusability.

3 PROPOSED APPROACH

The proposed ASSD approach model is composed

by the following tasks. The development approach is

iterative. The main tasks and respective subtasks are

explained in the next sub-sections. This model is an

evolution of AORA, with some differences and

extensions that are explained at Section 5. The

resulting specification from the proposed approach

is stored in an XML-based Metadata Repository

(Ferreira & Moura-Pires, 2007). XML was chosen as

the document format since it provides flexibility to

represent any kind of information.

3.1 Identify Stakeholders

and Requirements

The analyst obtains stakeholders and their

requirements from the provided documentation and

interview transcripts with the involved entities in the

project.

Identify Stakeholders. A stakeholder may be any

person, organization and application with an interest

in the system. Stakeholders may have different roles;

those with a direct interaction with the system

correspond to UML Use Case actors.

Identify Stakeholder Requirements. Stakeholders

define their requirements for the system, which

should be addressed and implemented by the

developers. Requirements can be classified

according to Sommerville (2006) and have assigned

priorities, using the MoSCoW rules (Stapleton,

1997). These artefacts are usually referred in the

literature as “user requirements”.

3.2 Elicit System Requirements

System requirements detail the services provided by

the system and also the constraints that the system

must satisfy. They are classified according to their

visibility (internal or public to the analysis and

development teams), and have a priority. A system

requirement may comply with one or more

stakeholder requirements and a stakeholder

requirement may comply with one or more system

requirements. These requirements are summarized in

a System Requirements Document (Sommerville,

2006) that serves as a contract between developer

and client. It is a good practice to fulfil all

Stakeholder Requirements with at least one System

Requirement, unless properly justified. This

mapping is sometimes expressed in a requirements

traceability matrix.

3.3 Identify Concerns

This task is divided in two parallel steps: Elicit

concerns, and Reuse catalogues. Concerns are

elicited based on the understanding of the system

domain, interview transcripts and existing

documentation. Concerns can be specialized into

sub-concerns, if necessary, and classified as

functional or non-functional (Sommerville, 2006).

To promote reusability, the use of concerns

catalogues (Chung et al., 2000), is proposed.

3.4 Specify Concerns

This task is divided into six sub-tasks. Most of the

analysis results will be based on the outcome of this

task.

Identify Responsibilities. Responsibilities are

knowledge or proprieties the concern must maintain

and offer. A concern without responsibilities

indicates that either the system requirements are

missing or that the concern is not needed in the

analysis.

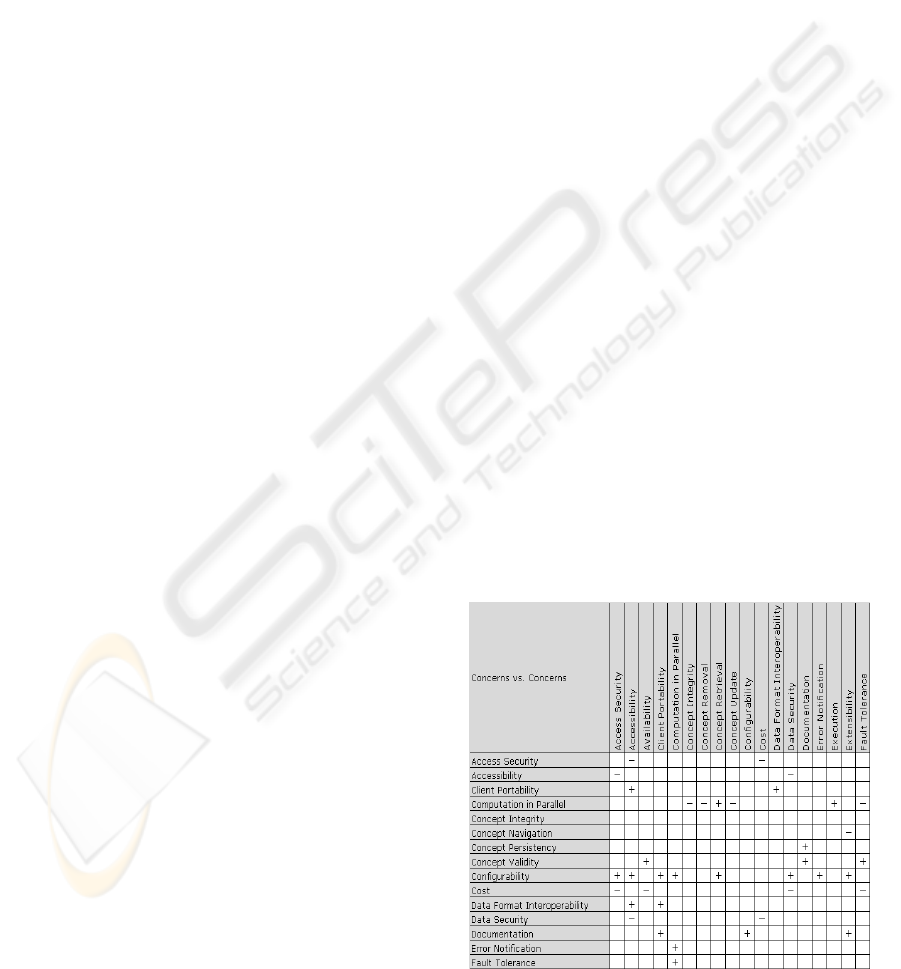

Identify Contributions. A concern may contribute

positively (‘+’) or negatively (‘-’) to another

concern, depending if it helps or damages (Wiegers,

2003). Contributions may be unidirectional, meaning

that if a concern has a negative contribution to

another concern, the inverse is not mandatory. If the

contribution from one concern to another one is

ambiguous, the concern shall be specialized or

decomposed in two or more sub-concerns to

describe each of the situations, and contributions

shall be set from these concerns to the target

concern.

A METADATA-DRIVEN APPROACH FOR ASPECT-ORIENTED REQUIREMENTS ANALYSIS

131

Identify Required Concerns. This step identifies

concern dependencies for functional concerns. For

example, if the “Update” concern requires the

“Persistence” concern, it is not possible to achieve

“Update” without “Persistence”. Two concerns

requiring each other indicate an analysis error, or

that perhaps they should be merged together.

Identify Stakeholder Priorities. Different

stakeholders may allocate different priorities to the

same concerns: Very Important, Important, Medium,

Low, Very Low, or Don’t Care – the default value.

Decompose Concerns. Functional concerns can be

decomposed, as in object-oriented or component-

based software development. Non-functional

concerns, on the other hand, can be decomposed

using a softgoal dependency graph (Chung et al.,

2000) with a set of softgoals or operationalizations.

When performing the system analysis, the choice of

which softgoals and operationalizations are to be

implemented is based on the graph analysis.

Build Concern Models. Concern models can be

built using UML 2.0. A simple set of rules help to

generate a use case diagram: (i) for each stakeholder,

map to an actor; (ii) for each functional concern,

map to an use case and link to the actors

(stakeholders) that have an interest on it; (iii) for

each “required” relationship, create an <<include>>,

<<extend>>, or <<constrain>> (for non-functional

concerns) relationship in the diagram; (iv) for each

concern decomposition, create a <<part of>>

relationship between the concern and its

decomposed concerns.

3.5 Analyse Match Points

The purpose of this task is to compose the concerns

to allow the identification and resolution of

conflicting situations. This task is supported by

automatically generated documentation from the

analysis specification.

Review Stakeholders. This review is made through

a table composed of three columns: Name,

Description, and Role, where the stakeholder related

information is presented.

Review Concerns. This review is accomplished

through the use of two tables, showing functional

and non-functional concerns. Both tables share three

columns: Name, Description, and Stakeholders. The

non-functional concerns table has an extra column,

Classification according to Stapleton (1997).

Concerns are grouped according to their hierarchy.

For concerns with a parent concern, the parent(s)

path of specialization is depicted, where “Security >

Performance”, for example, means that the concern

“Security” is specialized by the concern

“Performance”, following the same convention as

OCL.

Review Concern Contributions. A table “concerns

vs. concerns” is built to provide a global view of the

concerns contributions. This table can be simplified

by pruning the unused rows and columns, but even

doing that, in some cases it may not be a scalable

visualization. For these cases, it is preferable to view

this information using lists. An example is shown in

Figure 2 for a test case.

Review Required Concerns. To achieve this, a

table “concerns vs. required concerns” is proposed.

Again, a scalability problem may occur, so it is also

proposed to use lists as an auxiliary visualization of

this content. A cell with a checked mark (“√”)

means that the concern in the row requires the

concern in the column.

Identify Crosscutting Concerns. A concern is

crosscutting if it is required by more than one

concern. Crosscutting concerns, or candidate

aspects, represent functionalities and constraints that

are scattered among other concerns. These can be

mapped into architectural design choices, functions

or implementation aspects (Rashid, Moreira &

Araújo, 2003).

Identify Match Points. A match point is a set of

concerns that need to be composed together to

accomplish certain functionalities. In a match point,

one of the concerns plays the role of base concern to

which the behaviour of the remaining concerns

needs to be weaved. Match points are specified

based on the required relationship between concerns

in the Specify Concerns step. This task is performed

by (i) produce a list of match points and their

respective concerns; (ii) analyse match points table

with concerns and stakeholder priorities.

Figure 2: Concern contributions for a test case.

ICEIS 2008 - International Conference on Enterprise Information Systems

132

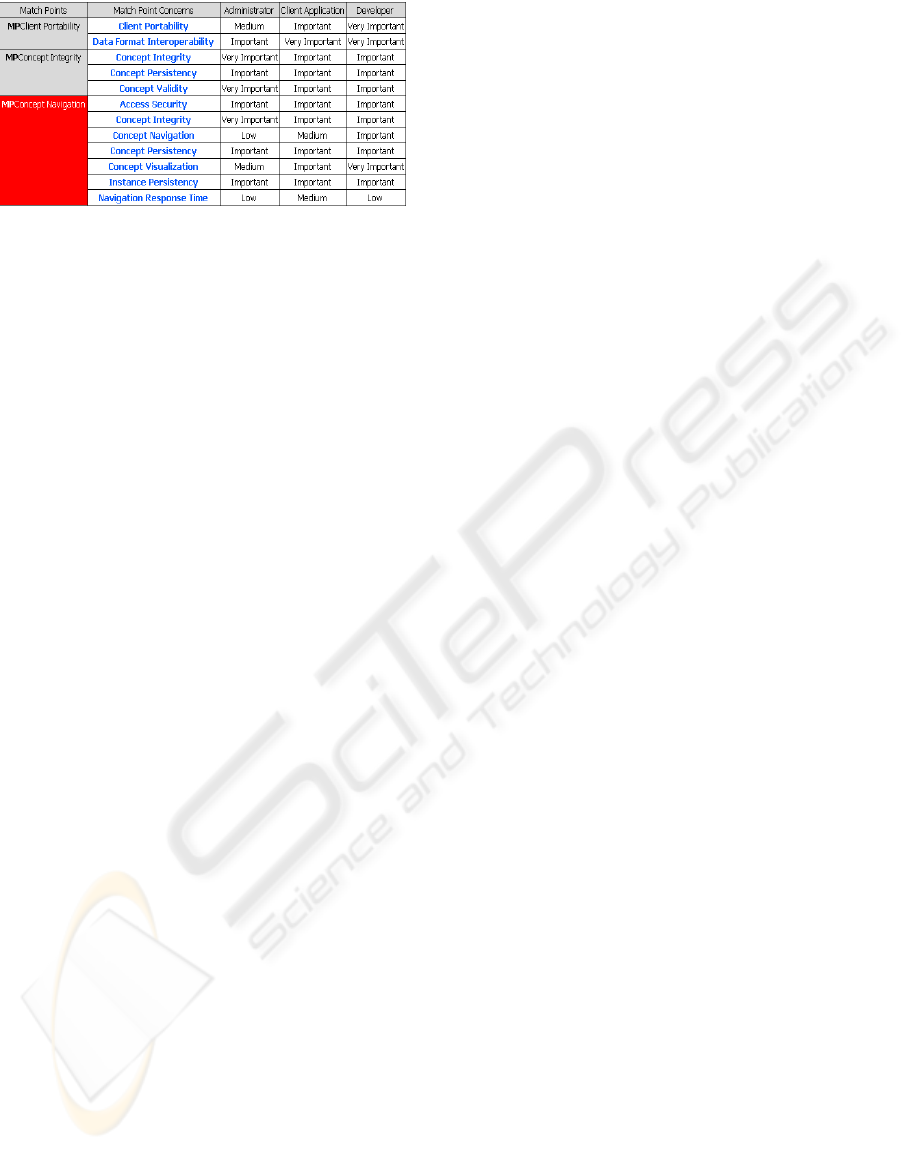

Figure 3: Match points identified for a test case.

Identify Conflicts. A conflicting situation is

detected whenever two or more concerns that

contribute negatively to each other need to be

composed into the same match point. Conflicts can

be classified according to their severity: simple

resolution conflicts (if their stakeholder priorities are

different) and requiring negotiation conflicts (if the

stakeholder priorities for the concern are the same).

For conflicts requiring negotiation, the stakeholders

must agree on the dominant concern. This is

analysed at two levels: concern and stakeholder. As

such, a list of match points and respective conflicts

is produced, at both levels of analysis. Additionally,

the match point identification table is used to

identify the conflicts, by highlighting the match

points and concerns that are involved in conflicts

(yellow for conflicts of simple resolution and red for

conflicts requiring negotiation). An example is

shown in Figure 3.

List unused Concerns. This is an analysis

validation step to identify concerns that do not

participate in any relation.

3.6 Analyse Requirements Traceability

With this document an analyst can perform the

following.

Review Stakeholders. This is analogous to the

Analyse Match point step.

Review Stakeholder Requirements. This step

produces a table showing the stakeholder

requirements in the system.

Review system requirements. Build a table that

shows the system requirements in the system.

Map Concerns. Produce a list of concerns to system

requirements mappings. Concerns that are not

mapped into any system requirement are highlighted

in yellow. The analyst should take those into

account, as they may be unnecessary for the system.

Map Stakeholder Requirements. Build a list with

the mappings from stakeholder requirement to

system requirements. Stakeholder requirements that

are not mapped into system requirements are

highlighted. The analyst should take this into

account, as those are an indication that the

stakeholders may not be fully satisfied with the

resulting system.

4 PROPOSED ARCHITECTURE

The Metadata Repository provides a framework

where the knowledge of the analysis can be stored,

queried and validated (Ferreira et al, 2005; Ferreira

& Moura-Pires, 2007). This framework facilitates

the construction of tools to support the approach

described in the previous section, providing a user

interface for structuring knowledge, detecting

inconsistencies, validating the user input, and

generating documentation. By using XML

internally, the proposed tools can store all the

analysis specification in the Metadata Repository,

guaranteeing its validation, and taking advantage of

the automatic document generation capabilities of

the repository (as exemplified in sections 3.5 and

3.6).

A high-level architecture of the system consists

into three main components: the Metadata

Repository, the Client tools, and a Concern

Catalogue (Chung et al., 2000). Future tool or

services’ extensions can be developed through the

use of External Applications.

4.1 Metadata Repository

Information Model and Technologies. The

Metadata Repository stores information of various

types, each one classified according to a certain

terminology. Each type of information is considered

as a different layer, as shown in

Figure

The lowest abstraction level (zero level) refers to

the source objects in a certain reality, being either

physical or non-physical (e.g., persons, or

information stored in a database). These objects are

considered external, therefore not being represented

in the Metadata Repository. In this work, the objects

are the systems to be analysed according to the

proposed approach.

The first level defines models for the previous

level. A model is a finite description of a source

object for a specific purpose. In the Metadata

Repository context, models are called instances and

are represented by XML documents, where relations

can be established to other instances by using a

specific syntax. Examples can be Stakeholders (e.g.

A METADATA-DRIVEN APPROACH FOR ASPECT-ORIENTED REQUIREMENTS ANALYSIS

133

“Owner”, “Developer”), concerns (e.g.

“Performance”, “Security”) or systems.

The second level defines metamodels for the

various types of models in the first level. In the

Metadata Repository, metamodels are called

concepts and are defined using XML Schema and

SchemaTron. Therefore, a concept is the definition

of a structured language that describes a certain type

of instances, as presented in Section 2.

The third level defines meta-metamodels that

describe style rules and common structure

definitions for all metamodels in the second level. In

the Metadata Repository these are called rules and

include styling and predefined structures to be used

in every concept, for concept structure consistency

and standardization.

Objects

Instances

Concepts

Rules

Technologies

Java

Schematron

XML Schema

Schematron

XML

Figure 4: Metadata Repository technologies and

abstraction levels.

The Metadata Repository supports a set of basic

functionalities for storing and querying metadata

information, and a simple interface for easy

integration among external systems. Additional

features, like instance relations and versioning,

provide added functionality and capabilities to the

repository.

Storage. The Metadata Repository stores both

instances and concepts. As these are represented as

XML and XML Schema documents, they are stored

in eXist, a native XML database

(http://exist.sourceforge.net).

Validation. Validation is an important task for

maintaining coherence in the repository.

Concepts

and instances are validated according to their syntax

and structure, and reference integrity is checked.

Instance Relations. The Metadata Repository

supports relations among instance versions, keeping

and ensuring integral referencing, i.e. the target

instance version of a relation always exists.

Querying. Once metadata is stored in the repository,

querying mechanisms are provided to retrieve

metadata in various formats. By using XQuery, it is

possible to write queries to be performed over the

stored instances and/or concepts by the definition of

an output document, being possible to return XML

or non-XML results, as shown in Figure 5. If the

query results are XML, it is possible to transform

them into other formats by using either a single

XSLT (Transform), or a sequence of XSLT

(Transform Pipeline). These are commonly used to

generate HTML documentation from the query

results.

eXist

XML

Database

Query

(XQuery)

XML

TXT /

HTML /

other

Query

(XQuery)

Transform

(XSLT)

XML /

HTML /

other

Transform

Pipeline

(XSLT[1])

XML

XML /

HTML /

other

...

Transform

Pipeline

(XSLT[n])

Figure 5: Metadata Repository querying capabilities.

Web Service. The Metadata Repository interface is

a web service, providing a set of management

methods, invoked by client applications.

4.2 Client Tools

For user interface, a set of client tools is developed,

the Aspect Development Assistant Tools (ADAT).

The client tools architecture is based on previous

work (Ferreira et al. 2005) and include: (i)

Stakeholder Library, for maintaining and managing

the stakeholders to be used by the systems. (ii)

Concern Library, for maintaining and managing the

concerns to be supported by the systems. With this

application, concerns are defined system

independently so that they can be reused by several

systems (Chung et al., 2000). (iii) Decomposition

Library, for maintaining and managing the concern

decompositions, by creating reusable decomposition

graphs. (iv) System Editor, the main ADAT

application (screenshot in Figure 7). It maintains and

manages systems to be analysed by the proposed

approach, allowing the specification of stakeholders

and concerns from the Stakeholder Library and

Concern Library applications and defining

Stakeholder Requirements, and System

Requirements. This application also outputs analysis

documentation, as previously described.

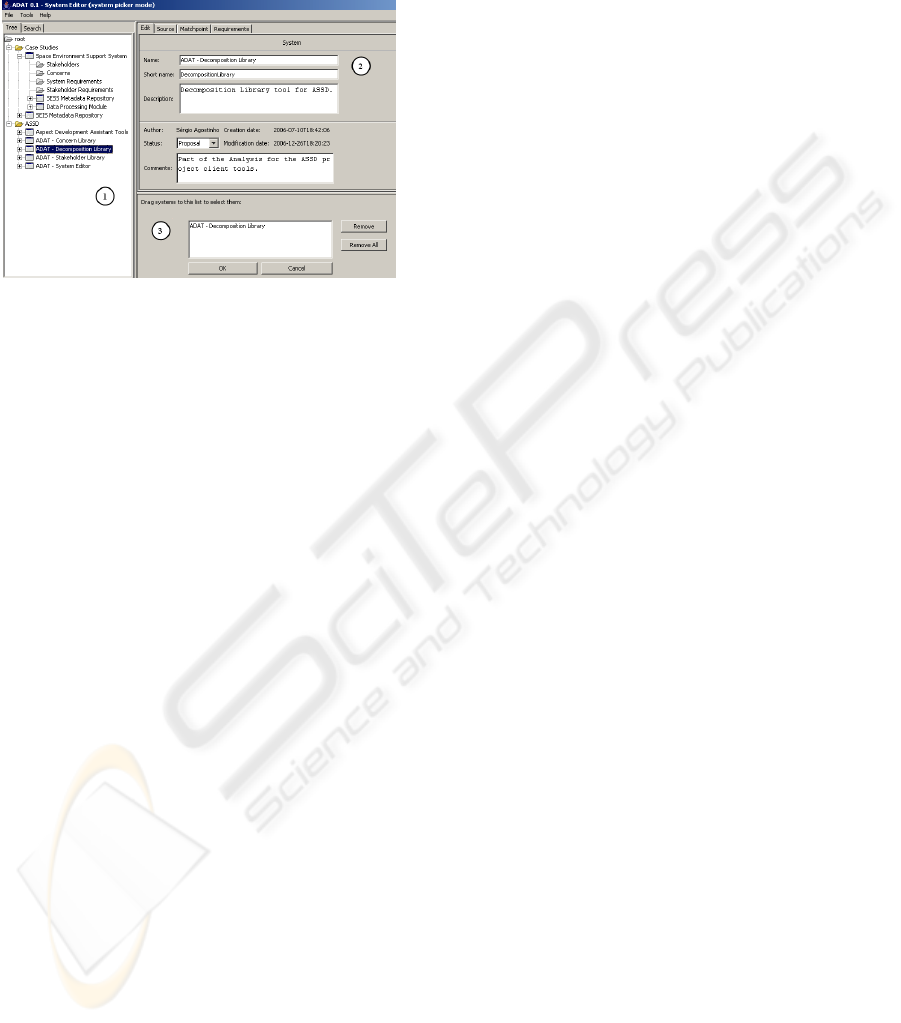

The client tools share a similar user interface, as

shown in Figure 6. Two panes compose it: the

navigation pane and the content pane, marked as 1

and 2 respectively. The navigation pane (1) contains

two tabs: the tree tab and the search tab. The tree tab

allows navigating through the grouper and instance

nodes, allowing node expansion and access to the

available features for the corresponding instance

type. The search tab allows finding instances by

their descriptive fields. The selected item in the

ICEIS 2008 - International Conference on Enterprise Information Systems

134

navigation pane is visualized in the content pane (2).

This pane allows several tabs, depending on the

current application and node type. Although usually

the tabs correspond to edition forms, they can also

have source XML and analysis output.

Figure 6: ADAT layout.

5 RELATED WORK

This work presents an extension to the AORA

approach (Brito & Moreira, 2003a, 2003b) and a

software engineering tool to support it. Similar work

has been done before with the creation of the AORA

tool, for supporting an early version of the AORA

methodology (Brito, Moreira & Araújo, 2006). The

work described in this paper can be considered as an

extension to it, since it presents a more complete

approach, covering stakeholder and system

requirements, and an enhanced set of tools to

support it. The ASSD model differs on the AORA

model regarding some extensions and changes: (i)

concepts were added for requirements and tests; (ii)

parent relations were added to some concepts,

allowing the formation of hierarchies; (iii) the

Review requirements step was added, allowing

requirements traceability analysis; (iv) concern

contributions are unidirectional, instead of

bidirectional.

The approach proposed by Rashid et al. (2003)

uses templates to represent candidate aspects and to

show the impact of concerns over others and is

based on separating the specification of aspectual

requirements, non-aspectual requirements and

composition rules in modules representing coherent

abstractions and following well-defined templates.

The approach is supported by a tool called ARCaDe.

The Theme approach provides support for

aspect-oriented development at analysis and design

levels (Baniassad & Clarke, 2004). At the analysis

level, Theme/Doc is carried out by first identifying a

set of actions in the requirements list which are, in

turn, used to identify crosscutting behaviours. At the

design level, Theme/UML allows a developer to

model features and aspects of a system, and specifies

how they should be combined.

Our approach differs from the above approaches

by offering a more complete concern template and a

tool that help tracing the concerns from requirements

to the specification, composition of concerns,

management of changes of concern specifications

and compositions, and a concern repository within a

project. Regarding Theme, it does not offer a well-

defined concern specification language neither does

it offer the possibility of composing themes together

to study the impact of each crosscutting concern on

the system. Moreover, Theme does not offer a

concern repository.

6 CONCLUSIONS AND FUTURE

WORK

The ASSD project presented an approach that has

successfully applied to real-world case studies that

were validated by DEIMOS Space

(http://www.deimos-space.com/). The software

architecture and client tools were validated by

EADS Test & Services (http://www.ts.eads.net/).

The analysis on the case studies was performed

iteratively with the design of the approach, allowing

its improvement and consequently obtaining

interesting results in the case studies, such as the

detection of some trade-offs that had to be

performed. However, since the case studies were

nearly complete projects, it was not possible to

integrate the approach in their full development

cycle; a task that would allow further validation of

the approach. The use of a Metadata Repository

solution for managing knowledge, ensuring its

validation, consistency and providing querying

mechanisms is a major advantage comparing with

traditional documentation supports.

REFERENCES

Baniassad E., & Clarke S. (2004). Theme an Approach for

Aspect-Oriented Analysis and Design. International

Conference on Software Engineering, Edinburgh,

Scotland.

Brito, I., & Moreira, A. (2003a). Advanced Separation of

Concerns for Requirements Engineering. VIII

Jornadas de Ingeniería de Software y Bases de Datos

(JISBD), Alicante, Spain.

A METADATA-DRIVEN APPROACH FOR ASPECT-ORIENTED REQUIREMENTS ANALYSIS

135

Brito, I., & Moreira, A. (2003b). Towards a Composition

Process for Aspect-Oriented Requirements. Early

Aspects 2003: Aspect-Oriented Requirements

Engineering and Architecture Design, AOSD 2003,

Boston, USA.

Chung, L., Nixon, B., Yu, E., & Mylopoulos, J. (2000).

Non-Functional Requirements In Software

Engineering. Kluwer Academic Publishers.

Ferreira, R., Moura-Pires, J., Martins R., & Pantoquilho,

M. (2005). XML based Metadata Repository for

Information Systems, 12th Portuguese Conference on

Artificial Intelligence (EPIA 05), Portugal.

Ferreira, R., Raminhos, R., & Moreira, A. (2005).

Metadata Driven Aspect Specification. ACM/IEEE 8th

International Conference on Model Driven

Engineering Languages and Systems, Montego Bay,

Jamaica.

Ferreira, R., & Moura-Pires, J. (2007). Extensible

Metadata Repository for Information Systems and

Enterprise Applications. 9th International Conference

on Enterprise Information Systems (ICEIS), Funchal,

Portugal.

Kiczales, G., Lamping, J., Mendhekar, A., Maeda, C.,

Lopes, C. Videira, Loingtier, J.-M., & Irwin, J. (1997).

Aspect-Oriented Programming. European Conference

on Object-Oriented Programming (ECOOP), Finland.

Marques, A., Raminhos R., Ferreira, R., Ribeiro R.,

Agostinho S., Moreira, A., & Araújo J. (2007).

Aspect-Oriented Analysis Applied To The Space

Domain. 9th International Conference on Enterprise

Information Systems (ICEIS), Madeira, Portugal.

Rashid, A., Moreira, A., & Araújo, J. (2003).

Modularisation and Composition of Aspectual

Requirements, AOSD 2003, Boston, USA.

Sommerville, I. (2006). Software Engineering (8th

edition). Addison-Wesley.

Stapleton, J. (1997). Dynamic Systems Development

Method. Addison-Wesley.

UNINOVA (2007). ASSD – Aspects Specification for the

Space Domain. Retrieved March 8, 2008 from

http://www2.uninova.pt/ca3/en/project_ASSD.htm.

Wiegers, K. (2003). Software Requirements (2nd edition).

Microsoft Press

ICEIS 2008 - International Conference on Enterprise Information Systems

136
