CAMEL

FRAMEWORK

A Framework for Realizing Complete Separation of Developer’s and Designer’s

Work in Rich Internet Application

Hiroaki Fukuda and Yoshikazu Yamamoto

Graduate School of Science and Techinology, Keio University

3-14-1, Kohoku-ku, Hiyoshi, Yokohama Kanagawa 223-8522, Japan

Keywords:

Framework, Rich Internet Application, Web Engineering, Software Engineering, Flex, Web Application.

Abstract:

This paper provides a framework called Camel which is able to separate developer’s and designer’s work

completely in developing Rich Internet Applications. In the last years, web becomes one of the most popular

methods to transfer information such as search contents, advertise information and online shopping. We

usually use an appropriate web application to achieve our requirement. In the development process of current

web applications, designers design interfaces of an application by using HTML, CSS, image and developers

not only implement business logics but also modify the interface for dynamic generation of HTML tags based

on the executed logic. Therefore, not only designers but also developers have to work every time when design

of the interface is changed.

This paper describes camel framework and its implementation, which is based on Flex, and then demonstrate

its usage and utility by implementing a real application.

1 INTRODUCTION

Web has become not only basic infrastructure to open

and refer information but also development platform

of all sorts of integrated business solutions. In the

last years, a large number of web applications exist

on the internet. Due to the increasing complexity of

these application, current web technologies are start-

ing to show usability and interactivity limits. The

user experience in thin-client web applications is not

comparable to desktop applications, responsiveness

is lower due to network overhead and unnecessary

round-trip server access, and disconnected usage is

not supported (Driver et al., 2005).

Rich Internet Application (RIA) has been recently

proposed in order to solve the problems of current

web applications described above (Duhl, 2003). They

provide sophisticated interfaces for representing com-

plex processes and data, while minimizing client-

server data transfer.

On the other hand, when we think about the devel-

opment process of current web applications, design-

ers design all interfaces by using HTML, CSS and at-

tractive objects (e.g., image, swf, movie). Meanwhile,

developers implements server-side logics that are in-

voked base on the requests from clients by server-side

technologies such as Java, PHP, ASP. In this process,

they have to modify codes of interfaces created by de-

signers in order to include logics for validation and/or

dynamic creation of HTML tags as a result of server-

side logics. Therefore, if a requirement to modify

the design of interface happens, not only designers

but also developers have to work for the modiﬁcation,

testing, and re-deployment.

This paper proposes a RIA framework, called

Camel, which can realize complete separation of de-

veloper’s and designer’s work in development pro-

cesses. It uses and extends Flex (Adobe Systems

Inc., 2007b), which is one of the RIA development

tools, and can separate client-side logics from inter-

face source codes, so that developers and designers

do not need share any source codes in an application.

In Flex, we basically have to specify event handlers

as an attribute of each interface component directly in

order to execute logics correspond to events that are

dispatched by user’s operations. However, Camel in-

jects logics into interface components dynamically at

runtime so that it can separate logics from interface

components completely by source code level. By us-

ing Camel framework, developers do not care about

the design of an application and can concentrate on

logic implementation.

This paper is organized as follows. We describe

the background and overview of RIA technologies in

137

Fukuda H. and Yamamoto Y. (2008).

CAMEL FRAMEWORK - A Framework for Realizing Complete Separation of Developer’s and Designer’s Work in Rich Internet Application.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - ISAS, pages 137-143

DOI: 10.5220/0001684401370143

 SciTePress

section 2. We then describe basic ideas of this frame-

work and related technologies in section 3. In addi-

tion, we explain the implementation of runtime sys-

tem and basic rules to use this framework in section

4 and application behavior in section 5. In section

6, We also show a real application implemented by

using this framework to show the usability and then

describe related work in section 7. In section 8, we

conclude by providing summary and discussing fu-

ture issues.

2 BACKGROUND

This section brieﬂy describes the background of this

framework.

2.1 Development Process

Web applications have become important tools for

companies to advertise themselves. In addition to the

usability of an application, interface design, includ-

ing base color, location of each component (e.g., im-

ages, swfs, movies), becomes important because it in-

ﬂuences user’s mind. Therefore in case of developing

a web application for consumers, designers design en-

tire interfaces and then developers implement logics.

We brieﬂy explain this process in Fig.1

1. Designers design each page as an image by using

appropriate tools (e.g., photoshop and illustrator).

2. Clients who order the website conﬁrm entire de-

sign and ask designers to modify some parts.

3. Once the entire design is ﬁxed, designers (or

HTML coders) divide the image based design into

each image object (e.g., titles, buttons and icons)

and then create HTML based interfaces.

4. Developers implement business logics.They have

to modify HTML based interface created by de-

signers to generate HTML tags dynamically.

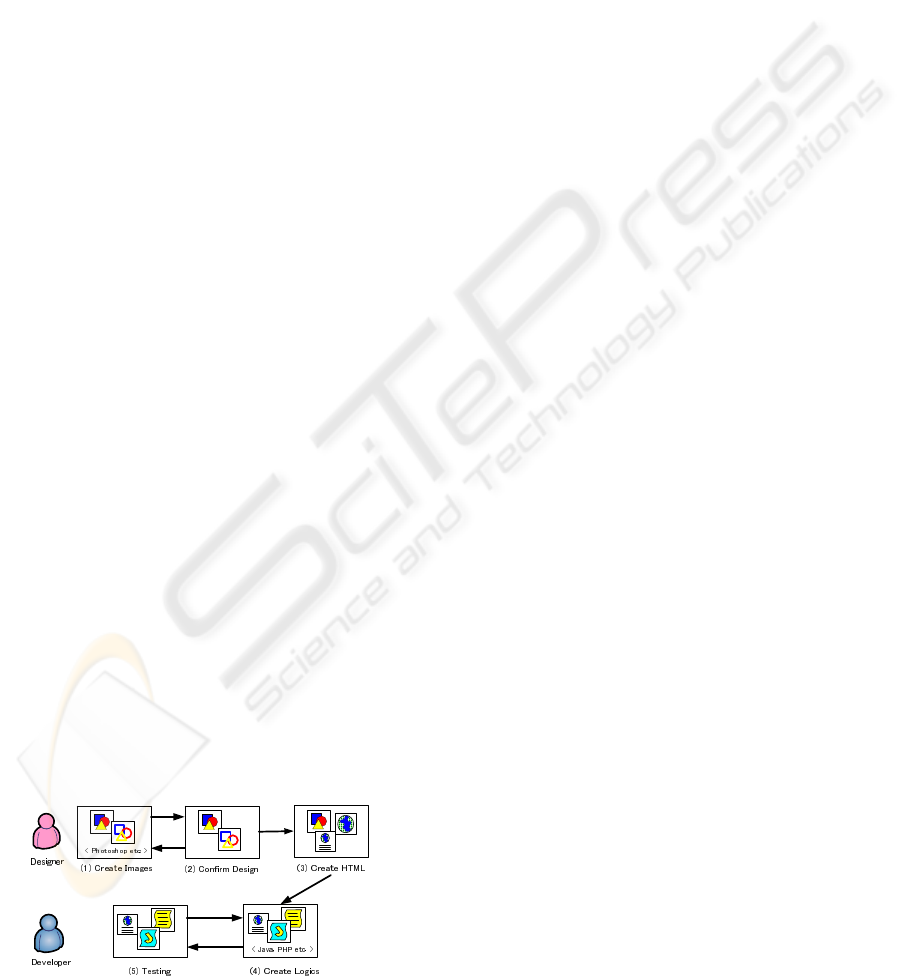

Figure 1: Development process of current web applications.

5. Developers make unit and/or integrated tests of an

applications. If they ﬁnd bugs in this process, they

go back to step 4 and ﬁx them.

Current web applications are implemented based

on MVC architecture, therefore, server-side logics are

independent from interfaces. However, developers

need to include program codes in HTML based in-

terfaces for generating appropriate HTML tags based

on the Model. This is a quite difﬁcult process for de-

velopers because HTML based interfaces created by

designers are difﬁcult to understand. Moreover, if the

clients require to modify the design after step 3, de-

signers and developers have to redo from step 2 to step

5. This takes quite a little cost and time, however, the

change of design or speciﬁcation during development

processes is usually happened because the client can

not image usability (including design) of the applica-

tion from the beginning. In the development process

of current web applications, it is impossible to sepa-

rate programs from interfaces completely. Therefore,

this limitation forces to share interface codes between

designers and developers.

2.2 Overview of RIA Technology

The term “Rich Internet Application” was introduced

in a Macromedia whitepaper(Allaire, 2002). Several

technologies have been proposed to support RIA de-

velopment and they can be classiﬁed into four cate-

gories as shown below

• Scripting based

The client side logic is implemented by script-

ing language such as JavaScript and interfaces are

based on traditional HTML and CSS.

• Plug-in based

Advanced rendering and event processing engine

should be installed as a browser’s plug-in (e.g.,

Flash,(Adobe Systems Inc., 2007a) Flex, Las-

zlo(Laszlo Systems Inc., 2007)).

• Browser based

Rich interaction is natively supported by some

browser that interpret declarative interface deﬁni-

tion language (e.g., XUL(Mozilla.org, 2007)).

• Web based desktop technology

Applications are downloaded from the web, how-

ever, executed outside the browser (e.g., Java

Web Start(Sun Microsystems Inc., 2007), Smart

Client(Microsoft Inc., 2007)).

2.3 Flex Framework

Flex is a framework released by Adobe Systems for

the development and deployment of cross platform

ICEIS 2008 - International Conference on Enterprise Information Systems

138

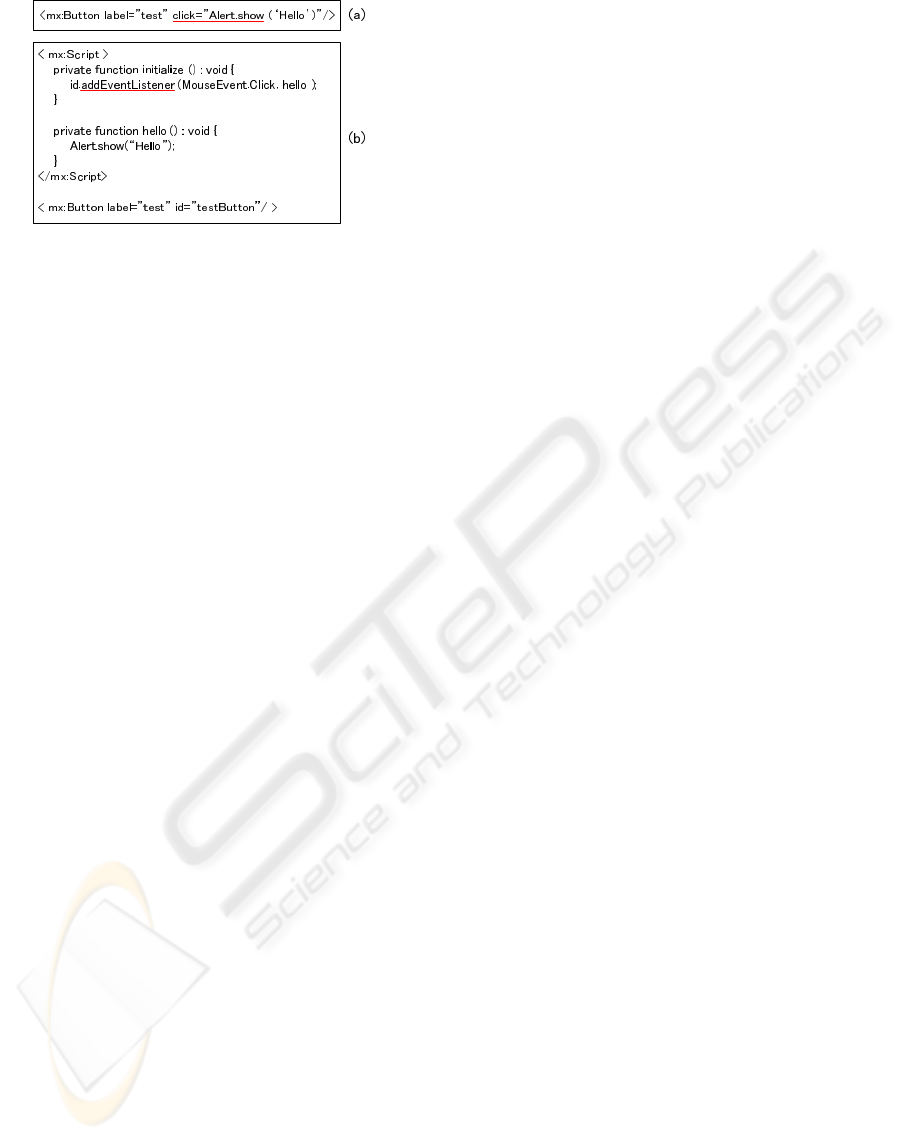

Figure 2: Flex Programming.

Rich Internet Applications based on Adobe Flash

platform. It has two languages named MXML and

ActionScript3.0 (AS3). MXML is a XML based lan-

guage that designers/developers use to deﬁne the in-

terface of an application. In the deployment process

of Flex applications, designers design interfaces with

MXML and images. In addition, developers imple-

ment client-side logics with AS3 and server-side log-

ics with server-side technologies.

3 APPROACH

This section brieﬂy outlines the basic concept of

Camel framework presented here.

3.1 Flex Programming Model

Applications created by Flex are working by event-

driven architecture. When the user interacts with the

interface, and also when important changes happen

in the appearance or life cycle of a component, such

as creation or destruction of a component or its re-

sizing, appropriate events are dispatched and event

handlers handle the events. In Flex, there are two

ways to associate events and event handlers. First, in

Fig.2(a), every MXML component owns its dispatch-

able events as attribute names and handler functions

which will handle the events are deﬁned as the val-

ues of attribute. Secondly in Fig.2(b), we use “addE-

ventListener” method for these associations. Every

MXML component has “id” attribute so that we can

identify each component and we can refer every com-

ponent by using value of “id”. Therefore as shown in

Fig.2(b), we can add a function as an event handler

to a component in which the ﬁrst argument represents

event name and the second is the reference of func-

tion. In addition, all processes are working on Flash

player in some browsers except RPC calls. When the

user require further information/data, an application

will get it from server via RPC components prepared

in Flex. When these components complete their pro-

cesses, they dispatch result/fault events, therefore, de-

velopers also add event handlers to handle the results.

3.2 Loosely Coupled Components

As we explained before, almost all web applications

are constructed by MVC (Model View Control) archi-

tecture to maintain their scalability and adaptability.

Therefore, Flex applications should be constructed by

the same architecture. In MVC architecture, View

will be changed based on the values of Model, that

is, there is strong dependency between them. On the

other hand, Control will dispatch appropriate business

logics based on the type of received requests. We be-

lieve the dependency between logic and View should

be weak because a business logic can be dispatched

by several requests.

As we explained above, in traditional web appli-

cations, we can not separate View sources from logic

sources completely because of the strong dependency

between View and Model and there is no way to sep-

arate them in development and execution processes.

On the other hand, Camel makes it possible to sep-

arate View from other components e.g., Model and

logic in development processes and join them in ex-

ecution process introduced by dependency injection

concept explained next section.

3.3 Dependency Injection

Dependency injection (DI) aims to solve a particular

problem in designing and constructing data structures

dependent on other pieces of code. For example in

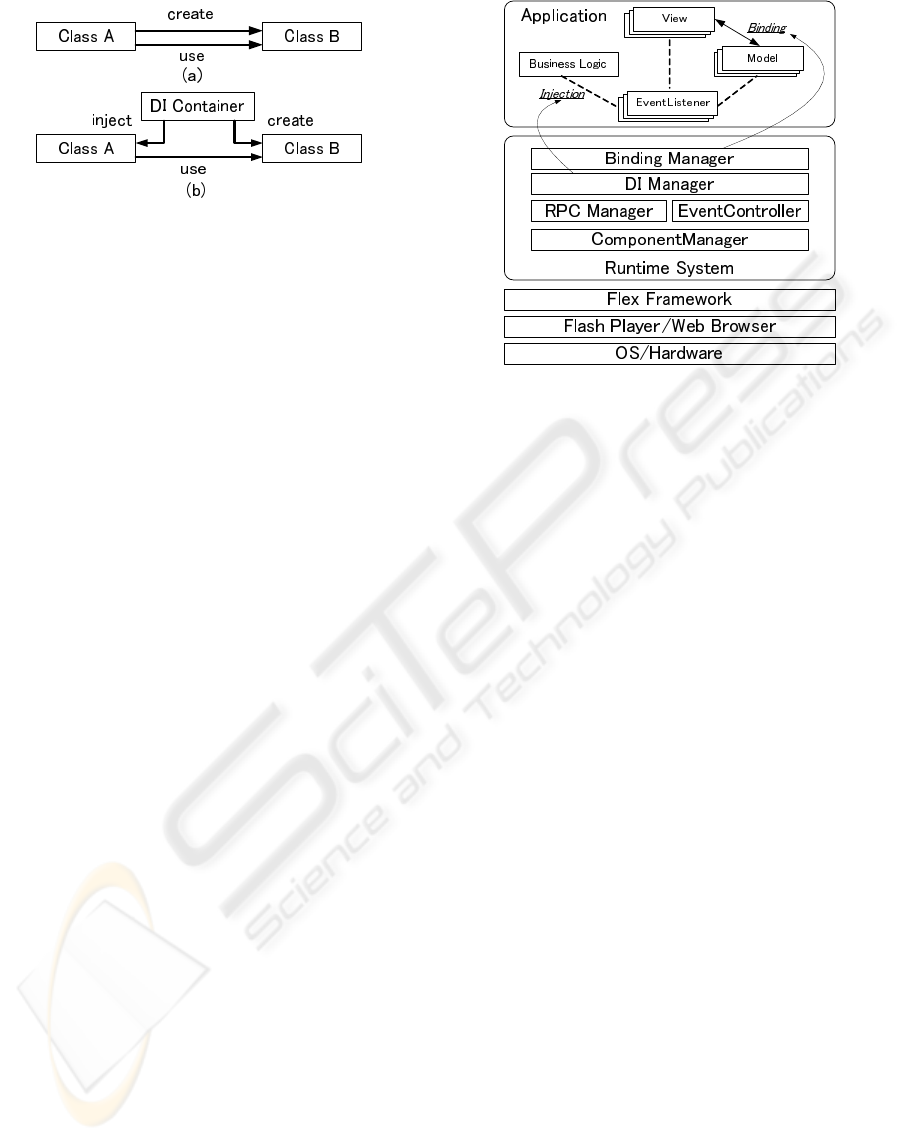

Fig.3(a), class A has codes to create class B and use

methods of class B That is, class A can not be run

without class B, in other words, class A depends on

class B. On the other hand in Fig.3(b), class A has

only codes to use methods of class B and the codes

to create class B are included in DI Container. That

is, class A does not care about the creation process

of class B and DI Container injects the dependencies

between class A and B at runtime. As a result, the de-

pendency between class A and class B becomes weak.

In the context of this paper, the deﬁnition of

event handler in MXML tags and “addEventListener”

method in ActionScript make these dependency be-

tween View and Model.

4 IMPLEMENTATION

Camel makes use of tree structure of display objects

and reﬂection mechanism in ActionScript. We de-

CAMEL FRAMEWORK - A Framework for Realizing Complete Separation of Developer’s and Designer’s Work in

Rich Internet Application

139

Figure 3: Dependency Injection.

scribe them ﬁrst and show the structure of Camel run-

time system. Secondly, we explain basic rules when

we use this framework.

4.1 Display Object Tree

“Application” is a root object of a Flex application

and every visible component, which must extend

“UIComponent” class, is added. In addition, there

are two ways to add an object to its parent. First,

we can invoke “addChild” method of the parent ob-

ject where the ﬁrst argument is an added object. Sec-

ondly, we can specify not only visible component but

also invisible component (e.g., Model or logic class)

as MXML tags in MXML ﬁle. The nested structure of

MXML ﬁle represents tree structure of Flex compo-

nents. Therefore, we can get all references of added

objects by traversing this tree.

4.2 Reﬂection Mechanism

Like Java and Ruby, AS3 has powerful reﬂection

mechanism. In the reﬂection mechanism of AS3, an

object is translated to a XML object which includes

its properties, methods, parent classes etc. and we can

access them by EX4(Ecma International, 2005) style.

Therefore, it is easy to invoke a method by using only

method name and its arguments at runtime if we can

get the reference of the target object.

4.3 Runtime System

Fig.4 outlines the basic structure of a runtime system

and its entire architecture. As we explain next sec-

tion, developers have to prepare Listener class that

has handler functions for dispatched events from visi-

ble component in View. A runtime system consists of

ﬁve components as follows.

• Component Manager registers/removes the ref-

erences of View and Model components. It also

manages hierarchical composition of View, Lis-

tener and their parent. A Listener component

Figure 4: Runtime system and architecture.

should be located at the same level of the corre-

sponded View, so that “DI Manager” can get the

reference.

• EventController invokes an appropriate busi-

ness logic based on the dispatched event. This

is not a Flex event but an application speciﬁc

event deﬁned by developers to invoke a business

logic. Therefore, developers have to register logic

classes and event types to the class which extends

EventController.

• RPC Manager stores Flex RPC components

such as HTTPService, WebService, RemoteOb-

ject, Producer and Consumer.

• DI Manager executes three types of dependency

injection at runtime. First, it injects not only han-

dler methods of Listener components into events

that are dispatched from visible components in

View but also the references of View and Model

component into Listener component as members.

Secondly, it injects logic methods in business

logic components into application speciﬁc events

mentioned above. Finally, it also injects call-

back methods in business logic component into

the events which are dispatched from RPC com-

ponents.

• Binding Manager binds values between visible

components in View and members in Model. This

binding is based on the name of visible com-

ponents and members in Model. For example

in Fig.5, a member “dataGrid” in Model will

be bound to the visible component named “data-

Grid”. In addition, the type of member in Model

such as String, Number, Date, etc. is predeﬁned in

Camel, e.g., String for TextInput, ArrayCollection

for DataGrid etc.

ICEIS 2008 - International Conference on Enterprise Information Systems

140

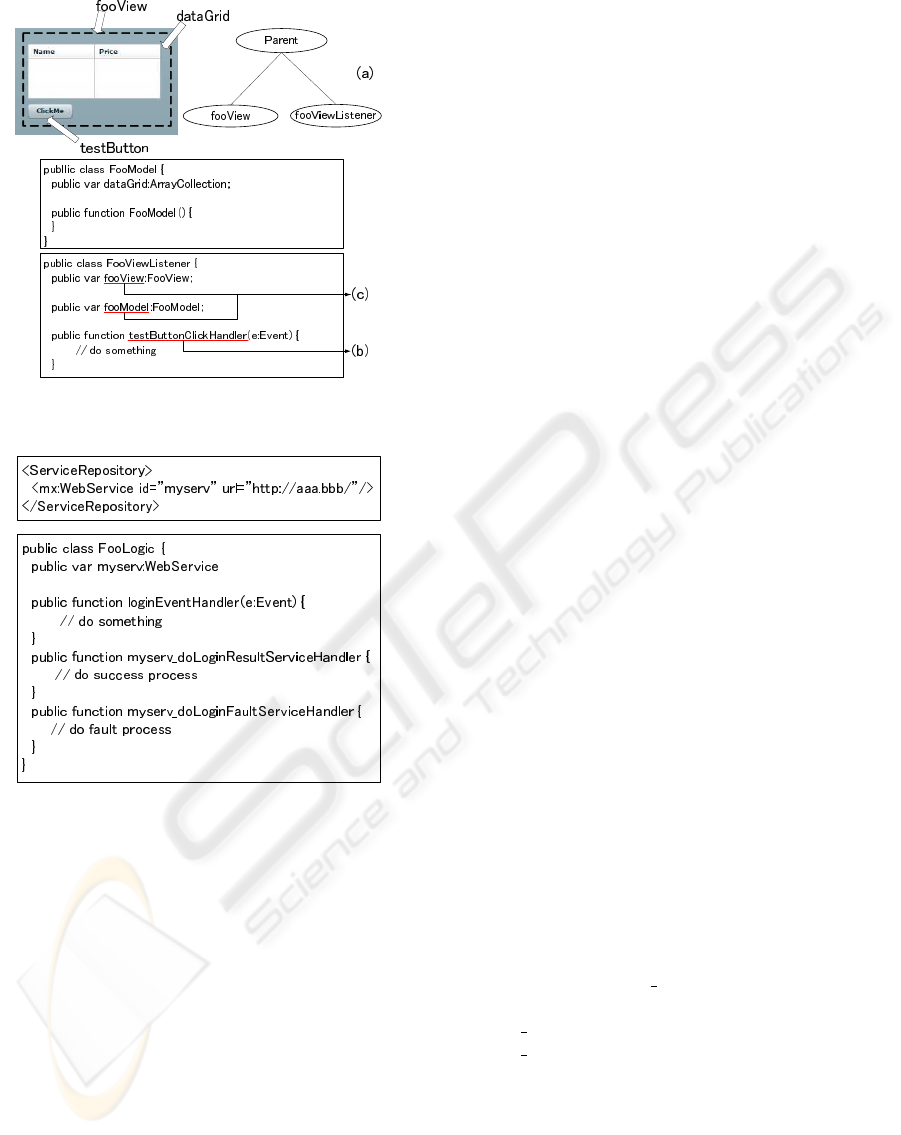

Figure 5: Relationship between View, Model and Listener.

Figure 6: Relationship between RPC component and Logic.

4.4 Basic Rules

Camel is inspired by convention over conﬁgura-

tion concept introduced by Ruby on Rail (37signals,

2007). Therefore, it has several name based rules in-

stead of XML formalized conﬁguration ﬁles. Basi-

cally, we need four components (e.g., Model, View,

Listener and Logic) to develop an application and

one View corresponds to one Model and one Lis-

tener. Based on this, we explain these rules to sup-

port abovementioned injections and the binding as

follows.

1. Every component deﬁned as MXML tag must

have id attribute and value.

2. A View and its corresponded Listener should

have the same parent in the display object tree

(Fig.5)(a).

3. View name must end “View” character and Lis-

tener name must end “Listener” character in ad-

dition to corresponding View name(e.g., fooView

and fooViewListener) (Fig.5)(a).

4. The name of methods in Listener, which han-

dles dispatched event from visible components in

View, must be deﬁned as “component id” + “event

name” + “Handler” characters. For example in

Fig.5(b), a button component named “testButton”

dispatches “click” event and then we have to de-

ﬁne the method to handle it as “testButtonClick-

Handler” in the Listener.

5. Listener must have the references of correspond-

ing View and Model inside it. In addition, The

reference name of View must be the same as View

name described above (fooView) and also the ref-

erence of Model must be named as “fooModel”

where the sufﬁx is replaced with “Model” from

View name Fig.5(c).

6. Model must have the reference of values that are

bound to visible components in View. The refer-

ence type is based on the visible component type

which is predeﬁned by Camel as we mentioned

section 4.3.

7. The name of methods in Logic, which handles ap-

plication speciﬁc events dispatched by develop-

ers must be deﬁned as “event name” + “Even-

tHandler” characters. For example, a devel-

oper must deﬁne “loginEventHandler” method

in Logic for handling “login” event. In addi-

tion, if we use RPC components in Logic, the

Logic must have the reference of the RPC com-

ponent and two types of methods (success or

fault) to handle the result. For example in Fig.6,

when we use a WebService component, we have

to deﬁne the component as MXML tag with id

as a child of ServiceRepository tag, and then

deﬁne the reference in Logic where the name

must be the same as the id in ServiceReposi-

tory. Then, we have to deﬁne callback methods as

“component id” + “ ” + “method name” + “Re-

sult/Fault” + “ServiceHandler”. In Fig.6, “my-

serv doLoginResultServiceHandler” and “my-

serv doLoginFaultServiceHandler” are callback

methods for “doLogin” service invoked by Web-

Service component named “myserv”.

5 APPLICATION BEHAVIOR

This section describes about application behavior in-

cluding when and how the dependencies are injected

CAMEL FRAMEWORK - A Framework for Realizing Complete Separation of Developer’s and Designer’s Work in

Rich Internet Application

141

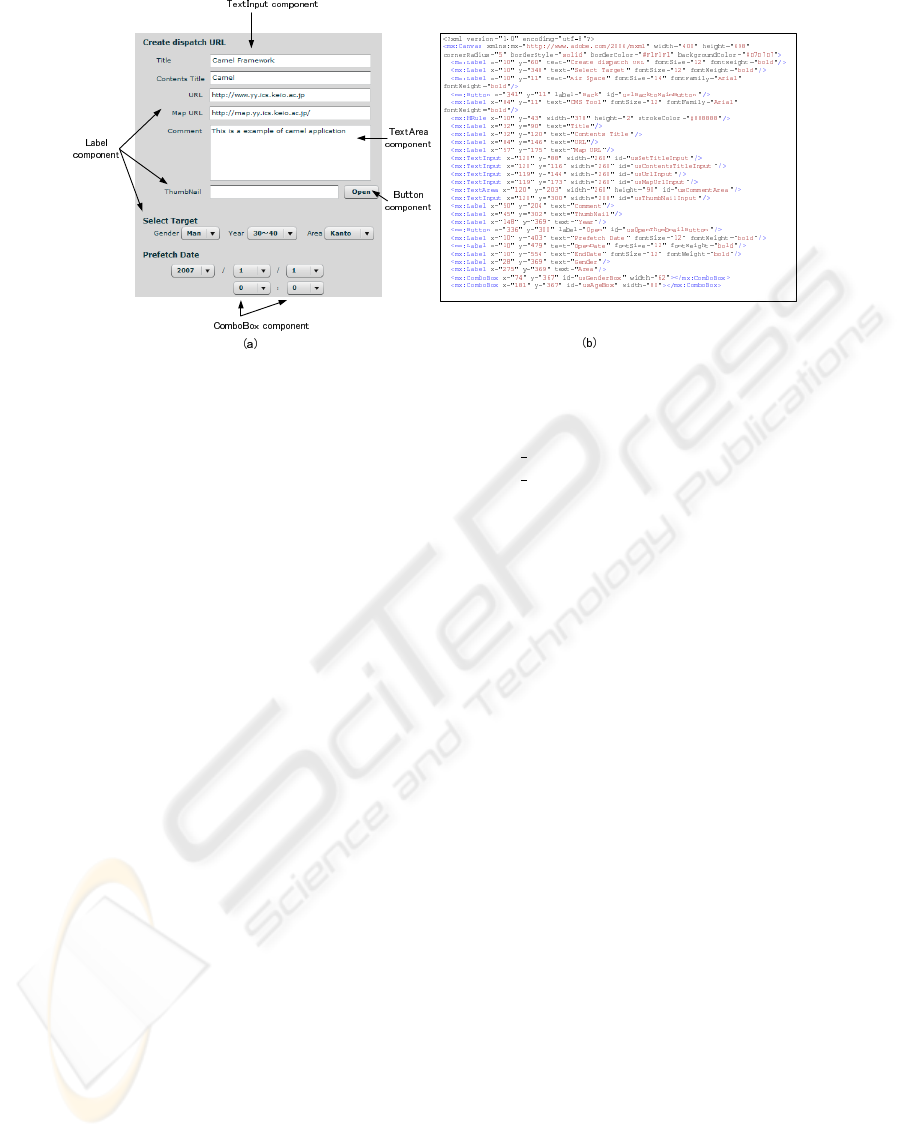

Figure 7: Screenshot of CMS and View code.

by using an application introduced in Fig.5 and 6.

First of all, a developer has to use “CamelApplica-

tion” as a root tag instead of “Application”. Based on

this, dependencies are injected as follows.

1. An application starts.

2. Camel catches all “creationcomplete” events of its

child components by “CamelApplication” class.

This event is dispatched by Flex when a compo-

nent completes its initializating process.

3. Camel gets the references of FooView by compo-

nent id (fooView). As we described section 4.4,

the name of View must end “View” characters.

4. Camel also gets the reference of FooViewListener

corresponding to the FooView by using compo-

nent id and tree structures in Fig.5(a).

5. Camel parses XML of FooView and FooListener

by using reﬂection mechanism of AS3 and injects

“testButtonClickHandler” method in FooListener

into “testButton” component in FooView based on

the naming rules explained in section 4.4. In addi-

tion, Camel also injects the references of FooView

and FooModel into fooView and fooModel in

FooListener. If Model is not created, Camel cre-

ates and registers it to “ComponentManager” to

keep each Model singleton.

6. Camel binds “dataGrid” in Model to dataGrid

which is visible components in View based on

the naming rule. This binding uses “BindingUtil”

class in Flex.

7. When an application dispatches “login” event,

Camel create FooLogic and parses it to in-

ject an “loginEventHandler” method in FooLogic

into “login” event. In addition, Camel injects

the reference of WebService component named

“myserv” into FooLogic and then injects “my-

serv doLoginResultServiceHandler” and “my-

serv doLoginFaultServiceHandler”methods into

callback events dispatched by WebService com-

ponent.

6 EXPERIMENT

We developed a real application which is a content

management system by using Camel. It has 15 View

and Listener components in addition to 5 Logic com-

ponents. In addition, it has create, update, delete,

search functions for management of data and can up-

load/download contents from/to servers. It uses Re-

moteObject as RPC components in Logic to serialize

application speciﬁc data in database on a server.

As shown in Fig.7(a), View has several visible

components such as TextInput, TextArea, Button,

ComboBox, DataGrid and Label. On the other hand,

as shown in Fig.7(b), there is no programming codes

in View component. This means that Camel can real-

ize complete separation we focus on and is adaptable

for real applications.

7 RELATED WORK

There are various frameworks in current web appli-

cations. Zend framework (Zend Technologies, 2007)

and Mojavi (Major Computing, 2007) are PHP based

frameworks for supporting to develop web application

based on MVC architecture. These frameworks adopt

name based rules for dispatching business logics de-

pending on received requests. We can also implement

ICEIS 2008 - International Conference on Enterprise Information Systems

142

a web application easily by using Smarty (New Digi-

tal Group Inc., 2007), which is a template engine for

PHP. However, it is impossible to separate View from

Model or Logic completely because these are HTML

based frameworks.

Struts (Apache Software Foundation, 2007c) is a

famous framework for supporting Java based web ap-

plication development. It also enables us to develop

a MVC based web application easily by collaborat-

ing with JSTL (Apache Software Foundation, 2007b)

and Velocity (Apache Software Foundation, 2007a).

However, we have to manage a XML formalized con-

ﬁguration ﬁle called struts-conﬁg.xml to deﬁne dis-

patching rules, including requested URLs, Actions

and JSPs. In addition, Struts does not support depen-

dency injection. Therefore, unit testing and manage-

ment of this conﬁguration ﬁle are difﬁcult in a large

scale application development. Spring (Source, 2007)

is a framework which includes DI container, libraries

for presentation layer and database access layer.

However, we have to manage XML based conﬁgu-

ration ﬁles like struts-conﬁg.xml in Struts framework.

Seasar2 (The Seasar Foundation, 2007) is a DI Con-

tainer which introduces convention over conﬁguration

concept. Therefore we do not have to manage conﬁg-

uration ﬁles even in a large scale application.

However, these frameworks and containers can

not separate View completely by source code level.

On the other hand, Cairngorm (Adobe Labs, 2007)

is a framework for supporting to develop Flex appli-

cations based on MVC architecture, however, it does

not support dependency injection. Therefore devel-

opers have to deﬁne binding values or event handler

directly in visible component tags, that is it does not

support complete separation of View component.

8 CONCLUSIONS

We have presented a framework called Camel for de-

velopment of RIAs. Camel has made it possible to

separate View completely from any other components

in source code level. That is, designers and develop-

ers do not have to share any source codes in applica-

tion development processes, and it becomes easy not

only to modify designs or logics separately but also

to do testing an application.In addition, we have also

introduced convention over conﬁguration concept to

reduce any conﬁguration ﬁles to use this framework

and shown the usage and utility of this framework by

implementing a real application.

Finally, we would like to point out further issues to

be resolved. In current implementation, Camel lacks

validation mechanism for values bound to Model. We

plan to introduce to extend validation mechanism of

Flex with dependency injection. In addition, we usu-

ally make a mistake to type rule based names in de-

velopment process. Therefore, we plan to provide a

tool to complement these names as a Eclipse plug-in.

REFERENCES

37signals (2007). Ruby on Rail. http://

www.rubyonrails.org/.

Adobe Labs (2007). Cairngorm Framework.

http://labs.adobe.com/wiki/index.php/Cairngorm.

Adobe Systems Inc. (2007a). Adobe Flash CS3 Profes-

sional. http:// www.adobe.com/products/ﬂash/.

Adobe Systems Inc. (2007b). Adobe Flex2.

http://www.adobe.com/products/ﬂex/.

Allaire, J. (2002). Macromedia ﬂash mx-a next-generation

rich client. In Technical report, Macromedia.

Apache Software Foundation (2007a). Apache Velocity

Project. http://velocity.apache.org/.

Apache Software Foundation (2007b). JSTL.

http://jakarta.apache.org/taglibs/.

Apache Software Foundation (2007c). Struts.

http://struts.apache.org/.

Driver, M., Valdes, R., and Phifer, G. (2005). Rich inter-

net applications are the next evolution of the web. In

Technical report, Gartner.

Duhl, J. (2003). White paper: Rich internet applications. In

Technical report, IDC.

Ecma International (2005). Ecma script for xml speciﬁca-

tion.

Laszlo Systems Inc. (2007). Laszlo.

http://www.laszlosystems.com.

Major Computing (2007). Mojavi Framework.

http://www.mojavi.org/.

Microsoft Inc. (2007). Smart Client Developer Center.

http://msdn.microsoft.com/smartclient/.

Mozilla.org (2007). XUL.

http://www.mozilla.org/projects/xul/.

New Digital Group Inc. (2007). Smarty.

http://smarty.php.net/.

Source, S. (2007). Spring Framework.

http://www.springframework.org/.

Sun Microsystems Inc. (2007). Java Web Start Technology.

http://java.sun.com/products/javawebstart/index.jsp.

The Seasar Foundation (2007). Seasar.

http://www.seasar.org/.

Zend Technologies (2007). Zend Framework.

http://framework.zend.com/.

CAMEL FRAMEWORK - A Framework for Realizing Complete Separation of Developer’s and Designer’s Work in

Rich Internet Application

143
