MANAGING PROCESS VARIANTS IN THE PROCESS LIFE CYCLE

Alena Hallerbach, Thomas Bauer

Group Research and Advanced Engineering, Daimler AG, Ulm, Germany

Manfred Reichert

Institute of Databases and Information Systems, Ulm University, Germany

Keywords:

Process Management, Process Conﬁguration, Process Variants, Context-aware Process Customization.

Abstract:

When designing process-aware information systems, often variants of the same process have to be speciﬁed.

Each variant then constitutes an adjustment of a particular process to speciﬁc requirements building the process

context. Current Business Process Management (BPM) tools do not adequately support the management of

process variants. Usually, the variants have to be kept in separate process models. This leads to huge modeling

and maintenance efforts. In particular, more fundamental process changes (e.g., changes of legal regulations)

often require the adjustment of all process variants derived from the same process; i.e., the variants have to be

adapted separately to meet the new requirements. This redundancy in modeling and adapting process variants

is both time consuming and error-prone. This paper presents the Provop approach, which provides a more

ﬂexible solution for managing process variants in the process life cycle. In particular, process variants can be

conﬁgured out of a basic process following an operational approach; i.e., a speciﬁc variant is derived from the

basic process by applying a set of well-deﬁned change operations to it. Provop provides full process life cycle

support and allows for ﬂexible process conﬁguration resulting in a maintainable collection of process variants.

1 INTRODUCTION

The ﬂow of activities an organization has to perform

to achieve a speciﬁc goal is often captured in a process

model. Usually, each model implements one process

type (e.g., for handling a credit request or travel cost

declaration) by describing process activities and their

execution constraints, resources needed (e.g., humans

or IT systems), and information processed. For cre-

ating and managing process models there exist tools

like ARIS Business Architect (IDS Scheer, 2006) and

WBI Modeler (IBM, 2007).

When modeling processes several objectives are

in the focus. As example consider improved pro-

cess transparency. By the model-based documenta-

tion of business processes respective information is

provided in a more transparent and uniﬁed manner to

users. As another advantage process models can be

analyzed and simulated resulting in further optimiza-

tions of the business processes (Scheer, 2000). How-

ever, modeling, analyzing, and optimizing processes

is only one side of the coin. The other is to implement

and execute these processes, e.g., based on Workﬂow

Management Systems (WfMS). For this purpose, ex-

ecutable workﬂowmodels have to be provided. Based

on such models the WfMS controls the execution of

process activities and allocates them to user worklists

during runtime (Dumas et al., 2005; Leymann and

Roller, 1999; Weske, 2007).

Process support is needed in almost all business

domains. Characteristic process examples from the

automotive industry include product creation, change

management, and release management. All these pro-

cesses have to be modeled with a speciﬁc goal in

mind. Depending on the given process context, in

addition, different variations of a basic process are

needed. Having a closer look at the product creation

process, for example, different process variants ex-

ist. Thereby, each variant is connected to a particu-

lar product type (e.g., car, truck, or bus) with different

organisatorical responsibilities and strategic goals, or

varying in some other aspects.

Similar considerations can be made for a product

change process as depicted in Figure 1a: The process

starts with a change request (Activity 1). The person

responsible for coordinating changes in the respective

domain then requests comments from the departments

that might be affected by the change (Activities 2, 3a,

3b, and 3c). After all comments are received an inte-

grated change document is created (Activity 4). This

154

Hallerbach A., Bauer T. and Reichert M. (2008).

MANAGING PROCESS VARIANTS IN THE PROCESS LIFE CYCLE.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - ISAS, pages 154-161

DOI: 10.5220/0001685001540161

 SciTePress

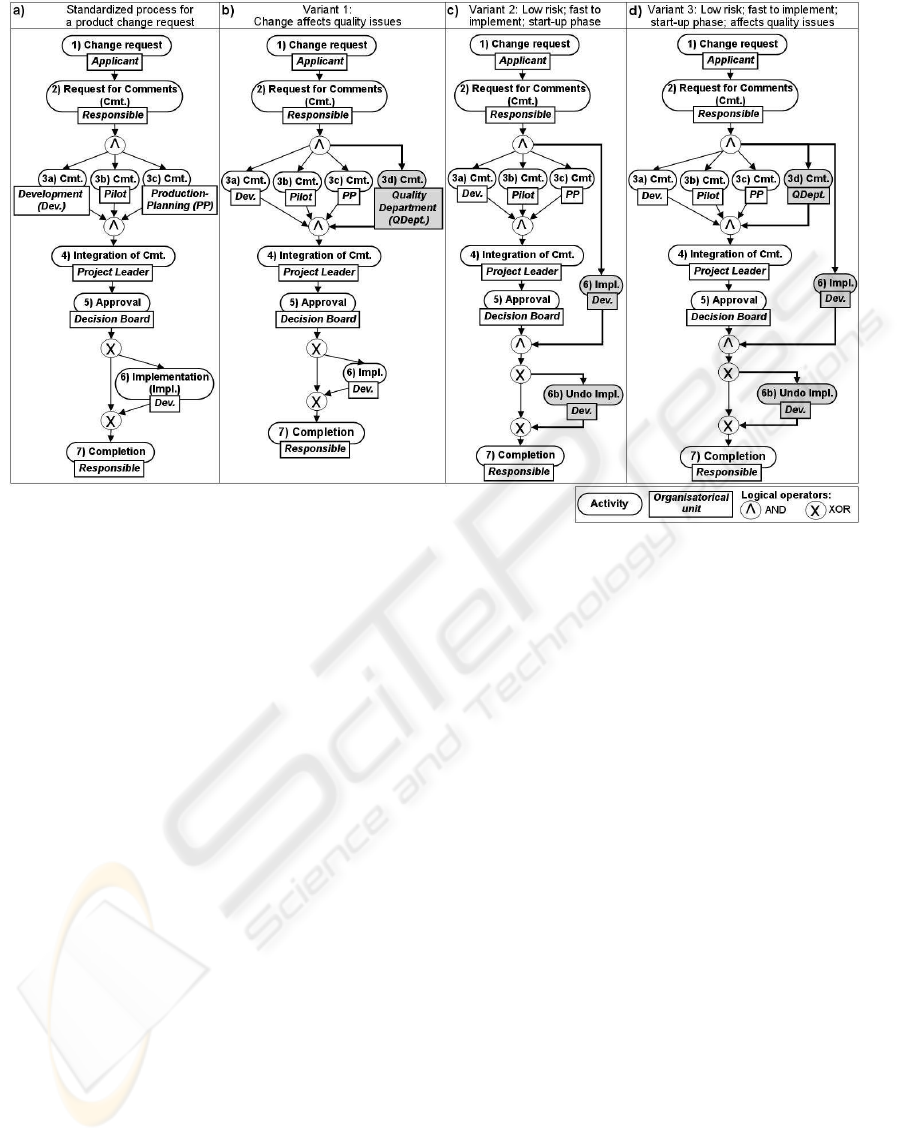

Figure 1: Variants of a Standardized Product Change Process.

document is then passed to the decision board which

either approves the requested change or disapproves it

(Activity 5). In case of approval the development de-

partment gets the permission to implement the change

(Activity 6). Otherwise this step is skipped. The pro-

cess ends by logging and ﬁling the change request

(Activity 7).

Depending on the process context, different vari-

ations of this process are needed. Figure 1b-1d show

examples of three possible process variants: The one

depicted in Figure 1b additionally considers quality

critical issues; i.e., the quality department is involved

in the commenting process. At the model level this

is realized by inserting an additional activity (Activ-

ity 3d) when compared to the original process from

Figure 1a. Figure 1c shows a process variant for

which the change request is fastened. Particularly

for changes with low risks and implementation times,

which are requested during start-up phase, the devel-

opment department starts implementing the change

without waiting for approval. If the decision board re-

fuses approvallater, change implementation will have

to be undone. At the model level this can be simply

realized by moving Activity 6 from its original posi-

tion to a position parallel to the commenting activities

and by conditionally inserting the Undo activity (Ac-

tivity 6b). Finally, the variant shown in Figure 1d will

be required if the change affects quality critical issues,

but can be fastened anyway. This variant constitutes

a combination of the two variants from Figure 1b and

1c. Thus, the process inherits all adjustments from

these two variants; i.e., an additional comment is re-

quested from the quality department and early imple-

mentation of the change (i.e., without waiting for ap-

proval) is possible.

In existing approaches, process variants usually

have to be deﬁned and kept in separate process mod-

els as shown in Figure 1. This results in a huge

amount of redundant model data as the variant models

are identical or similar for most parts. Furthermore,

the variants cannot be strongly related to each other;

i.e., their models are only loosely coupled (e.g., based

on naming conventions). Finally, there is no support

for (semi-)automatically combining existing variants

in order to create a new one. Considering the large

number of variants occurring in practice these draw-

backs increase modeling and maintenance efforts sig-

niﬁcantly. Particularly, the efforts for maintaining and

changing process variants are increasing over time

since more fundamental process changes (e.g., due to

newor changed legal regulations) might have to be ac-

complished for each individual variant. This is both

time-consuming and error-prone. As a consequence,

process variant models degenerate over time as op-

timizations are only applied to single variant mod-

els without considering the relations to other variants.

This, in turn, makes it a hard job for process design-

ers to analyze, compare, and unify business processes.

MANAGING PROCESS VARIANTS IN THE PROCESS LIFE CYCLE

155

In particular, IT systems providing integrated support

for different process variants are difﬁcult to realize.

In this paper we present the Provop (PROcess

Variants by OPtions) approach for managing large

collections of process variants in one model. The pa-

per is organized as follows: Section 2 discusses ma-

jor requirements for managing process variants in the

process lifecycle. Section 3 presents basic concepts of

the Provop approach in detail. In Section 4 we discuss

related work. This paper concludes with a summary

and an outlook in Section 5.

2 REQUIREMENTS

We conducted several case studies in the automotive

industry, but also other domains (e.g., healthcare), to

elaborate key requirements for the deﬁnition, adapta-

tion, and management of process variants. This strong

linkage to practice was needed in order to realize a

complete and solid approach for process variant man-

agement. The requirements we identiﬁed are related

to different aspects including the modeling of pro-

cess variants, their linkage to process context, their

execution in WfMS, and their continuous optimiza-

tion to deal with evolving needs; i.e., we have to deal

with requirements related to the whole process life

cycle (Hallerbach et al., 2008b). The standard pro-

cess life cycle is depicted in Figure 2. It consists of

three phases, namely the design and modeling of the

process, the selection or conﬁguration of a particu-

lar process variant, and the deployment of this variant

in the runtime environment. The process life cycle

can be described as a (feedback) loop of these phases

during which a process is continuously optimized and

adapted. The main requirements to be met are as fol-

lows (cf. Table 1):

Modeling. Efforts for modeling process variants

should be kept minimal. Therefore, reuse of both pro-

cess fragments and process models (of the different

process variants) has to be supported. In particular, it

should be possible to create new variants by inheriting

properties from existing ones, but without creating re-

dundant or inconsistent model data. The hierarchical

structure of such “variants of variants” has to be ade-

quately represented and should be easy to adapt.

Figure 2: Process Life Cycle.

To reduce both maintenance efforts and costs of

change, fundamental process changes affecting mul-

tiple process variants should be conducted only once.

As a consequence all process variants concerned by

the respective change should be adapted automati-

cally. Finally, sophisticated visualization support is

needed to enable selective views on process variants.

This should allow for the comparison of variants as

well. In this context, switching between different vi-

sualizations constitutes another requirement.

Instantiation and Selection. The selection of a pro-

cess variant in a particular context should be done

automatically. Therefore the speciﬁc circumstances

(i.e., the process context) in which this selection takes

place has to be considered. In particular, an elab-

orated context-aware variant selection process is re-

quired. Another challenge is to ensure consistency

and correctness of all selectable process model vari-

ants throughout the entire process life cycle.

Execution. To execute a process variant, its model

has to be interpreted by a workﬂow engine during run-

time. In this context, it is important to keep informa-

tion about the selected process variant and its relation

to the basic process (and other variants) in the runtime

system as well. Another challenge is to deal with dy-

namic changes of the process context. In the context

of such changes the conditions under which a partic-

ular variant was originally selected might become ob-

solete. Ideally, the runtime system should allow to dy-

namically switch process execution from one variant

to another if required. Such dynamic variant switches

are by far not trivial when considering correctness and

consistency issues as well.

Optimization. Generally, a large collection of related

Table 1: Requirements for Process Variant Support.

Lifecycle Phase 1: Modeling

Req 1.1 Intuitive modeling of process variants and

the relations between them

Req 1.2 Minimized modeling & maintenance efforts

Req 1.3 Easy analysis and comparison of variants

Lifecycle Phase 2: Instantiation

Req 2.1 Context-aware conﬁguration or selection of

variants

Req 2.2 Consistency of conﬁgured variants

Lifecycle Phase 3: Execution

Req 3.1 Supporting the execution of variants by

WfMS

Req 3.2 Selecting variants at runtime

Req 3.3 Switching variants during runtime to adjust

to context changes

Lifecycle Phase 4: Optimization

Req 4.1 Capturing best practices in variant design

Req 4.2 Evolving processes without making exist-

ing variants obsolete

ICEIS 2008 - International Conference on Enterprise Information Systems

156

variants can be derived from a basic process model.

In principle, each variant corresponds to a number of

adaptations applied to this basic process. Since it is

a complex task to decide which process parts shall

be captured by the basic process and which ones are

variant-speciﬁc, related process variants should be an-

alyzed from time to time based on advanced process

mining techniques. As a result it might turn out, for

example, that it is more favorable to pull up certain

variant-speciﬁc adaptations to the level of the basic

process. Thus, the basic process evolves over time

without making deﬁned process variants obsolete.

There exist other requirements addressed by Provop,

but not mentioned so far. Examples include the con-

sistency of conﬁgured process variants, adequate vi-

sualization of process variants for all life cycle phases,

and provision of intuitive user interfaces. Due to lack

of space we omit respective issues in this paper.

3 THE PROVOP APPROACH

This section provides an overview of the Provop ap-

proach for process variant management. As Provop

supports all phases of the process life cycle, we de-

scribe our approach along these phases.

3.1 Modeling

Basic Process. The basic idea behind Provop is to

capture all process variants in a single process model.

To achieve this Provop utilizes a major characteristic

of process variant models, namely their similarity to

the original process model they were derived from. In

Provop we denote this original process as

basic pro-

cess

. This can be both an existing process model or

a newly created one (cf. Figure 1a). Different poli-

cies for modeling the basic process are conceivable:

On the one hand the basic process can be deﬁned for

a speciﬁc use case, e.g., the most frequently executed

variant of a process family. On the other hand the ba-

sic process may be deﬁned without a speciﬁc use case

in mind (Hallerbach et al., 2008a).

Change Operations. Related variants are logically

kept within the model of the basic process. More

precisely, the different variants are represented by a

set of change operations describing the difference be-

tween the basic process model and the respective vari-

ant model. The following change operations are pro-

vided in this context (cf. Table 2 and Figure 3a):

INSERT

DELETE

, and

MOVE

process fragments

as well

MODIFY

process element attributes

. Each of these

change operation types is represented by a special

symbol (cf. Table 2). Further, each change operation

needs a set of parameters as input for its correct exe-

cution. For example, the

INSERT

operation of “Option

1” in Figure 3b requires the position at which the re-

spective process fragment shall be added to the basic

process. In this case, entry node

and exit node

of the process fragment to be added are mapped to

the adjustment points

AND1.out

and

AND2.in

in the

basic process model.

Options. To deﬁne more complex adjustments, mul-

tiple change operations can be grouped in a single

object called

option

. Thus, an option consists of an

unambiguous name and a set of change operations.

Figure 3 illustrates this approach taking our example

from Figure 1. (Note that activity names are abbre-

viated by step numbers here.) The standard product

change request process from Figure 1a is now deﬁned

as basic process. The variants from Figure 1b-1d are

described in terms of change operations grouped to

options. By applying one of the two options to the ba-

sic process the different variants can be derived: The

application of “Option 1” from Figure 3b to the basic

process model from Figure 3a results in Figure 1b, the

application of “Option 2” produces the process model

shown in Figure 1c. Provop additionally supports the

combined use of these two options to create a third

process variant (cf. Req 1.2); i.e. the combination

Table 2: Change Operations in Provop.

1. INSERT operation

Purpose addition of process elements

Parameters process fragment or element to be

added;

entry/ exit of the fragment to be added;

mapping between entry/ exit of the frag-

ment to adjustment points (labeled posi-

tion in basic process model)

Symbol

2. DELETE operation

Purpose removal of process elements

Parameters adjustment points to mark entry and exit

of a process fragment for deletion

(or IDs of single elements)

Symbol

3. MOVE operation

Purpose change execution order of activities

Parameters process fragment of the basic process

marked by adjustment points;

target position of the process fragment

Symbol

4. MODIFY operation

Purpose change attributes of process elements

Parameters element ID;

attribute name;

value to be assigned

Symbol

MANAGING PROCESS VARIANTS IN THE PROCESS LIFE CYCLE

157

of “Option 1” and “Option 2” leads to the model de-

picted in Figure 1d.

Visualization of Options. To support variant mod-

eling sophisticated visualization concepts are needed

(cf. Req 1.3). In particular, the positioning of op-

tions relative to the basic process model constitutes a

challenge when displaying both the basic process and

the options at the same time. As the change opera-

tions of a particular option refer to the basic process

model, the points of adjustment can be used as anchor

for positioning the option. Generally, options can be

visualized in several ways. One approach is to show

all information of the option as depicted in Figure 3b.

Another one is to enable user-deﬁned selection of the

information to be visualized.

Option Relations. After modeling relevant options,

different kind of relations between them can be de-

ﬁned in order to constrain their use (cf. Req 1.1). The

relations supported in Provop are as follows:

depen-

dency

mutual exclusion

execution order constraints

and

hierarchy

Dependency

means that the respective

options always are either jointly applied to the basic

process or none of them is used when conﬁguring a

particular process variant.

Mutual exclusion

, in turn,

allows to reduce the possible combinations of options

that can be applied to the basic process model. Thus,

the conﬁgurable process variants can be constrained.

Two options mutually exclude each other, for exam-

ple, if they constitute variations of each other, e.g.,

both options might add the same activity to the basic

process model, but at different positions, thus leading

to different variants. As one option might insert an ac-

tivity whose attributes are changed by a second one,

the

execution order

of these options becomes crucial.

Therefore, Provop allows specifying orders in which

options can be applied to the basic process. Finally

the

hierarchy

of options constitutes a combination of

the relation

dependency

and

execution order

. More

precisely, if a child option shall be applied to the ba-

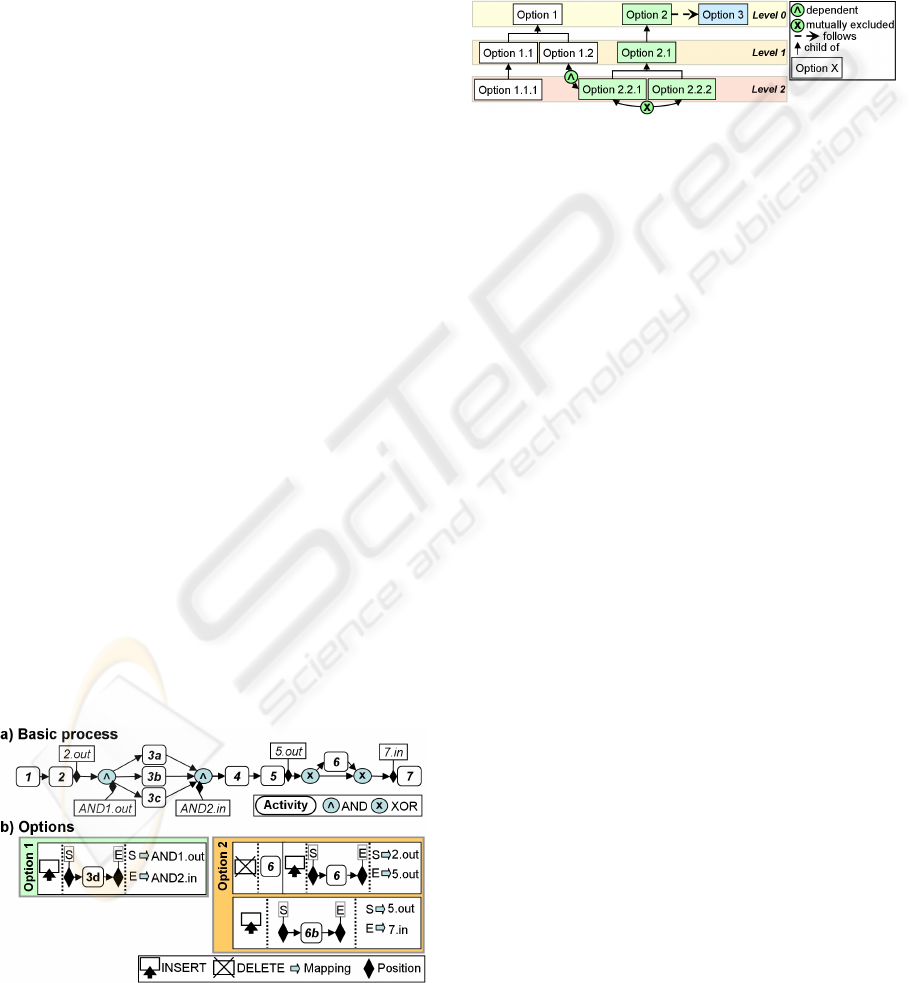

Figure 3: Modeling Process Variants in Provop.

sic process model, the corresponding parent options

will have to be applied as well. To prevent incon-

sistencies due to non-determinism parent options are

always applied before their child options.

Provop allows to represent the described option

relations graphically as depicted in Figure 4: Every

relation type uses a particular symbol or arrow; i.e.,

all relations between options can be represented in a

uniﬁed and easy to handle manner.

Figure 4: Graphical Visualization of Option Relations.

Context-aware Process Conﬁguration. As dis-

cussed option relations are useful when deﬁning vari-

ants (i.e., when a user selects a particular option all

dependent options are selected as well, while mutu-

ally excluded options are not considered). In addi-

tion, Provop supports context-aware process conﬁgu-

ration; i.e., it allows for the conﬁguration of a process

variant by applying only those options relevant in a

given application or process context (cf. Req 2.1).

In a ﬁrst step the process context has to be deﬁned

by utilizing

context variables

with a given range of

value. Provop distinguishes between static and dy-

namic context variables.

Static context variables

are

set once and their value is then ﬁxed throughout pro-

cess execution (e.g., product type). The value of

dy-

namic context variables

, in turn, may change during

process execution (e.g., development phase). As this

might invalidate the conditions based on which a pro-

cess variant was conﬁgured, Provop enables dynamic

variant changes as well; i.e., we allow to switch the

execution of a process instance from one variant to

another in order to adopt to context changes. An ex-

ample of a process context deﬁnition is given in Fig-

ure 5a. The context variables introduced in Figure 1

are listed with their range of values and their mode

(static/ dynamic).

Process Context Constraints. Sometimes there are

constraints describing a relation between particular

context variables. For example, if a requested prod-

uct change is of high costs, its risks will be high as

well. As these relations can get very complex, Provop

allows for the deﬁnition of formal rules following an

IF THEN ELSE

logic (cf. Figure 5b). The relations

between context variables can be represented graph-

ically. Constraints are represented by arrows con-

necting the context variables and leading to a context

graph (cf. Figure 5c).

ICEIS 2008 - International Conference on Enterprise Information Systems

158

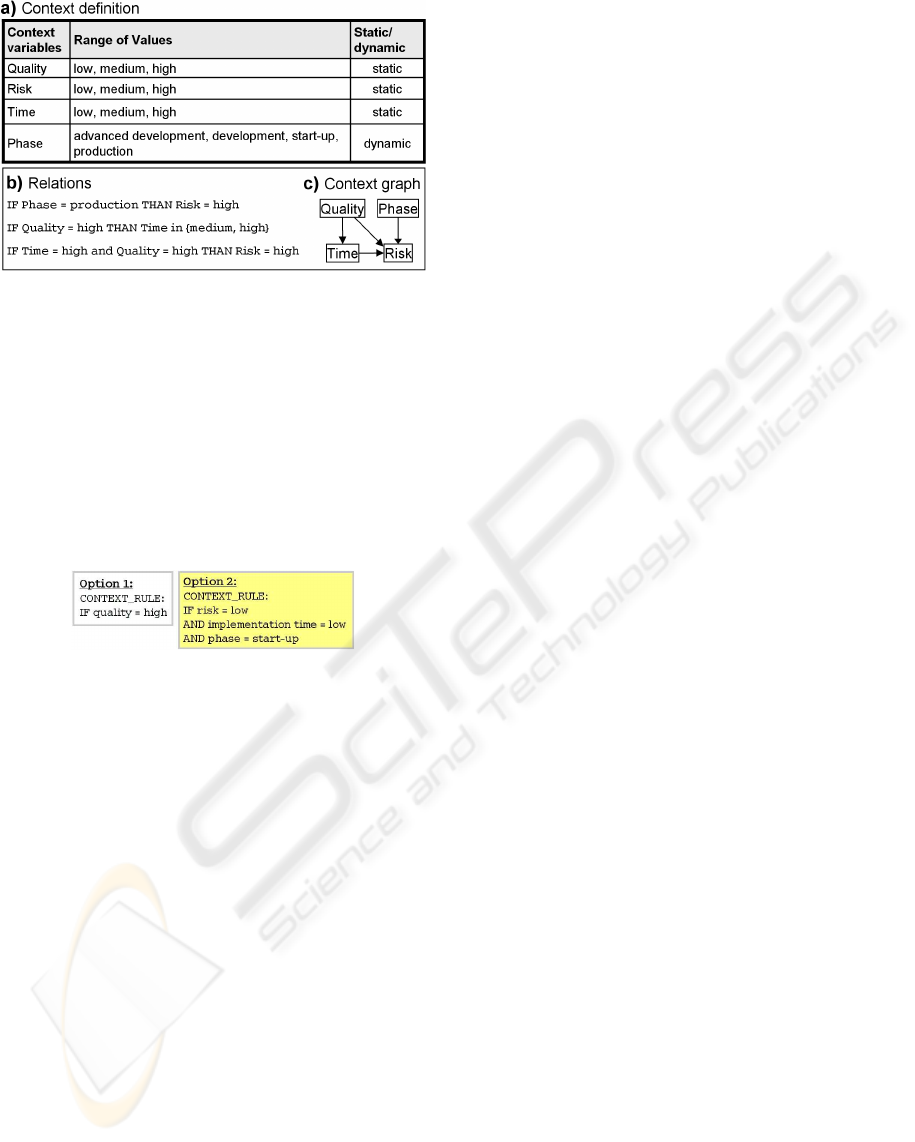

Figure 5: Context modeling in Provop.

Context Rules. A process context is deﬁned to con-

nect options with process variant conﬁgurations. For

this purpose, context rules are deﬁned and assigned

to the options as depicted in Figure 6. Here, “Op-

tion 1” is relevant if the requested change affects qual-

ity issues (i.e.,

quality = high

). In turn, “Option 2” is

relevant for product changes of low risks and imple-

mentation time. Further, it is constrained to product

changes in the start-up phase of product development.

Figure 6: Context rules.

3.2 Selection and Instantiation

In the selection and instantiation phase the basic

process model, the deﬁned options, and the context

model are used to conﬁgure the models of the differ-

ent variants. A single variant is created by applying a

number of options and their related operations to the

basic process.

Step 1: Select Options. When conﬁguring a process

variant the relevant options are identiﬁed either

explicitly or implicitly. In the former case the user

directly selects the options manually from a given

list. In the latter case the options that are relevant for

conﬁguring a particular variant are selected implicitly

based on the current values of the context variables;

i.e., an option will be selected if all context rules

associated with it evaluate to “true”.

Step 2: Evaluate Relations. After a set of options is

selected their relations are checked. Extensions of the

option set will have to be made if dependent options

are missing. It is also possible that the set of options

selected so far contains mutually excluding options.

In this case the user is notiﬁed about the inconsistency

and has to remove one of the conﬂicting options. In

summary, option relations are considered to ensure

process consistency.

Step 3: Apply Options. After deﬁning and evalu-

ating the relevant set of options, the related change

operations are applied to the model of the basic

process. First, options with static context variables

are applied resulting in a process model of a partic-

ular process variant. Second, options with dynamic

context variables are applied. The latter results in

a process model representing a set of variants. The

decision which variant is chosen then depends on the

dynamic context to be deﬁned.

Step 4: Check for Consistency. The application of

several options in combination with each other con-

stitutes a challenge. In certain cases, change opera-

tions might be redundant or even conﬂicting; i.e., the

application of all options then might result in a vari-

ant model with deadlocks or data inconsistencies. To

avoid the latter comprehensiveconsistency checks are

provided by Provop (cf. Req 2.2).

3.3 Deployment and Execution

After the selection and instantiation phase the result-

ing variant model needs to be translated into an ex-

ecutable workﬂow model (cf. Req 3.1), e.g., speci-

ﬁed with WS-BPEL (OASIS, 2007). Common prob-

lems emerging in this context are GUI assignments,

distinction between human and automated tasks, or

choice of the right level of granularity for process

models. In Provop we are focusing on problems aris-

ing with variant management and their resolution. For

several reasons we retain the information about op-

tions and contexts created in the previous phases in

the runtime system as well. One particular reason

for this is the presence of dynamic context variables,

which necessitate the ability to switch between vari-

ants during runtime (cf. Req 3.2 and 3.3). Due to lack

of space we omit further details here.

3.4 Optimization

Provop allows to evolve and optimize the basic pro-

cess without making the deﬁned options obsolete

(cf. Req 4.2). In particular, the modeled options are

checked against the new basic process model. If an

option is affected by changes of the basic process,

e.g., because an adjustment point has been movedto a

new position, this option will be updated accordingly.

MANAGING PROCESS VARIANTS IN THE PROCESS LIFE CYCLE

159

In some cases, an option might be omitted, because

its changes have been transferred to the basic process

as “best practice” (cf. Req 4.1).

4 RELATED WORK

Though the support of process variants is highly rel-

evant for practice, only few approaches for variant

management exist. In particular, there is no compre-

hensive solution for the adequate modeling of multi-

ple variants within a single process model.

There are approaches which provide support for

the management and retrieval of separately modeled

process variants. As an example take the work done

by (Lu and Sadiq, 2006). It allows storing, manag-

ing and querying large collections of process vari-

ants within a process repository. Graph-based search

techniques are used in order to retrieve those pro-

cess variants which are similar to a user-deﬁned pro-

cess fragment (i.e., the query is represented as a pro-

cess graph). Obviously, this approach requires pro-

found knowledge about the stored process structures,

an assumption which does not always hold in prac-

tice. Variant search based on process metadata (e.g.,

the process context) is not considered.

A straightforward approach frequently applied in

practice is to capture multiple variants within a sin-

gle process model, but without treating the variants

as ﬁrst class objects as in Provop (IDS Scheer, 2006;

IBM, 2007). Usually, specifying all variants in one

process model results in huge models, which are difﬁ-

cult to comprehend and costly to maintain. As exam-

ple consider Figure 7 which shows the change request

process from Figure 1a together with its different vari-

ants as depicted in Figure 1b-1d. Thereby, every exe-

cution path in the model represents a particular vari-

ant with the branching conditions indicating which

variant to be selected during runtime; i.e., the rela-

tion between variants and process context is captured

by these branching conditions. Following this naive

approach, the resulting variants are to a large degree

hidden within the process logic. As “normal” branch-

ing conditions cannot be distinguished from the ones

representing contextual conditions (for variant selec-

tion), no views for particular process variants can be

created.

An important area related to variant management

is reference process modeling. Usually, a reference

process has recommending character, covers a fam-

ily of processes, and can be customized in different

ways to meet speciﬁc needs (Schütte, 1997). Conﬁg-

urable Event-Process-Chains (C-EPCs), for example,

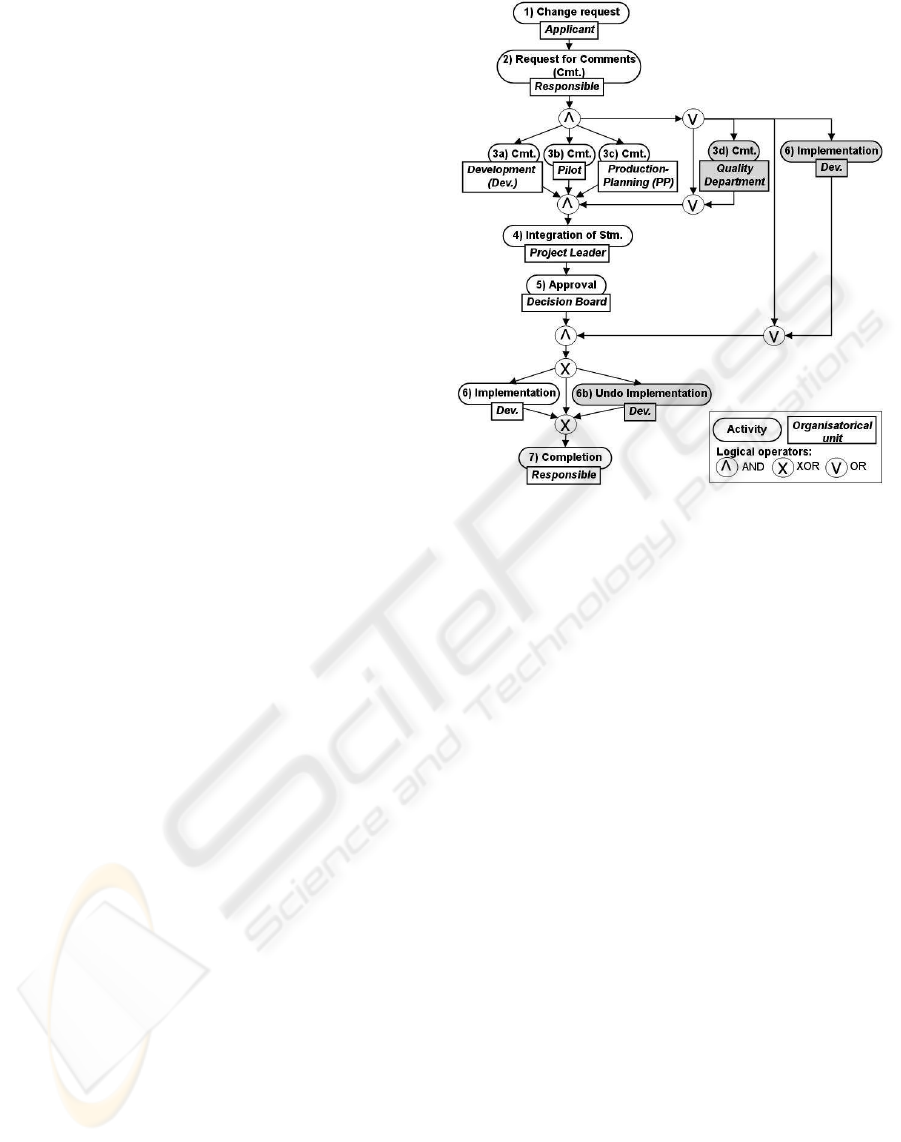

Figure 7: Naive Approach for Variant Modeling.

provide support for both the speciﬁcation and the cus-

tomization of reference process models (Rosemann

and van der Aalst, 2007; Rosa et al., 2007). When

modeling a reference process, EPC functions (and de-

cision nodes) can be textually annotated to indicate

whether they are mandatory or optional. Respective

information is then considered when conﬁguring the

C-EPCs. As one drawback this approach is restricted

to control ﬂow and does only allow for the conﬁgura-

tion of single elements (i.e., it is not possible to mark

a complete branch as mandatory or optional). It is

also not possible to move or add model elements or

to adapt element attributes like we do in Provop. As

compared to reference process models, the basic pro-

cess in Provop can be modeled without any restric-

tion; i.e., it needs not to be deﬁned with a speciﬁc use

case in mind nor it constitutes a recommendation for

all processes of a given process type.

Variants are also important in software engineer-

ing and fundamental characteristics of software vari-

ability have been described (Bachmann and Bass,

2001). In particular, software variants exist in soft-

ware architectures and software product lines (Hal-

mans and Pohl, 2003; Becker et al., 2001). In many

cases feature diagrams are used for modeling software

systems with varying features. Another contribution

in this context stems from the PESOA project (Bayer

et al., 2005; Puhlmann et al., 2005), which provides

basic concepts for variant modeling based on UML.

More precisely, different variability techniques like

inheritance, parameterization, and extension points

ICEIS 2008 - International Conference on Enterprise Information Systems

160

are provided and can be used when describing UML

models of different type. As opposed to PESOA, the

operational approach followed by Provop provides a

more powerful instrument for describing variance in a

uniform and easy manner; i.e., no distinction between

different variability mechanisms is required.

5 SUMMARY AND OUTLOOK

We have described the Provop approach for manag-

ing process variants. Provop considers the whole pro-

cess life cycle by supporting variants in all life cycle

phases. This includes advanced techniques for model-

ing variants in a uniﬁed way and within a single pro-

cess model, but without resulting in too complex or

large model representations. Based on well-deﬁned

change operations, on the ability to group change op-

erations in reusable options, and on the possibility to

combine options in a constrained way, necessary ad-

justments of the basic process can be correctly and

easily realized when creating or conﬁguring a pro-

cess variant. Provop allows representing the objects

and data needed in this context in a compact and efﬁ-

cient manner. Further, it offers advanced tool support

for visualizing and comparing process variants. Fi-

nally, Provop allows for the dynamic conﬁguration of

process variants based on the given process context;

i.e., the change operationsneeded to create the respec-

tive process variant are dynamically selected based on

contextual information. Note that this also allows to

dynamically switch between different variants during

runtime. Altogether, developing and maintaining pro-

cess variants in an integrated way becomes much eas-

ier with the techniques introduced in this paper.

In future research we will detail the Provop ap-

proach. Of the challenges we have to tackle one con-

cerns the correct combination of options when creat-

ing a variant. The set of options to be applied to the

basic process to create a speciﬁc process variantmight

consist of options with dissent and redundant change

operations (e.g., two options add the same activity to

a process schema, but at different positions at the ba-

sic process). Sophisticated techniques are needed to

prevent errors (e.g., deadlocks) or other consistency

problems (e.g., concerning data consistency) due to

such conﬂicting changes.

REFERENCES

Bachmann, F. and Bass, L. (2001). Managing Variability

in Software Architectures. In Proc. of the 2001 Symp.

on Software Reusability, pages 126–132, New York.

ACM Press.

Bayer, J., Buhl, W., Giese, C., Lehner, T., Ocampo, A.,

Puhlmann, F., Richter, E., Schnieders, A., Weiland, J.,

and Weske, M. (2005). PESOA - Process Family En-

gineering - Modeling Variant-rich Processes. Techni-

cal Report 18/2005, Hasso-Plattner-Institut, Potsdam.

Becker, M., Geyer, L., Gilbert, A., and Becker, K. (2001).

Comprehensive Variability Modeling to Facilitate Ef-

ﬁcient Variability Treatment. In Proc. 4th Int. Work-

shop od Product Family Engineering.

Dumas, M., van der Aalst, W., and ter Hofstede, A. (2005).

Process-aware Information Systems. Wiley, Los An-

geles, CA.

Hallerbach, A., Bauer, T., and Reichert, M. (2008a). Mode-

lation and Visualization of Process Variants in Provop.

In Proc. of Modellierung, Berlin. (in German).

Hallerbach, A., Bauer, T., and Reichert, M. (2008b).

Requirements for Modulation and Visualization of

Process Variants in Provop. Datenbank-Spektrum,

8(24):48–58. (in German).

Halmans, G. and Pohl, K. (2003). Communicating the Vari-

ability of a Software-Product Family to Customers.

Software and System Modeling, 2(1):15–36.

IBM (2007). IBM WebSphere Business Modeller, Version

6.1.

IDS Scheer (2006). ARIS Platform Method 7.0.

Leymann, F. and Roller, D. (1999). Production Workﬂow:

Concepts and Techniques. Prentice Hall PTR.

Lu, R. and Sadiq, S. (2006). On Managing Process Variants

as an Information Resource. Technical Report No.

464, School of Information Technology & Electrical

Engineering and University of Queensland, Brisbane.

OASIS (2007). Web Services Business Process Execution

Language Version 2.0. OASIS.

Puhlmann, F., Schnieders, A., Weiland, J., and Weske, M.

(2005). PESOA - Variability Mechanisms for Process

Models. Technical Report 17/2005, Hasso-Plattner-

Institut, Potsdam.

Rosa, M. L., Lux, J., Seidel, S., Dumas, M., and ter Hof-

stede, A. (2007). Questionnaire-driven Conﬁguration

of Reference Process Models. In Proc. of the 19th Int.

Conf. on Advanced Information Systems Engineering.

Rosemann, M. and van der Aalst, W. (2007). A Conﬁg-

urable Reference Modelling Lanugage. Information

Systems, 32:1–23.

Scheer, A.-W. (2000). Aris-Business Process Modeling.

Springer-Verlag New York, Inc., Secaucus, NJ, USA.

Schütte, R. (1997). Foundations on Reference Modeling.

PhD thesis, Uni Münster. (in German).

Weske, M. (2007). Business Process Management - Con-

cepts, Languages, Architectures. Springer.

MANAGING PROCESS VARIANTS IN THE PROCESS LIFE CYCLE

161
