COMMUNICATION-BASED MODELLING AND INSPECTION IN

CRITICAL SYSTEMS

Marcos Salenko Guimarães, M. Cecilia C. Baranauskas and Eliane Martins

Instituto de Computação, Universidade Estudual de Compinas, Av. Albert Einstein, 1251, Campinas, SP, Brazil

Keywords: Human-Computer Interaction, Safety-Critical Systems, Communication, Organizational Semiotics.

Abstract: Safety-critical systems are systems whose failure would provoke injury or death to human beings. In avionic

systems we have seen some significant evolution related to the aircraft cockpits. The Personal Air Vehicle

(PAV) represents a new generation of small aircrafts being conceived to extend personal air travel to a much

larger segment of the population proposing new concepts of interaction and communication in aviation. In

this domain, communication is a critical factor especially among the users while running the system through

its interfaces. This paper presents a technique for modelling and inspecting communication in the user

interface of the avionics domain; a case study illustrates the proposal for artefacts of the PAV domain.

1 INTRODUCTION

Safety-critical systems are systems whose failure

would provoke injury or death to human beings

(Palanque, 1998). The term incident is defined as

unexpected events that may or may not lead to

accidents or deaths (Johnson, 2003). In aviation

systems, many incidents have reasons originated

from failures during communication mediated by the

user interface artefacts as some statistics of the

problems in the avionics domain show: from 34 total

incidents, 1100 computer-related accidental deaths

occurred from 1979 to 1982; 4% of the deaths due to

physical causes; 3% of the deaths due to software

error; 92% of the deaths due to problems related to

human-computer interaction failures (Harrison,

2004). According to the Air Traffic Control (ATC),

90% of the air traffic incidents occur due to fault

attributed to pilots or controllers. These reports show

us the role a reliable user interface has in providing a

better human-computer interaction enabling the

correct use of critical artefacts and supporting

decision making mainly during emergency

situations.

Some significant evolution regarding the user

interfaces in cockpits of aircrafts has happened

recently. The flight decks (or cockpits) today utilize

multifunction computer displays – where huge

amounts of information are stored and the pilot

navigates through layers and layers to find the

required information (Carver and Turoff, 2007).

He/she thus becomes more a system engineer than a

pilot. This modern cockpit, named “glass cockpit”,

represents information using graphical elements

through diagrams and symbols. The automated

systems may produce conflicting data from different

sources and they will force decisions about which

information to act upon (Carver and Turoff, 2007).

The concept behind the Personal Air Vehicle

(PAV) represents a new generation of small aircraft

that can extend personal air travel to a much larger

segment of the population. PAV must provide

simplified operation akin to driving a car. Although

several tasks will be executed by the automation

system because users are persons not supposed to be

trained in pilot’s course, others will be allocated for

humans. Within this scenario, the future of aviation

is being discussed by the CAFE Foundation (Cafe,

2007) and the National Aeronautics and Space

Administration (Young and Quon, 2006). There are

several research sectors specialized in technologies

related to PAV such as flight instructors systems

(Allen, 2007), synthetic vision information system

(Schnell et. al., 2002; Glaab et. al., 2003) and

distributed decision-making (Rong et. al., 2005).

As cockpits have evolved technically, there are

demands for new fundamentals, theoretical and

methodological backgrounds that contribute on

understanding the interaction and communication

issues between human and machine.

We understand that the Human-Computer

Interaction (HCI) field has a role to play and

215

Salenko Guimarães M., Cecilia C. Baranauskas M. and Martins E. (2008).

COMMUNICATION-BASED MODELLING AND INSPECTION IN CRITICAL SYSTEMS.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - HCI, pages 215-220

DOI: 10.5220/0001693902150220

 SciTePress

responsibilities to assume in this particular domain.

HCI is a field of study concerned with human and

machine in communication. It draws on knowledge

on both the machine and the human sides. On the

machine side, computer graphics, operating systems,

programming languages, and development

environments are relevant disciplines. For the human

side, communication theory, graphic and industrial

design, linguistics, social sciences, cognitive

psychology, and ergonomics are important

disciplines. Moreover, engineering and design

methods are naturally relevant (Hewett et al. 2007).

The concepts of communication and interaction

are sometimes blurred in the HCI context.

Communication has been studied from different

points of view, with associated models. The semiotic

school understands communication as the production

and sharing of meaning (Baranauskas et. al., 2002).

Therefore, in the context of this work, we

understand “communication” as implying code

(anything that has a meaning for something or

someone) sharing among systems. Regarding human

and computer systems, they can communicate by

interacting through icons, windows, progress bar,

buttons and other user interface elements.

To our knowledge, literature on user interface

analysis in the domain being considered has not paid

special attention to communication issues. This work

presents an exploratory approach for analysing the

user interface of safety-critical systems regarding

communication aspects. The proposed approach is

applied to the analysis of the Synthetic Vision

Systems (SVS) display that is one of the user

interaction technologies required by PAV aircrafts.

The paper is organized as follows: Section 2

presents the theoretical background which serves as

foundations for the proposed analysis. Section 3

applies the approach to an exploratory study of a

PAV cockpit. Section 4 presents conclusions and

points to further work.

2 THEORETICAL AND

METHODOLOGICAL

BACKGROUND

The theoretical and methodological background

considered in this work is Semiotics that consists on

the study of the signs that are used for

communication. The rules operating upon them and

upon their use form the core of the communication

study. As there is no communication without a

system of signs, Semiotics as a discipline concerned

with the analysis of signs or the study of the

functioning of sign systems may offer an appropriate

foundation.

Organisational Semiotics (OS) is one of the

branches of Semiotics particularly related to

business and organisations (Liu, 2000). OS

understands that any organized behaviour is

governed by a system of social norms which are

communicated through signs. Methods for Eliciting,

Analysing and Specifying Users’ Requirements

(MEASUR), resulted from a Stamper’s research

work in the late 70´s (Stamper, 1993), constitutes a

set of methods to deal with all aspects of information

system design: the use of signs, their function in

communicating meanings and intentions, and their

social consequences. The relevant methods for the

specific scope of this work are described as follows:

 The Stakeholder Analysis allows all the

interested parts (stakeholders) to be

investigated that directly or indirectly have

influences or interests in the information

system under analysis. In the stakeholders

analysis all interested parts are categorized in

several groups whose context covers all the

organization.

 The Evaluation Framing is an extension of the

Stakeholder Analysis, which allows

identifying, for each stakeholder category,

their questions and problems, in order to

discuss possible solutions.

 The Semiotic Ladder (SL) is an artefact

primarily used to clarify some important

Information System notions such as

information, meaning and communication

(Cordeiro and Filipe, 2004). Stamper

(Stamper, 1973) extended the traditional

semiotic divisions of syntactic, semantics and

pragmatics by adding three other layers: social

world, physical world and empirics as

depicted in Figure 1, which, all together, form

the SL.

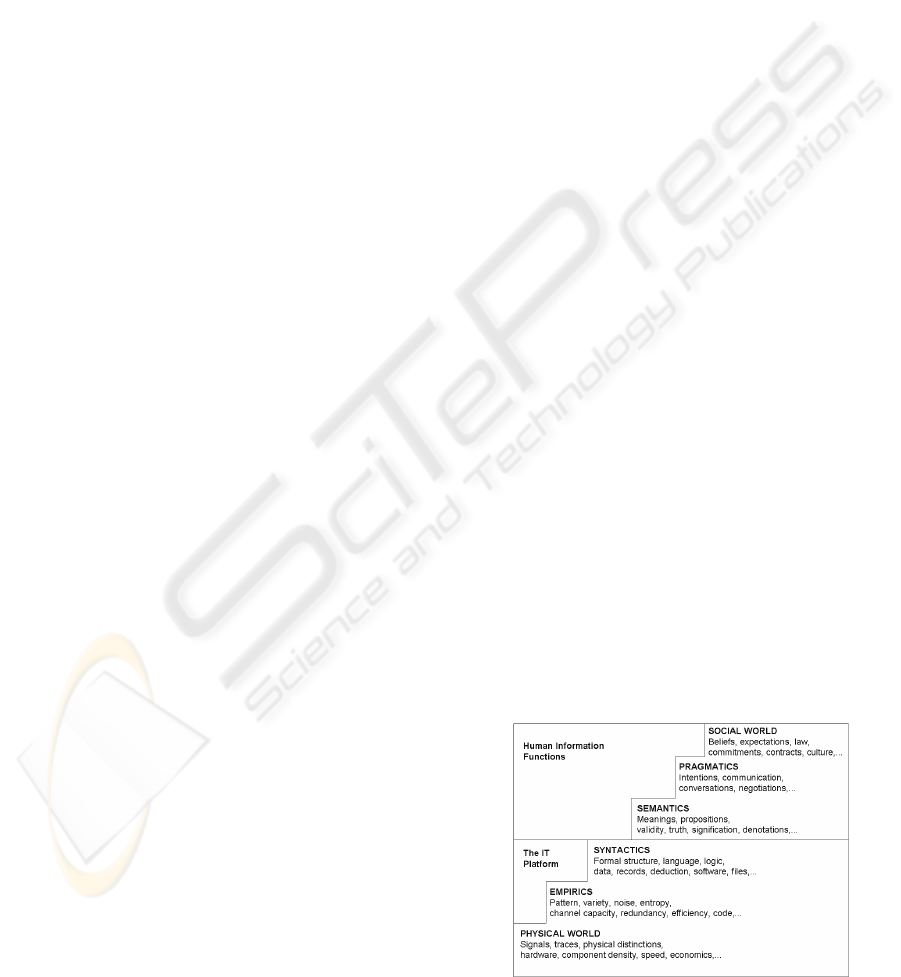

Figure 1: Semiotic Ladder, adapted from Stamper (1973).

ICEIS 2008 - International Conference on Enterprise Information Systems

216

A communication is considered successful only

if all these six levels of the SL are successfully

accomplished. The communication in upper levels

depends on the result of the communication on

lower levels. The Physical World deals with the

physical aspects of signs such as cable or radio

waves. The Empirics level deals with the statistical

properties of signs such as channel capacity,

patterns, efficiency. In the Syntactic level, there are

signs and their relations to other signs forming a

structure, language, data and records. The Semantics

deals with signs and their relations to meaning that

users perceive. In the Pragmatics level, the signs and

their effect on users are identified. Finally, in the

Social World, the signs and their relation to social

implications are considered. If there is a failure in

the Semantics level, it means that it is related to the

human information function. Therefore, the SL may

link human factors and social issues focusing on

different levels of communication.

The Fractal Model of Communication (FMC)

(Salles et al., 2001; Salles, 2000) captures the

structure of the communication process involved in

the application domain. The FMC models agents in

communication through channels. A communicant

agent shares information with other agents through

channels. Figure 2 represents this concept of

communication in which, in one level (or one fractal

dimension), agents B and C communicate through

channel A. In another level, A assumes the role of an

agent in communication with C through channel AC.

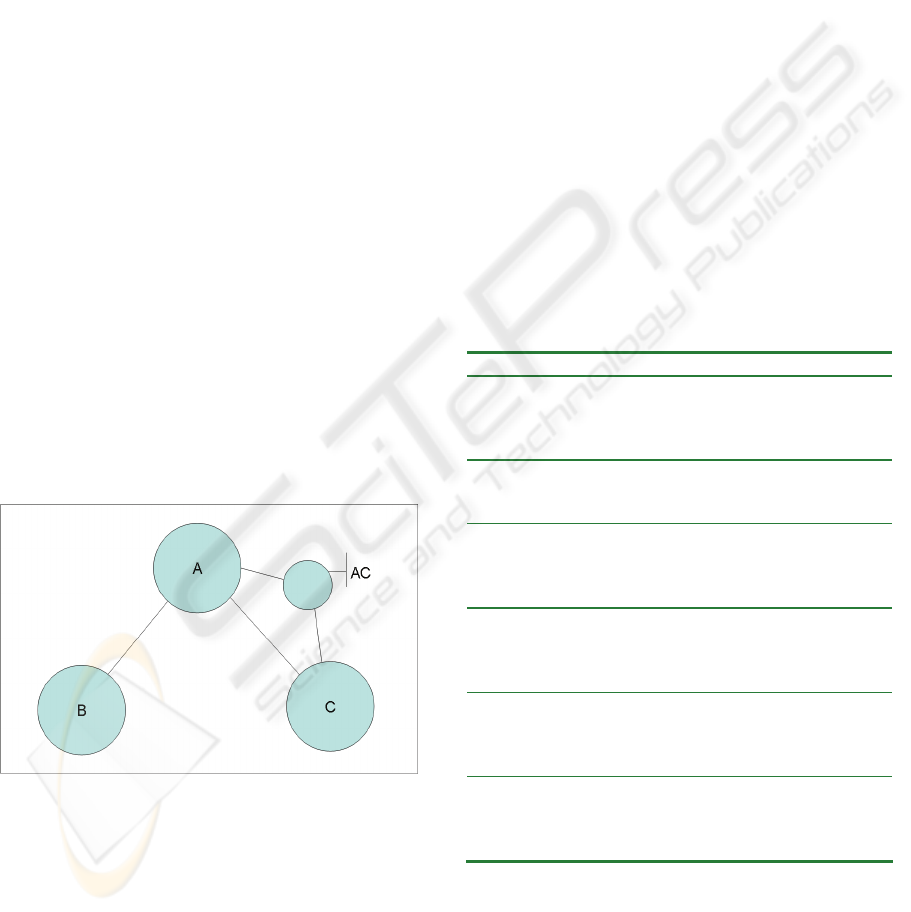

Figure 2: The Fractal Model of Communication (Salles,

2000).

The artefacts of Stakeholder Analysis and

Evaluation Framing can be developed during the

requirements analysis (Guimarães et. al., 2007).

These artefacts can be reused for modelling and

inspection using artefacts of Stakeholder Analysis

and the Evaluation Framing for defining agents and

channels for FMC. The communication inspection is

accomplished by analysing all the six levels of the

SL for each channel represented in FMC model.

The FMC models communication in any fractal

dimension: from the organizational context

(business) to a small pixel in the screen (user

interface elements). For example, if the context of

requirements is relative to the user interface, then the

FMC should have a channel representing the user

interface. If the requirements refer to a specific

interaction object, the channel regarding the user

interface should be exploded reaching to lower

fractal dimension to have specific channel regarding

this interaction object. Therefore, the FMC should

be adjusted according to the requirements contexts.

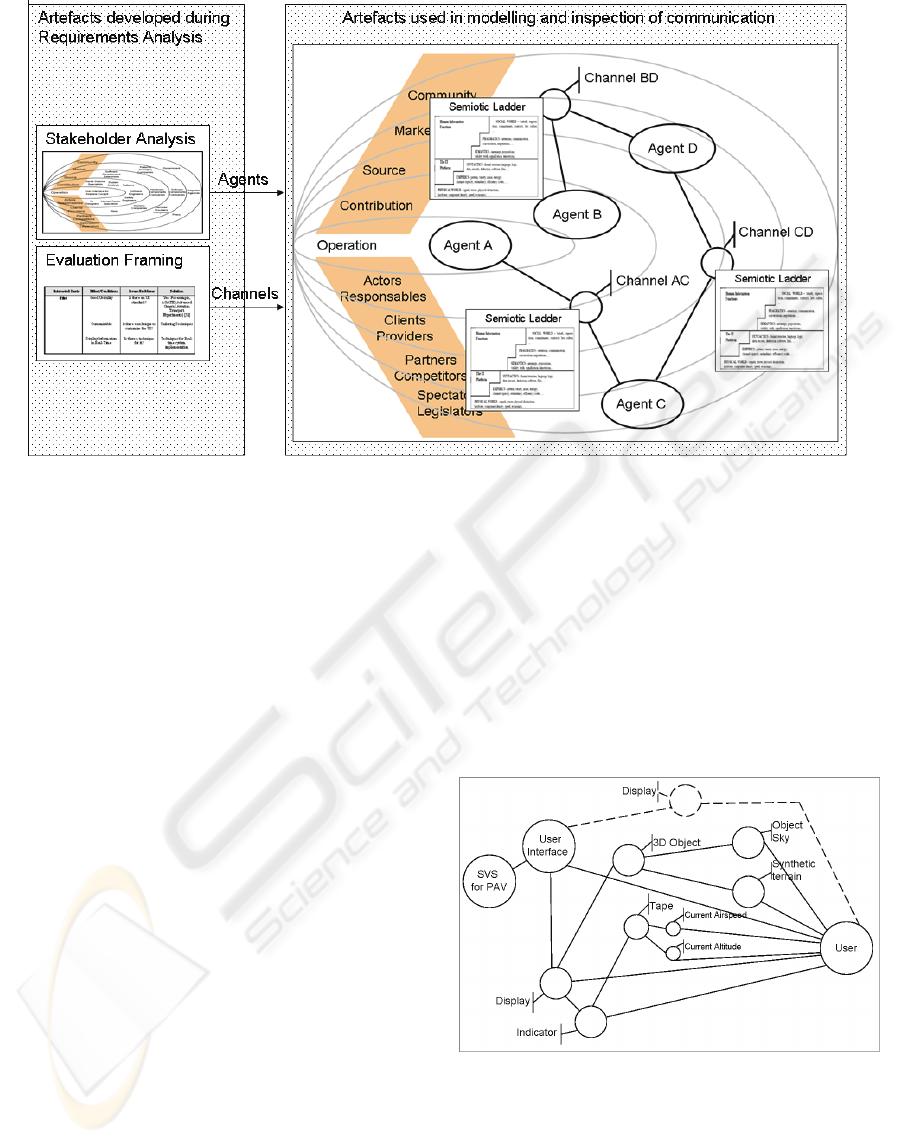

The presented artefacts can be articulated for

modelling and inspecting the communication as

proposed in this work. Figure 3 illustrates it.

The inspection is conducted by verifying all

levels of the SL in all FMC channels. Examples of

questions defined for each SL level are listed in

Table 1.

Table 1: Questions for the six levels of the Semiotic

Ladder.

Layer Question

Physical

world

How is communication being

accomplished regarding physical aspects

(signals, traces, physical distinctions,

hardware component, etc)?

Empirics What are the empirical characteristics

(pattern, capacity, speed, noise) of this

communication?

Syntactic How is communication being

accomplished in syntactic terms

(language, formal structure, files,

software)?

Semantics How is communication being

accomplished regarding semantics

(Meanings, propositions, validity, truth,

signification, denotations)?

Pragmatic

How is communication being

accomplished regarding pragmatics

aspects (Intentions, communication,

conversations, and negotiations)?

Social

world

How is communication being

accomplished in social terms (Beliefs,

expectations, law, commitments,

contracts, culture)?

The SL allows exploring each communication

channel with a wide coverage. The physical,

empirics and syntactic levels focus on information

technology and the levels of semantics, pragmatics

and social world focus on the human context.

COMMUNICATION-BASED MODELLING AND INSPECTION IN CRITICAL SYSTEMS

217

Figure 3: Modelling and inspecting communication.

In the next section, these modelling and

inspection techniques will be applied in a case study

related to the PAV context.

3 MODELLING AND

INSPECTING A PAV DISPLAY

This section presents the modelling and inspection

for the SVS display, one of the technologies

proposed for human-vehicle interaction for PAV,

based on outcomes from the analysis of the problem

domain carried out using the OS methods

(Guimarães et. al., 2007). Due to the specificity for

SVS Display, in this section the FMC is adapted for

the context of this display.

Literature proposes several elements for the user

interface of SVS displays including symbolic,

textual and graphical representations. Not all SVS

displays are designed for PAV. Although Domino

(2006) proposed a user interface layout for a SVS

display without mentioning whether it was designed

for PAV or not, it provides a SVS display layout.

The horizon (composed by sky and terrain) is

presented as 3D objects; all obstacles (fog, clouds

and darkness) are removed as this display provides a

synthetic view, i.e. data related to visualization is

obtained from a database and not from the real

world. It provides information (represented as

Indicator) regarding current altitude (represented as

Tape), current speed (as Tape), pathway display

elements and other information that can help the

user to get a situational awareness. This SVS display

will be analysed regarding communication aspects

considering the PAV context. Figure 4 depicts the

FMC in a fractal dimension representing display

SVS proposed by Domino with more specific agents

and channels. There is no limit for the number of

fractal dimensions allowing any detail degree when

necessary.

Figure 4: Modelling SVS display using FMC.

In interactive systems, the FMC represents the

communication between two agents (the display and

the user) through a channel called user interface

acting as communication media. One important

concept related to modelling in safety-critical

systems is redundancy. For example, aircraft with

ICEIS 2008 - International Conference on Enterprise Information Systems

218

redundant displays is a typical configuration. We

model redundancy in FMC by using dashed

connections and dashed circles as Figure 4 depicts.

This communication related inspection technique

consists on answering questions listed in Table 1 for

all channels represented in FMC and in all fractal

dimensions for obtaining a complete view. The

answers should be easy to understand explaining

how the communication is accomplished in each

layer of SL. In this case study, we have the answers

regarding the channel Tape presented in the Table 2.

Table 2: Answers of SL for channel Tape.

Layer Answer

Physical

world

Tape consists on several colored pixels

Empirics The tape may show any range of values

depending on the context (altitude,

speed).

Syntactic The rectangle is presented with scale of

values and a current value pointed by a

triangle.

Semantics This object is well known by pilots which

means that there is a current value with

specific range and scale.

Pragmatic

This object represents for pilots the

current value with scale information.

Social

world

Providing better situation awareness, the

pilots feel safe during the flight.

The analysis of the SVS Display proposed by

Domino based on the Table 2, shows that the

communication channels through tapes seem

adequate for pilots. In the case of PAV, the users are

not only the pilots but people without intensive

training. Therefore, this artefact may not be

sufficient for PAV.

The artefacts (Stakeholders Analysis, FMC and

SL) allow rich information related to communication

with wide coverage. The organization can be

prepared for most of communication failures

studying alternative ways if a communication fails.

The alternative ways can be obtained focusing on

the FMC to identify the redundant communication

channels supposing situations of each specific

channel or agent is unavailable. The SL provides a

more specific focus on context directed to the cause

of communication failure for each channel. This list

of possible communication failures and respective

ways for treating failures also contribute to

improvements in communication. Consequently, it

leads to improvements in the quality of the technical

product.

4 CONCLUSIONS

Communication is a critical factor to be addressed in

safety-critical systems, especially in the avionics and

aviation domain. Semiotics as a discipline focused

on communication may provide a good foundation

to inform the modelling and inspection of

communication in these systems. This paper

proposed using artefacts of Organizational Semiotics

allied to a framework for modelling communication:

the Fractal Model of Communication (FMC). The

approach was illustrated with the modelling and

inspection of communication regarding a SVS

display of Personal Air Vehicles.

The FMC represents agents and channels of

communication with unlimited fractal dimensions.

In this way, the communication model can be

presented in overview and with detailed information

of each channel, with the six layers of

communication of the Semiotic Ladder. FMC and

Semiotic Ladder provide support for inspecting a

communication system (e.g. the user interface)

helping to detect problems related to

communication. This technique allows seeing the

connection between the organizational view and the

user interface contexts. The overall communication

quality depends on the quality of communication in

each channel. Nevertheless, the FMC may grow in

complexity presenting many agents and channels

making the reading difficult. Some visualization

tools may allow the presentation of the FMC model

with a configurable filter to allow visualizing each

fractal dimension separately, zooming in and out to

show only the agents and channels needed for a

specific consideration.

As an extension of the communication-based

modelling, some adjustments of this technique could

inform the system development for improving the

quality of the communication among agents in the

organization. Moreover, part of this communication

based modelling upon FMC may be automated by a

tool. This tool would be valuable for defining

redundancy points, obtaining alternative ways

(channels and agents) to maintain communication.

ACKNOWLEDGEMENTS

We thank our colleagues and reviewers for insightful

comments on previous version of the paper.

COMMUNICATION-BASED MODELLING AND INSPECTION IN CRITICAL SYSTEMS

219

REFERENCES

Allen M. J., 2007. “Guidance and Control of an

Autonomous Soaring UAV”, In NASA Technical

Memorandum, NASA/TM-2007-214611, NASA.

Baranauskas M. C. C., Salles J. P., Liu K., 2002.

“Analysing Communication in the Context of a

Software Production Organisation”. In 4th

International Conference on Enterprise Information

Systems, Kluwer Academic Publishers, 2002, pp 202-

209.

Cafe Foundation, 2007. “Personal Air Vehicle”. Retrieved

January 27, 2007, from

http://cafefoundation.org/v2/pav_home.php.

Carver L. and Turoff M., 2007. “Human-Computer

Interaction: The Human and Computer as a Team in

Emergency Management Information Systems”. In

Communications of the ACM, Vol. 50. No. 3. ACM

Press.

Cordeiro J., and Filipe J., 2004. “The Semiotic Pentagram

Framework - A perspective on the use of Semiotics

within Organisational Semiotics”. In Proceedings of

the 7th International Workshop on Organisational

Semiotics.

Domino D. A., 2006. “Concept of Operations for the Use

of Synthetic Vision System (SVS) Display During

Precision Instrument Approach”. In Tech paper of

MITRE. Retrieved October 11, 2007, from

http://www.mitre.org/work/tech_papers/

tech_papers_07/06_1230/06_1230.pdf.

Glaab L. J., Kramer L. J., Arthur T., Parrish R. V., Barry J.

S., 2003. “Flight Test Comparison of Synthetic Vision

Display Concepts at Dallas/Fort Worth International

Airport”. In NASA Technical Publication NASA/TP-

2003-212177. NASA.

Guimarães M. S., Baranauskas M.C.C., Martins E., 2007.

“A Communication-based Approach to Requirements

Elicitation for Safety-Critical Systems”. In

Proceedings of 10th International Conference on

Organisational Semiotics, ICOS.

Harrison, M., 2004. Aspects of Human Error: A brief

introduction. In Workshop on Human Computer

Interaction and Dependability. Retrieved May, 2,

2006, from http://www.laas.fr/IFIPWG /Workshops&

Meetings/46/03-Harrison.pdf.

Hewett, Baecker, Card, Carey, Gasen, Mantei, Perlman,

Strong and Verplank, 2007. Curricula for Human-

Computer Interaction, ACM SIGCHI Curricula for

Human-Computer Interaction. Retrieved October 17,

2007, from http://sigchi.org/cdg/cdg2.html. ACM

SIGCHI.

Johnson, C. W., 2003. Failure in Safety-Critical Systems:

A Handbook of Incident and Accident Reporting.

Glasgow University Press.

Liu, K., 2000. Semiotics in Information Systems

Engineering, Cambridge University Press.

Rong J., Theresa S. and Valasek J., 2005. “Small Aircraft

Pilot Assistant: Onboard Decision Support System for

SATS Aircraft”. In AIAA 5th Aviation, Technology,

Integration, and Operations Conference, 26-28.

Palanque, P., Paterno, F., Fields, R., 1998. Designing

User Interfaces for Safety Critical Systems. In CHI´98

workshop, ACM Press.

Salles J. P., Baranauskas M. C. C. and Bigonha R. S.,

2001. “Towards a communication model applied to the

interface design process. In Knowledge-Based

Systems, v. 18, n. 8, 455-459.

Salles J. P., 2000. “O Modelo Fractal de Comunicação:

Criando um Espaço de Análise para Inspeção do

Processo de Design de Software”. In Tese de

Doutorado, Departamento de Ciência da Computação,

Universidade Federal de Minas Gerais.

Schnell T., Lemos K., and Etherington T., 2002. “Terrain

Sampling Density, Texture, and Shading

Requirements for SVIS”.In Final Report to the Iowa

Space Grant Consortium.

Stamper R. K., 1993. “Social Norms in requirements

analysis – an outline of MEASUR”. In Requirements

Engineering, Technical and Social Aspects. Academic

Press.

Stamper R. K., 1973. Information in Business and

Administrative Systems, John Wiley and Sons Inc.

Young S. D. and Quon L., 2006. “Aviation Safety

Program, Integrated Intelligent Flight Deck, Technical

Plan Summary". Retrieved October 17, 2007, from

http://www.hq.nasa.gov/office/aero/nra_pdf/iifd_tech_

plan_c1.pdf.

ICEIS 2008 - International Conference on Enterprise Information Systems

220
