A METHOD FOR ENGINEERING A TRUE

SERVICE-ORIENTED ARCHITECTURE

G. Engels

, A. Hess, B. Humm

, O. Juwig, M. Lohmann, J.-P. Richter, M. Voß and J. Willkomm

sd&m Research – software design and management, Carl-Wery-Straße 42, 81739 München, Germany

additionally University of Paderborn,

additionally Darmstadt University of Applied Sciences

Keywords: Service-oriented architecture, enterprise IT architecture, business service, domain, component, interface.

Abstract: Service oriented architecture (SOA) is currently the most discussed concept for engineering enterprise IT

architectures. True SOA is more than web services and web services style of communication. In the first

place, it is a paradigm for structuring the business of an enterprise according to services. This allows

companies to flexibly adapt to changing market demands. Subsequently, it is a paradigm for structuring the

enterprise IT architecture according to those business services. This paper presents a concrete method and

rules for engineering an enterprise IT architecture towards a true SOA. It can be seen as an instantiation of

roadmaps in enterprise architecture frameworks.

1 INTRODUCTION

Service-oriented architecture (SOA) is currently the

most discussed concept for structuring enterprise IT

architectures. Virtually hundreds of publications –

e.g., (Bieberstein et al. 2005), (Erl 2005), (Krafzig et

al. 2004), (Richter et al. 2005), (Woods 2004), to

name a few prominent ones – give it the character of

hype. Like with all hype topics, it is hard to find

precise and agreed definitions and it is unclear

whether it will prove an enduring paradigm or

whether it will vanish as quickly as it appeared.

The service is a central concept of an SOA.

There is no agreed definition of a service. Some

publications associate service with a particular

technology, namely web services (W3C

WebServices). Most publications abstract from the

specific technology but their definitions resemble

the idea behind web services: a service as

implemented business logic which can be accessed

via standardized interfaces (e.g., (Reussner,

Hasselbring 2006), Chapter 12). Those definitions

resemble aspects of the well-known software

engineering concepts of components, interfaces and

operations (e.g., (D’Zousa Wills 1999), (Szyperski

2002)). A WSDL definition (W3C WSDL) specifies

types, messages, operations, services and bindings.

Operations in WSDL are equivalent to operations in

most programming languages or in UML (OMG

UML). WSDL types are used to specify operation

signatures. Request and reply messages are used to

implement operations. A service in WSDL

comprises a number of operations. Insofar, it

resembles the concept of an interface in

programming languages like Java or C#. A service

also specifies a binding to an implementation that

provides the specified operations. Insofar, a WSDL

service resembles the concept of a component like in

JEE (Shannon et al. 2000) or .NET (Microsoft

.NET).

If SOA is reduced to this, it introduces just new

terms for the established software engineering

concepts of component-orientation: old wine in new

skins.

In his article “SOA revisited” (Siedersleben

2007), Siedersleben states that SOA = component

orientation + loose coupling + workflow. But like

component orientation, loose coupling (Yourdon,

Constantine 1986) and workflow (Jackson, Twaddle

1997) are well-known software engineering

concepts. Applying them to the enterprise IT

architecture level does not justify a whole new set of

terminology.

Some publications, e.g., (Woods 2004), take a

different look at SOA: a paradigm for structuring the

business of an enterprise in form of services which

then drives the IT enterprise architecture. We share

this point of view and regard such an enterprise

architecture as true SOA only. In Section 2 we go

into details.

272

Engels G., Hess A., Humm B., Juwig O., Lohmann M., Richter J., Voß M. and Willkomm J. (2008).

A METHOD FOR ENGINEERING A TRUE SERVICE-ORIENTED ARCHITECTURE.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - ISAS, pages 272-281

DOI: 10.5220/0001697302720281

 SciTePress

Taking this different view on SOA, the question

arises as to how to structure the business and how to

deduce the enterprise IT architecture. Unfortunately,

there are only few publications which provide

architects with concrete engineering methods and

rules for constructing a true SOA. This paper is

exactly about that.

The work presented is part of the research effort

Quasar Enterprise which has been performed at

sd&m Research within the last five years. During

this time, we have analyzed more than 20 large-scale

industrial projects with a total effort of more than

100 person years. In a number of publications ((Hess

et al 2007), (Hess et al. 2006), (Humm, Juwig 2006),

(Humm et al. 2007), (Voß et al. 2006), (Richter

2005), (Engels et al. 2008)), we have extracted the

essence of those project learnings and have

presented individual method chunks. In this paper,

we publish the complete method for engineering a

true SOA for the first time.

The paper is structured as follows. In Section 2,

we define SOA and services in the business context.

In Section 3, we give an overview of the method for

engineering a true SOA. Sections 4-7 present

individual method chunks. In Section 8, we describe

large-scale industrial experience with this method.

Section 9 concludes the paper.

2 SERVICE-ORIENTED

BUSINESS

SOA is a paradigm for structuring the business of an

enterprise and for structuring the enterprise IT

architecture accordingly. Let us start with the

business aspect by reviewing the historical process

of industrialization, e.g., in the automotive industry.

A hundred years ago, cars were manufactured as

single-item production with a high in-house

production depth. Not only all parts of a car were

produced and assembled within the company. Often

even the tool kits were produced within the

company. Only raw materials were bought. This

production process was comparably inefficient. With

increasing competition, automotive manufacturers

were forced to increase their efficiency. One way is

to divide labour. With increasing maturity of the

business, the in-house production depth was

decreased.

Automotive manufacturers today often act as

integrators only. Most parts are being produced by

suppliers – even central units like engines. Suppliers

provide business services to the automotive

manufacturers – who themselves provide business

services to end customers.

This leads us to the following definitions. A

business service is the output of a service provider

towards a service consumer: goods, information, or

activities. A business service is based on a service

contract. It specifies in- and outgoing information

and goods and the basic course of action. Service

actions are the steps of service provisioning which

are visible to the service consumer.

Service-orientation in this sense means

structuring your business according to the business

service. Even when services are provided within a

company, service contracts are to be specified. This

allows enterprises to react faster to market pressure

and adapt the in-house production depth, e.g., via

outsourcing or off shoring. If an automotive

manufacturer wants to outsource a portion of its

value chain, e.g., car leasing, the question is whether

the enterprise IT architecture facilitates or hinders

this strategic business decision.

At the beginning of this section, we defined SOA

as “a paradigm for structuring the business of an

enterprise and for structuring the enterprise IT

architecture accordingly”. We use the term true SOA

if changes in the business (e.g., new products and

services, outsourcing, insourcing, offshoring,

mergers and acquisitions) can be supported by IT

without major restructuring of the enterprise IT

architecture.

In the following sections, we describe a method

for stepwise engineering a true SOA starting with

modelling business services.

3 A METHOD FOR

ENGINEERING A TRUE SOA

See Figure 1 for an overview – we are using UML 2

(OMG UML) for figures throughout this paper. The

method consists of four method chunks. On the

business side, we describe a method chunk for (a)

stepwise refining business services. On the IT side,

the business services are taken as input for method

chunks for (b) designing domains, (c) designing

components and (d) designing interfaces.

The method presented can be seen as an

instantiation of enterprise architecture frameworks

like The Open Group Architecture Framework

(TOGAF), the Integrated Architecture Framework

(IAF), the Zachmann Framework (Zachmann 1987),

or the Department of Defense Architecture

Framework (DoDAF). All those frameworks

A METHOD FOR ENGINEERING A TRUE SERVICE-ORIENTED ARCHITECTURE

273

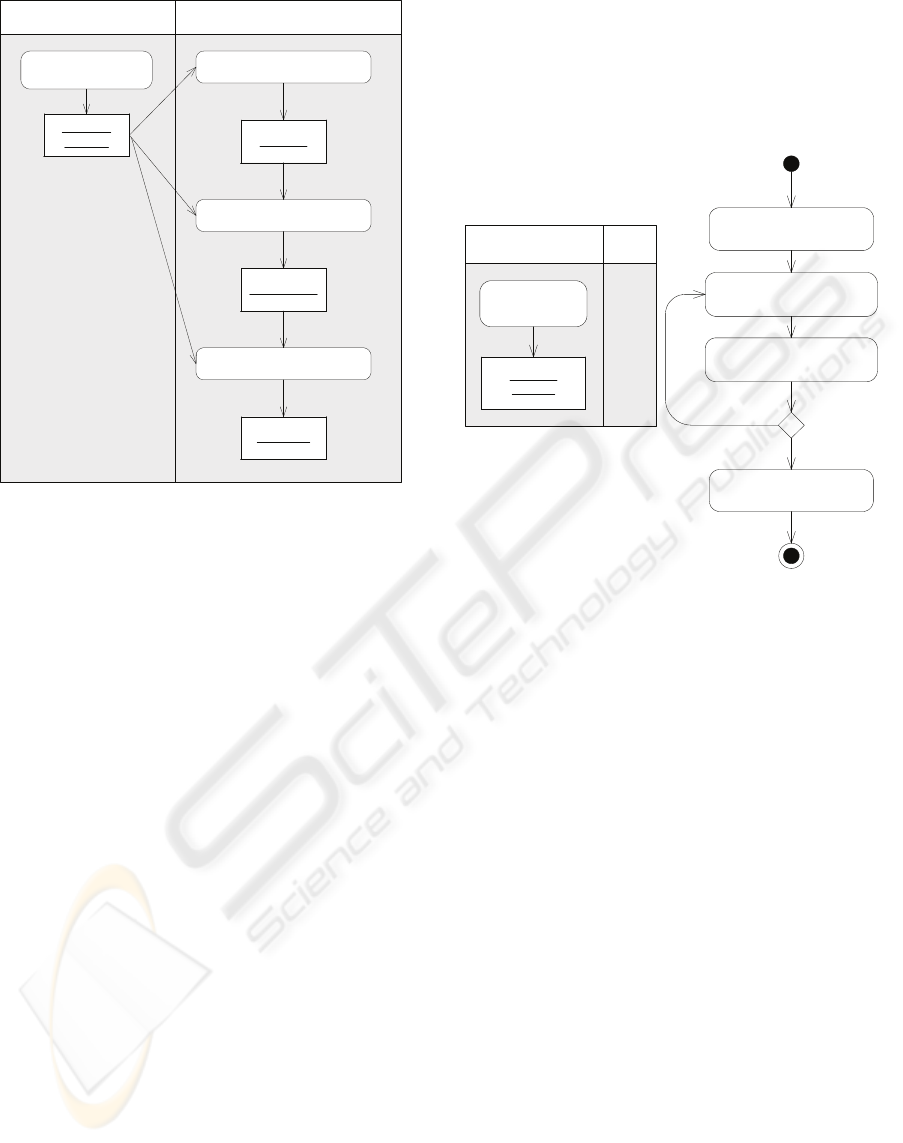

Business IT

Business

services

1. Modelling

business services

2. Designing domains

3. Designing components

4. Designing interfaces

Domains

Components

Interfaces

Figure 1: Overview of the method.

have in common that they distinguish between

different aspect areas for business and IT. In the

overview figures of this paper, we illustrate those

aspect areas via swim lanes (see Figure 1). The

frameworks provide terminology in form of meta

models and the concept of abstract roadmaps for

engineering artefacts in enterprise architecture

projects. However, they do not provide concrete

methods: this is left to instantiations like the one we

present in this paper.

We describe the individual method chunks in the

following sections. We use a tourism example for

illustration: Christopher Columbus Travel Pty. Ltd

(CCT) is a fictitious tour operator that sells package

holidays and custom holidays world-wide.

4 MODELLING BUSINESS

SERVICES

Business services can be defined on different levels

of granularity. Coarse-grained services consist of

finer-grained services. So, they form a hierarchy.

See Figure 2 for an overview of the method for

modelling a business services hierarchy.

1. Identify top-level business services (ca. 5-10):

The first step of the method is fairly straight

forward since top-level business services are

generic. For Christopher Columbus Travel Pty.

Ltd (CCT) they are: plan (evaluate last travel

season and plan new one), purchase (buy hotel

beds and flight seats), produce (design travel

packages and fix a price), sell (book travels), and

service (help customers before, during, and after

travel). The top-level services of most enterprises

will be named similarly.

Business

Identify top-level

business services

Identify service

actions

Specify

business services

Refine

business services

Business

services

1. Modelling

business services

Figure 2: Modelling business services.

2. Identify service actions: The actions of a service

are the candidates for the next finer-grained

business services. E.g., the actions of the service

sell are compose travel, book travel, and transact

payment.

3. Refine business services: Services are refined if

the following conditions hold:

(a) There are multiple service providers, e.g.,

travel agent (action compose travel) and booking

engine (action book travel).

(b) The coarse-grained service supports multiple

business goals, e.g., the service sell supports the

business goals customer satisfaction (action

compose travel) and profitability (action transact

payment).

actions of the coarse-grained service, additional

fine-grained services need to be added.

Steps 2 and 3 are iterated until a suitable level of

granularity is reached – at the latest when

elementary business services are found. The

actions of elementary business services cannot be

interrupted, e.g., check availability.

4. Specify business services: Business services

resemble the behaviour of a system (e.g., a

company or a department within a company) at its

ICEIS 2008 - International Conference on Enterprise Information Systems

274

boundary with respect to its users (e.g., customers

of a company). Concerning this aspect, business

services are like use cases (Jacobson 1992).

Therefore, we specify business services like use

cases, i.e., by UML use case diagrams (OMG

UML) and tabular prose descriptions. The

descriptions may be structured as follows:

(a) Service name

(b) External view: (b1) Service provider, service

consumer, (b2) Trigger / pre-conditions (b3)

course of action (b4) result / post-conditions (b5)

non-functional requirements

See Figure 3 for a selection of business services of

CTT. The method for modelling business services is

an application of the well-known software

engineering technique of functional decomposition

(Simon 1993). A similar method has been described

in (Jones, Morris 2007).

Plan

Purchase

Produce

Service

CCT Services

Compose travel

Book travel

Transact

payment

Sell

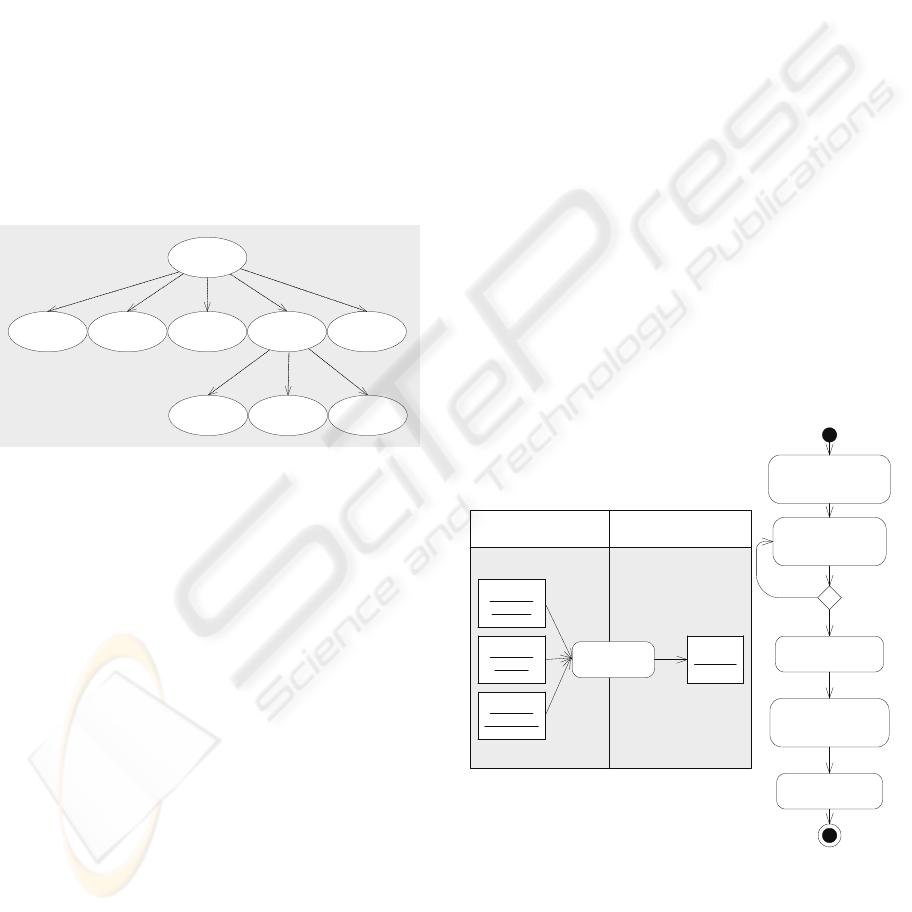

Figure 3: Business services of CTT.

5 DESIGNING DOMAINS

By enterprise IT architecture we understand the set

of all business applications – standard software and

custom software – of an enterprise as well as their

interconnection.

In a true SOA, the enterprise IT architecture is

structured according to the business services.

Structuring is a means for managing complexity.

The enterprise IT architectures of large enterprises

comprise hundreds of applications – each one in

itself enormously complex.

The means for structuring an enterprise IT

architecture are domains. We use the term domain

knowing that (like component) it is heavily used in

different contexts with various meanings, e.g.,

domains in data modelling, domain specific

languages, domains in component models like .NET,

or business domains like banking.

In this section, we present a method for

designing domains, i.e., the top-level structure of an

enterprise IT architecture. Figure 4 refines the

method overview in Figure 1 by identifying three

method inputs:

1. Business services, here the top-level services

only. We distinguish between core business

services and management & support services.

Core business services support the enterprise’s

business directly. For CTT, they are plan,

purchase, produce, sell, and service (see Figure

3). Management & support services are

necessary as well but support the enterprise’s

business only indirectly. Examples are

accounting, reporting, personnel, etc.

2. Business objects are the most relevant top-level

items of an enterprise. The architect can deduce

them by analyzing the in- and outgoing goods

and information of business services. For CTT,

they are customer (the traveller), product (travel

packages), order (a tour booking), supplier

(hotels and airlines), and resource (hotel beds,

flight seats). In most industries, the top-level

business objects are named similarly.

3. Business dimensions reflect the enterprise’s

business strategy: which products are sold to

which customers / markets and how long is the

enterprise’s value chain (the in-house

production depth for manufacturing

enterprises)? See Figure 5.

Business IT

Apply

core business services

Apply

business dimensions

Finalize

Apply

business objects

Apply management &

support services

Business

services

2. Designing

domains

Domains

Business

dimensions

Business

objects

Figure 4: Designing domains.

A METHOD FOR ENGINEERING A TRUE SERVICE-ORIENTED ARCHITECTURE

275

- Package tour

- Custom tour

- Travel agency

- Internet

- Call Center

e.g.,

- own hotels

- purchase in advance

- purchase on demand

- …

- ...

- Premium brand

- Budget brand

Customers / Markets

Products

Customer

Channels

Length of

Value Chain

. . .

Figure 5: Business dimensions of CTT.

Given this input, the method is as follows.

1. Apply core business services: Take the top-level

core business services as the initial domains, in

our example Planning (from plan), Purchasing

(from purchase), Production (from produce),

Sales (from sell), and Service (from service).

2. Apply business dimensions: Split domains

according to the characteristics of one or more

business dimensions if their handling

substantially differs from a business point of

view. Iterate this step as long as the business

strategy demands further differentiation.

This is the most complex step of the method

which requires substantial business and modelling

expertise. In our example, the domain Production

is split into the domains Production package

tours and Production custom tours since they are

handled completely differently. The splitting can

be more complex, e.g. over multiple dimensions

at once. So, Sales differs according to the

customer channels (travel agency, internet, call

centre) and the different services along the value

chain (compose travel, book travel).

3. Apply business objects: Consider the top-level

business objects. In which of the domains are

they being generated, modified, or deleted? Make

new domains for all business objects that are

being created, modified, or deleted in more than

one of the existing domains.

In our example, we get the new domains

Customer Management (from business object

Customer), Order Management (from Order),

and Resource Management (from Resource).

4. Apply management & support services: Make

domains for all management & support services.

They usually follow the structure of the enterprise

resource planning (ERP) software used.

5. Finalize: Find meaningful domain names that are

understood and accepted throughout the

enterprise – if not already done during the

iterations. Find a meaningful and intuitive

graphical representation of the domain model.

Check for completeness of the model by mapping

the physical as-is applications to the domains. In

Figure 6, we show the final domains as UML

packages (OMG UML).

6 DESIGNING COMPONENTS

In this paper, we use the term application informally

only: an application embraces those pieces of

software which are perceived by the users as

belonging together. The users of CTT’s internet

travel portal perceive the booking engine as part of

the portal. From the software engineering point of

view, portal and booking engine are different

components. The design of the components is one of

the main engineering tasks – so we focus on

components from now on. Here, we speak about

enterprise components, i.e., components in the large,

consisting of millions of lines of code – not EJBs or

even Java beans.

We define: An enterprise component implements

a large portion of business logic, exports and imports

interfaces. An interface groups the operations of a

component and specifies their protocol of use. An

operation is described by its signature, its semantics

and non-functional properties.

Similar definitions can be found in numerous

books on component orientation, e.g., (D’Zousa

Wills 1999), (Szyperski 2002). In this section, we

present a method for designing enterprise

components. See Figure 7.

CCT

Purchasing

(PUR)

Customer

Management

(CUM)

Booking

(BOK)

Resource

Management

(RSM)

Production

Package Tours

(PPT)

Production

Custom Tours

PCT)

Service

(SRV)

Accounting

(ACC)

Reporting

(REP)

Core Business Ressouces Support

Customer

Access

Travel agency

(TRA)

Internet

(INT)

Call Center

(CCE)

Planning

(PLA)

Order

Management

(ORM)

Personell

(PER)

Figure 6: CCT domains.

ICEIS 2008 - International Conference on Enterprise Information Systems

276

Business IT

Categorize services

Refine components

Finalize

Assign to

domains

Business

services

3. Designing

components

Domains

Components

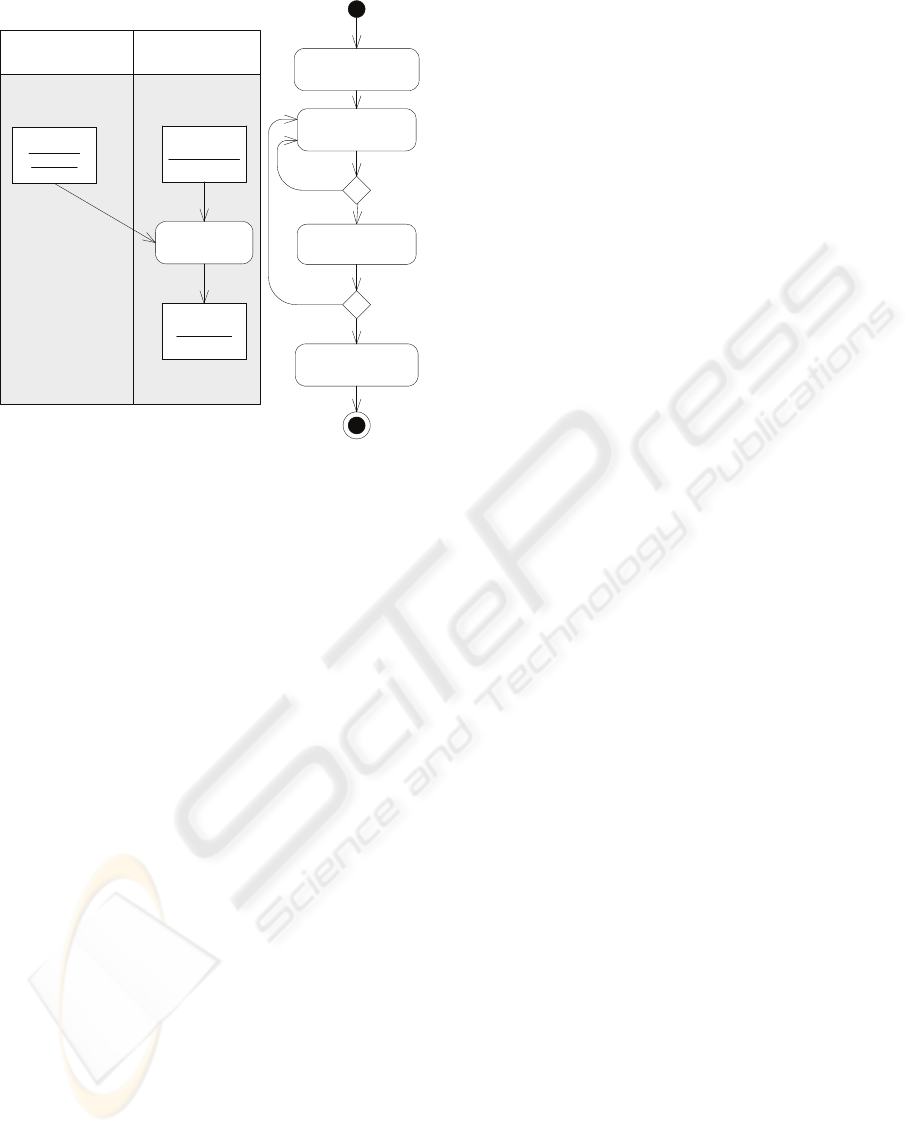

Figure 7: Designing components.

1. Assign to domains: Take business services of the

service hierarchy (see Section 4). Disregard the

business services which are performed by humans

only and select the ones that are – at least

partially – to be performed by IT (called

application services). Assign those application

services to the domains.

In our example, the service compose travel is

assigned to the domains Travel Agency, Internet,

and Call Centre, the service book travel to the

domain Booking.

2. Categorize services: We distinguish four

categories:

(a) Data: managing business objects

(b) Function: providing algorithmic business

logic

(d) Interaction: allowing users to interact with

applications.

The application services are categorized

according to those four categories. For the

application services of one domain and one

category, one enterprise component is constructed

each.

In our example, the service compose travel is

categorized as interaction, the service book travel

as function and the service transact payment as

process.

3. Refine components: The enterprise components

constructed so far are being split according to the

following rules:

(a) Business logic that changes at a different pace

shall be separated.

(b) Transaction data shall be separated from static

data.

dependencies.

(d) Components of different categories shall have

dependencies according to a layering interaction

process

function

data.

4. Finalize: Check the components for completeness

with respect to the services to be covered. Find

meaningful names (see Figure8).

Legend

Interaction

component

Function

component

Process

component

Data

component

Domain

<<AL>>

xxxx

<<AL>>

ANM

VKI

PGP VKP

RAM

<<AL>>

Auftrags-

management

AUMA

<<AL>>

Pauschal-

Preisberechn ung

PPRB

<<AL>>

Individualbu -

chungssteuerung

IBST

<<AL>>

Pauschalbu-

chungssteuerung

PBST

Zu migr.

CTT

Kerngeschäft

PUR

CUM

BOK

RSM

PPT

PCT

SRV

ACC REP

TRA IN T CCE

PLA

ORM

<<AL>>

Order

Mgmt.

<<AL>>

Cust.

Mgmt.

<<AL>>

Hotel

Stock

<<AL>>

Prizing

<<AL>>

Booking

Custom

<<AL>>

xxxx

Travel

Portal

<<AL>>

Travel

Config.

<<AL>>

Accoun-

ting

<<AL>>

Booking

Package

<<AL>>

Repor-

ting

<<AL>>

Flight

Stock

<<AL>>

Supplier

Mgmt

<<AL>>

Flight

Purch.

<<AL>>

Hotel

Purch.

<<AL>>

Payment

...

<<AL>>

Virtual

Stock

<<AL>>

Planning

<<AL>>

xxxx

Call

Center

<<AL>>

xxxx

Travel

Agency

PER

<<AL>>

Perso-

nell

<<AL>>

Package

Config.

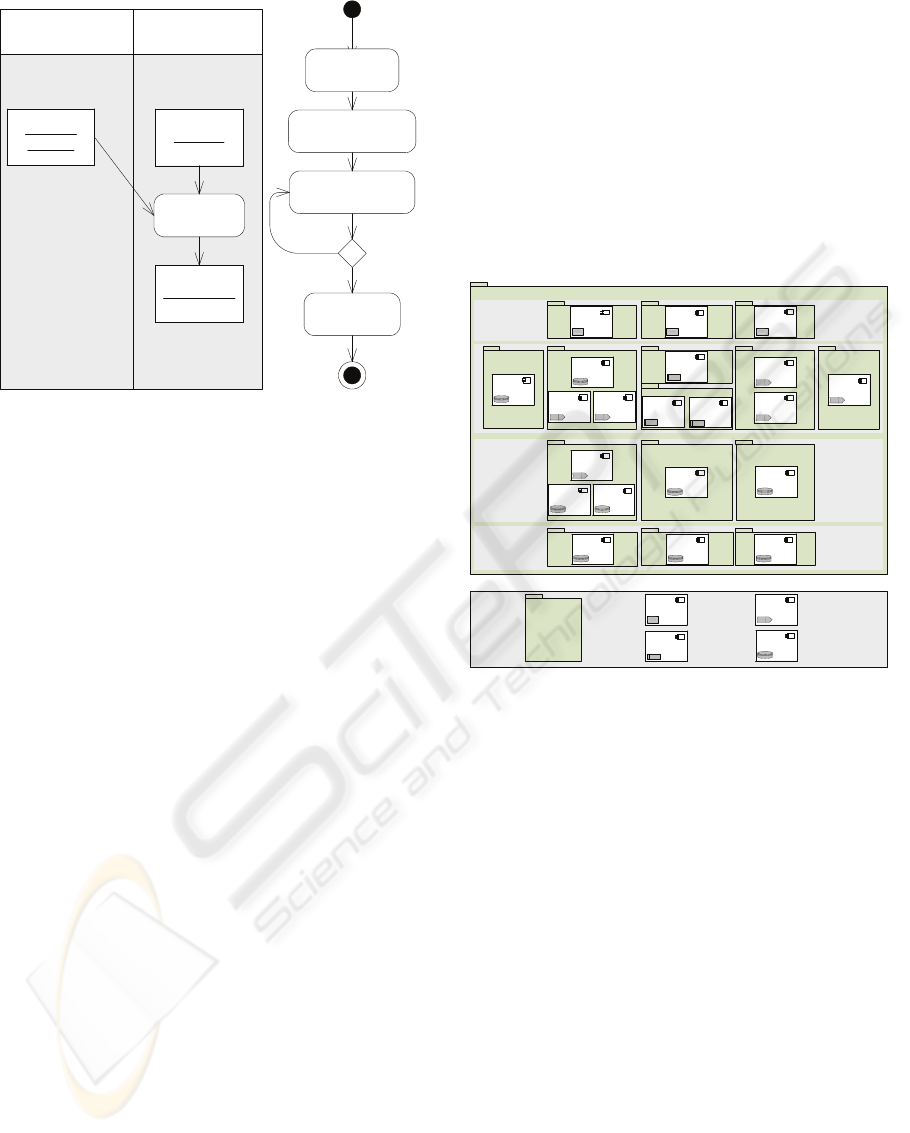

Figure 8: CTT enterprise components.

7 DESIGNING INTERFACES

AND OPERATIONS

After having designed the enterprise components,

their interfaces and operations need to be

constructed. See Figure 9 for an overview of the

method.

1. Use service actions for operations: Again, we

focus on application services, i.e., those business

services that are performed by IT. The actions of

those application services become operations.

E.g., for the service manage customers, the

actions are create customer, handle duplicates,

modify customer, and delete customer. They

become the operations createCustomer,

handleDuplicates, modifyCustomer, and

deleteCustomer.

A METHOD FOR ENGINEERING A TRUE SERVICE-ORIENTED ARCHITECTURE

277

Use service actions

for operations

Apply rules

Group to

interfaces

Validate

Business IT

Business

services

4. Designing

interfaces

Components

Interfaces

Figure 9: Designing interfaces.

2. Apply rules: If the interfaces and their operations

do not adhere to the following rules they have to

be adapted accordingly:

(a) Business-oriented: every operation shall

provide business logic only and must not reveal

implementation details

(b) Coarse-grained: operations shall comprise as

much business logic as possible

operation with the same parameters shall have the

same effect as a single invocation.

(d) Compensating: For each operation there shall

be a compensating operation which undoes its

business implications.

(e) Context free: Operations shall have minimal

knowledge on the context in which they are

invoked (session context, transaction context,

batch / online).

In our example, we specify the operation

createCustomer to always perform a check for

duplicates before creating a new customer record.

This check makes the operation idempotent. Is the

operation erroneously invoked twice then the

second invocation will not generate another

customer record.

3. Validate: The operations are checked for

completeness with respect to the services to be

covered. Possible methods are:

(a) Make a UML sequence diagram for each

application service, using the components and

their operations

(b) Compare the operations with the physical

operations of existing applications, e.g., ERP

systems

4. Group to interfaces: The operations constructed

so far are grouped to interfaces. Possible grouping

criteria are:

(a) According to user groups

(b) According to access mode (read / write)

The operations and interfaces are to be named

properly.

8 INDUSTRIAL EXPERIENCE

In the last sections, we have described a set of

methods for stepwise designing domains,

components, interfaces and operations in an

enterprise IT architecture. In industrial practise,

enterprise IT architectures are hardly ever designed

and implemented from scratch. Usually, they have

existed for decades and they are only reconstructed

locally on demand. The set of methods described are

useful for exactly this: designing an ideal enterprise

IT architecture which is used as a guideline when

reconstructing parts of the existing physical

enterprise IT architecture.

The methods and rules presented in this paper

have proven useful in many large-scale industrial

projects. Regarding the method for designing

domains, we have analyzed 18 enterprise IT

architectures of large corporations in different

industry sectors. In some cases, the method for

constructing the domain model has been applied

explicitly, in others implicitly. The analysis

demonstrates convincingly that business services,

business objects, and business dimensions play an

important role and, hence, give evidence of the

validity of the method described. See Figure 10.

We have, furthermore, analyzed ten large-scale

industrial projects in different industry sectors

concerning their compliance to the rules presented in

the methods for designing components and

interfaces. Figure 11 gives an overview of the result.

In the matrix, we have made an entry only if one of

the rules (rows) has been explicitly and consequently

applied in one of the projects (columns). No entry

was made if the rule was not applicable in the

context or has only been applied implicitly. A large

circle denotes that it has been proven that the

application of the rule had a positive effect on the

enterprise IT architecture, e.g., by reduced

maintenance costs. Figure 11 shows convincingly

that all the rules presented have proven industrial

relevance.

ICEIS 2008 - International Conference on Enterprise Information Systems

278

Industry

sector

Business

functions

Business

objects

Value chain Customers,

markets

Products Channels

anagemen

& support

Automotive

• Supply

• Order

Mgmt

• Production

• Logistics

• Order

• Passenger

cars

• Trucks

• Bus

• Quality

mgmt

• Finance &

controlling

Banking

• Advice

• Sales

• Customer

• Product

• Account

• Securities

Æ outsrc.

• Loans

• Payments

• Customer

& bank

frontends

• Accounting

• Controlling

Banking

• Support

service

• Operations

• Business

partner

• Payment

TXN Æ

central

bank

• Retail

customers

• Corporate

customers

• Investment

banking

• Financing

• Branch

mgmgt

• Customer

interaction

• Bank

mgmt.

• Regulatory

reporting

Banking

• all are split • Partner • Order

mgmt.

• Securities

settlement

• Credit

approval

• Credit

admin.

• Retail

• Private

• Corporate

• Account

products

• Complex

credits

• Risk

controlling

• Market

data supply

Life

Insurance

• Product

devel.

• Acquisition

& advice

• Conclusion

• Payments

• Contract

mgmt.

• Claims

• Customer

mgmt.

• Life

insurance

• Financing

• Sales

mgmt.

Insurance

• Service

• Analysis

• Contract

• Partner

• Life

insurance

• Property

insurance

• Office

comm..

• Planning

Public

• Customer

care &

advice

• Cash

benefit

• File mgmt.

• Personal

data mgmt.

• Monetary

service

• Programs

• Customer

channels

(face-to-

face,

phone, …)

• Personnel

• Admini-

strative

services

Tele-

communi-

cation

• Sales &

marketing

• Invoicing

• Supplier &

partner

• Customer

• Business

Tourism

• Product

mgmt &

design

• Booking

• Contract &

resource

mgmt.

• Multi-

channel

services

• Monitoring

& ERP

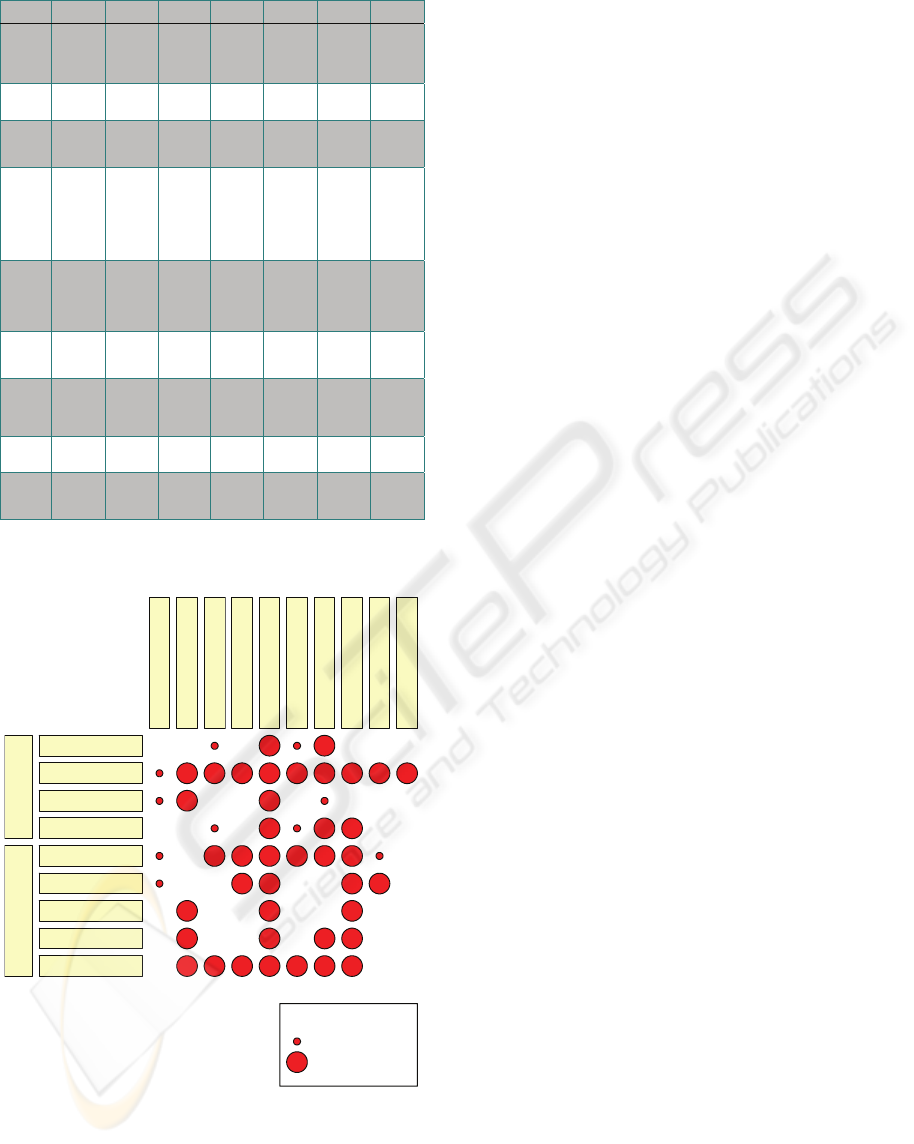

Figure 10: Domains in different industry sectors.

(a, b) Business

logic

Use of four

categories

(d) Dependencies

Æ categories

dependencies

Designing

componens

Designing interfaces

(a) Business

oriented

(d) Compensating

(b) Coarse-grained

(e) Context free

P4: Telecommunication

P5: Logistics

P1: Financial services

P2: Automotive

P3: Government

P6: Logistics

P7: Automotive

P8: Financial services

P9: Financial services

P10: Financial services

Legend

Rule applied

Proven success

Figure 11: Use of rules in industrial projects.

9 CONCLUSIONS

Is SOA a hype that will vanish as quickly as it

appeared? Definitely not. SOA is based on sound

software engineering principles like separation of

concerns (Dijkstra 1982), information hiding

(Parnas 1972) and strong cohesion, loose coupling

(Yourdon, Constantine 1986). It applies those

principles to enterprise IT architecture, i.e.,

architecture in the large. To introduce a true SOA is

costly and takes a long time but it pays (see (Richter

2005)).

Is SOA old wine in new skins, just a rewording

of the principles of component orientation? When

SOA is reduced to web services or a web services

style of communication then this impression is,

indeed, justified. But SOA is more than component

orientation + loose coupling + workflow

(Siedersleben 2007). It is a paradigm for structuring

an enterprise’s business as business services in the

first place and subsequently engineering the

enterprise IT architecture accordingly. If done right

this gives enterprises the flexibility to adapt their

business strategies according to market demands:

sell new products, acquire new market segments,

outsource, offshore, etc. Viewing departments

within an enterprise as service providers with

specified contracts allows for flexibly rearranging if

needed.

If then the IT follows this structuring of the

business into services then IT becomes a facilitator

rather than a hinderer of such changes. And this is

what true SOA is about.

It is relatively easy to make such a statement but

it is enormously difficult to actually realize it.

Unfortunately, in the vast SOA literature there are

little concrete methods and rules that help an

architect to engineer an enterprise IT architecture

towards a true SOA. This exactly is the contribution

of this paper. We have presented a method for

modelling business services and, from there, design

domains, components, interfaces and operations of

an enterprise IT architecture. The resulting

enterprise IT architecture is truly service-oriented.

Hardly ever an enterprise IT architecture is

implemented from scratch. So, the methods –

although presented in a top-down manner – will

usually not be performed sequentially on all levels

of detail. Instead, the method for designing domains

is being used to get an overview of the entire IT

application landscape. The methods for designing

components and domains are being used

incrementally and locally on parts of the enterprise

IT architecture where ever rework is necessary due

A METHOD FOR ENGINEERING A TRUE SERVICE-ORIENTED ARCHITECTURE

279

to business needs. So, the methods presented help

the architect in engineering an existing enterprise IT

architecture towards a true SOA in a stepwise

fashion.

To make one thing clear: the task of engineering

an enterprise IT architecture is a most responsible

one that requires a lot of experience. Mechanically

applying our method in an uninformed manner will

not lead to a true SOA. A high degree of business

and modelling expertise is a prerequisite. However,

our method condenses the experience of numerous

architects and so presents a useful guideline to

architecting a true SOA.

REFERENCES

Bieberstein, N., Bose S., Fiammante, M., Jones, K., Shah,

R.: Service-Oriented Architecture (SOA) Compass:

Business Value, Planning, and Enterprise Roadmap.

IBM Press, 2005

Dijkstra, E. W.: Selected Writings on Computing: A

Personal Perspective. Manuscript On the role of

scientific thought. Springer-Verlag, 1982.

D’Souza, D. F., Wills, A. C.: Objects, Components and

Frameworks with UML: The Catalysis Approach.

Addison-Wesley, 1999.

DoDAF Department of Defense: DoD Architecture

Framework Version 1.5: Volumes I, II, and III. 23

April 2007

Engels, G., Hess, A., Humm, B., Juwig, O., Lohmann, M.,

Richter, J.-P., Voß, M., Willkomm, J: Quasar

Enterprise – Anwendungslandschaften service-

orientiert gestalten. To appear: dpunkt-Verlag 2008.

Erl, T: Service-Oriented Architecture. Concepts,

Technology, and Design. Prentice Hall International,

September 2005

Hess, A., Humm, B., Voß, M.: Regeln für

serviceorientierte Architekturen hoher Qualität.

Informatik Spektrum Heft 6/2006, Springer Verlag.

Dezember 2006.

Hess, A., Humm, B., Voß, M., Engels G.: Structuring

Software Cities - A Multidimensional Approach.

Proceedings of the 11th IEEE International EDOC

Conference (EDOC 2007) The Enterprise Computing

Conference. Annapolis, Maryland, USA. October 2007.

Humm, B., Juwig, O.: Eine Normalform für Services.

Proceedings Software Engineering 2006. GI Edition

Lecture Notes in Informatics (LNI) P-79. Gesellschaft

für Informatik, 2006.

Humm, B., Lohmann, M., Voß, M., Willkomm, J.: Ein

praxiserprobtes Rahmenwerk für die technische

Anwendungsintegration. In: Bleek, W.-G.,

Schwentner, H., Züllighoven, H. (Hrsg.): Software

Engineering 2007 - Beiträge zu den Workshops.

Lecture Notes in Informatics, Band 106, Gesellschaft

für Informatik, 2007.

IAF Capgemini: Integrated Architecture Framework.

http://www.capgemini.com/iaf

Jackson, M., Twaddle, G.: Business Process

Implementation: Building Workflow Systems,

Addison-Wesley 1997,

Jacobson, I.: Object-Oriented Software Engineering: A

Use Case Driven Approach, Addison Wesley,

Reading, Massachusetts, June 1992.

Jones, S., Morris, M.: A Methodology for Service

Architectures. http://www.oasis-open.org/committees/

download.php/15071

Krafzig, D., Banke, K., Slama, D.: Enterprise SOA.

Service Oriented Architecture Best Practices, Prentice

Hall International, November 2004

Microsoft MSDN Developer Center – .NET Framework.

http://msdn2.microsoft.com/de-

de/netframework/default.aspx

OMG (Object Management Group): UML 2.0

Superstructure Specification. 2004

Parnas, D. L.: On the Criteria to Be Used in Decomposing

Systems into Modules. Communications of the ACM,

15, 9, Dezember 1972, S. 1053-1058

Reussner, R. Hasselbring, W.: Handbuch der Software-

Architektur. dpunkt.Verlag, 2006

Richter, J.-P.: Wann liefert eine serviceorientierte

Architektur echten Nutzen? Proceedings Software

Engineering 2005, Fachtagung des GI-Fachbereichs

Softwaretechnik, 8.-11.3.2005 in Essen, S. 231-242.

Richter, J.-P., Haller, H., Schrey, P.: Serviceorientierte

Architektur. Informatik-Spektrum, 28(5), Oktober

2005, 413-416

Shannon, B., Hapner, M., Matena, V.: Java 2 Platform,

Enterprise Edition. Addison Wesley 2000

Siedersleben, J.: SOA revisited: Komponentenorientierung

bei Systemlandschaften. Wirtschaftsinformatik 49

(2007) Sonderheft, S. 110-117

Simon, H. A: The Organization of Complex Systems,

Hierarchy Theory: The Challenge of Complex

Systems. In Howard H. Pattee (Editor): The

International Library of Systems Theory and

Philosophy, George Braziller, New York, 1993

Szyperski, C., Gruntz, D., Murer, S.: Component Software.

Beyond Object-Oriented Programming. Addison-

Wesley Longman, 2002

TOGAF The Open Group Architecture Framework

(TOGAF 8.1.1 'The Book'), The Open Group, 2006,

http://www.opengroup.org/architecture/

Voß, M., Hess, A., Humm, B. : Towards a Framework for

Large Scale Quality Architecture. In: Hofmeister, Ch.,

et.al. (Eds.): Perspectives in Software Quality - Short

Papers of the 2nd International Conference on the

Quality of Software Architectures (QoSA), Interner

Bericht 2006-10, Universität Karlsruhe, Fakultät für

Informatik.

W3C (World wide web consortium): Web services

architecture. http://www.w3.org/TR/ws-arch/

W3C (World Wide Web Consorium): Web Services

Description Language (WSDL). http://www.w3.org/

TR/wsdl

ICEIS 2008 - International Conference on Enterprise Information Systems

280

Woods, D.: Enterprise Services Architecture. SAP Press,

2004

Yourdon, E., L. Constantine, L. L.: Structured Design:

Fundamentals of a Discipline of Computer Program

and Systems Design. Prentice Hall, September 1986

Zachman, J. A.: A framework for information systems

architecture. IBM Systems Journal, Volume 26 , No.

3, IBM Corporation, 1987.

A METHOD FOR ENGINEERING A TRUE SERVICE-ORIENTED ARCHITECTURE

281
