ANYTIME AHP METHOD FOR PREFERENCES ELICITATION IN
STEREOTYPE-BASED RECOMMENDER SYSTEM
Lior Rokach, Alon Schclar
Department of Information System Engineering, Ben-Gurion University, Beer-Sheva, Israel
Amnon Meisels
Department of Computer Science, Ben-Gurion University, Beer-Sheva, Israel
Keywords:
Recommendation systems, preferences elicitation, decision tree, Analytic Hierarchy Process.
Abstract:
In stereotype-based recommendation systems, user profiles are represented as an affinity vector of stereotypes.
Upon the registration of new users, the system needs to assign the new users to existing stereotypes. The AHP
(Analytic Hierarchy Process) methodology can be used for initial elicitation of user preferences. However,
using the AHP procedure as-is will require the user to respond to a very long set of pairwise comparison
questions. We suggest a novel method for converting AHP into an anytime approach. At each stage, the user
may choose not to continue. However, the system is still able to provide some classification into a stereotype.
The more answers the user provides, the more specific the classification becomes.
1 INTRODUCTION
Recommender Systems — systems that recommend
items to users — can be found in many modern web
sites for various applications such as helping users
find web pages that interest them, recommending
products to customers in e-commerce sites, recom-
mending TV programs to interactive-TV users and
showing personalized advertisements.
Different approaches for producing recommenda-
tions can be found in the literature (see (Montaner
et al., 2003) for a survey on recommendation ap-
proaches). Common to all methods is the utilization
of some kind of a user profile or user model for rec-
ommendation. We propose to create a set of stereo-
type profiles and use an affinity vector of stereotypes
as the user profile. These stereotypes are automat-
ically created by an update process that the system
undergoes.
In this paper, we briefly review the details of our
recommendation system. Specifically, we describe
how stereotypes are created and updated, and how
recommendations are generated. We focus on the task
of associating new users to stereotypes.
We propose to associate new users to stereotypes
by using a questionnaire, that is generated automati-
cally from the stereotypes after each update. Existing
users do not need to undergo the questionnaire again
and they are automatically classified to new stereo-
types through the update process.

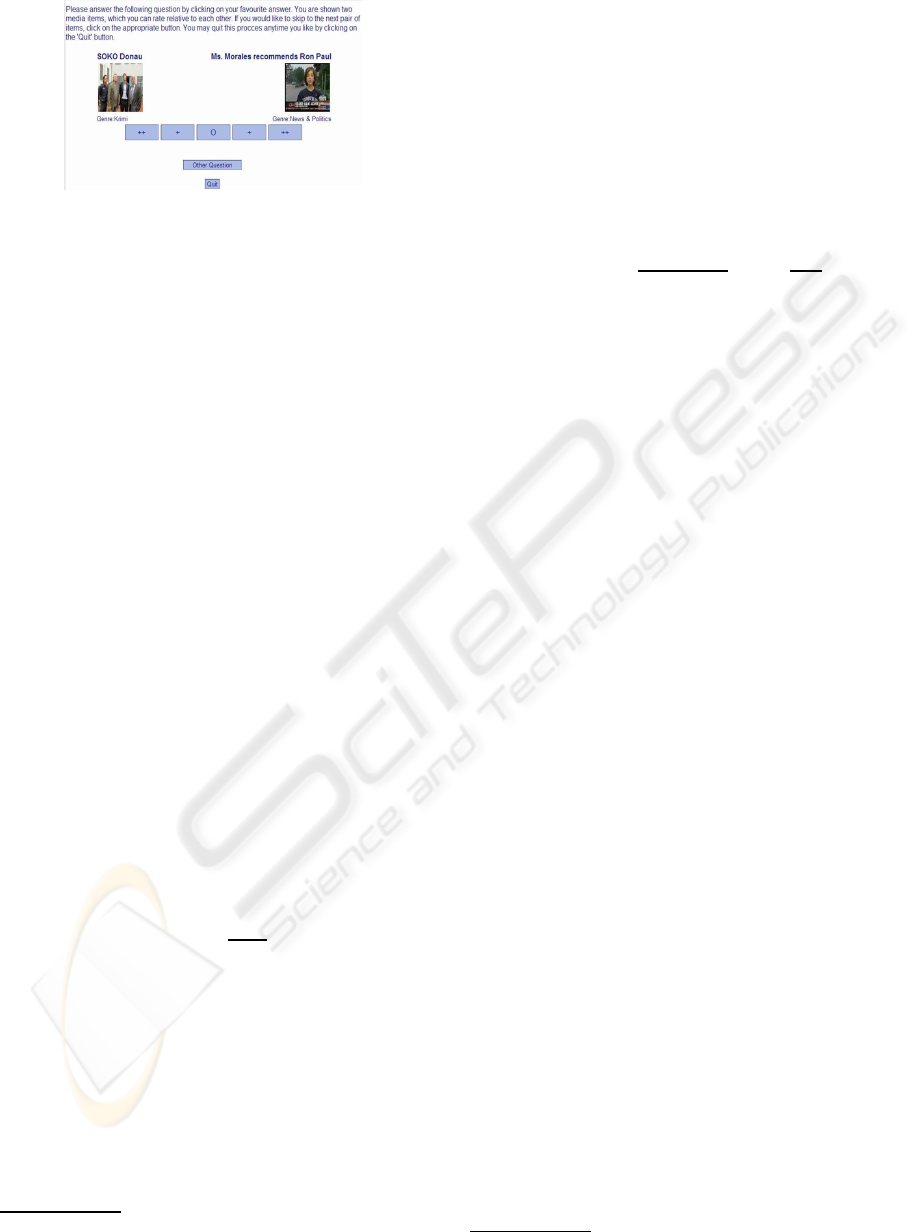

Our questionnaire is created as an interactive, easy
to use process. At each stage two items are presented
to the user who is asked to select the preferred item.
The items are presented as pictures to ease the an-
swering process. The questionnaire is an anytime al-
gorithm, i.e. at each stage the user may choose not
to continue. Nevertheless, the system is still able to
offer some classification into a stereotype. The user’s
classification becomes more specific as the number of
answers she provides increases.
2 STEREOTYPE-BASED
RECOMMENDER SYSTEM
With the explosion of online available data, rec-
ommender systems (Resnick and Varian, 1997) be-
come very popular especially in web sites. While
there are many types of recommender systems rang-
ing from manually predefined un-personalized recom-
mendations to fully automatic general purpose recom-
mendation engines, two dominating approaches have
emerged - Collaborative Filtering (CF) and Content
Based (CB) recommendations.
In many situations, people who are looking for
recommendations ask for the advise of their friends.
268
Rokach L., Schclar A. and Meisels A. (2008).
ANYTIME AHP METHOD FOR PREFERENCES ELICITATION IN STEREOTYPE-BASED RECOMMENDER SYSTEM.
In Proceedings of the Tenth International Conference on Enterprise Information Systems - AIDSS, pages 268-275
DOI: 10.5220/0001697902680275
Copyright
c
SciTePress
Collaborative filtering stems from this idea. While
the population on the internet that can supply advise
is very large, the recommendation problem shifts into
identifying what part of this population is relevant for
the current user.
The greatest advantage of CF is that it is indepen-
dent of the specification of the item and can therefore
provide recommendations for complex items which
are very different yet are often used together. The
major drawback of this approach is the inability to
create good recommendations for new users that have
not yet rated (many) items, and for new items that
were not rated by (many) users. The last drawback is
sometimes referred to as the cold-start problem
The idea of content-based recommendations orig-
inated from the field of information filtering, where
documents are searched given some analysis of their
text. Items are hence defined by a set of features or
attributes. Such systems define a user by using pref-
erences over this set of features. They obtain rec-
ommendations by looking for the best matches of
user profiles and item profiles. Although some re-
searchers (Montaner et al., 2003) separate between
methods that learn preferred attributes of rated items
(called content-based) and methods that ask the user
to specify her preferences over item attributes (called
demographic filtering), we refer to all methods that
recommend according to item attribute preferences as
content-based recommendation.
CB systems can easily provide valid recommen-
dations to new users, assuming that their profile is
specified, even if they never used the system before.
However, new user will get incorrect recommenda-
tions in case their profile is not specified. CB engines
can provide recommendationsfor newitems that were
never rated before based on the item description and
are therefore very useful in environments where new
items are constantly added.
As we see above, the disadvantages of the CF and
CB approaches can be amended by combining the two
into a hybrid method (Burke, 2002). Many hybrid
approaches use two recommendation algorithms and
combine their results in some manner, e.g. combining
the results by their relevance, mixing the output of the
two algorithms, switching from CB into CF once the
cold-start phase is over, or using the output of one al-
gorithm as the input to the second algorithm.
It seems that a more appropriate combination
would be to create an algorithm that is by nature a hy-
brid of CF and CB, and not an ad-hoc combination of
two independent algorithms. This kind of recommen-
dation approach is adopted by the stereotype-based
recommender systems proposed in this paper. Mod-
eling users by stereotypes (or communities) is a well
studied concept (Rich, 1979). Stereotypes are a gen-
eralization of users — an abstract user entity that pro-
vides a general description for a set of similar users (a
community).
In CF systems, stereotypes are described by a set
of ratings over items. Similarity between users can
be identified by their affinity to various stereotypes.
In CB systems stereotypes are a set of preferences
over item attributes, and users can belong to a single
stereotype (Rich, 1979) or to several stereotypes (Or-
want, 1995). Recommendations are computed based
on the stereotype and then normalized given the user
affinity to a stereotype.
We take the content-based approach here, and de-
fine an ontology over media items, using an expert in
the field. It is reasonable to assume that an expert will
be able to identify the key features relevant for peo-
ple when they choose which movie to see. A media
item profile is an instantiation of this ontology, and a
stereotype profile assigns relevance values for various
attribute values of the ontology. For example, a movie
profile may have Bruce Willis and Samuel L. Jackson
as actors, and a stereotype profile may assign to Bruce
Willis as an actor the value 0.97 and to Mel Gibson as
an actor the value 0.85 while assigning to Mel Gibson
as a director the value 0.67.
Receiving recommendations for stereotypes can
be done by matching item profiles with the stereo-
type profile, resulting in relevance values over media
items.
A user in our domain is modeled by an affinity
list to stereotypes, which is organized as a vector. A
user may belong for example to a stereotype titled
”Action” with relevance 0.8 and to a stereotype ti-
tled ”Comedy” with relevance 0.7. In the proposed
method, we generate recommendations based on the
relevant stereotypes.
First, we need to compute recommendations for
the stereotypes. As a stereotype describes a content-
based profile, explicitly stating preferences over the
possible values of item attributes, we activate a
matching engine that computes the relevance of a me-
dia item to a stereotype. As the number of stereotypes
is not expected to be too high, these lists can be per-
sistent in the database. Moreover, it is expected that
many items will have low relevance to stereotypes so
the lists can be truncated after some threshold.
Once a request for a recommendation for user u
with affinity vector v is received, we compute the rel-
evance of media item i to user u as follows:
relevance(i,u) =
∑
s∈stereotypes
v(s)relevance(i,s) (1)
where relevance(i,s) is the persisted relevance of
item i to stereotype s. Note that this process is much
ANYTIME AHP METHOD FOR PREFERENCES ELICITATION IN STEREOTYPE-BASED RECOMMENDER
SYSTEM
269
faster than matching each user with all items in the
database using the matching engine, and therefore can
scale up much better.
Our system supports both positive and negative
feedbacks. We use binary like/dislike feedbacks since
we assume that users find it easier to supply feedbacks
of this type rather than numeric values. Nevertheless,
our system can be easily adapted to handle numeric
feedbacks as well. The affinity vector is updated ac-
cording to the user’s feedback.
3 THE AHP METHOD FOR
PREFERENCES ELICITATION
When a new user registers into the system, her ini-
tial profile need to be created. Research in the area
has mainly focused on using a set of examples (e.g.
a number of movies the user likes) or through a form
specifying the user interests (Rich, 1979). Such ap-
proaches have drawbacks — while rating observed
movies is a painless process, using only a set of rated
movies can later cause the system to only recommend
movies that are similar to the ones the user rated. Fur-
thermore, filling forms is usually considered a boring
chore by users which consequently causes them to ei-
ther avoid filling the forms or answer questions arbi-
trarily (e.g. always picking the first answer).
Methods that ask the user to specify her prefer-
ences over item attributes are also known as prefer-
ence elicitation or preference based search. Viappiani
et al. (Viappiani et al., 2006) describe a preference
elicitation method and an example-based critiquing,
that avoids the problems of preference fluency, do-
main knowledge and user effort.
In this paper, we adopt the Analytic Hierarchy
Process (AHP) (Satty, 1977; Satty, 1980) in order to
elicit preferences to users. AHP is a decision sup-
port tool that was originally developed to solve multi-
criteria decision problems. It uses a multi-level hi-
erarchical structure of objectives, criteria, subcrite-
ria, and alternatives. By using pairwise comparisons,
it can obtain the weights of importance of the deci-
sion criteria, and the relative performance measures
of the alternatives in terms of each individual deci-
sion criterion. In the domain of information systems,
AHP has been used in the past for helping decision
makers to select the best IT solution (see for instance
(Ray, 2004)). While AHP has been extensively stud-
ied in the Operation Research community, there are
very few attempts to use it in recommendation sys-
tems, most recently by (Liu and Shih, 2005).
When using the AHP asa method for eliciting user
preferences, the user has to express her preferences
by responding to the upper triangle of a comparison
square matrix (known as the judgment matrix (Satty,
1977)). Every element in the matrix refers to a sin-
gle pairwise comparison, in which the user is asked to
select the preferred alternative from two possible al-
ternatives. Usually, the answer is chosen from several
discrete choices. It was previously shown in psycho-
logical studies (Miller, 1956) that due to the human
capacity, the best number of discrete choices is 7± 2,
each of which is a linguistic phrase such as ”I much
prefer alternative A to alternative B” or ”I equally like
alternative A and alternative B”.
The linguistic phrase selected by the user is then
quantified by using a scale. Such a scale is a one-
to-one mapping between the set of discrete linguistic
choices and a discrete set of numbers representing the
importance or weight. Saaty (Satty, 1980) suggests to
match the linguistic phrases to the set of integer val-
ues i = 1, ...,9 in order to represent the degree alter-
native A is preferred over alternative B. In this case, 1
represent that both alternatives are equally preferred.
Similarly, the inverse numbers (1/i) are used to rep-
resent the degree to which alternative B is preferred
over alternative A.
After answering all questions, the next step is to
determine the affinity vector implied by the compar-
isons. One way to achieve this is to calculate the right
principal eigenvector of the judgment matrix (Satty,
1977). There are other methods for converting judg-
ment matrix into an affinity vector (Golany and Kress,
1993). In this paper, we are using the eigenvector
method due to its popularity.
Given a judgment matrix with pairwise compar-
isons, the corresponding maximum left eigenvector is
approximated by using the geometric mean of each
row i.e. the k-th root is taken from the product of
the elements in each row (where k is the number of
stereotypes). Next, the numbers are normalized by
dividing them by their sum. Figure 1 illustrates the
AHP method on a given judgment matrix.
Using AHP as-is requires the user to answer to
a total of
k·(k−1)
2
comparison questions. If there are
k = 20 alternatives then the user is required to answer
a set of 190 questions. This drawback is a well known
issue in AHP (Dryer, 1990) and sometimes referred to
as the information overload problem (Carmone et al.,
1997).
Harker (Harker, 1987)noticed that some questions
are redundant and are necessary only for crosscheck-
ing judgments, measuring consistency and increasing
the affinity precision. This lead to the development of
a procedure for calculating AHP priorities with miss-
ing judgements (Harker, 1987). This procedure is
known as the Incomplete Pairwise Comparison (IPC)
ICEIS 2008 - International Conference on Enterprise Information Systems
270
Find
Eigenvector
Normalization
Quantification
Equally
preferred
Equally
preferred
Extremely
preferred
Strongly
preferred
D
Equally
preferred
Equally
preferred
Strongly
unpreferred
Extremely
unpreferred
C
Extremely
Unpreferred
Strongly
preferred
Equally
preferred
Equally
preferred
B
Strongly
Unpreferred
Extremely
preferred
Equally
preferred
Equally
preferred
A
DCBA
Equally
preferred
Equally
preferred
Extremely
preferred
Strongly
preferred
D
Equally
preferred
Equally
preferred
Strongly
unpreferred
Extremely
unpreferred
C
Extremely
Unpreferred
Strongly
preferred
Equally
preferred
Equally
preferred
B
Strongly
Unpreferred
Extremely
preferred
Equally
preferred
Equally
preferred
A
DCBA
1195D
110.20.111C
0.111511B
0.2911A
DCBA
1195D
110.20.111C
0.111511B
0.2911A
DCBA
9510.20.111
Extremely
preferred
Strongly
preferred
Equally
preferred
Strongly
unpreferred
Extremely
unpreferred
9510.20.111
Extremely
preferred
Strongly
preferred
Equally
preferred
Strongly
unpreferred
Extremely
unpreferred
Figure 1: Illustration of the AHP Method for Preferences Elicitation.
algorithm. It reduces the required number of compar-
isons to be between (k − 1) to
k·(k−1)
2
. Moreover, it
uses a gradient procedure for choosing the next com-
parison, and stopping rules to terminate the proce-
dure after sufficient redundancy has been achieved.
Nonetheless, making fewer judgements incurs a loss
of accuracy (Carmone et al., 1997).
4 ANYTIME AHP FOR
ELICITATION OF INITIAL
STEREOTYPE AFFINITY
VECTOR
In this paper, we are mainly interested in the use of
AHP as a method for extracting user preferences re-
garding various stereotypes. Specifically, in the judg-
ment matrix, the user is asked to select one out of two
possible stereotypes. After the user fills in the judg-
ment matrix, the stereotype affinity vector is deter-
mined by using the eigenvector method described in
Section 3.
We propose to develop an anytime approach i.e.
the user may answer any desired number of questions.
Wheneverthe user stops answering questions we have
some classification of the user into stereotypes. The
advantages of the anytime approach for preferences
elicitation have been already studied in the past (Pu
et al., 2003).
Our anytime approach is based on a decision
tree, with pairwise comparisons at the decision nodes.
Each node, both leaves and inner nodes, is also as-
signed an affinity vector of stereotypes, so if the user
does not wish to answer more questions, the current
affinity vector will be assigned to her. The more ques-
tions the user answers the more specific her affin-
ity vector becomes. Furthermore, even without an-
swering any question we are still able to assign some
affinity vector under the assumption, for example, that
most of the users of such systems tend to be teenagers.
Figure 2 illustrates the root of the decision tree. Each
inner node represents a different pairwise comparison
question. Based on the response to the first (root)
question, the decision tree is used to select the next
pairwise comparison question to be asked. Every path
in the decision tree represents a certain set of ques-
tions that the user is asked. Assuming that there are
k stereotypes then the longest possible path contains
k·(k−1)
2
inner nodes (questions).
When a new stereotype model is reconstructed,
one should also create a new hierarchical question-
naire in order to be able to assign new subscribers,
which join the service, to the new stereotype model.
We suggest the use of a supervised inducer for de-
cision trees. In order to use an inducer, a training set
must be created and provided to the algorithm. The
target attribute in this training set is the stereotype
association. Each input attribute in the training set
refers to a pair of media items, for which the user will
be requested to provide her preferences. Note that all
A vs. B
B vs. C B vs. C A vs. C A vs. C A vs. C
Extremely
preferred
Unpreferred
Equally
preferred
Preferred
Extremely
unpreferred
Figure 2: An illustration of the pairwise decision tree.
ANYTIME AHP METHOD FOR PREFERENCES ELICITATION IN STEREOTYPE-BASED RECOMMENDER
SYSTEM
271
these input attributes are nominal and can be assigned
to one of the seven values described in Section 3.
In order to create instances for the training set,
we enumerate all possible combinations of the judg-
ment matrix. For each combination, the affinity vector
is calculated using the eigenvector method described
in Section 3. Each combination is represented by k
instances (rows) in the training set, one instance for
each stereotype. The instance is labeled with the cor-
responding stereotype label and is weighted accord-
ing to the appropriate value in the normalized eigen-
vector. If there are n choices in each question and
there are k stereotypes, then the training set contains
k ∗ n
k∗(k−1)/2
instances. The same judgment matrix
can be obtained by switching stereotypes (i.e. the last
value should be divided by k!). Assuming n = 5, the
full enumeration (also known as the full factorial de-
sign) becomes unpractical for k > 5.
Because full factorial design is not practical in our
case, we use Design of Experiments (DoE) methods
(Montgomery, 1997) to create the training set. Design
of experiments seeks an efficient way to collect useful
information. The collected data is then analyzed by
statistical methods in order to deduce valid and objec-
tive conclusions. We use fractional factorial designs,
such as the Taguchi methodology (Taguchi and Kon-
ishi, 1987), which employ a special set of orthogonal
arrays. Table 1 illustrates a standard orthogonal array
for L8(2
7
) design for 7 binary attributes. Each row
represents the levels of the selected attributes. The
design consists of 8 experiments instead of 128 exper-
iments required by a full factorial design (2
7
= 128).
It is important to note that every attribute setting has
the same number of occurrences in every test setting
of all other factors. Any 2 columns form a two-factor
complete factorial design. The L8(2
7
) design reduces
the number of experiments by 120. The reduction in
larger arrays (like in our case) is even more substan-
tial.
After creating the training set, we need to induce
the decision tree. For this purpose we need a de-
cision tree inducer which can take into account the
Table 1: The L8(2)
7
Taguchi’s design.
Instances
Attributes
a
1
a
2
a
3
a
4
a
5
a
6
a
7
1 1 1 1 1 1 1 1
2 1 1 1 2 2 2 2
3 1 2 2 1 1 2 2
4 1 2 2 2 2 1 1
5 2 1 2 1 2 1 2
6 2 1 2 2 1 2 1
7 2 2 1 1 2 2 1
8 2 2 1 2 1 1 2
instances’ weights and is also capable of providing
probabilistic classification (namely, attach an affinity
vector to every node in the tree). The well-known
C4.5 algorithm (Quinlan, 1993) is suitable for this
purpose
1
. The affinity vector that is assigned to a spe-
cific node is the mean of all training instances vectors
that belong to the node.
In the learning task in the proposed algorithm,
each instance is associated with a set of labels (stereo-
types). Each label has a different weight (affin-
ity/utility). In order to obtain a ranking, the labels are
ordered according to their utility scores. Neverthe-
less, the problem solved here focuses on the mapping
of the judgment matrix (pairwise relations) into a util-
ity function, and not on learning the relation that ex-
ists between the instance input attributes (such as user
demographic characteristics) and their corresponding
utility values. Although the mapping function from
the judgment matrix to the utility vector is known in
advance, we train a decision tree in order to find the
optimal order of the questions. This is needed in case
the user quits the process before completing the entire
questionnaire.
After constructing the decision tree, we can trans-
form each node in the tree (which refers to a pair of
stereotypes) into a simple visual question that the user
can easily answer. Note that the creation of the deci-
sion tree was performed independently of the stereo-
type definitions. The only parameter that matters is
the size of the set of stereotypes. Thus, the construc-
tion of decision trees of frequent sizes can be per-
formed in advance.
Because the user has no notion of the system’s
stereotypes, we propose to represent the pairwise
comparison of two stereotypes (s,t), by the posters
of two popular media items that achieve maximal dis-
crimination between these two stereotypes. An exam-
ple of such a question can be seen in Figure 3. In order
to select media items of this kind, we look for a pair
of items (i, j) for which the term: relevance(i,s) −
relevance(i,t) + relevance( j,t) − relevance( j, s) is
maximized. Additionally, to maximizing the above
measure, we also add the following constraints:
• The two items should have a similar high popular-
ity rate and have been published in about the same
time. This constraint is required to ensure that the
user identifies the items and that there is no bias
other than her own personal preferences.
• The same item cannot be used twice i.e. in two
different pairwise comparisons. This avoids bor-
ing the user. More importantly, we get a better
1
C4.5 is using the gain ratio splitting criterion. In this
case other splitting criteria might be useful, particulary the
MSE gain criterion.
ICEIS 2008 - International Conference on Enterprise Information Systems
272
Figure 3: MediaScout questionnaire example.
picture of the user preferences. Counting on a
single item to represent a stereotype may mislead.
Let us assume that we have an ”action” stereotype
and a single movie of ”Mel Gibson” was selected
to represent it. If the user dislikes this specific
actor, but likes action movies, we do not capture
correctly the user’s preferences. To satisfy this
constraint, while traversing the tree top-down, we
select a pair of items without replacement.
5 EXPERIMENTAL EVALUATION
To evaluate the predictive power of the proposed
method, we compared our approach to a number of
other algorithms using a prediction test.
5.1 Evaluation Measures
In the present study, the training data contains the ac-
tual utility scores. Accordingly, we follow (Carmone
et al., 1997) and use the mean squared error (MSE)
2
as a goodness-of-fit measure. Formally, the MSE of
the matrix i is defined as:
SSE
i
=
k
∑
s=1
v
i
(s) − v
F
i
(s)
2
(2)
MSE
i
=
SSE
i
k
(3)
where:
• k is the size of the input matrix
• v
i
(s) are the normalized weights obtained for sth
factor from the decision tree for the instance (ma-
trix) i
• v
F
i
(s) are the normalized weights obtained for the
s-th factor from the full matrix i
• SSE
i
is the sum of the squared errors from the full
matrix i
2
The MSE is one of the most commonly used measures
of success for numeric predictions.
• MSE
i
is the mean squared error
Since the MSE value strongly depends on the
number of questions that are presented to the user
(Carmone et al., 1997), we measure it as well. The
mean number of questions the user was asked to re-
spond can be estimated by weighting the size of all
paths in the generated decision tree. Assuming that
the judgment matrix is uniformly distributed, then the
expected mean is given by:
MQL =
q
∑
i=1
n
k(k−1)/2−l
i
n
k(k−1)/2
l
i
=
q
∑
i=1
l
i
n
−l
i
(4)
where q is the number of leaves (paths) in the tree and
l
i
is the length (number of questions) of the ith path.
5.2 Comparative Results
In all cases, the tree was constructed using the C4.5
induction algorithm
3
. This experiment was executed
using the ”unpruned” option, namely the pruning pro-
cess was disabled. The size of the tree was controlled
by changing the minNumObj parameter, which indi-
cates the minimum number of instances needed for
every node in the tree (splits are not performed when
this constraint is not fulfilled). We compared the re-
sults of C4.5 with randomly selecting questions in the
judgment matrix.
Figure 4 shows the MSE obtained by the proposed
method and the random method for a 4× 4 judgment
matrix. Because this is a relatively small matrix the
decision tree is trained on the full enumeration train-
ing set. Similarly the MSE is evaluated on the en-
tire enumeration set. The x-axis represents the mean
number of questions the user has answered. As ex-
pected the MSE measure decreases as more responses
are provided. Both the random method and the de-
cision tree based method begin with the same MSE
level (i.e. before the user started the questionnaire)
and reach the same MSE level of zero when the user
fully completed the questionnaire. However, the pro-
posed method has reduced the MSE value by 20% be-
tween these limits.
Figure 5 shows the MSE obtained by the proposed
method and the random method for a 10 × 10 judg-
ment matrix. Since full enumeration is not feasible
for this size of matrix, the decision tree was trained
on a sample of 100,000 instances using Taguchi’s
(Taguchi and Konishi, 1987) method. The MSE was
evaluated on a random test set of 100,000 instances.
Similar to the first experimental result, the MSE mea-
sure decreases as more responses are provided. For 4
3
Using the Weka environment
ANYTIME AHP METHOD FOR PREFERENCES ELICITATION IN STEREOTYPE-BASED RECOMMENDER
SYSTEM
273
questions, the proposed method has reduced the MSE
by 8%.
0
1
2
3
3.51
4.69
5.36
6
0
1
1.89
2.89
3.86
4.79
5.73
60
0.005
0.01
0.015
0.02
0.025
0 1 2 3 4 5 6
Mean Number of Questions
MSE
Decision Tree
Random
Figure 4: MSE performance for 4x4 judgment matrix.
0
1
2
2.98
3.61
4.00
4.99
0
1
2
2.89
3.70
3.99
4.91
0.0008
0.0009
0.001
0.0011
0.0012
0.0013
0.0014
0 1 2 3 4 5
Mean Number of Questions
MSE
Decision Tree
Random
Figure 5: MSE performance for 10x10 judgment matrix.
6 DISCUSSION
Our proposed system uses a stereotype approach
to elicit recommendations, incorporating principles
from both the CB and the CF methodologies. It uses
a hybrid algorithm that is designed to overcome the
disadvantages of both approaches.
The task of classifying new users to stereotypes
is a major concern for us. We ask users to answer
a questionnaire in order to provide information about
their preferences. The process of filling usual ques-
tionnaires is tiresome and users tend to either skip
them or provide arbitrary answers when forced. We
would like our system to make the answering process
as easy as possible.
The approach proposed in the paper is an any-
time AHP. It allows the user to stop answering ques-
tions whenever she chooses. We hope that users will
complete the questionnaire, thus providing the system
with as much information as possible. Nevertheless,
even if the users stop before the completion of the
questionnaire, we still have a classification of the user
to stereotypes.
Our questionnaire is also easy to use — questions
are short and require the user to select one of two
items (e.g. movies). moreover, items are provided
as images and the user is required to select her prefer-
ences using a slider.
The questionnaire is automatically constructed
through a process of decision tree learning, aiming
at achieving the information that best allows us to
classify the user to various stereotypes. This auto-
matic construction is executed after each update of the
stereotype model.
The affinity vector assigned to a specific node is
the mean of all training instances vectors that belong
to the node. The use of the mean, ensures that the
minimum MSE approximation for a given node is ob-
tained. Formally, for a given node j, the mean is the
optimal solution to the following optimization prob-
lem:
min
m
j
∑
i=1
k
∑
s=1
v
F
i
(s) − x(s)
2
s.t.
k
∑
s=1
x(s) = 1
where m
j
is the number of training instances that be-
long to the given node j and x is the decision vector
to be found. Thus, if the training set contains the full
enumeration of all judgment matrices, the mean pro-
vides the optimal value. Nevertheless, for large matri-
ces, in which the training set is not exhaustive, there
is no guarantee that the mean provides the minimum
MSE. In this case, we can use the approximation used
by the IPC method (Harker, 1987). However, it re-
quires that at least k− 1 questions are answered.
The proposed method is executed in a batch mode,
i.e. the entire training set is sampled before the train-
ing phase begins. This modus operandi is very re-
strictive because the number of training instances in
each node decreases exponentially with the path size
(number of questions). Thus, the proposed approach
can be helpful only for selecting the first very few
questions (for instance, in the second experimental re-
sult, which used a training set of 100,000, we could
suggest to select only the first 5 questions of a total
of 45 questions). If more questions need to be se-
lected (in case the user is willing to continue answer-
ing additional questions), we propose to extend only
the specific path that the user has selected. In order
to do so, we sample more instances (judgment matri-
ces) for this specific leaf and use the above mentioned
splitting criterion to select the next question. This ex-
tension is performed on-line, based on the actual re-
sponses of the user.
Additional issues to be further studied include:
ICEIS 2008 - International Conference on Enterprise Information Systems
274
• Combining the proposed method with other ap-
proaches to decrease the number of required pair-
wise comparisons. In particular, clustering meth-
ods for AHP (Satty, 2001) and the Balanced In-
complete Block Designs (BIBD) method that di-
vides a large-scale AHP matrix into smaller sub-
sets (Weiss and Rao, 1987).
• A field study is needed to validate the assumption
that the AHP with full judgment matrix is capable
to capture the user’s preferences.
• Examine the proposed methodology by using
other mappings for converting a judgment matrix
into an affinity vector (other than the eigenvector
method used in this paper).
• Examine evaluation measures other than the MSE,
and adjust the splitting criterion to the evaluation
measure (currently, we are using the information
gain splitting criterion that is commonly used in
the C4.5 algorithm).
7 CONCLUSIONS
A commercial recommender system for recommend-
ing media content, such as movie trailers and clips, to
users of mobile phones is presented. It combines dif-
ferent approaches to recommendations, such as, ex-
pert systems, collaborative filtering and content based
recommendations, into a single hybrid algorithm. The
algorithm withholds the advantages of the various ap-
proaches while minimizing their disadvantages.
The present paper focuses on the way new users
are introduced to the system through a questionnaire.
It explains the mechanism of the AHP-based ques-
tionnaire. A method for using AHP in an anytime
manner is proposed. For this purpose, we used a deci-
sion tree induction algorithm. The comparative study
shows that the proposed hierarchical questionnaire is
better than random traversal of the AHP questions.
The system is currently under development for
commercial deployment within a large communica-
tion company, and is expected to be used in mobile
phones.
REFERENCES
Burke, R. (2002). Hybrid recommender systems: Survey
and experiments. User Modeling and User-Adapted
Interaction, 12(4):331–370.
Carmone, F. J., Kara, A., and Zanakis, S. H. (1997). A
monte carlo investigation of incomplete pairwise com-
parison matrices in ahp. European Journal of Opera-
tional Research, 102(3):538–553.
Dryer, J. S. (1990). Remarks on the analytic hierarchy pro-
cess. Management science, 36(3):249–258.
Golany, B. and Kress, M. (1993). A multicriteria evalua-
tion of methods for obtaining weights from ratio-scale
matrices. European Journal of Operations Research,
69:210–220.
Harker, P. T. (1987). The incomplete pairwise comparisons
in the analytic hierarchy process. Mathematical and
Computer Modelling, 9(11):837–848.
Liu, D. and Shih, Y. (2005). Integrating ahp and data mining
for product recommendation based on customer life-
time value. Information and Management, 42(3):387–
400.
Miller, G. A. (1956). The magical number seven, plus or
minus two: Some limits on our capacity for processing
information. Psychological Review, 63:81–97.
Montaner, M., Lopez, B., and Rosa, J. L. D. L. (2003). A
taxonomy of recommender agents on the internet. Ar-
tificial Intelligence Review, 19:285–330.
Montgomery, D. C. (1997). Design and Analysis of Exper-
iments. 4th edition, Wiley, New York.
Orwant, J. (1995). Heterogeneous learning in the dop-
pelg¨anger user modeling system. User Model. User-
Adapt. Interact., 4(2):107–130.
Pu, P., Faltings, B., and Torrens, M. (2003). User-involved
preference elicitation. In workshop notes of the Work-
shop on Configuration, the Eighteenth International
Joint Conference on Artificial Intelligence (IJCAI’03),
pages 56–63.
Quinlan, J. R. (1993). C4.5: Programs For Machine Learn-
ing. Morgan Kaufmann, Los Altos.
Ray, S. (2004). An AHP based decision model to evalu-
ate various e-learning packages. In 6th International
Conference on Enterprise Information Systems.
Resnick, P. and Varian, H. R. (1997). Recommender sys-
tems. Communications of the ACM, 40(3):56–58.
Rich, E. (1979). User modeling via stereotypes. Cognitive
Science, 3(4):329–354.
Satty, T. L. (1977). A scaling method for priorities in hier-
archical structures. Journal of Mathematical Psychol-
ogy.
Satty, T. L. (1980). The Analytic Hierarchy Process.
McGraw-Hill International, New York, U.S.A.
Satty, T. L. (2001). The seven pillars of the analytic hierar-
chy process. In K¨oksalan, M. and Zionts, S., editors,
Multiple Criteria Decision Making in the New Millen-
nium, chapter 2. Springer.
Taguchi, G. and Konishi, S. (1987). Orthogonal Arrays
and Linear Graphs. American Supplier Institute Inc.,
Dearborn, MI.
Viappiani, P., Faltings, B., and Pu, P. (2006). Evaluat-
ing preference-based search tools: a tale of two ap-
proaches. In Proceedings of the Twenty-first Na-
tional Conference on Artificial Intelligence (AAAI-
06), pages 16–20, Boston, USA.
Weiss, E. N. and Rao, V. R. (1987). Ahp design issues for
large scale system. Decision Science, 18(1):43–61.
ANYTIME AHP METHOD FOR PREFERENCES ELICITATION IN STEREOTYPE-BASED RECOMMENDER
SYSTEM
275
