A METADATA MODEL FOR KNOWLEDGE DISCOVERY

IN DATABASE

José Rafael Carvalho and Maria Madalena Dias

Departamento de Informática, Universidade Estadual de Maringá, Av. Colombo 5790, 870200-900 Maringá-PR, Brazil

Keywords: Knowledge Discovery in Database, Data Warehouse, Metadata, XML.

Abstract: Metadata are deeply necessary in an environment of Knowledge Discovery in Database (KDD), once they

are the responsible for the whole documentation of information on data that integrate a data warehouse

(DW), being the latter used to store the data about the organization business. Such data usually come from

several data sources, thus the metadata format should be independent on the platform. The system inter-

operability can be solved, by using XML (Extensible Markup Language). Therefore, in the present paper a

metadata model for KDD, in XML format, and a manager of metadata are presented. The manager was

implemented in Java, which provides support to the model presently proposed.

1 INTRODUCTION

The growing demand for systems to support

decision-making has impelled a search for both, new

technologies and methods to solve problems relative

to the treatment of the great volume of existing data,

in bases maintained by transactional systems, and

the search for information and knowledge.

The knowledge discovery in database appeared

as a process that establishes how to organize the

data, as well as to extract relevant knowledge to

make decisions.

In KDD systems, the knowledge for decision-

making are obtained by applying data mining

techniques that can be accomplished on data

comprised in databases of transactional systems,

after being integrated and transformed. However, the

ideal is to build a DW, where data can be prepared

to serve as entrance for the application of those

techniques, thus the DW can also be used by OLAP

tools (On-line Analytical Processing) (Chaudhuri

and Dayal, 1997).

Bearing in mind the importance of DW, it is

necessary to know the information on the data that

comprise it, that is, how they are integrated and

transformed to be recorded in the DW, and how they

can be accessed. Such information should be

registered in a metadata. Therefore, it is necessary to

define a metadata model to represent the

organization of its content.

The use of XML format, in the definition of the

metadata model, enables to be more independent

from the computational platform. Thus, the

application receives a fundamental characteristic for

any software, that is, the so searched independence

from any product manufacturing company.

To meet this goal and others on the quest for

knowledge in database, a research project is under

development and partial results are presented in this

paper, which are: a metadata in the XML format to

meet the needs of record and access to data about the

data involved in KDD systems, and a software

component to manage this metadata.

A software component was developed to validate

the defined model and to make possible the

registration and the access of information in the

metadata. That component was implemented in Java

language, because that language is free and supplies

portability.

In the next section of the present paper some

related works are presented.

In Sections 3 and 4 the

metadata model proposed, and the manager of

metadata are described, respectively. Finally, in the

last section, conclusions regarding the present

investigation and some suggestions for future studies

are presented.

469

Rafael Carvalho J. and Madalena Dias M. (2008).

A METADATA MODEL FOR KNOWLEDGE DISCOVERY IN DATABASE.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - DISI, pages 469-472

DOI: 10.5220/0001702404690472

 SciTePress

2 RELATED WORKS

Tannenbaum (2002) presented a generic metadata

model. In that model the initial step is to identify

the beneficiaries, by using the metadata suggested,

as being: developers, TI (Technology of

Information) project managers, final users and

DBMS (Database Management System) catalogs.

The next step is to relate the sources of metadata,

that is, to know where the origin of a metadata

requirement comes from. The last step is to classify

the metadata in three possible categories, as follows:

specific one, only one and common category.

Castoldi (1999) proposed a relational model of

specific metadata for KDD systems that offers

support to the data preparation phase, including

definition of tables, sources of data, definition of

transformation rules and load in the DW, definition

of the frequency with which each rule should be

executed, and the metadata documentation.

Huynh et al. (2000) proposed a metadata that

shows a mapping between object environment and

relational environment in metadata layer of an O-R

data warehouse.

Melchert et al. (2005) defined a CWM-based

model of DW metadata that allows for the

integration of metadata from different software tools

within the DW system. The purpose of the paper

was reporting the experience made with the

application of the CWM pattern within the bank’s

metadata management project.

3 THE MODEL PROPOSED

The models proposed for Tannembaum (2002) and

Castoldi (1999), together with the CWM (CWM,

2001) pattern, supplied subsidies for the definition

of a new metadata model in XML to KDD system.

Besides that, that model is applicable to the DW

architecture proposed by Menolli and Dias (2006).

In the model proposed, all the necessary

information for the general understanding of a KDD

system is available to the users, such as: the sources

of data that feed DW, the data comprised in the DW,

the relationship between the precedence or origin

data and DW data, etc. Thus, the metadata serve as a

guide in the creation, load and access to DW. Items

of metadata identified as being fundamental to the

proposed model are listed below:

1) Pre-processing:

a) Search:

• Addresses of data sources;

• Type of DBMS;

• Version of DBMS;

• User name/password to access the

DBMS;

• Database name;

• Names of tables, attributes, and keys;

• Names of aliases;

• Names of the drivers and APIs;

• Types of source files ;

• Names of legacy systems.

b) Transformation:

• Items of data from source database;

• Rules of transformation;

• Transformations made.

c) Load:

• Stage database:

 Items of data processed;

 Information on stage database;

 Frequency of load;

 Volume of data;

 Date of the last load;

 User login.

d) DW:

• Items of data from stage database;

• Information on DW database;

• Rules of transformation;

• Transformations made.

•

Frequency of load;

• Volume of data;

• Date of the last load;

• User login.

2) Implementation of Technical Analysis:

a) Items of data from DW;

b) Information on data mining algorithms;

c) Information to access data mining

algorithms;

d) Information on OLAP tools;

e) Information to access OLAP tools.

3) Post-processing:

a) Items of data from DW used to

implementation of technical analysis;

b) Technical analysis applied in the generation

of results;

c) File name of results;

d) File address of results;

e) Business name.

The XML of the metadata was structured by naming

the three main nodes, as being the main stages of

KDD process (Feldens et al., 1998), as follows: ‘Pre-

processing’, ‘Application of Analysis Techniques’

and ‘Post-processing’. However, it was necessary to

ICEIS 2008 - International Conference on Enterprise Information Systems

470

adapt the model proposed to a metadata pattern for

KDD systems. CWM was the pattern chosen, due to

the fact of being one of the most suitable approaches

in the DW domain. It has been constructed as a

metadata pattern for this very application domain

and it is already supported by a large number of DW

software vendors (Melchert et al., 2005).

Only the main packages (Foundation, Resource,

Analysis and Management) of CWM were used.

However, there is the possibility of other packages

are supported by this model. This is a proposal for

future work.

4 THE MANAGER OF

METADATA

A manager of metadata was developed, as being a

software component, to give support to the

registration and access to all information contained

in the metadata here proposed. Such a component is

based on the reference architecture proposed by

Valentin (2006). That architecture is divided into

layers, and it is based on architecture oriented to

service, named SOA (Service Oriented

Architecture). Thus, a layer is defined, in order to

join the business processes, whereas another layer is

used for services regarding application. Besides that,

other layers offer support for the accomplishment of

some services, among them, the services related to

the metadata management.

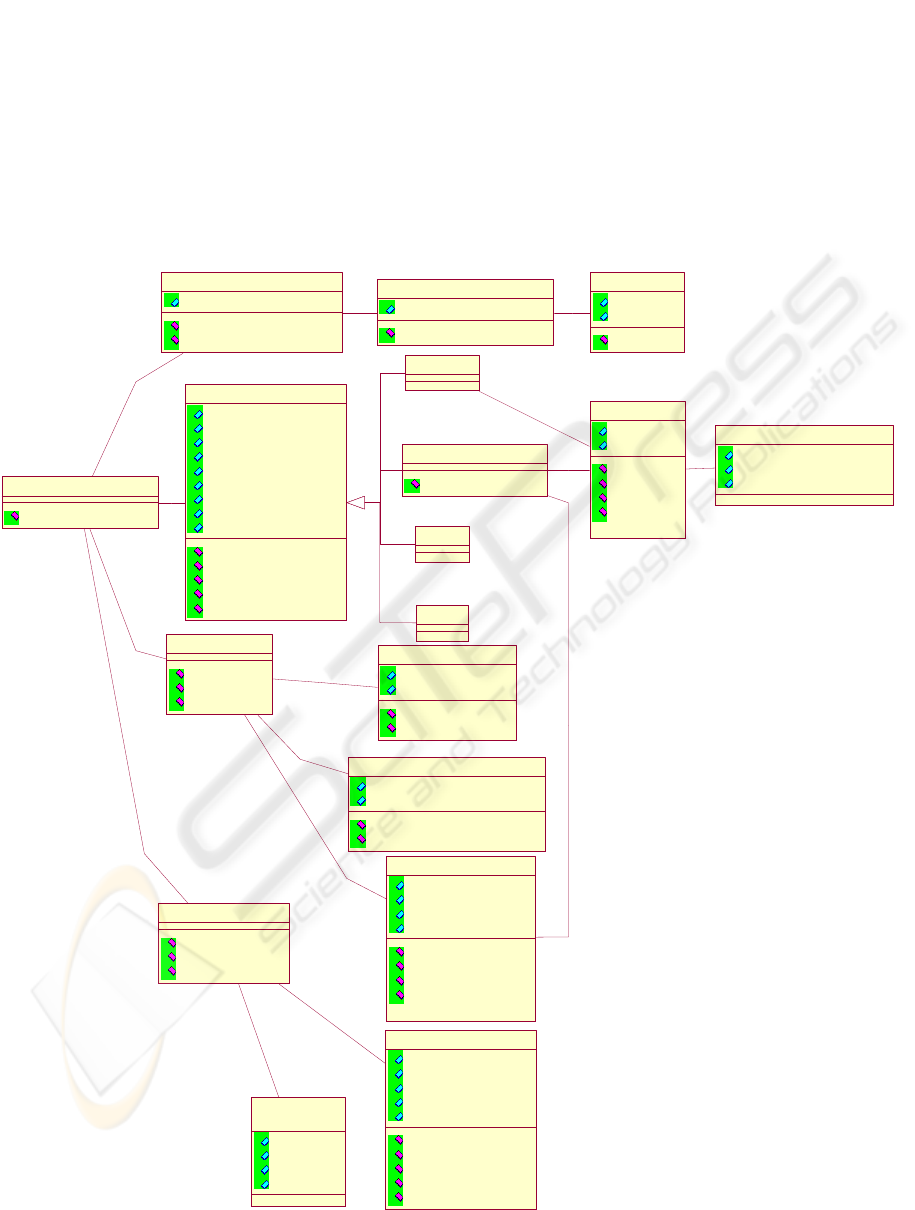

Some UML diagrams were built in the design

of the manager of metadata. Figure 1 shows the

Diagram of Classes, where classes represent the

model tags in XML.

A case study was realized using the manager of

metadata and a XML was generated to register data

about the data involved in the KDD process. After,

the XML was used to realize operations of simple

queries about the organization business. More details

can be found in (Carvalho, 2007).

5 CONCLUSIONS

The metadata model described in the present paper

is based on CWM pattern; on metadata models

proposed by Tannenbaum (2002) and Castoldi

(1999); on the main stages of the process of

development of a KDD System defined by Feldens

et al. (1998); on the DW architecture defined by

Menolli and Dias (2006), and in addition, on the

reference architecture by Valentin (2006). In the

metadata model the fundamental information are

represented for a KDD system, that is, the

techniques (e.g.: the ones for finding the tables) used

as sources of data for DW, as well the management

techniques (e.g. for getting information on the date

of the last load accomplished in DW).

The XML language was used in order to provide

the interoperability of the metadata model proposed,

beyond the matter concerning performance, because

the metadata persistence are in XML, and due to

that, it reduces the overhead, and justifies its use.

Therefore, the main contribution of the present

paper is the definition of a metadata model in XML,

that it represents the items of fundamental metadata

to a KDD system. The main goal of the work

described in this paper was defining a physical and

portable model of metadata to support all the

activities of the KDD process, to make easy the

registration and the access of data of a DW, that it is

used in KDD systems.

Considering the possibility of further

investigations, some aspects can be suggested, such

as: a more detailed study/investigation, and the use

of a CWM pattern in a thorough way, and in

addition, the development of a KDD system that

includes the component of metadata management

here proposed.

REFERENCES

Carvalho, J. R., 2007. Modelo de metadados para sistemas

de descoberta de conhecimento em banco de dados

utilizando XML. Programa de Pós-Graduação em

Ciência da Computação. Dissertação de Mestrado.

Departamento de Informática. Universidade Estadual

de Maringá.

Castoldi, A. V., 1999. Um modelo de metadados para

suporte a sistemas de descoberta de conhecimento em

banco de dados. Monografia de Graduação – Ciência

da Computação. Departamento de Informática.

Universidade Estadual de Maringá.

Chaudhuri, S., Dayal, U., 1997. An overview of data

warehousing and OLAP Technology. ACM SIGMOD.

New York. Vol. 26. N° 1.

CWM, 2001. Common warehouse metamodel

specification. OMG (Object Management Group).

Version 1.0.

Feldens, M. A., Moraes, R. L., Pavan, A.; Castilho, J. M.

V., 1998. Towards a methodology for the discovery of

useful knowledge combining data mining, data

warehousing and visualization. In CLEI’98 (XXIV

Conferencia Latino-Americana de Informática).

Quito. Equador.

Huynh, T. N., Mangisengi, O., Tjoa, A M., 2000.

Metadata for object-relational data warehouse. In

A METADATA MODEL FOR KNOWLEDGE DISCOVERY IN DATABASE

471

Rec ord

XML

Attributes

Nam e : String

Type : String

Transformation_Type : String

Relational

Tables

Table : String

Keys : Str ing

Add_TKA()

Update _TKA()

Delete_ TKA()

Ge t_TKA()

Parameters

Nam e : String

Type : String

Parameters()

Multidimensional

Transformation_Type()

Expressions

Transformation_Rule : String

Transformation_Rule()

Data Mining

DM_Algorithm : String

DM_Access : String

DM_Algorithm()

DM_Access()

OLAP

OLAP_Tools_Information : String

OLAP_Access : String

OLAP_Tools_Information()

OLAP_Access()

Post_Processing

Dat e : String

AddressResults : String

File Na m e : Str ing

TecniquesUsed : String

Dat e()

AddressResults()

File Na m e( )

TecniquesUsed()

Warehouse_Pr

ocess

Step1 : String

Step2 : String

Step3 : String

Step4 : String

Warehouse_Operation

Frequency : String

Volume : String

Date_Last_Load : String

User_Login : String

Load_Operation : String

Frequency()

Volume()

Date_Last_Load()

User_Login()

Load_Operation()

Foundation

Business_Information : string

Business_Information()

StageFoundation()

n1n1

Resource

AddressSource : String

DBMS_Type : String

DBMS_Version : String

Use rPass w ord : String

DB : String

Aliases : String

DriversAPI : String

Source_File_Type : String

LegacyApplication : String

Add_Resource()

Update_Resource()

Delete_Resource()

Get_Resource()

StageResource()

Ana lysis

StageAnalysis()

Add_Analys is()

Ge t_ An alys is ()

Management

StageManagement()

Add_Management()

Get_Management()

Metadata_Model

Management_Metadata()

International Workshop on Design and Management

of Data Warehouse (DMDW12000). Stockholm,

Sweden.

Melchert, F., Schwinn, A., Herrmann, C., Winter, R.,

2005. Using reference models for data warehouse

metadata management. In Eleventh Americas

Conference on Information Systems. Omaha, NE,

USA.

Menolli, A. L. A., Dias, M. M., 2006. A data warehouse

architecture in layers for science and technology. In

SEKE’06, Eighteenth International Conference on

Software Engineering & Knowledge Engineering.

California, USA.

Tannenbaum, A., 2002. Metadata solutions: using

metamodels, repositories, XML, and enterprise portals

to generate information on demand, Addison Wesley,

New York, USA.

Valentin, L. G., 2006. Uma arquitetura para um sistema de

descoberta de conhecimento. Programa de Pós-

Graduação em Ciência da Computação. Dissertação

de Mestrado. Departamento de Informática.

Universidade Estadual de Maringá.

Figure 1: Diagram of Classes of the Manager of Metadata.

ICEIS 2008 - International Conference on Enterprise Information Systems

472
