AN EFFICIENT HYBRID METHOD FOR CLUSTERING

PROBLEMS

H. Panahi and R. Tavakkoli-Moghaddam

Department of Industrial Engineering, Faculty of Engineering, University of Tehran

P.O. Box: 11365-4563, Tehran, Iran

Keywords: Clustering problems, Ant colony optimization, Genetic algorithms, Paired comparison test.

Abstract: This paper presents a hybrid efficient method based on ant colony optimization (ACO) and genetic

algorithms (GA) for clustering problems. This proposed method assumes that agents of ACO has life cycle

which is variable and changes by a special function. We also apply three local searches on the basis of

heuristic rules for the given clustering problem. This proposed method is implemented and tested on two

real datasets. Further, its performance is compared with other well-known meta-heuristics, such as ACO,

GA, simulated annealing (SA), and tabu search (TS). At last, paired comparison t-test is also applied to

proof the efficiency of our proposed method. The associated output gives very encouraging results;

however, the proposed method needs longer time to proceed.

1 INTRODUCTION

Clustering is implemented to group objects into

clusters so that the objects with similar attributes

bring together into a batch. Some applications of

cluster analysis are qualitative interpretation and

data compression, process monitoring, local model

development, toxicity testing, finding structure-

activity relations, classification of coals, pattern

recognition, and optimization.

The objective functions of clustering problems

are usually nonlinear and non-convex so some

clustering algorithms may fall into local optimum.

Moreover, they possess exponential complexity in

terms of number of clusters and become an NP-hard

problem when the number of clusters exceeds

(Shelokar et al., 2004). Several algorithms have been

proposed to solve clustering problems (Banfield and

Raftery, 1993; Jiang et al., 1997). Meta-heuristic

algorithms, such as ant colony optimization (ACO)

(Shelokar et al., 2004), tabu search (TS) (Al-Sultan,

1995), genetic algorithms (GA) (Jiang et al., 1997;

Murthy and Chowdhury, 1996), simulated annealing

(SA) (Selim and Al-Sultan, 1991; Sun et al., 1994),

and particle swarm optimization (PSO) (Paterlini

and Krink, 2006) have been used for clustering

problems.

In this paper, a new method by hybridizing two

algorithms, namely GA and ACO, is represented and

proposed for clustering problems. In Sections 2,

ACO algorithm and local searches are described. In

Section 3 the proposed GA-ACO method is

explained. Section 4 illustrates the computational

results to evaluate the performance of the proposed

method on two real datasets. Finally, the remarking

conclusion is derived.

2 ACO CLUSTERING METHOD

Ant colony optimization (ACO) was first introduced

by Dorigo et al. (1996) to solve discrete optimization

problems. This algorithm simulates the way that real

ants find the shortest way between a food source and

their nest. Ants communicate with each other by

pheromone and exchange information about

selecting the best path. The path chosen by more

ants gains more chance to be chosen by other ants

and if they choose that path, they increase the

probability of that path to be chosen by next ants.

The idea of ACO algorithm applied in this paper is

inspired from Shelokar et al. (2004).

Each agent represents a feasible solution. After

assigning such objects to clusters each agent gets a

fitness due to Equation (2). Information about each

agent is saved in to a matrix called pheromone trail

matrix. Indeed this matrix is built due to the value of

assigning objects to clusters by agents. In other

288

Panahi H. and Tavakkoli-Moghaddam R. (2008).

AN EFFICIENT HYBRID METHOD FOR CLUSTERING PROBLEMS.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - AIDSS, pages 288-294

DOI: 10.5220/0001703002880294

 SciTePress

words, if assigning an object to a cluster makes a

good reduction in the objective function, it affects

the pheromone trail matrix in a way that other agents

will assign such object to such cluster with a high

probability but not certainly. Stopping criterion of

the proposed method is a number of iterations.

Following, we describe our proposed method.

Assume that we want to cluster N objects to a

predefined number of clusters, K. For this purpose,

we applied R agents. The proposed string

representation is depicted in Fig. 1. This figure is a

solution string for a problem with ten objects and

four clusters. The number of assigned clusters is

shown in its related cell.

Figure 1: String representation.

As mentioned before, agents find their way due

to pheromone trail matrix,

, with the size of KN

This size does not depend on the number of agents

so it means the information of agents is accumulated

in such a matrix and all of the agents use the same

matrix for assigning objects to clusters.

()

ji,

represents the concentration of assigning

object i to cluster j. The value of elements of a

pheromone trail matrix varies by two factors: (1)

Fitness of agents and (2) evaporation rate.

Evaporation rate is applied to lessen the effect of

past information. It helps to discover solution space.

If evaporation rate is set to a high value it means the

information gathered from the past is diminished fast

but the low value of evaporation rate implies that the

information obtained past iterations are diminished

slowly. Finally, three local search methods are

designed and applied with a predefined probability

in order to improve the solution quality.

2.1 Algorithm Details

At first iteration, agents assign objects to clusters

randomly. The pheromone trail matrix is fed by

equal values, the value is not important because we

use a normalized pheromone trail matrix for decision

making. At the end of each generation, the

pheromone trail matrix is updated by elitist agents.

Agents assign objects to clusters by one of the

following two procedures:

Procedure (I): Due to pheromone trail matrix,

for a given object, they choose the cluster with the

highest value. For example, if the agent decides to

assign a cluster to object i

by Procedure (I), then it

finds the maximum value in the i-th line of the

pheromone trail matrix, the associated cluster is

assigned to object i. Agents choose procedure (I) by

a predefined probability q

; known as exploitation.

Procedure (II): The cluster is chosen by a

stochastic probability. This procedure is chosen by a

probability of (1-q

) and known as biased

exploration.

Briefly, each agent generates a random number

for each object. If the random number is less than or

equal to q

, then it applies Procedure (I) else it uses

Procedure (II). Suppose that for object i, Procedure

(II) is taken. At first step, we must make a

probabilistic distribution as follows:

k



,...,1,

∑

(1)

By the use of Equation (1), a probabilistic

distribution is made and it is obvious that P

=1. By

this way, K intervals are made with P

's. Then

another random number is generated. Depending on

which interval contains the random number, the

associated cluster is assigned to object i.

After allocating all objects to clusters for each

agent, agents should be evaluated. In this paper, the

objective function is set to be the sum of squared

Euclidean distance between each object and its

associated cluster center. We assume that each

object has A attributes. Assume that

m represents

the average of the

-th

attribute of the i-th cluster

and w

is an integer variable where if object i is

assigned to cluster j is equal to one else is set to zero

and

x is the value of the

-th

attribute of the i-th

object. The objective function is computed by

Equation (2). Moreover,

must satisfy Equations

(3) and (4) and

is computed by Equation (5).

111

min

KNA

ij i j

Fwxm

γγ

===

=×−

∑∑∑



,,...1,1

∑



,,...1,1

=≥

∑

,... ,Av,... ,K , j

m 11

∑

(2)

(3)

(4)

(5)

2.2 Local Search

Usually local searches are performed on a few

percent of the population. After calculating fitness of

each agent, agents are sorted due their fitness value.

Three different local searches are designed in this

4 2 3 1 2 4 1 2 3 1

AN EFFICIENT HYBRID METHOD FOR CLUSTERING PROBLEMS

289

paper. Before describing our proposed local

searches, we need to define a matrix; eval_cluster.

This is a matrix of

NKR ×× . When we assign

cluster

j to object i it means we have added a value

to our objective function which is equal to

∑

−×

jiij

mxw

γγ

; however, we do not know

that if this assignment is the best because we have

options else. By this way, we make a matrix for

each agent in the following manner:

⎥

⎦

⎤

⎢

⎣

⎡

−×−×

∑∑

KNNK

mxwmxw

1111

....

γγ

In other words, the element in the

i-th row and

the

j-th column is the value that is added to the

objective function if object j is assigned to cluster i.

In the next section, we describe how this matrix is

applied to optimize clustering problems and we

explain each local search.

2.2.1 Local Search A_1

This local search is designed for agent with rank

one. After sorting agents in ascending trend due to

fitness values, first agent is chosen for the local

search "A_1". A random vector is generated with the

length of

N. If any of vector values is less than or

equal to a predefined threshold, which is set to 0.02,

the local search will be applied. Assume that agent

with rank one assigned object

i to cluster j. Suppose

that the associated random vector of object

i is

suitable for the local search. As the first step, we

find the minimum value of Line 1 of the

eval_cluster

matrix.

(

)

(

)

{

}

:,,1_eminarg_ iclustervalclusteropt =

(6)

opt_cluster is equal to j, then we take no

action; however, if

opt_cluster is anything except j,

we assign object

i to cluster opt_cluster. Then we

calculate the fitness of the agent, if any improvement

is made, we accept the new assignment; however, if

the objective function is worse than before, we do

not accept the new assignment.

2.2.2 Local Search A_2

This local search works the same as local search

"A"; however, the threshold probability for this local

search is smaller. The reason of such parameter

tuning is computational time. This local search

performs on agents with rank 2,..,

L agents. These L

best agents also update the pheromone trail matrix as

will be described later.

L is a parameter which must

be the threshold probability value for this set to 0.01.

2.2.3 Local search B

In this local search, we intend to explore each cluster

in order to find distant objects and attempt to assign

them to another cluster. This local search is done on

agents with rank one and two with a probability

threshold of 0.03.

Again, we consider the

eval_cluster matrix. As

the first step, we try to sort values in each column.

Indeed, we sort objects in each cluster due to their

distance to the cluster center. Some values are equal

to zero because each object is assigned to just one

cluster. Assume that object

i is chosen. Then again

we utilize

opt_cluster. If opt_cluster is not equal to

the assigned cluster, we assign object i to opt_cluster

and calculate the fitness of the agent. If the fitness of

the agent is improved, we accept the new

assignment; else we do not accept it.

2.2.4 Local Search C

This local search builds a matrix list of size NL

The matrix

list is build as follows:

()

(

)

{

}

jiclusterevaljilist :,,_minarg),(

where

i=1,…L and j=1,…,N.

(7)

For each of the best

L agents, we generate a

random vector of size

1 . For each object, if the

associated random number is equal or less than a

threshold probability, which is set to 0.05, then we

assign the object to a cluster randomly else we

assign the object to the associated

list matrix

element. At last we calculate the objective function

of the agents and verify if any improvements

happened or not, if so changes are accepted else

changes are not accepted. The proposed local

searches are more likely to heuristic algorithms and

their concepts and basis are on heuristic rules that

we establish it.

2.3 Pheromone Matrix Update

At the end of each iteration, the pheromone matrix

should be updated. This updating is based on the L

best agents. This updating helps agents to correct

their way. The pheromone trail matrix at the

t-th

iteration is updated by Equation (8).

ICEIS 2008 - International Conference on Enterprise Information Systems

290

KjNitt

ijijij

,,...1,,...1)()1()1(

==Δ+−=+

∑

ππρπ

(8)

Where

is the steadfastness of trail and therefore

)1(

− is the evaporation rate. Higher value of

means that the information achieved in the past is

forgotten faster and

is computed as follows:

if cluster is assigned to object  ,

0 elsewhere.



⎧

⎪

Δ=

⎨

⎪

⎩

(9)

Three main steps at iteration are as follows: (I)

Generation of new

R solutions via the last updated

pheromone trail matrix; (II) Executing local search

procedures; (III) Updating pheromone trail matrix.

The algorithm performs the above steps till a

predefined number of iterations happen.

3 HYBRID GA- ACO METHOD

The main idea of applying a hybrid method is to

benefit from two efficient algorithms, namely GA

and ACO. In the traditional ACO algorithm, all the

agents have one life and there is no concept of

reproduction of agents and one agent just corrects its

way by the means of the pheromone trail matrix.

Although diversity of the path of an agent is made

by the means of a threshold parameter,

; however,

we believe that we can search the solution space

more effectively by the means of the reproduction

operators of GA, such as crossover and mutation.

This usage of GA operators must be done

carefully so that the information is gathered by the

agents through iterations will not be lost. This means

that we must implement GA due to the ACO's

objective function. In this way, we must define a life

for each agent. This can happen in two ways: (1)

define a constant life cycle for each agent and (2)

define the life cycle due to a predefined function. In

this paper, we choose the second way. The reason of

such setting is that at the last generations most of the

agents are the same and agents will not change their

path because of high values of the accumulated

pheromone trail matrix. But, if we apply a method

i.e. genetic algorithm in order to explore the solution

space then we may obtain slight improvements by

the means of the objective function at the last

generation that is desirable. The life function can be

interpreted as cooling temperature in SA. The

proposed hybrid method can be divided to three

sections: (1) ACO algorithm; (2) implementing GA

in ACO; and (3) resuming ACO.

3.1 ACO Phase

The proposed hybrid method starts with ACO as

defined in Section 2. ACO continues till lives of the

agents are reached. The life function should have

high values in early generation and small values in

latter generations. We implement several functions

and analyze their behaviour, and we propose a

function illustrated in Equation (10).

⎟

⎠

⎞

⎜

⎝

⎛

⎟

⎠

⎞

⎜

⎝

⎛

−

AeTT

(10)

3.2 Implementing GA in ACO

3.2.1 Ranking Agents

Agents are sorted due to their calculated objective

functions in ACO. This fitness is handy in GA's

selection phase and finds its elitist parents. Indeed

agents of ACO are taken as chromosomes of GA.

3.2.2 Selection

Selection is based on universal sampling method.

3.2.3 Recombination

We implement a uniform order-based crossover for

the given clustering problem. Suppose that we have

K clusters and N objects. So K clusters are assigned

where

)( NK p

cannot be done by the original

uniform order-based crossover. Then, we modify

this crossover for the clustering problem. In this

crossover, two parents (say

and P

) are randomly

selected and a random binary template is generated,

as shown in Fig. 2. Some of the genes for offspring

are filled by taking the genes from parent P

where there is a "1" in the template. At this point, we

have

partially filled; however, it has some

“gaps”. Genes of parent C

in the positions

corresponding to zeros in the template are taken and

filled by generating a random number between

,…,k. C

are filled in the same way.

3.2.4 Replacement

An elitist method is chosen in our algorithm in order

to provide convergence.

AN EFFICIENT HYBRID METHOD FOR CLUSTERING PROBLEMS

291

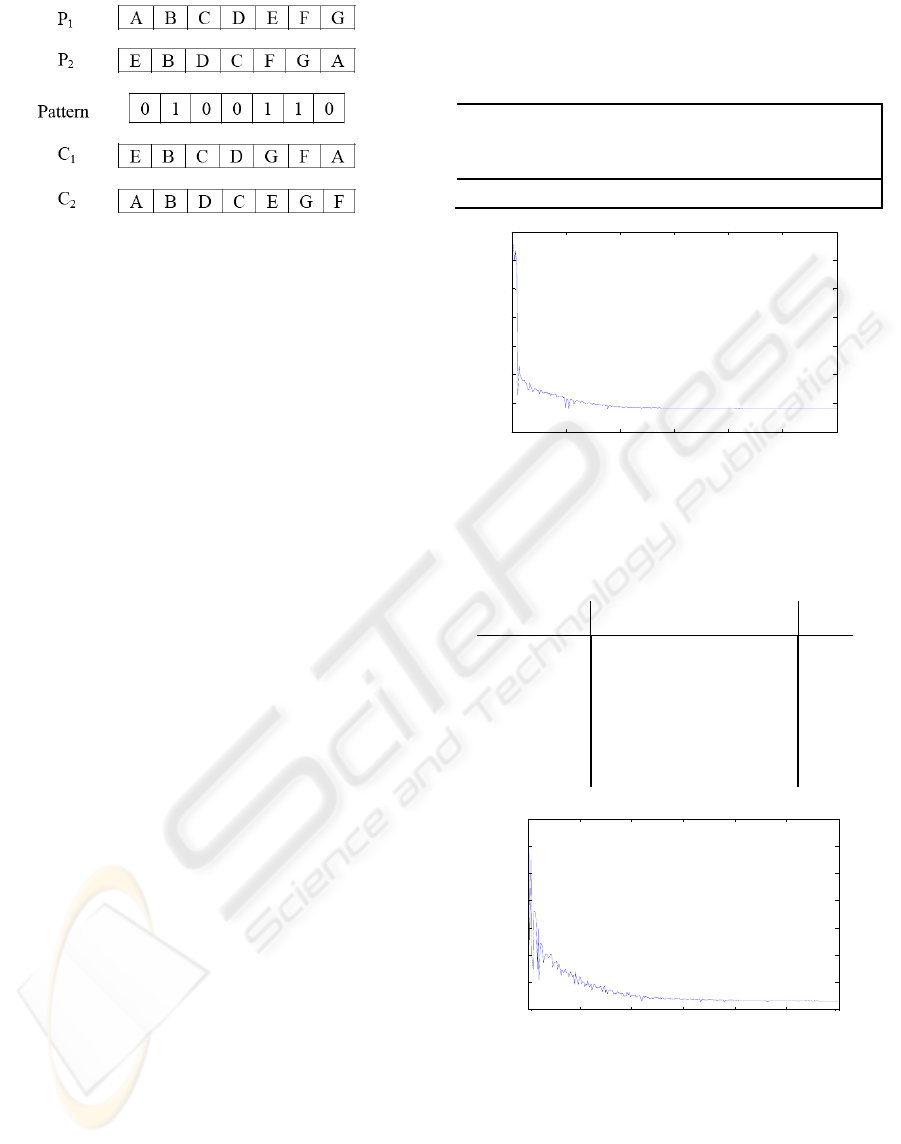

Figure 2: Modified uniform order-based crossover.

3.3 Resuming ACO

After performing GA, ACO must be resumed.

Chromosomes inherited to the next generation must

be treated as agents of ACO. At this point, we reach

to a decision making point about continuing with

current pheromone trail matrix or with a new one.

We executed the algorithm for both situations and

observed that resetting the matrix gives better

answers than resuming with older one.

3.4 Parameters Tuning

Several simulations were performed to tune

parameters of hybrid method. After several

simulations the best parameters for the given

clustering problem are gathered in Table 1.

4 RESULTS AND DISCUSSION

4.1 Introducing Datasets

Our proposed method is implemented on two well-

known datasets, namely

iris and wine in order to

compare with the previous proposed algorithms. The

data are obtained from the UCI repository of

machine learning databases (Newman et al., 1998).

All algorithms are executed in MATLAB and all

experiments are performed on a PIV 2.66MHz and

512 MB RAM.

To evaluate the performance of our hybrid

method, we compare it with several typical

stochastic algorithms including ACO and SA (Selim

and Al-Sultan, 1991), GA (Murthy and Chowdhury,

1996), and TS (Al-Sultan, 1995). The results from

ACO, GA, TS, and SA are taken from Shelokar et

al. (2004). The outputs for the

iris dataset are given

in Table 2. The objective function curve for the best

solution of our hybrid method is shown in Fig. (3).

The results obtained for the clustering problem

from the

wine dataset are given in Table 3. The

objective function curve for the best solution of our

hybrid method during iterations is shown in Fig. (4).

Table 1: Parameters of the proposed hybrid method.

(ants)

local search

probability

Evaporation rate

(

)

Iterations

50 0.98 0.01-0.05 0.07 300

0 50 100 150 200 250 300

100

200

300

400

500

600

700

Figure 3: Illustration of the best solution for the iris

dataset.

Table 2: Results of iris dataset.

Algorithm

Function value

Time

(sec)

F best F average F worst

Hybrid GA-ACO 78.9408 81.9469 91.2163 83.60

ACO 97.1007 97.1715 97.8084 33.72

GA 113.9865 125.1970 139.7782 105.53

TS 97.3659 97.8680 98.5694 72.86

SA 97.1007 97.1364 97.2638 95.92

0 50 100 150 200 250 300

1.5

2.5

3.5

4.5

x 10

Figure 4: Illustration of the best solution for the wine

dataset.

ICEIS 2008 - International Conference on Enterprise Information Systems

292

Table 3: Results of the wine dataset.

Algorithm

Function value

Time

(sec)

F best F average F worst

Hybrid GA-

ACO

16387.7595 16438.1623 16530.5338

216.

ACO 16530.5338 16530.5338 16530.5338

68.2

GA 16530.5338 16530.5338 16530.5338

226.

TS 16530.5338 16785.4592 16837.5356

161.

SA 16530.5338 16530.5338 16530.5338

57.2

4.2 Paired Comparison Results

As the ACO solution is better than SA, GA and TS

solutions, so our hybrid GA-ACO method is

compared with ACO. Considering the data in Tables

2 and 3, two paired comparison designs are carried

out on 10 pairs of the best solutions of ACO and

hybrid GA-ACO for each dataset to see whether if

any improvements achieved. The related results of

the paired comparison test are illustrated in Table 4.

Design of the comparison test is as follows:

X : The i-th best solution of the hybrid GA-ACO

method.

Y : The i-th best solution of the ACO method.

DniYXD

iii

∑

=⇒=−=

,...,2,1

(11)

()

=⇒

−

∑

(12)

≠

],[

1,2/1,2/ −−

−∈

ttT

αα

is accepted.

Table 4: Results of Paired comparison test.

D S

Test

statistic

Acceptance

Interval

Resu

iri

-20.016 7.834 10 -8.079 [-2.262,2.262]

Reje

ct H

-692.776 319.53 10 -6.856 [-2.262,2.262]

Reje

ct H

By considering the test statistic values from

Table 4, it is concluded that with

05.0=

(

Level of significance), the hybrid GA-ACO method

has a meaningful difference with the ACO algorithm

in 10 independent runs.

It is worthy noting that the results obtained by

the hybrid method are superior to that of the ACO,

SA, GA, and TS methods. The associated results

illustrate that our proposed hybrid approach can be

considered as a viable and an efficient method to

find optimal or near-optimal solutions for clustering

problems in order to allocate

N objects to K clusters.

5 CONCLUSIONS

In this paper, a hybrid GA-ACO method has been

developed to solve clustering problems. To evaluate

the performance of our hybrid GA-ACO method, the

associated results are compared with other results

obtained by other meta-heuristic algorithms, i.e.

ACO, GA, SA, and TS by means of the paired test

statistics. Our proposed hybrid method has been

implemented and tested on several real datasets;

preliminary computational experience is very

encouraging in terms of the solution quality found

and in all cases the best dominant solution is

obtained by our proposed hybrid method and even

the average and the worst solutions of this method is

better than or equal to best solutions of the other

algorithms. Although this method needs longer time

to find solutions but the difference between the

solutions of our hybrid GA-ACO method and other

algorithms is totally encouraging and glamorous.

REFERENCES

Al-Sultan, K.S., 1995. A Tabu search approach to the

clustering problem, Pattern Recogn. 28 (9) 1443-1451.

Banfield, J., Raftery, A., 1993. Model-based Gaussian and

non- Gaussian clustering, Biometrics, 49, 803-821.

Dorigo, M., Maniezzo, V. Colorni, A., 1996. The ant

system: Optimization by a colony of cooperating

agents. IEEE Transactions on Systems, Man, and

Cybernetics-Part B 26 (1) 29-41.

Jiang, J.-H., Wang, J.H., Chu, X., Yu, R.-Q., 1997.

Clustering data using a modified integer genetic

algorithm (IGA). Analytica Chimica Acta 354, 263-

274.

Lin, H-J., Yang, F-W., Kao, Y-T., 2005. An efficient GA-

based clustering technique, Tamkang Journal of

Science and Engineering 8 (2) 113-122.

Murthy, C.A., Chowdhury, N., 1996. In search of optimal

clusters using genetic algorithms. Pattern Recognition

Letters. 17 (8) 825- 832.

Newman, D.J., Hettich, S., Blake, C.L., Merz, C.J. 1998.

UCI Repository of machine learning databases,

AN EFFICIENT HYBRID METHOD FOR CLUSTERING PROBLEMS

293

Department of Information and Computer Science,

University of California, Irvine, CA,

http://www.ics.uci.edu/~mlearn/MLRepository.html.

Paterlini, S., Krink, T., 2006. Differential evolution and

particle swarm optimisation in partitional clustering,

Computational Statistics and Data Analysis 50 (5)

1220-1247.

Selim, S.Z., Al-Sultan, K.S., 1991. A simulated annealing

algorithm for the clustering problem. Pattern

Recognition 24 (10) 1003-1008.

Shelokar, P.S., Jayaraman, V.K., Kulkarni, B.D., 2004. An

ant colony approach for clustering, Analytica Chimica

Acta 509, 187-195.

Sun, L.-X., Xie, Y.-L., Song, X.-H., Wang, J.-H. Yu, R.-

Q., 1994. Cluster analysis by simulated annealing.

Computers & Chemistry 18 (2) 103-108.

ICEIS 2008 - International Conference on Enterprise Information Systems

294
