FROM INTERORGANIZATIONAL MODELLING TO

ESSENTIAL USE CASES

Luciana C. Ballejos and Jorge M. Montagna

CIDISI – INGAR Instituto de Desarrollo y Diseño (UTN-FRSF) - Avellaneda 3657 (3000) Santa Fe, Argentina

Keywords: Interorganizational modelling, i* framework, essential use cases, interorganizational information systems.

Abstract: Requirements Engineering (RE) must initially focus on information system (IS) domain modeling rather

than on its functionalities. Existing techniques do not consider many attributes of contexts where two or

more organizations interact (interorganizational –IO-). An extension is proposed for i* framework (Yu,

1995) for analysis of IO information systems (IOSs). Essential use cases are also derived from the proposed

model. Diverse transformation rules are explained and an example is instantiated.

1 INTRODUCTION

Diverse techniques exist to represent organizational

environments. However there is still a gap when a

set of organizations which interact to attain certain

goals, conforming IO networks (IONs) must to be

considered. Thus, techniques capable to express the

richness of social, organizational and IO relations

are needed.

This work proposes an extension for IO

environments of i* framework Yu (1995). A new

model is proposed describing IOS dependencies.

Essential use cases (Wiegers, 1997) are also derived

and their importance is analyzed for carrying out the

initial steps of RE for IOSs.

2 i* FRAMEWORK

i* describes intentionalities through two models:

Strategic Dependencies and Strategic Rationale.

2.1 Strategic Dependencies Model (SD)

Each node in SD is an actor. A link indicates that an

actor (depender) depends on another actor

(dependee) for something (dependum) in order to

attain an objective. Actors depend among them to

achieve goals, perform tasks or share resources.

2.2 Strategic Rationale Model (SR)

SR models actors’ intentional relationships. Nodes

are goals, tasks, resources and soft-goals connected

by means-ends or task-decomposition links. A goal

may be associated through means-ends links with

multiple paths to achieve it, generally tasks.

Task-decomposition links express what must be

done to perform a task. The task can be

hierarchically decomposed in subtasks, subgoals,

resourceFor and softgoalFor. Fig. 1 shows a SR for

a health insurance claim process (Yu, 1995).

Physician

ApprovalOf

Treatment

Approve

Treatment

BeAssessed

Sign

Document

Verify

Patient

Policy

Medically

Assessed

Fast

Turnaround

Policy

Manuals

Make

Medical

Assessment

Review Patient

MedHistory

MedClaims

Precedents

Policy

Records

Dept

Pacient

Policy

Records

Patient

Medical

Files

Medical

Records

Dept

Claims

Manager

Means-End

Link

Actor

Resource

Dependency

Task

Dependency

Goal

Dependency

Task

Decomposition

Link

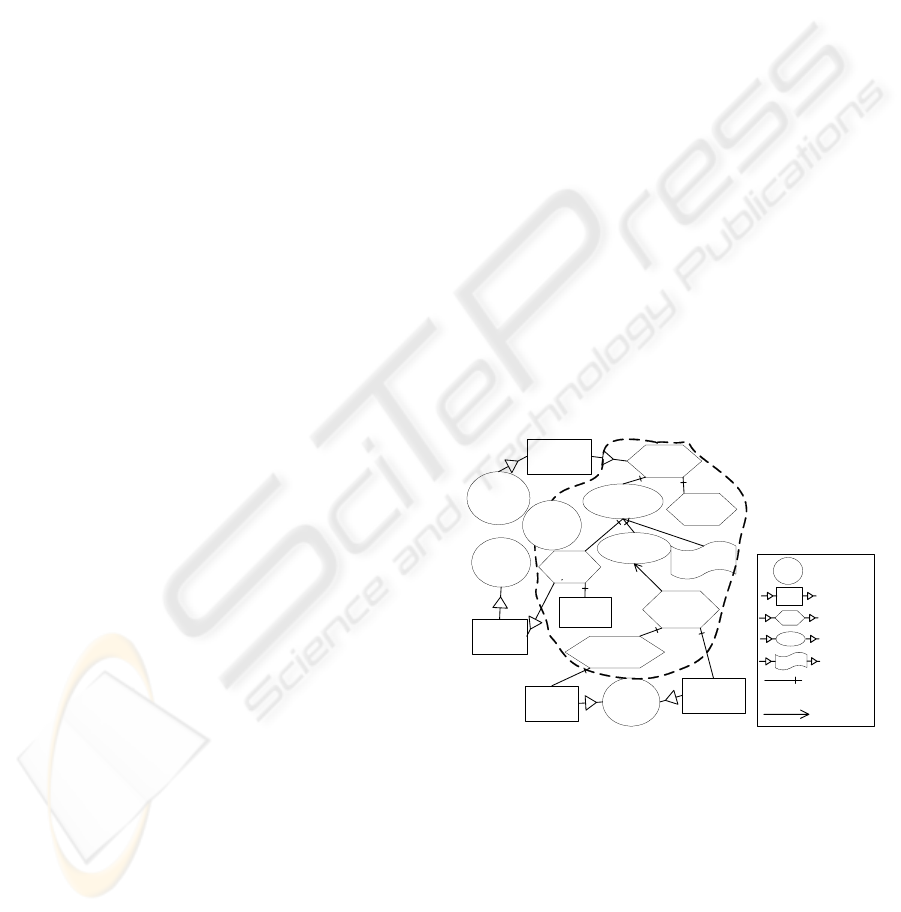

Figure 1: SR model example in the health area.

3 i* FRAMEWORK EXTENSION

3.1 SD Extension

Some elements are incorporated in SD model in

order to show predominating ION properties.

Resource dependum specialization determines the

type of resource, considering exchanges between

290

C. Ballejos L. and M. Montagna J. (2008).

FROM INTERORGANIZATIONAL MODELLING TO ESSENTIAL USE CASES.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - ISAS, pages 290-294

DOI: 10.5220/0001705902900294

 SciTePress

ION members: information, material, economic and

knowledge resources (Fig. 2).

Information

Resource

Material

Resource

Economic

Resource

Knowledge

Resource

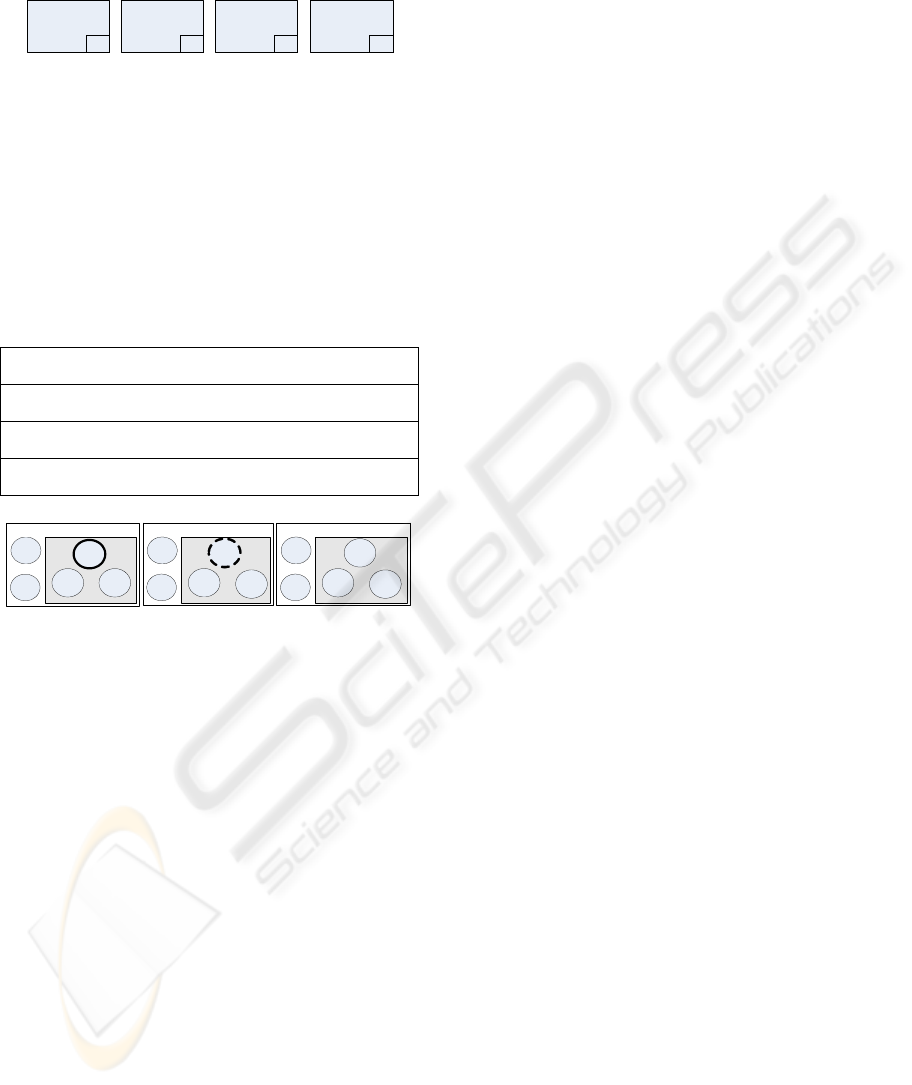

Figure 2: Resource types specification in SD model.

IONs analysis implies the incorporation of IO

dimension, where actors also exist. Thus,

dimensions differentiation in SD model is proposed

through the inclusion of layers.

IONs have different structures (Table 1).

Hierarchical, solar, and swingle ones have a leader

member. In swingle ones leadership is temporal.

Centreless IONs do not have a leader (Fig. 3).

Table 1: IONs types regardless their structure.

Hierarchical: Big firms subcontract processes to smaller

firms. The central company coordinates activities.

Solar: A group of independent firms works around a strategic

one that directs relations and controls satellite firms.

Centreless: Members operate in the same business area but

cooperate and share resources.

Swingle: Organizations have key roles in different time

periods. Network control rotate over time.

Centreless ION

representation

Hierarchical or Solar

ION representation

Swingle ION

representation

INT

EXT

EXTERNAL

ION

INT

EXT

EXTERNAL

ION

INT

EXT

EXTERNAL

ION

Figure 3: IONs structures’ specification in SD.

3.2 System Dependencies Model (SysD)

SR model is used for requirements analysis by

assessing contributions in means-ends links for

softgoals defined in SD, in order to know if they are

satisfied. This analysis is based on the “goal

oriented” approach for RE, to manage non-

functional requirements (Mylopoulos et al., 1999).

Similarly to SR, SysD (from System

Dependencies) considers SD explosion through

means-ends and task-decomposition. A new detail

level is added through the stakeholder concept.

SysD cannot replace SR model: it works only with

IOS supported dependencies, while SR has all

dependencies underlying the environment.

SysD model is oriented to provide support in the

capture of early functional requirements. Thus, it can

be developed jointly with SR, in order to analyze

particular types of requirements (SR Æ non-

functional ones, SysDÆ functional ones).

SysD considers each stakeholder interest (relation

between his needs and project goals) and influence

(relative power within a project) (Ballejos &

Montagna, 2006). Then, 4 submodels are created

from the combination of high (H) and low (L)

interest and influence degrees: 1) H inf-H int, 2) H

int-L inf, 3) L int-H inf, and 4) L int-L inf. Project

manager decides which categories are analyzed.

Each submodel uses information from SD model

following these steps for each category:

1) A stakeholder category is determined.

2) Depender (having output dependencies) actors

with stakeholders of the selected category must

be analyzed. For each dependency, stakeholders

must be associated with involved actors, in order

to specify which stakeholder has dependencies

from the system. A new detail level is included,

since SD actors will be represented by

stakeholders.

3) Dependencies without associated stakeholders or

not supported by the system must be eliminated.

4) Means-ends and task-decomposition links are

generated in order to describe system

dependencies in SysD. All new tasks and

resources supported by the system are illustrated

with dotted lines.

SysD not only examines actors’ dependencies

through means-ends and task-decomposition links,

but also differentiates means, dependencies, and

subtasks supported by the IS. This is the previous

stage to generate essential use cases specifications

reducing the gap between IO modelling and early

requirements analysis for IOSs development.

4 USE CASES FROM

SysD MODEL

Use cases (UCs) are directly related with functional

requirements of a software system, considering

interactions between actors and the system under

development. Essential UCs are stripped of

implementation details, constraints, and alternatives.

By focusing on them the analyst can derive software

requirements (Wiegers, 1997).

Essential UCs have abstract, implementation-

independent descriptions. Thus, heuristics are

presented to derivate their descriptions from SysD.

While an actor in i* represents any person or

organization with interactions with others, in UCs is

a stakeholder who interacts with the system.

FROM INTERORGANIZATIONAL MODELLING TO ESSENTIAL USE CASES

291

4.1 Resource Dependums

When the dependum is an information resource, UC

name is “CUD Resource X” (CUD: create, update,

delete) (Fig. 4). Actor 2 will use the system for the

creation of the resource. STK will access to it

through the system.

Actor 1

Actor 2

STK

Resource A

Use Case: CUD Resource A

Actor: STK, Actor 2

Steps: …

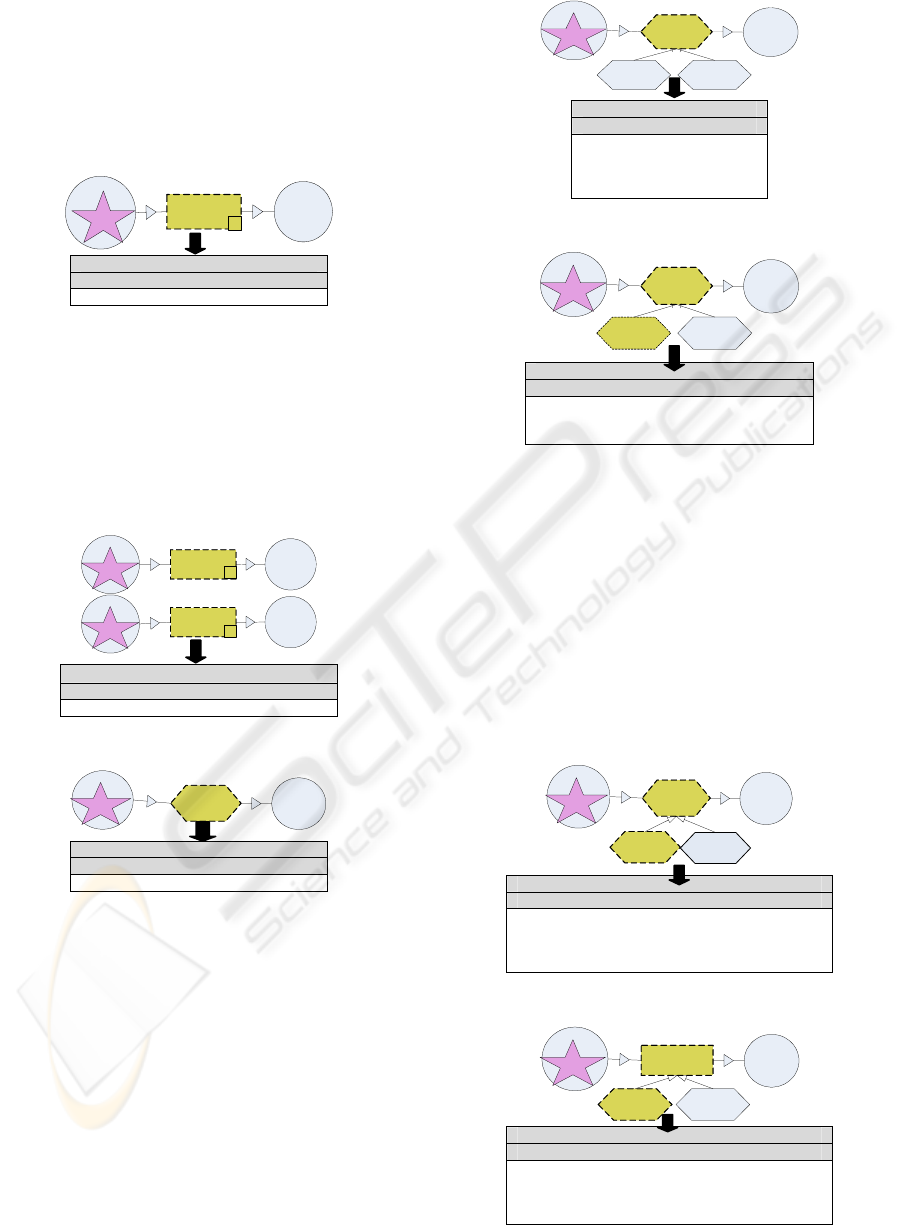

Figure 4: UC for information resource dependum.

With material or economic dependums the UC

name is “Manage Resource X”. Depender and

dependee stakeholders are UC actors (Fig. 5).

When the dependum is an atomic task (without

subtasks) which will be supported by the IOS, it

directly transforms in a UC. The stakeholder from

the depender actor is the UC actor (Fig. 6).

Actor 1

Actor 2

STK

Resource A

Actor 1

Actor 2

STK

Resource A

OR:

Use Case: Manage Resource A

Actor: STK, Actor 2

Steps: …

Figure 5: UC for material and economic dependums.

Actor 1

Actor 2

Task A

STK

Use Case: Task A

Actor: STK

Steps: …

Figure 6: UC for task dependum.

4.2 Links Decomposition

When the dependum is a task decomposed in

subtasks, the task is transformed in a UC where

subtasks are steps. The stakeholder from the

depender actor is the UC actor (Fig. 7).

An “includes” relation between UCs has place

when one UC always includes the flow of another

UC. Here it is created when some subtask will be

also IOS supported, invocating the child UC in each

execution of the principal one (Fig. 8).

In means-ends links the end can be a goal, a task,

a resource, or a softgoal, while means is usually a

Actor 1

Actor 2

Task A

STK

Sub-

Task B

Sub-

Task C

Use Case: Task A

Actor: STK

Steps:

…

n)- Sub-Task B

m)- Sub-Task C…

Figure 7: UC for task-decomposition links.

Actor 1

Actor 2

Task A

STK

Sub-

Task B

Sub-

Task C

Use Case: Task A

Actor: STK

Steps:

- Execute Sub-Task B Use Case

- Sub-Task C…

Figure 8: Includes relation derivation.

task. Different means indicates diverse ways of

achieving the end. UC derivation focuses on links

where the end is a task or a resource.

In means-ends links, the different means to

execute a task or obtain a resource are alternatives.

Thus, in both cases, extends relations (when an UC

includes the flow of another UC under certain

conditions) can be established between the “end”

task UC and the “means” task UC (Fig. 9) or the UC

related to the resource being the “end” and the task

UC being “means” (Fig. 10).

Actor 1

Actor 2

Task A

STK

Sub-

Task B

Sub-

Task C

Use Case: Task A

Actor: STK

Steps:

…n)- EVALUATE (condition/alternative)

Option 1: Execute Sub-Task B Use Case

Option 2: Sub-Task C…

Figure 9: Extends relation for task ends.

Actor 1

Actor 2

STK

Sub-

Task B

Sub-

Task C

Resource A

Use Case: CUD or Manage Resource A

Actor: STK.

Steps:

…n)- EVALUATE (condition/alternative)

Option 1: Execute Sub-Task B Use Case

Option 2: Sub-Task C…

Figure 10: Extends relation for resource ends.

ICEIS 2008 - International Conference on Enterprise Information Systems

292

5 EXAMPLE

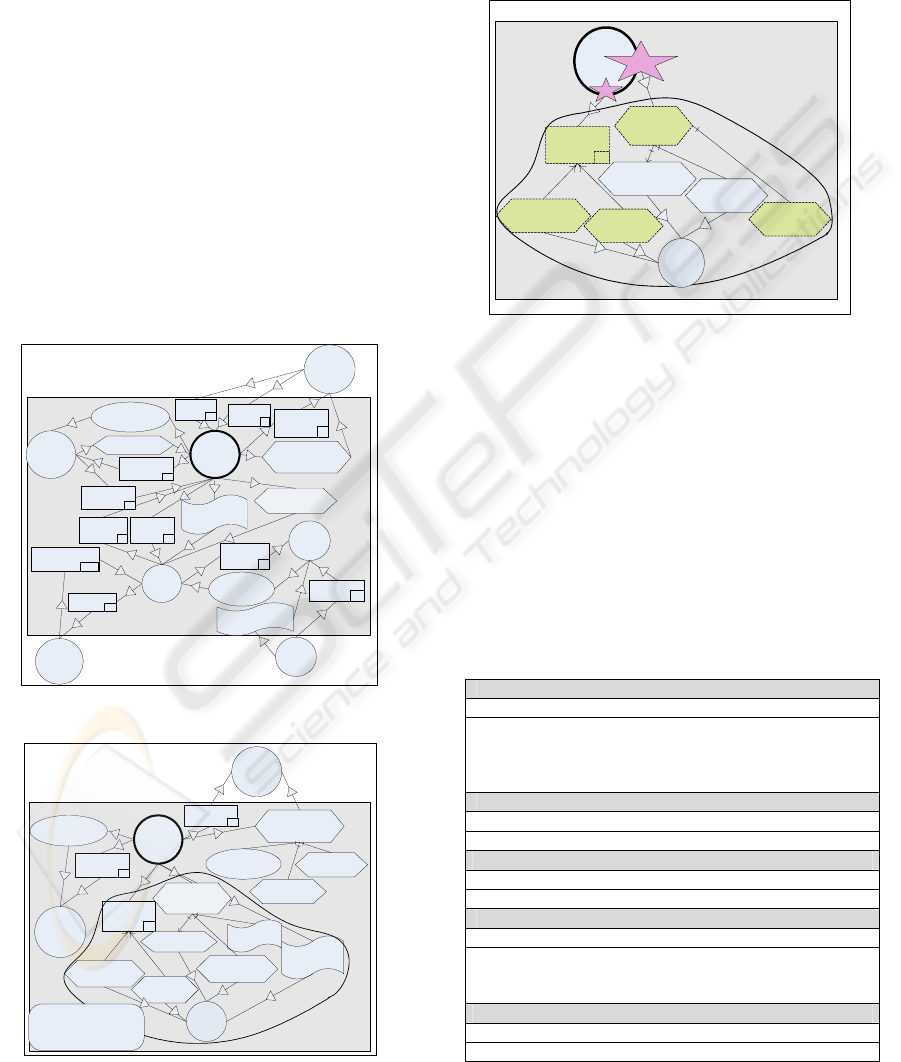

An ION was created in an Argentinean province to

manage medicines distribution to hospitals (Fig. 13),

including the Medicines Producer Laboratory

(MPL: produces generic medicines for the Central

Pharmacy), the Central Pharmacy (CP: coordinates

and controls medicines supplies to hospitals) and

Health Regions (each one responsible for medicines

distribution in hospitals and health centers

depending on them). Also an IOS was proposed to

transform the organizational systems into a unique

model.

Fig. 11 shows extended SD model. Fig. 12

presents a partial SysD model, only considering

dependencies between CP and Health Regions.

Stakeholders with high interest and any value of

influence were jointly selected. Their list is shown in

the left bottom corner of Fig. 12. First, output

dependencies for CP to be supported by the IOS are

analyzed and then associated to stakeholders.

Hospital

Central

Pharmacy

Medicines

Producer

Laboratory

Government

Health

Region

Private

Laboratory

Plan Delivery

[Special

Drugs]

Cover

Medicines

Needs

Avoid

Medicines

Stock-Out

Plan

Production

Patient

Quick Medicines

Delivery

Efficient

Demand

Management

ION

EXTERNAL

Basic

Medicines

Orders

Money

Accountability

Medicines

Periodic

Orders

Medicines

List

Special

Drugs

Medicines

Payment

Medicines

Distribution

to Patients

Order

Figure 11: SD Model for the example.

EXTERNAL

Central

Pharmacy

ION

Private

Laboratory

Plan Delivery

[Special

Drugs]

Periodic

Approved

Orders

Medicines

Producer

Laboratory

Avoid

Medicines

Stock-Out

Basic

Medicines

Efficient

Demand

Management

Special

Drugs

Special Drug

order be

satisfied

Prepare

Deliveries

Priorize

Deliveries

Medicines

Distribution

to Patients

Fast

Distribution

Verify

Orders from

Centers

Prepare

Medicines

Approve

Orders

Legally

Approve

Orders with

Permission

Health

Region

Stakeholders:

(1) CP Director

(2) CP Production Manager

(3) CP Purchases Manager

(4) CP Operative Staff

Figure 12: SysD Model for the example.

All non-system supported dependencies are

deleted from the model. All system supported

elements must be marked. Thus, the model in Fig.

13 is the result. Stars indicate stakeholders and are

associated to IOS supported dependencies.

Fig. 14 shows UC documentations for Fig. 13.

EXTERNAL

Central

Pharmacy

ION

Periodic

Approved

Orders

Manage

Order

Priority

Evaluate

Order

Priorities

Verify

Orders from

Centres

Approve

Orders

Legally

Approve

Orders with

Permission

Health

Region

Order

Priorities

2,3,4

Figure 13: SysD model with selected stakeholders.

6 CONCLUSIONS

This work extends i* framework for dealing with

ION contexts in order to generate a systematic

procedure to derive essential use cases. Thus, a

preliminary use case diagram can be obtained for an

IOS. This proposal works with knowledge modelled

in the extended i* framework to obtain general

descriptions for IOSs initial UCs indicating

functionalities they should implement and reducing

the gap between problem and solution domains.

Figure 14: UCs descriptions for the example.

Use Case: CUD Periodic Approved Orders

Actor: STK 4

Steps:…n)- EVALUATE (condition/alternative)

Option 1: Execute UC “Approve Orders with

Permission”.

Option 2: Execute UC “Approve Orders Legally”.

Use Case: Approve Orders with Permission

Actor: STK 4

Steps:…

Use Case: Approve Orders Legally

Actor: STK 4

Steps:…

Use Case: Manage Order Priority

Actor: STKs 2, 3 and 4

Steps: 1)- Verify orders from centres.

2)- Evaluate order priorities.

3)- Execute UC “Register Order Priorities”.

Use Case: Register Order Priorities

Actor: STKs 2, 3 and 4

Steps:…

FROM INTERORGANIZATIONAL MODELLING TO ESSENTIAL USE CASES

293

ACKNOWLEDGEMENTS

The authors want to thank the financial support from

CONICET, ANPCyT, UTN and Universia-Banco

Río.

REFERENCES

Ballejos, L.C., & Montagna, J.M. (2006). Stakeholders

Selection for Interorganizational Systems: A

Systematic Approach. IFIP 19

WCC.

Wiegers, C. (1997). Listening to the customer's voice.

Software Development, 5(3), pp. 49 – 55.

Yu, E. (1995). Modelling Strategic Relationships for

Process Reengineering. PhD Thesis, Univ. of Toronto.

ICEIS 2008 - International Conference on Enterprise Information Systems

294
