USING ONTOLOGY META DATA FOR DATA WAREHOUSING

Alberto Salguero, Francisco Araque and Cecilia Delgado

Department of Software Engineering

E.T.S.I.I.T., University of Granada, Granada (Andalucía), Spain

Keywords: Data Warehouse, Ontology, Integration, GIS.

Abstract: One of the most complex issues of the integration and transformation interface is the case where there are

multiple sources for a single data element in the enterprise Data Warehouse (DW). There are many facets

due to the number of variables that are needed in the integration phase. However we are interested in the

integration of temporal and spatial problem due to the nature of DWs. This paper presents our ontology

based DW architecture for temporal integration on the basis of the temporal and spatial properties of the

data and temporal characteristics of the data sources. The proposal shows the steps for the transformation of

the native schemes of the data sources into the DW scheme and end user scheme and the use of an ontology

model as the common data model.

1 INTRODUCTION

The ability to integrate data from a wide range of

data sources is an important field of research in data

engineering. Data integration is a prominent theme

in many areas and enables widely distributed,

heterogeneous, dynamic collections of information

sources to be accessed and handled.

Many information sources have their own

information delivery schedules, whereby the data

arrival time is either predetermined or predictable. If

we use the data arrival properties of such underlying

information sources, the Data Warehouse

Administrator (DWA) can derive more appropriate

rules and check the consistency of user requirements

more accurately. The problem now facing the user is

not the fact that the information being sought is

unavailable, but rather that it is difficult to extract

exactly what is needed from what is available. It

would be extremely useful to have an approach

which determines whether it would be possible to

integrate data from two data sources.

The use of DW and Data Integration has been

proposed previously in many fields. In (Haller et al.,

2000) the Integrating Heterogeneous Tourism

Information data sources is addressed using three-

tier architecture. In (Vassiliadis, 2001) a framework

for quality-oriented DW management is exposed,

where special attention is paid to the treatment of

metadata. The problem of the little support for

automatized tasks in Data Warehousing is

considered in (Thalhammer, 2001), where the DW is

used in combination with event/condition/action

(ECA) rules to get an active DW. Nevertheless, none

of the previous works encompass the aspects of the

integration of the data according to the temporal and

the spatial parameters of the data.

In this article a solution to this problem is

proposed: a DW architecture for data integration on

the basis of the temporal and the spatial properties of

the data and temporal characteristics of the sources

and their extraction methods. This architecture give

as result the necessary data for the later refreshment

of the DW. The use of a data model based on

ontologies is proposed as a common data model to

deal with the data sources schemes integration.

Although it is not the first time the ontology model

has been proposed for this purpose (Skotas and

Simitsis, 2006), in this case the work has been

focused on the integration of spatio-temporal data.

Moreover, to our knowledge this is the first time the

metadata storage capabilities of some ontology

definition languages has been used in order to

improve the DW data refreshment process design.

The remaining part of this paper is organized as

follows. In Section 2, some basic concepts as well as

our previously related works are revised; in section 3

our architecture is presented; Finally, Section 4

summarizes the conclusions of this paper.

497

Salguero A., Araque F. and Delgado C. (2008).

USING ONTOLOGY META DATA FOR DATA WAREHOUSING.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - DISI, pages 497-500

DOI: 10.5220/0001710904970500

 SciTePress

2 DATA WAREHOUSE

Inmon (Inmon, 2002) defined a Data Warehouse as

“a subject-oriented, integrated, time-variant, non-

volatile collection of data in support of

management’s decision-making process.” A DW is a

database that stores a copy of operational data with

an optimized structure for query and analysis. A

federated database system (FDBS) is formed by

different component database systems; it provides

integrated access to them: they co-operate (inter-

operate) with each other to produce consolidated

answers to the queries defined over the FDBS.

Generally, the FDBS has no data of its own as the

DW has.

We have extended the Sheth & Larson five-level

FDBS architecture (Sheth & Larson, 1990), which is

very general and encompasses most of the

previously existing architectures. In this architecture

three types of data models are used: first, each

component database can have its own native model;

second, a canonical data model (CDM) which is

adopted in the FDBS; and third, external schema can

be defined in different user models.

In order to carry out the integration process, it

will be necessary to transfer the data of the data

sources, probably specified in different data models,

to a common data model, that will be the used as the

model to design the scheme of the warehouse. In

our case, we have decided to use an ontological

model as canonical data model.

An ontology is a controlled vocabulary that

describes objects and the relations between them in a

formal way, and has a grammar for using the

vocabulary terms to express something meaningful

within a specified domain of interest. They allow the

use of automatic reasoning methods. We have

extended OWL with temporal and spatial elements.

We call this OWL extension STOWL.

3 DATA SOURCES ANNOTATION

The ontology data models are a good option as a

CDM but they are too generals. Extending any of the

languages for defining ontologies seem the most

suitable option. Among all of them, OWL language

is selected as the base for defining the CDM.

Firstly an ontology in the OWL language will be

built to define the generic temporal primitives found

of interest. Then the spatial primitives will also be

incorporated. Finally, the information that describes

the characteristics of data to integrate, i.e. the

metadata which will be useful to design the data

extracting, loading and refreshing processes, will be

incorporated to the data source scheme using the

annotation properties of OWL. Annotation

properties are a special kind of OWL properties

which can be used to add information (metadata—

data about data) to classes, individuals and

object/datatype properties.

The result will be an ontology, expressed in

OWL, defining the spatial and temporal primitives

which will be used to build the schemes of the data

sources and a set of properties which will allow the

addition of information about the data sources

characteristics. We call STOWL (Spatio-Temporal

OWL) to this base ontology.

3.1 Temporal Annotation of Data

Due to the nature of the DW the annotation

properties will usually refer to the temporal

characteristics of data, so a set of annotation

properties is defined to describe the sources

according to some of the temporal concepts studied

in (Araque et al., 2007a). All these properties can be

associated directly to the ontology viewed as a

resource or individually to each concept defined in

the ontology.

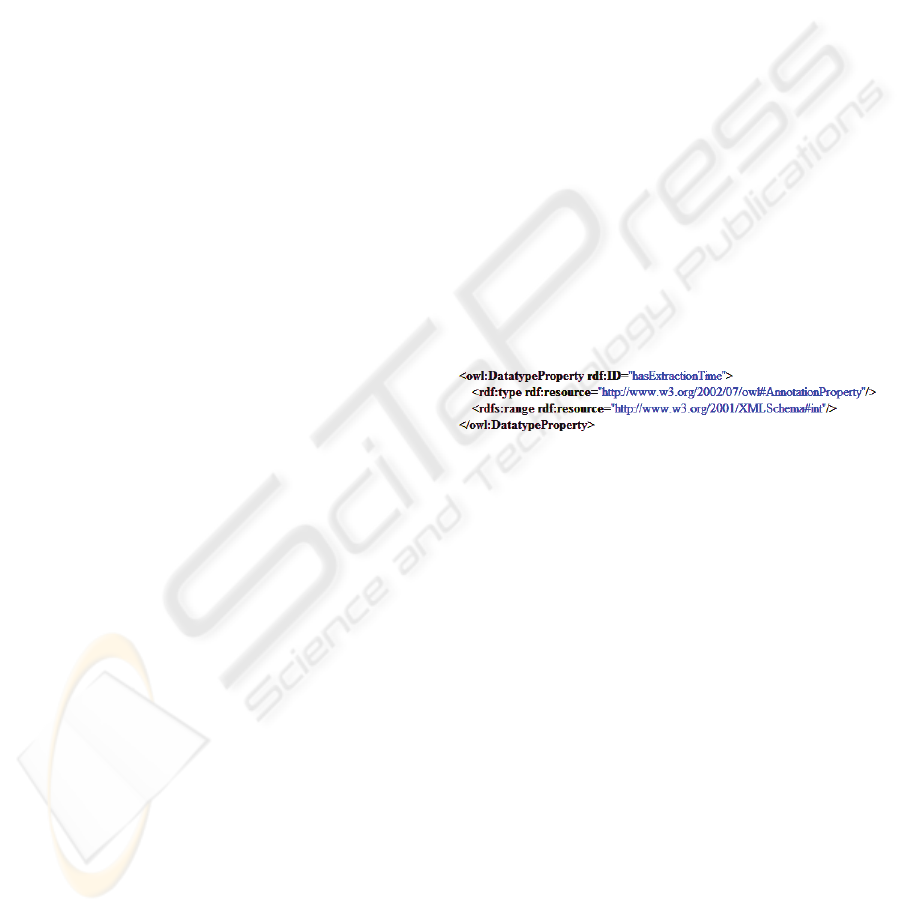

Figure 1: Extraction Time definition in STOWL.

STOWL defines, for instance, the Extraction

Time of a change in a data source as shown in figure

1. The Extraction Time parameter can be defined as

the time expended in extracting a data change from

the source. Some examples of the temporal

parameters (Araque et al., 2006) that we consider of

interest for the integration process are: Granularity,

Availability, Extraction Time , Transaction time,

Storage time, Temporal Reference System…

3.2 Spatial Annotation of Data

After reviewing various spatial data models we have

chosen the model proposed by the Open GIS

Consortium. This standard, called Geography

Markup Language (GML), is an XML grammar

written in XML Schema for the modelling,

transportation and storage of geographic

information. GML is often used as a communication

protocol between a large set of GIS applications,

both commercial and open source. It has been

ICEIS 2008 - International Conference on Enterprise Information Systems

498

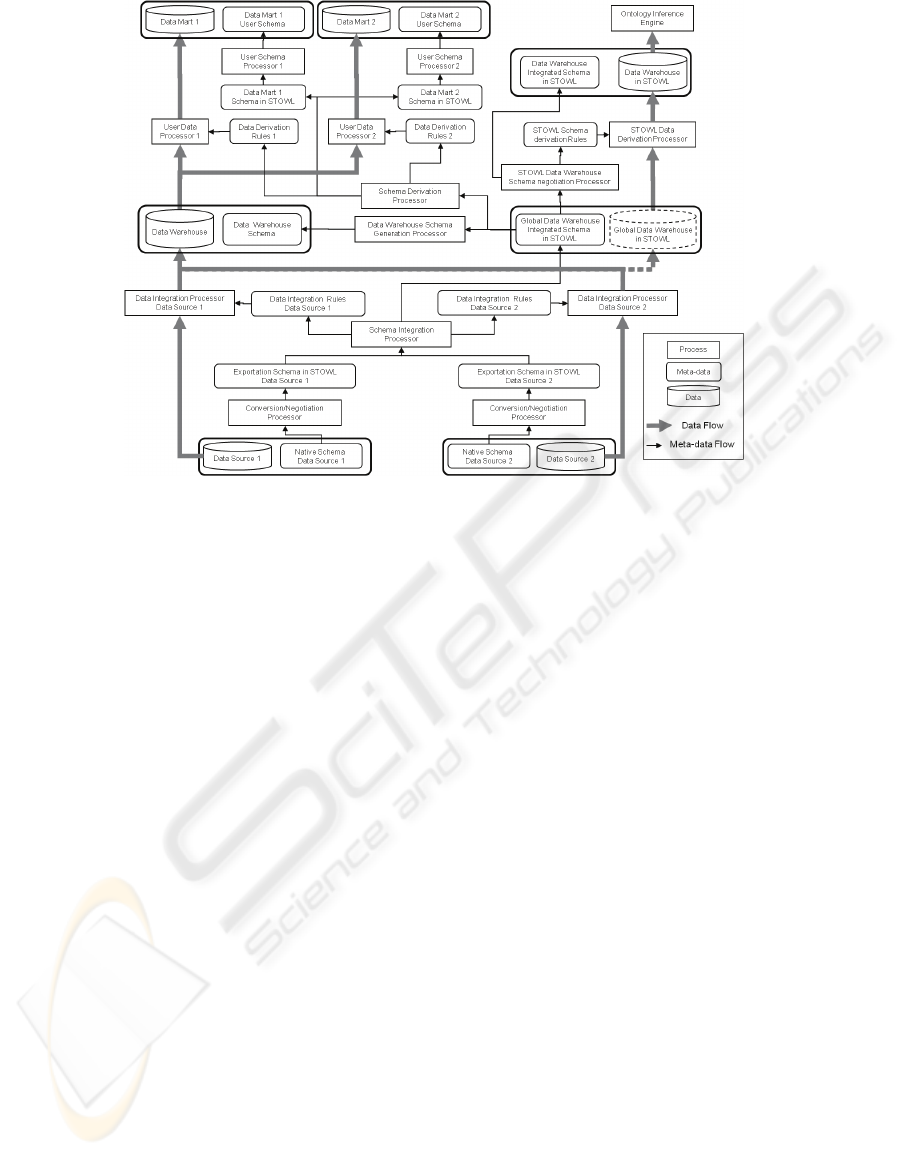

Figure 2: Functional architecture.
