IMPROVEMENT OF A WEB ENGINEERING METHOD APPLYING

SITUATIONAL METHOD ENGINEERING

Kevin Vlaanderen

Universiteit Utrecht, Padualaan 14 3584CH Utrecht, The Netherlands

Francisco Valverde, Oscar Pastor

Department of Information Systems and Computation, Technical University of Valencia, Spain

Keywords:

Web Engineering, Method Engineering, Model-driven development.

Abstract:

In recent years, the Web Engineering community has introduced several model-driven methods in order to

simplify Web Application development. However, these methods are too general and mainly focus on data

intensive Web Applications. A solution to this problem is the Situational Method Engineering. This approach

allows the creation or improvement of a web engineering method by reusing method fragments from previous

methods. This way, a method suitable for a concrete project or domain can be designed. In this work, the

OOWS method metamodel is deﬁned with the purpose of applying Situational Method Engineering. Because

of this metamodel, OOWS method fragments can be formalised and used to improve the efﬁciency of another

Web Engineering Methods. Furthermore, the suitability of the OOWS method in the context of CMS-based

web applications is evaluated through a user-registration case study. The results of this evaluation, is a list of

current limitations of the OOWS Method in the CMS Web Systems domain and possible solutions.

1 INTRODUCTION

As a reaction to the early, chaotic way in which Web

Applications were being created in the ﬁrst years af-

ter the introduction of the Internet, (Deshpande et al.,

2002) introduced the term Web Engineering. Accord-

ing to them, Web Engineering is the application of

systematic, disciplined and quantiﬁable approaches

to development, operation and maintenance of Web-

based applications. Over the last years, the term ’Web

Application’ has become rather common inside the

Web Engineering domain, referring to the new fam-

ily of software applications especially designed to be

executed on the web (Pastor et al., 2003). However,

the quality of those applications is often poor and they

are difﬁcult to maintain. In more recent years, several

methods for the design and/or implementation of Web

Applications have been developed (see section 2).

The development of specialised methods has certainly

improved the efﬁciency of Web development pro-

cesses. However, it is difﬁcult to deﬁne a Web En-

gineering Method that is the most suitable in all the

domains. The main drawback of these approaches is

that a generic method is used for any Web Applica-

tion development. Furthermore, current Web Engi-

neering Methods are mainly designed to develop data-

intensive Web Applications. Therefore, when a new

Web Application domain needs to be supported the

method must be adapted, extended or redeﬁned.

To develop a new Web Engineering method from

scratch for any possible domain is not a reasonable

approach. In this context, applying the Method En-

gineering principles provides interesting advantages.

Method engineering is ”the discipline to design, con-

struct and adapt methods, techniques and tools for

the development of information systems” (Brinkkem-

per, 1996). Situational method engineering (SME)

is a type of Method Engineering that focusses in the

method adaptation to a particular situation, as is de-

scribed in (Saeki, 2003) and (Ralyt´e et al., 2003).

This adaptation can be summarised in four generic

steps (van de Weerd et al., 2006): (1) Identify con-

crete method needs, (2) Select candidate methods that

meet some of the identiﬁed needs, (3) Analyse the

methods and store the relevant method fragments in

a method base and (4) Assemble a new method from

useful method fragments. Applying SME to Web En-

gineering methods has two main advantages:

147

Vlaanderen K., Valverde F. and Pastor O. (2008).

IMPROVEMENT OF A WEB ENGINEERING METHOD APPLYING SITUATIONAL METHOD ENGINEERING.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - ISAS, pages 147-154

DOI: 10.5220/0001712101470154

 SciTePress

1. Building a common method-base allows the ana-

lyst to deﬁne a method for a concrete domain us-

ing previous and validated method-fragments.

2. A method can be easily adapted taking into ac-

count the needs of a concrete project.

The purpose of this work is to apply SME to a Web

Engineering method in order to improve the develop-

ment of Content-Management Systems. A Content

Management system (CMS) is a system used to man-

age the content (texts, images, resources, electronic

documents) of a Web site. The main difference from

traditional Web Applications is that the content is cre-

ated or added dynamically by the users of the Web.

The Web Engineering method selected in this work

to be improved is OOWS. This method extends OO-

Method, an automatic code generation method that

produces the equivalent software from a system con-

ceptual speciﬁcation. With the possibility of creat-

ing code directly from a conceptual model, it enables

drastic improvements in the time and resources re-

quired for the creation of We b Applications. How-

ever, the OOWS method lacks expressiveness to de-

ﬁne Web Applications in some domains as CMS. To

be able to apply OOWS in more ﬁelds, of which

CMS-based Web application development is one, a

better understanding and a more detailed speciﬁcation

of the method is needed.

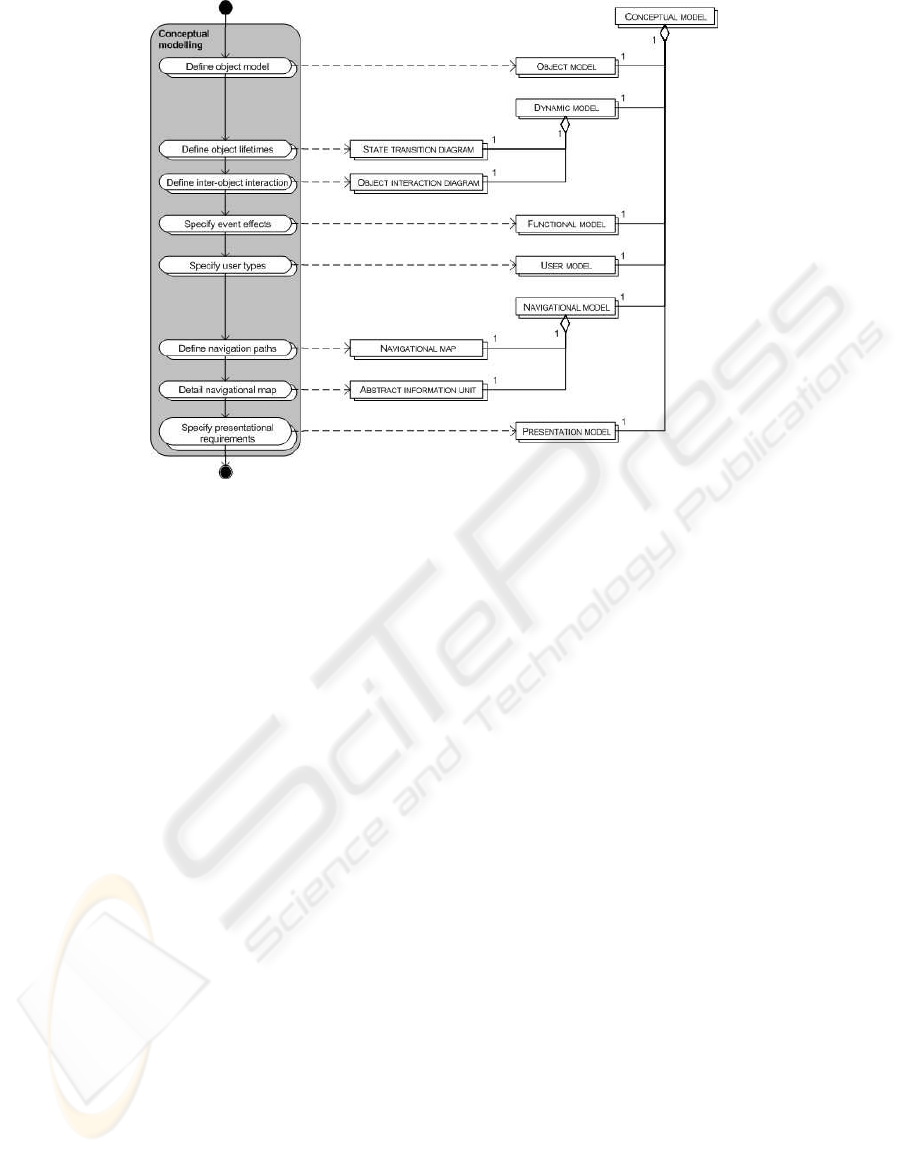

The ﬁrst step to apply the SME to OOWS is to de-

ﬁne a meta-model of the OOWS-method to be able to

ﬁll the method-base. By creating a meta-model of the

method, the OOWS method fragments can be easily

detected. As a consequence these method fragments

can be used to develop new and improved methods

or to decide which are useful for a concrete domain.

Besides creating the method meta-model, it is wise to

analyse the current suitability of OOWS in the context

of CMS-based Web applications. This way it is pos-

sible to make a better decision about which OOWS

method fragments need to be replaced or to be im-

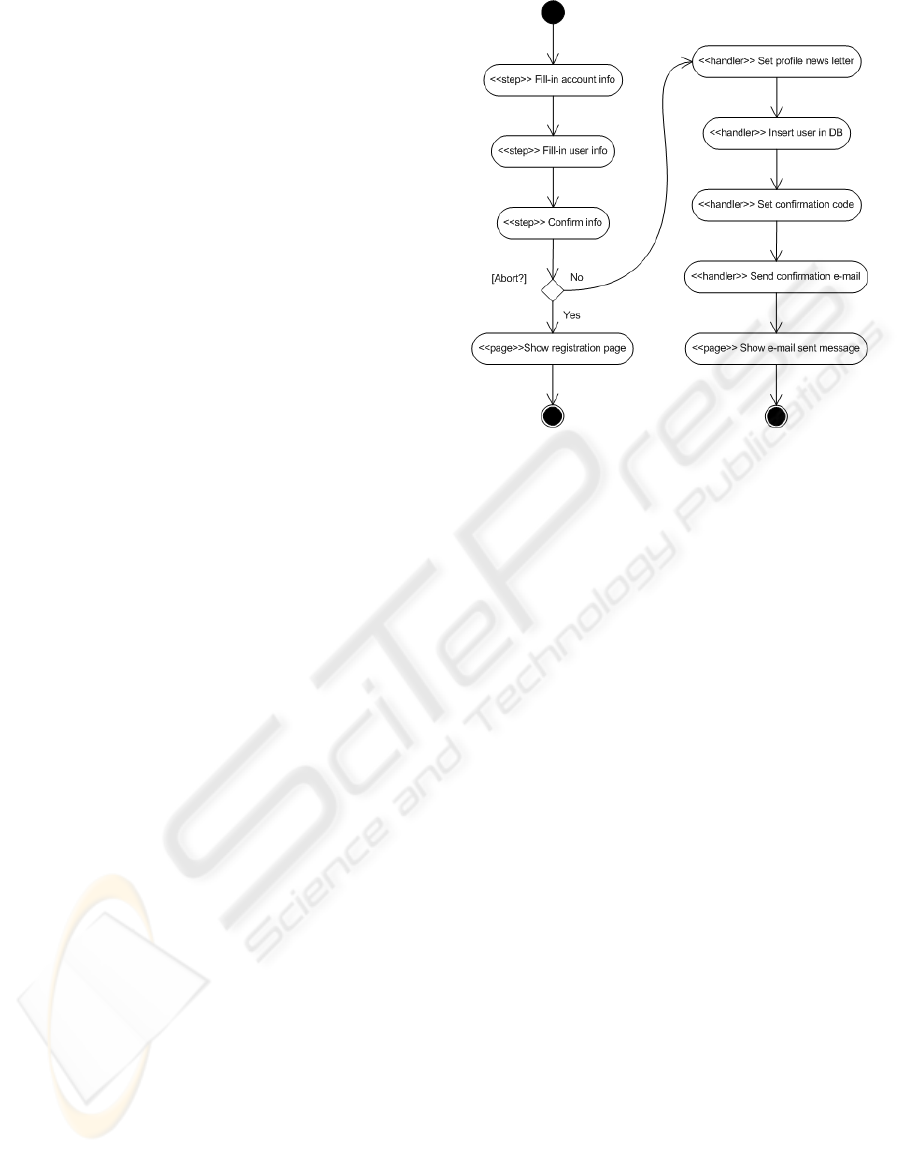

proved. To carry out this analysis, a little case study

based on a CMS application registration process has

been implemented. Both the method meta-model and

the evaluation, provides the foundation for further re-

search regarding SME and OOWS.

The rest of the paper is organised as follows: section

2 presents some related work about Web Engineer-

ing methods. Section 3 brieﬂy introduces the OOWS

Web Engineering method. Section 4, describes how

the OOWS method meta-model has been built. Sec-

tion 5 describes the use-case deﬁned to analyse the

OOWS Method and the improvements needed. Fi-

nally section 6 presents our conclusions and further

research.

2 RELATED WORK

In the last years several Web Engineering methods

have proposed a process to develop Web Applica-

tions. The generic method proposed can be sum-

marised in ﬁve main steps: 1) Requirements gather-

ing, using use cases or a textual speciﬁcation 2) Def-

inition of the domain model, which gathers the enti-

ties of the Application by means of a UML-like class

diagram 3) Deﬁnition of the Navigational Model,

which represents the navigation between the applica-

tion nodes, 4) Speciﬁcation of the presentation and

design aspects and 5) The ﬁnal implementation phase.

Taking into account little differences and different

conceptual models, this ﬁve step process is followed

by approaches such as OOHDM (Schwabe and Rossi,

1995), WebML (Ceri et al., 2000), WSDM (De Troyer

and Leune, 1998) or UWE (Koch and Kraus, 2002).

Therefore it is possible to say that there is a common

agreement about the steps a method engineering must

have.

However in practice, a rigid or generic method

doesn’t ﬁt well for every Web Application domain.

For instance, a very exhaustive Requirements gather-

ing phase may be not necessary in small-size Web Ap-

plications. This fact leads to deﬁne Web Engineering

methods more ﬂexibly applying the SME principles.

An example of a CMS-based Web-Application design

method developed using SME is the GX WebEngi-

neering Method (WEM) (van de Weerd, 2005; van de

Weerd et al., 2006). WEM is currently used at

GX creative online development, a web technol-

ogy company in the Netherlands, to implement web-

applications using their own content managementsys-

tem, called GX WebManager. (van de Weerd, 2005)

describes how this method has been created and im-

proved through the use of already existing (propri-

etary) methods such as (Koch and Kraus, 2002). In

this work the approach deﬁned in WEM is applied

to OOWS. The main purpose is to deﬁne the OOWS

method using the SME principles and to ﬁnd method

fragments which can improve both methods.

3 THE OOWS WEB

ENGINEERING METHOD

OO-Method (Pastor and Molina, 2007) is an Ob-

ject Oriented software production Method to auto-

matically generate information systems. OO-Method

models the system in different abstraction levels, dis-

tinguishing between the problem space (the most ab-

stract level) and the solution space (the lowest abstract

level). The system is represented by a set of Concep-

ICEIS 2008 - International Conference on Enterprise Information Systems

148

tual Models that represents the static structure of the

system (Class Diagram) and the behaviour (State and

Functional Diagrams). OOWS (Fons et al., 2003) is

the OO-Method extension used to model and to gener-

ate Web Applications. The OOWS Web Engineering

Method adds three models that describe the different

concerns of a Web Application:

• User Model: A User Diagram allows us to specify

the types of users that can interact with the Web

system. The types of users are organised in a hi-

erarchical way by means of inheritance relation-

ships.

• Navigational Model: This model deﬁnes the sys-

tem navigational structure. It describes the navi-

gation allowed for each type of user by means of a

Navigational Map. This map is depicted by means

of a directed graph whose nodes represent Navi-

gational Contexts and their arcs represent naviga-

tional links that deﬁne the valid navigational paths

over the system. Basically, a Navigational Con-

text represents a Web page of the Web Applica-

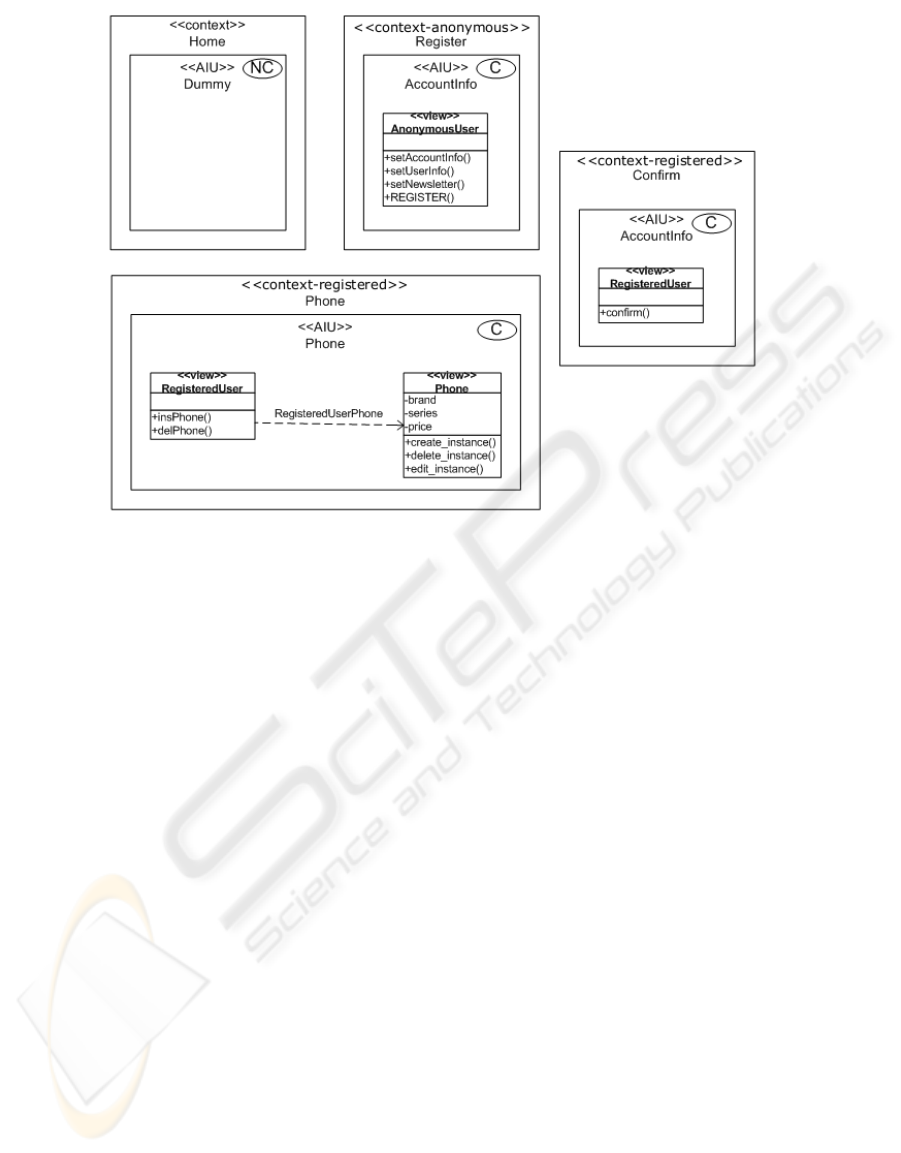

tion at the conceptual level. Navigational Con-

texts are made up of a set of Abstract Informa-

tion Units (AIU), which represent the requirement

of retrieving a chunk of related information (see

ﬁg.3). AIUs are views deﬁned over the under-

lying OO-Method Class Diagram. These views

are represented graphically as UML classes that

are stereotyped with the ”view” keyword and that

contain the set of attributes and operations which

will be available to the user.

• Presentation Model: Using this model, we are

able to specify the visual properties of the in-

formation to be shown. To achieve this goal, a

set of presentation patterns is proposed to be ap-

plied over our conceptual primitives. Some prop-

erties that can be deﬁned with this kind of patterns

are information arrangement (register, tabular,

master-detail, etc), order (ascendant/descendent),

or pagination cardinality.

These models are complemented by the OO-Method

models which represent functional and persistence

layers. THe OOWS development process is com-

pliant with Model Driven Architecture (MDA) prin-

ciples, where a Model Compiler transforms a Plat-

form IndependentModel (PIM) into its corresponding

Software Product. This MDA transformation process

has been implemented by means of a case tool and

a model compiler The OOWS Model Compiler gen-

erates the code corresponding to the user interaction

layer, whereas OLIVANOVA (www.care-t.com), the

industrial OO-Method implementation, generates the

business logic layer and the persistence layer. Further

details can be found in (Valverde et al., 2007).

4 DEFINING THE OOWS

METHOD META-MODEL

The meta-modeling technique used in this paper to

obtain a view of the OOWS-method is based on the

proposal of (Saeki, 2003). The technique uses a com-

bination of two UML diagrams (see ﬁg.1) as is de-

scribed in (van de Weerd and Brinkkemper, 2007):

• On the left hand side, an adaptation of the UML

activity diagram is used for modeling the process

of the method. This diagram consists of method

activities, sub-activities and transitions between

them.

• On the right hand side an adaptation of the UML

class diagram that models the concepts: A set of

objects which share the same attributes, opera-

tions, relations and semantics, used for capturing

the deliverable view of a method.

These two diagrams are integrated in a straightfor-

ward way after being built. Some of the activi-

ties from the UML Activity diagram are associated

to concepts from the UML class diagram through a

dotted line. The resulting model is called Process-

Deliverable Diagram (PDD) where each process step

represents a method fragment.

To validate the meta-model proposed in this work,

expert-validation has been applied. The meta-model

has been checked and revised by both a PhD-student

and a full-PhD working intensively on and with

OOWS. The OOWS method meta-model created in

this work consists of three PDDs that represent the

main phases of the method. Owing to space con-

straints not all PPDs are shown, but can be checked

in (Vlaanderen, 2007). The activities that made up

each phase and describe the OOWS method process

are brieﬂy introduced below:

1. Requirements Modelling: The aim of the require-

ments modelling phase is to gather the user needs

in order to build the Web Application Conceptual

Model. The PDD is composed of three activities:

(a) Description of the main purpose of the system

as a summarised textual deﬁnition of the sys-

tems ﬁnal goal.

(b) Identiﬁcation of the different tasks the user ex-

pects to achieve when interacting with the web

application. Each task is described using UML

Activity diagrams in terms of input and output

activities that the user has to perform.

IMPROVEMENT OF A WEB ENGINEERING METHOD APPLYING SITUATIONAL METHOD ENGINEERING

149

Figure 1: Process-Deliverable Diagram for OOWS Conceptual Modelling phase.

system interaction. For each task a textual de-

scription of the input and output data struc-

tures/functionality is provided.

The output of this phase is a Web Application re-

quirements speciﬁcation. Using model to model

transformations, it’s possible to obtain a ﬁrst draft

of the Web Conceptual model. Further details

about this phase and the activities involved can be

found in (Valderas et al., 2005).

2. Conceptual Modeling: In this phase, the OOWS

and OO-Method models that deﬁne the Web sys-

tem are deﬁned. Since OOWS is an extension of

OO-Method, these models are part of OOWS as

well. These models and their purpose were ex-

plained in section 3. Eight activities compose this

phase as the PDD in the ﬁgure 1 shows. For each

activity the conceptual model built is stated:

(a) Deﬁne the OO-Method Class Diagram (Ob-

ject Model). This model provides information

about the entities, their properties and the ser-

vices that deﬁne the information system.

(b) Deﬁne the possible states of an object and their

lifetime using a UML State Transition Diagram

(Dynamic Model). This model constrains what

kind of services can be executed in the particu-

lar state of an object.

specify the communication between them (Dy-

namic Model).

(d) Specify the object changes after an event occur-

rence (Functional Model). These changes are

speciﬁed using a set of logic formulas applied

over the object attributes.

(e) Specify the different user types that can access

the Web application (User Model).

(f) Deﬁne the Navigational Contexts that a partic-

ular user can access (Navigational Map).

(g) Deﬁne the information and services available in

a Navigational Context (Navigational Model).

(h) Specify presentation requirements (layout, in-

formation order criteria) for a Navigational

Context (Presentation Model).

All the activities related to OO-Method models

speciﬁcation (a to d) deﬁne the behaviour and data

structures (objects) of the system. On the other

hand, the OOWS models activities (e to f) deﬁne

a web interface. OO-Method models must be de-

ﬁned before the OOWS models since there is a re-

lationship between them (for instance, a user type

is linked to a class from the Object Model). This

constraint implies that activities from a) to d) must

always be carried out before deﬁning the OOWS

Models. In addition, for each model to be built,

a detailed PDD (Vlaanderen, 2007) describes the

sub-activities needed. The output of this phase is

an OOWS model that speciﬁes the web system.

3. Implementation: The main purpose of this phase

is generating the software product. Four activities

are needed:

ICEIS 2008 - International Conference on Enterprise Information Systems

150

(a) Deﬁne the application architecture. By default

a three-layer architecture Web Application is

generated. However, it’s possible to obtain only

the web interface or a set of web services.

(b) Select the technological target platform (cur-

rently PHP, ASP .NET or JSF).

This information is related to technological is-

sues such as database conﬁguration, Web server

directory and so on.

(d) Send the OOWS Conceptual Model and the

conﬁguration options ﬁle to the Model Com-

piler.

This last phase is carried out using both Oli-

vaNOVA and OOWS tools introduced in section

2. The result of this phase is the code of the ﬁnal

Web Application.

The OOWS method metamodel provides a clear rep-

resentation of the method as a whole. Moreover,

a clear description of the activities involved in the

Web Application speciﬁcations are classiﬁed and ex-

plained. This metamodel is the starting point to detect

method fragments and which must be adapted into the

CMS-domain.

5 ANALYSIS OF THE OOWS

METHOD IN THE CMS

DOMAIN

The main interest of this work is how the OOWS

method can be adapted to deﬁne CMS Web Appli-

cations. In the previous section, the OOWS method

meta-model has been introduced in terms of method

fragments or activities. In order to detect which cur-

rent method fragments should be adapted, a use case

from the CMS-domain has been modeled. The use-

case used for evaluation purposes, describes a possi-

ble user-registration process, which is an important

part of every CMS-based web-application. Figure 2

shows the activity diagram for the use-case. When

the user gets to the registration page, he will have to

enter some basic account info like username, email

and password. After this, he will be asked for per-

sonal information, like name and address. When the

information is conﬁrmed by the user, the user will be

inserted into the database by the system. A conﬁrma-

tion code is generated and sent to the supplied email

address. The user-account will not be active until the

user either clicks the link in the email or enters the

conﬁrmation code on the website. By analysing the

results of this attempt we can also learn how potential

method problems can be overcome.

Figure 2: Activity Diagram for the simple registration use-

case.

5.1 User Registration Use-case

The Navigational Model for this use-case is shown

in ﬁgure 3. Every user-type has a Navigational Con-

text ’Home’, on which currently nothing is shown

except links to the other available contexts. The

AnonymousUser has a ’Register’-context, which al-

lows the entering of all the required information that

is needed for executing the register operation. The

RegisteredUser has, next to its ’Home’-context, two

additional contexts: ’Conﬁrm’, which allows the en-

tering of the conﬁrmation code, and ’Phone’, which

shows all the related Phone entities and the available

’Phone’-services (InsPhone and DelPhone). The re-

sulting application provides a ’register’ service to ev-

ery ’AnonymousUser’ that enters the system. When

the user executes that service, he gets prompted for all

the required info. Upon completion of the form a new

’RegisteredUser’ is created. When the user logs on

to this account, he will have the opportunity to ’Con-

ﬁrm’ the email address by entering the conﬁrm-code

through another service. If the conﬁrm-code is cor-

rect, the ’authorised’ attribute is set to true, indicat-

ing that the user receives full access to his account.

Based on this attribute, decisions can be made regard-

ing which services, objects and attributes are visible

and/or active. The authentication mechanism pro-

vided by the OOWS-generated Web Applications is

a simple approach to user-registration and login. By

default a standard login screen is created in which ex-

isting users can enter only their login information (id

and password) to identify themselves. For this use-

case, the user-registration process has to be altered. It

IMPROVEMENT OF A WEB ENGINEERING METHOD APPLYING SITUATIONAL METHOD ENGINEERING

151

is certainly possible to do this at the coding-level, but

this is not ideal. A better solution is to do it at the

conceptual level. However, this currently requires a

complex solution.

5.2 Issues Detected and Method

Improvements

After modeling the use case, the resulting implemen-

tation has been analysed. From this analysis some

improvements have been detected to deﬁne a method

more suitable to the CMS domain. These method im-

provements can be summarised in three critical parts

to be solved:

1. Handling the ’Steps’ involved in the Input of the

Information. Usually in Web Applications, a ser-

vice execution is divided into several steps. For

example, when a customer places an order in an

e-commerce application, ﬁrst he ﬁlls in his per-

sonal data, next he introduces the delivery op-

tions available and ﬁnally the payment informa-

tion. In the current method, the deﬁnition of this

kind of ”processes” is not an easy and straight-

forward job. Services are not classiﬁed attending

to its complexity. As a consequence the compiler

generates the same interface to execute a service:

a form with all the arguments. If the number of

arguments is high, the usability is compromised.

This issue is not only related to service execution.

When the user wants to recovera concrete piece of

information from a big amount, it’s useful to nav-

igate through several steps to ﬁlter the informa-

tion. The user-registration service is an example

of this kind of information input. To accomplish

this task using OOWS, several services and navi-

gational contexts were used to generate a wizard-

like interface. Since a navigational context is rep-

resented as a new web page, several linked navi-

gational contexts can represent a wizard to the ﬁ-

nal user. However, this solution is not compliant

with the navigational context semantics. If a user

navigates to other contexts it is with the aim of

performing a different service. Therefore, the in-

clusion of a new method fragment to model com-

plex processes is needed. This method fragment

will be a new activityin the Conceptual Modelling

phase, after deﬁning the Navigational Model (ac-

tivity 2.g). The purpose of this activity is to mark

how data input must be grouped. Currently, work

is being done by (Torres and Pelechano, 2006)

to support business processes inside the OOWS-

Method using BPM diagrams. This work could

help to implement activities that consist of multi-

ple steps, like the entering of user-information as

shown in this use-case.

2. User Information Proﬁle. As stated in section

4.1, the user-registration and login processes pro-

vided are generally not suited for CMS web-

applications. In this kind of systems, user login or

id is not enough. To manage accurately the user

rights over the content, user personal information

(preferences, rights etc.) must be available along

the system. This information is used to adapt

which content the user can receive or which navi-

gational contexts can be accessed. User modeling

is currently supported in the OOWS Method (ac-

tivity 2.f). Therefore in this case, no new method

activity is needed. Nevertheless, new primitives

for modeling individual users are required. In a

CMS system, user-proﬁle is a critical requirement

in order to decide what content a user can edit,

publish etc. As a consequence, the activity 2.f

must be redeﬁned to include more expressiveness.

For instance, for each user logged in, we need to

know what his rights are (see information, execute

services, navigation links available) over the AIUs

of a Navigational Context.

3. External Services Integration. Certain process-

ing, like creating a conﬁrmation code that is used

to validate the provided email-address and enable

the account, can not be modelled conceptually.

With the purpose of providing external function-

ality, OOWS (using OO-Method conceptual mod-

els) provides two mechanisms: (1) The inclusion

of ’Legacy Classes’ (activity 2.a), that enable the

creation of an object-like interface of a external

system, and (2) ’User Functions’, which are sim-

ply stub-services that can be manually deﬁned in

the code. However, how and when this external

functionality is deﬁned is not clear in the method.

In the implementation of this use-case, this prob-

lem has been solved by using a combination of

speciﬁc attributes, services and preconditions to

ensure a conﬁrmation code is generated and the

user-supplied code is correct, before the user is

’authorised’. This approach is not recommended

because it adds a lot of complexity to the con-

ceptual model. Since external functionality needs

to be included, this activity must be introduced

in the OOWS Method. Firstly, in the Require-

ments Modelling phase deﬁning which user task

are related to external services (activity 1.c). And

secondly, when the OO-Method Class Diagram is

speciﬁed (activity 2.a) distinguishing between the

structure of the system and the external services is

needed. Again, this method adaptation is not only

related to CMS Systems, but is critical in this do-

main.

ICEIS 2008 - International Conference on Enterprise Information Systems

152

Figure 3: Navigational contexts for the User registration use-case.

6 CONCLUSIONS AND FURTHER

RESEARCH

Currently, Web applications are focused on more

specialised tasks besides the simple information re-

trieval. It is not hard to imagine that every Web Ap-

plication domain has its own requirements and there-

fore introduces its own problems. Creating an all-

encompassing method might not be the best approach.

A better way to handle this is the creation of domain-

speciﬁc adaptations of the method. In this paper,

Situational Method Engineering has been applied to

the OOWS Web Enginering method in order to im-

prove the support for a specialised domain: Con-

tent Management Systems. With the purpose of ap-

plying the SME principles to the OOWS Web En-

ginering Method two artifact have been introduced:

1) A formal description of the method by means of

a meta-model and 2) an analysis in the CMS do-

main, to detect which method fragments need to be

re-adapted. On the one hand, the meta-model for the

OOWS Method proposed in this work allow to decide

on the possible use and re-use of certain parts of the

method. On the other hand, the analysis of the method

in the light of CMS-based Web Applications has pro-

vided a new view on which certain decisions might

be made in the future. The results presented in this

paper have the aim of providing a better view of the

OOWS Method and its possibilities and impossibili-

ties. In addition to the methodological changes ex-

plained here, another technological issues regarding

CMS web-systems were detected. Examples are the

management of multimedia content, aesthetic presen-

tation or error prevention. However, these issues must

be solved from an implementation point of view in-

stead of methodological. It’s expected that future ver-

sions of the tools and the frameworkswill improvethe

code generation. After detecting the improvements

needed, new method fragments should be included in-

side the OOWS Method. Future works should analyse

other Web Engineering Methods, such as WEM, from

a SME perspective in order to ﬁnd this kind of frag-

ments. The ﬁnal goal of this research work must be

to create a new CMS Web Engineering Method from

a common knowledge method-base.

ACKNOWLEDGEMENTS

This work has been developed with the support of

MEC under the project SESAMO TIN2007-62894.

IMPROVEMENT OF A WEB ENGINEERING METHOD APPLYING SITUATIONAL METHOD ENGINEERING

153

REFERENCES

Brinkkemper, S. (1996). Method engineering: engineering

of information methods and tools. Information and

Software Technology, 38(4):275–280.

Ceri, S., Fraternali, P., and Bongio, A. (2000). Web mod-

eling language (webml): a modeling language for de-

signing web sites. Computer Networks, 33(1-6):137–

157.

De Troyer, O. M. F. and Leune, C. J. (1998). Wsdm: A

user-centered design method for web sites. Computer

Networks and ISDN Systems, 30(1-7):85–94.

Deshpande, Y., Murugesan, S., Ginige, A., Hansen, S.,

Schwabe, D., Gaedke, M., and White, B. (2002). Web

engineering. Journal of Web Engineering, 1(1):3–17.

Fons, J., Pelechano, V., Albert, M., and Pastor, O. (2003).

Development of web applications from web enhanced

conceptual schemas. In Song, I.-Y., Liddle, S. W.,

Ling, T. W., and Scheuermann, P., editors, ER, volume

2813 of Lecture Notes in Computer Science, pages

232–245. Springer.

Koch, N. and Kraus, A. (2002). The expressive power of

uml-based web engineering. In Schwabe, D., Pastor,

O., Rossi, G., and Olsina, L., editors, 2nd Interna-

tional Workshop on Web-Oriented Software Technol-

ogy, volume 2548 of Lecture Notes in Computer Sci-

ence, Malaga. Springer-Verlag.

Pastor, O., Fons, J., and Pelechano, V. (2003). Oows:

A method to develop web applications from web-

oriented conceptual models. In 3rd International

Workshop on Web Oriented Software Technology,

Oviedo. Luis Olsina, Oscar Pastor, Gustavo Rossi,

Daniel Schwabe.

Pastor, O. and Molina, J. C. (2007). Model-Driven Ar-

chitecture in Practice: A Software Production Envi-

ronment Based on Conceptual Modeling. Springer-

Verlag, Berlin.

Ralyt´e, J., Deneck`ere, R., and Rolland, C. (2003). Towards

a generic model for situational method engineering.

In Advance Information Systems Engineering, num-

ber 2681 in Lecture Notes in Computer Science, page

1029. Springer-Verlag, Berlin.

Saeki, M. (2003). Embedding metrics into information sys-

tems development methods: An application of method

engineering technique. In 15th International Confer-

ence on Advanced Information Systems Engineering,

volume 2681 of Lecture Notes in Computer Science,

pages 374–389, Klagenfurt. Springer-Verlag.

Schwabe, D. and Rossi, G. (1995). The object oriented hy-

permedia design model. Communications of the ACM,

38(8):45–46.

Torres, V. and Pelechano, V. (2006). Building business pro-

cess driven web applications. In Dustdar, S., Fiadeiro,

J. L., and Sheth, A., editors, 4th International Confer-

ence on Business Process Management, volume 4102

of Lecture Notes in Computer Science, pages 322–

337, Vienna. Springer-Verlag.

Valderas, P., Fons, J., and Pelechano, V. (2005). Transform-

ing web requirements into navigational models: An

mda based approach. In Delcambre, L. M. L., Kop,

C., Mayr, H. C., Mylopoulos, J., and Pastor, O., edi-

tors, ER, volume 3716 of Lecture Notes in Computer

Science, pages 320–336. Springer.

Valverde, F., Valderas, P., Fons, J., and Pastor, O. (2007). A

mda-based environment for web applications develop-

ment: From conceptual models to code.

van de Weerd, I. (2005). Wem: A design method for cms-

based web implementations. Master’s thesis, Utrecht

University, Utrecht.

van de Weerd, I. and Brinkkemper, S. (2007). Meta-

modeling for situational analysis and design methods.

van de Weerd, I., Brinkkemper, S., Souer, J., and

Versendaal, J. (2006). A situational implementation

method for web-based content management system-

applications: Method engineering and validation in

practice. Software Process Improvement and Practice,

(11):521–538.

Vlaanderen, K. (2007). Oows in a cms-based environment:

a preliminary research (pending publish). Master’s

thesis, University of Utrecht.

ICEIS 2008 - International Conference on Enterprise Information Systems

154
