MULTI-DIMENSIONAL MODELING

Formal Specification and Verification of the Hierarchy Concept

Ali Salem

Faculty of Sciences of Sfax,University of Sfax, Sfax, Tunisia

Faiza Ghozzi

Institute Superior of Informatics and Multimedia of Gabes,University of Gabes, Gabes, Tunisia

Hanene Ben-Abdallah

Faculty of Economics and Management of Sfax, University of Sfax, Sfax, Tunisia

Keywords: Multi-dimensional model, OLAP, Constraints,

Meta-Model, formal Specification, Hierarchy.

Abstract: The quality of a data mart (DM) tightly depends on the quality of its multidimensional model. This quality

dependen

ce motivated several research efforts to define a set of constraints on the DM model/schema.

Currently proposed constraints are either incomplete, or informally presented, which may lead to ambiguous

interpretations. The work presented in this paper is a first step towards the definition of a formal framework

for the specification and the verification of the quality of DM schemas. In this framework, the quality is

expressed in terms of both the syntactic well-formedness of the DM schema as well as its semantic

soundness with respect to the DM instances. More precisely, this paper first formalizes in Z the constraints

pertinent to the hierarchy concept; the formalization is treated at the meta-model level. Secondly, the paper

illustrates how the formalization can be instantiated and the constraints are verified for a particular sample

model through the theorem prover Z\eves.

1 INTRODUCTION

Face to the international, unrestrained economic

competition, an increasing interest in decision

support systems (DSS) has emerged over the last

decade. These latter assist a decision maker in

extracting data pertinent to their analysis interests

from their transactional systems (called On-Line

Transactional Processing-OLTP systems). Unlike

transactional systems, the majority of DSS relies on

OLAP (On-Line Analytical Processing) systems

where data are often stored in multidimensional

databases. In such databases, data is organized by

center of interests (Facts) and examined according to

various axes of analysis (Dimensions) represented

through analysis prospects (Hierarchies) (Kimball,

2002). These multidimensional databases are often

organized in terms of two type’s storage areas: a

data warehouse (DW) that regroups all data required

for any potential analysis requirements, and/or a set

of data marts (DM) each of which regroups data

extracts required to one particular analysis

requirement.

In order to assist in the development of DM/DW,

several

multidimensional models have been

proposed to specify DM/DW schemas, e.g., the basic

star model, its generalization the constellation

model, the snow flake model, etc. (Hurtado, 2002]

(Lechtenbörger, 2003). On the other hand, evidently,

the quality of a DM/DW depends tightly on the

quality of its schema. In this context, we consider

that the quality of a schema those properties that can

be expressed in terms of the schema’s syntactic (or

structural) specification as well as its semantic

correctness (or soundness). The syntactic quality of

a schema ensures that elements of the

multidimensional model are correctly used together;

for example, the acyclicity constraint disallows the

existence of a level cycle in the hierarchy. The

soundness constraint defines a hierarchical link of

dependence between the dimension instances...

317

Salem A., Ghozzi F. and Ben-Abdallah H. (2008).

MULTI-DIMENSIONAL MODELING - Formal Speciﬁcation and Veriﬁcation of the Hierarchy Concept.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - DISI, pages 317-322

 SciTePress

The quality of a schema has been addressed by

the definition of a set of constraints at the model

level. That is, several researchers (cf., (Hurtado,

2002),(Lechtenbörger, 2003), (Ghozzi, 2003) have

defined a set of rules that a schema must respect in

order to produce either a syntactically correct

schema, or a sound schema with respect to data

instances. The rules are defined on the structures and

structural elements of a schema. Nevertheless, these

works have not proposed a mechanism to validate

and verify these rules.

In this paper, we present the first steps towards

the development of a formal framework for DM/DW

modeling and verification. On one hand, this

framework relies on the precise definition of the

constraints ensuring the syntactic and semantic

correctness of a DM/DW schema. On the other

hand, its exploits the formal definition in order to

provide for a means to verify both types of

correctness. More specifically, in this paper, we first

present the formal definition of the Hierarchy

concept at the meta-model level in the Z language

(Spivey, 1992); secondly, we illustrate how the

constraints can be instantiated for a particular model

and verified using the Z/eves theorem prover

(Saaltink, 1999).

The remainder of this paper is organized as

follows. In Section 2, we first overview current

proposals of constraints for DM/DW schemas;

secondly, we present our approach of constraint

definition and verification. In Section 3, we present

the set of constraints pertinent to the hierarchy

concept and their formalization in Z. In Section 4,

we show how to instantiate the constraint for a

particular model and how to verify the correctness of

the constrained model through Z/eves. Finally,

Section 5 summarizes our contributions and outlines

ongoing work.

2 RELATED WORKS

During our survey of the previous works in this

domain, we field studied the hierarchy concept and

the constraints related to this concept. Defining the

hierarchies classification of certain dimension

attributes is crucial because these classification

hierarchies provide the basis for the subsequent data

analysis. Since a dimension attribute can also be

rolling up to more than one other attribute, multiple

classification hierarchies and alternative path

hierarchies are also relevant (Trujillo, 2001).

According to (Lehner, 1998), in the context of

statistical databases and on-line analytical

processing as well, classification hierarchies provide

a basis for defining aggregate data. (Part, 2006)

confirms that hierarchies are crucial to

multidimensional modeling since they are used in

conjunction with aggregation functions to aggregate

(“rollup”) or detail (“drill-down”) measures. These

quotations prove the importance related to the

hierarchy concept. In (Malinowski, 2004), the

authors present a conceptual classification of

hierarchies and propose graphical notations for them

based on the ER model. With respect to dimensions,

every hierarchy classification level is specified by a

class. An association of classes specifies the

relationships between two levels of a hierarchy

classification. The only prerequisite is that these

classes must define a Directed Acyclic Graph

(DAG) rooted in the dimension class (constraint

{dag} placed next to every dimension class). The

DAG structure can represent both alternative path

and multiple hierarchies classification (Lujàn, 2002).

In the GMD model (Franconi, 2004), the authors

describe the hierarchy by an order function between

the different dimension attributes. (Abello, 2006)

presents a multi-dimensional model object oriented,

and defines a hierarchy as aggregation relation

between the different dimension attributes.

Otherwise, few works formally define

hierarchies but they mainly discuss the

summarizability conditions and offer some solutions

to correct measure aggregations in presence of the

so-called heterogeneous hierarchies (Hurtado, 2001).

In (Hurtado, 2002), the authors propose a set of

constraints to solve the aggregation problem. These

constraints are related to the hierarchical structuring

of the dimension attributes and the dimension

instances. We note an explicit and complete

definition of the hierarchy concept in the works of

(Ghozzi, 2003). These works will make the basis of

our formal specification.

The constraints expressed in these works differ

from a model to another. This difference resides, on

the one hand, in the level of expression of the

constraint (Meta-model, model) and on the other

hand, in the level of checking or safeguarding of the

constraint. Moreover, there is no consensus on the

whole constraints to take into account. This

dissension on the level of the constraints expression

in these various works poses a true problem

touching with the coherence of the data to

incorporate. In other words, it can lead to incoherent

results of analyses.

The goal of our work is to lead to a consistent

formal specification of a multidimensional Meta-

model in constellation. Thus, we offer the designers

a means to check their models.

ICEIS 2008 - International Conference on Enterprise Information Systems

318

In this paper, we present a formal specification

of the hierarchy concept and a domain check

validation of this specification with Z/Eves proover.

We prove, as well, the consistence of this

specification with an initial state theorem (Spivey,

1992).

3 CONSTRAINTS RELATED TO

THE HIERARCHY CONCEPT

The constraints expressed at the Meta-model level

include the essential constraints to maintain the

coherence model. They are related to the basic

concepts and independent of any application. This

type of constraints can be classified according to

basic concepts' of the multidimensional model; fact,

dimension, Hierarchy and constellation.

Among these constraints we differentiate

between the constraints related to the hierarchy

concept. These constraints can be classified in two

categories according to their checking level:

Structure constraints and instances constraints.

3.1 Structure Constraints

These constraints describe the rules to scheduling

hierarchy attributes:

 Unicity of identifier and “All” attributes

(Ghozzi, 2003). For example, in supplier

dimension (Fig1) we can find several Supplier

whish have the same identifier. This can

generate ambiguities when we query

multidimensional data because facts will be

related to more than one Supplier. In addition,

All attribute is defined to enclose a hierarchy

(Fig 1)

 The identifier is the attribute of the finest

granularity and “All” is the attribute of highest

granularity (Fig 1) (Ghozzi, 2003). In a

hierarchy, attributes are classified according to a

partial order (roll up). For example, in supplier

hierarchy (Fig 1), ID determines City

determines Country etc. Only ID can determine

all the information related to a Supplier. The

attributes are classified from the finest

granularity to the highest granularity. “All”

attribute is used to enclose a hierarchy.

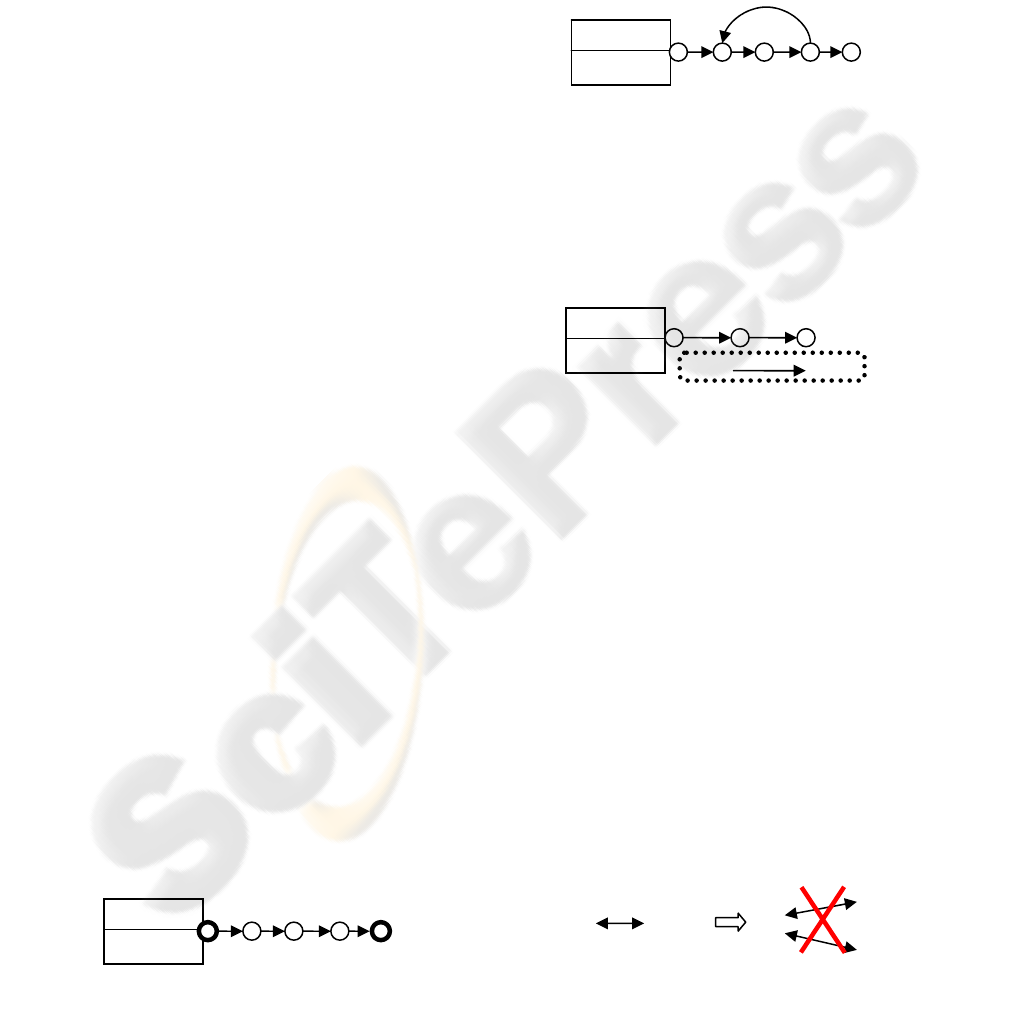

Figure 1: Attributes ID and ALL.

 Nonempty hierarchy (Ghozzi, 2003): Each

hierarchy has at least two levels of parameters;

ID and the “All” attribute.

 Acyclicity (Franconi, 2004) (Abello, 2006)

(Hurtado, 2002) (Carpani, 2001) (Ghozzi,

2003): this constraint disallows the existence of

a level cycle in the hierarchy. For example, for

the supplier hierarchy (Fig 2), we notice the

existence of the cycle (continent, city). This

cycle generates a problem of redundancy during

the data analysis.

Figure 2: Acyclicity.

 Connection to the top (Hurtado, 2002) (Ghozzi,

2003) this constraint expresses that all

parameters, except All, have at least a father (a

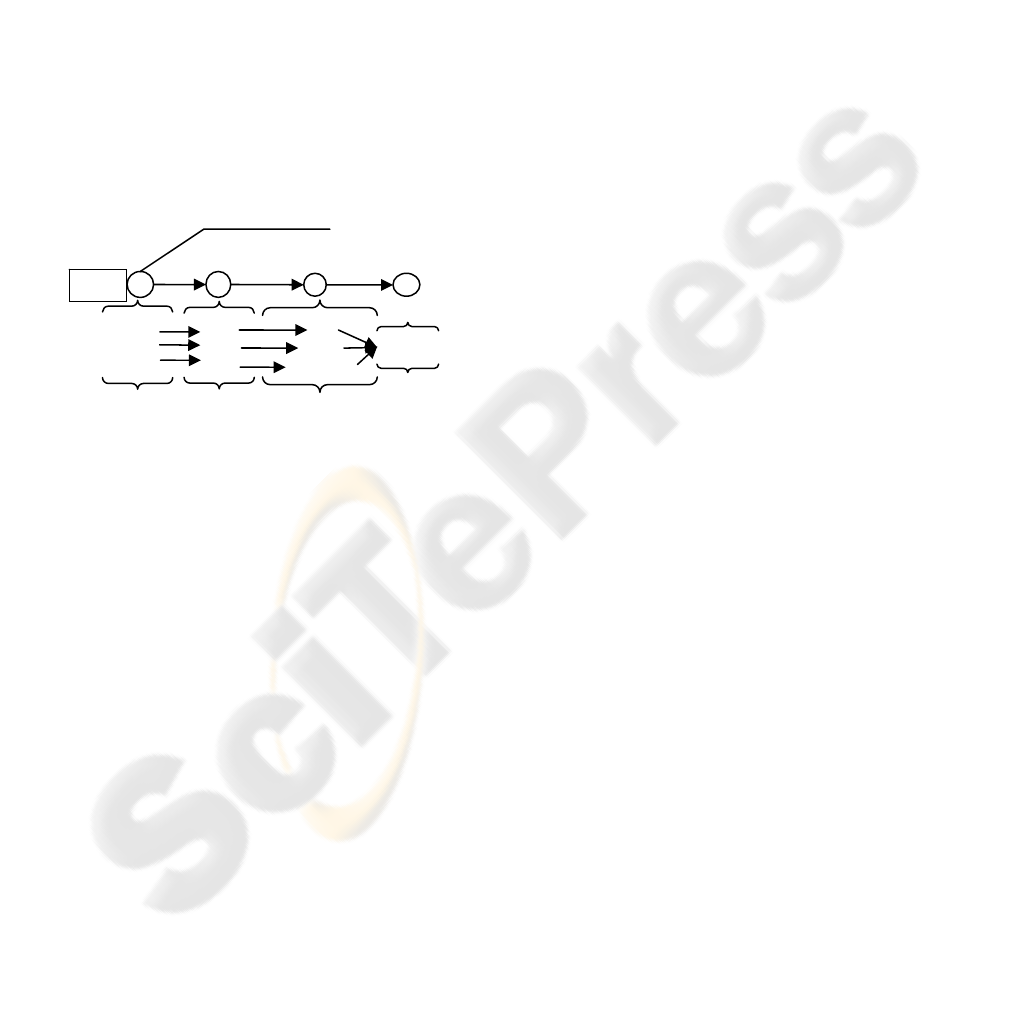

parameter of less fine granularity) (Fig 3). This

constraint guarantees the order structure of

parameters in dimension.

Figure 3: Connection to the top.

3.2 Instances Constraints

The hierarchical structure between the parameters is

also applied on their members. Thus, several works

speak about the dimension diagram of instances.

The constraints on this level describe the relations

between the various values of the attributes.

 Partition (Hurtado, 2002) (Ghozzi, 2003). To

each parameter member corresponds one and

only one member among those of each

parameter successor in the hierarchy. In a

hierarchy, each member must determine the

successor member. If a parameter member

corresponds to more than one successor member

we can not determine this successor member.

For example (fig 4), the city of Paris (member

of city parameter) should not belong at the same

time to France and Italy (member of country

parameter).

Figure 4: Partition.

Id City

All

Supplier

Child

Father

Supplier

City

Country

All

Continent

Paris

Italie

France

Country

City

Supplier

City

Country

Continent

All

MULTI-DIMENSIONAL MODELING - Formal Specification and Verification of the Hierarchy Concept

319

 Soundness (Ghozzi, 2003): for each parameters

couple in the Hierarchy, there are at least two

members belonging to this couple in such a way

that these two members are dependent (fig 5). In

our schema, this dependence is materialized by

the existence of a relation between these

members.

Figure 5: Soundness.

4 FORMAL SPECIFICATION IN

LANGUAGE Z

The formal specification of our model allows the

expression of the constraints in an exact and specific

way, thus offering the means of validating and

checking them.

The selected language of specification is Z

language. It is based on the set theory and

mathematical logic (Spivey, 1992). The set theory

used includes the standard operators of the sets, the

Cartesian products and the sets of power.

Mathematical logic is a first order predicate

calculus. A schema Z is composed of two parts: a

part for the declaration and a part for the predicates

representing the constraints on the declared

variables.

4.1 Specification

We start by defining the two types NomH and Dom:

The first includes Hierarchy names and the second

includes the various attribute values in dimensions:

[NomH, Dom]

Then, the Standard free type, which is used for

classification of dimension attributes as weak

attributes, parameters, identifier or “All”:

Type :: weak  Parameter  ID  All

The Relval relation things to see the various

relations between the attributes values:

Relval: Dom  Dom

The Weight function assigns to each attribute a

weight:

 Weights: AttDim  Type

Each dimension attribute includes a finished set of

values (Dom). We define it as a compound type.

AttDim

val:Dom



The formal definition of a hierarchy in language Z

results in the schema named Hierarchy where: N is

the name of the hierarchy; Att is a finished whole of

dimension attributes AttDim. ParamH is a sequence

describing the attributes hierarchy. A sequence, in

language Z, can be considered as a function whose

field is an adjoining subset of the natural numbers.

The predicate part of the Hierarchy schema gathers

constraints connected to:

 The unicity of : identifier [1],

Country

City

France Paris

 The unicity of the parameter All [2],

 Nonempty hierarchy [3]: Each hierarchy has at

least two levels of parameters in the definition

of the hierarchy.

 The identifier is the attribute of the finest

granularity [4],

 The All attribute is of the largest granularity [5],

 Acyclicity [6]: The existence of a cycle in the

hierarchies is forbidden.

 Soundness [7]: ParamH defines a hierarchical

link of dependence between the parameter

members of a dimension.

 Partition constraint [8] [9]: to each parameter

member corresponds one and only one member

among those of each successor parameter in the

hierarchy.

 Connection to the top: All the parameters,

except “All”, have at least a father (a parameter

of less fine granularity). This constraint makes

it possible to ensure the passage from a level to

another. It is checked by definition of ParamH

as a sequence.

Hierarchy

N: NomH

Att:  AttDim

ParamH: seq AttDim



[1] 

x: Att  Weights x = ID

[2] 

x: Att  Weights x = All

[3] # ParamH ⁄ 2

[4] x: Att  x  ran ParamH  ParamH 1 = x

  Weights x = ID

[5] x: Att  x  ran ParamH  ParamH # ParamH = x

  Weights x = All

[6] i, j: 1 .. # ParamH  i Ð j  ParamH i Ð ParamH j

[7] i, j: 1 .. # ParamH  j = i + 1

  v, w: Dom  v  ParamH i . val  w  ParamH j . val

  v w  Relval

[8] i, j: 1 .. # ParamH; v: Dom  j = i + 1  v  ParamH i . val

  w1, w2: Dom

  w1  ParamH j . val

  w2  ParamH j . val

  v w1  Relval

  v w2  Relval

  w1 = w2

[9] v: Dom; i: 1 .. # ParamH - 1  v  ParamH i . val

ICEIS 2008 - International Conference on Enterprise Information Systems

320

  w: Dom  w  ParamH i + 1 . val  v w  Relval



4.2 Proof Reading

The proof involves a demonstration that the various

requirements upon the data type are consistent and

not contradictory. To show that the requirements are

consistent, we have only to show that the constraint

part of the state schema is satisfiable. This is usually

achieved by proving an initialisation theorem: we

show that an initial state, at least, exists.

In this phase, we will test the consistency of our

specification. The step to be followed in this phase

is to define a correct hierarchy and to prove that the

latter checks the constraints expressed on the level

of the Hierarchy schema.

For that, we start with the instantiation of the

Clas_Cons Hierarchy of Car dimension (Fig 6):

Figure 6: The Clas_Cons Hierarchy of dimension Car.

Among the attributes of Car dimension, we have

Immat, Model, Mark, Power and All. The Immat

attribute is the identifier. The attributes Model and

Mark are classified as parameters. Power is a weak

attribute. These attributes are classified according to

the hierarchy Clas_Cons (Fig 6).Each attribute

contains a set of values related to each other

according to the relation Relval (Fig 6).

The description of this example in Z is written to

use the Axiom Box Schema. The form of definition

includes a constraint upon the object being

introduced. Such definitions are said to be

axiomatic, as the constraint is assumed to hold

whenever the symbol is used: it is an axiom for the

object. In the Z notation, our example description is:

Immat, Model, Mark, all, Power: AttDim

clas_Cons: NomH

T102, T103, T104, Fiesta, Clio, Golf, Ford,

 Renault, Volkswagen, vall: Dom



Weights Immat = ID

 Weights Mark = Parametre

 Weights Model = Parametre

 Weights all = All

 Weights Power = Faible

Immat . val = T102 T103 T104

Model . val = Fiesta Clio Golf

all . val = vall

Mark . val = Ford Renault Volswagen

Relval

 = T102 Fiesta Fiesta Ford Ford vall T103

Clio

 Clio Renault Renault vall T104 Golf Golf

Volkswagen

 Volkswagen vall

Then, we define the HierarchyInstance schema

which will play the role of a hierarchy instances. In

addition, we must assign the various values

necessary to the various sets already declared to the

level of the Hierarchy schema.

HierarchyInstance

Hierarchy



N = clas_Cons

Att = Immat Model Mark all Power

ParamH = Immat Model Mark allﬂ



At last, we proved the theorem of following

initialization state:

theorem ConsistanceHierarchie

Hierarchy  HierarchyInstance

To prove this theorem we use the Z/Eves Prover.

This prover is semi-automatic. His is bases on set

theory and first order logic.

In the environment of demonstration, one can use

several commands to indicate to Z-Eves tracks of

possible demonstrations. For some, it is a question

of clicking, for others; we have to introduce other

sub-theorems and axioms to assert the prover.

In our case to prove the initial state theorem we

proceeded as follows (fig 8):

 invoke: this command replaces all the schema

used in predicate by their definition.

 prove: this command allows various options of

demonstration and simplification.

 use: is used to explicitly call another theorem or

an axiom.

 prove by reduce: it has the same role as the

prove command, but it simplifies even better.

 case and next: in our proof, there are many

predicates to be shown. The best solution is to

use these two commands which make it possible

to show them separately.

 instantiate: this command is useful to instantiate

one or more quantified variables.

Car

Immat

Model

Mark

All

Power

T102

T103

T104

Fiesta

Clio

Golf

Ford

Renault

Volkswagen

vall

MULTI-DIMENSIONAL MODELING - Formal Specification and Verification of the Hierarchy Concept

321

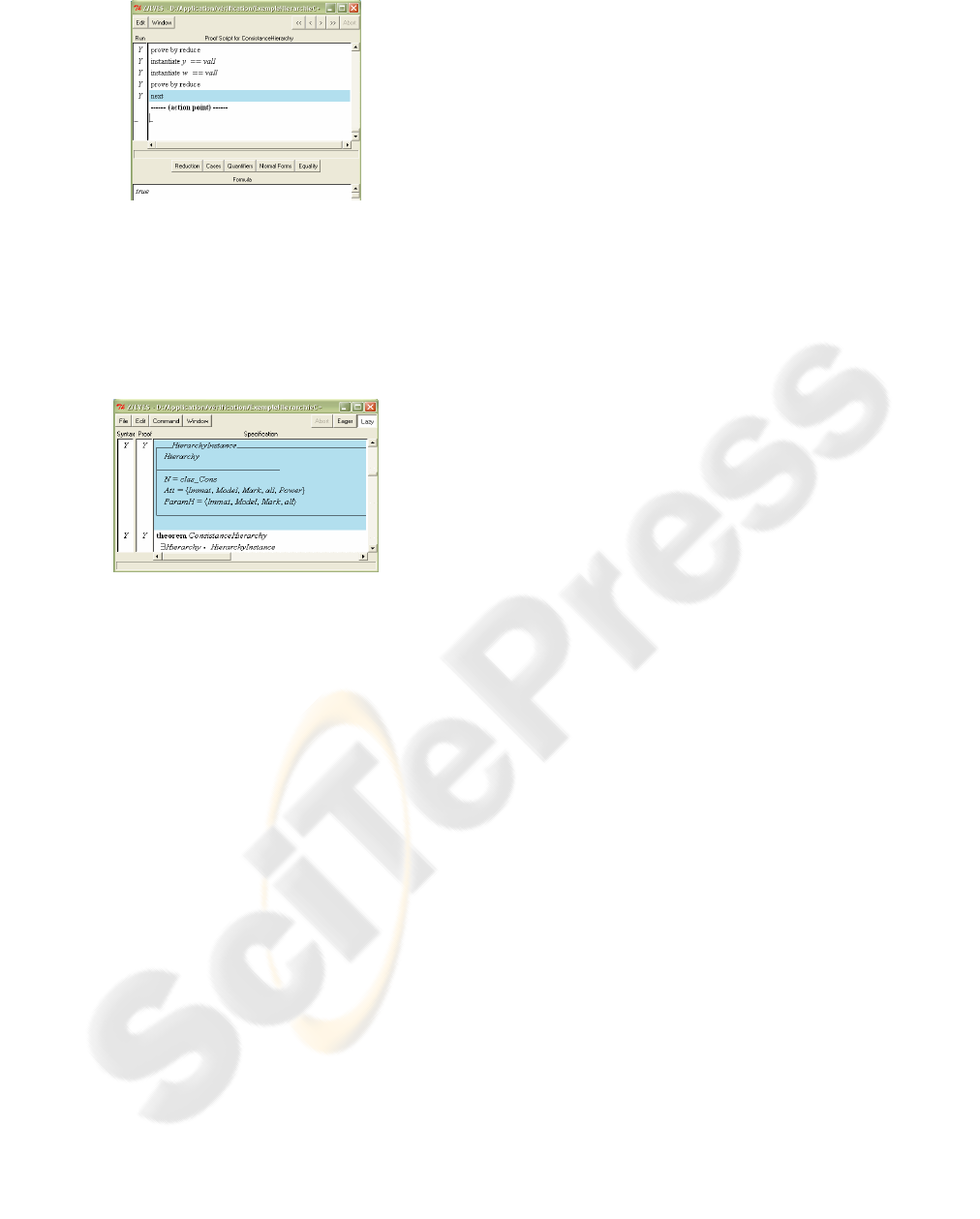

Figure 7: Proof script for theorem ConsistanceHierarchy.

Finally, we succeeded in proving the theorem of the

initialization state. We have, so, to prove that there

is not a contradiction to the constraints specified in

the predicate part of the Hierarchy schema.

Consequently, we proved the consistence of our

formal specification of the hierarchy concept.

Figure 8: Proved theorem ConsistanceHierarchy.

5 CONCLUSIONS

In this paper, we gathered all the constraints related

to the hierarchy concept judged to be essential to

maintain the coherence of the data to incorporate

and ensure the integrity of the structures and the

multidimensional data compared to these

constraints. We defined these constraints at the

meta-model level. In addition, we proposed to

classify these constraints according to two

categories: the constraints related to the structure

and the constraints related to the instances. Further

more, we precisely formalized in Z the Hierarchy

concept. This formalization provides the designers

with the means of validating the hierarchical

structuring of the dimension attributes of their

models.

REFERENCES

Abelló A., Samos J., Saltor F. “YAM2: a

multidimensional conceptual model extending UML”.

Information Systems. Vol 31, p 541-567, 2006

Carpani F., Ruggia R., “An Integrity Constraints

Language for a Conceptual Multidimensional Data

Model”. In 13

International Conference on Software

Engineering & Knowledge Engineering (SEKE’01),

Argentina, 2001.

Codd E. F., Codd S.B., Salley C.T., "Providing OLAP (On

Line Analytical Processing) to Users-Analysts: An IT

Mondate", Rapport technique, E.F. Codd and

Associates, 1993.

Franconi E. and Kamble A., “The GMD Data Model and

Algebra for Multidimensional Information” Advanced

Information Systems Engineering, 16

International

Conference, CAiSE 2004, Riga, Latvia, June 7-11,

2004, Proceedings.

Ghozzi F., Ravat F., Teste O., Zurfluh G., “Modèle

Dimensionnel à Contraintes”. In Revue des Sciences et

Technologies de l'Information, Série RIA- ECA,

Hermes –Lavoisier, Vol. 17, N. 1-2-3, p.43-56, 2003.

Hurtado C., “Mendelzon A., Reasoning about

summarizability in heterogeneous multidimensional

schemas”, in: Proc. of the 21

ACM Int. Conf. on

Management of Data and Symposium on Principle of

Databases Systems, p. 169–179, 2001.

Hurtado C., Mendelzon A., "OLAP Dimension

Constraints". In 21

ACM SIGACT-SIGMOD-

SIGART Symposium on Principles of Database

Systems (PODS’02), Madison, USA, p. 169-179,

2002.

Kimball R., Ross M., "The Data Warehouse Toolkit",

Wiley, New York, 2

edition, 2002.

Lechtenbörger J., Vossen G., "Multidimensional normal

forms for data warehouse design". In Revue

Information Systems, Vol. 28, N. 5, p. 415-434, 2003.

Lujàn S, Trujillo J., Song, "Extending the UML for

Multidimensional Modeling" The Unified Modeling

Language: 5

International Conference, Dresden,

Germany, September 30 - October 4, 2002,

Proceedings.

Lehner W., Albrecht J., Wedekind H., “Normal forms for

multidimensional databases”, in: Proc. of the 10

Int.

Conf. on Scientific and Statistical Database

Management, p. 63–72, 1998.

Malinowski E., Zima´nyi E., “OLAP hierarchies: A

conceptual perspective”, in: Proc. of the 16

Int. Conf.

on Advanced Information Systems Engineering, p.

477–491, 2004.

Prat N., Akoka J., Comyn-Wattiau I., “A UML-based data

warehouse design method” Decision Support Systems,

Volume 42, Issue 3, p. 1449-1473, 2006

Trujillo J. C., Palomar M., Gómez J., Song:I "Designing

Data Warehouses with OO Conceptual Models". In

IEEE Computer, Vol. 34, N.12, p. 66- 75, 2001.

Spivey J.M., “The Z Notation : a Reference Manual”.

Prentice-Hall, 1992.

Saaltink M.. The Z/EVES 2.0 User’s Guide. ORA Canada,

OneNicholas Street, Suite 1208, Ottawa (Ontario),

K1N 7B7, 1999.

ICEIS 2008 - International Conference on Enterprise Information Systems

322
