RULES AS SIMPLE WAY TO MODEL KNOWLEDGE

Closing the Gap between Promise and Reality

Valentin Zacharias

FZI, Haid-Und-Neu Strasse 10-14, Karlsruhe, Germany

Keywords:

Rule based systems, F-logic, knowledge acquisition, rule based modeling, knowledge modeling, veriﬁcation,

anomaly detection.

Abstract:

There is a considerable gap between the potential of rules bases to be a simpler way to formulate high level

knowledge and the reality of tiresome and error prone rule bases creation processes.

Based on the experience from three rule base creation projects this paper identiﬁes reasons for this gap between

promise and reality and proposes steps that can be taken to close it. An architecture for a complete support of

rule base development is presented.

1 INTRODUCTION

Since their conception rule languages have been her-

alded as a simpler and more natural way to build com-

puter systems, compared to both imperative program-

ming and other logic formalisms. This idea rests on

three observations:

• Rule languages are (mostly) declarative languages

that free the developer from worrying about how

something is computed. This should decrease the

complexity for the developer.

• The If-Then structure of rules resembles the way

humans naturally communicate a large part of

knowledge.

• The basic structure of a rule is very simple and

easy to understand.

However, the authors have observed the creation

of rule bases in three different projects and found this

promise of simplicity to be elusive. If anything the

creation of rule bases was more error prone, more tire-

some and more frustrating than the development with

modern imperative languages.

This paper is an attempt to reconcile the promise

of simplicity with reality. It identiﬁes why rule bases

are not currently simple to build and proposes steps to

address this. This paper’s structure is as follows: sec-

tion two gives a short overview of the three projects

that form the input for this analysis. Section three

discusses what kinds of problems were encountered.

The next three sections then discuss overall princi-

ples to better support the creation of rule bases, an

architecture of tool support for the development pro-

cess and ﬁnally debugging as a particularly important

problem. The paper discusses two commonly voiced

counter arguments against ideas presented here and

then concludes.

2 EXPERIENCES

The analysis presented in this paper is based on the

experience from three projects.

• Project Halo

is a multistage project to develop

systems and methods that enable domain experts

to model scientiﬁc knowledge. As part of the

second phase of Project Halo six domain experts

were employed for 6 weeks each to create rule

bases representing domain knowledge in physics,

chemistry and biology.

• Online Forecast was a project to explore the po-

tential of knowledge based systems with respect

to maintainability and understandability. Towards

this end an existing reporting application in a hu-

man resource department was re-created as rule

based system. This project was performed by a

junior developer who had little prior experience

with rule based system. Approximately 5 person

months went into this application.

• The goal of the project F-verify was to create

a rule base as support for veriﬁcation activi-

http://www.projecthalo.com

Zacharias V. (2008).

RULES AS SIMPLE WAY TO MODEL KNOWLEDGE - Closing the Gap between Promise and Reality.

In Proceedings of the Tenth Inter national Conference on Enterprise Information Systems - AIDSS, pages 87-94

DOI: 10.5220/0001712500870094

 SciTePress

ties. It models (mostly heuristic) knowledge about

anomalies in rule bases. It consists of anomaly de-

tection rules that work on the reiﬁed version of a

rule base. This project was done by a developer

with experience in creating rule bases and took 3

month to complete.

All of these projects used F-logic (Kifer et al., 1995)

as representation language and the Ontobroker infer-

ence engine (Decker et al., 1999). The editing tools

differed between the projects: Project Halo used the

high level, graphical tools developed in the project.

Online Forecast used a simple version of Ontoprise’s

OntoStudio. F-verify used Ontostudio together with

prototypical debugging and editing tools.

The use of only one rule formalism obviously re-

stricts the generality of any statements that can be

made. However, F-logic is very similar to some of the

rule languages under discussion for the Semantic Web

(Kifer et al., 2005) and it is based on normal logic pro-

grams - probably the prototypical rule language. The

authors examined literature and tools to ensure that

tool support identiﬁed as missing is indeed missing

from rule based systems and not only from systems

supporting F-logic.

Methods used for the creation of the rule bases

differed between the three projects:

• Project Halo used the document driven knowledge

formulation process: scientiﬁc textbooks were

used as informal models of domain knowledge.

Using the textbooks as guideline and to structure

the process, domain experts created the knowl-

edge base. Graphic, high level tools were em-

ployed to allow the domain experts to concentrate

on modeling knowledge without having to worry

about the technicalities of implementation.

• Online Forecast began with the creation of infor-

mal models of the domain knowledge as diagrams

and textual descriptions. These models were cre-

ated in close cooperation with domain experts.

In a second step these informal models were im-

plemented. Results from test cases were again

cleared with the experts and the knowledge base

was reﬁned until it matched their expectations.

• F-Verify used an informal iterative process. New

heuristics would be deﬁned in natural language

and then be directly implemented. The domain

model (the reiﬁed rules) existed already and was

reused.

All of these projects have been created using rela-

tively lightweight methods that focus more on the ac-

tual implementation of rules than on high level mod-

els - as is to be expected for such relatively small

http://www.ontoprise.de

projects, in particular when performed by domain ex-

perts or junior programmers. The analysis, methods

and tools presented in this paper are geared towards

this kind of small, domain expert/end user program-

mer driven projects.

3 ANALYSIS

In the three projects sketched above the authors found

that the creation of working rule bases was an error

prone and tiresome process. In all cases the develop-

ers complained that creating correct rule bases takes

too long and in particular that debugging takes up too

much time. Developers with prior experience in im-

perative programming languages said that developing

rule bases was more difﬁcult then developing imper-

ative applications. While part of these observations

can be explained by longer training with imperative

programming, it still stands in a marked contrast to

the often repeated assertion that creating rule bases is

simpler. We identiﬁed six reasons for this observed

discrepancy.

• The One Rule Fallacy. Because one rule is rela-

tively simple and because the interaction between

rules is handled automatically by the inference en-

gine, it is often assumed that a rule base as a whole

is automatically simple to create. However, the in-

ference engine obviously combines the rules only

based on how the user has speciﬁed the rules; and

it is here - in the creation of rules in a way that they

can work together - that most errors get made. Ex-

amples for errors affecting the interaction of rules

are the use of different attributes to represent the

same thing or two rules being based on incompat-

ible notions of a concept.

Hence a part of the gap between the expected sim-

plicity of rule base creation and the reality can be

explained by naive assumptions about rule base

creation. Rule based systems hold the promise

to allow the automatic recombination of rules to

tackle problems not directly envisioned during the

creation of the rule base. However, it is an il-

lusion to assume that rules created in isolation

will work together automatically in all situations.

Rules have to be tested in their interaction with

other rules on as many diverse problems as pos-

sible to have a chance for them to work in novel

situations.

• The Problem of Opacity. The authors experi-

ence shows that failed interactions between rules

are the most important source of errors during rule

base creation. At the same time it is this interac-

tion between rules that is commonly not shown;

ICEIS 2008 - International Conference on Enterprise Information Systems

that is opaque to the user. The only common

way to explicitly show the connections between

rules is in a prooftree of a successful query to

the rule base. This is unlike imperative program-

ming, were the relations between the entities and

the overall structure of the program are explicitly

created by the developer, shown in the source code

and the subject of visualizations.

• The Problem of Interconnection. Because rule

interactions are managed by the inference engine,

everything is potentially relevant to everything

else

. This complicates error localization for the

user, because bugs appear in seemingly unrelated

parts of the rule base. Another consequence is that

even a single error can cause a large portion of (or

even all) test cases to fail

. This too was a com-

mon occurrence, in particular in Project Halo.

• The No-result Case and the Problem of Error

Reporting. By far the most common symptom of

an error in the rule base was a query that (unex-

pectedly) did not return any result - the no-result

case. In such a case most inference engines give

no further information that could aid the user in

error localization. This is unlike many impera-

tive languages that often produce a partial output

and a stack trace. Both imperative and rule based

systems sometimes show bugs by behaving errat-

ically, but only rule based systems show the over-

whelming majority of bugs by terminating with-

out giving any help on error localization.

• The Problem of Procedural Debugging. All de-

ployed debugging tools for rule based programs

known to the authors are based on the procedural

or imperative debugging paradigm. This debug-

ging paradigm is well known from the world of

imperative programming and characterized by the

concepts of breakpoints and stepping. A procedu-

ral debugger offers a way to indicate a rule/rule

part where the program execution is to stop and

has to wait for commands from the users. The user

can then look at the current state of the program

and give commands to execute a number of the

successive instructions. However a rule base does

not deﬁne an order of execution - hence the order

of debugging is based on the evaluation strategy

of the inference engine. The execution steps of a

procedural debugger are then for instance: the in-

ference engine tries to prove a goal A or it tries to

ﬁnd more results for another goal B.

Procedural Debuggers force the developer to learn

At least in the absence of robust, user managed modu-

larization

For example by making a rule base unstratiﬁable

about the inner structure of the inference engine.

This stands in marked contrast to the idea that

rule bases free the developer from worrying about

how something is computed. The development of

rule based systems cannot take full advantage of

the declarative nature of rules, when debugging is

done on the procedural nature of the inference en-

gine.

• Less Reﬁned Tools Support. Compared to tools

available as support for the development with im-

perative languages, those for the development of

rule bases often lack reﬁnement. This discrepancy

is a direct consequence from the fact that in recent

years the percentage of applications built with im-

perative programming languages was much larger

than those built with rule languages.

4 CORE PRINCIPLES

The authors have identiﬁed four core principles to

guide the building of better tool support for the cre-

ation of rule bases. These principles where conceived

either by generalizing from tools that worked well or

as direct antidote to problems encountered repeatedly.

• Interactivity. To create tools in a way that they

give feedback at the earliest moment possible. To

support an incremental, try-and-error process of

rule base creation by allowing trying out a rule as

it is created.

Tools that embodied interactivity proved to be

very popular and successful in the three projects

under discussion. Tools such as fast graphical edi-

tors for test queries, text editors that automatically

load their data into the inference engine or sim-

ple schema based veriﬁcation during rule formu-

lation where the most successful tools employed.

In cases where quick feedback during knowledge

formulation could not be given

, this was reﬂected

immediately in erroneous rules and unmotivated

developers.

Interactivity is known to be an important suc-

cess factor for development tools, in particu-

lar for those geared towards end user program-

mers (Ruthruff and Burnett, 2005; Ruthruff et al.,

2004). Interactivity as a principle addresses many

of the problems identiﬁed in the previous sec-

tion by supporting faster learning during knowl-

edge formulation. Immediate feedback after small

changes also helps to deal with the problem of in-

terconnection and the problem of error reporting.

This was mostly due to very long reasoning times or

due to technical problems with the inference engine

RULES AS SIMPLE WAY TO MODEL KNOWLEDGE - Closing the Gap between Promise and Reality

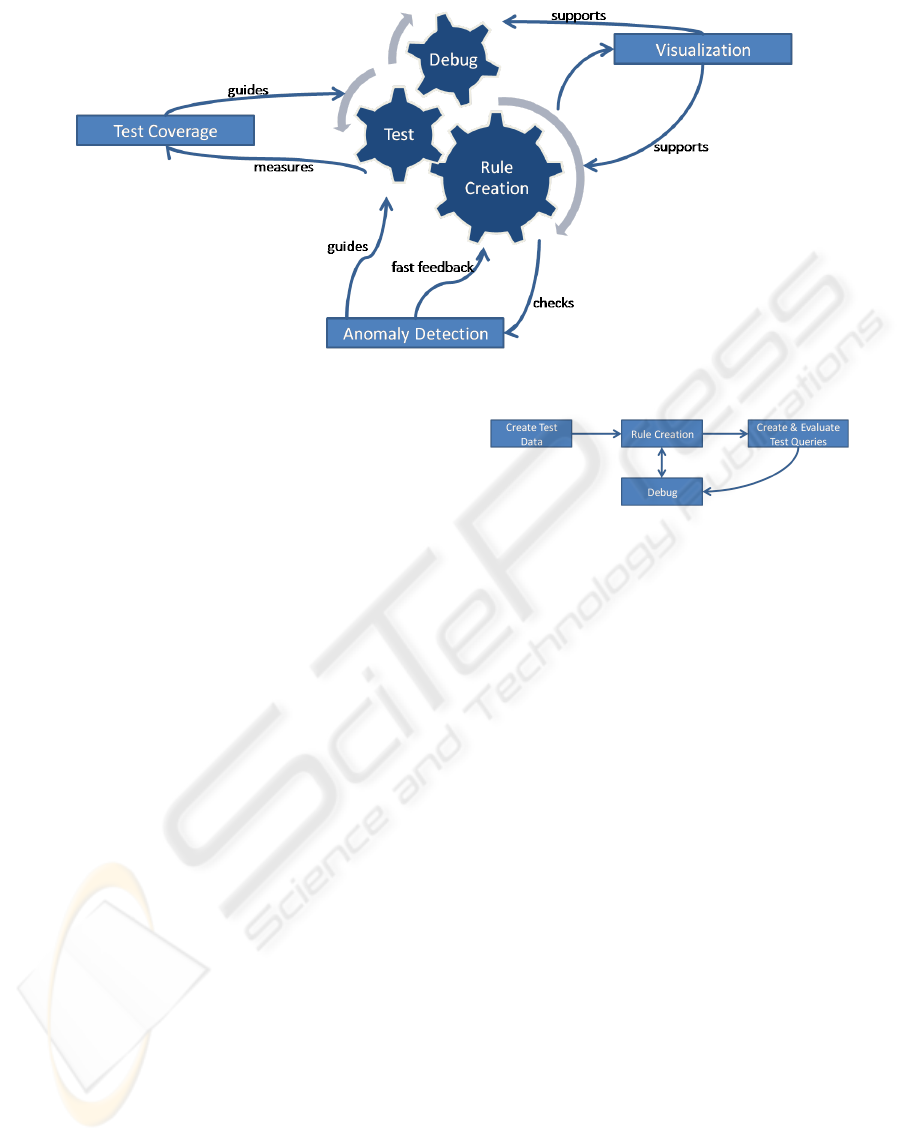

Figure 1: The overall architecture of tool support for the rule base development.

• Visibility. To show the hidden structure of (poten-

tial) rule interactions at every opportunity. Visi-

bility is included as a direct counteragent to the

problems of opacity and interconnection.

• Declarativity. To create tools in a way that the

user never has to worry about the how; about the

procedural nature of the computation. Declari-

tivity of all development tools is a prerequisite

to realize the potential of reduced complexity of-

fered by declarative programming languages. The

declarititivity principle is a direct response to the

problem of procedural debugging described in the

previous section.

• Modularization. To support the structuring of

a rule base in modules in order to give the user

the possibility to isolate parts of the rule base and

prevent unintended rule interactions. This prin-

ciple is a direct consequence of the problem of

interconnection. However, modularization of rule

bases has been extensively researched and imple-

mented (e.g. (Jacob and Froscher, 1990; Baroff

et al., 1987; Grossner et al., 1994; Mehrotra,

1991) and will not be further discussed in this pa-

per .

5 SUPPORTING RULE BASE

DEVELOPMENT

The principles identiﬁed in the previous section need

to be embodied in concrete tools and development

processes in order to be effective. Based on our ex-

perience from the three projects described earlier and

on best practices as described in literature (eg (Preece

et al., 1997; Gupta, 1993; Tsai et al., 1999)) we have

Figure 2: Test, debug and rule creation as integrated activi-

ties.

identiﬁed (and largely implemented) an architecture

of tool support for the development of rule bases.

A high level view of this architecture is shown in

ﬁgure 1. At its core it shows test, debug and rule cre-

ation as an integrated activity - as mandated by the

interactive principle. These activities are supported

by test coverage, anomaly detection and visualization.

Each of the main parts will be described in more detail

in the following paragraphs.

5.1 Test, Debug and Rule Creation as

Integrated Activity

In order to truly support the interactivity principle

the test, debug and rule creation activities need to be

closely integrated. This stands in contrast to the usual

sequence of: create program part, create test and de-

bug if necessary. An overview of this integrated ac-

tivity is shown in ﬁgure 2.

Testing has been broken up into two separate ac-

tivities: the creation/identiﬁcation of test data and the

creation and evaluation of test queries. This has been

done because test data can inform the rule creation

process - even in the absence of actual test queries.

Based on the test data an editor can give feedback on

the inferences made possible by a rule while it is cre-

ated. An editor can automatically display that (given

the state of the rule that is being created, the contents

ICEIS 2008 - International Conference on Enterprise Information Systems

of the rule base and the test data) the current rule al-

lows to infer such and such. This allows the devel-

oper to get instant feedback on whether her intuition

of what a rule is supposed to infer matches reality.

When the inferences a rule enables do not match the

expectations of the user she must be able to directly

switch to the debugger to investigate this. In this way

testing and debugging become integrated, even with-

out a test query being present.

Hence we speak of integrated test, debug and rule

creation because unlike in traditional development:

• test data is used throughout editing to give imme-

diate feedback

• debugging is permanently available to support

rule creation and editing, even without an actual

test query. The developer can debug rules in the

absence of test queries.

5.2 Anomalies

Anomalies are symptoms of probably errors in

the knowledge base (Preece and Shinghal, 1994).

Anomaly detection is a well established and often

used static veriﬁcation technique for the development

of rule bases. Its goal is to identify errors early that

would be expensive to diagnose later. Anomalies give

feedback to the rule creation process by pointing to

errors and can guide the user to perform extra tests on

parts of the rule base that seem problematic. Anomaly

detection heuristics focus on errors across rules that

would otherwise be very hard to detects. Examples

for anomalies are rules that use concepts that are not

in the ontology or rules deducing relations that are

never used anywhere.

Of the problems identiﬁed in section 3, anomalies

detection partly addresses the problem of opacity, in-

terconnection and error reporting by ﬁnding some of

the errors related to rule interactions based on static

analysis.

We deployed anomaly detection heuristics within

Project Halo, both as very simple heuristics integrated

into the rule editor and more complex heuristics as a

separate tool. The anomaly heuristics integrated into

the editor performed well and were well received by

the developers, the more complex heuristics, however,

took a long time to be calculated, thereby violated the

interactivity paradigm, and weren’t accepted by the

users.

5.3 Visualization

The visualization of rule bases here means the use of

graphic design techniques to display the overall struc-

ture of the entire rule base, independent of the answer

to any particular query. The goals for such visual-

izations are the same as for UML class diagrams and

other overview representations of programs and mod-

els: to aid teaching, development, debugging, valida-

tion and maintenance by facilitating a better under-

standing of a computer program/model by the devel-

opers. To, for example, show which other parts are

affected by a change. The overview visualization of

the entire rule base is a response to the problem of

opacity.

Not being able to get an overview of the entire

rule base and being lost in the navigation of the rule

base was a frequent complaint in the three projects

described in the beginning. To address this we created

a scalable overview representation of the static and

dynamic structure of a rule base, detailed descriptions

can be found in (Zacharias, 2007).

6 DEBUGGING

In section 2 the current procedural debugging support

was identiﬁed as unsuited to support the simple cre-

ation of rule bases. It was established that debuggers

needs to be declarative in order to realize the full po-

tential of declarative programming languages.

6.1 Previous Non-procedural Debuggers

The problem of debugging declarative systems has

been investigated in numerous research projects in the

past; two big threads of research can be identiﬁed:

• Algorithmic Debugging

(Shapiro, 1982; Stumpt-

ner and Wotawa, 1998; Naish, 1992; Brna et al.,

1991; Pereira, 1986; Dershowitz and Lee, 1987) ;

optimized algorithms that search an abstract rep-

resentation of a programs execution for the part

that is causing a bug, using either the user or a

speciﬁcation as oracle.

• Automatic Debugging

(Craw and Boswell, 2000;

Craw and Sleeman, 1996; Ginsberg, 1988;

Wilkins, 1990; Waterman, 1968; Ourston and

Mooney, 1990; Richards, 1991; Wogulis and Paz-

zani, 1993; Raedt, 1992; Saitta et al., 1993; Morik

and Emde, 1993), approaches that try to automati-

cally identify (and possible correct) the error caus-

ing a bug, for instance by identifying the smallest

Similar works have also been published under the terms

Declarative Debugging, Declarative Diagnosis, Guided De-

bugging, Rational Debugging and Deductive Debugging

The authors use automatic debugging as very broad

broad combination of the areas of Automatic Debugging,

Why-Not Explanation, Knowledge Reﬁnement, Automatic

Theory Revision and Abductive Reasoning

RULES AS SIMPLE WAY TO MODEL KNOWLEDGE - Closing the Gap between Promise and Reality

change to the rule base that would change the out-

put to the expected value.

We reject both approaches as unsuited to be the ex-

clusive debugging support within the architecture de-

scribed here for the following reasons:

• Both approaches can be described as computer

controlled debugging. Because the computer con-

trols the debugging process, these tools can only

use the information encoded in the rule base, not

the domain knowledge and intuition of the devel-

oper. These approaches also do not empower the

developer to learn more about the program. Many

approaches just propose a change without giving

the developer a chance to test and correct her ex-

pectations.

• These approaches are hard to reconcile with

the interactivity principle and the integrated rule

creation-test-debug development process because

they depend on the existence of a test case, mostly

together with the expected result.

• To the author’s best knowledge none of the au-

tomatic approaches has ever proved a sufﬁcient

accuracy in identifying errors to ﬁnd widespread

adoption. Also many of these approaches rely

heavily on the competent programmers hypothe-

ses (DeMillo et al., 1978), that does not hold in all

circumstances. This is particularly critical when

no fallback, non-automatic debugging support is

available to support the user in the misidentiﬁed

cases.

6.2 Explorative Debugging

To address this shortcoming we have developed and

implemented the Explorative Debugging paradigm

for rule-based systems (Zacharias and Abecker,

2007). Explorative Debugging works on the declar-

ative semantics of the program and lets the user navi-

gate and explore the inference process. It enables the

user to use all her knowledge to quickly ﬁnd the prob-

lem and to learn about the program at the same time.

An Explorative Debugger is not only a tool to identify

the cause of an identiﬁed problem but also a tool to try

out a program and learn about its working.

Explorative Debugging puts the focus on rules. It

enables the user to check which inferences a rule en-

ables, how it interacts with other parts of the rule base

and what role the different rule parts play. Unlike in

procedural debuggers the debugging process is not de-

termined by the procedural nature of the inference en-

gine but by the user who can use the logical/semantic

relations between the rules to navigate.

An explorative debugger is a rule browser that:

• Shows the inferences a rule enables.

• Visualizes the logical/semantic connections be-

tween rules and how rules work together to arrive

at a result. It supports the navigation along these

connections

• It allows to further explore the inference a rule en-

ables by digging down into the rule parts.

• Is integrated into the development environment

and can be started quickly to try out a rule as it

is formulated.

The interested reader ﬁnds a complete description of

the explorative debugging paradigm and one of its im-

plementation in (Zacharias and Abecker, 2007).

6.3 The Role of Automatic Debugging

Section 6.1 argued that automatic debugging cannot

form the exclusive debugging support in the context

of the architecture described here. It can, however,

play a supportive role for manual debugging systems.

The techniques of automatic debugging (and in partic-

ular those of why not explanations (Martincic, 2001;

Chalupsky and Russ, 2002) can be harnessed to tackle

the problem of error reporting (see section 3), to cre-

ate an initial explanation for the failure of a rule base

to return any result to a query. In this way it can play

a role similar to that of stack traces in imperative pro-

gramming - to give a starting point for the developer

driven debugging of the system.

7 DISCUSSION

This section adresses two objections against ideas in

this paper often encoutered by the authors.

7.1 The Declarativety of Rules

Rules (and declarative languages in general) promise

that knowledge represented in this way can be more

easily and automatically reused in different contexts,

even in those not envisioned during the rule base’s

creation (McCarthy, 1959):

Expressing information in declarative senten-

ces is far more modular than expressing it

in segments of computer programs or in ta-

bles. Sentences can be true in a much wider

Logical connections between rules are static dependen-

cies formed for example by the possibility to unify a body

atom of one rule with the head atom of another. Other log-

ical connections are formed by the prooftree that represents

the logical structure of a proof that lead to a particular result

ICEIS 2008 - International Conference on Enterprise Information Systems

context than speciﬁc programs can be used.

The supplier of a fact does not have to under-

stand much about how the receiver functions

or how or whether the receiver will use it. The

same fact can be used for many purposes, be-

cause the logical consequences of collections

of facts can be available.

Some readers may misunderstand this paper’s in-

sistence on visibility - the showing of the interactions

between rules - to mean that the authors deny this

property and want rule bases to have a rigid/developer

deﬁned structure. This however, is not the authors in-

tention. The argument for the importance of visibility

is as follows:

1. Only a rule base tested extensively has a chance

to work correctly in novel situations.

2. Many of the bugs uncovered during testing will be

caused by errors affecting the interaction between

rules. Examples for such errors are rules using

different attributes to represent the same thing or

rules reﬂecting different interpretations of a class.

3. Supporting the diagnosis of such errors or pre-

venting their introduction into a rule base there-

fore requires the visbility of rule interactions.

7.2 Comparing Modeling and

Programming

This paper frequently draws on comparisons between

modeling knowledge as rules and the programming

of imperative programs as arguments. Some readers

may object to this on the grounds that programming

and knowledge modeling are fundamentally different

activities and that hence comparisons to programming

cannot inform better support for knowledge model-

ing activities. However, in the end the creation of a

knowledge based system is the engineering of a com-

puter system. And in the ﬁnal creation of this com-

puter system the development of rule based systems

encounters many of the same problems as the devel-

opment with other programming paradigms - such as

the problem of identifying the error causing a bug.

The building of a knowledge based system is the cre-

ation of a computer program in a particular way, but

it’s the creation of a computer program nonetheless.

8 CONCLUSIONS

Current tools support for the development of rule

based knowledge based systems fails to address many

common problems encountered during this process.

An architecture that combines integrated develop-

ment, debugging and testing supported by test cov-

erage metrics, visualization and anomaly detection

heuristics can help tackle this challenge. The princi-

ples of interactivity, declarativity, visibility and mod-

ularization can guide the instantiation of this architec-

ture in concrete tools. The novel paradigm of explo-

rative debugging together with techniques from the

automatic debugging community can form the robust

basis for debugging in this context.

Such a complete support for the development of

rule bases is an important prerequisite for Semantic

Web rules to become a reality and for business rule

systems to reach their full potential.

ACKNOWLEDGEMENTS

Research reported in this paper was partly funded by

Vulcan Inc. under Project Halo, and supported by On-

toprise GmbH by giving free access to software for

project Online Forecast.

REFERENCES

Baroff, J., Simon, R., Gilman, F., and Shneiderman, B.

(1987). Direct manipulation user interfaces for expert

systems. pages 99–125.

Brna, P., Brayshaw, M., Esom-Cook, M., Fung, P., Bundy,

A., and Dodd, T. (1991). An overview of prolog de-

bugging tools. Instructional Science, 20(2):193–214.

Chalupsky, H. and Russ, T. (2002). Whynot: Debugging

failed queries in large knowledge bases. In Proceed-

ings of the Fourteenth Innovative Applications of Ar-

tiﬁcial Intelligence Conference (IAAI-02), pages 870–

877.

Craw, S. and Boswell, R. (2000). Debugging knowledge-

based applications with a generic toolkit. In ICTAI,

pages 182–185.

Craw, S. and Sleeman, D. (1996). Knowledge based reﬁne-

ment of knowledge based systems. Technical report,

The Robert Gordon University.

Decker, S., Erdmann, M., Fensel, D., and Studer, R. (1999).

Ontobroker: Ontology-based access to distributed and

semi-structured unformation. In Database Semantics:

Semantic Issues in Multimedia Systems, pages 351–

369.

DeMillo, R. A., Lipton, R. J., and Sayward, F. G. (1978).

Hints on test data selection: Help for the practicing

programmer. IEEE Computer, 11(4):34–41.

Dershowitz, N. and Lee, Y.-J. (1987). Deductive debugging.

In SLP, pages 298–306.

Ginsberg, A. (1988). Automatic Reﬁnement of Expert Sys-

tem Knowledge Bases. Morgan Kaufmann Publishers.

RULES AS SIMPLE WAY TO MODEL KNOWLEDGE - Closing the Gap between Promise and Reality

Grossner, C., Gokulchander, P., Preece, A., and Radhakrish-

nan, T. (1994). Revealing the structure of rule based

systems. International Journal of Expert Systems.

Gupta, U. (1993). Validation and veriﬁcation of knowledge-

based systems: a survey. Journal of Applied Intelli-

gence, pages 343–363.

Jacob, R. and Froscher, J. (1990). A software engineering

methodology for rule-based systems. IEEE Transac-

tions on Knowledge and Data Engineering, 2(2):173–

189.

Kifer, M., de Bruijn, J., Boley, H., and Fensel, D. (2005). A

realistic architecture for the semantic web. In RuleML,

pages 17–29.

Kifer, M., Lausen, G., and Wu, J. (1995). Logical foun-

dations of object-oriented and frame-based languages.

Journal of the ACM, 42(4):741–843.

Martincic, C. J. (2001). Mechanisms for answering ”why

not” questions in rule- and object-based systems. PhD

thesis, University of Pittsburgh. Adviser-Douglas P.

Metzler.

McCarthy, J. (1959). Programs with common sense. In Pro-

ceedings of the Teddington Conference on the Mecha-

nization of Thought Processes, pages 75–91, London.

Her Majesty’s Stationary Ofﬁce.

Mehrotra, M. (1991). ”rule groupings: a software engineer-

ing approach towards veriﬁcation of expert systems”.

Technical report, NASA Contract NAS1-18585, Final

Rep.

Morik, J.-U. K. K. and Emde, W. (1993). Knowledge Acqui-

sition and Machine Learning. Academic Press, Lon-

don.

Naish, L. (1992). Declarative diagnosis of missing answers.

New Generation Comput., 10(3):255–286.

Ourston, D. and Mooney, R. (1990). Changing the rules:

A comprehensive approach to theory reﬁnement. In

Proceedings of the Eighth National Conference on Ar-

tiﬁcial Intelligence, pages 815–520.

Pereira, L. M. (1986). Rational debugging in logic program-

ming. In Proceedings of the Third International Con-

ference on Logic Programming, pages 203–210.

Preece, A. D. and Shinghal, R. (1994). Foundation and

application of knowledge base veriﬁcation. Interna-

tional Journal of Intelligent Systems, 9(8):683–701.

Preece, A. D., Talbot, S., and Vignollet, L. (1997). Eval-

uation of veriﬁcation tools for knowledge-based sys-

tems. Int. J. Hum.-Comput. Stud., 47(5):629–658.

Raedt, L. D. (1992). Interactive Theory Revision. Academic

Press, London.

Richards, R. M. B. (1991). First-order theory revision. In

Machine Learning: Proceedings of the Eighth Inter-

national Workshop on Machine Learning, pages 447–

451.

Ruthruff, J. and Burnett, M. (2005). Six challenges in sup-

porting end-user debugging. In 1st Workshop on End-

User Software Engineering (WEUSE 2005) at ICSE

05.

Ruthruff, J., Phalgune, A., Beckwith, L., and Burnett, M.

(2004). Rewarding good behavior: End-user debug-

ging and rewards. In VL/HCC’04: IEEE Symposium

on Visual Languages and Human-Centric Computing.

Saitta, L., Botta, M., and Neri, F. (1993). Multistrat-

egy learning and theory revision. Machine Learning,

11(2):153–172.

Shapiro, E. Y. (1982). Algorithmic program debugging.

PhD thesis, Yale University.

Stumptner, M. and Wotawa, F. (1998). A survey of intelli-

gent debugging. AI Commun., 11(1):35–51.

Tsai, W.-T., Vishnuvajjala, R., and Zhang, D. (1999). Ver-

iﬁcation and validation of knowledge-based systems.

IEEE Transactions on Knowledge and Data Engineer-

ing, 11(1):202–212.

Waterman, D. A. (1968). Machine Learning of Heuristics.

PhD thesis, Stanford University.

Wilkins, D. (1990). Knowledge base reﬁnement as improv-

ing and incorrect, inconsistent and incomplete domain

theory. Machine Learning, 3:493–513.

Wogulis, J. and Pazzani, M. (1993). A methodology for

evaluating theory revision systems: results with au-

drey ii. In Proceedings of the Sixth International

Workshop on Machine Learning, pages 332–337.

Zacharias, V. (2007). Visualization of rule bases - the

overall structure. In 7th International Conference on

Knowledge Management - Special Track on Knowl-

edge Visualization and Knowledge Discovery.

Zacharias, V. and Abecker, A. (2007). Explorative debug-

ging for rapid rule base development. In Proceedings

of the 3rd Workshop on Scripting for the Semantic Web

at the ESWC 2007.

ICEIS 2008 - International Conference on Enterprise Information Systems
