SCHEMA EVOLUTION IN WIKIPEDIA

Toward a Web Information System Benchmark

∗

Carlo A. Curino

, Hyun J. Moon

, Letizia Tanca

and Carlo Zaniolo

DEI, Politecnico di Milano, Italy

CSD, UCLA, Los Angeles, CA, U.S.A.

Keywords:

Schema evolution, Wikipedia, Case Study, Benchmark.

Abstract:

Evolving the database that is at the core of an Information System represents a difﬁcult maintenance problem

that has only been studied in the framework of traditional information systems. However, the problem is likely

to be even more severe in web information systems, where open-source software is often developed through

the contributions and collaboration of many groups and individuals. Therefore, in this paper, we present an in-

depth analysis of the evolution history of the Wikipedia database and its schema; Wikipedia is the best-known

example of a large family of web information systems built using the open-source software MediaWiki. Our

study is based on: (i) a set of Schema Modiﬁcation Operators that provide a simple conceptual representation

for complex schema changes, and (ii) simple software tools to automate the analysis. This framework allowed

us to dissect and analyze the 4.5 years of Wikipedia history, which was short in time, but intense in terms of

growth and evolution. Beyond conﬁrming the initial hunch about the severity of the problem, our analysis

suggests the need for developing better methods and tools to support graceful schema evolution. Therefore,

we brieﬂy discuss documentation and automation support systems for database evolution, and suggest that the

Wikipedia case study can provide the kernel of a benchmark for testing and improving such systems.

1 INTRODUCTION

Every Information System (IS) is the subject of a con-

stant evolution process to adapt the system to many

factors such as changing requirements, new func-

tionalities, compliance to new regulations, integra-

tion with other systems, and new security and privacy

measures. The data management core of an IS is one

of the most critical portions to evolve. Often based on

Relational DataBase (DB) technology, the data man-

agement core of a system needs to evolve whenever

the revision process requires modiﬁcations in the log-

ical and physical organization of the data. Given its

fundamental role, the evolution of the DB underly-

ing an IS has a very strong impact on the applications

accessing the data; thus, support for graceful evolu-

tion is of paramount importance. The complexity of

DB and software maintenance, clearly, grows with

the size and complexity of the system. Furthermore,

when moving from intra-company systems – typically

managed by rather small and stable teams of devel-

opers/administrators – to collaboratively-developed-

and-maintained public systems, the need for a well-

∗

This work has been partially funded by the project

MIUR-FIRB ARTDECO and the NSF project IIS 0705345.

managed evolution becomes indispensable. Leading-

edge web projects, characterized by massive collabo-

rations and fast growth, experience a relentless drive

for changes, which in turn generates a critical need

for widespread consensus and rich documentation.

Schema evolution has been extensively studied in

the scenario of traditional information systems. An

authoritative and comprehensive survey of the ap-

proaches to relational schema evolution and schema

versioning is presented in (Roddick, 1995). More re-

cently, (Ram and Shankaranarayanan, 2003) has sur-

veyed schema evolution on the object-oriented, re-

lational, and conceptual data models. Case studies

on schema evolution on various application domains

appear in (Sjoberg, 1993; Marche, 1993). Schema

evolution has also been studied in the context of

model management – research which aims at devel-

oping a systematic approach to schema management

and mapping (Bernstein, 2003). Other interesting ap-

proaches tackled the problem of schema evolution

in XML (Moro et al., 2007), data warehouse (Rizzi

and Golfarelli, 2007) and object-oriented databases

(Galante et al., 2005; Franconi et al., 2001).

Of particular interest, are Web Information Sys-

tems (WIS), often based on open-source solutions.

323

A. Curino C., J. Moon H., Tanca L. and Zaniolo C. (2008).

SCHEMA EVOLUTION IN WIKIPEDIA - Toward a Web Information System Benchmark.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - DISI, pages 323-332

DOI: 10.5220/0001713003230332

 SciTePress

This large and fast-growing class include, among

many other examples: Content Management Systems,

Wiki-based web portals, E-commerce systems, Blog,

and Public Scientiﬁc Databases from ‘Big Science’

Projects. The common denominator among these sys-

tems is the collaborative and distributed nature of

their development and content management. Among

the best known examples we have: MediaWiki

, a

website software underlying a huge number of web

portals, including Wikipedia

, Joomla

, a complete

Content Management System (CMS) and Web Ap-

plication Framework, and TikiWiki

, an open source

groupware and CMS solution.

Moreover, inasmuch as large collaborative

projects are now very common in natural science

research, their reliance on databases and web systems

as the venue needed to promptly shared results and

data has created many large Scientiﬁc Databases,

including the Human Genome DB

, HGVS

, and

many others. Although different in many ways, these

all share a common evolution problem for which

the slow labor-intensive solutions of the past have

become inadequate. New conceptual and operational

tools are needed to enable graceful evolution by

systematically supporting the migration of the DB

and the maintenance of its applications. Among the

desiderata in such a scenario, we seek systems that

preserve and manage the past contents of a database

and the history of its schema, while allowing legacy

applications to access new contents by means of old

schemas (Moon et al., 2008; Curino et al., 2008b).

In the rest of this paper, we shall analyze the

case of MediaWiki, a data-intensive, open-source,

collaborative, web-portal software, originally devel-

oped to run Wikipedia, a multilingual, web-based,

free-content encyclopedia: this platform is currently

used by over 30,000 wikis, for a grand total of over

100 million pages

. While the Wikipedia content evo-

lution has been analyzed previously (Almeida et al.,

2007), this report is the ﬁrst that focuses on the prob-

lem of DB schema evolution. MediaWiki has seen,

during its 4 years and 7 months of life, 171 different

DB schema versions released to the public by means

of a CVS/Subversion versioning system

. As one can

easily imagine, every schema change has a profound

Available at: http://www.mediawiki.org.

Available at: http://wikipedia.org.

Available at http://www.joomla.org.

Available at http://www.tikiwiki.org.

Available at http://www.gdb.org/.

Available at http://www.hgvs.org/index.html

See http://s23.org/wikistats/.

See: http://svn.wikimedia.org/viewvc/mediawiki/trunk-

/phase3/maintenance/tables.sql.

impact on the application queries and the code man-

aging the results, which must thus be revised. In the

case of MediaWiki, we observed in our analysis that

only a small fraction (about 22%) of the queries de-

signed to run on old schema versions are still valid

throughout the schema evolution (see discussion in

Section 3.4).

Our analysis was made possible by the col-

laborative, public, and open-source nature of the

development, documentation and release of Medi-

aWiki and Wikipedia.

Contributions. The main contributions of this paper

are the following: (i) we present the ﬁrst schema evo-

lution analysis of a real-life Web Information System

DB, by studying the MediaWiki DB backend. This

provides a deep insight on Wikipedia, one of the ten

most popular websites to date

and reveals the need

for DB schema evolution and versioning techniques,

and (ii) we provide and plant the seeds of the ﬁrst

public, real-life-based, benchmark for schema evolu-

tion, which will offer to researchers and practitioners

a rich data-set to evaluate their approaches and solu-

tions. As a part of the benchmark, we also release a

simple but effective tool-suite for evolution analysis.

The paper is organized as follows: Section 2

presents the MediaWiki architecture, Section 3 dis-

cusses statistics on the MediaWiki schema evolution,

Section 4 presents the tool-suite we developed to

carry out such analysis. Section 5 shows how this

analisys is contributing to the deﬁnition of a uniﬁed

benchmark for schema evolution. Section 6 is devoted

to related works, and Section 7 draws our conclusions.

2 MEDIAWIKI

In this section we brieﬂy discuss the MediaWiki soft-

ware architecture and DB schema (as in the current

version of November 2007

), to provide the reader

with a broad understanding of the internals of the sys-

tem we are going to analyze.

2.1 Architecture

The MediaWiki software is a browser-based web-

application, whose architecture is described in de-

tails in (Wikimedia Foundation, 2007). As shown

in Figure 1, the users interact with the PHP frontend

through a standard web browser, submitting a page

Source: http://www.alexa.com.

The current version is the 171

schema version corre-

sponding to the SVN commit revision 25635.

ICEIS 2008 - International Conference on Enterprise Information Systems

324

USER's

BROWSER

PAGE CACHING

(Squid)

PHP

ENGINE

(mod_php)

MediaWiki

PHP SCRIPTS

WEB SERVER

(Apache)

MySQL

(webpage contents,

user accounts,

logging, ...)

(1) page request

(6) page returned

(5) Rendered

XHTML page

DBMS

(MySQL)

HTTP

server

(3) SQL queries

(4) Query results

(2) script

invocation

Figure 1: MediaWiki Software Architecture.

request (e.g., a search for pages describing “Paris”).

The frontend software consists of a simple presenta-

tion and management layer (MediaWiki PHP Scripts)

interpreted by the Apache PHP engine. The user re-

quests are carried out by generating appropriate SQL

queries (or updates), that are then issued against the

data stored in the backend DB (e.g., the database

is queried looking for article’s text containing the

term “Paris”). The backend DB can be stored in

any DBMS: MySQL, being open-source and scal-

able, is the default DBMS for the MediaWiki soft-

ware. The results returned by the DBMS are ren-

dered in XHTML and delivered to the user’s browser

to be displayed (e.g., a set of of links to pages men-

tioning “Paris” is rendered as an XHTML list). Due

to the heavy load of the Wikipedia installation of

this software, much of effort has been devoted to

performance optimization, introducing several levels

of caching (Rendered Web Page, DB caches, Media

caches), which is particularly effective thanks to the

very low rate (0.04%) of updates w.r.t. queries. Ob-

viously, every modiﬁcation of the DB schema has a

strong impact on the queries the frontend can pose.

Typically each schema evolution step can require sev-

eral queries to be modiﬁed, and so several PHP scripts

(cooperating to interrogate the DB and render a page)

to be manually ﬁxed, in order to balance the schema

changes.

2.2 Database Schema

The DB, in the current version, presents 34 tables

with, all in all, 242 columns. It holds the entire

website content, over 700 GBytes in the case of

Wikipedia. The tables can be functionally grouped as

follows:

Article and content management (6): page,

revision, text, image, user newtalk, math.

History and archival management (4): archive,

filearchive, oldimage, logging.

Links and website structure (9): categorylinks,

externallinks, imagelinks, interwiki,

langlinks, pagelinks, redirect,

templatelinks, trackbacks.

Users and permissions (5): user, user groups,

ipblocks, watchlist, page restrictions.

Performance and caching (7): objectcache,

querycache, querycache info, job,

querycachetwo, transcache, searchindex.

Statistics and special features support (3):

recentchanges, hitcounter, site stats.

Note the presence of many tables devoted to per-

formance tuning, by means of caching and indexing,

and to preservation of deleted or historical copies of

the system’s main content, e.g., articles and images.

3 SCHEMA EVOLUTION IN

MEDIAWIKI

In this section, we analyze the schema evolution of

MediaWiki based on its 171 schema versions, as com-

mitted to SVN between April 2003 (ﬁrst schema revi-

sion) and November 2007 (date of this analysis).

3.1 Basic Statistics

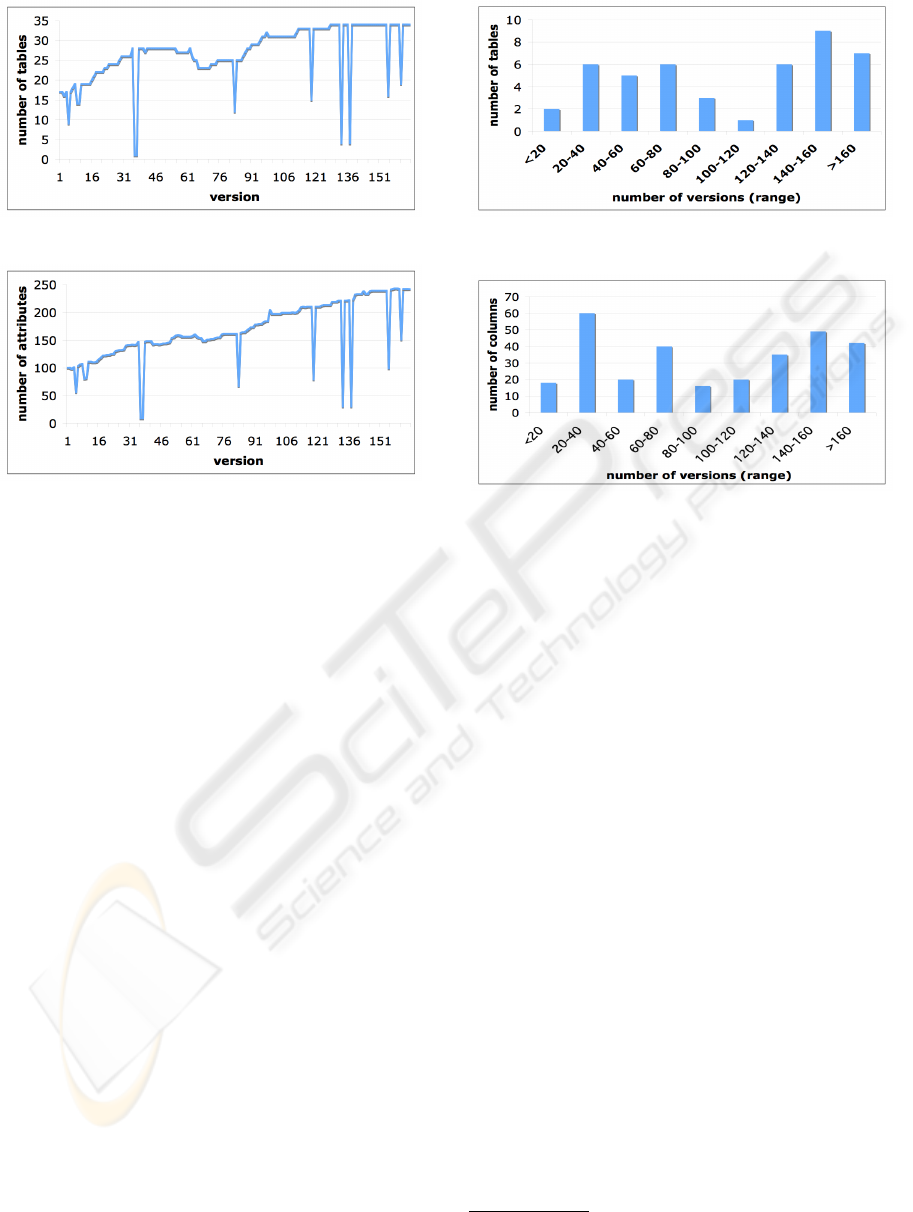

Schema Size Growth. In Figure 2 and 3, we re-

port the size of MediaWiki DB schema in history, in

terms of the number of tables and columns, respec-

tively. The graphs show an evident trend of growth in

sizes, where the number of tables has increased from

17 to 34 (100% increase) and the number of columns

from 100 to 242 (142%). Sudden drops in the graphs

are due to schema versions with syntax errors, i.e.,

schema versions that could not be properly installed.

In both graphs we observe different rates of growth

over time, which seem to be related to the time pe-

riods preceding or following ofﬁcial releases of the

overall software (see Table 1).

Schema growth is due to three main driving forces

as follows: (i) performance improvement, e.g., intro-

duction of dedicated cache tables, (ii) addition of new

features, e.g., support for logging and content vali-

dation, and (iii) the growing need for preservation of

DB content history, i.e., introduction of tables and

columns to store outdated multimedia content such as

SCHEMA EVOLUTION IN WIKIPEDIA - Toward a Web Information System Benchmark

325

Figure 2: MediaWiki Schema Size: the Number of Tables.

Figure 3: MediaWiki Schema Size: the Total Number of

Columns.

the “ﬁlearchive” table.

Table/Column Lifetime. Figure 4 shows a histogram

representation of the table lifetimes, in terms of num-

ber of versions. The lifetimes range from very long

ones, e.g., the user table that was alive throughout the

entire history, to short ones, e.g., random table that

only survived for two revisions. On average, each ta-

ble lasted 103.3 versions (60.4% of the total DB his-

tory). Figure 5 presents lifetimes of columns in his-

togram, where columns lasted 97.17 versions on av-

erage (56.8% of the total DB history). Interestingly,

both ﬁgures show that there are two main groups of

tables and columns: “short-living” and “long-living”.

The former might be due to the fact that the schema

has been growing lately so a signiﬁcant portion of ta-

bles and columns has been introduced only recently.

The latter can be explained noting that the core ta-

bles/columns tend to be rather stable throughout the

entire history.

Per-month Revision Count. In Figure 6, we show

how many schema versions were committed during

each month in history, providing an estimation of the

development effort devoted to the DB backend over

time.

3.2 Macro-Classiﬁcation of Changes

We group the 170 evolution steps based on the types

of evolution they present as in Table 2. While the “ac-

tual schema changes” have an impact on the queries,

Figure 4: Histogram of Table Lifetime.

Figure 5: Histogram of Column Lifetime.

as they modify the schema layout, the evolution of the

DBMS engine, indexes, and data types, (while being

relevant to performance) does not require any query

correction, because of the physical data-independence

provided by the DBMS. Table 2 shows the frequen-

cies

of the types of changes among the 170 evolu-

tion steps. In particular, the table highlights that:

(i) almost 55% of the evolution steps involve

actual schema changes (further discussed in Sec-

tion 3.3); (ii) over 40% of the evolution steps

involve index/key adjustments and this is due to

the performance-critical role of the DB in a data-

intensive, high-load, website such as Wikipedia; (iii)

8.8% of the evolution steps were rollbacks to previous

schema versions; (iv) 7.6% of the analyzed evolution

steps present only documentation changes.

3.3 Micro-Classiﬁcation of Changes

Schema Modiﬁcation Operators. To better under-

stand the Relational DB schema evolution, we intro-

duce a classiﬁcation of the “actual schema changes”.

Different formalisms can be exploited for this pur-

pose. Shneiderman and Thomas proposed in (Shnei-

derman and Thomas, 1982) a comprehensive set of

schema changes, including structural schema changes

and also changes regarding the keys and dependen-

cies. More recently, Bernstein et al. have also

Please note that each evolution step might contain more

than one type of change.

ICEIS 2008 - International Conference on Enterprise Information Systems

326

Table 1: MediaWiki Software Releases and the Number of

DB Schema Versions Immediately Preceding Each Release.

software release schema version # of schema

releases date used (ordinal) versions

1.1 Dec 8, 2003 7 7

1.2 Mar 24, 2004 14 7

1.3 Aug 11, 2004 28 14

1.4 Mar 20, 2005 48 20

1.5 Oct 5, 2005 79 31

1.6 Apr 5, 2006 93 14

1.7 Jul 7, 2006 102 9

1.8 Oct 10, 2006 110 8

1.9 Jan 10, 2007 127 17

1.10 May 9, 2007 145 18

1.11 Sep 10, 2007 171 26

Table 2: Macro-Classiﬁcation of Schema Changes (One

evolution step may have more than one change type).

Type of Change # of evolution steps % of evolution steps

Actual 94 54.9%

Schema

Index/Key 69 40.3%

Data Type 22 12.8%

Syntax Fix 20 11.7%

Rollback 15 8.8%

Doc Only 13 7.6%

Engine 6 3.5%

proposed a set of schema evolution primitives using

algebra-based constraints as their primitives (Bern-

stein et al., 2006).

Among several options, we chose the Schema

Modiﬁcation Operators (SMOs) that we proposed in

(Moon et al., 2008; Curino et al., 2008b) (brieﬂy de-

scribed in Table 3). SMOs capture the essence of the

existing works, but can also express schema changes

not modeled by previous approaches. For exam-

ple, by using function

in the ADD COLUMN operator,

SMOs can support semantic conversion of columns

(e.g., currency exchange), column concatenation/s-

plit (e.g., different address formats), and other simi-

lar changes that have been heavily exploited in mod-

eling MediaWiki schema changes. The effectiveness

of SMOs have been validated in (Moon et al., 2008;

Curino et al., 2008b), where the PRISM and PRIMA

systems used SMOs to describe schema evolution

in transaction-time databases and to support histori-

cal query reformulations over multi-schema-version

transaction-time databases.

The syntax of SMO is similar to that of SQL DDL,

and provides a concise way to describe typical modi-

ﬁcations of a database schema and the corresponding

data migration. Every SMO takes as input a schema

Both from system libraries and user deﬁned.

Table 3: Schema Modiﬁcation Operators (SMOs).

SMO Description

CREATE TABLE introduces a new, empty table to the database

DROP TABLE removes an existing table from the schema

RENAME TABLE changes a table name.

DISTRIBUTE TABLE takes as input a source table and distribute tu-

ples into two newly generated tables, accord-

ing to the speciﬁed conditions.

MERGE TABLE takes two source tables with the same schema

and creates a new table storing their union.

COPY TABLE creates a duplicate of an existing table

ADD COLUMN introduces a new column into the speciﬁed ta-

ble. The new column is ﬁlled with values gen-

erated by a user-deﬁned constant or function.

DROP COLUMN removes an existing column from a table.

RENAME COLUMN changes the name of a column.

COPY COLUMN makes a copy of a column into another table,

ﬁlling the value according to a join condition

between source and target tables.

MOVE COLUMN same COPY COLUMN but the original col-

umn is dropped.

Figure 6: Schema Versions Committed during Each Month.

and produces as output a new version of the same

schema. Table 3 presents a list of SMOs, operating

on tables (the ﬁrst six) and on columns (the last ﬁve)

of a given DB schema, together with a brief explana-

tion. Note that SMOs can be arbitrarily combined to

describe complex structural changes, as those occured

in the MediaWiki DB schema evolution.

Classiﬁcation using SMOs. In this context we

exploit SMOs as a pure classiﬁcation instrument to

provide a ﬁne-grained analysis of the types of change

the schema has been subject to. While there might

be several ways to describe a schema evolution step

by means of SMOs, we carefully select, analyzing

the available documentation, the most natural set of

SMOs describing each schema change in the Medi-

aWiki history. Table 4 shows the distribution of the

SMOs, presenting, for each type, how many times

it has been used in the entire schema evolution his-

tory. Is interesting to notice that the more sophisti-

cated SMOs (e.g., MERGE TABLE) while being indis-

pensable are not very common. The balance between

column/table additions and deletions highlights the

“content preserving” attitude of Wikipedia

The main noticeable exception is the set of informa-

SCHEMA EVOLUTION IN WIKIPEDIA - Toward a Web Information System Benchmark

327

Table 4: Micro-Classiﬁcation of Schema Changes Using

SMOs and Frequencies.

SMO type # of usages % of usage % per version

CREATE TABLE 24 8.9% 14%

DROP TABLE 9 3.3% 5.2%

RENAME TABLE 3 1.1% 1.75%

DISTRIBUTE TABLE 0 0.0% 0%

MERGE TABLE 4 1.5% 2.33%

COPY TABLE 6 2.2% 3.5%

ADD COLUMN 104 38.7% 60.4%

DROP COLUMN 71 26.4% 41.5 %

RENAME COLUMN 43 16.0% 25.1 %

MOVE COLUMN 1 0.4% 0.58%

COPY COLUMN 4 1.5% 2.33%

Total 269 100% –

Figure 7 shows the number of SMOs (overall) for

each evolution step. The curve shows how the schema

evolution has been mainly a continuous process of ad-

justment, with few exceptions shown as spikes in the

ﬁgure, coinciding with major evolution steps, such as:

(i) v6696 - v6710 (41

-42

), 92 SMOs: a change in

the storage strategy of the article versions,

(ii) v9116 - v9199 (61

-62

), 12 SMOs: a change in

link management, and

(iii) v20393 - v20468 (138

-139

), 9 SMOs: history

management (log features added to several tables).

3.4 The Impact on the Applications

In order to study the effect of schema evolution on

the frontend application, we analyze the impact of the

schema changes on six representative sets of queries.

Each experiment tests the success or failure of a set

of queries, originally designed to run on a speciﬁc

schema version, when issued against other schema

versions.

To simulate a case where current applications are

run on databases under older schema versions, we test

three sets of queries, valid on the last schema version,

on all the previous schema versions (Figure 8). Also,

to study how legacy applications succeed or fail on

newer versions of the database schema, we test three

sets of legacy queries on all the subsequent schema

versions (Figure 9). The six sets considered in our

experiments are as follows:

Real-world Templates, Current (Figure 8). The

500 most common query templates (extracted

from

over 780 millions of query instances), derived from

the Wikipedia on-line proﬁler

and post-processed

tion supporting the user rights management, which has been

strongly reduced in the DB after version v9335 (65

ver-

sion), as it was moved to the application layer.

The templates are extracted ignoring constants and re-

taining only the query structure.

Available on-line at http://noc.wikimedia.org/cgi-

Figure 7: Number of SMOs Used in Each Evolution Step.

for cleaning

Lab-gen Queries, Current (Figure 8). 2496 query

instances generated by a local installation of the

current version of MediaWiki (release 1.11, schema

version 171), interacting with the frontend

and

logging the queries issued against the underlying

MySQL DBMS.

Lab-gen Templates, Current (Figure 8). 148 tem-

plates of queries extracted from the above queries.

Lab-gen Queries, Legacy (Figure 9). 4175 query

instances generated by a local installation of an old

version of MediaWiki (release 1.3

, schema version

28), interacting with the frontend and logging the

queries issued against the underlying MySQL DBMS.

Lab-gen Templates, Legacy (Figure 9). 74 tem-

plates extracted from the above lab-gen queries,

legacy.

Synthetic Probe Queries, Legacy (Figure 9). 133

synthetic queries accessing single columns (i.e.,

select tab

.att

from tab

) of schema version 28,

designed to highlight the affected schema portion.

Each set has been tested against all schema ver-

sions: the resulting query execution success rates are

shown in Figure 8 and Figure 9. The outliers in the

graphs (sudden and extremely low values) are due to

syntactically incorrect DB schema versions.

The ﬁrst three sets are shown in Figure 8. It is

interesting to notice that:

• proceeding from right to left, the series of de-

scending steps illustrates the increasingly low

compatibility of queries and schemata.

bin/report.py.

The cleaning process removes syntactical errors pro-

duced by the template extraction of the Wikipedia proﬁler.

In order to generate as many as possible types of

queries, we tried to trigger all features accessible from the

web browser.

The oldest version compatible with the environment of

our experimental setting.

ICEIS 2008 - International Conference on Enterprise Information Systems

328

100

120

140

160

100

% of query success

real-world

templates

lab-gen

templates

lab-gen

queries

version (ordinal)

Figure 8: Average query success rate against preceding

schema versions (the queries are designed for the last ver-

sion, and run against all the previous versions).

• the sudden drop in query success – of about 30%

– which appears between commit revisions v6696

and v6710 (41

-42

)

highlights one of the

most intense evolution steps of the MediaWiki

data management core, involving a deep change

in the management of article revisions;

• the lab-generated and real-world templates carry

very similar information. This seems to indicate

that our local query generation method is capable

of producing a representative set of queries.

Figure 9 shows a graph of the average execution

success rates for the latter three query sets. Some in-

teresting observations are as follows:

• the synthetic probe queries, by failing when

columns or tables are modiﬁed, highlight the por-

tion of the schema affected by the evolution. The

ﬁgure shows how the schema evolution invali-

dates at most 32% of the schema.

• in the last version, a very large portion (77%) of

the lab-gen templates fails due to the evolution.

• for lab-gen templates, the big evolution step be-

tween commit revisions v6696 and v6710 (41

) invalidates over 70% of the queries.

• lab-gen templates failure rate compared to syn-

thetic probe queries failure rate exposes how the

schema modiﬁcations affected a schema portion

heavily used by the applications (32% of the

schema being affected invalidates 77% of the

query templates).

• the gap between the success rate of legacy query

instances (2.9%) and legacy query templates

(22%) shows that the failing templates actually

correspond to the most common query instances.

Finally it is interesting to notice that the number

of features of the MediaWiki software has grown in

See (Curino et al., 2008a) for SVN commit version to

ordinal numbers conversion.

100

120

140

160

100

% of query success

version (ordinal)

synthetic probe queries

lab-gen

templates

lab-gen

queries

Figure 9: Average query success rate against following

schema versions (the queries are designed for the 28

ver-

sion, and run against all the following versions).

time; this explains the growth in the number of the

query templates extracted from legacy queries (74)

and current queries (148).

These experiments provide a clear evidence of the

strong impact of schema changes on applications, and

sustain the claim for better schema evolution support.

4 ANALYSIS TOOL SUITE

To collect the statistics described in this paper, we de-

veloped a set of tools, organized in a tool-suite avail-

able on-line (Curino et al., 2008a). This step-by-

step process, primarily designed to help researchers to

gain better insight in the schema evolution of existing

Information Systems, can be effectively exploited by

DB administrators and developers, in any data-centric

scenario, to analyze the history of the DB schema and

create a (summarized) view of its evolution history.

The tool suite will support the analysis of the evolu-

tion process and help to highlight possible ﬂaws in

the design and maintenance of the Information Sys-

tem. Moreover, Researchers and designers of support

methods and tools for DB evolution and versioning,

can exploit this to test their approaches against real-

life scenarios.

We now discuss the features of our tool-suite re-

ferring to its application to the MediaWiki DB: ﬁrst

of all, by means of an appropriate tool, the 171

MediaWiki DB schema versions have been down-

loaded from SVN repository and batch-installed in a

MySQL DBMS

. We developed a tool, named statis-

tics collection, that can be applied on this data to

derive the basic statistics of schema versions, such

as schema size and average table/column lifetime.

The statistics collection tool queries the MySQL

data dictionary (the information schema meta-

database) to gather the statistical measures presented

MySQL version 5.0.22-Debian.

SCHEMA EVOLUTION IN WIKIPEDIA - Toward a Web Information System Benchmark

329

in Section 3.1.

For ﬁne-grained view of the schema evolution we

also provide the SMO extractor tool. This tool, by op-

erating on the differences between subsequent schema

versions, semiautomatically extracts a set of candi-

date SMOs describing the schema evolution, min-

imizing the user effort

. To estimate query suc-

cess against different schema versions, the users can

exploit a tool named query success analyzer. This

tool performs a query success rate analysis by batch-

running its input queries against all schema versions.

For users’ convenience, we also provide a

log analyzer which can be used to extract and clean

the SQL query instances and templates from the raw

mysql log format.

Every component of the tool-suite stores the col-

lected information, in a non-aggregated form, in a

database, named evolution metadb. This database is

later queried to provide statistical measures of the

schema evolution, and provides a ﬂexible SQL-based

interface, we exploit to compute the graphs and tables

of this paper.

5 TOWARD A UNIFIED

BENCHMARK

DB schema evolution has been recognized to be a

relevant problem among both researchers and practi-

tioners, but despite the number of proposed solutions

(Roddick, 1995; Ram and Shankaranarayanan, 2003;

Bernstein, 2003; Velegrakis et al., 2003; Yu and Popa,

2005), a uniﬁed benchmark is currently missing – al-

though needed as noted in (Bernstein et al., 2006).

The case study we present in this paper represents

our initial step towards the deﬁnition of a reusable and

standardized benchmark. To the best of our knowl-

edge, this is the ﬁrst attempt to provide a real-world

DB schema evolution benchmark to date.

The benchmark we are developing will contain

the results of the analysis of several case studies of

open-source systems, currently under development,

together with the MediaWiki example presented here.

In addition we are developing a set of tools to sup-

port our benchmarking procedure. Among such tools

we have the query success analyzer discussed in the

previous section and a data generator, used to batch-

populate with synthetic data (of variable size) all

available versions of the DB under analysis. The

Complex evolution patterns as the one appeared from

the 41

and 42

schema versions in MediaWiki, require

the user to reﬁne the set of SMOs according to his/her un-

derstanding of the schema evolution.

data generator produces randomized data, but is tai-

lored to create DB contents that maximize the query

answer predictability by means of data regularity.

While the overall benchmark is still under devel-

opment, we made available on-line at (Curino et al.,

2008a) our MediaWiki data-set to provide researchers

and practitioners data to evaluate and test their ap-

proaches. This data-set has already been successfully

exploited to test the PRISM and PRIMA system in

(Moon et al., 2008; Curino et al., 2008b).

We believe that, w.r.t. the goal of developing a

uniﬁed benchmark for DB schema evolution, Medi-

aWiki is an ideal starting point because: (i) it is a

real-life application used by 30,000 wikis, including

Wikipedia, (ii) its code and data are well-documented

and released under GPL License and based on an

open-source plaftorm, (iii) several differently-sized

DB contents (the DB dump of different public wikis),

ranging from tens of KBytes to hundreds of GBytes

(Almeida et al., 2007), are available to the public

and (iv) there is an on-line proﬁling system providing

real-life queries from the Wikipedia site, along with

their frequencies and typical workload details

Benchmark Users. The benchmark under devel-

opment is mainly intended to: (i) educate database

administrators on typical schema evolution scenar-

ios, in order to avoid common design errors and im-

prove the quality of initial schema designs, (ii) sup-

port the community of researchers working on the

schema versioning / schema evolution problems, (iii)

provide researchers and practitioners, designing solu-

tions for data migration, with a rich test-case for tools

and methodologies, (iv) provide a rich set of examples

of evolution to enable evolution pattern mining.

6 RELATED WORKS

In this section, we compare our analysis with the ex-

isting case studies on schema evolution for traditional

information systems (Sjoberg, 1993; Marche, 1993).

(Sjoberg, 1993) discusses database schema evolution

in a health management system (HMS). This careful

analysis of nine schema versions shows an increase in

the number of tables from 23 to 55 and in the number

of columns from 178 to 666 during 18 months (con-

sisting in 5 months of development and 13 months of

operational phase). Sjoberg discusses how applica-

tion queries are affected when the schema evolves, as

we do in Section 3.4.

See http://download.wikimedia.org/.

Available at: http://noc.wikimedia.org/cgi-

bin/report.py.

ICEIS 2008 - International Conference on Enterprise Information Systems

330

Table 5: Comparison of Schema Growth in MediaWiki and Those in Other Case Studies.

Case

Interval Number of Tables Number of Columns

(months) First Last Increase Inc/year First Last Increase Inc/year

Sjoberg-all 18 23 55 139% 92.6% 178 666 274% 182.7 %

Sjoberg-oper 13 47 55 17% 15.7% 528 666 26% 24.0 %

Marche 31.6 9.6 10.6 10% 3.8 % 118.9 139.0 17% 6.5 %

MediaWiki-all 55 17 34 100% 21.8 % 100 242 142% 31.0 %

MediaWiki-oper 48 18 34 89% 22.3 % 106 242 128% 32.0 %

In (Marche, 1993), a collective case study is pre-

sented for seven database applications from different

application domains. For each application, Marche

compares only two schema versions, taken at interval

ranging from 6 to 80 months. The author does not

specify whether such versions correspond to the de-

velopment or operational phase of the systems under

analysis. This analysis reports an increase in the aver-

age number of relations and columns from 9.6 to 10.6,

and from 118.9 to 139.0, respectively.

In addition to a major change of environment,

from Traditional to Web Information Systems, our

work improves the previous case studies as follows:

• Number of Schema Versions: We analyze 171

published

versions of the schema whereas the

previous works use respectively nine and two ver-

sions. This was possible due to the open-source

nature of the MediaWiki project, uncommon in

case of traditional, proprietary applications.

• Detailed Schema Evolution Analysis: We clas-

sify schema changes at a ﬁner level of granularity

by means of SMOs. We beneﬁted from the rich

documentation of SVN schema revisions and of

the SQL schema ﬁles to obtain insight in each evo-

lution step and derive the corresponding SMOs.

• Legacy Application Failure Analysis: (Sjoberg,

1993) studied the effect of schema evolution on

applications, predicting query failure based on

query workload and schema changes between two

successive schema versions. In our setting we

were able to report the actual success rate of the

execution of queries from an old release of Medi-

aWiki (v1.3) on 144 subsequent schema versions,

together with the success rate of 500 templates

extracted from millions of queries run on the ac-

tual Wikipedia installation of MediaWiki, tested

against the 170 previous schema versions.

• Licensing and Data-set Release: Thanks to the

licensing of MediaWiki and Wikipedia, we are

able to release (Curino et al., 2008a) the entire

More schema versions are available in the unstable

branches of the versioning system. We focused on the main

development branch.

data-set used for our analysis to the public, en-

abling other researchers to exploit such data to

extract their own statistics or to test their ap-

proaches.

Web IS vs Traditional IS. Table 5 provides results of

the MediaWiki schema growth compared to the cases

reported in the cited literature.

While (Sjoberg, 1993) reports the growth during

the entire studied period (5 months of development

and 13 months of operation) and that during the oper-

ational phase only, tagged in Table 5 respectively as

Sjoberg-all and Sjoberg-oper, we focus our compari-

son on the operational phase, which has a bigger im-

pact on users and maintenance costs. For this reason

we show as MediaWiki-oper the growth of the Medi-

aWiki schema, by removing from the overall history

the ﬁrst six versions – preceding the ﬁrst ofﬁcial re-

lease. (Marche, 1993) does not clearly specify which

phase of the software life-cycle each schema version

was taken from, so we simply report the available

data. Adjusted statistics appear in Table 5. Com-

paring the time-normalized (Increase/year) schema

growth, MediaWiki-oper is faster than every previous

result in Traditional Information Systems. The opera-

tional growth is about 38% more intense than the one

of Sjoberg-oper, and about 539% than the average of

the seven cases of Marche.

This difference can be attributed to the follow-

ing reasons: (i) the collaborative, open-source nature

of the development and usage of MediaWiki, deter-

mines the presence of several independent contribu-

tions, inﬂuencing the speed of growth, (ii) the suc-

cess of Wikipedia triggered the need for intense tun-

ing for performance and accessibility, leading to a

quicker evolution than traditional IS, and (iii) the in-

terest for maintaining historical information grew dur-

ing the development, affecting the schema size.

7 CONCLUSIONS

The explosion of Web Information Systems (WIS) is

creating a throve of interesting research problems and

technical challenges. In particular, the DBMS sys-

tems that are at the core of many WIS are now faced

SCHEMA EVOLUTION IN WIKIPEDIA - Toward a Web Information System Benchmark

331

with new challenges and requirements—which we

have analyzed in this in-depth study of MediaWiki,

the sofware behind Wikipedia, a WIS of great renown

and importance. Our study shows that MediaWiki

has undergone a very intensive schema evolution, as

a result of the cooperative, multi-party, open-source

development and administration that is common in

leading-edge WIS projects. Thus, the WIS environ-

ment, (i) contrasts with the smaller, less-open and

slow-turnover setting of typical in traditional informa-

tion systems, (ii) creates a more urgent needs for bet-

ter automation and documentation tools for support-

ing graceful schema evolution in WIS. In this paper

we analyze and quantify the schema evolution prob-

lem of WIS and introduce concepts and tools that rep-

resent an important ﬁrst step toward realizing (ii).

At the conceptual level, we have introduced the

Schema Modiﬁcation Operators (SMOs), that proved

effective both in an operational mode to support

schema evolution (Moon et al., 2008; Curino et al.,

2008b), and in an “a posteriori” mode to support in-

depth analysis. Moreover, we also developed a sim-

ple set of software tools to facilitate the analysis of

schema evolution, and the derivation of the SMOs de-

scribing such an evolution. This tool-suite proved ef-

fective in the analysis of MediaWiki and is available

online at (Curino et al., 2008a). The structured repre-

sentation of the evolution history of MediaWiki that

we derived in this project is also available for down-

loading (Curino et al., 2008a). Such data-set is cur-

rently being extended by analyzing other leading WIS

projects in order to create a rich schema evolution

benchmark. Once completed, this benchmark will

(i) provide the community with a rich set of schema

evolution examples that can be studied to avoid com-

mon up-front design errors and improve schema man-

agement best practices, and (ii) represent a critical

validation tool for techniques and systems designed

to automate the schema evolution process (includ-

ing those that are currently under development in our

lab). Indeed, the desirability of such a benchmark was

stressed in the past by other researchers working in re-

lated areas (Bernstein et al., 2006).

ACKNOWLEDGEMENTS

The authors would like to thank Alin Deutsch for the

numerous in-depth discussions on schema mapping

and query rewriting.

REFERENCES

Almeida, R. B., Mozafari, B., and Cho, J. (2007). On the

evolution of wikipedia. In Int. Conf. on Weblogs and

Social Media.

Bernstein, P. A. (2003). Applying model management to

classical meta data problems. In CIDR.

Bernstein, P. A., Green, T. J., Melnik, S., and Nash, A.

(2006). Implementing mapping composition. In

VLDB.

Curino, C., Moon, H., Tanca, L., and Zan-

iolo, C. (2008a). Pantha rei data set [on-

line]: http://yellowstone.cs.ucla.edu/schema-

evolution/index.php/Main Page.

Curino, C. A., Moon, H. J., and Zaniolo, C. (2008b). Grace-

ful database schema evolution: the prism workbench.

In UCLA Tech. Rep., 2008. Submitted for publication.

Franconi, E., Grandi, F., and Mandreoli, F. (2001). Schema

evolution and versioning: A logical and computa-

tional characterisation. Database Schema Evolution

and Meta-Modeling, pages 85–99.

Galante, R. d. M., dos Santos, C. S., Edelweiss, N., and

Moreira, A. F. (2005). Temporal and versioning model

for schema evolution in object-oriented databases.

Data & Knowledge Engineering, 53(2):99–128.

Marche, S. (1993). Measuring the stability of data

models.European Journal of Information Systems,

2(1):37–47.

Moon, H. J., Curino, C. A., Deutsch, A., Hou, C.-Y.,

and Zaniolo, C. (2008). Managing and querying

transaction-time databases under schema evolution. In

UCLA Tech. Rep., 2008. Submitted for publication.

Moro, M. M., Malaika, S., and Lim, L. (2007). Preserving

XML Queries during Schema Evolution. In WWW,

pages 1341–1342.

Ram, S. and Shankaranarayanan, G. (2003). Research

issues in database schema evolution: the road not

taken. In Boston University School of Management,

Department of Information Systems, Working Paper

No: 2003-15.

Rizzi, S. and Golfarelli, M. (2007). X-time: Schema

versioning and cross-version querying in data ware-

houses. In ICDE, pages 1471–1472.

Roddick, J. (1995). A Survey of Schema Versioning Is-

sues for Database Systems. Information and Software

Technology, 37(7):383–393.

Shneiderman, B. and Thomas, G. (1982). An architecture

for automatic relational database system conversion.

ACM Transactions on Database Systems, 7(2):235–

257.

Sjoberg, D. I. (1993). Quantifying schema evolution. Infor-

mation and Software Technology, 35(1):35–44.

Velegrakis, Y., Miller, R. J., and Popa, L. (2003). Mapping

adaptation under evolving schemas. In VLDB.

Wikimedia Foundation (2007). The mediawiki workbook

2007 dammit.lt/uc/workbook2007.pdf. [Online].

Yu, C. and Popa, L. (2005). Semantic adaptation of schema

mappings when schemas evolve. In VLDB.

ICEIS 2008 - International Conference on Enterprise Information Systems

332
