SODDA – A SERVICE-ORIENTED DISTRIBUTED

DATABASE ARCHITECTURE

Breno Mansur Rabelo

Centro EData – Universidade do Estado de Minas Gerais, Belo Horizonte, MG, Brazil

Clodoveu Augusto Davis Jr.

Instituto de Informática – Pontifícia Universidade Católica de Minas Gerais, Belo Horizonte, MG, Brazil

Keywords: Distributed database, service-oriented architecture, web services, database management system, heterogene-

ous data sources, data integration, distributed query processing.

Abstract: The dissemination of information systems over computer networks has reinforced the interest on distributed

database management systems (DDBMS). A review on the architecture of such systems is motivated by the

wide availability of networking resources, which allows the cost of communication among the nodes to be

reduced. Besides, the coming of age of syntactic interoperability standards, such as XML, and of service-

based networking allow for new alternatives for the implementation and deployment of distributed data-

bases. This paper proposes the adoption of elements from service-oriented architectures for the implementa-

tion of the connections among distributed database components, thus configuring a service-oriented distrib-

uted database architecture.

1 INTRODUCTION

Organizations are actively pursuing the integration

of their systems with those of their partners, with the

intention of achieving improvements in their produc-

tion chains and logistics processes. Managing dis-

tributed data, stored in physically distinct and inde-

pendent servers, is often required. As the volume of

distributed data grows, the use of distributed data-

base management techniques increases in impor-

tance. With such techniques, one can build an inte-

grated database from isolated and independent seg-

ments. The cost of high-capacity servers and the op-

erational decentralization of several types of organi-

zations are among the reasons for this tendency.

Kossman (2000) points out that, even though

good ideas have been presented by research initia-

tives on distributed database management systems

(DDBMS), the prototypes that have been developed

did not make it to commercial tools. Kossman

(2000) believes that such research may have taken

place ahead of the ideal time, mainly because of the

lack of a communications infrastructure as stable

and inexpensive as the Internet. With the growing

availability of network communication resources,

through the Internet, along with growing quality of

service and a strong trend towards cost reduction,

some of the obstacles in the path of developing dis-

tributed databases have vanished. However, the

theoretical background in this field still does not

consider peculiar aspects related to the use of Inter-

net standards such as XML (Bray, Paoli et al. 2006),

Web services (Alonso, Casati et al. 2004), SOAP

(Simple Object Access Protocol) (Curbera, Duftler

et al. 2002) and SOA (Service-Oriented Architec-

ture) (Endrei, Ang et al. 2004; Huhns and Singh

2005), among others. Such recent technological

elements can be put together, in a review of

DDBMS concepts, using SOA to implement Inter-

net-based data exchange. Current demand for dis-

tributed databases makes it possible to envision the

use of previously developed ideas in a more favor-

able technological context, thus generating interest-

ing alternatives to centralized DBMS.

Recent works (Campbell 2005; Tok and Bressan

2006) present initiatives related to the integration of

SOA and DBMS, thus proposing a service-oriented

database architecture (SODA). We propose an ex-

tension of SODA, as a new architecture for Internet-

519

Mansur Rabelo B. and Augusto Davis Jr. C. (2008).

SODDA – A SERVICE-ORIENTED DISTRIBUTED DATABASE ARCHITECTURE.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - DISI, pages 519-522

DOI: 10.5220/0001715905190522

 SciTePress

based distributed database management using SOA-

based communication.

The remainder of this paper is organized as fol-

lows. Section 2 presents related work. Sections 3

and 4 present the proposed architecture and a proto-

type implementation. Finally, Section 5 presents

conclusions and notes for future work.

2 SODA

SODA represents a step towards the integration be-

tween database systems and SOA. SODA uses Web

services to publish functions and procedures that can

handle the content of databases across the Internet.

SODA has been proposed (Campbell 2005) in the

context of the creation of SOA support structures in

the core of Microsoft’s SQL Server. The paper

presents details on a novel HTTP daemon in the

DBMS core, so that the DB server and the Web

server can be independent, while allowing the

DBMS to respond to HTTP requests.

According to Tok and Bressan (2006), several

commercial database management systems are be-

ginning to include features for the integration be-

tween Web services and stored procedures, and

mention SQL Server as an example. However, this

integration is superficial; the database query proces-

sor ends up ignoring the communications impact in

its cost calculations.

We agree with the notion that the ideas behind

the SODA architecture, as proposed by Campbell

(2005), can lead to interesting technological solu-

tions to many distributed database issues which have

been previously documented. We present a proposal

for the evolution of SODA towards distributed data-

bases, in a SOA-based context.

3 SODDA

SODDA works out the main issues involving com-

munication needs in distributed database environ-

ments. Basically, SODDA merges DDBMS concepts

with new technologies and initiatives associated to

SOA and the Internet.

We propose using service-oriented protocols over

the Internet as the principal means of

communication for a DDBMS. This approach makes

it necessary to review the situations in which

communications take place among DDBMS nodes,

so that Web services and SOA features can be used

as an alternative. We describe the necessary

adaptations next.

SODDA uses Web services to coordinate opera-

tions among distributed database nodes. Each node

includes a Web service to coordinate the local data-

base, and which is capable to respond to a client data

provider, called the SODDA Hub, when the node re-

ceives requests for queries or other database opera-

tions (Figure 1). SODDA Hub can be seen as a

common connectivity middleware. It runs on the cli-

ent’s side and it is responsible for all interactions

with the SOA components of SODDA. Therefore, in

the application developer’s point of view, SODDA

is a fully transparent and modular distributed data

provider that can be used in a way that is similar to

OLEDB, JDBC or ODBC.

Unlike SODA, in which Web services are used

only to expose stored procedures that can handle

data, SODDA uses Web services as fundamental

components of the communication among nodes.

This is a typical activity in SOA. All operations that

are submitted to database nodes are conducted

through the SODDA Hub, which is also capable of

accessing the distributed database’s global catalog.

Direct access to local databases is encapsulated

by two elements of the architecture: Node Wrappers

and Data Source Wrappers. Web services act as

Node Wrappers. In any node of the distributed envi-

ronment there must be a Web service to respond to

client invocations. To execute commands in the lo-

cal context of a node, the Node Wrapper must use a

Data Source Wrapper. These wrappers implement

methods to adapt and convert standard SQL into

specific query commands at each data source.

In a DDBMS, the global catalog stores data on

fragments and their location. In SODDA, the global

catalog is replaced by a catalog service, which pro-

vides information about the location of Node Wrap-

pers. This brings location transparency, one of the

main SOA advantages, to SODDA. The catalog ser-

vice only contains locations and basic information

on Node Wrappers, but includes the statistics ser-

vice, which contains methods to retrieve data on

communication and storage costs from every node,

and to prepare these data for use in cost-based query

optimization. The catalog service is accessed only to

determine the nodes that are possibly involved in the

operation, and the statistical data guides the selec-

tion of the best alternatives among redundant nodes.

The SODDA Hub then exchanges XML documents

directly with the Node Wrappers, in order to retrieve

data to respond to a client request. This exchange is

fundamentally important for the distributed query

processing.

ICEIS 2008 - International Conference on Enterprise Information Systems

520

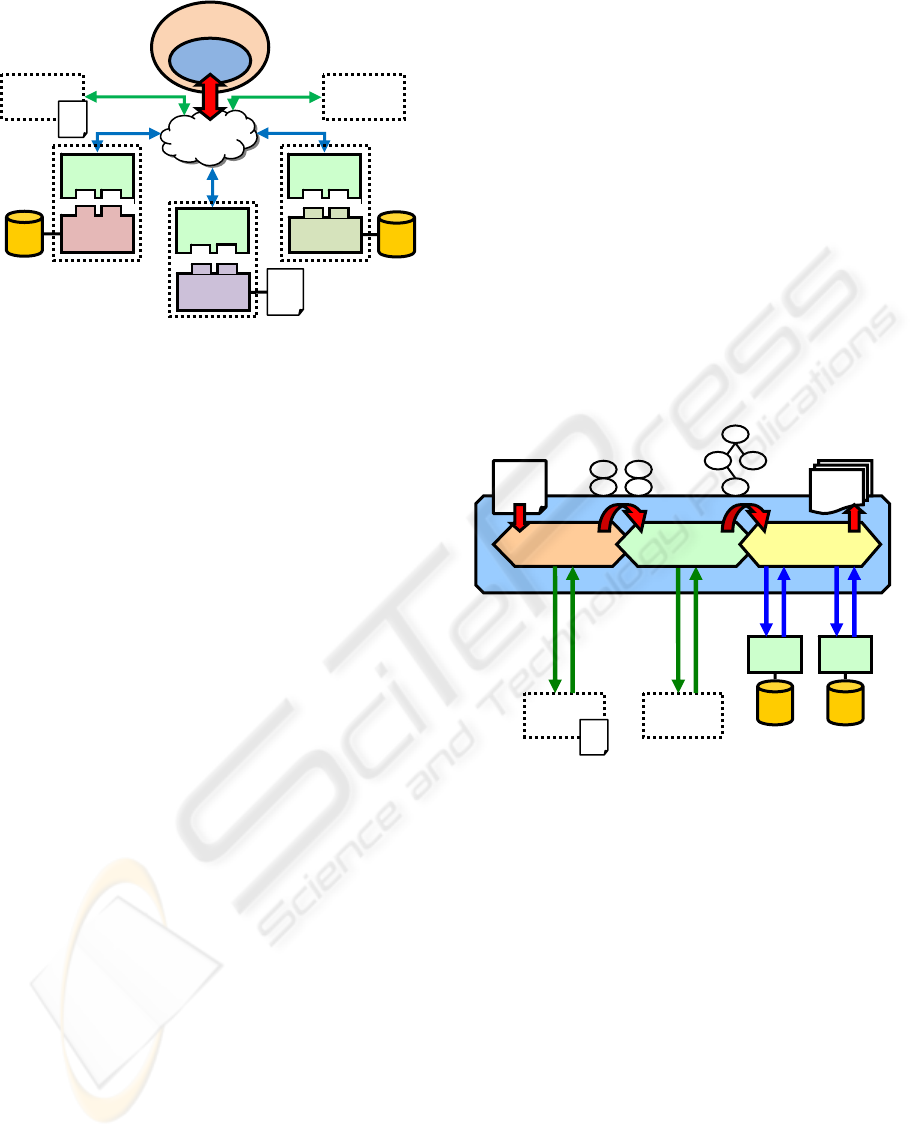

Figure 1: Basic layout of the service-oriented distributed

database architecture.

Distributed query processing is naturally one of the

most important functions in a DDBMS, since it is

used in every data retrieval situation involving frag-

ments that are in various sites. In SODDA, we

assume that the distributed database nodes are

managed by regular DBMSs with local autonomy.

Therefore, these nodes also include the internal

features of a conventional DBMS. Considering this,

SODDA includes a query processor with optimiza-

tion in two levels. The first level deals with

distribution aspects, based on metadata from the

catalog service and from the statistics service. The

optimizer gathers statistics on the tables that are

involved in a query, using a cost-based strategy

supported by the statistics service. The second

optimization level handles the part of the query

which is transformed into a local query in the point

of view of a given node, and executed using the

native query processing and optimization methods

available to the local DBMS. Since part of the

optimization work is performed by the conventional

DBMSs, SODDA can focus on distribution and

consolidation issues.

The query processing mechanism in the SODDA

architecture is based on the basic model presented

by Kossman (2000). The query processor is divided

into three parts: the Query Decomposition Engine

(QDE), the Distribution Optimizer (DO), and the

Distributed Execution Engine (DEE) (Figure 2).

QDE is responsible for partitioning the queries, find-

ing out which nodes are involved in the operation,

decomposing the query into sub queries, based on

the fragmentation schema. QDE generates query

parts (QP), each of local scope, in regard to a

DDBMS node. DO then must determine which tasks

can be performed in parallel, building a tree to guide

the work of joining the QP. The result of this phase

is the execution plan, obtained from a tree, built

from the dependencies among the QP. Independent

QP’s, therefore, are always defined as leaves in this

tree. Finally, the DEE traverses the tree generated by

DO, and commands the execution of each QP. DEE

can identify nodes which can receive query parts si-

multaneously, and which therefore can execute their

tasks in parallel. When results are received, DEE

dynamically creates a representation of global

schema from the distributed environment, and copies

partial results. Finally, DEE performs the required

joins over partial results in a temporary swap data-

base, called Dynamic Swap (DS), in order to gener-

ate the final results. The DS is either handled at the

SODDA Hub’s site, or at a different node, added to

the network precisely to support thin or mobile cli-

ents.

Figure 2: Distributed query processing in SODDA.

At this point, we observe that SODDA presents not

only location transparency, but also access transpar-

ency, since the access to the distributed database is

performed from the client’s location, running the

SODDA Hub, which concentrates services required

to access the distributed database.

Beyond the query processor, a DDBMS must

implement some other services to manage transac-

tions and replication features of the distributed envi-

ronment. We propose three additional services to

that effect: the Distributed Transactions Manager

(DTM), the Replicated Data Manager (RDM), and

the Database Recovery Service (DRS).

The DTM is a mechanism that deals with trans-

action atomicity in a distributed database environ-

ment. In SODDA, the Hub coordinates the execution

of the transaction. The original transaction, through

the SODDA Hub, starts sub-transactions at each

node involved in the process, and waits for their

Query Decomp.

Engine

SQL

Query

Catalog

Service

Statistics

Service

oin

Distribution

Optmizer

Distributed

Execution Engine

Partitioned

query

Execution

plan

SODDA

Hub

Results

Standard

SQL input

Join results

uery

Nodes

locations

Nodes &

Tables

Statistical

data

ata

Client

SODDA

Hub

Catalog

Service

Internet

XML XML

Statistics

Service

Web

Service

Database

Wrapper

Web

Service

Web

Service

Database

Wrapper

XML

Wrapper

XML

XML XML

SODDA – A SERVICE-ORIENTED DISTRIBUTED DATABASE ARCHITECTURE

521

completion. In case of failure at any particular node,

the Hub issues messages, using Web services, to

cause a rollback at every node involved. If every

node completes its task successfully, the Hub issues

messages to cause a commit at every node. The suc-

cess in the implementation of this procedure requires

the implementation of a Web services-based distrib-

uted commit protocol.

The RDM implements such a protocol to pro-

mote synchronization of data that exist in different

nodes and are possibly replicated. RDM uses a

publish/subscribe method. The nodes that subscribe

to a topic receive change notifications. If a node

becomes offline, the previously notified changes

must be processed at the moment it becomes online

again, before it can accept any further commands.

The DRS is a mechanism that is responsible for

finding out whether or when a node becomes inac-

cessible, and for determining which redundant copy

(if any) can replace it during the period of unavail-

ability. This mechanism is integrated to the RDM

since, if the distributed database manages redundant

data, every modification is propagated using the

publish/subscribe notification system, in order to en-

sure the synchronization. Therefore, available nodes

receive changes immediately, and unavailable nodes

receive updates later, in a queue.

4 SODDA PROTOTYPE

To validate proposed architecture, we have

implemented a SODDA prototype as a Microsoft

.NET data provider. However, we cannot provide

many implementation details due to space

limitations. Results obtained so far demonstrate the

feasibility of the ideas and proposals presented here,

along with a large potential to support future work,

both in research and in commercial applications.

In order to test our prototype, we developed three

Data Source Wrappers, respectively for SQL Server,

SQL Server CE and Access. Support for data

sources such as MySQL, Oracle, XML files, and

CSV files is planned for future releases. The

prototype currently only implements data retrieval

features. Data manipulation is to be included in the

next releases of the SODDA data provider.

5 CONCLUSIONS

SODDA intends to use some of the most interesting

features of SOA to implement distributed databases.

Expected benefits include easier implementation,

lower communications costs, and greater access ca-

pillarity. The proposed statistics service facilitates

query optimization, since it unifies the treatment of

performance-oriented metadata and allows

implementation of automatic statistics updating.

An extensive list of possibilities for future work

presents itself at this stage. We observe that the

distributed database nodes do not, necessarily, need

to be managed by a full DBMS. Since they are

accessed only through Web services, it would be

possible to have other data sources, such as

spreadsheets, Web pages and others. Data Source

Wrappers can be written to use these sources as

nodes on a SODDA-based environment. Another

possibility involves the implementation of “hot-

swapping” of nodes, making it possible to achieve

full availability for, say, equipment maintenance,

through the simple modification of catalog entries.

REFERENCES

Alonso, G., F. Casati, et al. (2004). Web-Services:

Concepts, Architecture and Applications, Springer

Verlag.

Bray, T., J. Paoli, et al. (2006). "Extensible Markup

Language (XML) 1.0 (Fourth Edition) - W3C

Recommendation 16 August 2006, edited in place 29

September 2006." Retrieved 24/04/2007, from

http://www.w3.org/TR/xml/.

Campbell, D. (2005). Service Oriented Database

Architecture: App Server-Lite? Proceedings of the

ACM SIGMOD International Conference on

Management of Data.

Curbera, F., M. Duftler, et al. (2002). Unraveling the Web

Services Web: An Introduction to SOAP, WSDL, and

UDDI. IEEE Internet Computing. Vol 6: 86-93.

Endrei, M., J. Ang, et al. (2004). Patterns: Service-

Oriented Architecture and Web Services, International

Business Machines Corporation (IBM).

Huhns, M. and M. P. Singh (2005). Service-Oriented

Computing: Key Concepts and Principles. IEEE

Internet Computing. Vol 9: 75-81.

Kossman, D. (2000). The State of the Art in Distributed

Query Processing. ACM Computing Surveys. Vol. 32:

442-469.

Tok, W. H. and S. Bressan (2006). DBNet: A Service-

Oriented Database Architecture. Proceedings of the

17th International Conference on Database and Expert

Systems Applications (DEXA'06).

ICEIS 2008 - International Conference on Enterprise Information Systems

522
