EVOLUTION OF INFORMATION SYSTEMS

WITH DATA HIERARCHIES

Bogdan Denny Czejdo

Department of Mathematics and Computer Science, Fayetteville State University

Fayetteville, NC 28301, U.S.A.

Keywords: Information Systems (IS), System Evolution, Schema Evolution, Application Evolution.

Abstract: Recently, the research and practical efforts have intensified in the area of Information Systems (IS)

supporting data and application evolution. The need to support IS evolution is caused by a variety of reasons

including dynamicity of data sources, changing processing requirements, and using new technologies. In

this paper we concentrate on evolution of IS data repositories caused by dynamicity of data sources. Our

approach is to capture changes of various data hierarchies and use them as rules to implement evolution of

IS data repository. Evolution of hierarchies can be categorized into hierarchy creation, hierarchy deletion,

and hierarchy modification.

1 INTRODUCTION

The Information Systems (IS) currently support and

underlie most, if not all, of our human activities.

Throughout many years the importance of

maintenance phase of development of IS was

stressed by practitioners and by researchers. This

effort, however, has not resulted yet in a complete

and systematic solution for evolving IS. There is still

a gap between relatively informal guidance for

building maintainable IS and formal rules for IS

evolution. It is very important to continue research

and practical efforts in the area of Information

Systems (IS) supporting data and application

evolution. Such systems are sometimes referred to as

Sustainable Information Systems (SIS).

The need to support IS evolution is caused by

variety of reasons including dynamicity of data

sources, changing processing requirements, and

using new technologies (Rudensteiner, 2000) (Eder,

2001a) (Eder, 2001b) (Elder 2002). There are many

aspects of IS evolution that need to be addressed. In

this paper we concentrate on dynamicity of data

sources causing evolution of IS data repositories.

Our approach is to capture changes of various data

hierarchies and use them as rules to implement

evolution of IS data repository. Rather than

describing atomic schema changes, our approach is

based on changes of larger schema components

referred to as hierarchies. Evolution of hierarchies

can be categorized into: hierarchy creation, deletion,

and modification for both schema hierarchy and

instance hierarchy.

There are two approaches to IS evolution: logical

or physical. In the logical evolution data repositories

are integrated only at the logical level by referring to

an integrated repository logical schema (no

integration of old and new repository contents takes

place, all data is stored only locally inside the

repositories). User queries executed against the

integrated repository logical schema are decomposed

into queries for old repository and new repository.

Queries issued for the old repository may need to be

translated (Wiederhold, 1998). The advantage is that

no central database is required to physically

integrate old and new data. There are, however,

serious disadvantages of such approach such as the

need to maintain two or more data repositories and

delays related with query transformations.

As opposed to the logical evolution, the physical

evolution integrates both schemas and data. It

requires extraction of data from old repository,

checking consistency of old data against new data

and updating the new repository. Queries submitted

to the data repository are executed locally, without

accessing the old repository, which considerably

increases the query performance. It improves the

availability of data. The SIS based on physical

evolution can provide users with additional

information such as aggregates, summaries or

351

Denny Czejdo B. (2008).

EVOLUTION OF INFORMATION SYSTEMS WITH DATA HIERARCHIES.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - ISAS, pages 351-356

DOI: 10.5220/0001716503510356

 SciTePress

historical data. Physical evolution is closer to data

warehousing approach and allows to use its popular

technology for IS requiring high query performance

and high data availability (Adamson, 1998)

(Kimball, 1996) (Bischoff 1997) (Elmagarmid,

1999).. Therefore, physical evolution seems to be a

better approach for IS unless evolution steps are

small and happen very often.

Repository obtained by integrating various EDS

often contains a variety of data hierarchies such as a

product structure, a production organization.

Modeling some of these hierarchies was discussed in

the literature (Czejdo, 1996) (Kim, 1991). In this

paper we describe a method for modeling evolution

of various types of hierarchies.

This paper is organized as follows. In Section 2

we present the architecture of an Information System

with EDS. In Section 3, we discuss the general

framework for the evolution of such IS. Section 4

describes different types of hierarchies. Modeling of

evolution of hierarchies is discussed in Section 5.

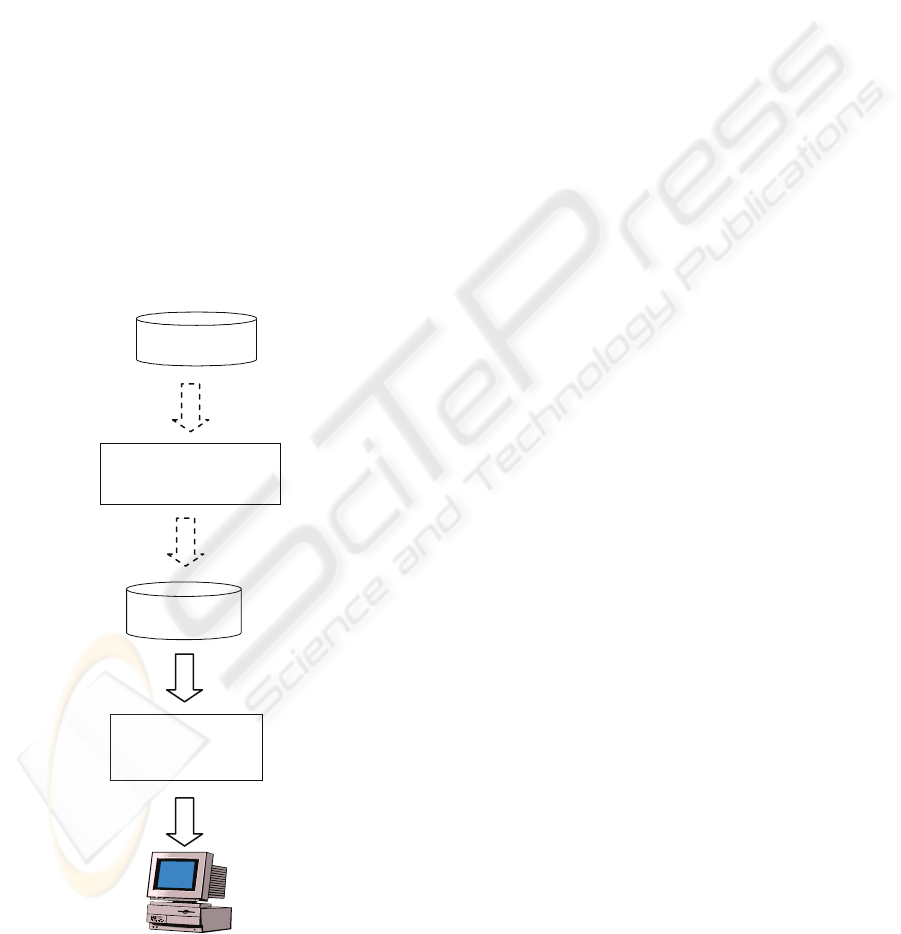

Figure 1: An Information System with External Data

Sources.

2 ARCHITECTURE OF AN

INFORMATION SYSTEM WITH

EDS

Our discussion concentrates on evolution of an

Information System with external data sources

(EDS). Architecture of such system is shown in

Figure 1. External data is processed by an EDS-to-

Repository converter. This converter monitors

changes to EDS, extracts data from EDS, cleans

them and transform them into the common stored

repository model. Such a converter is responsible for

discovering inconsistencies in the source data,

integration and transformation of data, data loading

and refreshment, ensuring data quality, etc.

The stored repository is designed to integrate all

EDS. The EDS may vary from proprietary

applications and legacy systems to modern

relational, object or object-relational database

systems. They may include flat files, spreadsheets,

XML documents, news wires or multimedia

contents. All EDS usually differ in data model,

require different user interfaces, and present

different functionality.

3 ARCHITECTURE OF A

SUSTAINABLE INFORMATION

SYSTEM WITH EDS

Most IS assume, that data sources’ schemas are

static and that only the data changes. However, this

assumption doesn't hold in the real world

applications. Changes occur frequently in EDS.

Most often those changes concern data instance or

classification hierarchy (e.g., assigning an object to

another subclass, merging two subclasses, etc.).

After such change, queries involving data affected

by the change begin to yield incorrect results.

Contemporary, most IS are unable to handle

such changes, which hinders their functionality. In

this paper we discuss the sustainable IS that

guarantees the basic requirement to have access to

all new data items and to maximize access to old

data items. There are many approaches to build

such a system. The physical evolution approach is

described in this paper. The system architecture of

such system is shown in Figure 2. We will

concentrate in this paper on one of the most

important tasks, namely, how to consolidate old data

repository and the new data repository.

Repository

EDS

EDS to Repository

Converter

Applications

ICEIS 2008 - International Conference on Enterprise Information Systems

352

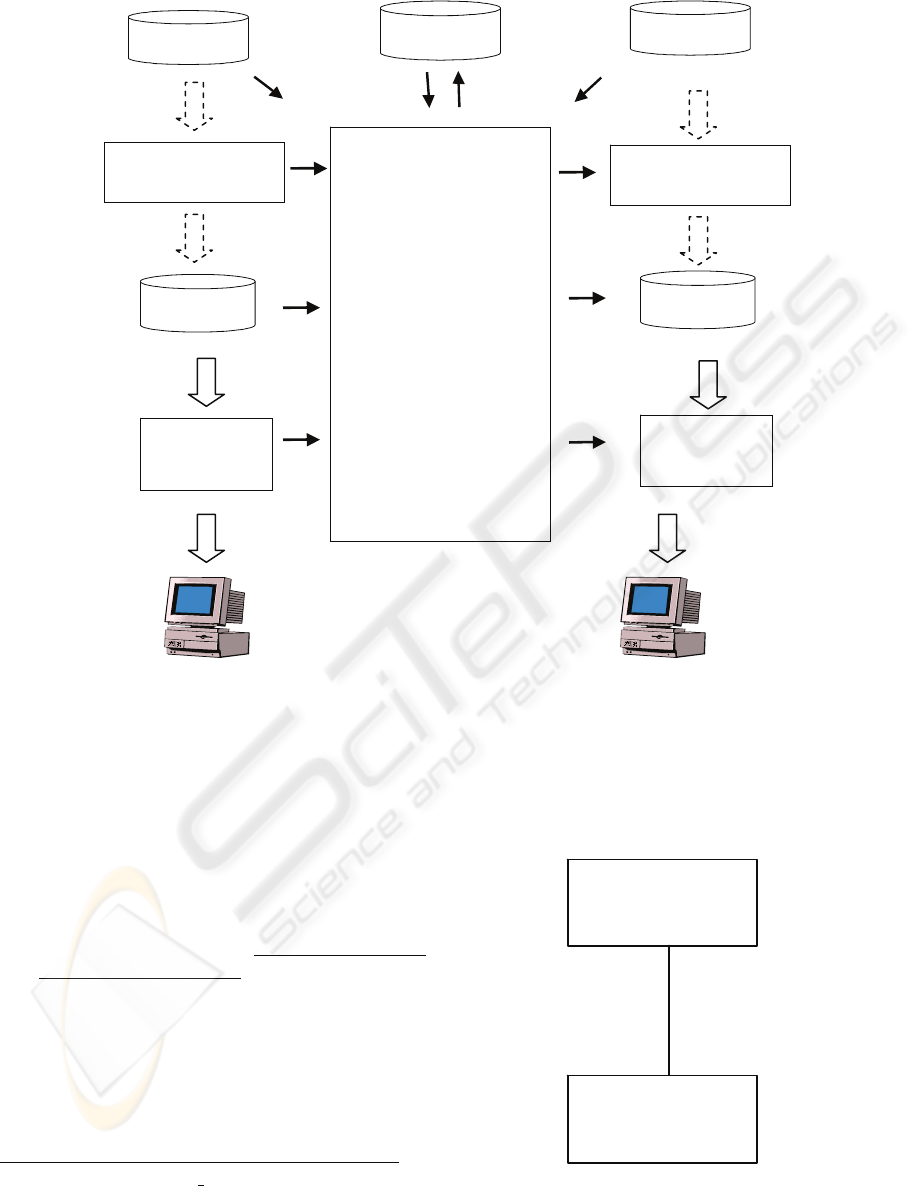

Figure 2: A Sustainable Information System with External Data Source.

4 HIERARCHY MODELING

The IS repository can contain many different data

hierarchies. These hierarchies describe various

relationships between data such as a production

structure, organizational units (divisions,

departments, branches etc.), a structure of products,

classification of products, etc.

The data hierarchy can be component hierarchy

or classification hierarchy. The example of

component hierarchy graph is shown in Figure 3.

This hierarchy is typically based on part-of/consists-

of relationship between entity sets. Within

component hierarchy we distinguish two subtypes of

hierarchies. The first subtype of component

hierarchy is used to describe structure in which we

can identify and name all levels. We call this

component hierarchy with well-established levels

. In

generally, this hierarchy

describes an organizational

and/or production structure in which we can identify

and name all levels.

Each level corresponds to homogeneous

enterprise objects (objects with identical properties)

whereas different levels can contain heterogeneous

enterprise objects (objects with different properties).

consists_of

Helmet

At tachm en t

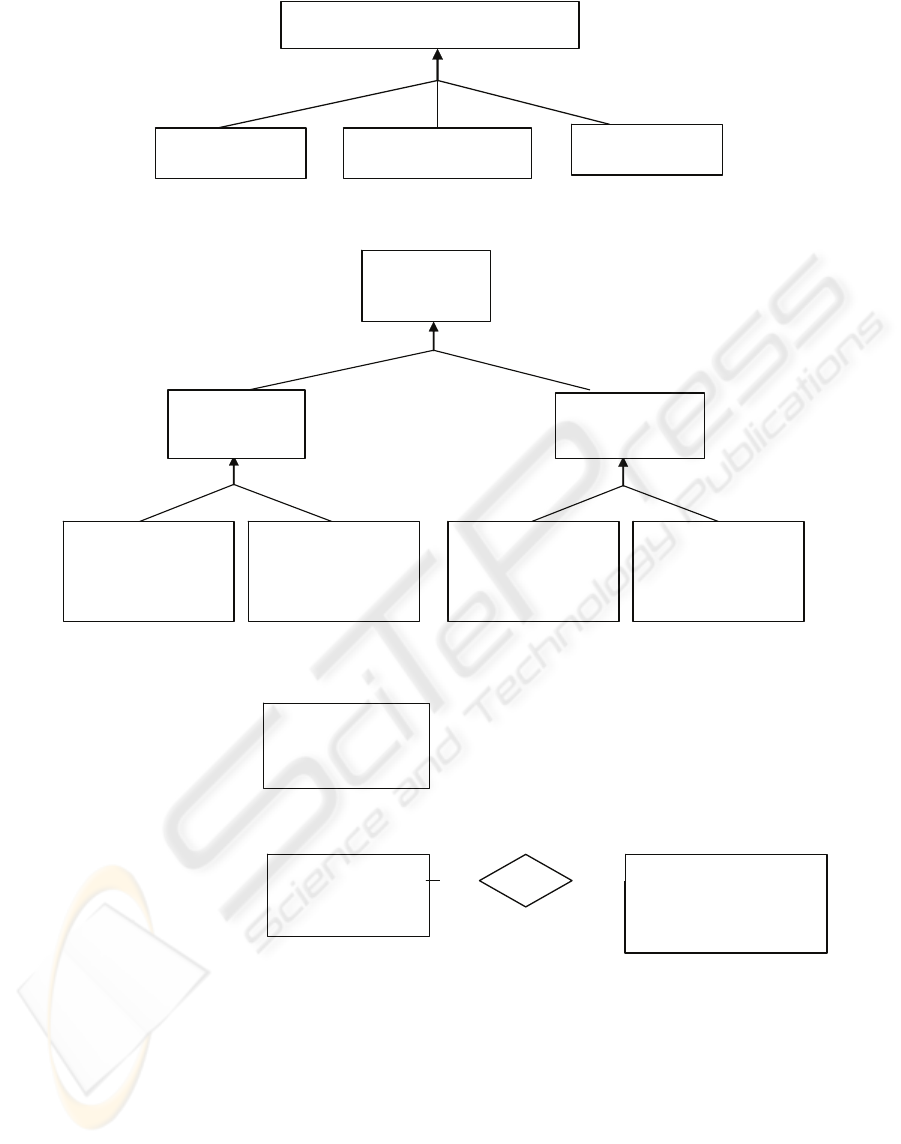

Figure 3. Example of Component Hierarchy in Casualty

Information System.

SIS Evolution

Processor

Determining incompleteness

of old data and identifying

old modules to be used in

New Applications

New

Repository

New EDS

New Repository

Converter

New

Applications

Old

Repository

Old EDS

Old Repository

Converter

Old

Applications

Evolution

Metadata

Old Repository evolution into

New Repository

EVOLUTION OF INFORMATION SYSTEMS WITH DATA HIERARCHIES

353

Protective Equipment

Helmet

Vest

Eye protector

Figure 4: Example of Classification Hierarchy in Casualty Information System.

Data

Hierarchy

Component

Hierarchy

Classification

Hierarchy

Well-

Established

Levels

Not-Well

Established

Levels

Well-

Established

Levels

Not-Well

Established

Levels

Figure 5: Meta-model for Data Hierarchies.

Protective

Equipment

Protective

Equipment

Attachment

1 N

consists_of

Source:

Target:

Figure 6a: A Schema Rule for Evolution of an Entity Type into Data Hierarchy with Well-Established Levels

Source: Protective_Equipment = {A, B, C, D, E, F}

Target:

Protective_Equipment = {A, B, C, D}

Attachement = {E, F}

Consists_Of = {(A,E), (B, E), (D, F)}

Figure 6b: An example of Instance Rule for Evolution of an Entity Type into Component Hierarchy With Well-Established

Levels.

ICEIS 2008 - International Conference on Enterprise Information Systems

354

The second subtype of component hierarchy is

used to describe the hierarchy where the level names

are of no importance and the objects are

homogenous (they have the same attributes). We call

this component hierarchy with not-well-established

levels. In general, component hierarchy with not-

well-established levels is typically used to model

parts that are built from other parts.

The data hierarchy can be also classification

hierarchy. The example of classification hierarchy

graph is shown in Figure 4. It is based on is_a or

subclass relationships. This hierarchy is used to

describe classifications of entities into types and

subtypes and therefore it is referred to as

classification hierarchy. When this hierarchy

describes groups with different properties, then we

call it classification hierarchy with well-established

levels. When this hierarchy describes groups with

identical properties or that can change often, then we

call it classification hierarchy with not-well-

established levels.

Hierarchy modeling can be described by a meta-

model shown in Figure 5.

5 EVOLUTION OF

HIERARCHIES

The general objective of schema evolution is to

provide a new schema that will integrate old and

new data and allow a user to view data using a

uniform environment. The issue of schema evolution

is difficult due to the semantic heterogeneity

between old and new schema that appears in the

form of schematic and data conflicts among

component databases. Using our approach of

hierarchy evolution within schema evolution can

alleviate some problems.

The evolution of hierarchies can be described by

transformation rules. Generally, there are schema

and instance transformation rules. The example of

schema transformation is shown in Figure 6a. It

consists of source and target schemas. The example

of instance transformation rule is shown in Figure 6b

and consists of source and target set definitions. The

transformation rules can be graphical or symbolic.

For conciseness of the presentation we limit

ourselves to symbolic rules based on individual

instances in this paper.

Different categories of evolution of hierarchy

were identified: hierarchy creation, deletion, and

modification for both component hierarchy and

classification hierarchy. Let us

concentrate ourselves

on evolution of an Entity Set into various data

hierarchies. Let us start from discussing creation of a

component hierarchy, when in the process of

evolution, the data hierarchical structure is created

from the simple set of instances as shown in Figure

6. Let us assume that the component hierarchy with

well-established levels. In our case we create two

levels: Protective Equipment and Attachment as

illustrated in Figure 6a.

Protective

Equipment

consists_of

Protective

Equipment

Target: Source:

Figure. 7a: A Schema Rule for Evolution of an Entity Type into Component Hierarchy with Not-Well-Established Levels.

Source: Protective_Equipment = {A, B, C, D, E}

Target: Protective_Equipment = {A, B, C, D, E}

Consists_Of = {(A,B), (A, C), (A, D), (B, E)}

Figure. 7b: An Instance Rule for Evolution of an Entity Type into Component Hierarchy with Not-Well-Established Levels.

EVOLUTION OF INFORMATION SYSTEMS WITH DATA HIERARCHIES

355

Let us now discuss evolution of an entity type

into a component hierarchy with not-well-

established levels.

This evolution, takes place when

in the process of changes the data hierarchical

structure is created from the simple set of instances

as shown in Figure 7. In our case of protective

equipment it means that one instance of protective

equipment can consist of other protective

equipments, and they in turn can have their own

components, etc. as illustrated in Figure 7.

6 CONCLUSIONS

In this paper, we discussed the problem of the data

hierarchy evolution resulting from the changes in the

underlying external data sources. We showed how

an old data repository for IS can be transformed to

new repository by applying appropriate

transformation rules. We limited ourselves to

individual instance-based rules. These rules can be

easily expanded to include SQL-like set expressions

and can be specified graphically.

REFERENCES

Adamson, C. and Venerable, M., 1998. Data Warehouse

Design Solutions, John Wiley & Sons, Inc.

Bischoff, J., Alexander T.,1997. Data Warehouse:

Practical Advice from the Experts. Prentice-Hall, Inc.

Czejdo, B., Morzy, T., Matysiak, M., 1996. Hierarchy and

Version Modeling. In Proceedings of Symposium on

Expert Systems and AI, ESDA ‘96, Montpellier.

Eder J., Koncilla C., 2001a. Changes of Dimensions Data

in Temporal Data Warehouses. In Proceedings of the

DaWak‘2001.

Eder, J., Koncilla, C., Morzy, T., 2001b. A Model for a

Temporal Data Warehouse. In Proceedings of the Intl.

OESSEO’2001 Conference. Rome, Italy.

Eder, J., Koncilla, C., Morzy, T., 2002. The COMET

Metamodel for Temporal Data Warehouse. In

Proceedings of the CAISE’2002.

Elmagarmid, A., Rusinkiewicz, M., Sheth, A., eds, 1999.

Management of Heterogeneous and Autonomous

Database Systems. Morgan Kaufmann Publishers,

Inc.

Kim, W., Seo, J., 1991. Classifying Schematic and Data

Heterogenity in Multidatabase System. In IEEE

Computer 24(12), 12-18.

Kimball, R., 1996. The Data Warehouse Toolkit, John

Wiley & Sons, Inc.

Rudensteiner, E., Koeller, A., Zhang, X., 2000.

Maintaining Data Warehouses over Changing

Information Sources. In Communications of the ACM,

vol. 43, No. 6.

Wiederhold, G., 1998. Mediators in the architecture of

future information systems, In IEEE Computer C-25,

ICEIS 2008 - International Conference on Enterprise Information Systems

356
