TOWARDS A SEMI-AUTOMATIC TRANSFORMATION

PROCESS IN MDA

Architecture and Methodology

Slimane Hammoudi

, Wajih Alouini

and Denivaldo Lopes

Ecole Supèrieure d’Electronique de l’Ouest(ESEO), 49009 Angers Cedex 01, France

ISIG, Institut Supérieur d’Informatique et de Gestion, University of Kairouan, Tunisia

Federal University of Maranhão (UFMA), CCET – DEE, São Luís - MA, Brazil

Keywords: Model Driven Architecture, Transformation Language, Mapping Metamodel, Matching Metamodel, Semi-

Automatic Transformation, Transformation Architecture and Transformation Methodology.

Abstract: Recently, Model Driven Engineering (MDE) approaches have been proposed for supporting the

development, maintenance and evolution of software systems. Model driven architecture (MDA) from

OMG (Object Management Group), “Software Factories” from Microsoft and the Eclipse Modelling

Framework (EMF) from IBM are among the most representative MDE approaches. Nowadays, it is well

recognized that model transformations are at the heart of these approaches and represent as a consequence

one of the most important operations in MDE. However, despite the multitude of model transformation

languages proposals emerging from university and industry, these transformations are often created

manually. In this paper we propose in the first part an extended architecture that aims to semi-automate the

process of transformation in the context of MDA. This architecture introduces mapping and matching as

first class entities in the transformation process, represented by models and metamodels. In the second part,

our architecture is enforced by a methodology which details the different steps leading to a semi-automatic

transformation process. Finally, a classification of these different steps according to two main criteria is

presented: how the steps are achieved (manual/automatic), and who is responsible for their achievement

(expert, designer or software).

1 INTRODUCTION

The main motivation behind MDE (Bézivin, 2006)

is to transfer the focus of work from programming to

modeling by treating models as first class entities

and consequently the primary artifacts of

development. One of the most important aspects of

the MDE approach is the explicit specification of

business logic through Platform Independent Models

(PIMs) and the flexibility to implement them on

different target platforms via Platform Specific

Models (PSMs). A specific platform can be any

technology that supports the execution of these

models, either directly or after translation to code.

The PIM reflects the functionalities, the structure

and the behavior of a system. The PSM is more

implementation-oriented and corresponds to a first

phase, binding of a given PIM to a given execution

platform. In this context, designers and developers

have to focus on modeling the problem domain and

not on programming one possible (platform-specific)

solution. There are nowadays several approaches

based on MDE principles, the most well known

being MDA (OMG, 2007) by OMG or “Software

factories” by Microsoft (Dominguez, 2006). In the

literature, several issues around MDE have been

studied and subject of intensive research, e.g.

modeling languages (Bézivin, 2004-1), model

transformation languages (Jouault, 2006) (Bézivin,

2003) (OMG, 2005), mapping between metamodels

(Hammoudi, 2005-2) (Lopes, 2005-1), and design

methodologies (Almeida, 2006). Among these

issues, model transformation languages occupy a

central place and allow to define how a set of

elements from a source model are analyzed and

transformed into a set of elements of a target model.

416

Hammoudi S., Alouini W. and Lopes D. (2008).

TOWARDS A SEMI-AUTOMATIC TRANSFORMATION PROCESS IN MDA - Architecture and Methodology.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - ISAS, pages 416-425

DOI: 10.5220/0001720104160425

 SciTePress

However, these transformations are created

manually, often a fastidious and error-prone task,

and therefore an expensive process. These

transformations consist of creating a set of rules

involving, and in the same time merging mapping

and transformation techniques between two

metamodels. A semi-automation of the

transformation process leads to a real challenge

allowing many advantages: It enhances significantly

the development time of transformation and

decreases the errors that may occur in a manual

definition of transformations. In (Hammoudi, 2005-

1) (Lopes, 2005-2), we have initiated a first attempt

towards this semi-automation. We have introduced

an approach separating mapping specification from

transformation definition, and have implemented

this approach in a tool called MMT (Mapping

Modeling Tool). In this first approach, a mapping

specification was created manually to define the

relationships between metamodels (i.e. equivalent

metamodel elements), while transformation

definition was generated automatically and

contained the operational description of the

transformation rules between models. In this paper,

we propose to push the semi-automation process one

step further by using matching techniques (Kappel,

2007) (Lopes, 2006-1, 2006-2), to provide semi-

automatic mappings between two metamodels. The

produced mappings could be adapted and validated

by an expert for the automatic generation of a

transformation model, as a set of transformation

rules. In this paper, we present an extended

architecture of the transformation process in the

context of MDA. This architecture introduces the

matching and mapping components as two other

important operations in the transformation process.

Based on this architecture, a methodology presents

the different steps of the semi-automatic

transformation process.

This paper is organized as follows: section 2

introduces the MDE/MDA approach and presents its

most common scenario of transformation in MDA.

Section 3 presents an extended architecture for a

semi-automatic transformation process and discusses

the matching and mapping metamodels as two

important components in this process. Section 4

presents the methodology which in the first part,

starts with two metamodels source and target, and

details the different steps for generating

transformation rules semi-automatically.

The second part of this methodology consists of

applying the transformation rules to a PIM model to

generate an equivalent PSM on a given specific

platform. Section 5 reviews the main steps of the

transformation process according to two main

criteria: how the steps are achieved and who is

responsible for their achievement. Finally, section 6

concludes our work and presents some final remarks

and future perspectives.

2 MDE: OVERVIEW AND

TRANSFORMATION PROCESS

At the beginning of this century, software

engineering needs to handle software systems that

are becoming larger and more complex than before.

Object-oriented and component technology seem

insufficient to provide satisfactory solutions to

support the development and maintenance of these

systems. To adapt to this new context, software

engineering has applied an old paradigm, i.e.

models, but with a new approach, i.e. Model Driven

Engineering. In this new global trend called Model

Driven Engineering, MDA is a particular variant.

2.1 Model Driven Architecture (MDA)

MDA is based on standards from the OMG; it

proposes an architecture with four layers (OMG,

2001): metametamodel, metamodel, model and

information (i.e. an implementation of its model).

Figure 1a presents the basic Metamodeling

architecture of MDA with the relationships between

different levels of models. In this approach,

everything is a model or a model element. In level

M0, a real system is representedBy a model in level

M1, and a model in level M1 conformsTo a

metamodel in level M2. These two important

relationships of MDA are discussed in (Bézivin,

2005).

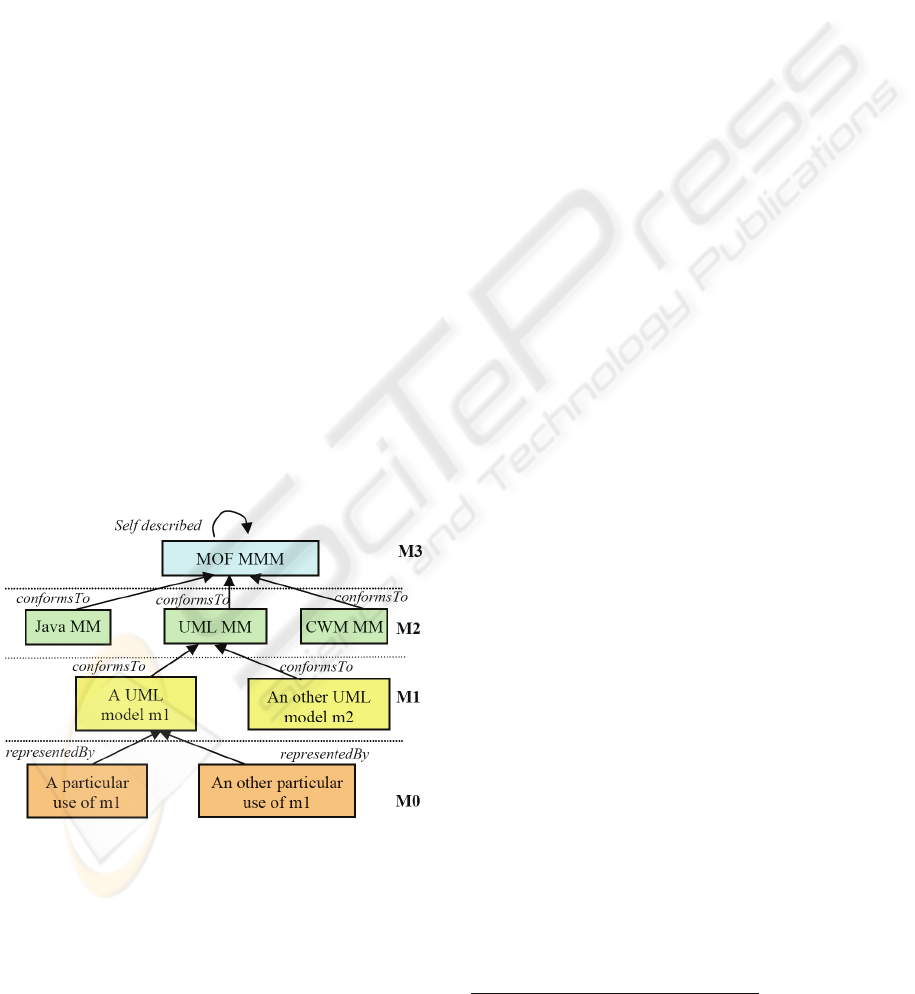

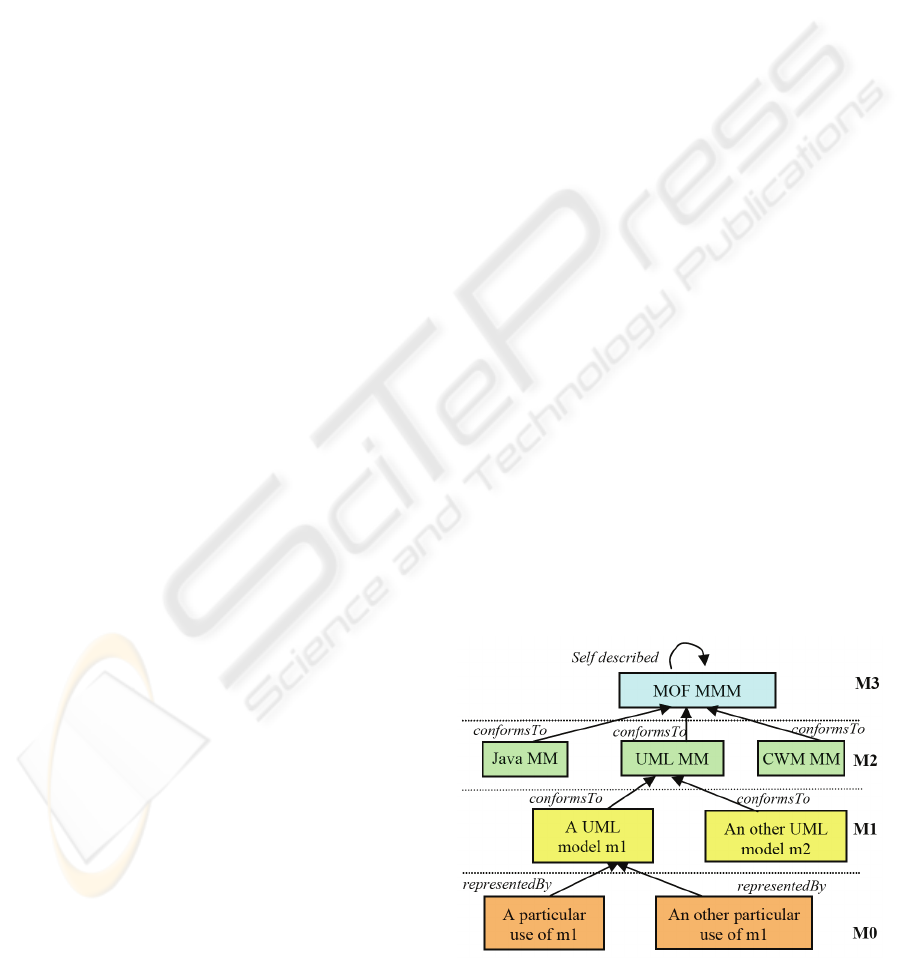

Figure 1a: Architecture with four Meta-layers.

TOWARDS A SEMI-AUTOMATIC TRANSFORMATION PROCESS IN MDA - Architecture and Methodology

417

In level M3, a metametamodel is a well-formed

specification for creating metamodels such as the

Meta Object Facility (MOF), a standard from the

OMG. In level M2, a metamodel is a well-formed

specification for creating models. In level M1, a

model is a well-formed specification for creating

software artifacts. In level M0, an operational

example of a model is the final representation of a

software system.

According to this architecture, we can state the

existence of few metametamodels such as MOF and

Ecore (Budinsky, 2003; Eclipse, 2004), several

metamodels such as UML, UEML (UEML, 2003)

and EDOC (OMG, 2003), more models describing

real life applications such as a travel agency, and

finally infinite information such as the

implementation of this travel agency model using

Java or C#. This organization is well known in

programming languages where a self-representation

of EBNF notation could be obtained easily in some

lines. This notation allows defining infinity of well-

formed grammars. A given grammar, e.g. the

grammar of the C language, allows defining the

infinity of syntactically correct C program. Several

different executions could be realized from a C

program. Besides the MDA architecture with four

layers, figure 1.b illustrates the primary idea around

the development of software systems using MDA.

This figure involves two kinds of transformation

(represented by arrows): model to model

transformation and model to code transformation.

Figure 1b: MDA: Primary Idea.

The development is based on the separation of

concerns (e.g. business and technical concerns),

which are afterwards transformed between them. So,

business concerns are represented using Platform-

Independent Model (PIM), and technical concerns are

represented using Platform-Specific Model (PSM).

According to figure 1.b, PIM (e.g. a UML business

model) is transformed into PSM (e.g. based on Web

Services), which could be refined in other PSMs (e.g.

based on Java and JWSDP

), until exported as code,

configuration files, and so on. Analyzing each type of

model, we can deduce that a PIM and PSM have a

different life cycle. PIMs are more stable over time

while PSMs are subject to frequent modification. So,

this approach preserves the business’s logic (i.e.

PIMs) against the changes or evolutions of

technologies (i.e. PSMs).

2.2 Model Transformation in MDA

It is well recognized today that model transformation

is one of the most important operations in MDA.

The following definition of model transformation

largely shared in the community is provided in

(Kleppe, 2003): “A Transformation is the automatic

generation of a target model from a source model,

according to a transformation definition. A

transformation definition is a set of transformation

rules that together describe how a model in the

source language can be transformed into a model in

the target language. A transformation rule is a

description of how one or more constructs in the

source language can be transformed into one or

more constructs in the target language”.

The working group on model transformation of the

Dagstuhl seminar (Bézivin, 2004-2) suggests that

this should be generalized, in that a model

transformation should also be possible with multiple

source models and/or multiple target models. In our

discussions here we are concerned with a

transformation that takes a platform-independent

model and transforms it in to a platform-specific

model. In the context of the basic four levels

Metamodeling architecture of MDA, various

scenarios of model-to-model transformation have

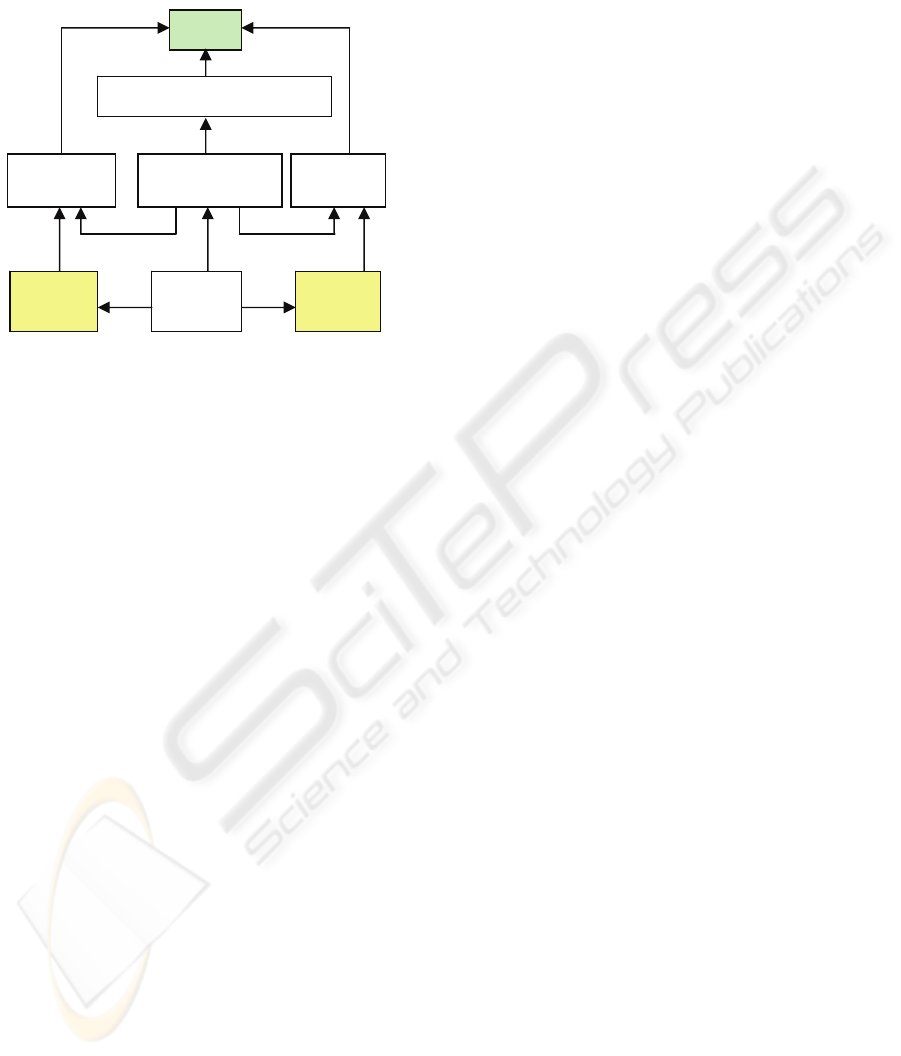

been identified. Figure 2 presents the most common

scenario of these transformations, which is

compatible with the MOF2.0/QVT standard (OMG,

2005). Each element presented in Figure 2 plays an

important role in MDA. In our approach, MOF is the

well-established metametamodel used to create

metamodels. Transformation rules specify how to

generate a target model (i.e. PSM) from a source

model (i.e. PIM). To transform a given model into

another model, the transformation rules map the

Java Web Service Development Pack.

ICEIS 2008 - International Conference on Enterprise Information Systems

418

source into the target metamodel. The

transformation rules are based on the transformation

language, such as the standard QVT.

Figure 2: Model Transformation in MDA: from PIMs to

PSMs (Lopes, 2005-1; Jouault, 2006)

The transformation engine takes the source model,

executes the transformation rules, and produces the

target model as output. Using a unique formalism

(e.g. MOF) to express all metamodels is very

important because this allows the expression of

different sorts of relationship between models based

on separate metamodels. Transformations are one

important example of such a relationship, but there

are also others (Bézivin, 2005) like model weaving,

model merging, model difference, metamodel

alignment, etc. Thus, given ma(s)/Ma and mb(s)/Mb,

where ma is a model of a system s created using the

metamodel Ma, and mb is a model of the same

system s created using the metamodel Mb, then a

transformation can be defined as follow:

(s)/Ma → m

(s)/Mb.

When Ma and Mb conform to the same

metametamodel (e.g. MOF), the transformation may

be expressed in a transformation language such as

QVT. There are a number of general challenges in

the definition of a language for model

transformation. Some of these challenges are that it

must be expressive and provide complete

automation, be unambiguous, and Turing complete

for it to be generally applicable. The recent

standardization effort by OMG (OMG, 2007) and

many industrial and academic efforts in this area

will allow advancement on these challenges.

Before introducing our architecture for a semi-

automatic transformation process, we would like to

recall the two main problems concerning the main

scenario of the MDA transformation process

illustrated by figure 2 and that have motivated our

current work:

- The first problem concerns the creation of

“transformation rules” between metamodels which,

as mentioned in the introduction, are often created

manually, generally a fastidious and error-prone

task, and therefore expensive process.

- The second problem concerns the specification of

these “transformation rules”, which merge together

techniques of mappings and transformations

without explicit distinction between them. That is

to say, the specification of correspondences

between elements of two metamodels and the

transformation between them are grouped in the

same component at the same level.

As we have already discussed in (Hammoudi,

2005-1), an explicit distinction between techniques

of mapping and transformation could be very

helpful in the whole MDA process of

transformation. Moreover, the separation between

the mappings and transformations parts is a first

step towards a semi-automatic process, since

mappings could be automatically generated by a

matching process.

3 AN ARCHITECTURE FOR THE

TRANSFORMATION PROCESS

Figure 3 illustrates our proposal of an extended

architecture for the transformation process in MDA,

allowing a semi-automatic generation of

transformation rules and the semi-automatic

generation of a target model from a source model.

The three main operations of our approach are:

Matching, Mapping and Transformation.

All the components linked to these operations, and

their relationships, are presented in figure 3 based on

the four level MDA metamodeling architecture.

The matching operation is the process that

produces the mappings between two metamodels.

Generally, this task implies a search of equivalent or

similar elements between two metamodels. In the

database domain, this task is called schema

matching. In our context, a matching model

(Matching M) takes two metamodels designed by

source and target (representing respectively a PIM

and a PSM metamodel), and produces a mapping

model (Mapping M).

conformsTo

rom

exec

conformsTo

MOF

Transformation

rule

Source

metamodel

Target

metamodel

output input

Transfo.

Engine

Source

model

Target

model

Transformation Language

TOWARDS A SEMI-AUTOMATIC TRANSFORMATION PROCESS IN MDA - Architecture and Methodology

419

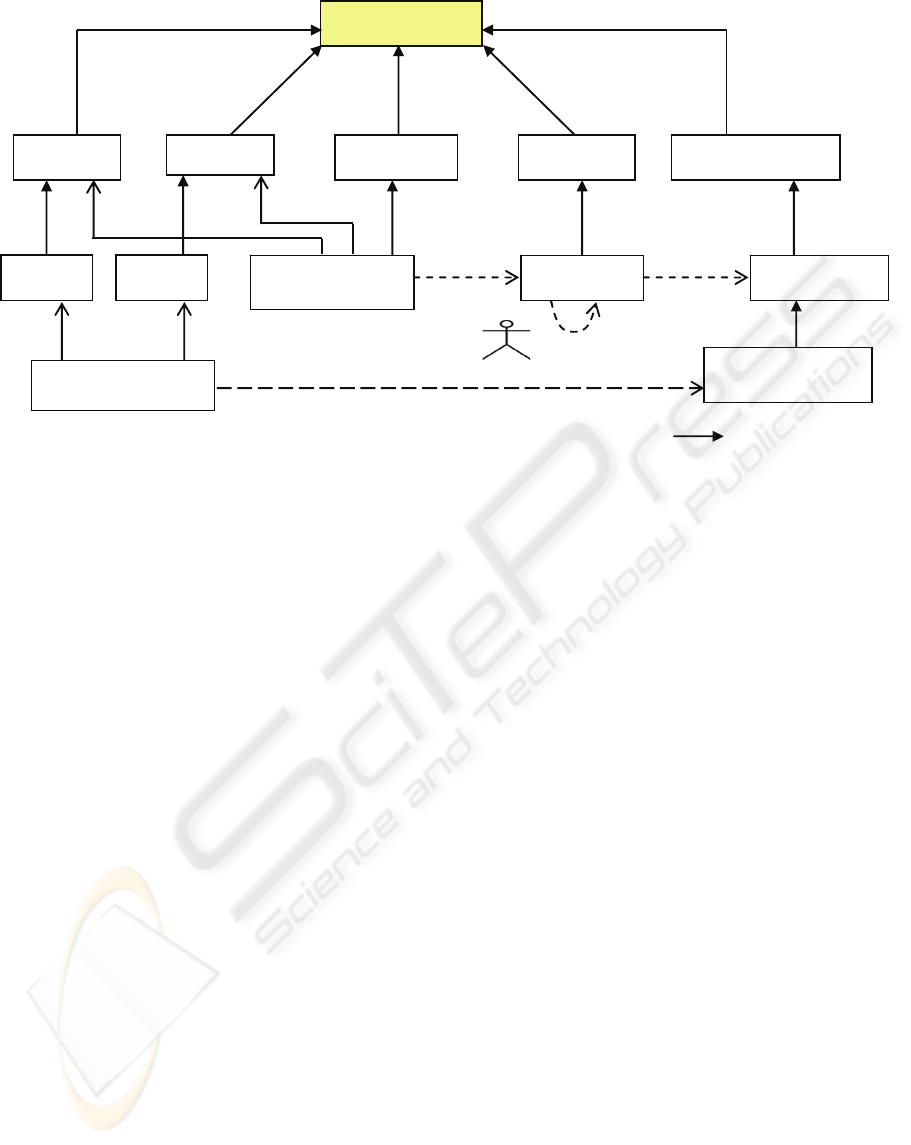

Figure 3: Architecture for a semi-automatic transformation process in MDA.

The matching model conforms to a metamodel of

matching (Matching MM) which implements

techniques that consist of finding semantically

equivalent modeling concepts between two

metamodels. Thus, different kinds of relationships

between metamodel elements are discovered using

the metamodel of matching. The relationships

between metamodel elements are saved in a

mapping model which conforms to a mapping

metamodel (Mapping MM). This metamodel defines

the different kinds of links (relationships) that could

be generated by the matching model. Each kind of

link corresponds to one transformation pattern

specified in the transformation model described

hereafter. Given that no generic matching solution

exists for different metamodels and application

domains, it is recommended to give the human

expert the possibility to check the obtained

mappings, and, if necessary, update or adapt it. This

is the only step in the whole process, in which the

expert intervenes to complete and/or validate the

obtained results. Finally, a transformation model

(Transformation M), in conformance to its

transformation metamodel (Transformation MM), is

derived automatically from a mapping model. A

transformation model is basically represented by a

set of rules that states how elements from source

metamodel are transformed into elements of target

metamodel. These rules are expressed in a

transformation language based on MDA standards

(OCL, MOF). This language, such as the standard

QVT is described by a metamodel as a general

formalism and abstract syntax for model

transformation in MDA. Frequently, the

transformation model is completed by some

information such as those concerning the execution

environment, and produces a transformation

program ready for the execution. This last part is

often achieved by a designer (or software engineer)

who implements a business model in a specific

platform. Finally, a transformation engine takes a

source model as input, and executes the

transformation program to transform this source

model into the target model.

According to our approach and architecture, the

matching and transformation components are

executable programs that take models or metamodels

as parameters, while the mapping component is a set

of relationships between elements of source and

target metamodels. Concerning the mapping

component, we have proposed in a previous work a

generic metamodel and implemented it in a tool

called MMT (Lopes, 2005-1). In this first approach,

the mapping model between two metamodels, was

supposed to be defined manually by an expert. From

this mapping model, a transformation model

represented by a set of rules is generated

automatically.

MMM : Metametamodel MM : Metamodel M : Model

The MOF MMM

Source MM Matching MM Transformation MM Target MM Mapping MM

Matching M Mapping M

Transformation M

Source M Target M

Transformation

Engine

ut out

xecute

roduce

erive

psm

date

Transformation

Program

conformsTo

ICEIS 2008 - International Conference on Enterprise Information Systems

420

4 A METHODOLOGY FOR

A SEMI-AUTOMATIC

TRANSFORMATION PROCESS

We intend through our methodology to enforce the

new architecture for the transformation process

presented above and to discuss the implementation

of the main steps. Figure 4 illustrates the main steps

of a methodology allowing a semi-automatic

transformation process. These steps are represented

by two activities diagrams. The first activity diagram

(a), on the left side, shows the steps followed by a

certain domain expert who starts with the

specification of the two metamodels source and

target and follows the process until the generation of

transformation rules and an executable

transformation program. The second diagram (b), on

the right side, illustrates the steps of a designer who

specifies a business model of a given application

based on a PIM metamodel and generates

automatically, by using a transformation program,

an implementation of this business model on a given

specific platform. This distinction between expert

user and designer is discussed in (Gavras, 2004)

where a classification of MDA technology users is

presented. Moreover, in any MDA based project, the

distinction between preparation activities and

execution activities is essential. The first activities

are performed by the expert, while the second

activities are mainly performed by designers or

software engineers.

The first goal within such a methodology is to

introduce the matching process into the OMG’s

Model-Driven Architecture (MDA) approach in

order to increase the degree of automation of the

transformation process. This requires the reduction

of human expert manual tasks by the rational choice

among the plethora of existing works on matching

algorithms. These algorithms have a high

applicability to the problem of useful automatic

mapping production.

For this purpose, we propose a methodology

based on MDA standards. All the metamodels,

source and target, as well as transformations, are

based on the same metametamodel “Meta Object

Facility” ("MOF 2.0). As noted previously, it is clear

that using the same metametamodel, i.e. MOF, will

generally facilitate mapping discovery between

metamodels. However, it should be noted that we

do not claim that this methodology is exhaustive, but

it traces accurately the essential phases of the

transformation process including the matching

process.

In the next section, we outline the content for each

phase of the methodology and describe what is to

achieve in every step. In accordance to figure 4, we

describe the steps of a domain expert leading to a

generation of a transformation program in section

4.1 (preparation activities), while section 4.2

presents the steps followed by a designer (execution

activities) implementing its business model into a

specific platform

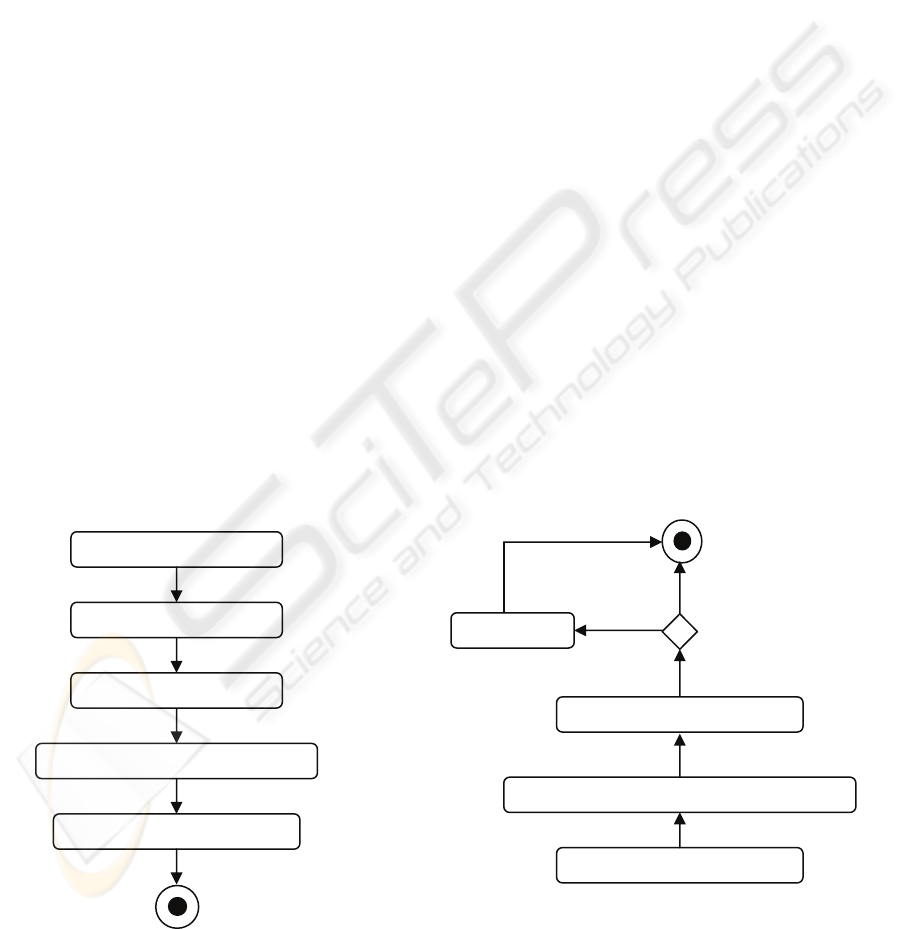

Figure 4: Methodology for a semi-automatic transformation process.

Executable model

PIM’s metamodel specification

Generation of transformation rules

Validate and/or update obtained mappings

[1]

[2]

[3]

[4]

[5]

PSM’s metamodel specification

Apply the matching approach

[PSM is complete]

[no]

[

yes]

[2]

[

]

Complete PSM

[5]

Specification of a PIM Model

Transformation program Execution (PIM M to PSM M)

Edition of a PSM model

[1]

[4]

Transformation

program

(a) Preparation

(b) Execution activities

TOWARDS A SEMI-AUTOMATIC TRANSFORMATION PROCESS IN MDA - Architecture and Methodology

421

4.1 Generation of a Transformation

Program

This first part of the transformation process groups

five steps leading to an executable transformation

program. There follows, the presentation of each

step in this first part:

4.1.1 PIM’s Metamodel Specification

This phase aims to define the appropriate PIM

metamodel for a given application domain. Since

MDA allows the separation of concerns between the

business aspect and the technology, the PIM

metamodel represents business logic without taking

care of technological features. Thus, the models in

conformance to PIM metamodel ignore all the

platform specific details. PIMs metamodels are

represented completely or partly by MDA

metamodels standards such as UML or EDOC.

Basically, there are two possibilities to create new

metamodels in the context of MDA:

• Using the concept of profiles to extend the

UML metamodel in order to take into account

particular semantics of a given system.

• Creating new metamodels based directly on

the MOF or Ecore metamodel

4.1.2 PSM’s Metamodel Specification

This phase aims to define and specify the

appropriate PSM metamodel. PSM are lower levels

than PIMs as they must adhere to specific

constraints imposed by the target platform, i.e. the

platform in where the application will be

implemented. The OMG afford compliant tools to

specify PSM metamodels. In this way, UML

profiles, as official OMG specifications, could also

serve to precise specific constraints for a given

platform. As samples of PSM, we quote the Web

Service Description Language (WSDL) metamodel

for the web service technology and the relational

metamodel for the relational databases. Once these

two first phases are accomplished, the matching

process can be applied.

4.1.3 Application of the Matching Process

This phase aims to select the relevant match

algorithms or matchers in order to generate matches

(mappings). The Matching process could be

represented by a model management operation

called match (Bernstein, 2003). This operation takes

two metamodels M1 and M2 as input and produces

Mapping model Mm as output. M1 and M2,

respectively, conform to the corresponding

metamodels MM1 and MM2. Mm conforms to the

metamodel of mapping MMm. The “Æ” operator

represents the “conformsTo” relationship.

Mm Æ MMm = match (M1 Æ MM1, M2 Æ MM2)

Ideally, the mapping model is represented

graphically. In fact, the graphical mapping model

provides a higher level view than the lexical

counterpart in order to present clear correspondences

and to make it easier to check that a correspondence

is valid.

The use of multiple matchers may be required

(Dimitris, 2006). The choice of the appropriate

matching approach to use is based on the

examination of the PIM and PSM metamodels

characteristics. This decision requires the

specification and the definition of the appropriate

criteria, essentially the application domain and

modeling language. In the literature, several schema

matching approaches have been proposed (Sun,

2003). Each schema matching approach has its own

characteristics that were grouped by taxonomy. In

addition, each approach has been evaluated through

match quality measures (Lopes, 2006). Finally, It is

ambitious to be certain that the obtained mappings

from the matching process are exhaustive and

faultless, thus presenting the need of the human

expert to intervene as presented in the next phase.

4.1.4 Validate and Update obtained

Mappings

The human expert is in charge of this phase. Given

that it is extremely optimistic to assert that all the

mappings are obtained as a result of the previous

phase or that all the matching techniques exist and

are utterly effective, it is fairly rational to provide

the human expert with interactive tools in perform-

ing the required correcting task. These tools, allow

the expert to accept, discard or modify the obtained

mappings, furthermore, to specify correspondences

which the matcher was unable to find. A graphical

interface tool is able to present mappings between

the source metamodel PIM and the target metamodel

PSM and to define all the dependencies between

mappings. This phase is of a great consequence for

the transformation of mappings into transformation

program such as QVT rules. Thus, the expert has to

be as accurate as possible. Once the mappings are

validated by the expert, the next phases enchain by

an actual generation of the transformation rules for

which automation is entirely possible.

ICEIS 2008 - International Conference on Enterprise Information Systems

422

4.1.5 Generation of Transformation Rules

This phase aims to generate automatically

transformation rules from mappings and formatting

them into a transformation model in order to be used

by the transformation program which transforms the

PIM model into the PSM model. The mapping

model obtained in the previous step should be

sufficiently defined to allow an automatic generation

of transformation model. This transformation model,

which consists of a set of transformation rules, is a

model structured in conformance to the OMG’s

standard MOF2.0-QVT. These QVT transformation

rules are either correspondence rules (declarative

approach) or construction rules (imperative

approach). A hybrid approach, containing both

correspondence rules, and construction rules is also

possible (Blanc, 2005). The automatic generation of

transformation rules in our approach is due to the

explicit distinction between mapping and

transformation components. This distinction is stated

more in ontologies field where they claim the

importance to distinguish between ontology

translation and ontology mapping (Dou, 2003):

“It's important to distinguish ontology translation from

ontology mapping, which is the process of finding

correspondence (mappings) between the concepts of two

ontologies. If two concepts correspond, they mean the

same thing, or closely related things. The mappings should

be expressed by some mapping rules, which explain how

those concepts correspond. Obviously, ontology

translation needs to know the mappings of two ontologies

first, then it can use the mapping rules."

4.2 Generation of a Platform Specific

Model

This second part in the transformation process

groups also five steps leading to an executable

platform specific model. This part is mainly

achieved by a designer who, after defining his

business model would like to implement it on a

specific platform.

4.2.1 Specification of a PIM Model

Using a PIM metamodel, a designer defines his

business model focusing only on the business logic

without taking into account implementation

considerations. In this step the designer may use, for

example, different UML diagrams which will lead to

a final class diagram ready for the implementation

on a given platform. Several tools such as Poseidon

may help the designer during this step. This step

corresponds typically to the definition of a

conceptual model in the context of database design.

4.2.2 Transformation Program Execution

(from PIM Model to PSM Model)

The transformation program obtained in the first part

is used here. It takes a PIM model as input and

produces the equivalent PSM model as output. The

transformation engine, which implements the

transformation program, reads the source model,

applies the rules to the source model and produces

the corresponding target model. All the input and

produced models are often expressed in XMI format.

4.2.3 From PSM Model to an Executable

Model

In this section we group the last three steps of the

second part, starting with a first binding of a PSM

model and leading to an executable model on a

given platform. The PSM model produced from the

previous step represents a first version of a platform

specific model which usually should be completed

by information very specific to the target platform to

produce a final executable model. So, the

completeness of the PSM obtained is to be verified.

In the case of effective completeness the

transformation task is successfully accomplished,

otherwise, the designer will complete it manually.

4.3 Illustrative Example

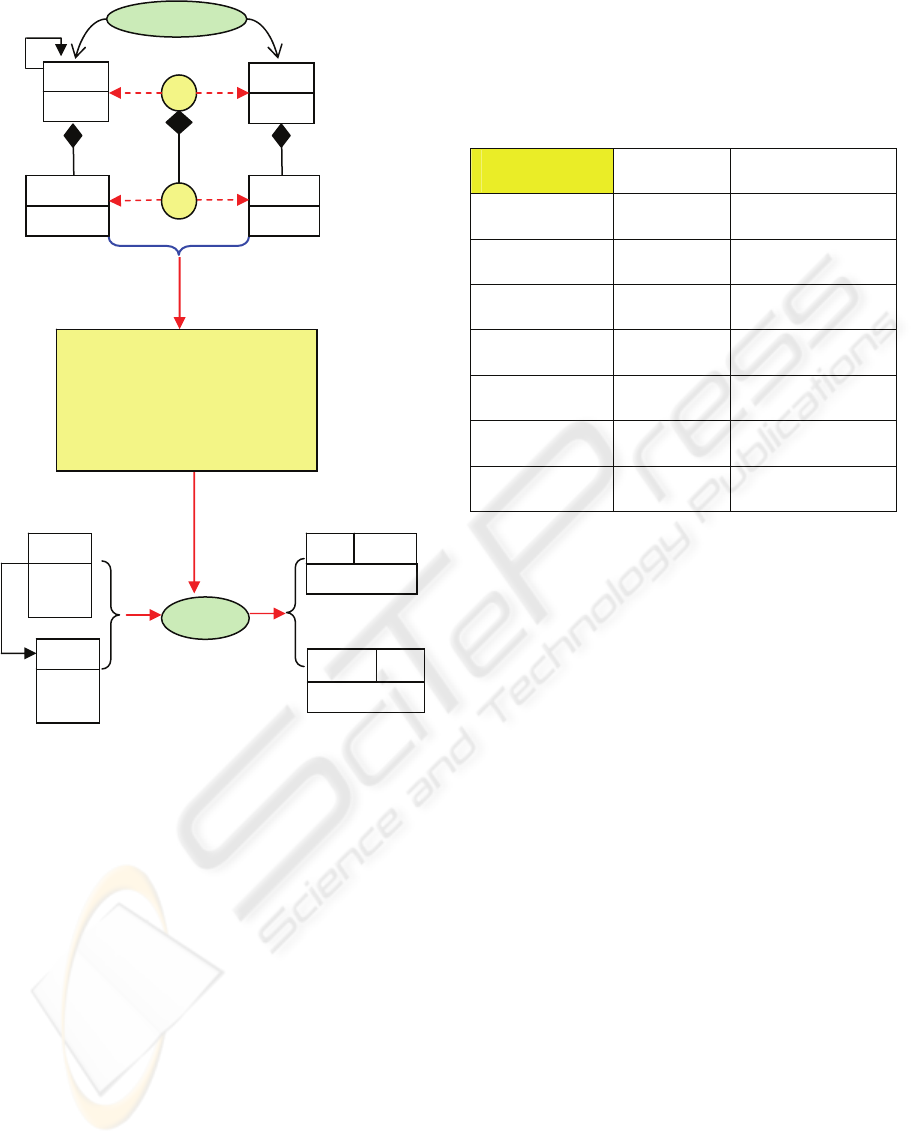

Figure 5 illustrates the whole transformation process

discussed here. This figure presents a simple

example involving the main concepts of matching,

mapping and transformation according to our point

of view. In this example a fragment of a UML

metamodel is matched with a fragment of a

relational database metamodel. The result of this

matching is a mapping model, defined here using a

graphical formalism that we have introduced (Lopes,

2005-1), to specify mappings between elements of

two metamodels, which are MOF compliant. This

graphical formalism is very useful to specify

mappings in a declarative manner and at a high level

of abstraction. However, it is clear that this

formalism is not sufficient to express complex

mappings. Thus, a textual language must sometimes

be used to complete it. OCL (Object Constraint

Language) has been used in several

experimentations of our approach (Lopes, 2005-1).

From a mapping model (validated by an expert), a

transformation program represented by a set of rules

is generated automatically. This program takes a

source UML model and produces an implementation

of this model as a relational database.

TOWARDS A SEMI-AUTOMATIC TRANSFORMATION PROCESS IN MDA - Architecture and Methodology

423

Class

Table

C2T

name column

attribute field

C2T

A2F

Rule C2T {

from Class: UML!Class

to Table: Oracle!Table

(

name Å Class.name

…………………………………………

)

MATCHING

Transformation

generation

name

address

Bank

account

name

Client

name address

name

Execution

Bank

Client

account

Transformation

execution

Figure 5: Transformation Process: from metamodel

matching to model transformation.

5 DISCUSSION

Table 1 resumes the main steps in the process of

transformation focalizing on two important aspects:

how they are achieved (manual or automatic) and

what is responsible for their achievement (expert,

designer, software). Concerning the software aspect,

the transformation process involves three main

programs which are at the heart of the semi-

automatic transformation process:

• Matching program: implements the matching

metamodel and produces a first version of a

mapping model between two metamodels

source and target.

• Generation program: takes a mapping model

validated (updated) by an expert, and generates

automatically a transformation program as a set

of rules.

• Transformation program: takes a source model

defined by a designer and produces an

equivalent target model on a specific platform.

Table 1: Main steps and actors in the semi-automatic

transformation process.

How Who

PIM & PSM

metamodels

manual

(graphical

editor)

expert user

Matching process

automatic

matching program

(expert user)

Validation/update

mappings

manual

(graphical editor)

expert user

Transformation

rules generation

automatic

generation program

(expert user)

PIM model

manual

(graphical

editor)

designer

Transformation

rules execution

automatic

transformation

program

(

designer

)

Final PSM

manual

(textual editor)

designer

6 CONCLUSIONS AND FUTURE

WORK

In this paper, we have presented our approach for a

semi automatic transformation process in MDA

through an architecture and a methodology. We

argue that a semi-automatic transformation process

will be a great challenge in MDA approach as there

is not yet a complete solution that automates the

development of model transformation. A semi-

automatic process will bring many advantages: it

accelerates the development time of transformations;

it reduces the errors that may occur in manual

coding; it increases the quality of final

transformation code. The key principle for this

process is to consider mapping and matching

metamodels as first class entities in MDA. In our

previous work (Lopes, 2006-1; Lopes, 2006-2), we

have proposed a first algorithm for metamodel

matching based on set theory. In future work, we

will study and implement other metamodel matching

algorithms, e.g. algorithms based on machine

learning and heuristics. An evaluation between

different metamodel matching algorithms can help

to capture the fundamental characteristics of each

approach. Thus, a hybrid algorithm can be proposed

as the composition of the best characteristics of each

individual algorithm.

ICEIS 2008 - International Conference on Enterprise Information Systems

424

REFERENCES

Almeida, A.J.P., 2006. Model-driven design of distributed

applications. PhD thesis, University of Twente. ISBN

90-75176-422

Bernstein, P.A, 2003. Applying Model Management to

Classical Meta Data Problems. In CIDR’03,

Proceedings of the Conference on Innovative Data

Systems Research. CIDR.

Bézivin, J., 2005. On the Unification Power of Models. In

Software and Systems Modeling, 4(2):171-188,

Bézivin, J., Dupé, G., Jouault, F., Pitette, G., Rougui, J.E.,

2003. First Experiments with the ATL Model

Transformation Language: Transforming XSLT into

Xquery. In 2nd OOPSLA, Workshop on Generative

Techniques in the context of Model Driven

Architecture.

Bézivin, J., Hammoudi, S., Lopes, D., Jouault, F., 2004.

Applying MDA Approach for Web Service Platform.

In EDOC 2004, 8th IEEE International Enterprise

Distributed Object Computing Conference.

Bézivin J., Heckel, R., 2004. Language Engineering for

Model-driven Software Development. In Dagstuhl

Seminar.

Bézivin, J., Lammel, R., Saraiva, J. Visser, J., 2006.

Model Driven Engineering: An Emerging Technical

Space. In GTTSE 2006, Generative and

Transformational Techniques in Software

Engineering.

Blanc, X., 2005. MDA en action, Ingénierie logicielle

guidée par les modèles, EYROLLES. Paris, 1st edition

Budinsky, F., Steinberg, D., Merks, E. , Ellersick, R.,

Grose, T. J., 2003. Eclipse Modeling Framework: A

Developer’s Guide, Addison-Wesley Pub Co, 1st

édition.

Dimitris, M., Dimitris, P., 2006. A Tool for Semi-

Automated Semantic Schema Mapping: Design and

Implementation. In Caise’06, International Workshop

Data Integration and the Semantic Web.

Dominguez, K., Pérez, P., Mendoza, L., Grimán, A., 2006.

Quality in Development Process for Software

Factories According to ISO 15504 , In CLEI electronic

journal, [http://www.clei.cl, Vol. 9 Num. 1 Pap. 3:

June 2006].

Dou D, McDermott D, and Peishen Qi 2003 Ontology

Translation on the Semantic Web. In Proc. Int'l

Conf. on Ontologies, Databases and Applications of

Semantics (ODBASE2003). LNCS 2888.

Eclipse Tools Project. Eclipse Modeling Framework

(EMF) version 2.0, 2004. Available on

http://www.eclipse.org/emf.

Gavras. A, Belaunde.M, Pires L.F, Almeida.J.P,

"Towards an MDA-based Development Methodology

for Distributed Applications" , Proceedings of the 1st

European Workshop on Model-Driven Architecture

with Emphasis on Industrial Applications (MDA-IA

2004)

Hammoudi, S., Janvier, J., Lopes, D., 2005. Mapping

Versus Transformation in MDA: Generating

Transformation Definition from Mapping

Specification, In VORTE 2005, 9th IEEE International

Enterprise Distributed Object Computing Conference.

Hammoudi, S., Lopes, D., 2005. From Mapping

Specification to Model Transformation in MDA:

Conceptualization and Prototyping. In MDEIS’2005,

First International Workshop.

Jouault, F., 2006. Contribution à l'étude des langages de

transformation de modèles, Ph.D. thesis, University of

Nantes.

Kappel, G., Kargl, H., Kramler, G., Schauerhuber, A.,

Seidel, M., Strommer, M., Wimmer, M., 2007.

Matching Metamodels with Semantic Systems – An

Experience Report. In BTW 2007, Datenbanksysteme

in Business, Technologie und Web.

Kleppe, A., Warmer, J., Bast, W., MDA Explained: The

Model Driven Architecture: Practice and Promise.

Addison-Wesley, 1st édition, August 2003.

Lopes, D., 2005. Study and Applications of the MDA

Approach in Web Service Platforms, Ph.D. thesis

(written in French), University of Nantes.

Lopes, D., Hammoudi, S., Bézivin, S., Jouault, F., 2005.

Generating Transformation Definition from Mapping

Specification : Application to Web Service Platform.

In CAISE'05, Proceedings of the 17

Conference on

Advanced Information Systems Engineering.

Lopes, D., Hammoudi, S., Abdelouahab, Z., Schema

Matching in the context of Model Driven Engineering:

From Theory to Practice. Editores Tarek Sobh and

Khaled Elleithy, Advances and Innovations in Systems,

Computing Sciences and Software Engineering,

Springer, 2006

Lopes, D., Hammoudi, S., De Souza, J., Bontempo, A.,

2006. Metamodel matching : Experiments and

comparison. In ICSEA'06, Proceedings of the

International Conference on Software Engineering

Advances.

OMG, 2001. Model Driven Architecture (MDA)-

document number ormsc/2001-07-01. (2001).

OMG, 2003. UML Profile for Enterprise Distributed

Object Computing Specification. OMG Adopted

Specification ptc/02-02-05.

OMG, 2005. MOF QVT Final Adopted Specification,

OMG/2005-11-01.

OMG, 2007. MDA Specifications. Available in

http://www.omg.org/mda/specs.htm#MDAGuide.

Sun, X. L. and Rose, E.. Automated Schema Matching

Techniques: An Exploratory Study. Research Letters

in the Information

Unified Enterprise Modeling Language (UEML), 2003.

Available on http://www.ueml.org.

TOWARDS A SEMI-AUTOMATIC TRANSFORMATION PROCESS IN MDA - Architecture and Methodology

425
