ARCHCOLLECT

A Tool for WEB Usage Knowledge Acquisition from User’s Interactions

Ahmed Ali Abdalla Esmin

Department of Computer Science (DCC), Federal University of Lavras (UFLA), Brazil

Joubert de Castro Lima, Edgar Toshiro Yano

Instituto Tecnológico de Aeronáutica (ITA), Brazil

Tiago Garcia de Senna Carneiro

Federal University of Ouro Preto (UFOP), Brazil

Keywords: Data acquisition tool, Interactions.

Abstract: This paper presents a low coupled acquisition mechanism focused on users interactions, associated with

semantic data. This tool, named ArchCollect, is used for collecting, transforming, loading and displaying

user interactions. Its architecture is composed by seven components that gather information coming directly

from the user, regardless the user monitored applications. The ArchCollect architecture has a relational

model with capacity for keeping important information for two main areas: the commerce with products or

services, quantities and prices, and applications with process, quantities, prices and employees. The

relational model also added the possibility of obtaining the time spent to serve each user interaction on the

application servers and on the ArchCollect servers. In this architecture, data extraction and analysis are

performed either by internal algorithms, or by decision support tools, such as OLAP, Data Mining and

Statistic.

1 INTRODUCTION

Knowledge acquisition mechanism and tools that

monitor users’ interactions are being actively

developed on the Web. These tools are essential for

Web usage mining projects, either in electronic

commerce and electronic business.

Interaction is a general term used for classifying

specific events that were emitted by users in any sort

of application. These events are classified by clicks

on elements on a page of an application. These

elements are buttons, links and banners, the last one

used particularly for commerce applications.

Especially in (Chen, 1996), (Gomory, 1999),

(Lee, 2000), and (Kimball, 2000) the users

interactions analysis area has been largely studied.

There are also many commercial tools available for

this area such as Andromedia, DoubleClick, Engage

Technologies, IBM Corp´s SurfAid, Marketwave

Corp´s, Media Metrix, net.Genesis´net.Analysis,

NetRating Inc., Straight UP, Oracle 9i Inc.. All these

tools extract the initial data from servers log files,

what influences their portability and increases the

complexity to establish the interaction pattern.

The purpose of this paper is to discuss

ArchCollect internal components that are completely

adjusted to the newest metrics developed by

(Gomory, 1999), (Lee, 2000), and (Kimball, 2000),

have low coupling to the existent application and

represent a complete analysis model.

The internal components communication starts

with the information collected by the user

component, that are inserted by a parser software

into the HTLM, XHTML or XML code of the

existent application, and the information collected

by the collecting component from a user who visits

the application for the first time.

Since the data has been collected, forming the

interaction pattern, this interaction pattern has to be

transformed in a relational model that have

granularity in the order of the users unique

375

Ali Abdalla Esmin A., de Castro Lima J., Toshiro Yano E. and Garcia de Senna Carneiro T. (2008).

ARCHCOLLECT - A Tool for WEB Usage Knowledge Acquisition from User’s Interactions.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - AIDSS, pages 375-380

DOI: 10.5220/0001722003750380

 SciTePress

interactions. The relational model created in the

architecture emphasize purchases, sales,

actualization, business results, modules of the used

systems and users that can be classified in clients or

employees depending on the application that is

going to be monitored. We also aggregate to this

model the response and service time related to each

user interaction on each server (application and

ArchCollect).

The extraction of the stored data, according to

the final pattern of interaction, can be implemented

by OLAP tools, Data Mining, Statistics services, or

by the personalization component, depending on the

application.

The rest of this paper is organized as follows:

Section2 explains, with details, the ArchCollect

architecture components, its low coupling to the

existent application and the relational model

developed for the main areas of the architecture. In

section 3, the related works are emphasized and

compared to the developed architecture. Finally,

Section 4 concludes this paper with some

discussions on the relevant future work.

2 ARCHCOLLECT

ArchCollect components are separated in specific

servers to enable the architecture to have a low

coupling to the existent application and to be

scalable. The components are: user component,

collecting component, transforming component,

loading component, duplication component,

personalization component and visualization

component. Figure 1 shows the architecture with the

specific servers and their respective components.

2.1 User Component

The user component collect the name and the

identifier of the clicked element, the complete

interaction date with year, month, day, hour, minute

and second, the user IP address, the page where the

interaction occurred, the interaction position x and y,

the user operating system, the screen resolution, and

the viewed time. For specific elements called

business elements, that exist in commerce

application on the web, besides this information, the

ArchCollect collects the quantity that was bought,

sold or actualized and the amount in money that was

bought, sold or actualized for each product or

process. All this collected information is stored in a

specific element on each page, typically a hidden

text field, and afterwards re-passed to ArchCollect

server components.

The only ArchCollect architecture’s component

that depends semantically on the existent application

is the user component. This component is inserted

by parser software into the HTML, XHTML or

XML code of the existent application, causing no

changes on its code, besides an increment on the

number of lines of each page of the application. This

mechanism allows more flexibility for the user

component, once they fit perfectly to any application

with no changes in the context, and consequently

with no restructuring of the code at each application.

2.2 Duplication Component

When the user sends a request, a component (ASP,

JSP, etc) in the existent application server is

responsible for emitting a response to this request.

Each request is an interaction, in the ArchCollect

architecture’s point of view. This interaction has to

be received also by the ArchCollect server,

regardless the existent application. To solve this

problem, it’s proposed the duplication component.

This totally independent component operates after

the server that is responsible for collecting all the

interactions of all users. This server which belongs

to the existent application can be a firewall, a load

balancer, for example.

The duplication component starts listening to the

port 80, which has already been defined. Doing this,

all the requests made to the existent application will

also be made to the duplication component.

Since all the requests are obtained, it is necessary

to re-pass them to the collecting component and to

the components of the existent application. We send

an identical request to the existent application and a

modified request to the collecting component. We

analyze the URL sent by the user when carrying out

an interaction, and change the name of the

component written in this URL to the ArchCollect

architecture’s collecting component, named

CollectComp.class and, finally, sent it.

As each server receives a request and each server

sends a response. The ArchCollect architecture’s

server does not send the contents, only the heading

containing the architecture’s cookies. On the other

hand, the existent application’s server sends the

heading and the contents. It gathers both answers in

a unique answer and sends it to the client browser.

ICEIS 2008 - International Conference on Enterprise Information Systems

376

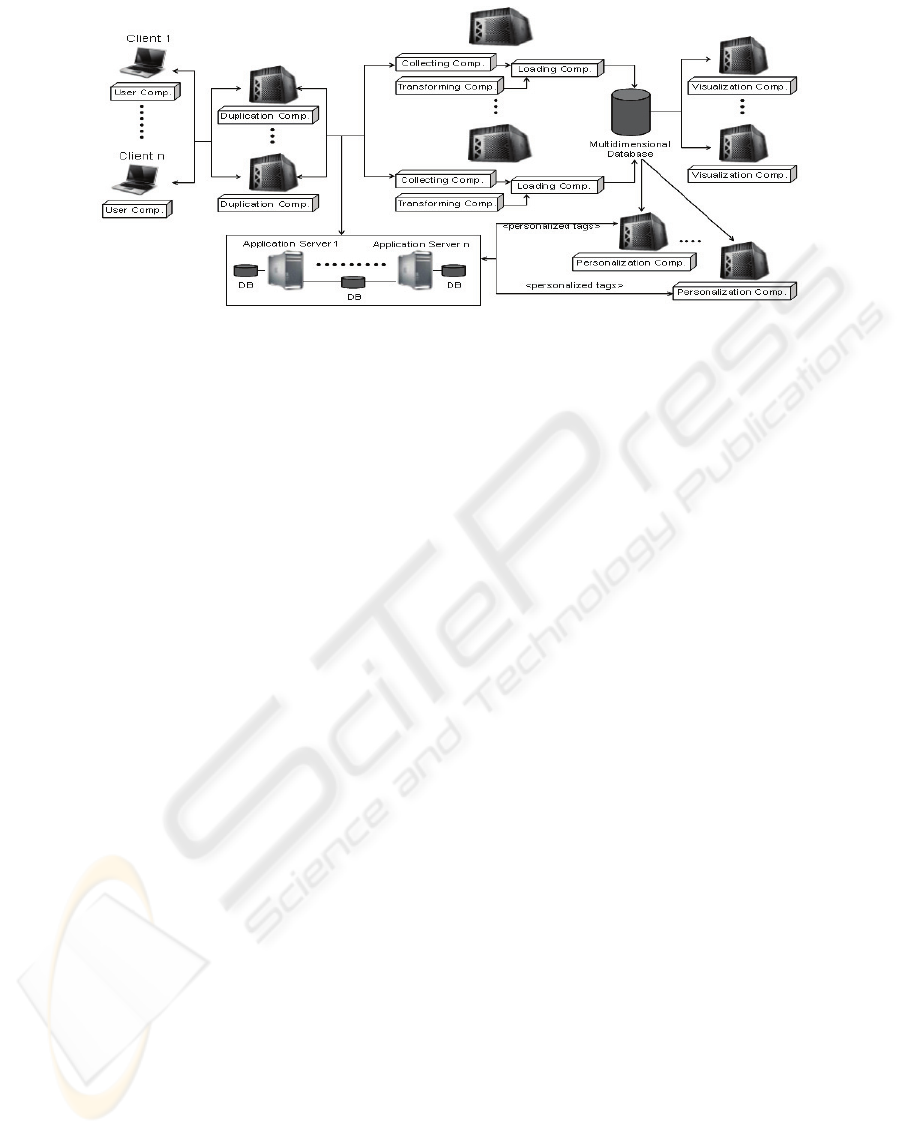

Figure 1: The ArchCollect Components.

2.3 Collecting Component

ArchCollect works with cookies to obtain unique

users identifiers. The architecture adopted two kinds

of cookies: one to identify the user permanence

during a visit called session, and the other to identify

the user in repeated visits, called persistent cookie.

Only for applications where the user can be

anyone, the deadline of persistent cookie is set up in

30 days. For the rest of the applications the deadline

is unlimited. Doing this we assure the host’s

identification. In cases where many users request a

certain application from the same host or one user

requests this certain application from many different

hosts, it’s not able to obtain a precise relation of

identifiers.

After verifying the cookies and attributing or not

these cookies to the users, the collecting component

adds the attributed cookies to the information

received by the user component. In some cases

where the user does not have session cookie, we

attribute a cookie to this user and add an identifier

that characterizes the interaction as the first

interaction of this user. This set of information is

defined as the pattern of ArchCollect architecture’s

interactions.

This interactions pattern has sufficient

information, which adjusts to the metrics developed

by (Gomory, 1999), (Lee, 2000), and (Kimball,

2000) and to propose some questions that have not

been emphasized yet, providing, then, dynamic

content presentation forms to the users and

administrators of an application on the web.

For the applications where the user cannot be

previously identified, this information is obtained

from the collecting component. When verify the

existence of the cookies, in case the user does not

have the persistent cookie, he receives one and extra

information about this user is collected, e.g., the

HTTP heading. This extra information is stored in

the ArchCollect architecture’s multidimensional

model by the loading component. The

multidimensional model and the loading component

are described at the end of this section. For the rest

of the applications the persistent cookies and the

extra information are maintained, since in these

cases the users are previously registered.

2.4 Loading and Transforming

Components

The transforming component is responsible for

identifying unique interactions and the unique

sessions of each user. The transforming component

obtains the unique interactions immediately, since it

follows the interaction pattern. By analyzing the

interaction pattern, it notices the existence of session

identifiers for some interactions that characterize the

beginning and the ending of a session. These

identifiers are responsible for guaranteeing the

entrance and the exit page of each user.

The unique sessions with unique interactions are

stored in the multidimensional model by the loading

component. The main purpose of the loading

component is to obtain the information from

different components, such as transforming,

duplication and collecting component, and stores it

on the multidimensional model.

2.5 Multidimensional Model

The relational model, presented in Figure 2, is the

ArchCollect architecture’s core. It reflects the

ArchCollect architecture’s final pattern of

interactions.

ARCHCOLLECT - A Tool for WEB Usage Knowledge Acquisition from User’s Interactions

377

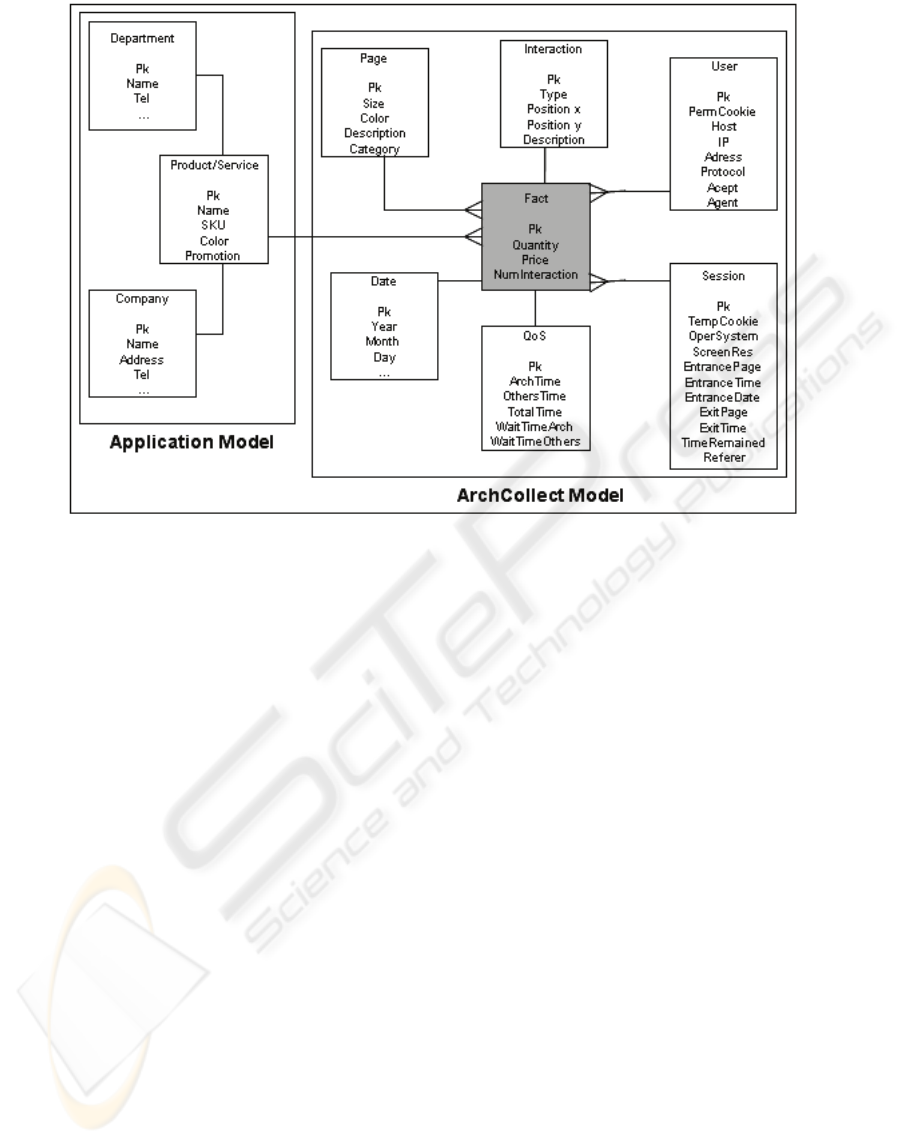

Figure 2. The ArchCollect Multidimensional Model.

Questions, illustrated by (Gomory, 1999) are

emphasized, such as business results and purchases.

Also, a new analyses focus can be obtained due to

the collection of the times related to each interaction

executed by the existent application’s users.

Information about costs together with information

about elapsed times gives us a sophisticated

multidimensional model that had not been proposed

yet.

In this model, two types of applications are

proposed. One type reflects e-commerce and e-

business applications. In this model, features such as

purchases, business results and the elapsed times

related to each interaction are emphasized. For the

other type of corporate interactions, it is relevant to

know features such as process, sales, purchases, data

updates and elapsed times related to each

interaction. So, the architecture is adequate to

innumerous contexts. For the general context of

interactions it is relevant to know information such

as date, user, page, page view, interaction positions,

session, operate system, screen resolution, and,

finally, the interaction itself according to the model

proposed by (Gomory, 1999), (Lee, 2000), and

(Kimball, 2000).

2.6 Visualization Component

Since the interactions are stored in the

multidimensional model, the visualization

component is used to visualize the answers to the

following 30 questions, presented in Figure 3. These

questions are divided in two parts: the first is

composed by the questions from 1 to 15, that were

formulated at (Gomory, 1999), (Lee, 2000), and

(Kimball, 2000). The second part is proposed in this

work.

2.7 Personalization Component

Web commerce applications deal with anonymous

users who arrive, emit interactions and leave the

application. Important information with granularity

in the order of the users interactions are obtained by

the components that were described until now.

This strategic and behavioral information has

been passed online to the application managers, and

then re-passed to the users through modifications in

the application contents. Also, in order to re-pass

these modifications online to the commerce

application user, it is proposed the personalization

component.

The information defined in the ArchCollect

multidimensional model is used for the

establishment of the user’s profile. With this profile,

the set of products, services or process that will

compose the next page to be presented to the user is

defined. When the monitored application needs to

send a new page to the user, it may request the

ICEIS 2008 - International Conference on Enterprise Information Systems

378

personalization component for its content in terms of

product’s or service’s advertisements, or it may ask

what will be the better page layout for this user.

The personalization component task is to

generate, in background and periodically, a list of

products, services or processes, either associated to a

purchase or just visited by the user. This list

corresponds to the user profile, i.e., the items that

can be used to generate the next pages to be

presented.

3 RELATED WORKS

Some works were proposed to deal with data

extraction under many different perspectives, in

other words, to illustrate analyses offered to

administrators (Sites Modification, Systems

Improvement, Business Intelligence) and offered to

the application users (personalization)

(Spiliopoulou, 1998), (Wu, 1998), (Srivastava,

2000), (Shahabi, 2001).

A procedure for analyzing and describing the

different works is using the three more important

parameters proposed in (Srivastava, 2000).

1. Data source: data for analysis may come from

many different sources such as the server, the client

or the proxy. Projects such as WebSifit, SpeedTracer

and WUM obtain their data from the servers. The

Shahabi project obtains its data directly from the

client and the ECI architecture analyzes data coming

from both sources, in other words, the client and the

servers.

2. Usage data: which categories have the data

obtained for analysis? Projects such as the WebSifit

use data called usage data, content data and structure

data. The SpeedTracer project uses only usage data.

The Shahabi project, as well as the ECI architecture

and the WUM project, use usage data and structure

data.

Table 1 summarizes each work’s characteristics

using some of criteria proposed by (Srivastava,

2000).

Project

Data Source

Usage Data

Coupling

WebSifit Web server

Usage/Content/

Structure

High

ECI IBM

Web server

/user

Usage/Structure High

SpeedTrace

Web server Usage/Structure High

WUM

Web server Usage/Structure High

Shahabi User Usage/Structure Medium

Archcollect User Usage/Structure Low

Figure 3. Questions to be answered by the Visualization Component.

ARCHCOLLECT - A Tool for WEB Usage Knowledge Acquisition from User’s Interactions

379

4 CONCLUSIONS AND FUTURE

WORKS

This paper presented architecture for collecting and

analyzing user’s interactions. The partial

independence of the existent application showed us a

model that is easy to be comprehended and

implemented, called ArchCollect. Components with

specific functions allowed the creation of a tool that

keeps sufficient information for its purpose by the

final pattern of interaction that was established in the

architecture. All this was obtained by a single data

source which is the application user.

The architecture has already been implemented

and tested on (Lima, 2003), (Lima, 2004). The

presented work can be extended to improve the

understanding of the collected interactions. The

personalization component is just one concept for

the understanding of the collected interactions. Web

usage mining algorithms or communities creation

algorithms will be able to bring a huge contribution

for the understanding of the interactions, and then

providing a more sophisticated user’s behavior

profile. When establishing bigger sets called

communities, we improve crucial questions such as

a better performance in the obtainment of the

profiles.

This version of ArchCollect collects the waiting

time, the service time of all the interactions that are

analyzed by the existent applications and by the

ArchCollect architecture. These times show us how

much it costs to carry out a certain service or process

to the user. The length of time that is necessary for

the administrator to analyze this interaction is still

unknown, this information is very important to any

web business. An extension of the architecture’s

internal analysis would be the development of time

collecting in all components, allowing us to know

which component, specifically, behaviors as the

bottleneck of the complete architecture in an

analysis moment previously specified.

ACKNOWLEDGEMENTS

To FAPEMIG and CNPq for supporting this work.

REFERENCES

Andromedia Inc´s Aria, http://www.andromedia.com

Chen M.S., Park J.S., Yu P.S. Data Mining for

Transversal Patterns in a Web Environment. Proc. of

16th International Conference on Distributed

Computing Systems, 1996.

DoubleClick Inc, http://www.doubleclick.com

Engage Technologies Inc, ttp://engagetechnologies.com

Gomory S., Hoch R., Lee J., Poldlaseck M., Schonberg E.

Visualization and Analysis of Clickstream Data of

Online Stores for Understanding Web Mechandising.

IBM Watson Research Center, 1999.

Gomory S., Hoch R., Lee J., Poldlaseck M., Schonberg E.

Analysis and Visualization of Metrics for Online

Merchandising.IBM Watson Research Center, 1999.

Gomory S., Hoch R., Lee J., Poldlaseck M., Schonberg E.

Ecommerce Intelligence: Measuring, Analyzing, and

Reporting on Merchandising Effectiveness of Online

Stores. IBM Watson Research Center, 1999.

IBM Corp´s SurfAid, http://surfaid.dfw.ibm.com

Kimball Ralph, Merz Richard, Data webhouse tool kit,

2000.

Lee J., Podlaseck M., Schonberg E., Hoch R., and Gomory

S. Understanding Merchandising Effectiveness of

Online Stores, published in the International Journal of

Electronic Commerce and Business Media, January,

2000.

Lima J.C., Carneiro T.G.S., Pagliares R.M., et. Al.

ArchCollect: A set of Components directed towards

web users’ interaction. ICEIS 2003: 308-316.

Lima J.C., Esmin A.A.A., et. Al. ArchCollect Front-End:

A Web Usage Data Mining Knowledge Acquisition

Mechanism Focused on Static or Dynamic Contenting

Applications. ICEIS 2004: 258-262.

Marketwave Corp´s Hit List, http://www.marketwave.com

Media Metrix, http://www.mediametrix.com

net.Genesis´net.Analysis, http://www.netgenesis.com

NetRating Inc., http://www.netratings.com

Oracle 9i Inc., http://oracle.com/oracle9i

Rabenhorst, D. Interactive Exploration of

Multidimensional Data, Proceedings of The SPIE

Symposium on Electronic Imaging. 1994, pp 277-286.

Shahabi C., F. Banaei-Kashani, J. Faruque. 2001. A

reliable, eficient, and scalable system for web usage

data acquisition. WebKDD’01 Workshop, ACM-

SIGKDD 2001, San Francisco, CA.

Spiliopoulou Myra and Faukstich Lukas C. WUM: A web

utlilization miner, EDBT Workshop WebDB98,

Valencia, Spain,1998.

Srivastava Jaideep, Cooley Robert, Deshpande Mukund,

Tan Pang-Ning. Web usage minig: Discovery and

applications of usage patterns from web data.

SIGKDD, January, 2000.

Straight UP!, http://www.straightup.com

Wu Kun-Lung, Yu Philip S, and Ballman Allen.

SpeedTracer: A web usage mining and analysis tool.

IBM Systems Journal,37(1), 1998.

Youness Sakhr. Professional Data Warehousing with SQL

Server7.0 and OLAP Services. 2000

ICEIS 2008 - International Conference on Enterprise Information Systems

380
