CONCEPTUAL UNIVERSAL DATABASE LANGUAGE (CUDL)

AND ENTERPRISE MEDICAL INFORMATION SYSTEMS

Nikitas N. Karanikolas, Christos Skourlas

Technological Educational Institution of Athens

Ag. Spyridonos Str., 12210, Athens, Greece

Maria Nitsiou, Emmanuel J. Yannakoudakis

Athens University of Economics and Business

76, Patission Str., 10434, Athens, Greece

Keywords: Hospital Information Systems, Electronic Patient Records, Dynamic databases’ schema evolution,

correlating heterogeneous data.

Abstract: Today, there is an increased trend for Electronic Patient Records (EPR) incorporating and correlating

heterogeneous information imported from various sources and from different medical applications. New

possibilities are also given by the rapid technological progress and the development of independent software

applications and tools that handle multimedia medical data. Moreover, users (e.g. doctors, nurses) often

prefer to use general purpose software (e.g. word processors) and specific applications and tools for

organizing and accessing medical data and they only partially use Hospital Information Systems (HIS).

Therefore, it is necessary for the HIS to provide the capability for encapsulating in their EPR externally

created information. Dynamic evolution of the HIS must also be supported by flexible Database schemata.

In this paper, we conclude that modern HIS should be designed and implemented using database

management systems offering new enhanced database models and manipulation languages. Eventually, we

describe and discuss how to use the Frame Database Model (FDB) and the new Conceptual Universal

Database Language (CUDL) for supporting dynamic schema evolution and covering the needs of the users.

1 INTRODUCTION AND

PROBLEM’S OUTLINE

Recent years information related to patients

increases continuously and the quality of offered

services in the modern hospitals’ environment is

susceptible to drastic improvements following the

development of science and technology. This fact

leads to the adoption and application of information

technology based solutions in order to record and

process effectively data that emanates from the

medical as well as from the administrative-economic

operations of the nursing organism. The

improvement of provided services of care and the

tracking of cost constitute two of the most important

reasons for the import and exploitation of

information technology in the hospital organism.

The Hospital Information Systems (HIS) are

constituted by several applications and

interconnected sub systems. The Information that a

hospital should have in its disposal, with regard to

the medical incidents, is based on an enormous size

of data that should be combined suitably.

Karanikolas and Skourlas (Karanikolas et al,

2000, Karanikolas et al, 2002) have studied for five

years (1997-2001) the operation of Information

Systems at University Hospitals in Greece and their

conclusions can be summarized as follows:

Certain divisions of the Hospital have purchased

and installed in different time periods distinct,

operational, "legacy" systems covering their needs,

e.g. a Hospital Information System (HIS) and a

separate Laboratory Information System (LIS).

There are various problems of interconnection

between the different systems and their integration,

for value added services, is a very complicated task.

Clinical departments have difficulties using the

362

N. Karanikolas N., Skourlas C., Nitsiou M. and J. Yannakoudakis E. (2008).

CONCEPTUAL UNIVERSAL DATABASE LANGUAGE (CUDL) AND ENTERPRISE MEDICAL INFORMATION SYSTEMS.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - DISI, pages 362-367

DOI: 10.5220/0001724703620367

 SciTePress

complex and text only based electronic patient

record of the legacy systems. Hospital units also

have to operate and maintain local sources of

information apart from the database(s) of the HIS.

Doctors have only partially used the existing

complicated HIS all these years. They prefer to use

general purpose software for writing diagnosis notes

and discharge letters, and they also have a rigid

trend for storing, retrieving and handling medical

images from various sources, e.g. MRI, CT and

Ultrasound images.

Based on the above conclusions, in this paper we

propose the exploitation of a new database model

(the Frame Data Base model - FDB), a new database

language (Conceptual Universal Database Language

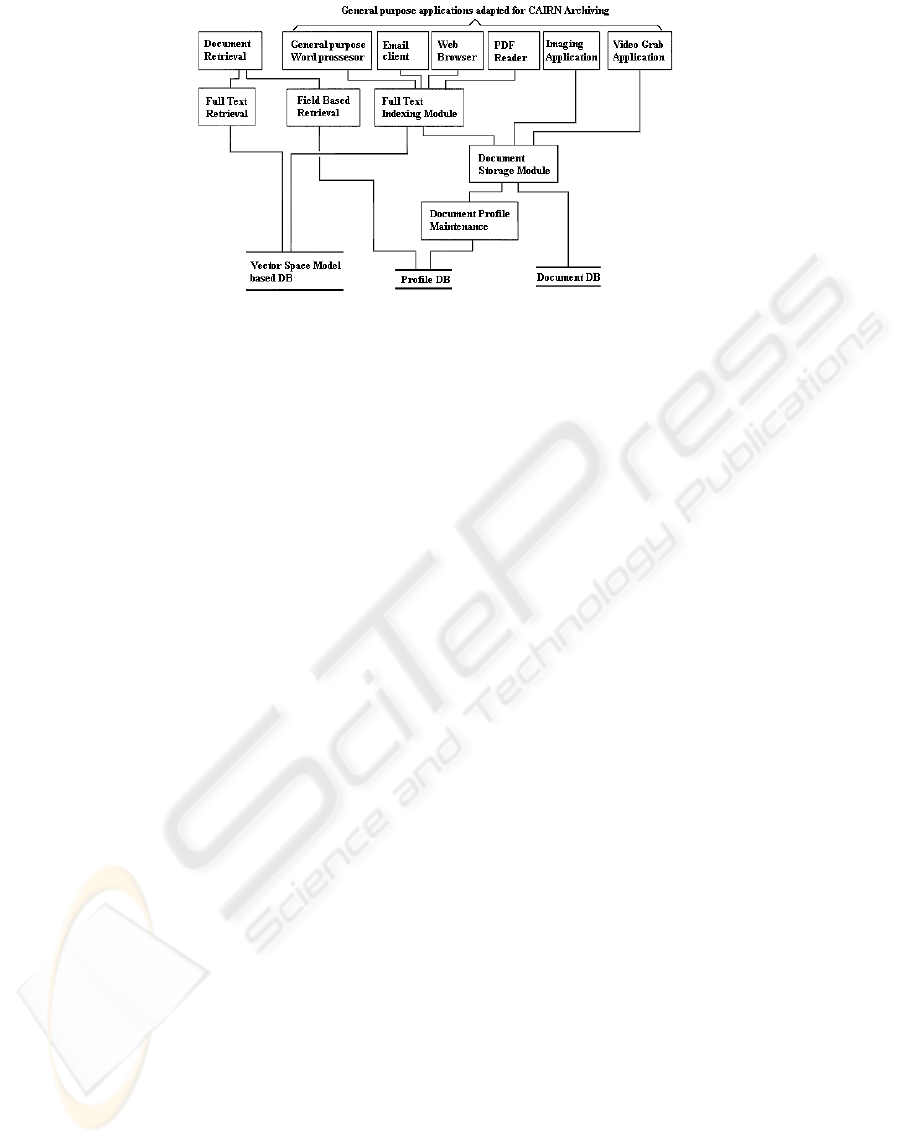

- CUDL) and the CAIRN architecture (Karanikolas

et al, 2000, Karanikolas, 2007). We use them for the

development of Enterprise Medical Information

Systems (EMIS) that integrate selective data from

legacy systems, hierarchically structured data and

further information (e.g. external files or other

resources). Such information could include medical

images and notes related to the diagnosis and the

therapy for specific cases, lists of experts etc. The

main advantage of this approach is that the doctors

continue to use their favourite software (e.g. word

processor for their notes) and store various

documents and statistics in their favourite system.

Hence, they contribute information in the enterprise

system using a document management module (with

simple interface) which interferes automatically.

Hence, doctors can work their way and the medical

files they collect and produce are correlated and

eventually form personalized electronic patients’

files. Moreover, we propose the integration, into the

enterprise system, of a text data-mining module

(Karanikolas et al, 2005, Hearst, 1999). Such a

module can offer great assistance to the doctor. For

example, text mining can permit the automatic or

semi-automatic selection of ICD Diagnosis codes

from textual data (specifically from patient

discharge letters coming from either external files or

legacy systems).

2 MATERIALS AND METHODS

2.1 The Frame Database Model

Yannakoudakis et al, 1999, investigated dynamically

evolving database environments and corresponding

schemata, allowing storage and manipulation of

variable length data, a variable number of fields per

record, variable length records, fields that accept

repetitions, composite fields (attributes having

subfields) and manipulation of authority records. A

new framework called FDB - Frame DataBase - was

proposed and discussed for the definition of a

unified schema that eliminates completely the need

for reorganization at both logical and internal levels.

In the FDB schema a subset of data functions as a

descriptor (metadata) to determine the structure and

the way of handling of all the data and this property

makes easy the schema evolution.

Another approach for the support of dynamic

database schema evolution, for medical data is the

Entity-Attribute-Value (EAV) model (Anhøj, 2003).

There are three variations of the EAV model. The

latest (and the most mature) one (EAV/CR)

organizes the entities into classes and consequently

each class hosts the local and also the inherited

attributes. The attributes of a class’s instance can

have more than one value (repetitions), however

these repetitions are obligatory characterized by

different time stamps. Moreover, there is no clear

way for defining composite attributes as FDB does.

2.2 The CUDL Language

The FDB framework is complicated and the

management and operation of it is difficult,

laborious and time-consuming. It requires from the

user a very good acquaintance of this framework and

the structures and organisation of it (metadata and

data). An indicative example of the FDB’s

complication is the need to transform (pivot) FDB

data for displaying them in a more convenient

layout. The CUDL language (Karanikolas et al,

2007) is tailored to undertake the management of the

complicated structures of the FDB model. By the use

of CUDL, access in the information of an FDB

application becomes very simple with the use of

particularly simple statements. End users conceive

the data of the FDB system via CUDL as an

extension of the relational model in the sense of

organizing data into tables. Users can define and

manipulate data organized in the form of tables

(entities in the FDB model), rows (frames in the

FDB model) and columns (tags in the FDB model).

The extensions refer to the possibility that each field

can have multiple values, or a cell can be a list of

values. Also a cell in CUDL can have multiple

subfields and a cell can also entertain a whole table.

To our knowledge, there is no language defined for

the EAV model, to simplify its usage.

CONCEPTUAL UNIVERSAL DATABASE LANGUAGE (CUDL) AND ENTERPRISE MEDICAL INFORMATION

SYSTEMS

363

2.3 Method of Solving

Documents stored into local databases will not

simply form a flat collection of unrelated

documents. As an example, a patient can have more

than one episode in different periods of time. It is

obvious that various documents are related to the

patient’s episodes, incidents, examinations, etc.

Thus, there is a need to group all these related

documents in a hierarchical tree structure. The

system has to implement a tree structure of

categories where each level has a different number

of fields that characterize the category. The fields

that characterize the first hierarchy level can be

demographic elements of patients while the fields

that characterize the second hierarchy level can be

elements that describe a specific episode (e.g.

incident, admission date, discharge date, final

diagnosis and so on). The leaves (documents) in this

hierarchy can also be characterized by a number of

fields. This set of fields forms a (document) profile.

Document Management and retrieval can be

conducting by giving values and constraints for the

various fields of the document. A feature of interest

is the support of both multiple-value (multi-row) and

single-value fields. Data types supported by the

system can include integer and real numbers, dates,

strings, lookup fields and multiple attribute (or

multi-column) fields. The combination of a multiple

attribute field that accepts multiple values derives

the ability to use two-dimensional tables in the

position of a single field. It must be possible to store

structured documents (e.g. PDF and XML

documents), other documents downloaded from the

Internet (HTML documents), etc.

These capabilities of FDB model and CUDL

language allow us to easily design and implement

hierarchically structured medical data, allowing also

support for future schema evolution. They also give

us the opportunity to design and implement the

integration structures for the correlation of

heterogeneous data (for importing data either from

“legacy” systems or from external files and other

resources).

3 STRUCTURING

HIERARCHICAL MEDICAL

DATA WITH THE CUDL

LANGUAGE

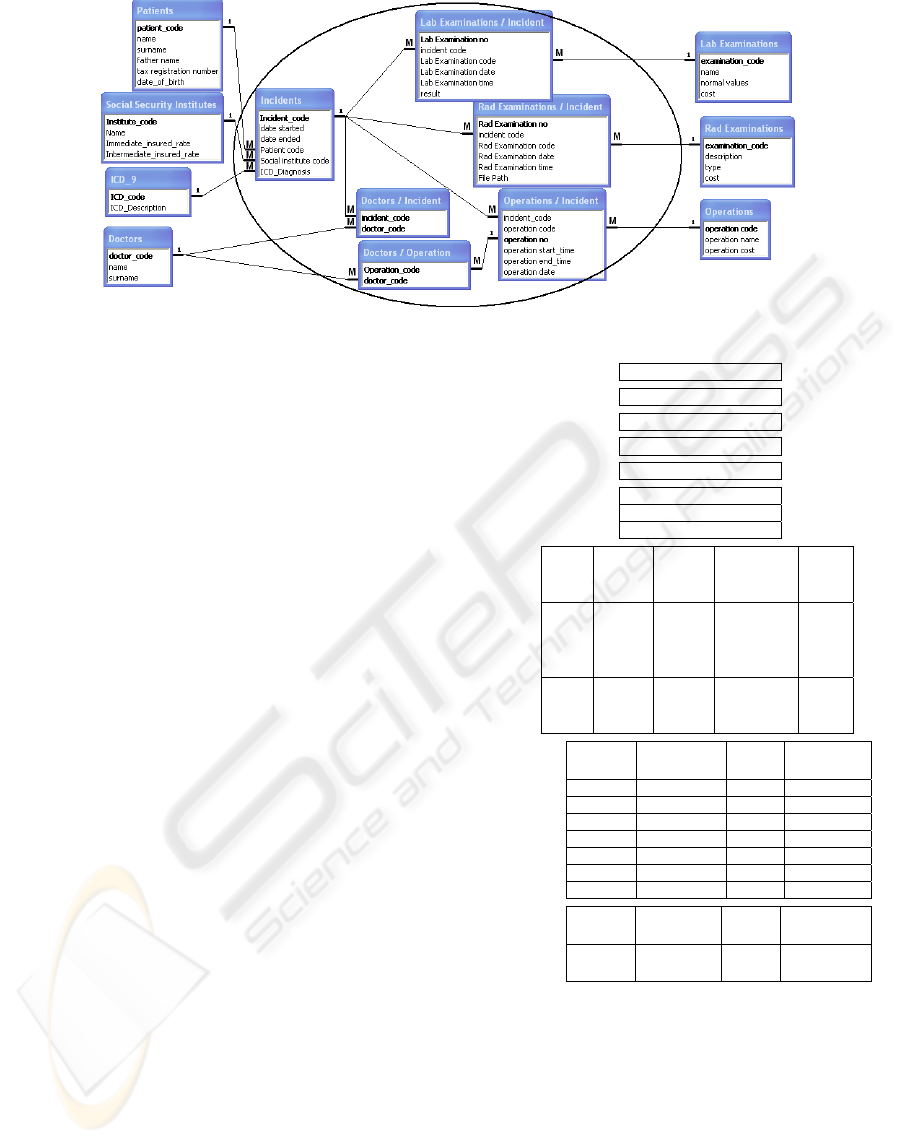

In this section we focus on a Hospital Information

System in order to clarify the concepts described in

the previous section. Information of interest could be

related to episodes or incidents (admission etc.) of

the patient to the hospital. For example, in each one

of the incidents the patient may need the care of

various doctors, and he may undergo some

operations. Certain physicians can participate in the

operations and certain (the same or others) attendant

physicians treat the patient. During the incident, the

patient may undergo Laboratorial or Radiological

Examinations on the same day in different hours or

in different days. In consequence the data we want

the HIS to hold for the various episodes could be the

following: patient’s code, social security institution

related information (e.g. code, name, rates for the

insured patients), data related to each incident of the

patient (e.g. code, admission date, discharge date),

data related to the doctors involved (e.g. attendant

physicians, surgeons), data for each operation that

took place and the description as well as the results

of the laboratorial examinations (e.g. laboratory,

test, date, results) during the incident. For each

patient we are also interested to keep demographic

data.

Figure 1 illustrates a part of the simplified

relational database schema of the integrated HIS

comprising of seven discrete objects (entities):

Patients, Doctors, Social Security Institutes,

Laboratorial Examinations (test), Radiological

Examinations (MRI, CT, ECG, etc), Diagnoses and

Operations. Diamonds (acting as relationships

between entities in the case of the well-known

Enhanced / Entity - Relationship model (Badia,

2004) are depicted as objects: Incidents, Lab

Examinations / Incident, Rad Examinations /

Incident, Doctors / Incident, Operations / Incident,

Doctors / Operation).

The FDB model is more compact and simpler.

As we can see in the examples of the following

subsection the same seven discrete entities are

involved but the model comprises by only one object

describing all the relationships between the entities.

Therefore, the CUDL language permits the

definition of more sophisticated relationships

(sophisticated diamonds or CUDL diamonds). In our

example, the whole set of the six relationships (see

the circle in figure 1) is replaced by a single

sophisticated relationship (a single CUDL diamond).

The rationale for this fact is that the underlying

(FDB) model can offer the possibility of having

repeatable values, sub-fields and a whole table in

place of a field (tag, in our terminology). Therefore,

we can easily include the attendant physicians, all

the laboratorial and radiological examinations that

took place in an incident, all the doctors that

ICEIS 2008 - International Conference on Enterprise Information Systems

364

Figure 1: A part of the simplified relational database schema.

participated in each operation, etc. In order to create

the schema of the FDB database, the designer

provides CUDL language statements and the

metadata of the schema are updated. The following

is an excerpt of the CUDL data definition statements

used to create an FDB schema compatible with the

above relational schema:

# Add tag_attributes entity =

‘Incident’ title = ‘Laboratorial

Examinations’ repetition = ‘R’

datatype = ‘compo’

# Add subfield_attributes entity =

‘Incident’ tag = ‘Laboratorial

Examinations’ title = ‘LE code’

datatype = ‘char’ length = ‘5’

# Add subfield_attributes entity =

‘Incident’ tag = ‘Laboratorial

Examinations’ title = ‘LE date’

datatype = ‘date’

# Add subfield_attributes entity =

‘Incident’ tag = ‘Laboratorial

Examinations’ title = ‘LE time’

datatype = ‘time’

# Add subfield_attributes entity =

‘Incident’ tag = ‘Laboratorial

Examinations’ title = ‘LE result’

datatype = ‘char’ length = ‘15’

3.1 Using CUDL

As we see in the Figure 2, users conceive the

Incident data in the following way. Each record

(frame object in the FDB terminology) of the

incident diamond combines simple tags (incident

code, dates, patient code, social security number,

ICD diagnosis) and four lists: 1) doctors treating the

patient, 2) a whole table storing data related to the

operations that the patient undergoes in the incident,

3) a table of the laboratory examinations done and 4)

a table of radiological examinations. It is worth

Incident code S001

Date started 13/5/2007

Date ended 20/5/2007

Patient code Α001

Social institute code Τ001

Incident doctors Ι001

Ι002

Ι079

Incident

operations

code

time

started

time

ended Op date

doctor

Ε002 13:35 15:05 14/5/2007 Ι001

Ι005

I100

I065

Ε015 12:00 13:00 16/5/2007 Ι012

I100

I032

Laboratorial

Examinations

code LE date

time LE result

UREA 15/5/2007 10:00 32

4 m

/dl

UREA 15/5/2007 14:30 32

5 m

/dl

UREA 16/5/2007 08:00 31

6 m

/dl

CREA 15/5/2007 10:00 1

17 m

/dl

CREA 16/5/2007 08:00 1

08 m

/dl

PROT 15/5/2007 10:00 7

/dl

PROT 16/5/2007 08:00 6

/dl

Radiological

Examinations

code RE date

time File Path

U/S

Kidney 16/5/2007 12:00

\\FS1\RIS\

Uaz34.tif

Figure 2: An Incident frame object.

noticing that in the case of the operation with code

Ε002 we have a list of the four doctors participating

in the operation.

The way the users conceive the data is combined

with the CUDL language capabilities for easy but

powerful retrieval. An indicative CUDL retrieval

statement could be:

CONCEPTUAL UNIVERSAL DATABASE LANGUAGE (CUDL) AND ENTERPRISE MEDICAL INFORMATION

SYSTEMS

365

Figure 3: The CAIRN architecture.

# Find data when entity = ‘Incidents’

and subfield = ‘LE date’ restr data

= ‘16/5/2007’ hide and subfield =

‘LE code’ and subfield = ‘LE result’

and tag = ‘Incident code’ restr data

= ‘S001’

With this statement, we search for an incident with

incident code ‘S001’ and want to see all the data

concerning the laboratorial examinations that took

place on May 16

, 2007. By using the word ‘hide’

we declare that we do not want to include in the

results the examination date.

4 THE CUDL LANGUAGE AND

THE INTEGRATION OF

LEGACY MEDICAL DATA

There is a need for digital asset management,

otherwise for designing and implementing

documentation tools capable for the collection,

organization, administration and retrieval of

unstructured and semi-structured information

imported from various sources (North Carolina,

2006). Several commercial applications and tools

(e.g. NEXTPAGE, HYPERION and AUTONOMY)

exist today that incorporate some of the above

mentioned capabilities. Karanikolas, 2007, studied

and captured user requirements for special purpose

Information Retrieval and Documentation tools.

Such Computer Assisted Information Resources

Navigation (CAIRN) tools are capable for the

collection, organization and administration of

unstructured and semi-structured medical

information imported from various sources. The

architecture of CAIRN system incorporates all the

required modules and the way that these modules are

related.

In the CAIRN architecture (see Figure 3), a

module (named “Document Profile Maintenance”

module) provides a graphical user interface and

users can fill the values of documents’ fields.

It is interesting that each field of a document’s

profile is able to hold more than one value and that

each value can be composed of one or more

attributes. Therefore, a field can have a single value,

a list of values or a table of values. In the latter case

the rows of the table represent the multiple values

and the columns represent the attributes of each

value (row).

FDB and CUDL provide us the capability to

define all needed database structures for the

Document Profile Maintenance module in a single

CUDL diamond (a single object implementing all

the required relationships). As we can see in figure

4, this object can include the following: file type,

document type, relevant persons, incident code,

clinical department, date, etc. The file type refers to

the file type or the external resource and it can be

tiff, jpeg, doc, rtf, xls, avi, mpeg, pdf, blob, dicom,

etc. The document type refers to the content type of

a document and it can be Kidney U/S, Thyroid U/S,

…, Brain CT, Kidney CT, …, ECG, patient

discharge letter, operation minutes, laboratorial

examination results, video recording of operation,

etc. The relevant persons can have multiple values

and each one of these values can have two or more

attributes (subfields). For example, in case that

document type is a patient discharge letter the

“relevant persons” field hosts the names of the

treating physicians and their roles (head doctor,

assistant, etc). In the case that document type is a

Brain CT the “relevant persons” field hosts the

names of the involved persons and their roles (CT

operator, the diagnosis provider (doctor), etc). There

are also other tags (incident code, clinical

department, date).

ICEIS 2008 - International Conference on Enterprise Information Systems

366

In the Figure 4 we can see how users conceive

the “legacy” data and the data (documents) imported

from external resources or applications.

file t

e doc

document type patient discharge letter

relevant persons

Person id Role

I001 Head of 2nd Sur

ical de

I002 Res

onsible

sician

I079 Assistant

(

Trainee

)

I082 Assistant

(

Trainee

)

incident code S001

clinical department 2nd Surgical dept.

Date 20/5/2007

Figure 4: A frame object imported from a “legacy”

system.

5 CONCLUSIONS

Eventually, we conclude that the proposed FDB

model offers innovative and useful design

capabilities to Information System developers,

giving them the ability to design and implement

medical databases with reduced need for new

entities and interconnections among them. It also

eliminates the need for reorganisation at both logical

and internal levels. Therefore, designers can build

databases without having to worry in the case that

the users’ requirements for the system and the

databases will change. The use of CUDL easily

solves the problem of creating enterprise systems

capable for handling hierarchical structured medical

data and also supporting dynamic evolution. CUDL

also offers the possibility to integrate the enterprise

information system and heterogeneous data imported

from “legacy” and independent, external systems.

We must mention that the solution of such

integration problems is very difficult when

traditional Database Management Systems are used.

REFERENCES

Anhøj, J., 2003. Generic Design of Web-Based Clinical

Databases, Journal of Medical Internet Research, Vol.

5, No 4 http://www.jmir.org/2003/4/e27/

Badia, A., 2004. Articles, Entity-Relationship modeling

revisited, ACM SIGMOD Record, Volume 33, Issue 1

Hearst, M.A., 1999. Untangling Text Data Mining, In

ACL'99, 37th Annual Meeting of the Association for

Computational Linguistics

Karanikolas, N.N., and Skourlas, C., 2000. Computer

Assisted Information Resources Navigation, Medical

Informatics and the Internet in Medicine, volume 25,

No 2

Karanikolas, N.N., Skourlas, C., 2002. Automatic

Diagnosis Classification of Patient Discharge Letters.

In MIE’2002, 23rd International Congress of the

European Federation for Medical Informatics,

Budapest, Hungary

Karanikolas, N.N., Skourlas, C., 2005. Naive Rule

Induction for Text Classification based on Key-

Phrases. Proceedings of the 6

International

Conference on Data Mining, Text Mining and their

Business Applications, Skiathos, Greece. WIT

Transactions on Information and Communication

Technologies, volume 35, Data Mining VI: Data

Mining, Text Mining and their Business Applications,

WIT Press.

Karanikolas, N.N., 2007. Low cost, cross-language and

cross-platform Information Retrieval and

Documentation tools. Computing and Information

Technology (CIT) Journal, vol. 15, No 1,

http://cit.zesoi.fer.hr/downloadPaper.php?paper=869

Karanikolas, N.N., Nitsiou, M., Yannakoudakis, E.J.,

Skourlas, C., 2007. CUDL language semantics, liven

up the FDB data model, In ADBIS 2007, Eleventh

East-European Conference on Advances in Databases

and Information Systems, Varna, Bulgaria,

http://www.adbis.org/docs/lp/1.pdf

North Carolina State University, 2006. Digital Asset

Management Task Force, Report and

Recommendations,

http://litre.ncsu.edu/dfiles/DAMTF.pdf

Yannakoudakis, E.J., Tsionos, C.X., Kapetis, C.A., 1999.

A new framework for dynamically evolving database

environments. Journal of Documentation, Vol. 55, No.

2, 144-158.

CONCEPTUAL UNIVERSAL DATABASE LANGUAGE (CUDL) AND ENTERPRISE MEDICAL INFORMATION

SYSTEMS

367
