Reference Architecture for Event-Driven RFID

Applications

Jürgen Dunkel and Ralf Bruns

Hannover University of Applied Sciences and Arts, Department of Computer Science

Ricklinger Stadtweg 120, 30459 Hannover, Germany

Abstract. RFID technology is usually not well integrated with business proc-

esses and backend enterprise information systems. Current enterprise informa-

tion systems cannot deal with high volume of events and their complex de-

pendencies. In this paper we propose a reference architecture for event-driven

RFID applications. The key concept of the approach is complex event

processing as the model for processing and managing of event-driven informa-

tion systems. In order to prove the practical usefulness of the reference archi-

tecture we present a case study for tracking samples in large research laborato-

ries using RFID.

1 Introduction

Radio Frequency Identification (RFID) has established itself as a significant technol-

ogy in the automation of business processes. In recent years, RFID technology has

been applied to a wide range of application areas such as supply chain management,

health services, transportation, environmental systems [5].

One major obstacle for the success of RFID systems is how to process and manage

RFID data and integrate it to drive the business processes. Current enterprise informa-

tion systems cannot deal with events in order to drive the business processes and,

consequently, are not sufficient for RFID-based applications. Due to the high volume

of events and their complex dependencies it is not possible to have a fixed/predefined

process flow on the business level. In recent years, event-driven architectures (EDA)

have been proposed as a new architectural paradigm for event-based applications. In

this paper we propose a reference architecture for event-driven RFID applications.

The key concept of the approach is to use complex event processing (CEP) as the

model for processing and managing of event-driven information systems. The refer-

ence architecture enables the seamless integration of RFID event streams in upper-

level business processes in real-time. In order to prove the usefulness of our approach

we selected the tracking of samples in large research laboratories using RFID.

The remainder of this paper is structured as follows. In the next section the basic

concepts of event-driven architectures and complex event processing are introduced.

Section 3 presents a reference architecture for handling events in RFID-based appli-

cations, allowing to integrate arbitrary RFID event sources with enterprise informa-

tion systems. Laboratory logistics is selected as the application scenario for our ap-

proach, which is discussed in section 4. Finally, the last section summarizes the most

Dunkel J. and Bruns R. (2008).

Reference Architecture for Event-Driven RFID Applications.

In Proceedings of the 2nd International Workshop on RFID Technology - Concepts, Applications, Challenges, pages 129-135

DOI: 10.5220/0001729001290135

 SciTePress

significant features of the approach and provides a brief outlook of future lines of

research.

2 Event-Driven Architecture Basics

Event-driven architecture (EDA) provides an architectural concept for dealing with

complex event streams. Complex Event Processing (CEP) is an event processing

model to cope with a huge number of events [10]. One main idea is that events are not

independent from each other, but correlated. The goal of CEP is to identify in a huge

event cloud those patterns of events which are significant for a business domain. An

example is a stock trading system which analyzes millions of tick data to discover

patterns which signify buy or sell signals for certain shares. Pattern Matching and

Event Processing are performed by so-called event-processing agents (EPAs), which

monitor the stream of occurred events analyzing it for event patterns. Essentially they

filter, split, aggregate, transform and enrich event – tasks, which are also well-known

from application integration [4]. Furthermore, new complex events can be synthe-

sized from simple events. This step takes correlations between occurred events into

account and provides the real power of complex event processing. For instance, tech-

nical RFID events must be synthesized into meaningful business events A Complex

Event Processing (CEP) system consists of the following building blocks:

Event Metadata. To automate event processing, a formalism based on metadata is

required, which precisely specifies all possible events and their interdependencies.

Each event contains general metadata: e.g. event ID, event type, event timestamp and

event-specific information e.g. the ID of a RFID reader. Event Specifications are the

base for event transformation, event generators and event subscribing.

Event Processing Rules define correlations between events for detecting event pat-

terns, and determining corresponding actions. They can be expressed as ECA rules

[17], [12] or as a SQL-based approach of querying event streams [1], [3]. Event Me-

tadata is specified by appropriate event processing languages (EPLs) [12].

Event Processing. An Event Processing Engine evaluates and executes event proc-

essing rules. The Event Data manifests the occurred event and is a set of instances

related to the event specification. Each event must be described in standard format,

e.g. by an XML document. Because pattern matching takes also historical events into

account, events must be permanently stored. Usually, not all events can be stored

permanently, because the number of events can be nearly infinite. A practical solution

is regarding so-called sliding windows, i.e. storing only the events occurred in a cer-

tain time period. It means that events have a certain lease and are deleted if it is ex-

pired. Of course, the appropriate lease times are domain and event-type specific. The

more abstract or business oriented an event is, the longer might be its lease time.

Enterprise Integration Backbone. The enterprise integration backbone provides the

middleware to access the backend systems. It provides event channels, event trans-

130

RFID Agent

RFID Source

other event

Sources

Location Agent

Enterprise Adapter

RFID Processing Enterprise Applications

Engine

simple

event

publish

Processing Actions

invoke

service

generat

event

comple

event

Event Engine

events

publish/

notify

Processing Actions

invoke

service

generate

event

rule

engine

Complex Event - Processing

RFID

data

Reference Architecture

Event Creation

Enterprise Applications

RFID Source

Domain

Event

RFID

data

RFID

Event

Domain

Event

Domain

Event

Domain

Event

Event Monitoring

Event

Repository

events

rule

engine

events

rule

engine

application legacy system

port, event subscription and is a mediator for accessing the enterprises backend sys-

tems. The enterprise integration backbone is used by the business components to

propagate domain-specific events and by the rule engine to trigger event-driven ac-

tions provided by the backend systems.

3 Reference Architecture

The major objective of our approach is the development of a reference architecture

for the integration of RFID events into existing enterprise information systems. The

reference architecture is agent-based and should serve as an idealistic model of a class

of event-driven architectures (EDA). Figure 1 provides an overview of the proposed

reference architecture. On the top layer, the RFID sensors generate a continuous

stream of RFID data event and serve as the event source. Moreover, the event stream

can contain further types of events originating from other systems or event sources.

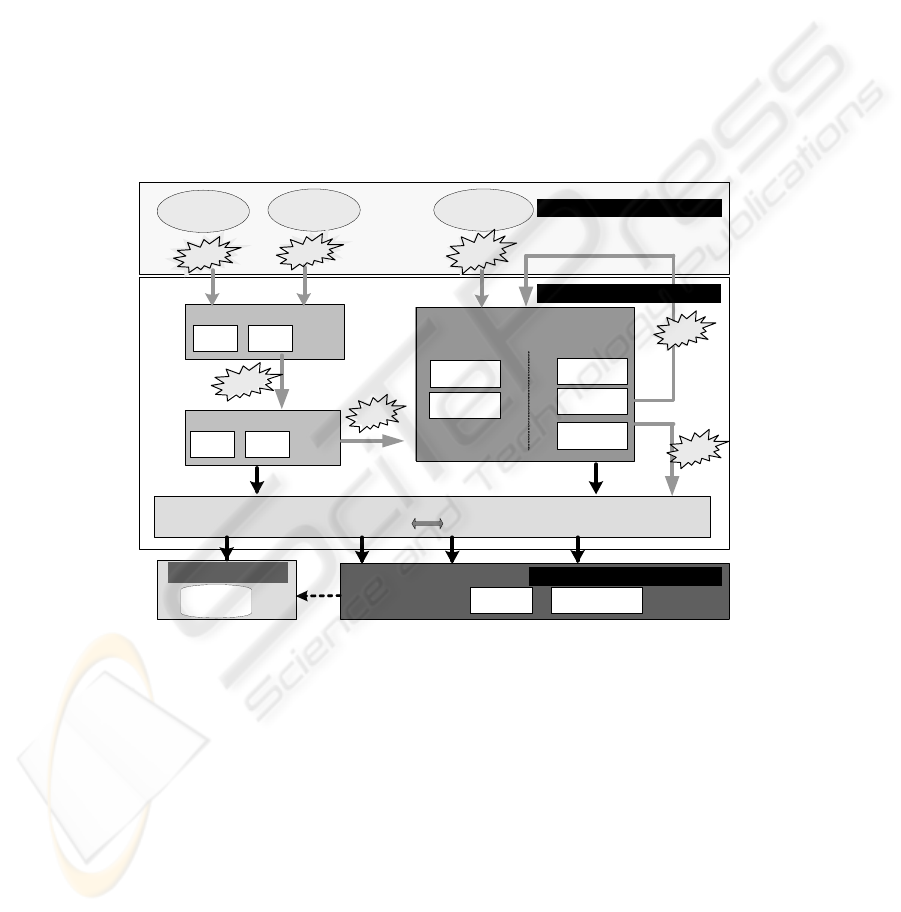

Fig. 1. Reference Architecture.

An RFID Agent serves as the interface to the different RFID sources and collects

all incoming RFID data events. First, it provides the functionality of an adapter to

integrate technically different, proprietary RFID systems. Furthermore, it transforms

each RFID data event into a standard RFID event format and guarantees consistency,

e.g. by filtering duplicates [9].Duplicates occur quite often, i.e. multiple RFID data

events are emitted if a RFID tag passes a RFID reader.

A Location Agent transforms RFID events into application-specific domain

events. To perform this task the Location Agent must query information from the

enterprise information system via an adapter. The Location Agent has to provide two

131

different mappings: First, the technical position, i.e. the ID of the RFID reader must

be related to a domain-specific location, e.g. a certain room. Secondly, the ID of an

RFID tag must be assigned to a domain-specific item. For instance, the tag ID of a

laboratory sample must be mapped to the sample ID in the laboratory information

system. The data of new items is stored in the information system by manually enter-

ing it or by reading the tag data. There is a specialized workstation equipped with a

RFID reader to determine the relation between RFID tag ID and item ID.

The key concept of the reference architecture is the Complex Event Processing

(CEP) component, where the domain events are processed by application-specific

rules. The CEP component contains a rule engine with the rule base and buffers the

event data. It analyzes continuously the events and executes predefined rules if a

specific event pattern is detected. Possible reactions are the generation of new events

or the invocation of a service of the enterprise applications via an adapter.

The Enterprise Adapter component provides a facade giving access to the enter-

prise application systems for the Location Agent and the CEP component. The Loca-

tion Agent requires the adapter to map technical RFID positions to domain-specific

locations. The CEP component uses the Adapter to invoke business services for event

handling, i.e. to make enterprise applications aware that certain events have occurred.

Note, that the communication is unidirectional: the enterprise applications do not

know anything about the Location Agent or the CEP component.

The Event Monitoring component is optional, and contains a repository to save

the history of relevant events. It is the only CEP-specific part visible to the enterprise

applications. It allows them to analyze event specific data and to visualize it in a

Business Activity Monitoring application.

The reference architecture separates the RFID data processing tasks from applica-

tion-specific ones. The RFID data processing is performed by the RFID Agent and

the Location Agent, which transform RFID data into consistent domain events. The

application-specific processing is performed by the CEP component where applica-

tion-specific rules perform pattern matching and event processing tasks.

4 Application Scenario

In order to prove the practical usefulness of our reference architecture we selected the

tracking and localization of samples in large research laboratories using RFID. In

large research laboratories the incoming samples are usually divided in several sub-

samples which can be tested simultaneously in different departments of the labora-

tory. Therefore, the parts of one sample are spread over different laboratory rooms

while being tested. Despite of organizational regulations, valuable time is wasted to

search the samples for the upcoming tests. To solve this problem RFID can be ap-

plied. Each incoming sample gets an RFID tag. Laboratory locations are equipped

with RFID readers, for example doors and testing equipment, in order to track indi-

vidual samples.

The types of events in this specific domain, which are shown in the UML state dia-

gram in figure 2.

132

− When a tagged sample passes an RFID reader the RFID data is transferred to the

RFID Agent who transforms the proprietary format into an RFID-Event containing

tag ID, reader ID and timestamp. If a sample tag stays longer in the area of an

RFID reader, usually multiple RFID events from the same sample tag are emitted.

In fact these events are logically identical duplicates, only their timestamps differ

slightly. Therefore, the RFID Agent of figure 1 filters and aggregates events from

the same RFID tag and the same RFID reader to one Location-Event, which con-

tains the ID of the reader. If the reader is located in the room a Room-Event can be

generated.

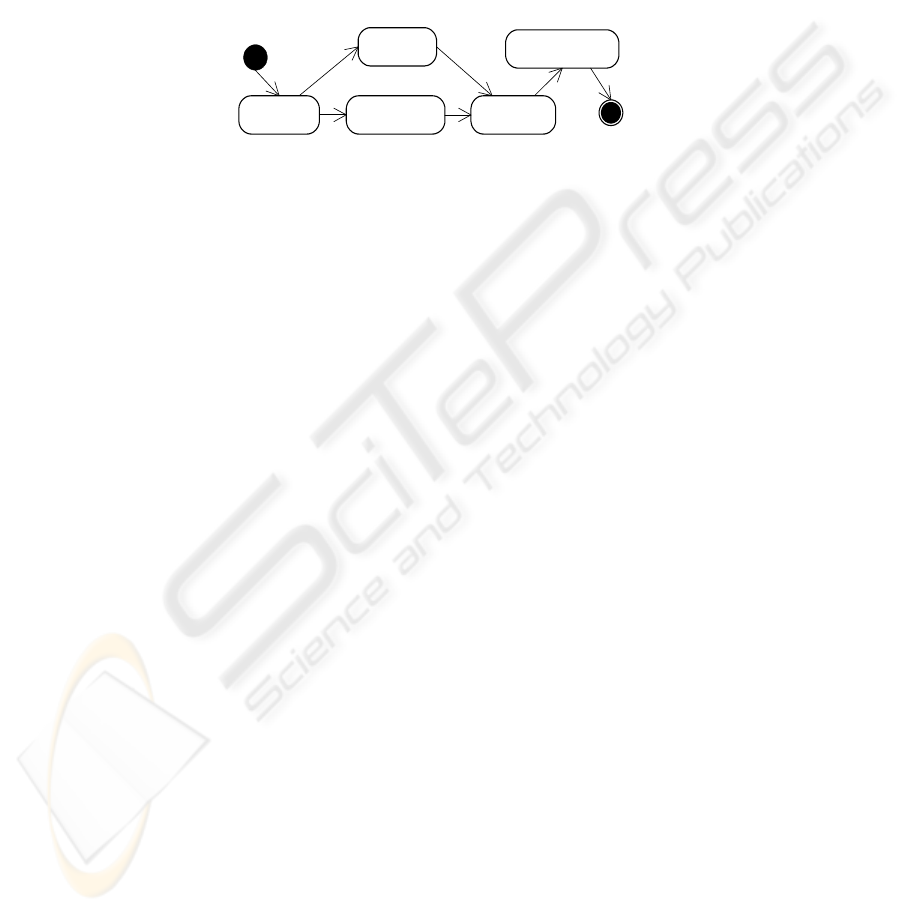

Fig. 2. Different types of Events.

− The Item-Room-Event is generated by content-enrichment of the Room-Event with

the assignment of the tag ID to the domain item. The ID and type of the tagged

sample are retrieved by accessing the laboratory management system. The Item-

Room-Event contains all information to localize a sample and can now be consid-

ered as a domain event.

− The Door Events are originated by RFID readers located in doors. If such an event

occurs it has to be decided whether a sample is entering or leaving a room for de-

termining its location.

The CEP component of figure 1 contains a domain-specific rule base that is ap-

plied to all domain events. The domain events are transformed, classified, aggregated,

evaluated, and appropriate actions are initiated according to the requirements of the

application domain. For example, every Item-Room-Event is transferred to the labo-

ratory management system in order to provide the information of the current location

of the sample. Furthermore, all events of the same original sample are aggregated to a

complex event representing the state of the testing procedure of the sample. This

aggregated complex event can trigger upper-level business processes to take some

actions if a certain state is reached.

5 Summary and Future Research

In this paper, we suggested a reference architecture for event-driven RFID applica-

tions. The key concept of the proposed approach is the use of complex event process-

ing as the model for data processing. The flexibility and adaptability of the proposed

architecture for RFID applications is achieved by distinguishing general RFID data

processing tasks from application-specific ones. The presented event-driven architec-

ture addresses two major challenges for the success of RFID technology: Firstly, the

processing and managing raw RFID data; secondly, the integration of low-level RFID

Location EventRFID Event

Door Event

Room Event

Item-Room Event

133

data into the enterprise backend IT infrastructure, i.e. how to use RFID events to

drive upper-level business processes. With the support of the logistics business proc-

esses in large research laboratories a new innovative application domain is investi-

gated, in which RFID technology has not been applied so far.

A main research challenges, among others is the specification of event models [2]

and of a standardized language for the definition of event patterns and event rules, a

so-called Event Processing Language [11], [15]. Another important issue for the

success of EDA is the need for real-world EDA applications in order to prove the

practicability of the architectural paradigm [7]. Experiences with EDA for RFID

applications are still rare. In [16] [14] and [6] first experiences with EDA for RFID

are reported and event processing languages are proposed.

At the moment, no generally accepted standards exist for event definition and nota-

tion, event pattern specification, or rule languages and engines. Most rule engines

have proprietary APIs, making them difficult to integrate with enterprise applications.

This lack of standardization is the major obstacle in order to fully exploit the benefits

of event-driven architectures. However, some notable advances in the standardization

process can be recognized recently, e.g. the Java Rule Engine API [8] or the rule

language RuleML (Rule Markup Language [13]).

References

1. Arasu, A., Babu, S., Widom, J., 2003. CQL A language for continous queries over streams

and relations. 9th Intern. Conf. on Data Base Programming Languages (DBPL), pp. 1-19.

2. Adi, A., Botzer, D., Etizon, O., 2000. Semantic Event Model and its Implication on Situa-

tion Detection, 8th European Conference on Information Systems

3. Esper, 2008. http://esper.codehaus.org, retrieved 18. Feb.

4. Fowler, M., 2002. Enterprise Application Architecture. Addison-Wesley.

5. Garfinkel, S., Rosenberg, B., 2006. RFID: Applications, security and privacy, Addison-

Wesley.

6. Gyllstrom, D., Wu, E., Chae, H.-J., Diao, Y., Stahlberg, P., Anderson, G., 2007. SASE:

Complex Event Processing over Streams, 3rd. Biennal Conference on Innovative Systems

Research (CIDR), pp. 407-411.

7. Hewlett Packard, 2002. Zero latency enterprise architecture. White paper.

8. Java Community Process, 2008: Java Specification Request JSR 94: Java Rules Engine

API, http://www.jcp.org/en/jsr/detail?id=94, retrieved 18. Feb. 2008.

9. Jeffrey, S., Alonso, G., Franklin, M., Hong, W., Widom, J., 2006. A pipelined framework

for online cleaning of sensor data streams, ICDE, pp. 140-142.

10. Luckham, D, 2002. Power of Events. Addison-Wesley.

11. Luckham, D., 2006. A View of Current State of Event Processing. First Workshop on

Event Processing, New York,.

12. Paton, N., Díaz, O., 1999. Active Database Systems, ACM Computing Surveys, Vol. 31, 9,

pp. 63-103.

13. The Rule Markup Initiative, 2008. www.ruleml.org, retrieved 18. Feb. 2008.

14. Rizvi, S., Jeffrey, S., Krishnamurthy, S., Franklin, M., Burkhart, N., Edakkunni, A., Liang,

L., 2005. Events on the Edge. ACM SIGMOD International Conference on Management of

Data, pp. 885-887.

134

15. Schiefer, J., Rozsnyai, S., Rauscher, C., and Saurer, G., 2007. Event-driven rules for sens-

ing and responding to business situations. Inaugural International Conference on Distrib-

uted Event-Based Systems, pp. 198-205.

16. Wu, E., Diao, Y., Rizvi, S., 2006. High-performance complex event processing over

streams. Proceedings of the 2006 ACM SIGMOD ICMD, pp. 407-418.

17. Zimmer, D., Unland, R., 1999. On the semantics of complex events in active database

management systems. ICDE, pp. 392-399.

135
