Transforming Internal Activities of Business Process

Models to Service Compositions

Teduh Dirgahayu

, Dick Quartel

and Marten van Sinderen

Centre for Telematics and Information Technology

University of Twente, P.O. Box 217, 7500 AE Enschede, The Netherlands

Telematica Instituut, P.O. Box 589, 7500 AN Enschede, The Netherlands

Abstract. As a service composition language, BPEL imposes as constraint that

a business process model should consist only of activities for interacting with

other business processes. BPEL provides limited support for implementing

internal activities, i.e. activities that are performed by a single business process

without involvement of other business processes. BPEL is hence not suitable to

implement internal activities that include complex data manipulation. There are

a number of options to make BPEL able to implement such internal activities.

In this paper we analyse those options based on their feasibility, efficiency,

reusability, portability and merging. The analysis indicates that delegating

internal activities’ functionality to other services is the best option. We

therefore present an approach for transforming internal activities to service

invocations. The application of this approach on a business process model

results in a service composition model that consists only of activities for

interaction.

1 Introduction

Web services [1] has become a popular platform on which many enterprises execute

their business processes [2, 3]. BPEL [4, 5] is a de facto language for implementing a

business process as a composition of Web services. Moreover the approach defined in

Model-Driven Architecture [6, 7], especially regarding automatic transformation, is

widely used and investigated to speed up the implementation of business processes in

BPEL, e.g. in [8, 9, 10, 11, 12].

A business process model of an enterprise may consist of two kinds of activities:

(i) activities that are performed to interact with other business processes, e.g. to send

and receive messages, and (ii) activities that are performed without involvement of

other business processes. We call the latter kind of activities internal activities [13].

Internal activities are not exposed to business processes.

As a service composition language, on the one hand, BPEL (version 1.1 and 2.0)

provides constructs to implement activities for interacting with other business

processes, e.g. receive, reply, and invoke. On the other hand, BPEL provides limited

This work is part of the Freeband A-MUSE project (http://a-muse.freeband.nl) sponsored by the Dutch

government under contract BSIK 03025.

Dirgahayu T., Quartel D. and van Sinderen M. (2008).

Transforming Internal Activities of Business Process Models to Service Compositions.

In Joint Proceedings of the 5th International Workshop on Ubiquitous Computing (IWUC 2008) 4th International Workshop on Model-Driven Enterprise

Information Systems (MDEIS 2008) 3rd International Workshop on Technologies for Context-Aware Business Process Management (TCoB 2008),

pages 52-63

DOI: 10.5220/0001736800520063

 SciTePress

support for implementing internal activities. By default, BPEL uses XPath 1.0 [14] for

data manipulation. XPath is a powerful language for querying the contents of XML

documents; but it provides limited support for data manipulation, e.g. it supports only

simple arithmetic, boolean and string manipulation. Therefore, BPEL and XPath are

not suitable to implement internal activities for complex data manipulation.

Consequently, a business process model which is targeted to be implemented in BPEL

should not contain internal activities for complex data manipulation.

We believe that a business process should not be constrained by such a limitation.

A business process model should be allowed to contain internal activities for simple

and complex data manipulation. To implement such a business process model, a

transformation is required to map the business process model onto a chosen target

platform and implementation language. In our case, the transformation has to be able

to implement the activity in BPEL.

To overcome the aforementioned limitation, a number of options have been

introduced to make BPEL able to implement internal activities with any degree of

complexity. An option can be a non-standard or proprietary extension to BPEL [15,

16, 17] or a design method [8, 11, 12, 18].

The objectives of this paper are (i) to analyse available options for implementing

internal activities in BPEL and (ii) to present an approach for transforming internal

activities to implementation to facilitate the best option. We illustrate this approach

using an example business process that is modelled in a language of our convenience

(i.e., ISDL [19]). We claim however that the approach is generally applicable to other

modelling languages.

The structure of this paper is as follows. Section 2 describes the roles of activities,

constraints and functions in a business process model. Section 3 analyses several

options for implementing internal activities in BPEL. Section 4 presents an approach

for transforming internal activities to facilitate the best option. Finally, section 5

presents our conclusions and indicates future work.

2 Internal Activities, Constraints and Functions

A business process model consists of activities. For each activity, only its result is

considered. The business process model abstracts from the way the activities establish

their results. Constraints are used to specify the possible results that can be or should

be established.

A simple constraint can be easily included in a business process model and leaves

the business process model easy to understand. Inclusion of a complex constraint

potentially makes the business process model difficult to understand. To avoid that,

some details of a complex constraint can be encapsulated in a (parameterised)

function. The details of the function are described or specified in other documents

associated with the business process model. In this way, a complex constraint can be

included in the business process model as a simple constraint calling a function.

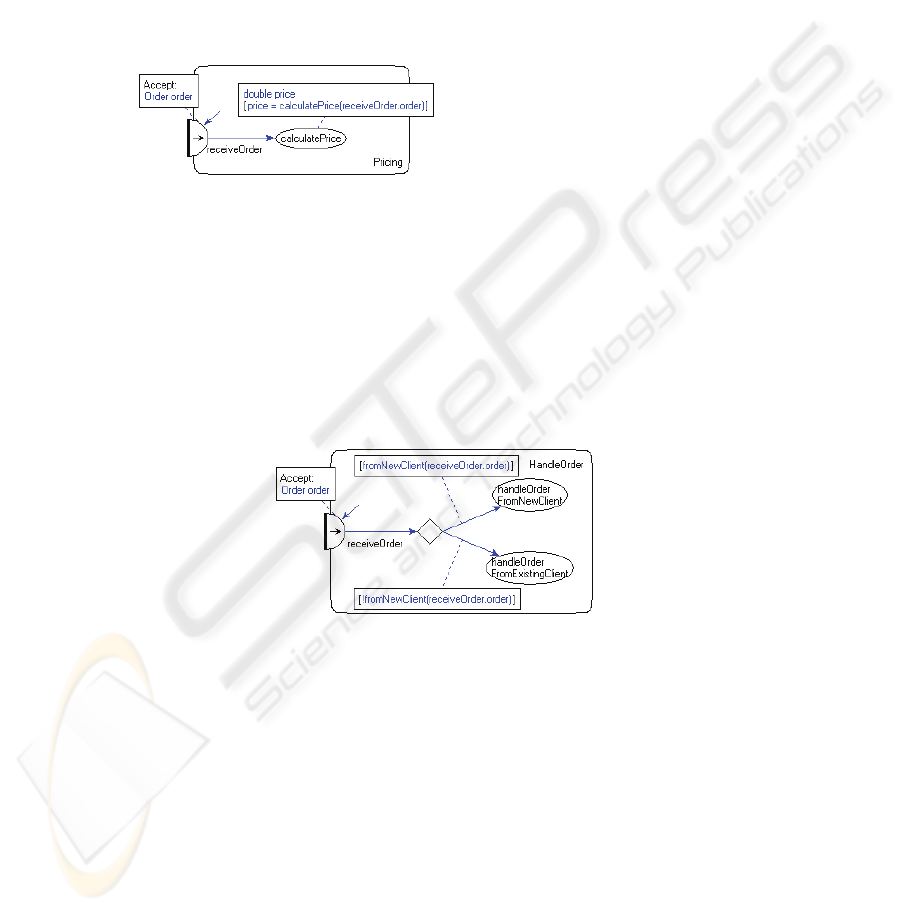

Fig. 1(a) shows an example of the behaviour of an (incomplete) business process

model Pricing. The business process receives an order via an activity receiveOrder

and then calculates the total price of the received order by performing an internal

activity calculatePrice. The result of the activity calculatePrice is constrained such

that it must be equal to the result of function calculatePrice() with the received order

as a parameter. Fig. 1(b) shows the specification of the function calculatePrice().

In the figure, a behaviour is represented by a rounded rectangle. An internal

activity is represented by an ellipse. An activity for interaction is represented by a

segmented ellipse located at the border of the behaviour rectangle. An arrow inside

this segmented ellipse indicates the direction in which the message flows. The result

of an activity is specified in a box attached to the activity. If this result is constrained,

its constraint is specified within brackets in the same box. The keyword Accept in the

box attached to an activity for interaction indicates that the text following the

keyword is the message accepted by the activity.

∑

pricequantity

(a) Function call in the constraint of activity result (b) Function calculatePrice()

Fig. 1. Example of a business process model.

Functions can also be called in the constraints of other types of model elements.

For example, Fig. 2 depicts a business process that first receives an order and then

makes a choice between an activity

handleOrderFromNewClient or handleOrder

FromExistingClient

. The choice is represented by a diamond symbol. This choice is

constrained by the result of a function fromNewClient() that evaluates whether an

order is from a new client. This should not be confused with a “switch” at some

implementation language.

Fig. 2. Function fromNewClient() is called in a choice’s constraints.

A function call in the constraint of a model element other than an internal activity

implicitly defines an internal activity whose result is constrained by the result of that

function. This internal activity can be made explicit and the constraint of the model

element refers to the result of this internal activity. For example, the behaviour of the

business process model in Fig. 3 is equivalent to the model in Fig. 2. This style of

modelling is useful, e.g., to allow the result of a function be re-used in multiple model

elements.

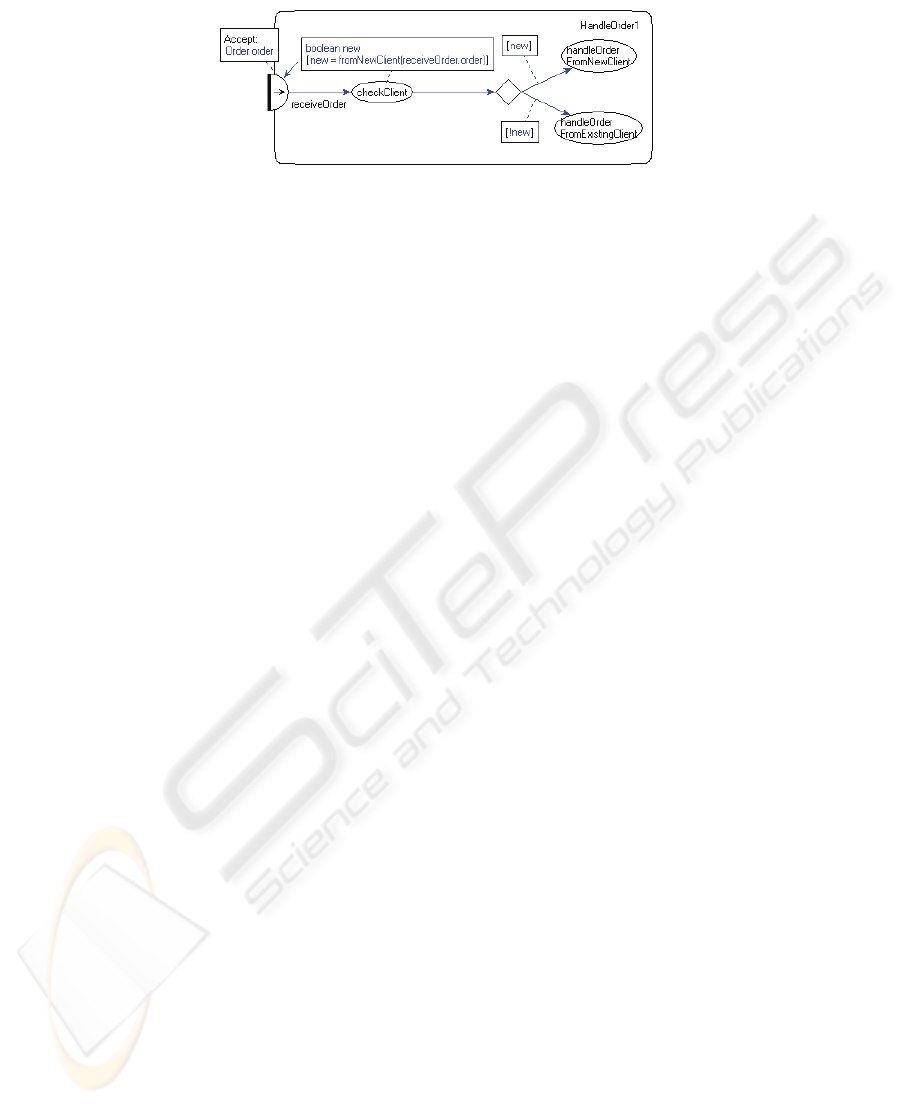

Fig. 3. Function fromNewClient() is now called in an internal activity.

From a different point of view, the specification of the function can be seen as the

way the internal activity establishes its result. For example, the function specification

in Fig. 1(b) can be seen as the way the activity

calculatePrice in Fig. 1(a) establishes

its result. Therefore, the implementation of an internal activity can be done by

implementing the specification of the function.

Since a business process model abstracts from the way the results of its internal

activities are established, a sole transformation from a business process model to a

business process implementation will not result in an executable implementation. To

obtain an executable implementation, the description or specifications of the functions

called in the constraints of the internal activities should also be transformed into

implementations. This transformation results in so-called

function implementations.

During execution, the business process implementation uses the function

implementations to establish the results of its internal activities.

3 Options for Implementing Internal Activities

In this section we analyse available options for implementing internal activities based

on a number of evaluation criteria.

3.1 Evaluation Criteria

As mentioned previously, a transformation of a business process model to an

executable implementation should result in two kinds of implementations: (i) a

business process implementation and (ii) function implementations. In our case, the

business process implementation is in BPEL and the function implementations are in

some implementation language that can also be BPEL and XPath.

While the business process implementation can be obtained through an automatic

transformation [9, 10, 11, 12], function implementation is mainly obtained through

manual transformation regardless of the options. To our knowledge, there is not yet an

effective and efficient way to automatically transform a function description or

specification. These kinds of implementations can be in the same or different

implementation artefacts. An additional transformation might be required to merge

those implementation artefacts into a single implementation artefact.

We analyse the options based on the following criteria.

•

Feasibility: What support is available for implementing functions?

• Efficiency: What is the execution efficiency of a function call?

•

Reusability: Can function implementations be reused by other business processes?

•

Portability: Is the business process implementation portable between different

BPEL servers?

•

Merging: Is the merging of the business process implementation and function

implementations required?

3.2 Options

We identify the following options for implementing internal activities.

Option 1: BPEL and XPath

A function specification is implemented in BPEL and XPath as part of the business

process implementation. BPEL provides a construct

assign for assigning a value to a

variable. This value is created or obtained using XPath expressions. Structured

activity constructs, e.g.

while and switch, can also be used in data manipulation. This

option uses the standard BPEL.

•

Feasibility: BPEL structured activity constructs and XPath provide limited support

for implementing function specifications, especially the complex ones.

•

Efficiency: Function implementations are executed in the same execution instance

as the business process execution instance. Overhead in calling a function is low;

hence the execution efficiency is high.

•

Reusability: Function implementations can only be used by the business process in

which the functions are implemented.

•

Portability: The business process implementation is in standard languages, i.e.

BPEL and XPath, which are supported by all BPEL-compliant servers. Therefore,

the implementation is portable between different BPEL servers.

•

Merging: The business process implementation must provide places into which

function implementations can be placed. A transformation is required to merge

these two kinds of implementations.

Option 2: Embedded Code

A function specification is implemented in a general-purpose implementation

language and embedded in the business process implementation. This option is an

extension to the standard BPEL, e.g. BPELJ [15] and Java embedding [16].

•

Feasibility: A general-purpose implementation language, e.g. Java, typically

provides full support for implementing complex function specifications.

•

Efficiency: Function implementations are executed in the same execution instance

as the business process execution instance. Overhead in calling a function is low;

hence the execution efficiency is high.

•

Reusability: Function implementations can only be used by the business process in

which the function implementations are embedded.

•

Portability: The business process implementation can only be executed on a BPEL

server that supports the extension.

• Merging: The business process implementation must provide places into which

function implementations can be embedded. A transformation is required to merge

these two kinds of implementations.

Option 3: Server Functions

A function specification is implemented in a general-purpose implementation

language. After compilation, the function implementation is deployed in a BPEL

server on which the business process implementation is to be executed. The business

process calls the function using XPath expressions. This option is a proprietary

extension, e.g. custom functions [17].

•

Feasibility: A general-purpose implementation language, e.g. Java or C#, typically

provides full support for implementing complex function specifications.

•

Efficiency: Function implementations are executed in different execution instances

from the business process execution instance. A function call establishes

interprocess communication between those execution instances. Overhead in

calling a function is higher than the previous options; hence the execution

efficiency is lower.

•

Reusability: Function implementations can be used by other business processes on

the same BPEL server. Business processes on different BPEL servers cannot use

the function implementations.

•

Portability: The business process implementation can only be executed on a BPEL

server in which the function implementations are deployed. Not every BPEL server

supports this extension.

•

Merging: The business process implementation and the function implementations

are deployed separately. No merging is required.

Option 4: Service Delegation

A function specification is implemented by an operation of another Web service. A

function call is transformed to an operation invocation. This option transforms a

business process model to a service composition model. A service composition model

consists only of activities for interaction. This option is used, e.g., in [8, 11, 12, 18].

•

Feasibility: Function specifications can be implemented in a general-purpose

implementation language, e.g. Java or .NET. Such a language typically provides

full support for implementing complex function specifications.

•

Efficiency: A function call establishes interprocess communication between the

business process execution instance and the Web service executing the function

implementations. Potentially they run on different servers. Overhead in calling a

function is higher than all the previous options; hence the execution efficiency is

low.

•

Reusability: As function implementations are presented as Web services

operations, they can be used by other business processes on any BPEL servers.

•

Portability: The business process implementation is in standard languages, i.e.

BPEL and XPath, which are supported by all BPEL servers. Therefore, the

implementation is portable between different BPEL servers.

•

Merging: The business process implementation and the function implementations

are deployed separately. No merging is required.

3.3 Summary

Fig. 4 shows two different paths taken by the options in transforming a business

process model to an implementation. Options 1, 2 and 3 directly implement the

business process model in BPEL (with extensions). Option 4 first refines the business

process model into a service composition model and then implements the service

composition model in BPEL.

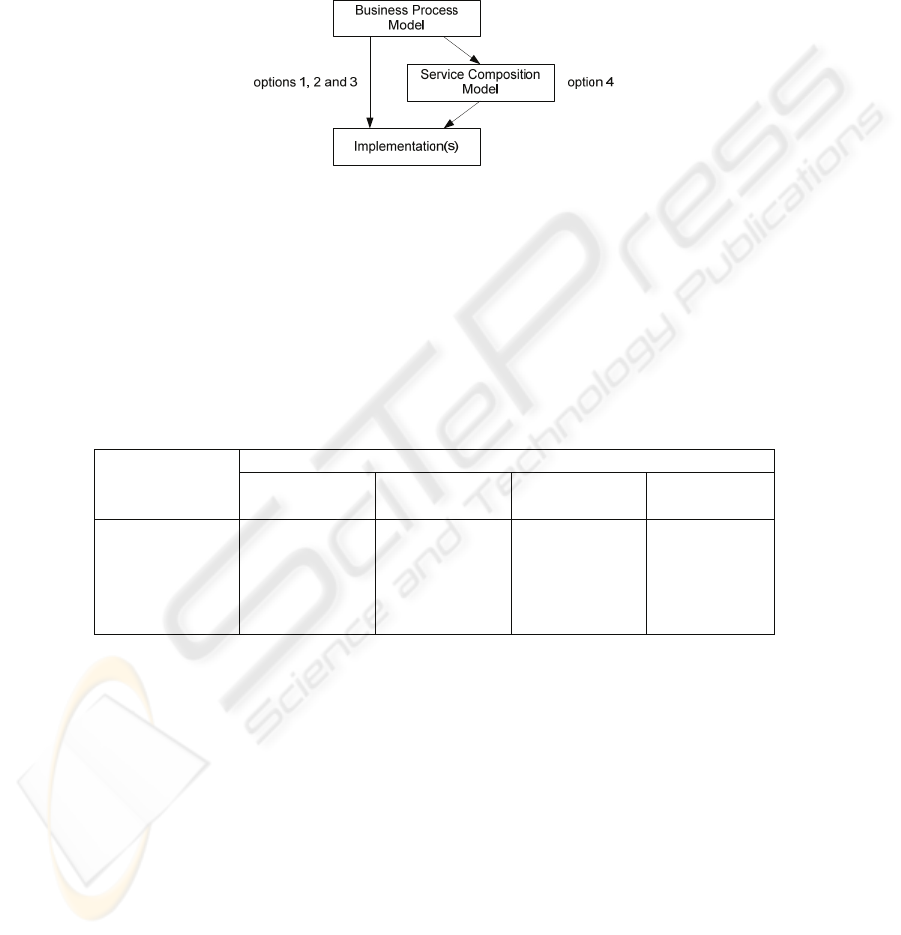

Fig. 4. Different paths taken by the options in implementing business process model.

The analysis is summarised in Table 1. Assuming that all aspects have the same

weight, we conclude that option 4 is the best. To improve its efficiency, option 4 can

be combined with option 1. Simple arithmetic operations can be implemented in

BPEL and XPath, instead of delegating them to some Web services. For example,

iteration typically uses addition or subtraction operation to increase or decrease the

iteration index. Implementing these arithmetic operations in BPEL and XPath will

improve the execution efficiency.

Table 1. Comparison between the options.

Criteria

Options

1. BPEL and

XPath

2. Code

embedding

3. Server

functions

4. Service

delegation

Feasibility limited full full full

Efficiency high high lower low

Reusability no no limited full

Portability yes no no yes

Merging yes yes no no

4 Transformation Approach

Our transformation approach is aimed at facilitating the implementation of internal

activities using the option of service delegation. It refines a business process model

into a service composition model. The approach is defined to be systematic that can

be done programmatically in a transformation language. The approach is based on the

idea that an internal activity can be refined into an interaction [20].

As illustration, we apply our approach to the transformation of a business process

model

Invoicing as shown in Fig. 5. This business process starts when it receives an

order from a customer. The business process then checks whether the order can be

fulfilled. If so, the business process creates an invoice, sets the invoice’s payment due

date, and then sends the invoice back to the customer. Otherwise, the business process

creates and sends back a rejection message to the customer. The keyword

Invoke in

the box attached to an activity for interaction indicates that the text following the

keyword is the message sent by the activity. The message is sent by invoking some

operation in another business process.

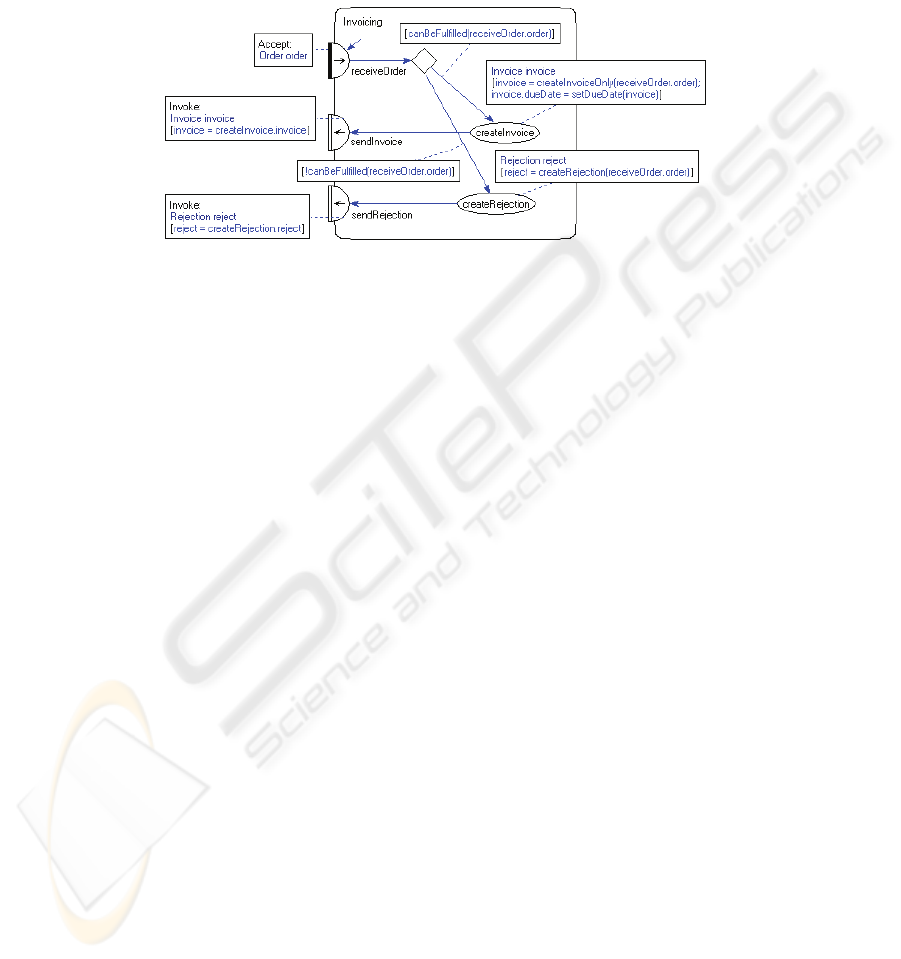

Fig. 5. A business process model to be transformed.

Step 1: Make all the Internal Activities Explicit. To make sure that the resulted

service composition model consists only of activities for interaction, any implicit

internal activity should be made explicit. Being explicit, all internal activities can be

refined into interactions.

In this step, for each constrained model element other than an internal activity, we

insert a new internal activity such that the inserted internal activity precedes the

model element. We then “shift” function calls in the constraints of the model element

to the constraint of the inserted internal activity. The constraints of the model element

should now refer to the results of the inserted internal activity.

The application of this step results in the business process model shown in Fig. 6.

We insert an internal activity

checkFulfillment preceding the choice and “shift” the

function call canBeFulfilled from the choice constraints to the constraint of the

inserted internal activity. The choice constraints now refer to the result of activity

checkFulfillment.

Step 2: Distribute Constraints to a set of Internal Activities. At implementation

level, an activity for interaction performs a specific task, e.g. receiving a message or

invoking an operation. To obtain a service composition model in which each activity

for interaction invokes one Web service operation, each internal activity should be

constrained by one function only. If an internal activity is constrained by several

functions, these functions should be distributed over multiple internal activities.

In this step, we replace an internal activity whose constraints contain multiple

function calls with a set of new internal activities. The number of the new internal

activities should be equal to the number of the function calls. We then distribute the

function calls such that the constraint of each internal activity contains one function

call only.

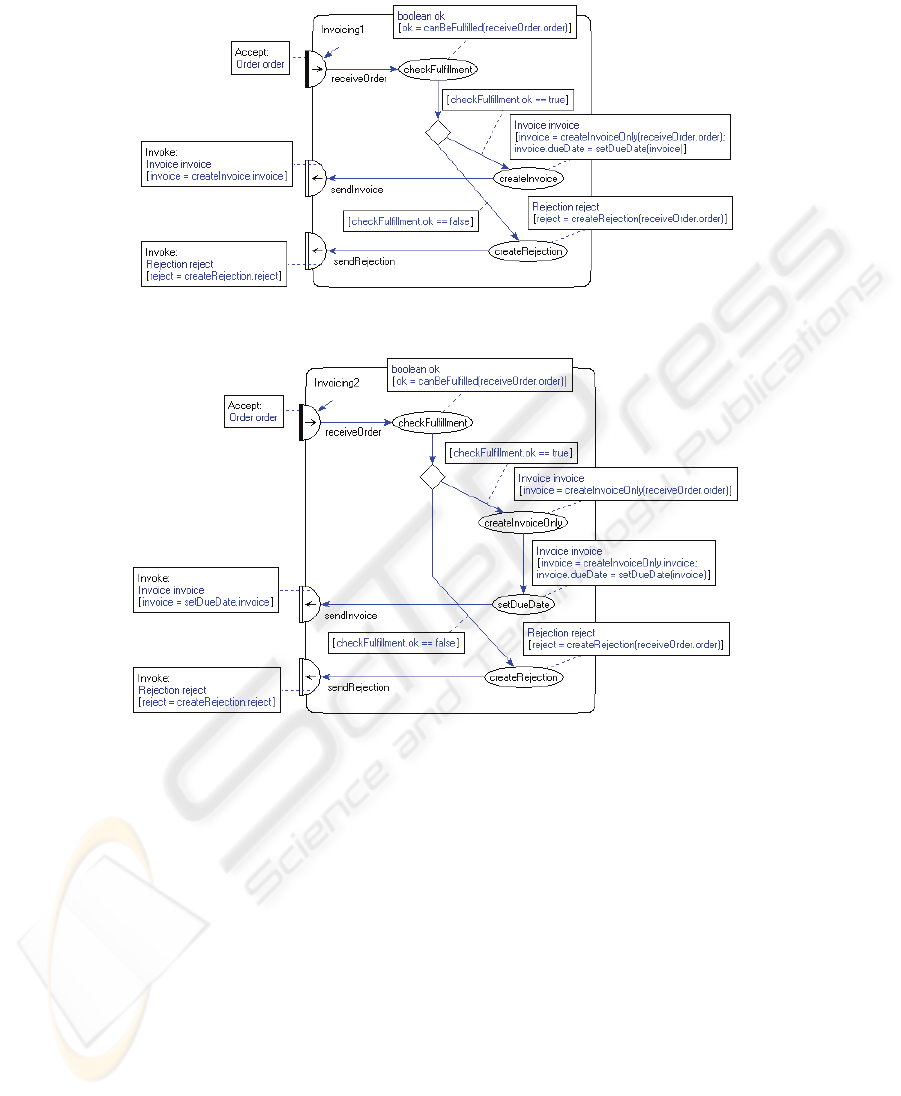

Fig. 6. Function canBeFulfilled is shifted to the constraint of an inserted internal activity.

Fig. 7. Function calls are distributed to a set of internal activities.

The new internal activities can be structured in sequence, parallel or combination

of both. To determine the correct structure, the dependency between function calls

should be considered. For example, if the output of a function

X becomes the input of

another function Y in the original activity, the new activities should be structured in

sequence such that the activity that calls function

X precedes the activity that calls

function

Y. If the function calls are independent from each other, the activities can be

structured in parallel.

The application of this step results in the business process model shown in Fig. 7.

The constraints of activity

createInvoice of Fig. 6 contains two function calls, i.e.

createInvoiceOnly() and setDueDate(). In Fig. 7, we replace this activity with two

activities

createInvoiceOnly and setDueDate; and then distribute the function calls

over the constraints of those activities correspondingly. To maintain the dependency

between the function calls, we structure those activities in sequence.

Step 3: Refine Internal Activities into Interactions. Finally, we structure the

business process model into a service composition model by introducing one or more

supporting services and then refining internal activities into interactions between the

business process and the supporting services. The supporting services can be provided

by the enterprise which owns the business process or by other service providers, e.g.

trusted business partners. The supporting services are responsible for implementing

the function specifications. In this way, we delegate function implementations to the

supporting services.

The application of this step results in the service composition model shown in Fig.

8. We introduce a supporting service

InvoicingSupport and refine each internal

activity into a request/response interaction between the business process and the

supporting service. An interaction is represented as two segmented ellipses connected

with each other. On the business process’ side, the request and response are indicated

by the keywords

Invoke and Return, respectively. On the supporting service’s side,

the request and response are indicated by the keywords Accept and Reply,

respectively. This model can be transformed to a BPEL implementation [21].

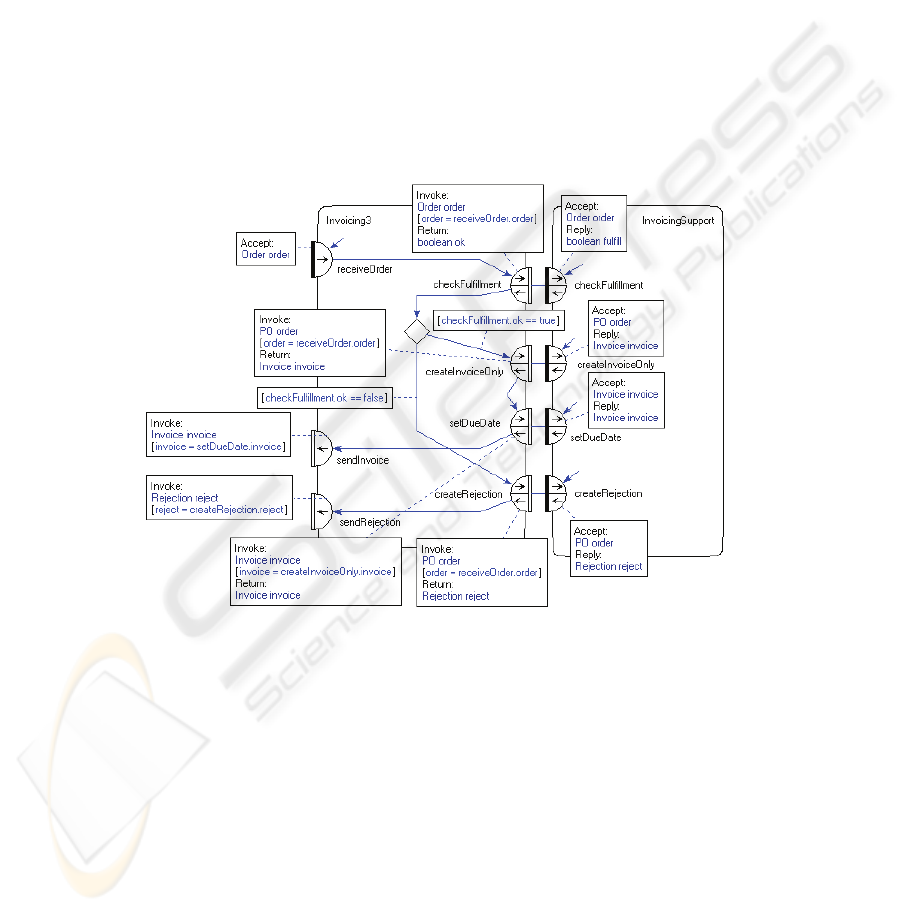

Fig. 8. Service composition model.

5 Conclusions

We have analysed some available options for implementing internal activities of

business process models in BPEL. The analysis indicates that service delegation is the

best option. To improve its execution efficiency, this option should be combined with

the transformation of simple arithmetic operations to BPEL and XPath expressions.

We have then presented an approach for transforming internal activities to service

delegations. The application of the approach on a business process model results in a

service composition model that consists only of activities for interaction. To be a

complete transformation from business process models to implementation, a

transformation based on the approach should be complemented with a transformation

from service composition models to implementations.

Our approach is originally developed to transform a business process model to a

service composition model that is targeted to be implemented in BPEL. Since the

resulted service composition model does not contain any BPEL-specific information,

the model can be implemented in other service composition languages (not

necessarily on Web services platform), e.g. as listed in [22]. For each service

composition language, however, a similar analysis as presented in this paper might be

necessary to evaluate whether service delegation is the best option among possible

options for that language.

Our transformation approach is systematic and can be done programmatically. We

have implemented the approach in QVT [23] for models that are developed based on

a simple metamodel. Each step is implemented as an individual transformation

specification, namely Step1, Step2 and Step3 that respectively correspond to the steps

in the transformation approach. The Step1 transformation is applied to a given

business process model. The Step2 transformation is applied to the output of the

Step1 transformation. The Step3 transformation is applied to the output of the Step2

transformation. The output of the Step3 transformation is a service composition

model as the final result of our transformation approach. In the future, we will

implement the approach as part of a transformation that we have developed to

transform business process models in ISDL to implementations in BPEL.

References

1. W3C. Web Service Architecture. W3C Working Group Note (2004)

2. Erasala, N., Yen, D.C., Rajkumar, T.M.: Enterprise Application Integration in the electronic

commerce world. Computer Standards and Interface 25 (2002) 69-82

3. Medjahed, B., Benatallah, B., Bouguettaya, A., Ngu, A.H.H., Elmagarmid, A.K.: Business-

to-business interactions: issues and enabling technologies. VLDB Journal 12 (2003) 59-85

4. BEA Systems, IBM Corp., Microsoft Corp., SAP AG, Siebel Systems: Business Process

Execution Language for Web Services version 1.1 (2003)

5. OASIS: Web Services Business Process Execution Language Version 2.0 (2007)

6. OMG: Model Driven Architecture (MDA). ormsoc/01-07-01 (2001)

7. OMG: MDA Guide Version 1.0.1. omg/03-06-01 (2003).

8. Koehler, J., Hauser, R., Kapoor, S., Wu, F.Y., Kumaran, S.: A model-driven transformation

method. In Proc. of 7

IEEE Intl. Enterprise Distributed Object Computing Conf. (2003)

186-197

9. Kath, O., Blazarenas, A., Born, M., Eckert, K.-P., Funabashi, M., Hirai C.: Towards

executable models: transforming EDOC behavior models to CORBA and BPEL. In Proc. of

IEEE Intl. Enterprise Distributed Object Computing Conf. (2004) 267-274

10. Dirgahayu, T.: Model-Driven Engineering of Web Service Compositions: A

Transformation from ISDL to BPEL. MSc. Thesis. University of Twente, Enschede (2005)

11. Bordbar, B., Staikopoulos, A.: On Behavioural Model Transformation in Web Services.

LNCS 3289 (2005) 667-678

12. Korherr, B., List, B.: Extending the UML 2 Activity Diagram with Business Process Goals

and Performance Measures and the Mapping to BPEL, LNCS 4231 (2006) 7-18

13. Quartel, D., Dijkman, R., van Sinderen, M.: Methodological Support for Service-oriented

Design with ISDL. In Proc. of 2

Intl. Conf. on Service Oriented Computing (2004), 1-10

14. W3C. XML Path Language (XPath) Version 1.0. W3C Recommendation (1999)

15. BEA Systems, Inc., IBM Corp.: BPELJ: BPEL for Java (2004)

16. Oracle Corp.: Oracle BPEL Process Manager. http://www.oracle.com/technology/

products/ias/bpel/index.html

17. Active Endpoints, Inc.: ActiveBPEL Engine 2.0. http://www.active-endpoints.com/active-

bpel-engine-overview.htm

18. OMG: Business Process Modeling Notation Specification. dtc/06-02-01 (2006)

19. ASNA. ISDL Home. http://isdl.ctit.utwente.nl

20. Quartel, D., Ferreira Pires, L., van Sinderen, M.: On Architectural Support for Behaviour

Refinement in Distributed Systems Design. J. Integrated Design and Process Science 6, 1

(2002) 1-30

21. Dirgahayu, T., Quartel, D., and van Sinderen, M.: Development of Transformations from

Business Process Models to Implementations by Reuse. In Proc. of the 3

Intl. Workshop

on Model-Driven Enterprise Information Systems (2007) 41-50

22. van der Aalst, W.M.P., Dumas, M., ter Hofstede, A.H.M.: Web Service Composition

Languages: Old Wine in New Bottles? In Proc. of 29

EUROMICRO Conference (2003)

298-305

23. OMG: Meta Object Facility (MOF) 2.0 Query/View/Transformation Specification. Final

Adopted Specification. ptc/07-07-07
