Using GeoFencing as a Means to Support Flexible Real

Time Applications for Delivery Services

Georg Schneider

, Björn Dreher

and Ole Seidel

University of Applied Sciences Trier, Schneidershof, 54293 Trier, Germany

Ole Seidel, alta4 Geoinformatik AG, Frauenstraße 8+9, 54290 Trier, Germany

Abstract. Delivery services are an industry sector that may benefit extremely

by the availability of mobile devices and connectivity. Today the support and

tight integration of mobile users into the company processes is finally possible

using off-the-shelf components. This paper presents the concept and implemen-

tation of an application, which is targeted to the domain of delivery services.

The complete process, starting from route planning through navigation to deli-

very confirmation can be supported. The concept of GeoFencing is used to au-

tomatically detect different states in the execution of the delivery process in or-

der to trigger context adapted actions like navigation close to target points and

delivery confirmation. The system is realized as a GPS-based windows mobile

application using a conventional consumer PDA.

1 Introduction

The most tremendous changes in computing during the last years have been in the

mobile area. Today there is almost everywhere wireless access to information (e.g.

[1]) and suitable access devices (e.g. [7]). Furthermore GPS signal receivers start

appearing in more and more cell phones, smart phones and PDA’s. Consequently the

user can locate himself easily and precisely and he can be located if he shares this

information. Hence not only applications for leisure activities

can use these technol-

ogies, work processes that could not be supported up to now, especially processes

affecting mobile workers, can finally be integrated in the IT infrastructure of an en-

terprise and therefore benefit from immediate access to the knowledge sources of the

enterprise.

One domain, which can greatly take advantage of these improvements are deli-

very services. The usual work for delivery services has several steps. First they have

to plan their route for the delivery. Once the different targets are fixed they have to

find a (possibly short) route, which leads to all the delivery points. After this they can

start the tour. Usually they have to confirm the delivery or pickup of items at each

point to prove the successful completion of the task.

E.g. maps for bikers: http://www.adfc.de/2807_1

Schneider G., Dreher B. and Seidel O. (2008).

Using GeoFencing as a Means to Support Flexible Real Time Applications for Delivery Services.

In Joint Proceedings of the 5th International Workshop on Ubiquitous Computing (IWUC 2008) 4th International Workshop on Model-Driven Enterprise

Information Systems (MDEIS 2008) 3rd International Workshop on Technologies for Context-Aware Business Process Management (TCoB 2008),

pages 22-27

DOI: 10.5220/0001737400220027

 SciTePress

Today all these processes can be supported more or less conveniently using different

software systems. The route planning can be furthered e.g. using a map server. The

driver could use a navigation system to find the different targets. Furthermore the use

of electronic checklists can serve for the confirmation of the delivery. Doing so dif-

ferent problems may arise. There may be changes in the route since additional targets

have to be added either from the delivery central since new orders come in when the

driver is already on his way or removed since orders are redrawn or the driver cannot

fulfill the request for whatever reason. Furthermore there may be targets that are close

to each other or even in different stories of the same building. Here the driver has to

be informed that he can complete several tasks at the same location. Information

about the close vicinity, e.g. changing the navigation to a more detailed view is cru-

cial at this point.

However a comprehensive lightweight solution does not exist that decently deals

especially with the challenges mentioned above. Such a system should offer dynamic

route planning and navigation but also intelligent close target navigation and delivery

confirmation.

In the following we will give a short overview over existing systems. Afterwards

we will describe the concept and implementation of our application. The paper ends

with a short conclusion and an outlook.

2 Related Work

The question how to support fleet route planning and execution using off-the-shelf

components like cell phones is discussed in [4]. Here a system is presented based on

J2ME [5] where mainly the delivery task is focused. The information about stops and

delivery are captured using a cell phone and the information is communicated to the

enterprise information system. The navigation task however, which is part of the

delivery process is not part of the system.

Concerning navigation systems, there are already many solutions commercially

available. The company Garmin [5] for example offers a broad range of navigation

systems for different purposes. These systems however are exclusively specialized in

navigation. Further tasks like electronic checklists for delivery confirmation etc. can

hardly be integrated.

The project REAL [6] on the other hand deals with the mobile user in different

contexts, like a user who is driving a car and continues as a pedestrian

. This behavior

comes much closer to the requirements of a delivery service. Here the system has to

guide the user who is mostly driving a van to the target point, where he walks for

example to an office inside a building. Obviously there are different requirements for

the different contexts: driving versus walking. Ideally the contexts are discovered

(semi-) automatically so that a user does not need much explicit interaction with the

system.

The systems discussed above illustrate particular points that are important for an

application for the delivery service domain. Ideally a system would combine the

In [2] a comprehensive overview over Map-based Mobile Guides in the academic field is given.

different aspects.

In the next chapter we will present the GeoFencing idea, which supports this

(semi-) automatic context acquisition process and we will discuss in more detail the

requirements of the delivery process and the user interface issues.

3 Design Concepts for the Delivery Support Service

The design of the user interface is a crucial point for mobile applications. On one

hand, the user has to interact with a device that can only offer a limited screen size in

order to be used as a mobile device on the other hand the user is not completely con-

centrated on this device since he usually has to drive, walk, etc.. The GeoFencing

concept is a means to support the context acquisition of the user’s context in order to

reduce the explicit interaction with the mobile system.

First of all we will have a closer look at the work process in our domain.

3.1 The Delivery Service Process

In general the process for delivery services consist of the following steps:

 Route Planning

The route has to be defined in terms of targets or stops for the delivery agent. This

task is usually done on a PC in order to set up the initial route for the delivery

agent. However there is also a possibility to dynamically introduce new stops dur-

ing the delivery process on the device. We suggest storing this information in a file

using the XML format. The belonging DTD looks like the following:

<!Element route (point*)>

<!Element point (name,street,number,zip,city,

longitude,latitude,delivery,pickup,radius,completed)>

<!Element name (#PCDATA)>

<!Element street (#PCDATA)>

<!Element number (#PCDATA)>

<!Element zip (#PCDATA)>

<!Element longitude (#PCDATA)>

<!Element latitude (#PCDATA)>

<!Element delivery (parcel*)>

<!Element pickup (parcel*)>

<!Element radius (#PCDATA)>

<!Element completed ('true'|'false')>

<!Element parcel (ID)>

In this case radius refers to the GeoFencing idea, which will be described in Sect.

3.2. This XML file can be efficiently transferred between the mobile device and

the enterprise.

After having defined a route the ordering of the stops has to be determined. This

can be accomplished manually or using tools that automatically generate efficient

route plans.

 Navigation

The navigation task starts once the route is defined and the delivery agent starts his

trip. Usually the stops and the current position of the agent are displayed on a map

using a GPS enabled client. However our scenario distinguishes between two dif-

ferent modes. The “driving mode” and the “delivery mode”. In the driving mode,

the user drives a car to the next stop. Once he arrives in the close vicinity of the

target, he parks the car and walks to the target position. The system shall detect

these two modes automatically (see Sect. 3.2) and present situation adapted infor-

mation. For the first part conventional car navigation systems can be used. When

the user leaves the car a different situation occurs. GPS-based navigation may be

impossible since build in GPS receivers often are not precise enough for accurate

pedestrian navigation. If the delivery agent enters a building with his car, he can-

not receive a GPS signal at all. In this case written descriptions, sketches or even

photographs are more adjuvant.

 Delivery

The delivery is the final step. The confirmation of the delivery or the pickup of

goods can be easily supported using a checklist or a form.

3.2 Context Detection and GeoFencing

One of the goals of the research area “ambient intelligence” [8] is that the system

nicely adapts to the user and his context so that it offers the right information at the

right time. In our case the system has to detect two different contexts. It has to decide

if a delivery agent is driving the car or if he is about to deliver or pickup parcels. A

first approach would be to find out if a user is standing (velocity is zero) or driving

(velocity greater than zero). This information can be gathered from the GPS receiver.

Unfortunately the situation is not that easy. The driver may stand in front of a red

traffic light whereas the speed would also be zero but the user is not in the “delivery

mode”. Moreover experiments show that the GPS signal sometimes shows a certain

velocity even if the receiver is immobile.

Furthermore the location information gathered from a mobile and moving GPS

receiver also has certain fuzziness of 10 to 50 meters depending on the situation.

This leads to the idea to explicitly model an aspect of uncertainty into the system. In

order to trigger the delivery mode context a threshold for the velocity is introduced,

which has to be under-run for a period of time when the user is close enough to a

target point.

GeoFencing is the idea to build a virtual fence around the geographic position of a

user, e.g. a circle which represents the user rather than a point. Once the target point

is within the fence we assume that the user is at the given position. The radius of the

fence may vary depending on the landscape (city versus countryside), velocity of the

user (highway versus street in a residential area) or signal quality of the GPS signal.

4 Implementation

Figure 1 illustrates the architecture of our system. The mobile device is a HTC P 3600

with a 400 MHz Samsung processor, 64 MB RAM, 128 MB ROM and a built in GPS

receiver running Windows Mobile 5.0. The mobile client has been developed using

C#. As map server the ArcGIS server from ESRI and the mobile SDK

are used.

Currently the map server is only queried once at the beginning of the tour for defining

the order of the stops and the belonging route. Afterwards the data is copied to the

mobile device together with the XML file specifying the route. This solution has been

realized for the first version of the system because each query is billed and the system

does not need to transfer huge amounts of data over the wireless network.

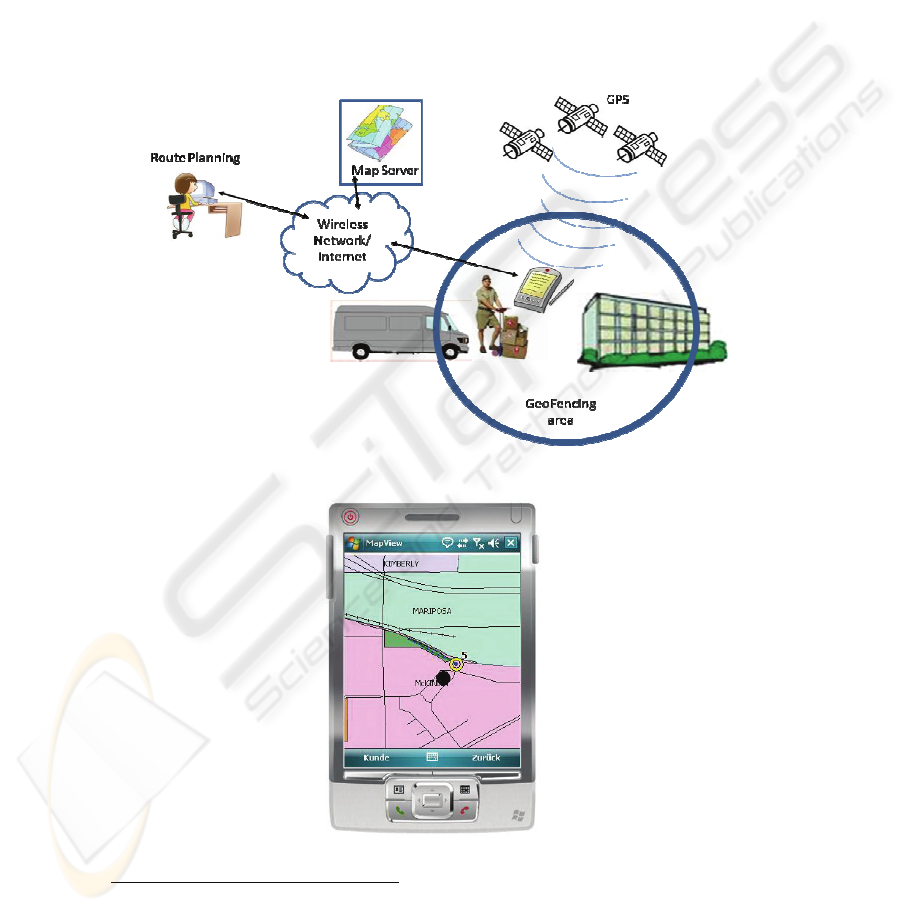

Fig. 1. The system architecture.

Fig. 2. A screen shot of the mobile User Interface.

http://edn.esri.com/index.cfm?fa=mobile.gateway

The threshold for velocity, duration for detecting that the vehicle is parked can be

parameterized as well as the GeoFencing radius.

Figure 2 shows a screen shot of the mobile client. The blue dot within the yellow

ring shows the user, whereas the yellow ring depicts the GeoFence. The black circle

shows the current target. The number “5” close to the blue dot signifies that the GPS

receiver sees 5 satellites. The color yellow stands for a mediocre signal quality. The

color changes as soon as the signal quality improves. An automatic adaptation of the

GeoFencing area based on the signal quality is not yet realized.

5 Conclusions and Outlook

In this paper, we have presented an application to support the work of delivery ser-

vices in a holistic manner. The system will be deployed and used by the first custom-

ers in the near future. Since the mobile device uses is an off-the-shelf consumer de-

vice, the costs are relatively low whereas the possibilities to extend the system is

high, which is promising regarding the market launch.

In the future we will make a field test with the first customer and try to identify,

which of our ideas from Sect. 3 can be realized and which further services are needed.

References

1. 3rd Generation Partnership Project, http://www.3gpp.org/, download March 11. 2008

2. Baus, J., Cheverst, K., Kray, C., A Survey of Map-based Mobile Guides. In: Map-based

mobile services - Theories, Methods and Implementations Meng/Zipf (Eds.), Springer Hei-

delberg, P. 197-213, 2005, ISBN: 978-3-540-23055-7

3. Garmin http://www.garmin.com/garmin/cms/site/us, download March 11. 2008

4. Ghosh, S., Jani, N. G., Das, S., Enabling real-time fleet route planning and execution in a

pervasive transportation environment. In: 2nd International Symposium on Wireless Perva-

sive Computing, 2007. ISWPC '07, ISBN: 1-4244-0523-8

5. Java 2 Platform, Micro Edition (J2ME), http://java.sun.com/j2me/, download March 11. 2008

6. Krüger, A., Butz, A., Müller, C., Stahl, C., Wasinger, R., Steinberg, K.E., Dirschl, A., The

Connected User Interface: Realizing a Personal Situated Navigation System. In: Proceed-

ings of the 9th international conference on Intelligent user interfaces, Funchal, Madeira,

Portugal, P. 161-168, 2004, ISBN:1-58113-815-6

7. PDAPhoneHome, http://pdaphonehome.com/, download March 11. 2008

8. Weber, W., Rabaey, J.M., Aarts, E. (Eds.), Ambient Intelligence, Springer Heidelberg,

2005, ISBN: 978-3-540-23867-6
