Software Model Checking for Internet Protocols with

Java PathFinder

Jes´us Mart´ınez and Crist´obal Jim´enez

Departamento de Lenguajes y Ciencias de la Computaci´on

University of M´alaga, Spain

Abstract. Java is one of the most popular languages used to build complex and

distributed systems. The existence of high-level libraries and middleware makes

it now easy to develop applications for enterprise information systems. Unfortu-

nately, implementing distributed software is always an error-prone task. Thus,

middleware and application protocols must guarantee different functional and

non-functional properties, which has been the ﬁeld usually covered by tools based

on formal methods. However, analyzing software is still a huge challenge for

these tools, and only a few can deal with software complexity. One such tool is

the Java Pathﬁnder model checker (JPF). This paper presents a new approach to

the veriﬁcation of Java systems which communicate through Internet Sockets.

Our approach assumes that almost all the middleware and network libraries used

in Java rely on the protocols available at the TCP/IP transport layer. Therefore,

we have extended JPF, now allowing developers to verify not only single multi-

threaded programs but also fully distributed Socket-based software.

1 Introduction

Model checking [1, 2] is a mature technique for dealing with complex problems within

distributed systems. In contrast to some other existing approaches for verifying com-

munication systems, model checking is an automatic process that normally returns a

simple but clear verdict to questions about functional or non-functional properties of

the system being analyzed, such as safety, liveness, performance or probability, among

others. When a property is not satisﬁed, the model checker presents a trail of execution

steps which lead users directly to the counterexample.

Analyzing a concurrent/distributed system with model checking requires the cre-

ation of an abstract description (model) of the system with the critical behavior to be

analyzed. We also need to specify a set of veriﬁcation properties using a property-

oriented language. The model checking algorithm will produce a reachability graph

including all the execution paths for the model in order to check whether these paths

satisfy the properties. It is worth noting that the system model must be closed, and the

behavior of the environment must be provided in order to fully analyze it. In the context

of software applications, this environment consists of the underlying platform on which

the software runs, but also includes the networking mechanisms used to communicate

distributed entities.

Martínez J. and Jiménez C. (2008).

Software Model Checking for Internet Protocols with Java PathFinder.

In Proceedings of the 6th International Workshop on Modelling, Simulation, Veriﬁcation and Validation of Enterprise Information Systems, pages 91-100

DOI: 10.5220/0001738600910100

 SciTePress

import java.io.*;

import java.net.*

public class Client{

public static void main (String [] args){

int serverPort = 6666;

int c;

try {

InetAddress ia= InetAddress.getLocalHost();

Socket sd = new Socket(ia,serverPort);

InputStreamReader in= sd.getInputStream();

while( (c = in.read()) != -1)

System.out.print((char)c);

sd.close();

} catch (Exception e) {

e.printStackTrace();

}

| import java.io.*;

| import java.net.*;

| public class BasicServer {

| public static void main (String [] args){

| int port = 6666;

| try {

| ServerSocket ss = new ServerSocket(port);

| while(true) {

| Socket newsd = ss.accept();

| OutputStreamWriter out =

| new OutputStreamWriter (newsd.getOutputStream());

| out.write("Hello World of Sockets!");

| newsd.close();

| }

| }catch( IOException ie ) {

| ie.printStackTrace();

| }

Fig.1. Basic examples using Java Sockets: a Client (left) and a Server (right).

Unfortunately, one of the main disadvantages of model checking has been the tradi-

tional need for in-depth knowledge of formal methods. Normally, software developers

looking for a model checking tool want to consider it a kind of smart debugger. How-

ever, verifying software directly with model checking (avoiding the creation of the for-

mal model mentioned previously) is a challenging task. In recent years, there has been a

considerable effort to make this technique available to developers and designers outside

the academic world (p.e. Microsoft’ SLAM [3], Berkeley’s BLAST [4] or NASA’s JPF

[5,6]).

JPF is the ﬁrst software model checker for Java. Started in 1999 and now released

as open source, the tool itself is a Java application which acts as an explicit state model

checker for verifying executable Java bytecode programs. JPF explores all potencial

execution paths of a Java program in order to ﬁnd violations of properties such as dead-

locks or unhandled exceptions. It includes support for part of the Java API (1.6 and

prior versions) [7], making it possible to analyze code without further instrumentation.

Moreover, JPF is easy to conﬁgure and extend, it being an appropriate platform to ex-

plore new methods to model check distributed systems.

This paper presents a novel approach for verifying Java software which communi-

cates through Internet Sockets. We found that JPF did not support the Java network-

ing API. Moreover, its typical usage included only one executable program at a time.

Therefore, we have extended JPF, now allowing developers to verify not only a single

multi-threaded program but also fully distributed Socket-based software following the

Client/Server architecture (with at least two executable programs). Our approach has

included TCP/IP networking support to the model checker, making it possible in the

future to analyze some other middleware which usually rely on these protocols, such as

Java Enterprise applications or Web Services.

The paper is organized as follows. Section 2 introduces the different Java APIs

which implement the Client/Server model. Section 3 is focused on the extensible JPF

model checker for Java and our proposed solution to deal with Client and Server code.

Finally, Section 4 presents our conclusions and lines of future work.

ImplementedIterator

ImplementedSet

ImplementedSelector

ImplementedSelectionKey Selector

AbstractSelectorSelectorProviderAbstractSelectableChannel

SelectionKey

SelectableChannel

AbstractSelectionKey

AbstractInterruptibleChannel

ServerSocketChannel SocketChannel

ByteBuffer

Buffer

selectedKey

setKey

canceledKey

«interface»

Iterator

«interface»

Set

ServerSocket Socket

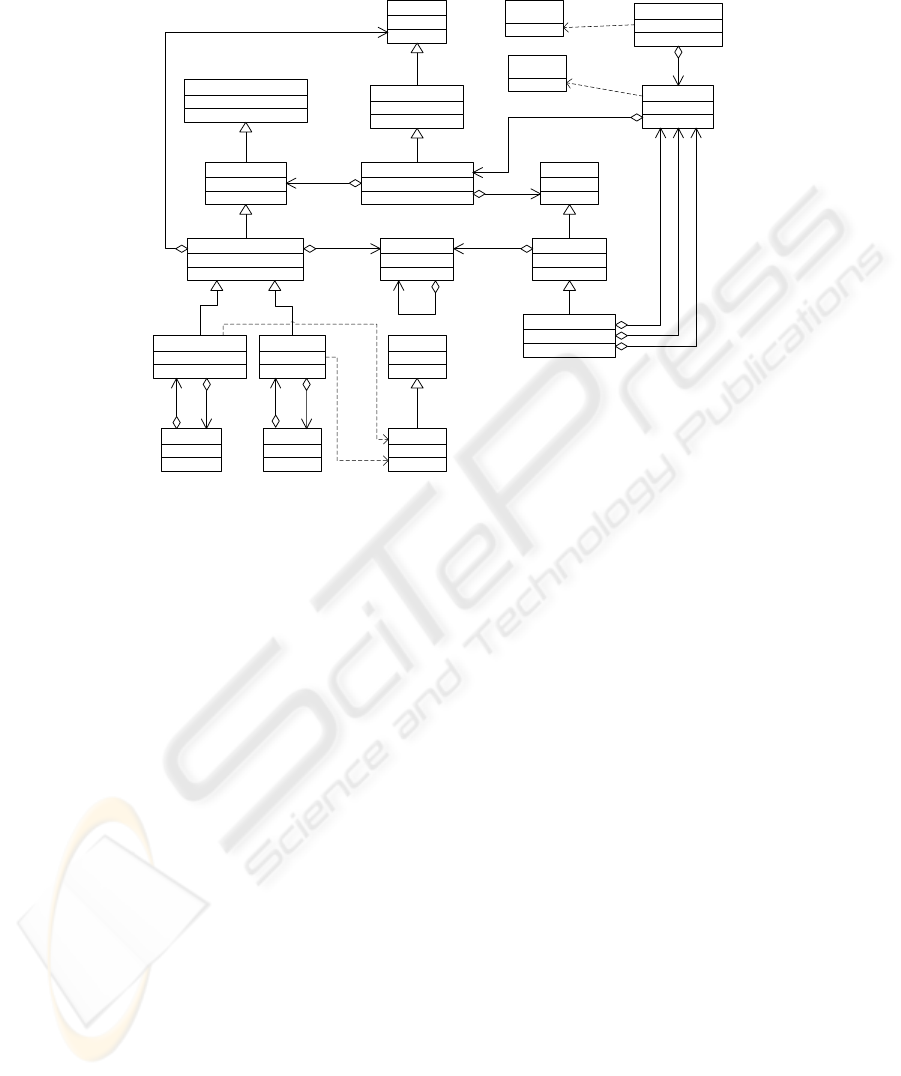

Fig.2. The Java Socket API after including java.nio.

2 The Java Client/Server Model

From its inception, the Java API has supported Berkeley Sockets. The design of its

java.net package was focused on avoiding ill usage which was common with the

original C library. Thus, object oriented programming provided the kind of type safety

not present in the UNIX API. Moreover, Java split the behavior of Sockets for Clients

and Servers into two classes: the Socket and ServerSocket. Perhaps one of the main dif-

ferences between the Java approach and the original C API was the decoupling of the

entities responsible for managing connections (the Socket and ServerSocket classes)

and for exchanging data over the network (the Input and Output Streams). Fig. 1 shows

the basic code for TCP Clients and Servers. The left part shows the Client code, where

the Socket constructor includes the classic socket deﬁnition and the connection proce-

dures. Data is read from its associated InputStream. The right part in ﬁg. 1 shows an

iterative Server, where the ServerSocket constructor deﬁnes and binds the socket to a

port and then creates a connection backlog (equivalent to the listen C primitive).

When a new connection is accepted, the server writes some bytes to its associated Out-

putStream and then returns back to attend a new client. This simple scheme may serve

one client at a time although it is also common to spawn a thread in order to service

clients in parallel.

The original java.net API lacked one of the most used techniques when building

short-lived servers: demultiplexing I/O. This technique avoids spawning a new thread

for each new service, using instead a single execution thread to serve clients simultane-

ously. This functionality was added in version 1.4, which included the new java.nio

API including the Selector framework (implementing the native OS mechanism for de-

multiplexing I/O). Unfortunately, this framework achieved backward compatibility at

the expense of complicating the class structure existing in java.net. The new API

is partially shown in ﬁg. 2, where some new elements are depicted: Channels (an evo-

lution of Stream objects) and Buffers (representing platform-level buffers which allow

zero-copy data operations).

3 Model Checking Internet Protocols with JPF

Java PathFinder can verify any Java program which does not depend on unsupported

native methods. The JPF virtual machine cannot execute platform speciﬁc or native

code, which imposes a restriction on what standard libraries can be used from within

the application under test. For instance, the current version of JPF does not support

java.awt, java.net, java.nio, and only has limited support for java.io and

runtime reﬂection. The huge state storage requirements for a software system also limit

the size of checkable applications. The JPF developers have estimated a maximum of

10.000 lines of code if no application and property speciﬁc abstractions are used [7].

Fortunately, JPF was designed as an open tool with extension capabilities. These

extensions allow users to adapt the model checking process to their speciﬁc applications

and properties. The main mechanisms available in JPF for extensions are:

– Listeners. The SearchListener and VMListener interfaces may be implemented to

modify the basic behavior of the model checking algorithm. A variant of the Ob-

server design pattern [8] allows listeners to subscribe to different events (bytecode

execution, forward or backward steps,...).

– Conﬁgurable choice generators. The ChoiceGenerator class is the extension point

responsible for implementing non-determinism policies to explore the state space

in terms of thread states or data values. After executing a system transition, JPF

prepares a ChoiceGenerator object which will be called to select the next transition

to run. A ThreadChoiceGenerator will schedule threads to run, whereas other user-

deﬁned generators are focused on deﬁning a ﬁnite data interval to explore.

– The Model Java Interface (MJI). Even if it is only a Java application (i.e. solely

consists of Java classes), JPF can be viewed as a Java Virtual Machine in itself.

The consequence is that (*.class) bytecodes are processed in two different ways in

a JVM running JPF: i) as ordinary Java classes managed and executed by the host

JVM (standard Java library classes, JPF implementation classes) or ii) as modelled

classes managed and processed (veriﬁed) by JPF.

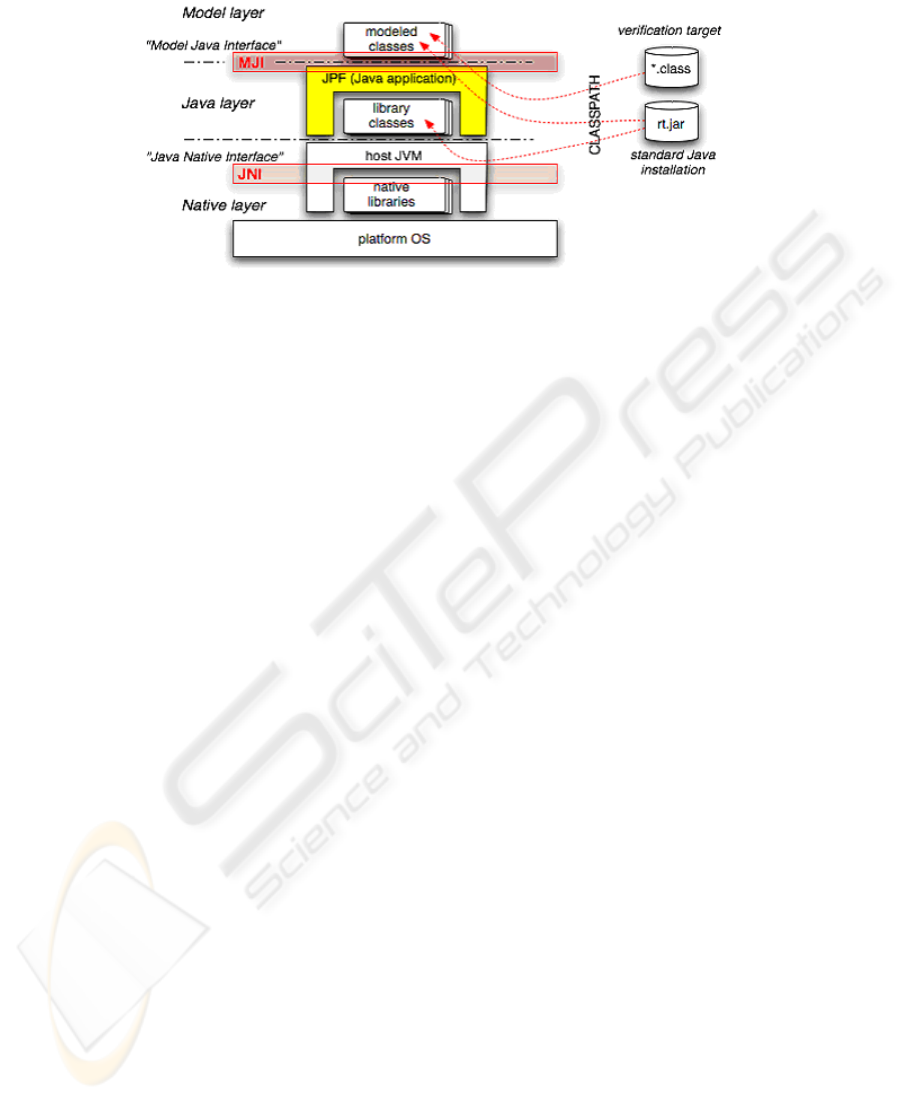

Fig. 3 depicts JPF interfaces and their relationship with the host Java virtual ma-

chine. In the bottom layer we ﬁnd the Java Native Interface (JNI) used by the virtual

machine to execute native libraries on top of the platform operating system. The Java

layer contains the JPF application that runs on top of the virtual machine and uses the

Fig.3. Layers in JPF and their relationship with the Java virtual machine (from the JPF website

[7]).

library classes available in the classpath (p.e. provided by rt.jar). The top layer is

called the Model layer, and represents classes used by the veriﬁcation target (the real

application being analyzed). The MJI mechanism intercepts class method invocations

and decides if they will be replaced instead by modelled classes. Therefore, JPF will

execute these classes, which usually behave in a particular way to guide the model

checking process. This mechanism is particularly useful to obtain a closed environment

or to abstract speciﬁc behavior which is not needed for a speciﬁc analysis (in order to

reduce the so-called state explosion problem).

3.1 Network Emulation in JPF

Following the MJI extension approach, our work has focused on creating appropriate

modelled classes to abstract java.net and java.nio classes. Therefore, Socket

and ServerSocket classes will be replaced at execution time by our own versions, which

will run inside JPF in atomic mode and will use our abstract version of the network. Our

strategy assumes that this fake network entity will substitute the real distributed environ-

ment for a multithreaded one, where protocol message exchanges will be replaced by

thread synchonization mechanisms within the abstract network, allowing JPF to model

check the protocols in this new way. Note that original programs must be transformed

into threads before this approach can be used (as shown in the following subsection).

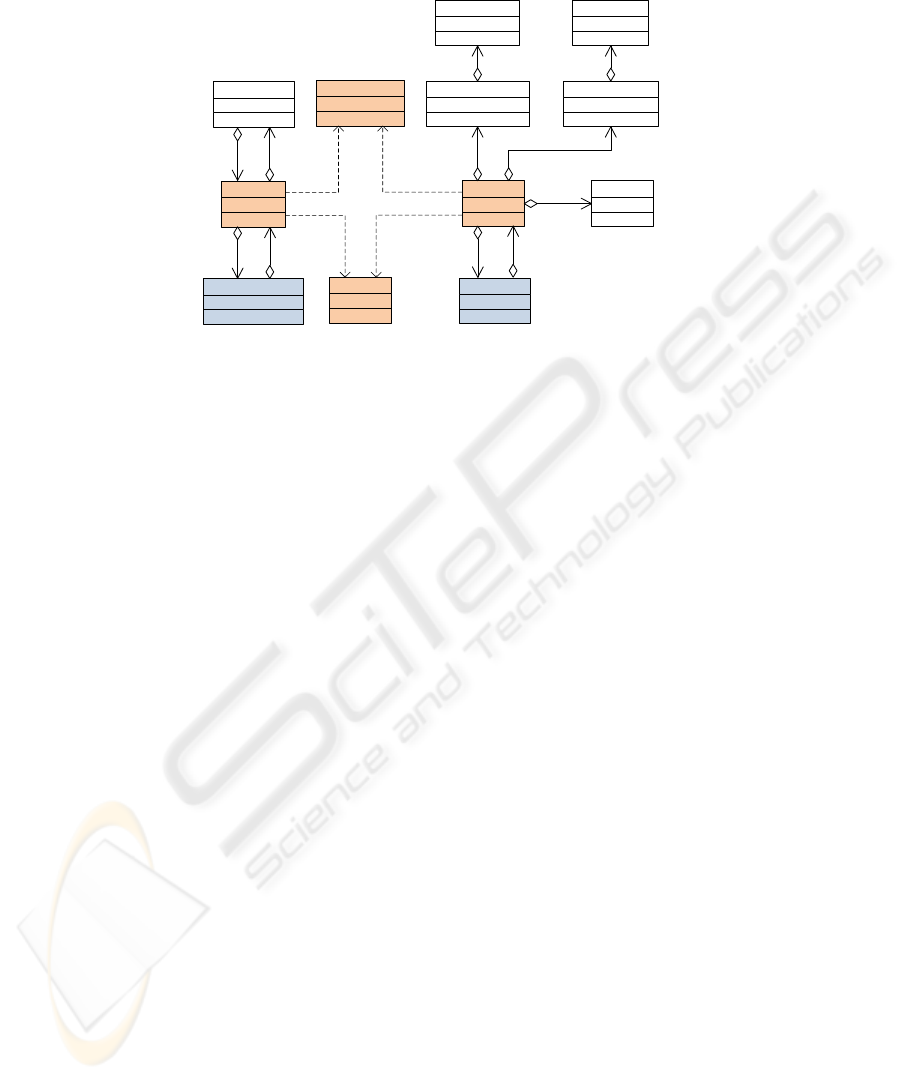

Fig. 4 represents our modelled class hierarchy,where originalclasses (shaded boxes)

have been replaced by their corresponding modelled versions, which also require some

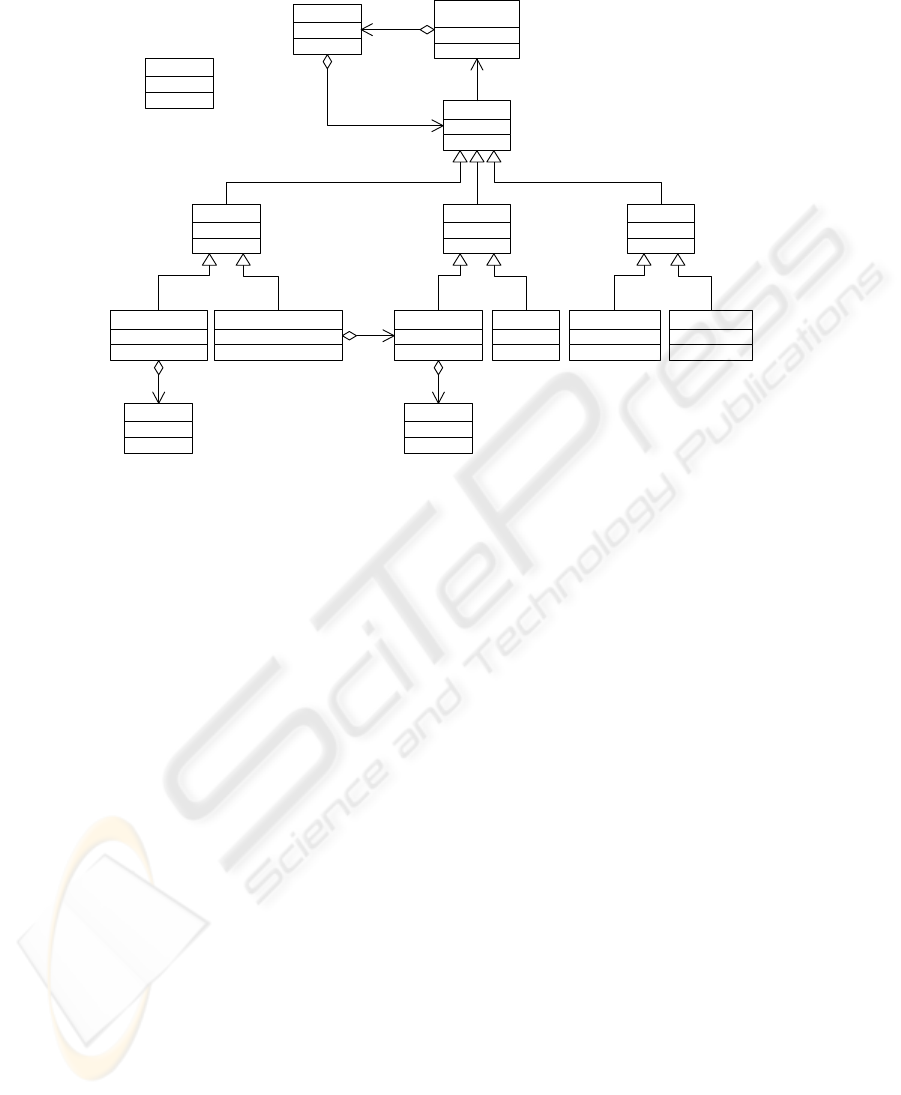

additional support.Fig. 5 depicts the complete UML diagram for these supportingclasses.

The AbstractNetwork class is the mechanism responsible for abstracting the connection

procedure along with its mainteinance. It also allows peers to send and receive mes-

sages by locating each other in the network through a PortMapper class. This is a data

structure that stores so-called Slots, which model different concepts of a Socket con-

nection for each port used. Therefore, Slot is the base class for specialized entities, each

of which represents a well-deﬁned role in the communication. There are Slots for ab-

stracting java.net Sockets and ServerSockets (derived from SlotNet), java.nio

ServerSocketChannel

SocketChannel

ServerSocket

Socket

SlotOutputStream

SlotServerSocket

SlotSocket

ConnectOutputStream ConnectInputStream

SlotInputStream

InetSocketAddress

InetAddress

-server

-dss

-ssc

-ss

-sc

-sock

-ds

-cos

-cis

-dos -dis

Fig.4. MJI model for the Socket API.

Channels (derived from SlotChannel) and Streams (derived from SlotStream). The lat-

ter encapsulate the buffers used within transport protocols. Thus, Clients and Servers

may synchronize their data exchanges through mutexes available in the Slots. This class

hierarchy captures the typical behavior of a network which offers a reliable message de-

livery service, where entities are identiﬁed by their addresses and ports. At the moment,

we have ﬁnished the support for TCP connection-oriented sockets, although UDP and

Multicast are now in progress. It is worth noting that our approach provides a ﬂexible

way to use model checking for Internet applications, thus opening up the possibility of

analyzing more complex Java middleware with JPF in the future. In fact, Java Enterprise

applications or Web Services usually rely on the Socket API available, these application

being a future target for our analysis.

3.2 The Unify Toolset

The Unify toolset allows veriﬁcation of Client and Server Java programs with JPF. It

is composed of three main components: a transformation tool (UnifyProcess), a GUI

called SocketUnify and an executable class analyzed by JPF (UnifyLoader). UnifyPro-

cess is a command-line Java application which accepts at least two executable programs

(*.class) along with their original arguments. For each class, UnifyProcess uses the

BCEL framework [9] to manipulate it at the bytecode level. The result is a set of Class-

Wrappers classes encapsulating the original ones and also implementing the Runnable

interface. Then, the UnifyLoader application will instantiate every ClassWrapper on it

as a thread, it now being possible for JPF to verify programs which were independent

before. The BCEL approach used to instrument the original software has demonstrated

to be more efﬁcient than other more obvious approaches such as using Java reﬂection to

instantiate original classes within UnifyLoader, which generates more states with JPF.

PortMapper

<<singleton>>

AbstractNetwork

Slot

SlotChannel

ReadQueue

SlotNet SlotStream

-reads

-spy

Backlog

-backlog

-holes

0..*

-ss

-env

Message

SlotSocketChannel SlotServerSocketChannel SlotServerSocket SlotSocket SlotOutputStream SlotInputStream

Fig.5. The Abstract Network class hierarchy.

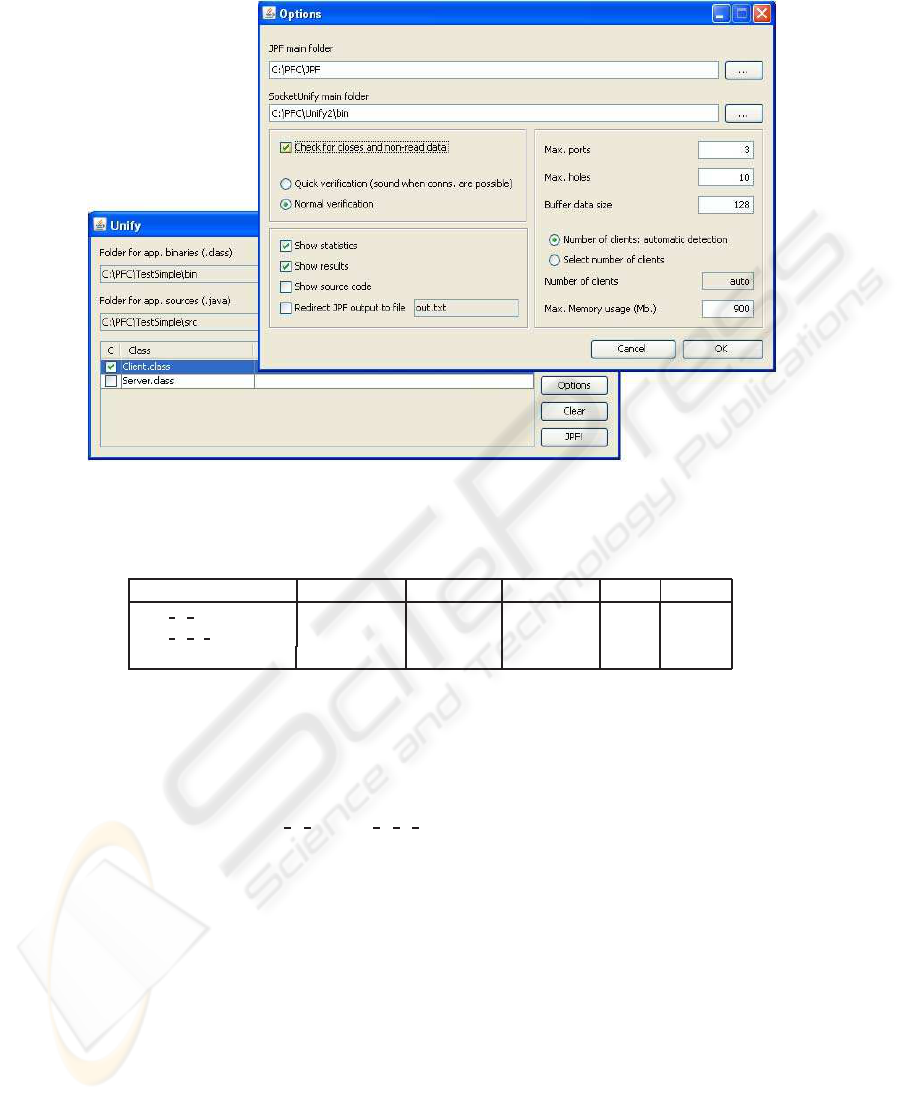

The Unify toolset also includes a graphical front-end shown in ﬁg. 6. This GUI

simpliﬁes the selection of Client and Server classes, and helps the user to deﬁne options

to guide the creation of ClassWrappers and the execution of UnifyLoader with JPF. The

ﬁgure shows in the foreground a dialog box where users may select the JPF and Unify

binary folders, along with a set of useful parameters such as the kind of analysis (quick

or normal), the abstract network conﬁguration, memory usage or different ways to show

results, among others. Regarding veriﬁcation modes in Unify, a quick veriﬁcation mode

assumes that a server is always available for connections in the port which clients will

use, a situation which avoids the exploration of some execution paths and saves time

and resources in the veriﬁcation. However, this mode may result in false positives (OK

verdicts) even when a server is not bound to the same port where clients are trying to

connect. The normal veriﬁcation mode takes care of this situation in JPF and notiﬁes

the corresponding error.

3.3 Details and Results

Our work has modelled twenty-two classes from java.net (covering 15% of the

package), java.io (13%), java.nio (20%), java.nio.channel (39%) and

java.nio.channel.spi (100%). All methods from these classes were modiﬁed,

except the ones in ByteBuffer related with conversions to other formats (they were not

a priority in this work). We have tested our JPF extension with different Java source

code for Clients and Servers, where the limitations encountered were usually more

Fig.6. The Unify GUI front-end.

Table 1. Experiment results using the JPF extension for basic Internet applications.

Experiment Visited States Max. Depth Instructions Time Memory

Echo C S 726 25 393515 0:00:01 8MB

Echo C S Selector 1153 30 870930 0:00:02 9MB

KnockKnock-Protocol 4220 203 6917403 0:00:08 23MB

JPF-related issues (e.g. some Java classes did not have their corresponding MJI ver-

sion in the model checker). JPF veriﬁes Socket code smoothly in terms of time and re-

sources (states). For instance, table 1 shows some results obtained after verifying three

Client/Server systems implementing variations of a request/response protocol (basically

as shown in ﬁg. 1): Echo C S, Echo C S Selector and KnockKnock-Protocol. The ﬁrst

one uses an iterative server, whereas the second one uses demultiplexed I/O with a Se-

lector, which is internally more complex and also more expensive to analyze. The latter

is the example protocol implemented in the Java Tutorial [10]. All these experiments

have been carried out using a PC Intel Core 2 Duo with 2,4 GHz and 2GB of memory.

Regarding the kind of properties available in our extension, we may check at the

moment:

– Deadlocks in the system (e.g. two peers waiting on a blocking read operation).

– Bad uses of the Socket API (usually throwing a Java Exception).

– Socket closures with data still pending in the input buffer.

It is worth noting that this extension is fully compatible with existing veriﬁcation

methods and other optimizations in JPF, such as partial order reduction, abstract match-

ing, race detectors or observers, among others.

4 Conclusions and Future Work

There are many model checking tools available to perform different analyses for dis-

tributed and concurrent systems. Unfortunately, users normally have to deal with the

representation of their systems in the input language of the tool or tools selected, which

is a typical source of new errors (or inconsistencies). In contrast, software model check-

ers constitute a smart solution for developers demanding an easy-to-use automatic ver-

iﬁcation tool. However, complex or speciﬁc domain problems may need additional ad-

justment and changes in the tools, followingthe objective of keeping these issues hidden

from the user.

This paper has introduced a set of JPF extensions to deal with a domain-speciﬁc

problem: the veriﬁcation of Internet Protocols. The extensions include a way to analyze

Clients and Servers provided directly in bytecode form, where no further instrumenta-

tion is required by users. The Java Model Interface has provided us with all the features

necessary to create an API modelling a network abstraction. Our class hierarchy is

able to verify processes which communicate through TCP, but it is scalable enough to

deal with other transport protocols. Thus, it is now being improved for non-connection-

oriented ones such as UDP and Multicast Sockets.

It is worth noting that our proposal is the ﬁrst step towards the veriﬁcation of

more complex distributed middleware. Our main objective is the analysis of programs

which rely heavily on middleware or high-level libraries such as J2EE or Web Services,

where the basic communication tasks are hidden although they still belong to the basic

Client/Server model.

Our future work is focused on introducing more ﬂexible ways to deﬁne and embed

properties for Internet software in JPF, along with techniques to optimize the veriﬁ-

cation process in terms of resources and time consumption. We also plan to combine

our proposal with emerging methodologies such as Model Driven Engineering (MDE)

[11], as shown in [12], where MDE and UML concepts were applied in order to simplify

the design of network services for the Internet by proposing a UML2 Communication

Proﬁle. This would make it more straightforward to use the automatic code genera-

tion facilities available in modern modelling tools in order to obtain Socket-based Java

source code to be analyzed with JPF.

References

1. Clarke, E., Emerson, E.A., Sistla, A.: Automatic veriﬁcation of ﬁnite-state concurrent sys-

tems using temporal logic speciﬁcations. ACM Trans. on Programming Languages and Sys-

tems 8 (1986) 244–263

2. Clarke, E., Grumberg, O., Peled, D.: Model Checking. MIT Press (2000)

3. Ball, T., Rajamani, S.K.: The SLAM toolkit. In: Proceedings of CAV01. Volume 2102 of

Lecture Notes in Computer Science. (2001)

4. Henzinger, T., Jhala, R., Majumdar, R., Sutre, G.: Software Veriﬁcation with BLAST. In:

SPIN Workshop on Model Checking Software. Volume 2648 of Lecture Notes in Computer

Science. (2003) 235–239

5. Havelund, K., Pressburger, T.: Model Checking Java Programs using Java Path Finder. In:

Software Tools for Technology Transfer. Volume 2. (2000) 366–381

6. Havelund, K., Visser, W.: Program model checking as a new trend. In: Software Tools for

Technology Transfer (STTT). Volume 4. (2002) 8–20

7. NASA: The Java PathFinder open source project. Available at

http://javapathﬁnder.sourceforge.net/ (2008)

8. Gamma, E., Helm, H., Johnson, R., Vlissides, J.: Design Patterns. Addison-Wesley Pub Co.

(1995)

9. Apache Software Foundation: The Bytecode Engineering Library. Available at

http://jakarta.apache.org/bcel/ (2008)

10. Sun Microsystems: The Java Tutorial: all about Sockets. Available at

http://java.sun.com/docs/books/tutorial/networking/sockets/index.html (2008)

11. Kent, S.: Model Driven Engineering. In: Proceedings of IFM 2002. LNCS 2335, Springer-

Verlag (2002) 286–298

12. Mart´ınez, J., Merino, P., Salmeron, A.: Applying MDE Methodologies to Design Commu-

nication Protocols for Distributed Systems. In: First International Conference on Complex,

Intelligent and Software Intensive Systems, IEEE Computer Society (2007) 185–190

100
