Comparing Methodologies for Service-Orientation using

the Generic System Development Process

Linda Terlouw

Delft University of Technology, Delft, The Netherlands

Ordina, Nieuwegein, The Netherlands

Abstract. Enterprises use Service-Oriented Architecture (SOA) and Service -

Oriented Design (SoD) as a means to achieve better business-IT alignment and a

more ﬂexible IT environment. Deﬁnitions of both notions are often not clear or

even contradict. This paper instantiates the Generic System Development Process

(GSDP) for service-orientation and provides a common terminology for compar-

ing the scope of different methodologies. To demonstrate its use we compare

several existing methodologies. Methodologies that focus on (nearly) the whole

service-oriented development process are Papazoglou’s and van den Heuvel’s ser-

vice - oriented design methodology, SOMA and SOAF. More specialized method-

ologies are the goal-driven approach, BCI3D, and Business Elements Analysis.

1 Introduction

Most large enterprises have a complex application landscape. Functional overlap be-

tween applications exists and applications exchange information using different com-

munication mechanisms. Often the relationship between the applications and their sup-

porting business processes is not explicitly described and the interdependence between

applications acts as bottleneck in redesigning business processes to exploit new busi-

ness opportunities.

The concept of Service-Oriented Architecture (SOA) aims at improving this situa-

tion by exposing application functionality in services. These services are accessible in a

uniform way and do not show the underlying technology of the application(s). Service-

Oriented Design (SoD) is concerned with the process of creating these services in a

systematic way. Although many methodologies for SoD are available, only few address

the complete design process and describe the design steps in the necessary depth. Com-

paring these methodologies is quite a challenge because they lack a common view of

SOA, SoD and the steps involved in design. The main contributions of this paper are a

clear terminology of SOA and SoD based on the Generic System Development Process

(GSDP) [1]. Also, we make a brief comparison of several existing methodologies for

service-orientation based on the phases of this process.

We start this article with explaining our view of architecture in section 2. Section 3

describes the GSDP and its instantiation for service-orientation. In section 4 we discuss

several methodologies. Finally, we end with our conclusions in section 5.

Terlouw L. (2008).

Comparing Methodologies for Service-Orientation using the Generic System Development Process.

In Proceedings of the 6th International Workshop on Modelling, Simulation, Veriﬁcation and Validation of Enterprise Information Systems, pages

101-108

DOI: 10.5220/0001738901010108

 SciTePress

2 Architecture

A common misconception in industry as well as in academia is that web services are

the same as SOA. One cannot speak of SOA when developers have created some web

services using modern integration technology. In fact, SOA does not even require web

services. Many deﬁnitions of SOA [2–5] mention the notion of architecture, architec-

tural style or paradigm, but lack a clear deﬁnition. When we do see a deﬁnition of

architecture, it is usually one of the following three: the descriptive deﬁnition, the pre-

scriptive deﬁnition, and the combination of both.

The descriptive approach deﬁnes architecture as high-level models using names like

‘high-level components’ or ‘blue prints’. Zachman uses this approach in his deﬁnition

[6]: “Architecture is that set of design artifacts, or descriptive representations, that are

relevant for describing an object, such that it can be produced to requirements as well

as maintained over the period of its useful life”. In the xAF (Extensible Architecture

Framework) [7] architecture is deﬁned as: “the normative restriction of design freedom

because of the notion that design freedom of designers is undesirable large. Practically,

architecture is seen as a consistent and coherent set of design principles that embody

general requirements”. Thus architecture is seen as prescriptive. Also, deﬁnitions exist

that combine the descriptive and prescriptive approach. The IEEE 1471 standard [8], for

instance, deﬁnes architecture as: “the fundamental organization of a system embodied

in its components, their relationships to each other, and to the environment, and the

principle guiding its design and evolution”.

In this remainder of this article we use the prescriptive deﬁnition of architecture. So,

we see SOA as a consistent and coherent set of design principles that need to be taken

into account in the development process of services.

3 The Service-Oriented Development Process

The GSDP, exhibited in ﬁgure 1, applies to any system. Two different system notions

exist: the teleological and the ontological system notion [9]. The teleological system no-

tion is about the function and the (external) behavior of a system and the corresponding

type of model is a black-box model. The ontological system notion is about the con-

struction and operation of a system and the corresponding type of model is a white-box

model. Both the black-box model and the white-box model of the GSDP are relevant

to service-orientation; the black-box model for using services and the white-box model

for building (or changing) services.

The object system is the system that needs to be developed for supporting the using

system. The development of the object system consists of three phases: design, engi-

neering, and implementation.

3.1 Service-Oriented Design

The design phase consists of two steps: function design and construction design. Func-

tion design has a black-box model as result. Construction design has a white-box model

102

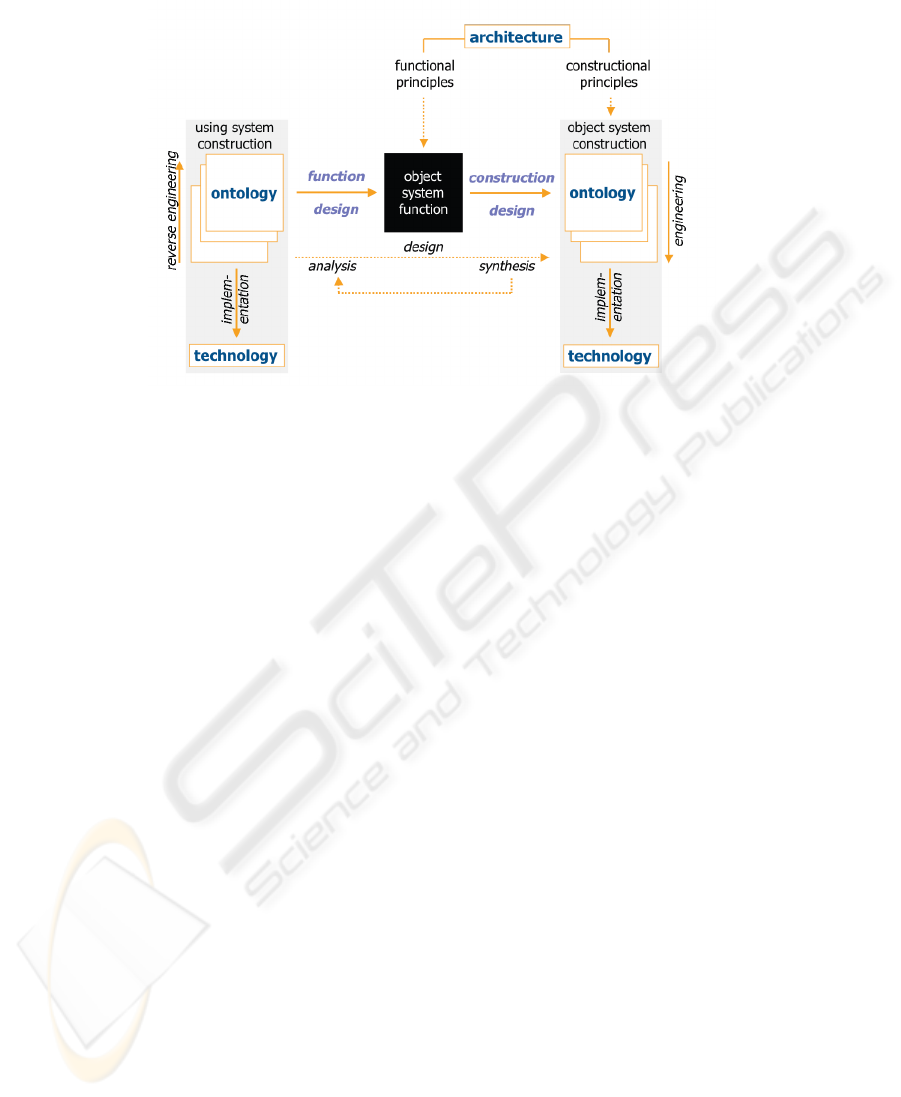

Fig. 1. The generic system development process [1].

as result which is called an ontology. The term ontology originates from the ﬁeld of phi-

losophy having the meaning ‘study of existence’. In our context we deﬁne ontology as

follows [9]: the ontology of a system is the understanding of the system’s operation

that is fully independent of the way in which it is or might be implemented. Applying

this to service-orientation we see two phases in SoD: Service-Oriented Function Design

(SoFD) and Service-Oriented Construction Design (SoCD). SoFD deals with determin-

ing and specifying the function of a service. Service identiﬁcation is in our view the ﬁrst

step in SoFD. It deals with identifying candidate services in a systematic way. The cen-

tral question is “What services are required in the scope of the SOA?”. The process

of service speciﬁcation (also the QoS requirements) is part of SoFD as well, since it

speciﬁed the external behavior of a service without caring about it internals. Once the

speciﬁcation is available one can design the construction of a service.

SoCD results in the highest possible white-box model of the service. A service

needs to be constructed in such a way that it conforms to the constructional principles

of the architecture. A common classiﬁcation of services is that of atomic and composite

services. A composite service depends on the execution of other, lower-level services.

An atomic service does not. For the service consumer there is no notable difference

in which way the service provider constructs its service. Composite services can be

constructed, for instance, by orchestration (BPEL [10], BPML [11]). An orchestration

determines in which order and under what conditions which lower-level services are

called. Orchestration is especially suitable for creating very high-level services that

support multiple steps in a (partly) automated business process. Another way to create

composite services is assembly (SCA [12]). The highest-level construction model of

an atomic service could, for example, be a (high-level) class diagram if the service is

implemented in an object-oriented language.

103

Table 1. Terminology derived from applying the GSDP to service-orientation.

Term Meaning End result

SOA a coherent set of design princi-

ples that need to be taken into

account in development process

of services

all services in scope con-

forming to the same princi-

ples

Service-Oriented Func-

tion Design

deals with the design of the

function of the service

the service speciﬁcation of

an identiﬁed service

Service-Oriented Con-

struction Design

deals with the design of the

highest-level white-box model

the high-level design of the

internals of the service

Service Engineering deals with the decomposition

of the highest-level white-box

model to the lowest-level white-

box model

the full design of the inter-

nals of the service

Service Implementa-

tion

deals with the mappping of the

lowest-level white-box model

to technology, i.e. the deploy-

ment of services

the deployed service

3.2 Service Engineering

Engineering is the process of deriving lower-level white-box models from the high-level

white-box model. Service Engineering (SE) deals with decomposing the highest-level

white-box model to lower-level white-box models. The lowest-level construction model

is also called the implementation model. This model is the source code of the service

itself in case of an atomic service or the source code of the referenced services in case

of a composite service. In practice, most services are not constructed completely in a

top-down way because not only new systems, but also existing systems, are used as

building blocks for services. The design process is therefore iterative: the ﬁnal result

of every design process is (or should be) a balanced compromise between reasonable

functional requirements and feasible constructional speciﬁcations [13].

3.3 Service Implementation

The implementation of the object system is the assignment of technology to the lowest-

level white box model (the implementation model). Dietz and Hoogervorst use technol-

ogy in the broadest possible meaning, e.g. human beings, software systems, electronic

machines. Service Implementation (SI) deals with mapping the implementation model

to computer systems. This is the phase in which the services are deployed. Most en-

terprises have at least two test environments to deploy to after the service has been

developed: a test environment for veriﬁcation (checking whether the services matches

the design) and one for validation (checking whether the service is useful to poten-

tial service consumers). Both tests can lead to repeated execution of previous steps in

the design process and redeployment to the test environment. Finally, the service is

deployed to the production environment.

104

3.4 Service-Oriented Architecture

The architecture prescribes general functional and constructional requirements (the

principles). As stated in section 2 we deﬁne SOA as a consistent and coherent set of de-

sign principles that need to be taken into account in the development process of services.

Marks and Bell [14] provide nine criteria that services must meet: coarse-grained, well-

deﬁned service contracts, discoverable, business aligned, reusable, durable, loosely cou-

pled, composable, and interoperable. More principles for service design exist, but it is

not our goal to present a complete list. Instead, we want to show our way of thinking.

The functional requirements deal with the external function and behavior of a service,

e.g. “A service is coarse-grained” and “A service is business aligned”. The construc-

tional requirements deal with the internal construction and operation of the service, e.g.

“A service is composable” and “A service is loosely coupled”.

Are all of these principles consistent? In our view they are not. For instance, if a

service is completely business aligned to the business process of one service consumer,

it is probably not reusable and vice versa. Enterprises, however, need a consistent set of

principles in order to make design decisions in a systematic way. Therefore, an enter-

prise has to formulate explicitly whether and under what conditions one principle has

priority over another one.

Table 1 summarizes the terminology explained in this section.

4 Comparing Methodologies

Table 2 depicts the scopes of several methodologies for service-orientation. We have

divided them into general methodologies and specialized methodologies.

4.1 General Methodologies

Methodologies that cover the largest part of the service development process are the

methodology of Papazoglou and van den Heuvel [15], the IBM methodology SOMA

[16], and SOAF [17]. Papazoglou and van den Heuvel distinguish between the phases,

that they call, planning, analysis and design, construction and testing, provisioning,

deployment, execution and monitoring. This methodology is in our view the most com-

prehensive approach at this moment in time. Not only does it deal with SoFD, SoCD,

and SE, but also with SI (in the deployment phase). It provides guidelines on how to

perform these steps.

SOMA distinguishes between the three major activities, that the authors call, identi-

ﬁcation, speciﬁcation, and realization. The methodology does not make a clear distinc-

tion between the function and construction of the service. It does not deal with SI. Since

only a high-level description of SOMA is publicly available, we cannot say anything

about the depth in which the design activities are described.

SOAF addresses the phases, that the authors call, information elicitation, service

identiﬁcation, service deﬁnition, and service realization. It clearly described what steps

to take and what the relationship between the different steps are. However, it focuses

mainly on what steps to take and not on how to take these steps. It is described at a

higher level of detail than the methodology from Papazoglou en van den Heuvel.

105

Table 2. Classiﬁcation of SOA methodologies.

Methodology SoFD SoCD SE SI

BCI3D x

Business Element Approach x

Goal Driven Approach x

SOAF x x x x

SoD and Development Methodology x x x x

SOMA x x x

SMART x x

4.2 Specialized Methodologies

Also, more specialized methodologies exist. In the area of service identiﬁcation (part

of SoFD) there are the goal-driven approach [18], BCI3D [19] and Business Elements

Analysis [20]. The goal-driven approach ﬁnds its basis in the world of component based

development and derives services from business goals. The services are depicted in a

goal-service graph and service are allocated to enterprise components. These enterprise

components are identiﬁed by clustering highly interdependent (coupled) use cases.

BCI3D also has a background in component based development. It identiﬁes busi-

ness components on the basis of a formal organizational model, called the enterprise

ontology [1]. An algorithm is used to cluster business process steps from the business

process model and object class from the information model forming a business compo-

nents. The calls between these business components are regarded as the highest level

services an organizations requires.

Like the last two methodologies Business Elements Analysis has its roots in compo-

nent based development. It deﬁnes Resource Business Elements (RBE’s), which group

the (information) resources and Service Business Elements (SBE’s), which consist of

the highest-level immediate steps. An RBE consists of a focus resource, which is inde-

pendent (e.g. Customer) and its auxiliary resources (e.g. Address), which always belong

to a certain focus resource. A Delivery Business Element (DBE) is a grouping of Service

and Resource Business Elements that together deliver a business solution to a business

problem, and which provides services to requesters.

SMART [21] is a methodology described in detail on how to construct identiﬁed ser-

vices from legacy systems (SoCD and SE). SMART takes into account that in practice

it is often not easy to construct services from legacy systems. Since almost no organiza-

tion has the luxury to build up its entire IT-environment from scratch, it is important to

realize the risk involved in migrating to SOA. According to the SMART methodology

an organization needs to thoroughly assess the capabilities of its legacy systems and

carefully analyze the risk of migrating. A migration plan describes the necessary steps

to take for the migration.

106

5 Conclusions

At this moment in time, most SoD methodologies do not make a clear distinction be-

tween the notions of SOA and SoD. The main contribution of this paper is a clear termi-

nology of these notions based on the Generic System Development Process. We intro-

duced the following phases in the development process for services: Service-Oriented

Function Design, Service-Oriented Construction Design, Service Engineering, and Ser-

vice Implementation. Using this high-level classiﬁcation of phases one can determine

the scope of different SoD methodologies. We have provided a brief comparison of sev-

eral existing methologies. Some methodologies cover (almost) the whole development

process. These methodologies tend to focus on what steps to take and not on the ap-

proaches used to execute the steps. We do need to note that since IBM’s SOMA method-

ology is not publically available, we based our analysis on available articles which may

not cover its full contents. Some of the specialized methodologies provide an in-depth

contribution to speciﬁc steps of the development process. In our view, however, there is

still a large need for more in-depth research on speciﬁc parts of the development pro-

cess. In our further research we will focus on the speciﬁcation of services, which is part

of the Service-Oriented Function Design phase.

References

1. Dietz, J., Hoogervorst, J.: Enterprise ontology and enterprise architecture, how to let them

evolve into effective complementary notions. GEAO Journal of Enterprise Architecture 2

(2007)

2. OASIS: Reference model for service oriented architecture, committee draft 1.0.

(2006) http://www.oasis-open.org/committees/download.php/16587/

wd-soa-rm-cd1ED.pdf.

3. OMG: Service oriented architecture sig (2006) http://soa.omg.org/.

4. The Open Group: Service oriented architecture (2006) http://www.opengroup.org/

projects/soa/.

5. W3C: Web service architecture (2006) http://www.w3.org/TR/ws-arch/.

6. The Zachman Institute for Framework Advancement: Enterprise architecture: A framework

(2007) http://www.zifa.com/framework.pdf.

7. Dietz, J.: The extensible architecture framework (2004) http://www.lac2004.nl/

docs/fvbg2hdsb83/Track8/J.%20Dietz.pdf.

8. Maier, M.W., Emery, D., Hilliard, R.: Software architecture: Introducing ieee standard 1471.

Computer 34 (2001) 107–109

9. Dietz, J.: Enterprise Ontology, Theory and Methodology. Springer, Berlin Heidelberg, Ger-

many (2006)

10. OASIS: Web services business process execution language version 2.0 (2007) http://

docs.oasis-open.org/wsbpel/2.0/OS/wsbpel-v2.0-OS.html.

11. Thiagarajan, R.K., Srivastava, A.K., Pujari, A.K., Bulusu, V.K.: Bpml: A process modeling

language for dynamic business models. In: WECWIS ’02: Proceedings of the Fourth IEEE

International Workshop on Advanced Issues of E-Commerce and Web-Based Information

Systems (WECWIS’02), Washington, DC, USA, IEEE Computer Society (2002) 239

12. Open SOA: Service component architecture (2007) http://www.osoa.org/

display/Main/Service+Component+Architecture+Specifications.

107

13. Albani, A., Dietz, J.: Enterprise ontology based design of inter-enterprise information sys-

tems. Technical report, Delft University of Technology (2007)

14. Marks, E., Bell, M.: Service-Oriented Architecture, A planning and implementation guide

for business and technology. John Wiley & Sons, Inc., Hoboken, New Jersey (2006)

15. Papazoglou, M., van den Heuvel, W.J.: Service-oriented design and development methodol-

ogy. International Journal of Web Engineering and Technology 2006 2 (2006) 412–442

16. Arsanjani, A., Allam, A.: Service-oriented modeling and architecture for realization of an

soa. In: SCC ’06: Proceedings of the IEEE International Conference on Services Computing,

Washington, DC, USA, IEEE Computer Society (2006) 521

17. Erradi, A., Anand, S., Kulkarni, N.N.: Soaf: An architectural framework for service deﬁni-

tion and realization. In: IEEE SCC, IEEE Computer Society (2006) 151–158

18. Levi, K., Arsanjani, A.: A goal-driven approach to enterprise component identiﬁcation and

speciﬁcation. Communications of the ACM 45 (2002) 45–52

19. Albani, A., Dietz, J.: The beneﬁt of enterprise ontology in identifying business components.

In: WCC ’06: Proceedings of the IFIP World Computer Congress, Santiago de Chile, Chile

(2006)

20. McGovern, J., Sims, O., Jain, A., Little, M.: Enterprise Service Oriented Architectures:

Concepts, Challenges, Recommendations. Springer-Verlag New York, Inc., Secaucus, NJ,

USA (2006)

21. Lewis, G., Morris, E., Smith, D.: Analyzing the reuse potential of migrating legacy compo-

nents to a service-oriented architecture. In: CSMR ’06: Proceedings of the Conference on

Software Maintenance and Reengineering, Washington, DC, USA, IEEE Computer Society

(2006) 15–23

108
