Visual and OCR-Based Features for Detecting Image

Spam

Francesco Gargiulo and Carlo Sansone

Dipartimento di Informatica e Sistemistica, University of Naples Federico II

Via Claudio 21, I-80125, Naples, Italy

Abstract. The presence of unsolicited bulk emails, commonly known as spam,

can seriously compromise normal user activities, forcing them to navigate through

mailboxes to ﬁnd the - relatively few - interesting emails. Even if a quite huge

variety of spam ﬁlters has been developed until now, this problem is far to be re-

solved since spammers continuously modify their malicious techniques in order

to bypass ﬁlters. In particular, in the last years spammers have begun vehiculating

unsolicited commercial messages by means of images attached to emails whose

textual part appears perfectly legitimate.

In this paper we present a method for overcoming some of the problems that

still remain with state-of-the-art spam ﬁlters when checking images attached to

emails. Results on both personal and publicly available email databases are pre-

sented, in order to assess the performance of the proposed approach.

1 Introduction

It is well known that unsolicited bulk emails, commonly known as spam, are a serious

problem for email accounts of single users, small companies and large institutions, since

the presence of spam can seriously compromise normal user activities, forcing them to

waste time, bandwidth and storage space. Moreover,spam emails have often unsuitable

content (as a pornographic material advertising) that could be illegal for minors.

In this realm, different counter-measures to spam have been proposed, using regula-

tory or technical approaches. The legislative approach did not obtain the desired results.

Several technical approaches have thus been implemented in different anti-spam ﬁlters

currently used to detect unsolicited bulk emails [4,12].

In the past, researchers have ﬁrst addressed this problem as a text classiﬁcation or

categorization problem [1,5]. However, as spammers’ techniques continue to evolve

and the genre of email content becomes more and more diverse, keywords-based anti-

spam approaches alone are no longer sufﬁcient. Then, different techniques have been

used to analyze the mail text, the majority of which are learning-based approaches.

Considering the spam detection as a binary classiﬁcation problem, several algorithms

from learning theory ﬁeld can be used, such as Bayesian algorithms [11] or Support

Vector Machines (SVM) [7]. These systems, using the acquired knowledge on a suitable

training set, are able to discriminate between legitimate and malicious text in order to

reject mails considered as spam.

Gargiulo F. and Sansone C. (2008).

Visual and OCR-Based Features for Detecting Image Spam.

In Proceedings of the 8th International Workshop on Pattern Recognition in Information Systems, pages 154-163

 SciTePress

Most of the previous approaches use also feature extraction techniques. Features

extracted from email’s text are then given as input to a classiﬁer in order to ﬁlter spam

messages from legitimate texts. Anyway, spammers adopted different solutions to mis-

lead this kind of ﬁlters by obscuring text, by obfuscating words with symbols and by in-

cluding neutral text to confuse the classiﬁcation process. These tricks have been studied

by anti-spam researchers in order to ﬁnd new solutions to restore ﬁltering effectiveness.

Among the different tricks used by spammers, an emerging kind of spam practice is

the so-called image spam. Here spammers use to sent their messages in attached images

that are readable by human but hidden from the ﬁlter. Even if image spam is relatively

new, various proposals have been made in the literature to address this kind of spam,

too. Most approaches use some form of embedded text detection within images. The

rationale is that spam images should contain a text whose content can spread unsolicited

commercial messages.

In particular, Wu et al. [13] deﬁned a set of visual features in order to detect char-

acteristics common in spam images, such as embedded text and banner features. These

features are then combined with message text features for training a one-class SVM that

should be able to detect when legitimate (ham) emails are outside the spam class. Simi-

larly, Aradhye et al. [2] proposedfeatures to detect embedded text and some background

types that should be consistent with spam. Once again, they use an SVM classiﬁer to

discriminate between ham and spam images. A different approach is instead followed

in [8]. Here the authors propose to process attached images with a state-of-the-art OCR

and then to forward OCR outputs to a text-based spam ﬁlter.

All the aforementioned approaches, however, cannot be used when text within im-

ages is voluntarily distorted and/or obfuscated. As it was noted in [3], in fact, now spam-

mers try to make OCR and text detection techniques ineffective without compromising

human readability, by placing text on non-uniform background, or by using techniques

like the ones exploited in CAPTCHAs

(programs that generate and grade tests that

humans can pass but current computer programs cannot).

In a recent paper, Dredze et al. [6] presented an approach to image spam detection

based on an algorithm for speed sensitive feature selection. Despite the focus of the pa-

per is mainly on a method that can efﬁciently process attached images, it is interesting

to note that their approach consider both feature that relies on metadata and other sim-

ple image properties (such as size and format) as well as features related to the visual

content of the image itself. So, they neither try to detect text within images, nor consider

the fact that now spammers use tricks for obfuscating this text.

In this paper we deﬁne a method for overcoming some problems that still exist

with state-of-the-art spam ﬁlters when addressing image spam. In particular, we tried

to fuse the key ideas of some of the previously described approaches, by deﬁning two

different sets of features. A ﬁrst set should characterize an image from a global point of

view, in order to detect artifacts that are typically indications of the presence of spam.

Another set of features has been instead devised for detecting malicious text in images,

The term CAPTCHA (Completely Automated Turing Test To Tell Computers and Humans

Apart) was coined in 2000 by Luis von Ahn, Manuel Blum, Nicholas Hopper and John Lang-

ford of Carnegie Mellon University. At that time, they developed the ﬁrst CAPTCHA to be

used by Yahoo – http://www.captcha.net/

by explicitly taking into account the fact that now such text is typically deformed and/or

obfuscated by spammers. In order to do that, the output of an OCR applied to the image

under test is further processed for deriving features that should be able to characterize

this kind of trick.

The rest of the paper is organized as follows. First, we present the proposed method

for coping with image spam, by giving details about the proposed features. Then, the

databases used for assessing the performance of our method are introduced and exper-

imental results are presented and discussed. A comparison with other state-of-the-art

image spam ﬁlter is also reported. Finally, some conclusions are drawn.

2 The Proposed Approach

As stated in the introduction, nowadays various solutions are proposed by the anti-spam

community for the detection of image spam. A conservative approach for eliminating

image spam can be realized by blocking images from unknown senders, or even by

blocking images from all the senders. Obviously, several legitimate emails will never

get their destination. Apart from these extreme methods, a certain number of research

systems addressed this problem. Most of them use simple visual features to distinguish

between ham and spam images. Other papers focused on the possibility to use a full

Optical Character Recognition (OCR) and then to apply to its output the same tech-

niques adopted for processing the textual part of an email. These systems, however,

suffer from the problem that images are frequently adulterated and so the OCR output

cannot be correctly processed by means of a textual analysis, as you can see in Figure 1

(right). Moreover, they cannot address images without embedded text.

Fig.1. Outputs obtained by applying gocr (available at http://jocr.sourceforge.net) to some ham

(left) and spam (right) images.

Starting from these considerations, in this paper we propose a novelapproach for the

detection of the image spam in which two different image processing techniques (see

Figure 2) are used. The ﬁrst one is devoted to directly extract some global features from

each image attached to the emails. Such features should be able to detect if images were

adulterated or not, by considering the complexity of the image itself as it is perceived

from an human being. The second processing is carried out by means of two steps.

First, there is a preprocessing phase in which an OCR is used; then, a feature extraction

process try to characterize the OCR output, in order to detect if it contains embedded

text that has been voluntarily obfuscated and/or distorted. The differences between our

use of an OCR and the previous ones (see for example [8]) is that in our case the OCR

was used as a tool for obtaining a ﬁngerprint of an adulterated image, which is then

characterized by means of a suitable set of features.

The features directly extracted from the image and those obtained from the OCR

output are then put together as input of a binary classiﬁer that, after a suitable training

phase, can decide if the image under test is ham or spam (see Figure 2).

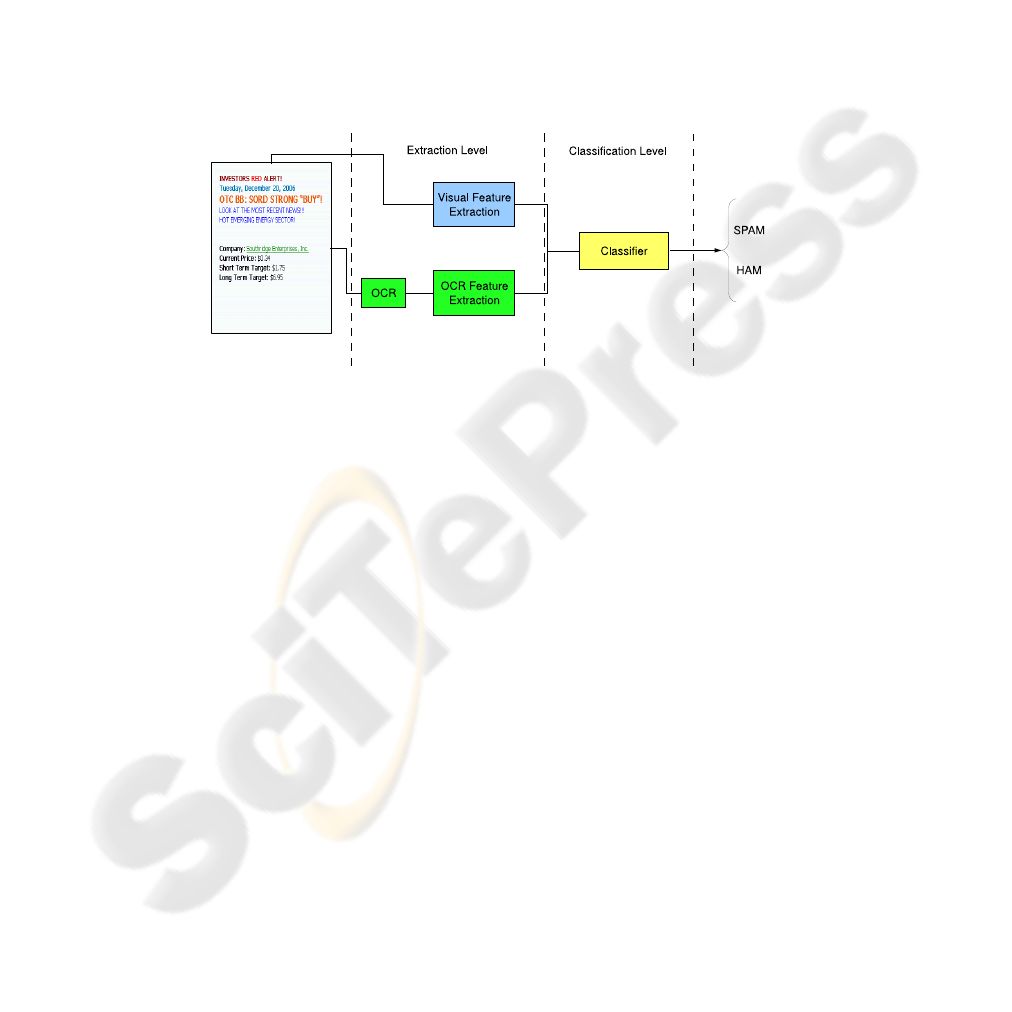

Fig.2. The proposed approach for ﬁltering image spam.

If there is more than one image attached to an email, we perform a boolean OR

among the output of the different classiﬁcation acts, i.e. an email is declared as spam

if there is at least one attached image recognized as spam. We do not use any sort of

voting mechanism in order to deny a kind of padding-attack from the spammers. That

is, the possibility that an attacker puts a spam message within a normal context, by

attaching various images only one of them vehiculates the spam message. In this case,

if a majority voting was used, the system could erroneously assign the mail to the ham

class.

It is worth noting that the proposed approachcan also be integrated in a more general

architecture, so as the one presented in [9], which has been devised to cope with both

image spam and text-based spam. In that proposal, the output of an OCR applied to each

image is also forwarded as-is to a text-based ﬁlter so as to have an additional verdict

about the fact that the image under test could be spam. Since the OCR output could

be not processable by a text-based ﬁlter, an additional module is however needed for

deciding when such an output must be passed to the text-based ﬁlter.

2.1 Visual Features

The ﬁrst set of features, that we called visual features, are directly obtained from the

image attached to the mails. In order to give an image characterization that should be

able to discriminate between normal and adulterated images, we considered features

that describe the image texture from a statistic point of view. As said before, in fact,

spammers typically now try to bypass ﬁlters that use an OCR for detecting texts within

an image by obfuscating such texts with the addition of some noise or by superimpos-

ing a texture (see also Figure 1–right). So, texture detection can help in individuating

images that contain spam messages. For the sake of simplicity, in the following we will

present the considered features in case of gray-level images, but the same operators can

be applied to color images too.

We will use {I (x, y) , 0 ≤ x ≤ N − 1, 0 ≤ y ≤ M − 1} to denote an N × M im-

age with G gray levels. All the considered statistical texture measures are based on the

co-occurrence matrices. Spatial gray level co-occurrence estimates image properties re-

lated to second-order statistics. The G × G gray level co-occurrence matrix P

for a

displacement vector d = (dx, dy) is deﬁned as follows. The entry (i, j) of P

is the

number of occurrences of the pair of gray levels i and j which are a distance d apart.

Formally, it is given as:

(i, j) = | {((r, s), (t, v)) : I(r, s) = i, I(t, v) = j} |

where (r, s), (t, v) ∈ N × M, (t, v) = (r + dx, s + dy) , and |.| is the cardinality

of a set.

As regards the choice of the displacement vector d, we considered the four direct

neighbors of each pixel, i.e. we used four pairs as values of dx and dy for calculating

the number of co-occurrences, namely (0, 1), (1, 0), (−1, 0) and (0, −1). We do not

perform a normalization of P

in order to preserve the dependence of the considered

features on the image size.

As suggested in [10], from the co-occurrence matrix it is possible to extract features

that can be used for detecting a texture within an image. In particular, we considered

the following ﬁve features:

– Contrast:

(i − j)

(i, j)

is the difference in terms of visual properties that makes an object (or its represen-

tation within an image) distinguishable from other objects and the background. In

the visual perception of real world, contrast is determined by the difference in the

color and brightness of the object and other objects within the same ﬁeld of view.

In practice, it is the ratio between the brightest and the darkest value of the image.

In the case of a B/W image, note that the increase of the contrast is equal to erase

gray values.

– Entropy:

−

(i, j)logP

(i, j)

is an index of the brightness variation among the pixel in an image. More the values

of brightness are different each others, more the entropy will be higher.

– Energy:

(i, j)

is the spectral content of an image

– Correlation:

(i − µ

)(j − µ

(i, j)

is an index of the correlation degree among the pixel. Here µ

and µ

are the means

and σ

are the standard deviations of P

(x) and P

(y) respectively, where

(x) =

(x, j) and P

(y) =

(i, y)

– Homogeneity:

(i, j)

1 + |i − j|

is a measure of the brightness variation within the image. If the image is completely

black or white, its homogeneity value will be the maximum. On the contrary, if the

image contains several brightness variations, this value will be very low.

Another category of features that can be used for characterizing images from a

global point of view is based on the complexity of an image for a human reader. We

have chosen to consider a feature also proposed in [3]:

– Perimetric Complexity: is deﬁned as the squared length of the boundary between

black and white pixels (the perimeter) in the whole image, divided by the black

area.

Note that, differently from [3], we evaluate the perimetric complexity on the whole

image, after performing a binarization with a ﬁxed threshold.

2.2 OCR-based Features

As it can be seen in Figure 1, when an OCR is used for processing images whose

embedded texts have been distorted or obfuscated, the majority of the words cannot

be correctly detected. Furthermore, several characters that typically are not present in

common-sense words can appear in the OCR output. So, we deﬁned some OCR-based

features for obtaining a characterization of this kind of text. The features we are inves-

tigating on are mainly based on the presence of special characters, i.e. those characters

that should not be frequently present in a legitimate text. The whole set we considered

is made up of the following characters: { !, ”, #, $, %, &, ’, (, ), *, +, ,, -, ..., /, @, ˆ}.

Starting from this set we deﬁned six OCR-based features:

– text

length: the number of characters of the whole text extracted by the OCR

– words number: the number of words in the text extracted by the OCR

– ambiguity: the ratio between the number of special and normal characters

– correctness: the ratio between the number of words that do not contain special

characters and the number of words that contain special characters

– special length: the maximum length of a continuous sequence of special characters

– special distance: the maximum distance between two special characters, i.e., the

longest sequence of normal characters between two special characters.

3 Experimental Results

In the following we will ﬁrst present the two databases used for evaluating the effec-

tiveness of the proposed approach. Then, we will evaluate if the use of both visual and

OCR-based features can improve the performance of the system with respect to the use

of a single set of features. Finally, we present a comparison of our approach with a state-

of-the-art anti-spam ﬁlter, i.e. SpamAssassin equipped with two different spam image

plug-ins, on a personal corpus of emails with attached images. Moreover, we also make

a comparison of our approach with the one presented in [6] on a set of publicly available

images. We do not compare our results with the ones obtainable with SpamAssassin on

the latter dataset since it is made up of images only, without the original emails.

As regards the two datasets, whose details are given in Table 1, the ﬁrst one (that

we have called UNINA) is composed by 3395 emails with attached images. Emails were

collected from the mailboxes of few users of the studenti.unina.itmailserver in

a period of about three years (2005-2007).This mailserver hosts the mailboxes of all the

students of the University of Naples Federico II. Among those emails, 151 contain ham

images and 3244 contain spam images. A subset of these images is shown in Figure 3.

Fig.3. Same ham (left) and spam (right) images taken from the UNINA dataset.

The second dataset (hereinafter denoted as DREDZE) was presented in a paper by

Dredze et al. [6] and was publicly available

. It was made up of 5306 images (2008

ham and 3298 spam) collected from 10 email accounts across 10 domains and a catch-

all ﬁlter on two domains over the period of one month. Every attached image (gif, jpg,

http://www.cis.upenn.edu/ mdredze/datasets/image

spam/

png and bmp) was extracted from that emails, excluding images smaller than 10x10

pixels since these are often used as blank spacers in HTML documents.

Table 1. Details about the datasets used in our tests.

Dataset Spam Images Ham Images

UNINA 3244 151

DREDZE 3298 2008

In order to make a fair comparison with the results presented by Dredze et al. in [6],

we adopt for the classiﬁcation stage of our approach one of the classiﬁers used in their

work, i.e. a Decision Tree Classiﬁer. In particular, a C4.5 (J48) coming from the open

source tool Weka

was selected. Moreover, it is worth noting that in all the test reported

hereinafter our results are given in terms of the average accuracy obtained by means of

a 10-fold cross validation.

In Table 2 the results obtained on the UNINA dataset by our approach are presented.

In particular, it can be noted that the adoption of both visual and OCR-based features

improves the performance obtainable by the system with respect to the case in which

only visual or OCR-based features are used.

Table 2. Results obtained on the UNINA dataset with different feature sets.

Features Accuracy

Visual 94.31%

OCR-Based 94.79%

Both 96.98%

Fig.4. Comparison between the proposed approach and SpamAssassin with Bayes-OCR and

Fuzzy-OCR on the UNINA dataset.

http://www.cs.waikato.ac.nz/ml/weka/

In Figure 4 we report a comparison of the results obtained by our system on the

emails of the UNINA dataset with those obtainable with SpamAssassin equipped with

two plug-ins devised for ﬁltering image spam, namely Bayes-OCR

and Fuzzy-OCR.

The standard SpamAssassin conﬁguration was used. As it is evident, our approach

signiﬁcantly outperforms both Bayes-OCR and Fuzzy-OCR. However, it has to be re-

marked that, differently from our method, SpamAssassin takes a decision by also con-

sidering the body of the email, if it is present.

Finally, in Table 3 the comparison between our approach and the one presented

in [6] is shown. Results obtained by [6] and reported here refer to the case in which the

whole set of the features they proposed have been processed by using a Decision Tree

classiﬁer. In this case, the F1 measure is also shown, since this ﬁgure of merit is used

in [6] too. These results conﬁrmed the effectiveness of our approach, which performs

slightly better than the system described in [6].

Table 3. Comparison between the proposed approach and the one presented in [6] on the

DREDZE dataset.

Accuracy F1

Our approach 97% 0.97

Dredze et al. 96% 0.96

4 Conclusions

In this paper we presented an approach for coping with spam images that contain em-

bedded texts voluntarily deformed and/or obfuscated by spammers. The effectiveness of

the proposed approach was demonstrated on two different datasets of images collected

from real emails.

As future work, we plan to integrate the proposed method in a more general archi-

tecture that could also be able to address spam sent via pure textual emails. Moreover, it

should be also interesting to study the possibility of using a set of OCRs as preproces-

sors before extracting the OCR-based features. In that case a suitable methodology for

combining different ORC outputs should be provided, too. Finally, we want to better

investigate the robustness of the approach when dealing with legitimate images, such

as low-quality scanned documents, which contain a complex text that cannot be easily

processed by an OCR.

References

1. Androutsopoulos, I., Koutsias, J., Chandrinos, K., Paliouas, G., Vassilakis, C.: An Evaluation

of Naive Bayesian Anti-Spam Filtering. In: Potamias G., Moustakis V., van Sommeren M.

(eds): Proceedings of the 11th European Conference on Machine Learning (2000) 9–17

This plug-in is available for download at the URL: http://prag.diee.unica.it/

n3ws1t0/?q=node/107

2. Aradhye, H.B., Myers, G.K., Herson, J.A.: Image Analysis for Efﬁcient Categorization of

Image-based Spam E-mail. Proceedings of the Eighth International Conference on Document

Analysis and Recognition (ICDAR ’05). IEEE Computer Society Press, Washington DC

USA (2005) 914–918

3. Biggio, B., Fumera, G., Pillai, I., Roli, F.: Image Spam Filtering Using Visual Information.

Proceedings of the 14th International Conference on Image Analysis and Processing (ICIAP

’07). IEEE Computer Society Press, Washington DC USA (2007) 105–110

4. Blanzieri, E., Bryl, A.: A Survey of Anti-Spam Technique. Technical Report DIT-06-056,

Informatica e Telecomunicazioni, University of Trento (2006)

5. Cohen, W.: Learning rules that classify e-mail. AAAI Spring Syposium on Machine Learning

in Information Access (1996) 18–25

6. Dredze, M., Gevaryahu, R., Elias-Bachrach, A.: Learning Fast Classiﬁers for Image Spam.

Proceedings of the Third Conference on Email and Anti-Spam (2007)

7. Drucker, H., Wu, D., Vapnik, V.N.: Support Vector Machines for Spam Categorization. IEEE

Transactions on Neural Networks 10(5) (1999) 1048–1054

8. Fumera, G., Pillai, I., Roli, F.: Spam ﬁltering based on the analysis of text information em-

bedded into images. Journal of Machine Learning Research, 7 (2006) 2699–2720

9. Gargiulo, F., Penta, A., Picariello, A., Sansone, C.: Using visual and semantic features for

Anti-Spam ﬁlters. Workshop on Machine Learning in Adversarial Environments for Com-

puter Security, NIPS 2007, Whistler BC Canada (2007)

10. Haralick, R.M.: Statistical and Structural Approaches to Texture. Proceedings of the IEEE,

67 (5) (1979) 786–804

11. Metsis, V., Androutsopoulos, I., Paliouras, G.: Spam Filtering with Naive Bayes - Which

Naive Bayes?. Proceedings of the Second Conference on Email and Anti-Spam, Mountain

View CA USA (2006)

12. Schryen, G.: Anti-Spam Measures, Analysis and Design. Springer (2007)

13. Wu, C.-T., Cheng, K.-T., Zhu, Q., Wu, Y.-L.: Using Visual Features for Anti-Spam Filtering.

Proceedings of the IEEE International Conference on Image Processing, September 11-14,

Genova Italy (2005)
