Improving Least Privilege in Software Architecture by

Guided Automated Compartmentalization

Koen Buyens, Bart De Win and Wouter Joosen

IBBT-DistriNet, Department of Computer Science, K. U. Leuven

Celestijnenlaan 200A, B-3001 Leuven, Belgium

Abstract. Security principles, like least privilege, are among the resources in the

body of knowledge for security that survived the test of time. Support for these

principles at architectural level is limited, as there are no systematic rules on how

to apply the principle in practice. As a result, these principles are often neglected

since it requires a lot of effort to apply them consistently.

This paper addresses this gap for the principle of least privilege in software archi-

tecture by elicitating architectural transformations that positively impact the least

properties of the architecture, while preserving the semantics thereof.

1 Introduction

Security principles, like least privilege, are among the resources in the body of knowl-

edge for security that survived the test of time. They have been introduced by Saltzer

and Schroeder [10] more than 30 years ago and can therefore be considered mature.

Least privilege, for instance, is a popular security principle that has been studied in

a multitude of contexts. Several techniques have been developed to verify or enforce

least privilege in software such as model checking [1], sandboxing [6], program sepa-

ration [7] and so forth. These techniques typically focus on requirements speciﬁcation,

detailed design, or software deployment. At the architectural level, the availability of

techniques to improve least privilege is more limited: most results at this level are tes-

timonies that witness the usefulness and the applicability of the principle (e.g., qmail

[2]).

At the architectural level, least privilege can be considered as the minimization of

the capabilities of a set of (possibly dependent) components executing within a single

checkable unit (typically a process) according to a speciﬁc least privilege policy. In

other words, the principle is not well supported, if there is a single process that is re-

sponsible for executing all the functionality of the system. Unfortunately, even in case

least privilege is optimized at requirements level according to available techniques, the

mapping onto a software architecture might introduce security problems if the latter is

not well prepared for this task. Separate privileges in requirements might for instance

have to be assigned to single components in an architecture. To the knowledge of the

authors, no systematic methods exist to address this problem.

One of the biggest issues in this context is the lack of detail and semantics within

a typical architectural description. A software architecture is structured as a set of

Buyens K., De Win B. and Joosen W. (2008).

Improving Least Privilege in Software Architecture by Guided Automated Compartmentalization.

In Proceedings of the 6th International Workshop on Security in Information Systems, pages 145-150

DOI: 10.5220/0001741501450150

 SciTePress

black-box components (and possibly sub-components), coupled by means of depen-

dencies (or connectors). Some semantics of the system can be speciﬁed by means of

(pre/post)conditions on methods and by means of collaboration diagrams

. However,

the internals of components and, hence, the exact ﬂow of information and control is

largely unspeciﬁed at the architectural level. Consequently, one of the challenges is to

identify useful optimizations and modiﬁcations at the architectural level that preserve

the semantics of the software architecture and that have a positive impact on the least

privilege properties thereof. Hereby, the authors want to work on the ’safe’ side by fo-

cussing on techniques that are likely to preserve the semantics as much as possible. The

goal of this paper is to provide a systematic and implementable technique to both an-

alyze and support the principle of least privilege in a software architecture. The actual

contributions are threefold: (i) the deﬁnition of the architectural meaning for least priv-

ilege, (ii) the elicitation of two architectural transformations that have a positive impact

on the least privilege properties of a software architecture, and (iii) a method for ap-

plying these transformations in a structural way. Preliminary results indicate that it is

possible to identify such useful optimizations and modiﬁcations at architectural level.

The paper is structured as follows. Section 2 presents our proposed approach for

creating and applying such transformations. Section 3 elaborates on the drawbacks, the

advantages, and possible extensions of our approach. Section 4 discusses the status of

related work. Finally, section 5 concludes.

2 Approach

This section brieﬂy explains the approach for identifying and solving some least privi-

lege violations in a software architecture. First, the general idea is outlined. In short, the

approach iteratively applies a number of transformations, until no further least privilege

violations can be detected. Finally, one speciﬁc transformation for detecting and solving

least privilege violations is presented. This transformation makes use of the component

and connector diagram and the collaboration diagram.

2.1 General Idea and Approach

In order to make the approach practically feasible, three assumptions have been made:

(i) each component executes within one checkable unit (a process); (ii) actors and use

cases are assumed to be sound and hence, ﬁxed, meaning that our approach does not

partition, create, remove, or merge them; (iii) all security-relevant use cases are avail-

able. Abusing such use cases will violate critical security requirements and thus damage

the core business goals. Our approach will not perform well if not all security relevant

use cases are available, because it heavily relies on them for performing its operations.

In order to determine when a component executes too many tasks and thus needs

too many privileges (for accomplishing these tasks)(See deﬁnition in Section 1) a least

privilege policy is introduced. The policy is an ordered set of use cases that categorizes

A collaboration diagram represents a use case of the system. In the rest of this paper, the

authors use the terms use case and collaboration diagram interchangeably.

146

each use case as high, medium, or low, based on the business importance of that use

case. An architectural component violates least privilege if the component is used by

at least two highly ranked use cases that are executed by a different actor. Thus, the

component is not allowed to have the privileges (methods) that are speciﬁed in both use

cases.

The approach is iterative and identiﬁes the architectural elements that violate least

privilege by making use of the least privilege policy, the component and connector

diagram, and the collaboration diagram. It resolves this violation by modifying the vi-

olating elements. If multiple modiﬁcations are possible, the best one is picked. Best

is determined by the (ordering of the use cases in the) policy itself and guided by the

architect.

2.2 Architectural Transformations

Different strategies exist to accommodate least privilege: (i) one can split a process into

many isolated units and lower the privileges assigned to these units, (ii) one can rewire

the architecture such that less privileges have to be attributed to different components,

or (iii) one can apply well-known solutions (such as sandboxing) to introduce least priv-

ilege in selected parts of the architecture. In this paper, the authors investigate the ﬁrst

strategy and study how well it supports least privilege. The authors identiﬁed the fol-

lowing architectural transformations: one for splitting an interface and one for splitting

a component. Due to space constraints, only the second transformation is described.

Transformation 1: Split a Component

Rationale. Components that execute too many tasks (and thus require to many priv-

ileges), are split in smaller components that can be assigned less privileges than the

original component.

One of the challenges of this transformation is to split the component in a way that

preserves the semantics of the component (see Section 1), because the knowledge avail-

able for splitting is typically limited. The only information that can be used for splitting

the component is: the interfaces of the component, the methods described in these in-

terfaces, and the parameters of these methods. Our approach uses these parameters to

approximate the methods that are likely to depend on each other and, hence, should be

safeguarded from splitting in the following way. If two methods operate on the same

parameter(s) then there might be some dependency depending on exact the same use of

these parameters (e.g. read or write). For this purpose, this transformation requires ex-

tra information to be present in the architectural description: read/write on the method’s

parameters. This is illustrated in Figure 1(b). Suppose the ﬁrst use case uses a method

provided by one of the interfaces of component B that uses parameter x and the second

use case uses a method provided by the interfaces of the same component and modiﬁes

(writes) the same parameter x, then the shared state is considered to be parameter x.

Conditions and Transformation. If two use cases make use of a component and these

use cases violate least privilege, then the components are split in the following way.

First, identify the state of the component shared between both use cases.

147

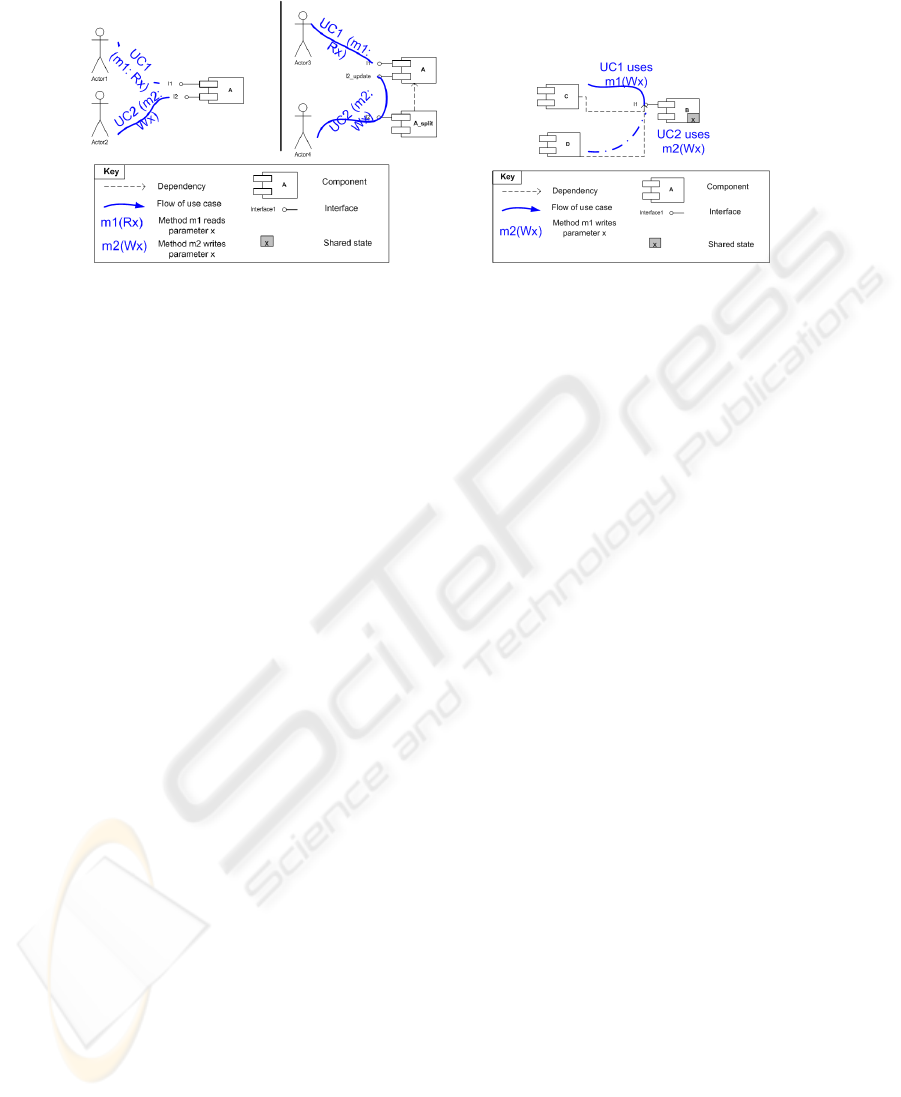

(a) A component with overlapping read methods

and a write method can easily split.

(b) A component with two write meth-

ods should not be split.

Fig. 1. Transformation 2 applied on a component is useful in certain cases.

1. If the shared state is empty (and both use cases use different methods), split the

component in two disjunct parts by moving the interfaces/methods one use case

uses to (a) new interfaces in a new component. Also modify this use case to use the

new component instead of the old component.

2. If the shared set is not empty, and if one use case reads state that is written by

the other use case, then create a new component containing a copy of the meth-

ods/interfaces of the writing use case. Also add a new interface for each interface

of the original component that contains write methods on the shared state. These

interfaces can be seen as additional interfaces that update the shared state. Extend

the use case that reads to include the update methods provided by the new compo-

nent, add a dependency between the old component and the new component, and

modify the use cases updating the shared state (including the writing use case) to

use the new component instead of the old component.

2.3 Validation

The authors have not performed an in depth validation of the approach, but studied its

behavior by applying it on a case study of a signiﬁcant size: a publishing system[8].

Application of the algorithm tackles the core least privilege problems of the case

study: one component was responsible for many high-ranked use cases (Planning Sys-

tem), while two interfaces (User Proﬁle and CMS Input Interface) were used by many

different actors. Therefore, they have been split. The other components and interfaces

have not been transformed mainly because (i) the components were only used by one

actor, or used by multiple actors of which the uses cases were allowed to be executed

together, and (ii) the other interfaces were typically used by one actor.

3 Discussion

Our preliminary results conﬁrm that it is possible to identify and express useful changes

at the architectural level. In the end, however, one can never have full guarantees that a

148

particular change is actually a desired change (that preserves the semantics) and, hence,

the software architect will always have to evaluate the end result.

A number of observations driven by the results of our experiments are worth fur-

ther discussion. The identiﬁed approach and transformations have at least the following

limitations.

There should be better techniques for identifying subcomponents. For instance,

sometimes it is not possible to split the component in subcomponents each having a

coherent subset of privileges, because such coherent subset can not be found by the

shared state method.

The transformations should not modify other software engineering properties of the

architecture. For instance, naively applying the rules might lead to an extreme architec-

ture having a component for every privilege.

Applying the transformations in a different order, will result in different solutions,

among which the architect has to identify the best one.

4 Related Work

Although many papers discuss the principle of least privilege, few of them discuss the

principle in an architectural design context. The discussion on related work focusses on

(i) program separation techniques, (ii) model checking techniques, and (iii) conﬁnement

techniques.

Separating a program in multiple processes with clean interfaces in order to assign

privileges in an optimal way is a design technique that inﬂuences least privilege. It has

been successfully applied in several end-user programs, such as Vsftp[4], qmail[2], and

postﬁx[11]. Another more general approach is privilege separation[3][7], a technique

that partitions an existing program into two processes: a privileged program called the

monitor and an unprivileged program called the slave.

Model checking techniques can be used to verify whether a design has certain prop-

erties, such as least privilege. J

urjens explains in his PhD thesis[6], how one can use

his UMLSec approach to enforce least privilege by formulating least privilege require-

ments and verifying UMLsec speciﬁcations with respect to these requirements. Thuong

Doan’s UML model checking approach is similar[5].

Conﬁnement or sandboxing is another technique that limits the privileges a program

is allowed to have. These techniques block system calls and/or access ﬁle and network

resources. Example are systrace[9], Mapbox[1], and Janus[12]. The main drawback

of these mechanisms that it is hard to specify policies in terms of application-speciﬁc

resources and functions, because these resources and actions don’t always map on ﬁles

and system calls. An example of such an application speciﬁc resource is the global

balance of a banking company. Another drawback is that one component, the sandbox,

has a lot of privileges.

5 Conclusions and Future Work

This paper proposes a technique that improves support for least privilege in a software

architecture. This technique presents conditions that indicate when an architecture does

149

not adhere to least privilege and propose architectural transformations for solving this

violation. Other conditions and transformations for identifying and solving least privi-

lege violations can be found by dropping the assumptions the authors made, or by using

one of the other strategies for accommodating least privilege.

The main challenge of enforcing least privilege at architectural level is that it is

hard to ﬁnd good architectural changes that solve least privilege violations and that

do not change the semantics of the architecture, because the knowledge to make such

changes is limited at architectural level. In the future, our work can be further reﬁned

to address the issues discussed in the paper. New transformations for the other two

strategies accommodating least privilege should be identiﬁed as well as transformations

changing actors and use cases. Next, our work should be validated. Finally, our work

will be extended to (i) other activities of the (secure) software development life-cycle,

and (ii) to other security principles. Metrics should be identiﬁed to (i) guide the architect

in selecting the software architecture best adhering to the principle and having the right

semantics, and to give an indication that the resulting software is indeed more secure.

Acknowledgements

Research for this paper was sponsored by IBBT, the Interdisciplinary institute for Broad-

Band Technology.

References

1. A. Acharya and M. Raje. Mapbox: Using parameterized behavior classes to conﬁne applica-

tions. Technical report, Santa Barbara, CA, USA, 1999.

2. Daniel Julius Bernstein. Qmail home page.

3. David Brumley and Dawn Song. Privtrans: Automatically partitioning programs for privilege

separation. In Proceedings of the 13th USENIX Security Symposium, August 2004.

4. Chris Evans. Comments on the Overall Architecture of Vsftpd, from a Security Standpoint.

Internet, February 2001.

5. Thuong Doan, Steven Demurjian, T. C. Ting, and Andreas Ketterl. Mac and uml for secure

software design. In FMSE ’04: Proceedings of the 2004 ACM workshop on Formal methods

in security engineering, pages 75–85, New York, NY, USA, 2004. ACM.

6. J. J

urjens. Secure Systems Development with UML. March 2004. To be published.

7. Douglas Kilpatrick. Privman: A library for partitioning applications. In USENIX Annual

Technical Conference, FREENIX Track, pages 273–284, 2003.

8. Dimitri Van Landuyt, Johan Gr

egoire, Sam Michiels, Eddy Truyen, and Wouter Joosen. Ar-

chitectural design of a digital publishing system. Technical report, October 2006.

9. Niels Provo. Systrace - interactive policy generation for system calls.

10. Jerome H. Saltzer and Michael D. Schroeder. The protection of information in computer

systems. Proceedings of the IEEE, 63(9):1278–1308, September 1975.

11. Wietse Zweitze Venema. Postﬁx home page.

12. David A. Wagner. Janus: an approach for conﬁnement of untrusted applications. Technical

Report CSD-99-1056, 12, 1999.

150
