MODELING QUALITY ATTRIBUTE VARIABILITY

Eila Niemelä, Antti Evesti and Pekka Savolainen

VTT Technical Research Centre of Finland, Kaitoväylä 1, 90571 Oulu, Finland

Keywords: Modeling, software architecture, quality attribute, variability, ontology, software product family.

Abstract: Due to the emerging service orientation of software architectures, the importance of quality aspects and the

ability to manage the changing quality requirements of a service have raised the question of how to

explicitly define quality requirements and how to assure that quality requirements are defined and handled

in the same way by all developers involved in the development of the service. The contribution of this paper

is a novel approach, which allows to define metrics for quality attributes as quality ontologies, to specify

execution qualities as quality profiles according to a quality variability model and quality ontologies, and to

model quality properties as an integrated part of software architecture. The Unified Modeling Language

(UML) and its extension mechanisms are used for defining quality profiles. The approach is applied to

reliability and security modeling and supported by an integrated tool chain developed on top of the Eclipse

platform.

1 INTRODUCTION

Since the 90s the development of software intensive

systems has focused on component based software

architectures and software family engineering. The

key issue has been the software family architecture

that provides a common architecture and software

components, which are used for implementing the

defined architecture for a set of products (Clements,

Northrop & Northrop 2001). The developed

variability management practices provide solutions

for defining and managing functional variability in

software development (America et al. 2000,

Bachmann, Bass 2001, Bosch et al. 2001). Service

orientation, which is emerging in software families

as well, brings new challenges by requiring

techniques and mechanisms for handling quality

variability at run-time (Ping, Xiaoxing & Jian 2005).

This paper focuses on quality variability

management of execution qualities, such as

reliability and security. In order to handle quality

variability at run-time, the following assumptions

have to be true; First, the quality attributes shall be

defined in an unambiguous way. Second, the quality

attributes have to have quantitative metrics. Third,

the quality characteristics have to be explicitly

defined in the architecture models. Furthermore,

quality characteristics have to be measured at run-

time by the mechanisms that are suitable for the case

at hand. Finally, the dynamic system has to be able

to make decisions concerning validity and

correctness of configurations in the contexts where

the reconfigurations occur. This paper introduces a

novel approach that tackles the three above

mentioned challenges. After that, the last two

challenges can be solved by utilizing the quality

attribute (QA) knowledge of individual architectural

elements. Quality attributes monitoring and decision

making mechanisms required for QA adaptation are

out of the scope of this paper.

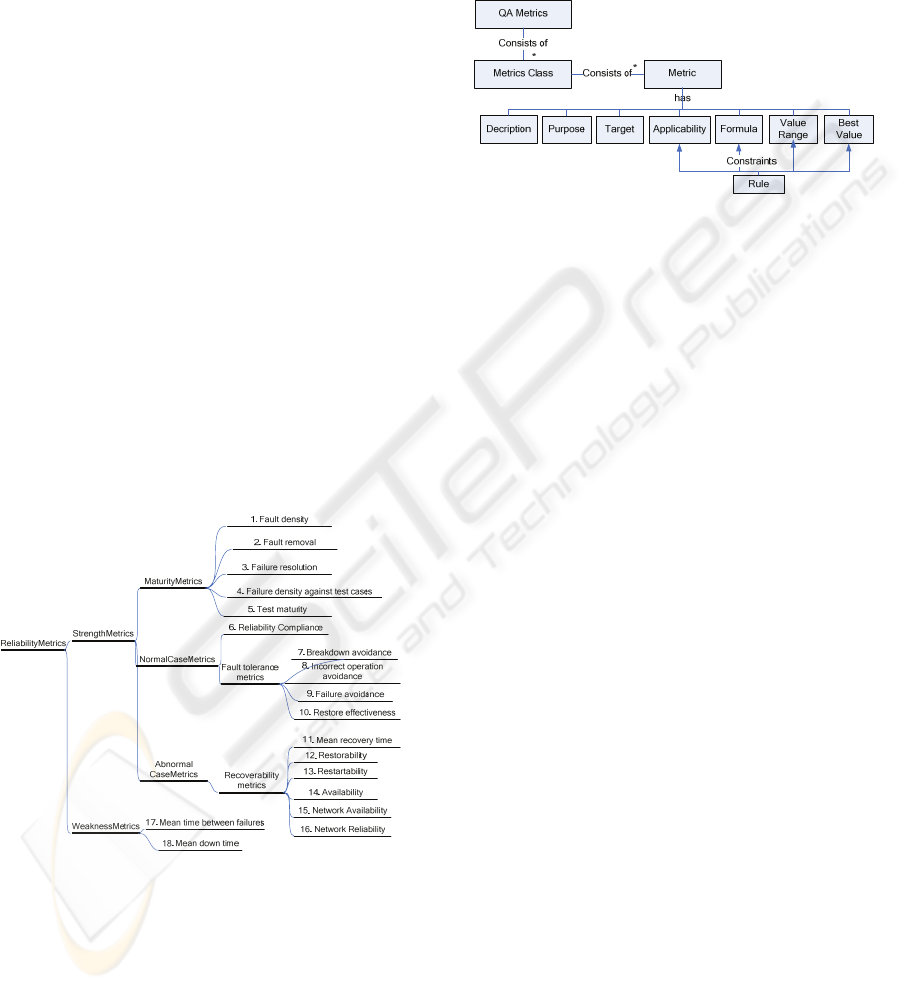

The quality definitions exploit ontology design

principles by providing concepts, properties and

rules for a quality attribute. In this paper, we use the

reliability ontology as an example of a quality

ontology. The quality profiles are created based on

the quality variability model and the quality attribute

ontologies. Quality profiles are used as predefined

quality characteristics mapped to architectural

elements while designing the family architecture.

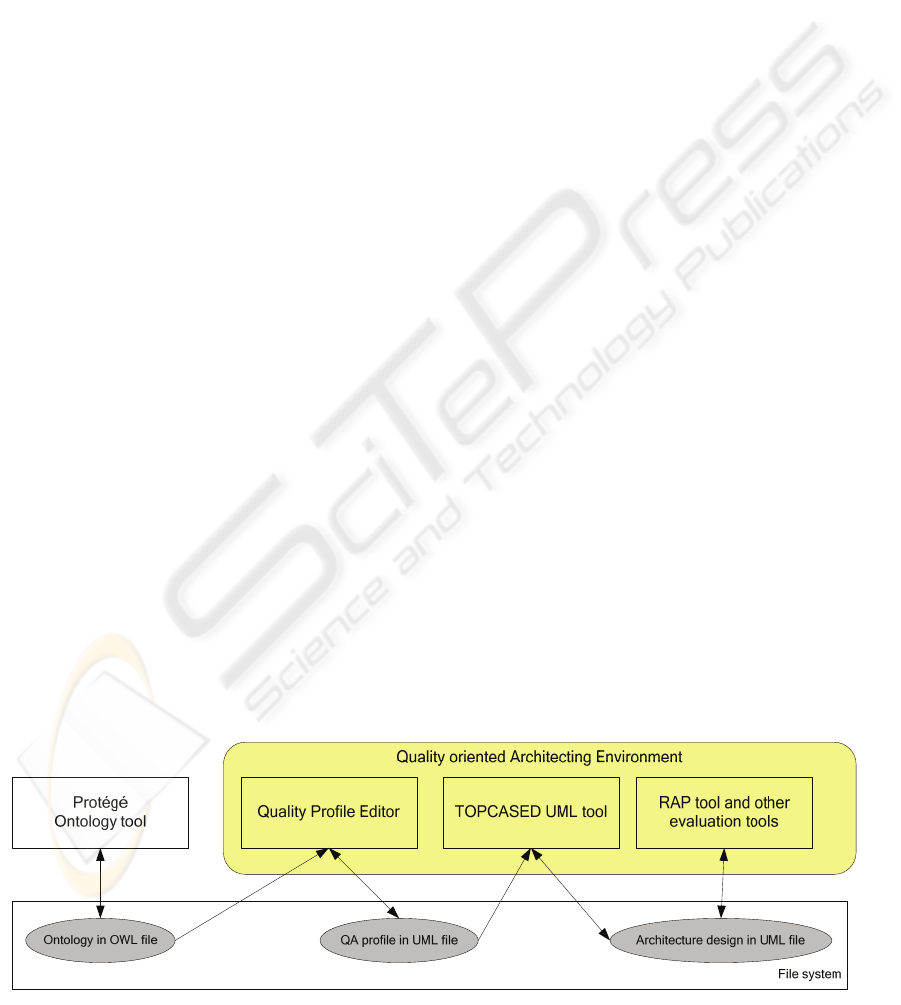

The proposed technique is exemplified by a tool

chain developed by the authors on top of the Eclipse

platform. Evaluation tools are applied for predicting

whether the architecture meets the defined quality

requirements.

The structure of the paper is as follows. After

introduction, the related research is examined.

Sections 3 and 4 introduce our approach and the

developed tools. Section 5 discusses the advantages

and shortcomings of the approach as well as our

future work. Conclusions close the paper.

169

Niemelä E., Evesti A. and Savolainen P. (2008).

MODELING QUALITY ATTRIBUTE VARIABILITY.

In Proceedings of the Third International Conference on Evaluation of Novel Approaches to Software Engineering, pages 169-176

DOI: 10.5220/0001759801690176

 SciTePress

2 RELATED WORK

2.1 Architecture Evolution and Quality

Architecture is the fundamental organization of a

software system embodied in its components, their

relationships to each other and to the environment

(IEEE 2000). Software architecture also includes the

principles guiding its design and evolution. Thus,

the architecture is the key asset in software family

engineering; it assembles the family requirements in

the means of a common structure realized as

software components. Recent software systems are

typically networked systems that embody service

architecture. The service architecture mostly refers

to the software architecture of applications and

middleware, although communication technologies

also create requirements and challenges for the

service architectures. Therefore, a modern software

family architecture shall meet the requirements set

by family members (i.e. business and application

viewpoint) as well as the requirements and

constraints set by the applied distribution topology

and communication technologies (i.e. technical

viewpoint).

Several attempts have been made for managing

architecture evolution. Evolution has been taken into

account by designing architectures that are, e.g.,

maintainable, portable and modifiable. Architectural

styles and patterns provide diverse support for

different quality attributes (Clements, Northrop &

Northrop 2001). Styles and patterns provide an

implicit way to achieve the desired quality; they are

selected at design time and specific evaluation

methods are used for estimating how well quality

requirements are met (Dobrica, Niemelä 2002).

Moreover, evaluation methods are qualitative or

predictive. Thus, design and quality evaluation is

more or less heuristic and the results depend heavily

on the expertise of the architect. Still, qualitative

methods have been found useful while analyzing

evolution qualities but the predictive methods that

are applied to the execution qualities, still lack

industrial applications.

2.2 Quality Variability Management

In (Etxeberria, Sagardui & Belategi 2007), six

existing modeling approaches for specifying

variation in quality attributes are compared. The

results show that only some of the approaches

provide support for characterization and quantitative

metrics of quality attributes, and none of them

allows to defining the priority levels of qualities.

Furthermore, all these approaches focus on the

design-time quality variability management.

In the Family Evaluation Framework (van der

Linden, F. et al. 2004), the highest maturity level

includes automated selection, optimization and

verification of variants. The quality options are

realized as variation points. The use of variation

points means that quality variability is static, i.e.

binding is made at design time. However, in service

oriented systems, quality shall be changed in time

according to the context, i.e. taking into account the

external state of a system (environment and user),

and the internal state of the system (i.e. capabilities,

resources, regulations etc.).

Context based adaptation is studied from

different viewpoints; e.g. how to adapt a service

according to user’s preferences, or how to adapt

resources according to available networking and

computing capabilities. Application-aware

adaptation is part of context-awareness; it means

collaboration between the system infrastructure and

individual applications (Noble et al. 1997). The

system infrastructure manages the resources; it

monitors resource levels, notifies applications of

relevant changes, and enforces resource allocation

decisions. Each application independently decides

how to adapt when notified. Resource management

is centralized but adaptation is controlled in a

decentralized way. This is a mixed controlling

architecture with centralized monitoring, and un-

centralized decision-making. In service oriented

systems, quality variability management requires a

similar kind of approach.

2.3 Ontology Orientation

Ontology-orientation refers to design and modeling

methods, techniques and practices used in the

creation of software systems that inherently possess

the ability to understand and utilize the ontology that

describes their computational surroundings and

binds software to its surroundings. Ontology is a

shared knowledge standard or knowledge model

defining concepts, relations, rules and their

instances, which comprise the relevant knowledge

of a topic (Zhou 2005).

Ontology is used for capturing, structuring and

enlarging explicit and tacit knowledge on a topic

across, people, organizations, and computer and

software systems (Gruber 1995). A simplified

ontology contains only a hierarchical classification

(a taxonomy) showing relationships between

ENASE 2008 - International Conference on Evaluation of Novel Approaches to Software Engineering

170

concepts. Appropriate understanding of software

semantics can be achieved, if the semantic properties

and relations of the software are captured to a form

that can be further utilized computationally.

Therefore, a notion for capturing the quality

characteristics of each software entity has to be

explicitly specified.

3 THE APPROACH

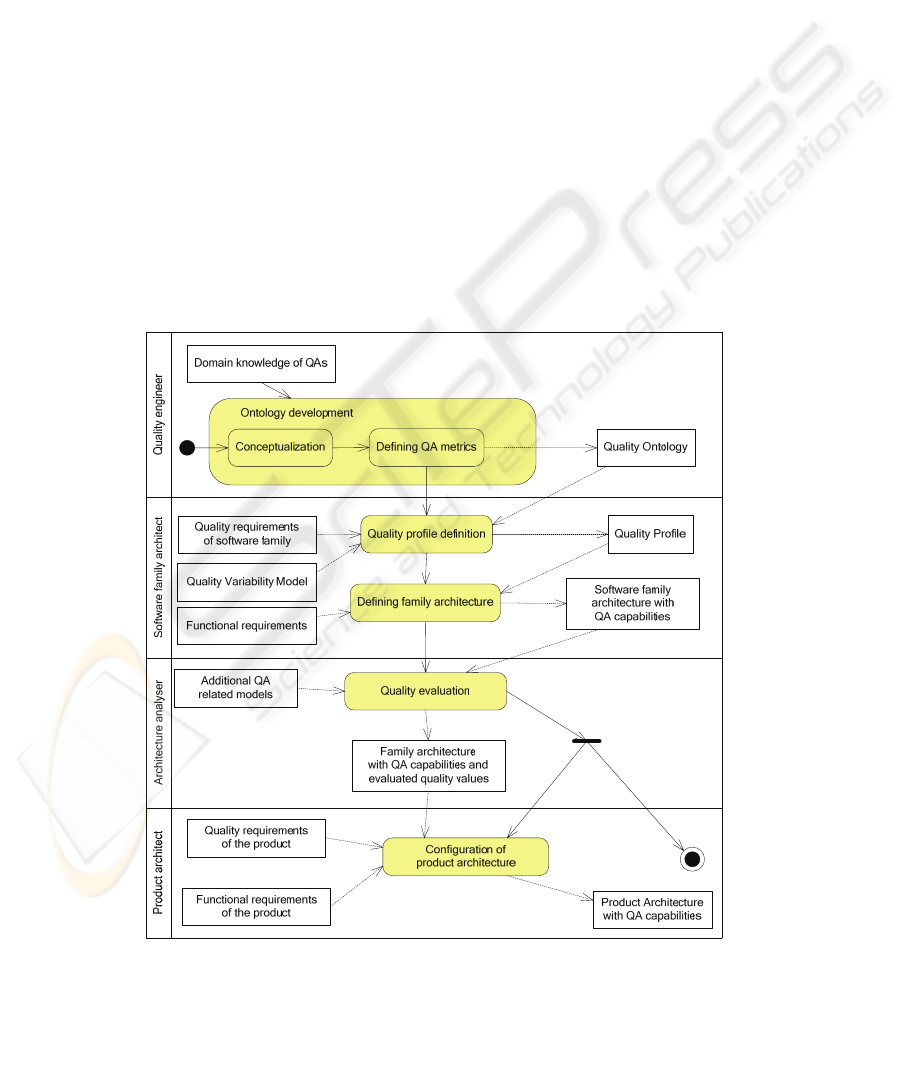

Figure 1 depicts the overview of the approach as an

activity diagram. The main steps of quality

variability modeling (i.e. the activities of quality

engineers and a software family architect in Figure

1) are:

• To define the ontology of a specific quality

attribute (QA) based on the domain knowledge

of that quality attribute.

• To define the quality profiles for the QAs based

on the quality requirements of a product family,

the related quality attribute ontologies and the

quality variability model (see section 3.2).

• To map the quality characteristics to

architectural elements.

In Figure 1, stakeholders are named on the left side

and each swim-lane represents the activities

(rounded rectangles) of one stakeholder and the

input and output (rectangles) of each activity.

Quality engineers are responsible for defining

quality attribute ontologies. Each QA ontology is

orthogonal and managed separately in order to get

flexibility for its evolution. Some concepts are

related to each other in different QA ontologies.

These relationships are also defined in ontologies.

The QA ontology, i.e. a set of quality attribute

ontologies, is the first model component of the

approach.

A software family architect is responsible for

defining the family architecture and quality

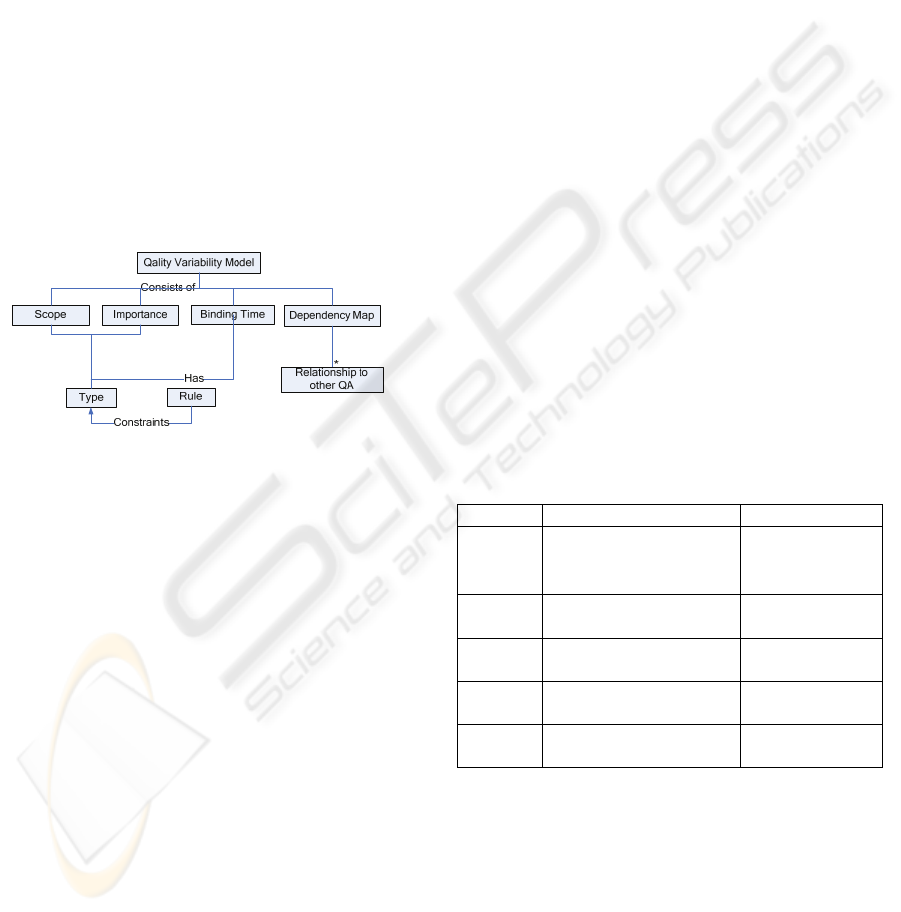

variability model. The quality variability model that

is the same for all QAs forms the second model

component of the approach. The quality variability

model is used while defining quality profiles. A

Figure 1: The overview of the approach.

MODELING QUALITY ATTRIBUTE VARIABILITY

171

quality profile includes all quality properties related

to one QA. Thus, reliability and security have

separate quality profiles. Each quality property

defined in a profile has a standard set of

characteristics given by the architect based on the

quality variability model and the QA ontology.

Quality profiles are used while mapping quality

properties as stereotypes to architectural elements.

Architecture analyzers are responsible for the

quality evaluation. Each QA requires different

expertise, additional models and tools that utilize the

provided design information. Finally, product

architects derive the product architecture from the

family architecture

3.1 Quality Attribute Ontology

Figure 2 presents a fragment of the reliability

attribute ontology as a taxonomy including the

concepts related to reliability metrics. The reliability

metrics are mainly based on the IEEE 982.1

standard and aligned with the security metrics

(Savolainen, Niemelä & Savola 2007) so that both

metrics ontologies are more usable for software

architects. Also combining the quality attribute

ontologies is easier. Keeping quality ontologies

separate made it possible to refine them concurrently

by different quality engineers.

Figure 2: Reliability metrics Classes.

Concepts of QA metrics are common for all

quality attributes, whereas only part of the metrics

classes and actual metrics in the metrics classes can

be shared by different QA ontologies. Each metrics

has the following properties (Figure 3): description;

purpose; target, i.e. where the metric can be used;

applicability, i.e. when the metric can be used; one

or more formulas; range value for the

measurements; and the best value of the

measurement. Rules constrain the formulas and used

measurement units by defining the set of

measurement targets and value ranges and the time

when the metric is valid.

Figure 3: Concepts of QA metrics ontology.

3.2 Quality Variability Model

In a software family architecture, three types of

quality variability can be identified:

• Variability among quality attributes; e.g.

reliability is important for one family member

but not relevant for the rest of family members.

(optionality)

• Diverse priority levels in quality attributes; e.g.

reliability is an extremely important property in

a high-end product, while in other products only

medium or low level reliability is needed.

(degree)

• Indirect variation, i.e. functional or quality

variation indirectly causes quality variation

or/and vice versa. For example, improving the

reliability of one component requires that all

interrelated components are also at the same

reliability level. (impact

)

There can be one or more reasons (i.e. sources)

for quality variability:

• Subjective reasons. The user of a software

service prefers different qualities in different

contexts.

• Business reasons. The type of application may

set different quality criteria, e.g. differing

measurement accuracy related to time, place

and ratio for services intended for professional

use as opposed to those for non-professional

use.

• Technological reasons. Implementation

technology or the amount of available resources

may cause quality variation, especially when an

ENASE 2008 - International Conference on Evaluation of Novel Approaches to Software Engineering

172

externally developed software or service is used

without adaptation.

In order to manage quality variation, the related concepts,

relations and rules have to be defined (

Figure 4, Table 1). The quality variability model

is used as a meta model for defining quality profiles,

i.e. stereotypes of quality properties.

The scope of quality variation defines the size of

impact the quality variation has in software

architecture. There are four types of scopes; family,

product, service and component. The software

family type involves the widest scope; quality

variation affects all family members, thus making

this type of quality variation is strictly restricted.

The software product type of quality variation may

concern a composite of services or a service. The

latter case is understood as an exception, and

therefore, the scope of the product level type is

defined wider than the service level.

Figure 4: Concepts of the quality variability model.

The importance concept classifies the quality

properties into three categories, which follow the

change rules defined for them. The importance type

‘high’ indicates that the quality can’t change in

normal operation. However, the quality level can be

lowered if the system fails to complete a service at

the defined quality level, e.g. by changing resource

allocation in a case in which the service can not be

completed in a given time and it is essential for

survival of the system. The QA management service

is using the value of the importance concept while

making decisions about adaptation strategies. An

example of the adaptation rules for resource

reservation (performance) is as follows; First, the

services with the importance level ‘high’ have the

option to select which resources, to which extent

and at what time to use them. Second, the services

with the importance level ‘medium’ have options for

resources. Third, the services with the importance

level ‘low’ get the remaining resources if still

available. The level of importance can change only

one level up or down, i.e. one level down in case of

lacking resources, and one level up while returning

to normal operation.

The binding time defines when variation takes

place (i.e. design, assembly, start-up or run-time).

This information is used while defining quality

profiles, in quality evaluation and making decisions

at run-time.

The dependency element maps one QA

properties to the related QA ontology and other

related QA properties, further defined according to

the QA ontologies in question. Knowing the

dependencies between quality variations is

necessary in order to deal with the trade-offs, i.e. to

make a decision regarding which variants may be in

force at a certain time.

The decision-making rules are defined in a

separate model because the rules depend on the

system’s quality goals. The information about

allowed changes is defined by the concepts of the

quality variability model. For example, if decreased

performance means that the security level ‘high’

cannot be guaranteed, the decision rule finds which

one, the required performance level or the required

security level, should have the priority. The QA

management service implemented as a middleware

service makes the trade-off decision according to the

information defined for both quality attributes. Thus,

the decision model defines the rules for making

trade-offs at run-time.

Table 1: Summary of the quality variability model.

Element Description Means

Source why it is necessary to

take quality variation

into account

documented

rationale

Scope what quality variation

can occur

constraints

Importa

nce

how quality variation

can take place

decision model,

mechanisms

Binding

time

when the variation can

take place

constraints,

decision model

Depend

ency

relations to other

quality properties

decision model,

mechanisms

4 TOOL SUPPORT

Figure 5 depicts the overview of the tool chain

developed. In the first phase, QA ontologies are

defined by the Protégé tool and stored in the

repository in the Web Ontology Language (OWL)

format. In the second phase, QA profiles are defined

using the Quality Profile Editor (QPE). In the third

MODELING QUALITY ATTRIBUTE VARIABILITY

173

phase, the quality profiles are used while defining

the software family architecture by mapping profiles

to the architectural elements. Finally, architecture

quality is evaluated by using evaluation tools and

the evaluation results are stored in the architectural

models.

The Quality oriented Architecting Environment

(QoAE) is dependent on the exchanged data, which

is transmitted via a file system. Using the existing

file system ensures that data is transmitted via

standard and commonly used techniques, like OWL

files and UML project files of Eclipse. Since the

majority of available ontology tools support OWL

files, in the future it will be possible to replace

Protégé by another ontology tool, without the need

to change any other QoAE parts. The same applies

to the used UML tool (TOPCASED).

In Figure 5 the arrows show how the data can be

moved and modified. A notable thing is that while

the evaluation tools cannot modify the architecture

design, they can add the evaluation results to the

architecture model. Detailed information about the

tools is presented in (Evesti 2007; Immonen,

Niskanen 2005).

From the quality variability management point of

view, the QPE is the most interesting part of the

environment, and therefore explained here more

thoroughly. The procedure is as follows:

1. The architect opens a QA ontology in the QPE.

2. The QPE creates a list of available quality

metrics based on the ontology. Each list item

has a formula, a value range and the best value

of measurement indicated.

3. The architect enters the quality properties

defined for a system family and selects a metric

for each quality property. The metrics are

derived from the ontology.

4. The architect defines the dependencies between

the quality properties in the same or other QA

profiles.

5. Profile editor checks that properties’ value lies

within the valid range of the selected metric(s)

and that the property name is unique.

The architect stores the valid profile.

Figure 6 depicts a snapshot of the QPE user

interface. As can be seen, the QPE follows the

quality variability model introduced in section 3.

Except for binding time, all the elements of the

quality variability model are fixed while designing a

profile. Binding is made while mapping quality

properties (from a profile) to architectural elements.

Each quality property defined is represented as a

stereotype in a model. Each stereotype is identified

by a name or a quality property identification.

The operation of QoAE was evaluated by

applying the developed ontology and profiles to a

case example of Personal Information Repository

(PIR) system, which is a reliable business-to-

consumer (hospitals and patients) document delivery

system. As a summary, the evaluation proved that

although the tools worked correctly, several

improvements are required. To be feasible the tool

integration has to be seamless; the design

information required for quality evaluation has to be

extracted from the architectural models and

automatically transformed to the form of the used

evaluation tool. Therefore, a mechanism for

extracting and transforming information for

reliability simulation (within the RAP tool) is now

under development.

5 DISCUSSIONS

The goal of our work was to create an approach and

supporting tools for defining quality attribute

variability and to import this design information into

architectural models. Although application of the

Figure 5: Overview of the QoAE.

ENASE 2008 - International Conference on Evaluation of Novel Approaches to Software Engineering

174

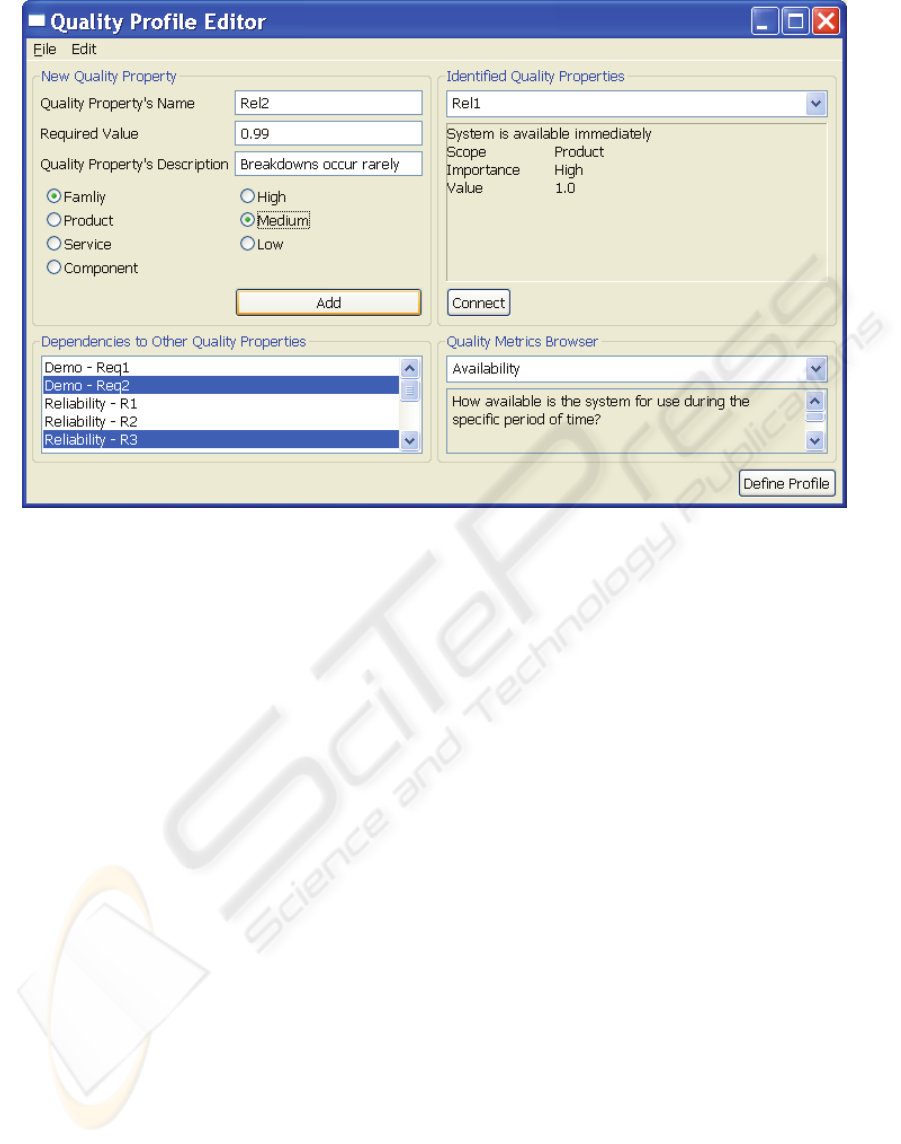

Figure 6: The GUI of the Profile Editor.

approach and supporting tool environment is still

ongoing, the following observations have been

made.

Defining a quality attribute ontology requires

deep understanding of that quality attribute and its

related methods, standards etc. The quality engineer,

who is responsible for the work, also needs to know

the main concepts related to software architecture

design and variability management. In order to

provide added value, QA ontologies shall be

defined, applied, and refined in community-level

activities. The presented reliability metrics ontology

already includes eighteen metrics but might require

refinement after their application in industrial cases.

Concerning security metrics the situation is worse;

only three metrics were found from standards, and

other four were defined by the authors. Thus,

community wide effort is especially required for

developing quantitative security metrics, and

techniques and tools for analyzing security at

design-time and at run-time. However, we believe

that the quality variation model is mature enough

and can be applied in a more extensive way.

In order to make use of quality definitions in

architecture design, quality ontologies have to be

defined in a strict way. This means that each step

has to be formalized and automated as far as

possible. While there is already a range of

quantitative metrics, no exact knowledge exists up

to now concerning their coverage and applicability.

Thus, empirical experiences are to be collected, e.g.,

for defining realistic estimates for prediction

models.

We defined a quality variability model for

creating the QPE by which quality profiles can be

defined as UML profiles. This approach seems

reasonable and working. However, as tool support is

still evolving, attention shall be paid to ensuring an

adequate maturity level of tools, in order to

guarantee that models can be transformed from one

to another without any need to make changes to

them.

Our future work will focus on refining and

combining QA ontologies (reliability and security),

extending the architecting environment by domain

specific ontologies, and applying the approach and

developed tools to industrial cases. We assume that

it will be a long journey to a point when quality

attribute variability related to all execution qualities

can be managed at run-time, i.e. all required

monitoring mechanisms, measuring techniques, and

decision models for making tradeoffs are defined,

and validated. However, this paper presented the

main concepts and justified why these concepts are

required. The first attempt already made is the run-

time performance adaptation based on service

ontology and an adaptation mechanism as part of

middleware (Pakkala, Perälä & Niemelä 2007).

MODELING QUALITY ATTRIBUTE VARIABILITY

175

6 CONCLUSIONS

This paper introduced an approach which combines

knowledge engineering with quality driven software

architecture development. The metrics of one

quality attribute were introduced and used together

with the quality variability model for defining a

quality profile and representing quality properties in

architectural models. An integrated tool

environment was built for supporting the approach.

It is commonly known that the role of the

software architect is an extensive one; the architect

should be able not only to understand business

drivers and technical issues but also to be able to

organize the work and to communicate the

architecture to different stakeholders. Furthermore,

quality engineering, even when focusing on only

one quality attribute, requires a lot of domain

knowledge. One of our contributions is that our

approach separates knowledge management of

quality attributes from technical software

engineering. Ontologies help in developing and

sharing architectural knowledge, while modeling

assists in achieving high-quality software

architectures. We believe that this kind of approach

is required for future service oriented systems,

which are co-developed and delivered globally, and

locally adjusted to usage contexts.

REFERENCES

America, P., Obbink, H., van Ommering, R. & van der

Linden, F. 2000. CoPAM: A Component-Oriented

Platform Architecting Method Family for Product

Family Engineering. Software Product Lines,

Experience and Research Directions. 28-31 August.

Boston: Kluwer Academic Publishers.

Bachmann, F. & Bass, L. 2001. Managing Variability in

Software Architectures. Symposium on Software

Reusability, Toronto, Ontario, Canada, 18-20, May.

Toronto, Ontario, Canada: ACM Press.

Bosch, J., Florijn, G., Greefhorst, D., Kuusela, J., Obbink,

H. & Pohl, K. 2001. Variability Issues in Software

Product Lines. 4th International Workshop on Product

Family Engineering, Bilbao, Spain: European

Software Institute. Vol. LNCS 2290.

Clements, P., Northrop, L. & Northrop, L.M. 2001.

Software Product Lines: Practices and Patterns. 3rd

ed. Boston, MA, USA: Addison-Wesley.

Dobrica, L. & Niemelä, E. 2002. A Survey on Software

Architecture Analysis Methods. IEEE Transactions on

Software Engineering, Vol. 28, No. 7, pp. 638-653.

Etxeberria, L., Sagardui, G. & Belategi, L. 2007.

Modelling Variation in Quality Attributes. 1

Internatioonal Workshop on Variability Modeling of

Software-Intensive Systems. Jan 16-18, 2007. Lero

The Irish Software Engineering Research Centre.

Evesti, A. 2007. Quality-Oriented Software Architecture

Development. VTT Publications 636. Espoo: VTT.

Gruber, T.R. 1995. Toward Principles for the Design of

Ontologies Used for Knowledge Sharing. International

Journal of Human-Computer Studies, Vol. 43, pp.

907-928.

Std-1417-2000. IEEE 2000. IEEE Recommended Practice

for Architectural Descriptions of Software-Intensive

Systems. New York: IEEE.

Immonen, A. & Niskanen, A. 2005. A tool for reliability

and availability prediction. 31st Euromicro

Conference on Software Engineering and Advanced

Applications. 30 Aug. - 3 Sep. 2005. Porto, Portugal:

IEEE.

Noble, B.D., Narayannan, D., Tilton, J.E., Flinn, J. &

Walker, K.R. 1997. Agile Application-Aware

Adaptation for Mobility. 16th ACM Symposium on

Operating Systems Principles. Saint Malo, France:

IEEE.

Pakkala, D., Perälä, J. & Niemelä, E. 2007. A component

model for adaptive middleware services and

applications. 33rd Euromicro Conference on Software

Engineering and Advanced Applications. Lubeck,

Germany, 28 - 31 Aug. 2007. IEEE.

Ping, Y., Xiaoxing, M. & Jian, L. 2005. Dynamic

software architecture oriented service composition and

evolution. CIT'05: 5th international conference on

computer and information technology. Shanghai,

China, 21-23 September 2005. IEEE.

Savolainen, P., Niemelä, E. & Savola, R. 2007. A

Taxonomy of Information Security for Service Centric

Systems. 33rd Euromicro Conference on Software

Engineering and Advanced Applications. Lubeck,

Germany, 29-31 August. Germany: IEEE.

van der Linden, F., Bosch, J., Kamsties, E., Känsälä, K. &

Obbink, H. 2004. Software Product Family

Evaluation. Software Product Lines, LNCS 3154.

Boston, MA, USA, Aug. 30- Sep. 2. Springer-Verlag.

Zhou, J. 2005. Knowledge Dichotomy and Semantic

Knowledge Management. 1st IFIP WG 12.5 working

conference on Industrial Applications of Semantic

Web. Jyväskylä, Finland, 25 - 27 Aug. 2005.

ENASE 2008 - International Conference on Evaluation of Novel Approaches to Software Engineering

176
