CASE STUDY: RUNNING TEST CASES FOR SEQUENTIAL

PROGRAMS IN PARALLEL IN A CLUSTER ENVIRONMENT

P. Kroha and V. Vychegzhanin

Department of Information Systems and Software Engineering

TU Chemnitz, Strasse der Nationen 62, 09111 Chemnitz, Germany

Keywords:

Testing, running test cases, cluster, parallel processing.

Abstract:

Testing a software system consists of a test case construction and of running and evaluating them, i.e. compar-

ing expected results with obtained results. Because the set of test cases is usually very large, some methods of

automation may be used to run them. Usually, test cases run on the same machine where the tested software

system should run later. In our case, we run the test cases of a software system for a sequential computer on

a cluster in parallel. The goal is to accelerate the process of running and evaluating tests. In this paper we

describe the architecture of our test execution tool, experiments, and obtained results concerning performance

and efﬁciency of test automation of sequential programs in a cluster environment.

1 INTRODUCTION

Systematic testing is necessary to improve the soft-

ware system quality. However, testing is often per-

ceived as a bottleneck operation in the software de-

velopment process, since the other phases are much

more automated (CASE tools, automated GUI design

tools). For each conﬁguration of the software product

and for each version of each component there must

be a speciﬁc set of test cases available and after any

change in any component we have to adapt and exe-

cute the corresponding test cases again. The test cases

are implemented by test scripts that contain test pre-

conditions, test code, test data, and expected results.

Test scripts are grouped to test plans that are part of

the product documentation and are used by test execu-

tion automation tools. These tools support a system-

atic approach to testing but they need a conﬁgurable

test infrastructure. Test plans for sophisticated soft-

ware products may contain thousands of test scripts

containing test cases. Sequential play-back of all test

scripts on one sequential computer takes a signiﬁcant

amount of time.

Our idea is to use a cluster where as many of its

nodes as possible can be used to load the test scripts

and execute them in parallel. We examined the pos-

sibility to execute test cases (unit tests) generated as

scripts by TestGen4J on our cluster of computers run-

ning with Linux. The goal was to write a test execu-

tion tool that loads all tests from the front-end com-

puter (sequential PC) to a back-end computer (a clus-

ter with 528 nodes) where a test manager controls test

case running on cluster nodes and sends the evalua-

tion back to the front-end computer.

Our system CLUSTEST is an experimental pro-

totype that supports an accelerated testing process

by delivering new levels of infrastructure which are

given by parallel processing of test cases in a cluster.

The rest of the paper is organized as follows. In

Section 2 we discuss the related work. In Section

3 we describe how we constructed our experimental

test scripts. The architecture of our system, the com-

munication of its components, and the processing of

test cases are introduced in Section 4. In Section 5

we introduce our practical experiments and parame-

ters measured. Finally, in the last section we conclude

our experience.

2 RELATED WORK

A number of work has already been carried out on

issues concerning parallel testing in the sense that

either a parallel (or a distributed) program will be

177

Kroha P. and Vychegzhanin V. (2008).

CASE STUDY: RUNNING TEST CASES FOR SEQUENTIAL PROGRAMS IN PARALLEL IN A CLUSTER ENVIRONMENT.

In Proceedings of the Third International Conference on Evaluation of Novel Approaches to Software Engineering, pages 177-180

DOI: 10.5220/0001760301770180

 SciTePress

tested or some test scripts run as threads on a sequen-

tial machine. These projects include project TAOS,

project AGEDIS, and product TestSmith. Project

TAOS (Testing with Analysis and Oracle Support) de-

veloped a toolkit and environment supporting analysis

and testing processes (Richardson, 1994). A unique

aspect of TAOS is its support for test oracles and their

use to verify behavioral correctness of test executions.

The project AGEDIS developed a methodology and

tools for the automation of software testing in gen-

eral, with emphasis on distributed component-based

software systems (Hartman and Nagin, 2004). The

commercial product TestSmith from Quality Forge

enables parallel test script playback on one sequential

workstation. Each playback runs in its own thread.

This allows multiple scripts to be played at the same

time, greatly speeding up the testing process.

The basic feature that distinguishes our approach

from the above listed is the use of clusters for parallel

testing.

3 CONSTRUCTION AND

PREPARATION OF TEST

CASES IN PARALLEL

To automate test running, test cases are to be prepared

and organized in structures that are suitable for sep-

aration of code and data of the test case, test cases

via test scripts, changing test cases, and changing test

scripts.

From the view of our paper it is not important

whether test cases are generated by a tool or con-

structed manually. Our focus is on running test cases

in parallel not on their construction. Our goal was not

to develop new methods for test case generation but

we needed a set of test cases as experimental data.

To illustrate advantages of running test cases in

parallel in a cluster we needed a large number of

test cases that cannot be written manually. To obtain

enough test cases for our experiments we used the

public domain tools TestGen4J. The process of test

case preparation starts the open-source tool Emma

that instruments code before testing. Instrumented

code serves to save coverage information. After test-

ing, Emma collects coverage information and gener-

ates reports in HTML, text, or XML.

Emma does not construct test cases. For this pur-

pose we needed the tool TestGen4J. Differently from

JUnit Test Generator that generates only empty bod-

ies of methods, TestGen4J uses generation based on

boundary values of method parameters. The user

has to deﬁne them by the help of rules. TestGen4J

works together with two others tools - JTestCase and

JavaDoc. To get the information about instrumented

classes for TestGen4J, e.g. description of classes, de-

scription of methods, constructors, variables, etc., we

used JavaDoc which is part of the J2SDk from Sun.

JUnit that was chosen for test case processing holds

test cases (code) and their test case data together.

This brings disadvantages when test data should be

changed. Because of that we used JTestCase that sep-

arates test case code from test case data. For one test

case code TestGen4J generates test cases data for all

combinations of parameter boundary values. Using

JTestCase the load, run, and evaluate procedures can

run in a loop for one test case code using more test

case data.

Summarized we prepared test cases as follows

instrumentation of application classes by the tool

Emma, separating information about instrumented

classes by tool Java Doc, test cases generation by tool

TestGen4J, and separation of test case code from test

case data by tool JTest Case. After preparation of test

cases they can be executed and evaluated using JUnit

as described below.

4 THE CLUSTEST SYSTEM FOR

RUNNING TEST CASES

The system CLUSTEST consists of a front-end (run-

ning partially as a local host and partially as a remote

AFS host on a sequential PC) and a back-end (running

on the cluster). Both modules communicate via mes-

sages and share ﬁles stored in AFS (Andrew File Sys-

tem). The architecture and communication schema is

shown in Fig. 1.

The front-end module represents the interface to

the user (to select test scripts and to start them) and

controls the processing. It runs on a sequential PC

with a Java Virtual Machine.

First, the tool Emma will be started which pro-

duces instrumented classes from classes of the appli-

cation under test. Instrumented classes contain some

additionally inserted code necessary for test cover-

age. After all classes of the application have an instru-

mented counterpart, the front-end starts the tool Test-

Gen4J that generates test cases. After all test cases

have been generated, the test manager from the back-

end obtains the instrumented classes and generated

test cases and uses the available number of cluster

modes to run and evaluate them by the help of the

Java test framework JUnit. Results will be stored in

a log ﬁle and later used to produce a report by the

front-end.

When test cases are prepared as described above,

ENASE 2008 - International Conference on Evaluation of Novel Approaches to Software Engineering

178

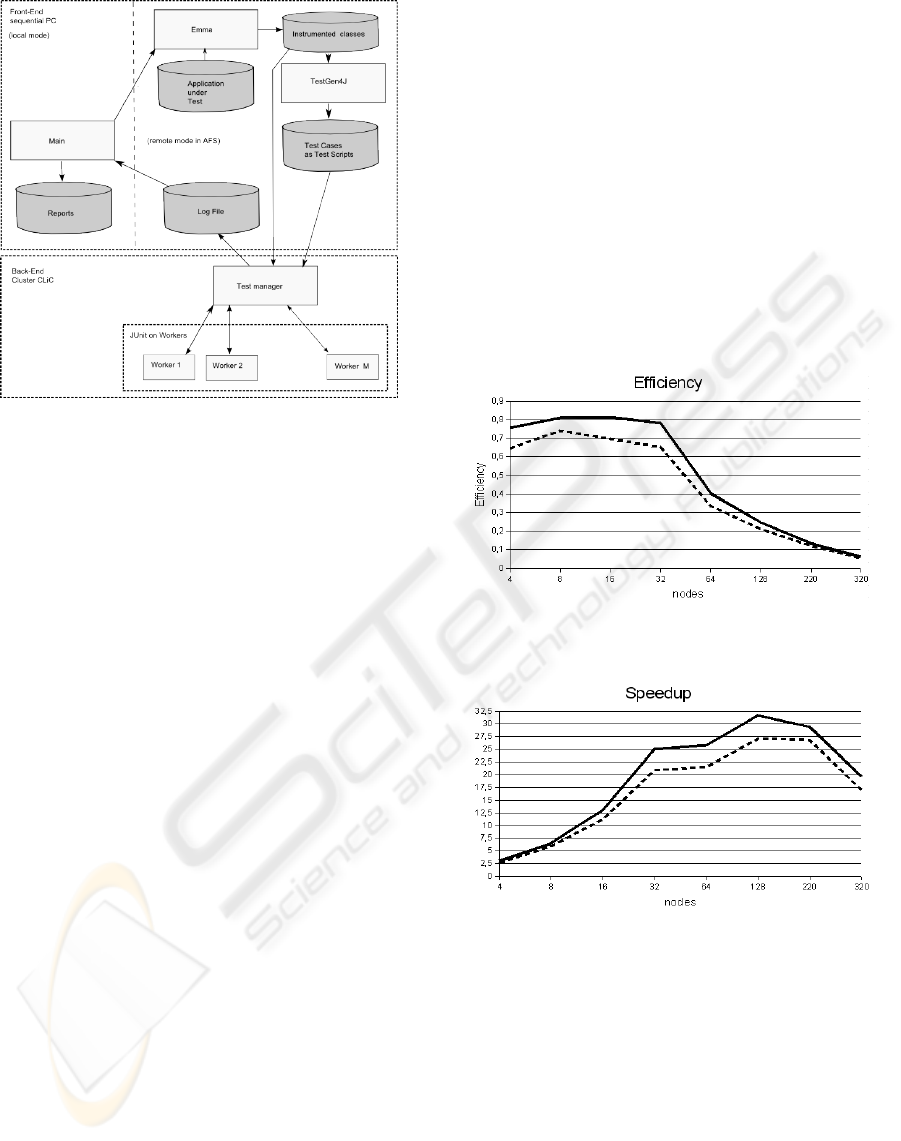

Figure 1: Architecture of CLUSTEST.

the front-end starts the back-end and passes to it the

list of test scripts for parallel processing. Then the

front-end waits until the back-end ﬁnishes test scripts

playback, collects the logs and transfers them back

to the front-end. At the end of test script playback

execution, the user receives information of log ﬁles

from the front-end in form of reports.

The back-end runs on the cluster CLiC (Chemnitz

Linux Cluster). It is a cluster that consists of standard

PC components. Each of its 528 nodes is a Pentium

III processor working with clock frequency 800 MHz,

512 MB of memory and 20 GB disk space. All ﬁles

of our CLUSTEST system are stored in distributed

AFS ﬁle system so that they are accessible from the

test manager and workers without any transfer. We

used some concepts described already in (Kroha and

Lindner, 1999).

5 EXPERIMENTS AND RESULTS

The tool CLUSTEST was implemented and described

in (Vychegzhanin, 2006). As our experimental data

we used a source program of a Java application

Azureus. It is a ﬁle sharing client for BitTorrent-

Protocol under the GNU General Public Licence. For

our experiments we used 1024 classes of Azureus.

Not all of its classes are suitable for automatic genera-

tion, some of classes have methods that cause inﬁnite

loops. As already said our goal was not to investigate

test generation so we did not investigate the reasons

deeply because it was not our focus. As we stated

we generated the test cases (about 200,000) as a sepa-

rate job on a sequential PC because of some technical

problems (caching mechanism of AFS) and organiza-

tion problems (too long queues) in using cluster.

It took 50 minutes to generate test cases for 1024

classes. We measured the elapsed time in two modes,

with using a coverage test and without using a cov-

erage test. The alternative without using a coverage

test runs about 11 % more quickly. The elapsed time

is the time between the start of the ﬁrst test case and

the ﬁnish of the last test case. It does not include data

transfer of source data or scripts, time between the

source request (Start of Emma) and the start of test

manager, waiting because of other cluster users, read-

ing test cases, and transfer of results from the log ﬁle

to the front-end.

Figure 2: Efﬁciency.

Figure 3: Speedup.

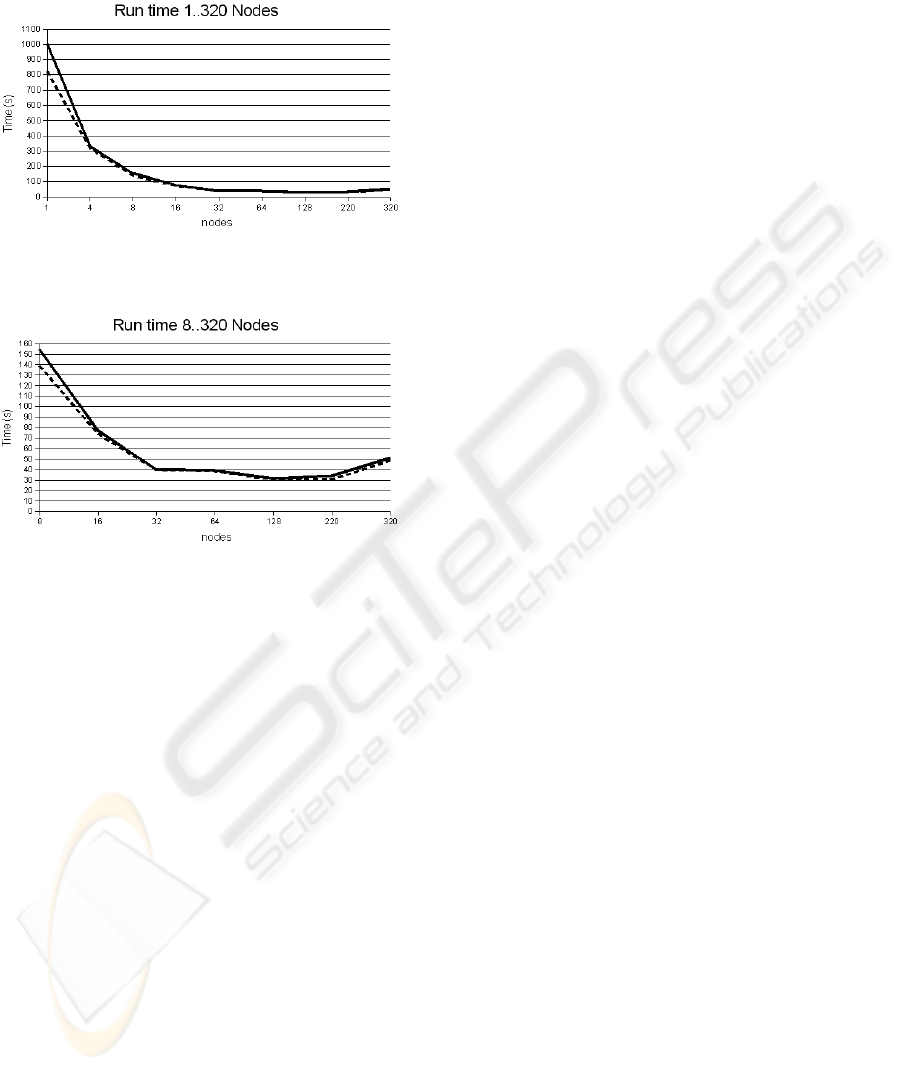

The obtained results can be seen in the follow-

ing ﬁgures. The efﬁciency in Fig. 2 starts to fall for

more then 32 nodes. In Fig. 3 we can see how the

speedup depends on the number of nodes. It reaches

its maximum for 128 nodes. As we can see in Fig. 4

it took 825 seconds to run and evaluate the used set of

test cases on a sequential PC (1005 seconds including

coverage test) but only 320 seconds using 4 nodes and

only about 30 seconds using 128 nodes.

In Fig. 5 we can see the same in more details.

With increasing number of nodes over 128 the over-

head grows. The bottleneck is the single test manager.

CASE STUDY: RUNNING TEST CASES FOR SEQUENTIAL PROGRAMS IN PARALLEL IN A CLUSTER

ENVIRONMENT

179

In a future version we will partition the test cases and

use more test managers for large numbers of nodes.

Figure 4: Run Time 1.

Figure 5: Run Time 2.

6 CONCLUSIONS

The application of clusters in the problem of sequen-

tial program test automation distinguishes the pre-

sented approach from other related works and may

cause a signiﬁcant progress in using clusters for pur-

poses of software engineering. We have shown that

the software testing phase can be shortened by the

deployment of test automation into a cluster environ-

ment.

We presented practical results of our project

CLUSTEST obtained by successful design and im-

plementation of a tool for automated software test

running on a cluster. The obtained experimental re-

sults were expected in their quality, i.e. we expected

that test evaluation will accelerate, but it is interesting

(and in practice it is necessary) to know also quan-

titative parameters (e.g. speedup and efﬁciency for

a given number of nodes) of the test evaluation per-

formed with a real software tools.

Our experiments revealed that parallel playback of

test scripts gives a signiﬁcant gain in time (see Fig. 2,

Fig. 3) comparing to the sequential test scripts play-

back. A speedup of 25 for 32 used nodes and speedup

32 for 128 used nodes has been achieved which is an

excellent result. In the future work we will investi-

gate how general are our observations, i.e. we will

test more systems and compare the results.

There is an interesting problem how faithfully the

test system represents the environment of the system

where it is expected to run. Even though we used a

cluster of PC for running tests of PC programs we ex-

pect differences in run-time support libraries etc. In

principle this is a problem of portability. Theoreti-

cally we have to accept the possibility that there could

be some side-effects introduced by the cluster. In our

case we did not found any problems of this kind but

theoretically we cannot rule them out.

Cluster computing is generally applied to simu-

lations in physics and chemistry, machine learning,

aerospace technology, seismology, meteorology, etc.

As for software engineering, clusters are almost never

used until now for two reasons. First, the most tasks

of the software development process do not require

vast computing resources. Second, a cluster is not a

cheap equipment. However, the complexity of soft-

ware systems is steadily growing and the hardware

prices are steadily falling. We argue that clusters as

resources are preferable in the implementation of a

test execution tool for execution of large number of

test scripts as studied in our project.

Often, it happens that a project is behind sched-

ule when testing should be started. We believe that a

32-machine-cluster will be low-priced soon and can

bring much beneﬁt (speedup 25) in such a way that it

considerably contribute to the acceleration of testing.

REFERENCES

Hartman, A. and Nagin, K. (2004). The agedis tools for

model based testing. In Proceedings of ISSTA 2004,

Boston.

Kroha, P. and Lindner, J. (1999). Parallel object server as a

data repository for case tools. In Croll, P. / El-Rewini,

H. (Eds.): Proceedings International Symposium on

Software Engineering for Parallel and Distributed

Systems PDSE99,IEEE Computer Society, ICSE99,

Los Angeles, pages 148–156.

Richardson, D. (1994). Taos: Testing with analysis and ora-

cle support. In Proceedings of the International Sym-

posium on Software Testing and Analysis.

Vychegzhanin, V. (2006). Clustest Erweiterungen. Mas-

ter’s thesis, TU Chemnitz, Germany. M.Sc. Thesis (In

German).

ENASE 2008 - International Conference on Evaluation of Novel Approaches to Software Engineering

180
