SOFTWARE SEMANTIC PROVISIONING

Actually Reusing Software

Savino Sguera

, Philippe Ombredanne

, Armando Stellato

and Maria Teresa Pazienza

DISP, University of Rome Tor Vergata, Italy

Eclipse Software Foundation

Keywords: Component provisioning, software reuse, semantic web services, component-oriented architectures.

Abstract: Delivering component-oriented architectures is a well-established trend in software engineering and

development. Assessing software reuse scenarios goes much beyond the usual “build vs buy” dilemma that

so often occurs in early stages of a software process: scouting, comparing, choosing and integrating the right

set of components meeting project’s requirements is still an ad-hoc and error-prone task, performed by

developers with little or no frameworks and tools to support them. This paper describes the SSP (Software

Semantic Provisioning) project, funded in its early stages by Google

Inc., developed during the Google

Summer of Code

2007 program, and incubated by the Eclipse Software Foundation; the project aims to

provide an ontological description of the software domain to underlie a semantic web framework to support

developers in scouting and provisioning software components. A prototypical RESTful semantic repository,

and an Eclipse plug-in consuming the repository services have been implemented and will be discussed.

1 INTRODUCTION

Software development nowadays largely consists of

adapting existing functionalities or components to

perform in a new environment, and is biased towards

delivering component-oriented architectures.

Component provisioning, choosing the right

software libraries set, and integrating it as a whole,

are tasks carried out by software developers and

libraries providers alone, often with little or no help

at all, and this usually lead to rewrite existing code,

or more generally to cost and time overrun which

might be avoided with the right techniques and

methodologies to support analysis, design and

implementation disciplines.

The very general concept which lies behind

software collection and reuse can be observed (in

terms of needs) and applied (through successful

methodologies and technical solutions) at very

different level of specializations. While very general

frameworks for software delivery and provisioning

may offer services for accessing and contributing to

large library repositories, relying on dedicated

metadata for organizing and retrieving the archived

objects, there could be specific fields of interest

where a more complex and organized description of

the repository, tailored upon explicit needs and

requirements which characterize the given domain,

would improve the shareability of data, information

and tools inside really active and participating

communities.

Following previous research on provisioning and

integration of software components and libraries by

the ART group at University of Rome Tor Vergata,

this paper describes the SSP (Software Semantic

Provisioning) project, funded in its early stage by

Google

Inc., developed during the Google

Summer of Code

2007 program (Sguera, 2007),

and incubated by the Eclipse Software Foundation.

2 MAIN USE CASES AND

BENEFITS

Despite the proliferation of provisioning systems

and frameworks, the component search and choice

activities are still carried out by developers with

little or no help at all. Programmers are left to

themselves scouting the web to find libraries and

components, and no systematic approach nor

thorough frameworks exists.

In the next paragraphs we will discuss some of

the most representative use cases and the benefit that

185

Sguera S., Ombredanne P., Stellato A. and Teresa Pazienza M. (2008).

SOFTWARE SEMANTIC PROVISIONING - Actually Reusing Software.

In Proceedings of the Third International Conference on Evaluation of Novel Approaches to Software Engineering, pages 185-188

DOI: 10.5220/0001763501850188

 SciTePress

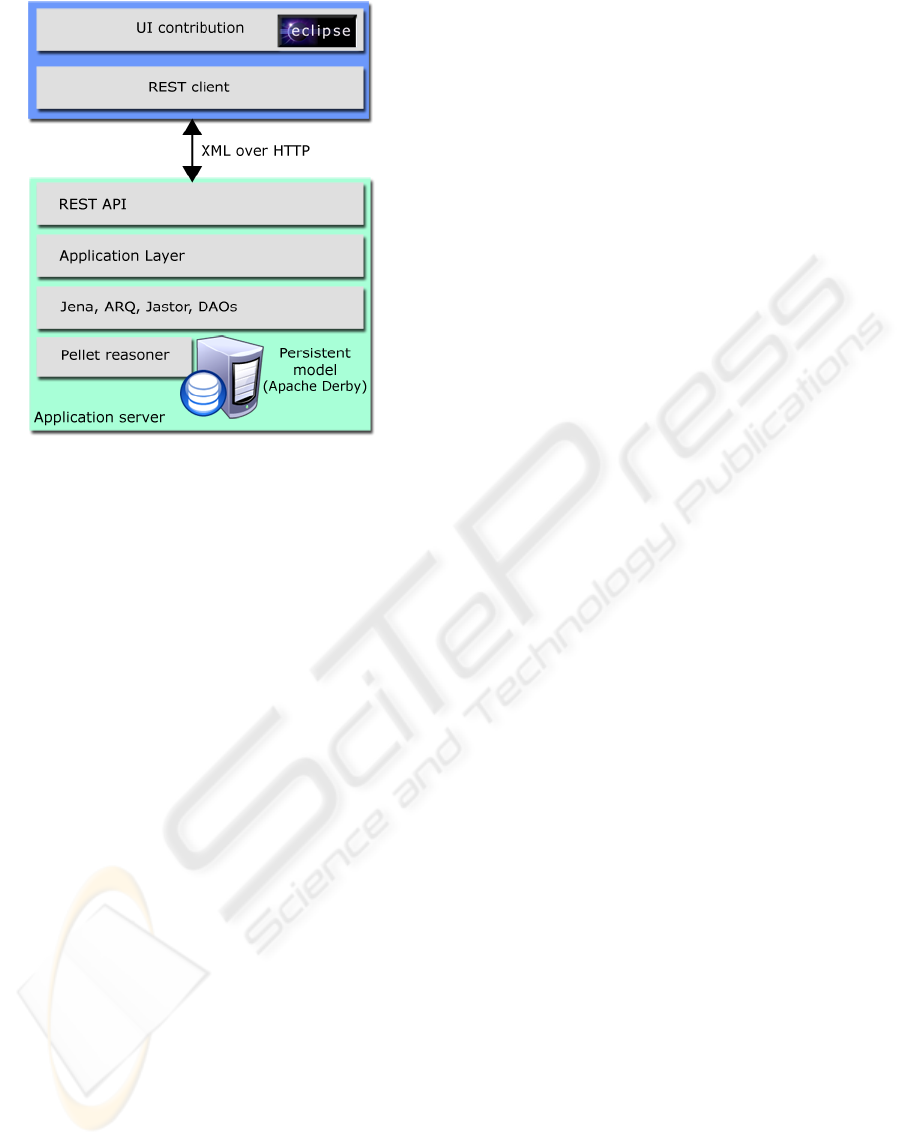

Figure 1: Full stack client-server architecture.

our approach delivers to developers and components

providers, stressing how our system tackles various

aspects which currently undermine software reuse

and often lead to write ex-novo already existing

code.

Assert and Spot Functional Equivalence between

Components. The number of components and

libraries, along with their versions, makes practically

impossible for a developer to know them all. On the

other hand, there may exist more than a piece of

software accomplishing the same task, fulfilling the

same requirements set, or even implementing the

same specification. To some extent, such

components could be considered functionally

equivalent (at least, with respect to some facets).

This is the case, for instance, of Hibernate,

Apache Cayenne and all of the other frameworks

implementing the Java Persistence API, or any

implementation of the Java Servlet API, any JDBC

driver, or any HTTP server (or client as well). The

list would go a long way…

Furthermore, the equivalence is symmetrical,

reflexive and transitive; the inference mechanism

helps building relations upon social-generated

contents: relations and functional equivalence

among software components are both explicitly

declared and inferred by the system, thus building a

dense semantic network with a little effort. Machine-

readable metadata allow much more granularity and

raise the formal level and the intelligence of search-

related features.

Find Components Providing a Set of Tasks.

Describing a software component or library in terms

of the tasks it fulfills is the very first way to tell

whether a piece of software fits our needs or it does

not. During the analysis and design phase developers

must choose the right set of enabling technologies

and components which will drive further

development phases, and will construct the base for

building our application’s architecture.

Let’s suppose – just as an example – we are

planning to develop two components, one carrying

out the “dom-parsing” task and the other fulfilling

the “sax-parsing” task, and we would like to know

if there is already a unique component providing

both the tasks. It would be useful to browse the

repository and discover at design time that xerces-j

actually carries out both sax and dom xml parsing.

We might then decide to use it if it fits our project’s

requirements.

Assessing Reputation of Components. Whenever a

developing team picks up third-party code to

underlie its application, it is implicitly taking

responsibility someone else’s code, which could

affect their product’s security and credibility. To this

purpose, we could want to know which – and how

many – components actually use one: this may give

us valuable information about its reputation. On the

other hand, if we developed a new component – and

added it to the repository – it could be interesting to

know which and how many components rely on our

work.

3 APPROACH AND DESIGN

GOALS

Our key goal is to provide developers with a

complete environment to exploit semantic metadata

in order to effectively find and provision software

components.

We tried to overcome the main limitations in

current mainstream provisioning systems and

frameworks, which are in turn tied to a particular

technology or show a formalization level which

grants no access to technology-independent, high

level and enough granular information for a

component.

Moreover, even if current provisioning

technologies follow different approaches and stress

different aspects proper of the software domain,

there is a substantial overlap among the components’

description they provide and rely upon.

ENASE 2008 - International Conference on Evaluation of Novel Approaches to Software Engineering

186

Thus an ontology, meant to be a shared, higher

level domain vocabulary among developers,

allowing to semantically describe software and

eventually mapping a subset of available metadata to

one of the technologies available, would enable a

thorough description of a component, aimed to stress

what the component does in an unambiguous

fashion; this supports interoperability among

developers and among technologies, provides some

ground concepts to establish, declare or infer

relationships among software components, and eases

the reuse of existing software, giving developers a

significant help in the early discovery phases.

4 KNOWLEDGE MODEL

The Knowledge Model of the SSP environment

offers, at the current state of development, those

concepts and relations which are necessary for

providing a sufficiently detailed description of

software entities and for modeling the functionalities

which have been presented in the use-cases section.

Reference to past research work (Oberle et al.,

2006) on modeling ontologies for describing

software systems has been made by reusing concepts

from these ontologies for describing common

software entities like: component, library and

software license.

Our framework is centered about the description

of software objects, providing several semantic

anchors through which they can be identified,

classified according to different perspectives and

needs, and thus easily retrieved on these same

aspects.

SoftwareObject(s) can be mainly

distinguished according to two different categories:

Components, which are “Program modules that

are designed to interoperate with each other at

runtime”, that is software objects for which there is a

well-defined runtime behavior, and Library(ies)

which define “collections of subprograms used to

develop software”.

Other classes offer further perspectives over

which software objects registered in the SSP

repository may be clustered and accessed: License

has been introduced to describe the diverse software

licenses adopted by software developers and

vendors. This way users may filter their choice if, as

an example, they need only software licensed under

a specific contract. This filtering can even less

explicit, by automatic reasoning over class of

licenses and the relationships between them. A

property licenseIncompatibleWith allows to

establish incompatibilities between use of

components licensed under different contracts, while

the class LicenseStyle describes categories of

licenses which share common aspects. A reification

technique – see (Gangemi & Mika, 2003) for a

wider discussion on this topic – has been adopted to

describe license styles both as objects of the domain

as well as classes of licenses (so, as

rdfs:subClassOf License), still remaining inside a

first order description of the domain. This way we

can “talk about” software licenses as ground objects

(which may exhibit specific contractual expressions,

have a reference web site etc…) and, at the same

time, consider them as set of licenses, offering class

level restrictions on the values that their belonging

instances should expose on their properties.

The explicit link between the objects (instances

of LicenseStyle) and the set of Licenses

(subclasses of License) is outside of the ontology

vocabulary and is handled by the semantic

repository, which automatically generates subclasses

of License for each new introduced license style.

Specific Tasks can be defined in the repository,

to help clustering components according to their

purposes.

The same reification technique described above

is used to automatically generate subcategories of

SWObject which cluster sets of components and

libraries according to their purposes.

5 ARCHITECTURE

The semantic repository publishes a set of REST

API, in compliance to the well known architectural

style described in (Fielding, 2000) allowing clients

to easily consume its services, and enabling any kind

of Web 2.0 buzzword-compliant mashup. The

RESTlet framework was embedded into a servlet

container to deploy the repository as a web

application.

We also developed a REST Eclipse-based client

consuming the repository’s web services, decoupling

the client-server interaction from the UI

contributions.

The repository location can be both local (i.e.

this can be achieved simply deploying the repository

web application inside Eclipse itself, exploiting the

embedded Jetty server used by the help plugin), or

remote, and it can be chosen using the provided

preference page, accessed in the usual Eclipse way.

Two views were implemented: the Repository

Explorer, on the left, allows the developer to browse

components by name, version, license, tags, tasks or

navigate the semantic relations among the

SOFTWARE SEMANTIC PROVISIONING - Actually Reusing Software

187

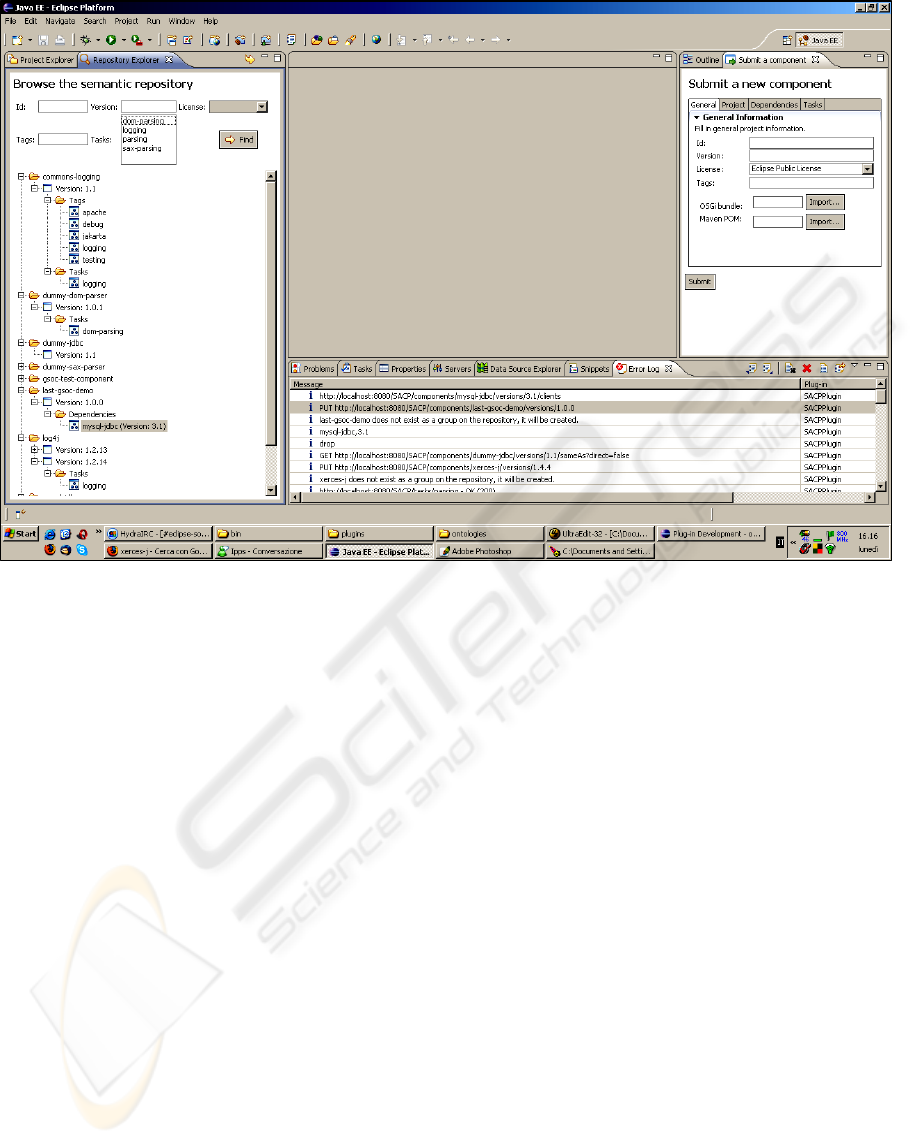

Figure 2: SSP Eclipse plug-in - UI Contribution.

components; the Submit a new component view

makes use of the Eclipse SWT Forms widgets to

provide developers with an elegant and fast way to

submit a new component to the repository.

6 CONCLUSIONS AND FUTURE

WORKS

In this paper we introduced a novel approach to

software components and libraries discovery and

provisioning. Indeed we believe current mainstream

provisioning systems lack a shared vocabulary and

technology-independent formalization of the

software domain, supporting richer semantic

description to support reasoning and the generation

of a consensus based upon the specific domain the

considered software belongs to.

Future iterations will involve a deeper

axiomatization of License and License-style

concepts, since they represent the contract between

the product provider and the consumers, which often

is a strict non-functional requirement to be satisfied

when a third-party software is chosen. A strong

investigation on “software specifications” could

contribute to further discriminative arguments for

facilitating classification (and thus more precise

retrieval) of software objects in the repository.

Integration with – and metadata reuse from – OSGi

(http://www.osgi.org/) and Maven (http://

maven.apache.org/), and user interface

improvements are top priorities for the project.

REFERENCES

Fielding, R. (2000). Architectural Styles and the Design of

Network-based Software Architectures. University of

California Irvine, PhD Dissertation.

Gangemi, A., & Mika, P. (2003). Understanding the

Semantic Web through Descriptions and Situations.

DOA/CoopIS/ODBASE.

Oberle, D., Lamparter, S., Grimm, S., Vrandecic, D.,

Staab, S., & Gangemi, A. (2006). Towards Ontologies

for Formalizing Modularization and Communication

in Large Software Systems. Journal of Applied

Ontology , 1 (2), 163-202.

Sguera, S. (2007). Retrieved from http://code.google.com/

soc/2007/eclipse/appinfo.html?csaid=1221666D7EBA

3415.

ENASE 2008 - International Conference on Evaluation of Novel Approaches to Software Engineering

188
