VISUAL COMPOSITION OF COMPONENT SYSTEMS

Hans Albrecht Schmid

University of Applied Sciences Konstanz, Brauneggerstr. 55, Konstanz, Germany

Christian Martin Baranowski

SEITENBAU GmbH, Robert-Gerwig-Str. 10-12, Konstanz, Germany

Keywords: Visual component composition, components, component language, component fragment, distributed

component systems.

Abstract: Component composition has been remaining over a decade a (design) concept, but not found its way into

practical programming which is usually still done in the classical reference-based way. A new generation of

component languages like ArchJava has pushed forwards composition of subcomponents. But these

languages fall back into class-based programming of methods when Java program code is to be written e.g.

as a filter among subcomponents. In contrast, the CompJava Designer, a graphical editor, allows

constructing relatively complex and distributed component systems for practical applications by a seamless

visual composition process. It uses extended UML 2 component diagrams that allow visualizing the

compositional structure of components in order to better understand and communicate it. The designer is

based on the component language CompJava that has introduced component fragments and plugs as means

for composing a component both from subcomponents and structured units of code.

1 INTRODUCTION

Component composition (C. Szyperski, 1997) is less

error-prone than class-based programming with

reference handling and provides for a much clearer

and cleaner architecture. However, it has been for a

decade a concept that supplements classical

reference-based programming, but does not replace

it to a larger extent.

Classical component models, like CORBA

(K.Seetharaman, 1998), Enterprise JavaBeans (Sun

Microsystems, 2001), Corba Component Model, and

DCOM (C. Szyperski, 1997), define, with a few

exceptions for special cases, only provided, but no

required interfaces. Thus, the composition of

components is just a conceptual process that must be

realized by handling component resp. class

references.

After the development of mathematically

oriented composition-calculi, there have been efforts

to make them available for a practical application

(J.C.Seco and L.Caires, 2000). A new generation of

component languages based on that approach, like

ArchJava (J. Aldrich et al, 2002), and ACOEL

(V.C.Sreedhar, 2002), defines also required

interfaces. A connect-statement allows carrying out

composition of subcomponents in an elegant way.

But these languages fall back into class-based

programming with reference handling when

component code is to be supplied e.g. as a filter

among subcomponents. As a consequence, design on

a conceptual level is done by composition; but its

realization is done to quite a large extent in the same

way as class-based programming, as program

examples from ArchJava (J. Aldrich et al, 2002)

show. Another weakness is that these languages do

neither provide for a distribution model nor services

so that they are not apt to realize distributed systems.

To push forward composition was one of the

objectives we had in developing the component

language CompJava (H.A.Schmid, 2007) based on

concepts from the new component language

generation. It allows for composing a component

both from subcomponents and structured units of

code, introducing for that purpose component

fragments and plugs.

Additionally, it embodies also a distribution

model for the seamless composition of a system

from local components, distributed components and

services.

131

Albrecht Schmid H. and Martin Baranowski C. (2008).

VISUAL COMPOSITION OF COMPONENT SYSTEMS.

In Proceedings of the Third International Conference on Evaluation of Novel Approaches to Software Engineering, pages 131-139

DOI: 10.5220/0001764701310139

 SciTePress

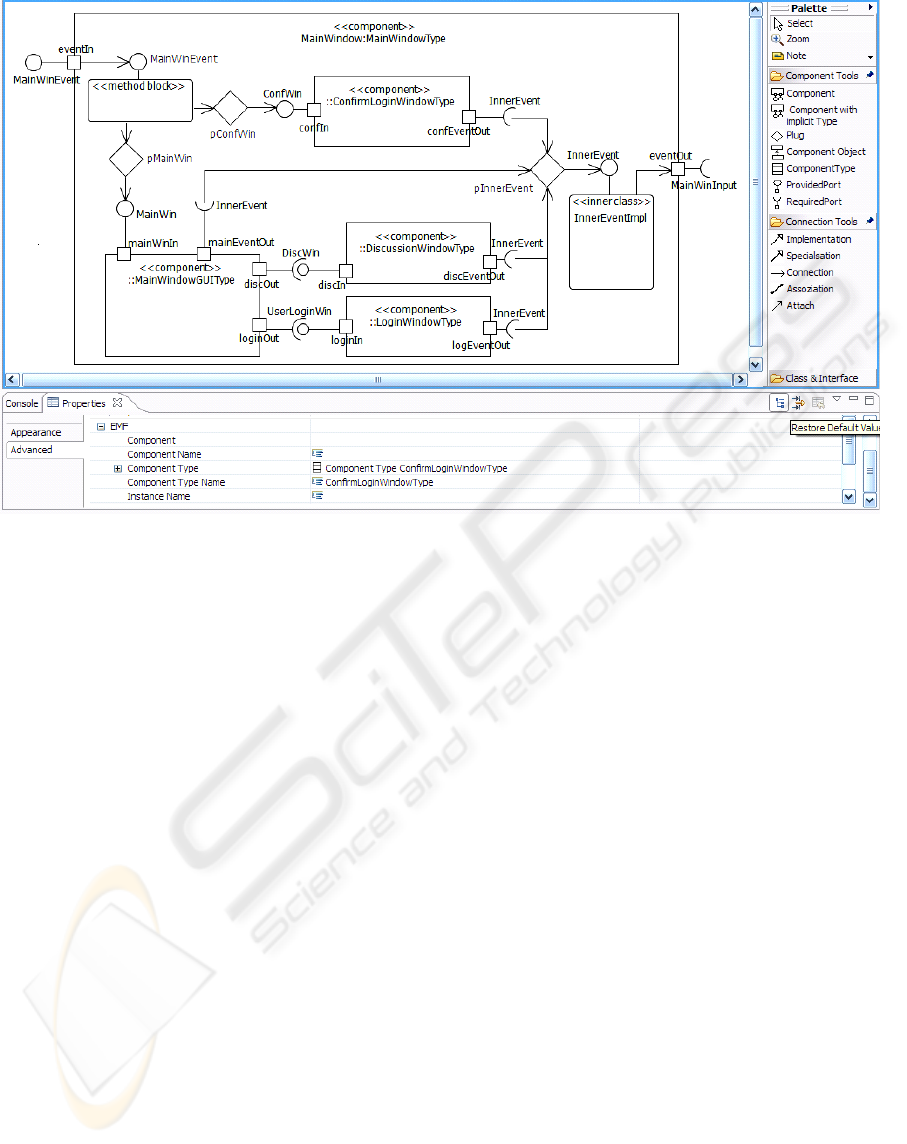

Figure 1: CompJava Designer showing of the composition of the MainWindow component from subcomponents and

component fragments.

During the development and work with

CompJava, we noticed that we usually visualized the

compositional structure of non-trivial components in

order to to better understand and communicate it.

We have put the visualization on a sound base by

defining CompJava diagrams, which extend UML 2

component diagrams (OMG, 2007) with component

fragments, plugs and the associated “wiring“. Their

transformation into the CompJava language is

defined precisely.

A graphical editor, called CompJava Designer,

was the last step towards a visual composition of

components. We show in this paper that relatively

complex distributed component systems may be

constructed seamlessly by visual composition,

without referring to the textual form of the

component language. The CompJava Designer was

constructed as an Eclipse plug-in from the model-

driven framework GMF, which is also an Eclipse-

plug-in. Let us mention shortly without going into

detail that the CompJava Designer is generated from

the same meta-model that is used by the CompJava

compiler in order to represent the result of

syntactical analysis for code generation.

This paper presupposes some basic familiarity

with components and UML 2 component diagrams.

Its organization is the following. Section 2 presents

the CompJava Designer with its different kinds of

diagrams and the composition process. Section 3

gives a rough overview about the (textual)

component language as a background for the visual

design. Section 4 presents a non-trivial example for

the composition of a distributed chat application

system. Section 5 discusses related work.

2 COMPJAVA DESIGNER

CompJava is a distributed Java-based component

language. The first non-distributed version has been

available since winter 2003/2004, three more

compiler and language versions followed. The

current version with distributed components is

integrated in Eclipse and available on

www.compjava.org.

CompJava allows composing a component from

subcomponents, which are instances of other

components, and from the newly introduced

component fragments. It defines component types,

components and component instances, similarly as

Java defines interfaces, classes and class instances.

Each component has a component type. One may

create any number of component instances from a

component.

The CompJava Designer (used to create all

presented diagrams except for Figure 2) is a

graphical design tool available as Eclipse-plug-in. It

ENASE 2008 - International Conference on Evaluation of Novel Approaches to Software Engineering

132

allows the visual composition of components by

constructing CompJava diagrams and generating

code from them. For a graphical representation of

component composition, we use CompJava

component diagrams which are UML 2 component

diagrams (OMG, 2007) enriched with component

fragments and plugs.

Component fragments structure the component

code so that a component has (practically) no

methods. A component fragment may be used as a

kind of filter for subcomponents or for building a

component directly from Java code. A plug is used

as a connection point for the “wiring“.

We use the composition of a chat client of an

instant messaging system as a running example.

Instant messaging is a distributed application formed

from services, distributed components and local

components. Here we present mainly local aspects.

The instant messaging system was developed by a

student without prior knowledge of CompJava as a

diploma thesis (M. Klenk, 2002).

2.1 Example

The CompJava Designer (see Figure 1) displays: a

CompJava diagram in its main window; a palette

with tools for constructing CompJava diagrams; and

(bottom) a textual editor for properties of CompJava

diagram objects. The diagram is a CompJava

composition design diagram that shows the design of

the composition of the MainWindow component of

the chat client.

MainWindow is a component of component type

MainWindowType (analogous to class and interface).

It presents in encapsulated windows all information

about chats and users except for the exchanged

messages. MainWindow receives new information

from the server about events via the provided

MainWinEvent port, and it sends off information

about events from its user via the required

MainWinInput port. It is composed from

subcomponents with the types

MainWindowGUIType, DiscussionWindow-Type,

LoginWindowType, and ConfirmLoginWindowType,

and from two component fragments implementing

the interface MainWinEvent res. InnerEvent.

The inside of the ports of a parent component

like MainWindow may be “wired“ to ports of

subcomponents or to component fragments like that

implementing MainWinEvent. Ports of

subcomponents may be “wired“ to ports of other

subcomponents, like the required ports of

MainWindowGUIType to provided ports of

DiscussionWindowType and LoginWindowType, or

via the intermediary of a plug (depicted by a

diamond) like pInnerEvent of type InnerEvent (see

middle right) to a component fragment like the one

implementing the interface InnerEvent.

The “wiring“, depicted by arrows, which

represents the connect- and attach-statements of the

CompJava language (compare 3.2), is subject to

consistency constraints. The conditions to be

fulfilled for composing components are: the port-

matching constraint is that a provided (port)

interface extends (incl. equals) a required (port)

interface; and the n:1 multiplicity constraint is that a

required port is connected or attached to only one

provided port res. plug, and a plug is attached to

only one component fragment or provided port.

These constraints are checked in real-time by the

editor.

2.2 CompJava Diagrams

The CompJava Designer allows constructing four

different kinds of CompJava diagrams:

• A Port Interface Diagram defines port

interfaces in the form of Java interfaces (in

UML or text form).

• A Component Type Diagram defines a

component type specifying all port interfaces by

which a component of that type may collaborate

with the outside. It specifies also the

distribution-related property whether the ports

may be invoked remotely (via RMI/Corba) or

may define services.

• A Composition Design Diagram shows the

design of the composition of a component (see

Figure 1). It specifies: the component type (but

not name) of subcomponents; component

fragments; the wiring; and also whether the

implementation of the component may be

distributed, i.e. it may have remote

subcomponents. The design of a component

fragment specifies the interface it implements; it

specifies indirectly (via the wiring) the plugs or

ports from which it may invoke methods

• A Composition Implementation Diagram

shows the implementation of the composition of

a component. It is constructed from a

composition design diagram by selecting the

subcomponents, which each must have the

specified component type; and by implementing

the specified component fragments, and

possibly inner classes. A component fragment is

implemented either by an anonymous class, an

inner class or as a method block (the latter is

depicted like an anonymous class without class

VISUAL COMPOSITION OF COMPONENT SYSTEMS

133

head) (for a more details see (H.A.Schmid,

2007)). One implements a component fragment

in an automatically opened Java editor window,

which provides the methods implementing the

component fragment interface, with empty

implementations to be filled out.

In contrast to UML2 component diagrams, we

distinguish between composition design and

implementation diagrams since

1. in general, one should distinguish design and

implementation

2. when designing the composition of a component,

only the component types of the subcomponents,

but not their implementation should have to be

known.

Once the implementation of a composition is

finished, one may start automatic code generation

and compilation using under the cover the

CompJava compiler. For designing and

implementing the composition of static component

architectures, there is usually no programming of

CompJava code and no separate programming of

Java code required.

2.3 Composition Process

Component composition is a fully hierarchic process

so that components may be nested to an arbitrary

level. The intuitive diagram of Figure 2 kind of

collapses the formal diagrams (which contain only

one nesting level) of Figures 3, 4 and 5.

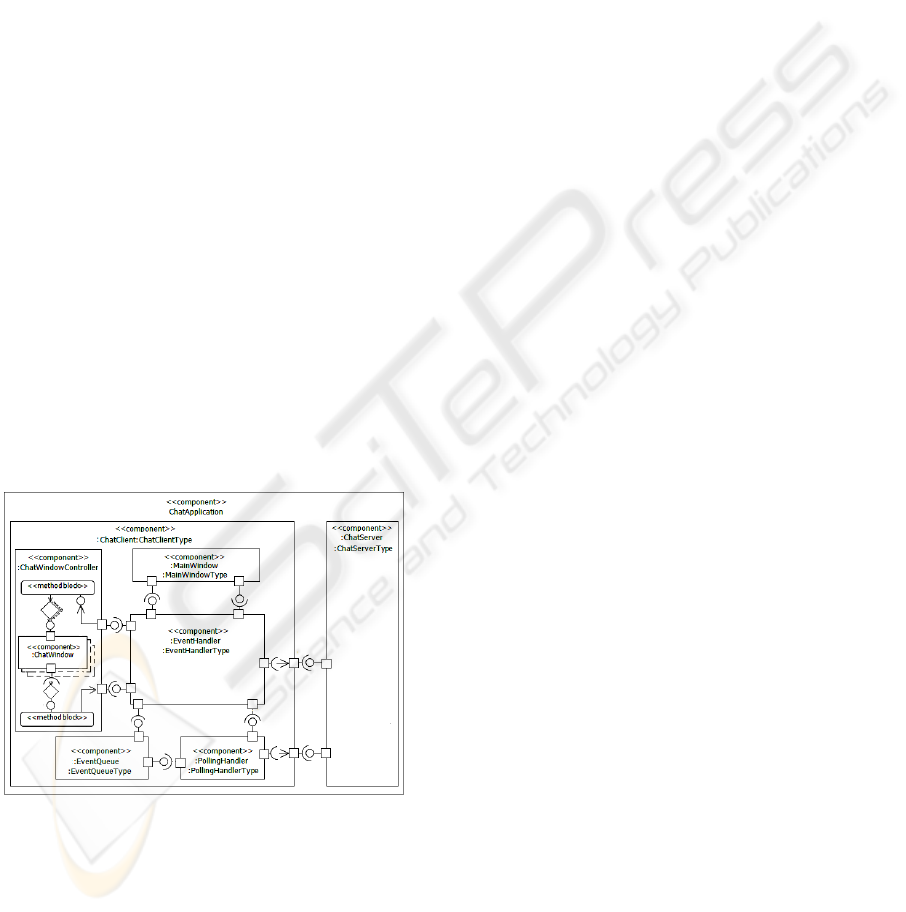

Figure 2: The figure shows component composition for

only one nesting level.

When composition was a strict top-down process,

one would perform the following steps one after

another:

1. specifying the types of the highest-level

component like MainWindowType, and of its

subcomponents like MainWindowGUIType and

DiscussionWindowType;

2. specifying port interfaces like MainWinEvent

and MainWinInput;

3. designing the composition of the parent

component like MainWindow from

subcomponents of a given type like like

MainWindowGUIType and DiscussionWindow-

Type and from component fragment

specifications, and design the “wiring”;

4. implementing the composition.

However, component composition is in reality

not a strict top-down process, but re-iterates the

different process steps. It may be necessary to

specify or modify port interfaces and component

types when designing the composition or even

implementing the composition of a component.

Therefore, the CompJava Designer allows

specifying or modifying port interface diagrams or

component type diagrams together with composition

design diagrams and composition implementation

diagrams.

Section 4 describes the composition design of the

client component of the chat application, which

forms a relatively complex real-world example.

3 COMPJAVA

This section gives a rough overview about the

(textual) component language as a background for

the visual design. A systematical introduction and

definition of the local language constructs is given in

(H.A.Schmid, 2007).

3.1 Component Type

Component types allow defining e.g. product line

architectures or component frameworks, and they

allow separating the design of component

composition from its implementation. That means

the composition of a component from

subcomponents may be designed with the

subcomponents types, prior to the design of the

subcomponents, as section 2 has shown.

For example, consider the type MainWindowType

(of a MainWindow component):

interface MainWinEvent { ...};

interface MainWinInput { ...};

component type MainWindowType {

port eventIn provides MainWinEvent;

port eventOut requires MainWinInput;

}

ENASE 2008 - International Conference on Evaluation of Novel Approaches to Software Engineering

134

A component type specifies the ports via which a

component may collaborate with other components,

using Java interfaces as port interfaces. E.g. the

MainWindowType defines the port eventIn with the

provided interface MainWinEvent and the port

eventOut with the required interface MainWinInput.

CompJava allows declaring also event ports and port

arrays.

A remotable component type, which is denoted

by the modifier “remotable”, imposes the

remotability restriction on the (local) port interfaces:

the provided and required interfaces must expose

only types with a copy-semantics, or references to

distributed components. A service component type

imposes the restriction that all port interfaces must

be service interfaces. A service interface is

constrained to exposing only Java primitive types or

serializable types that are formed essentially by data.

3.2 Components

A component has the component type indicated by

the ofType-clause; it implements the provided

interfaces, possibly using operations of required

interfaces. A distributed component, like

ChatServer, is composed from subcomponents,

which may be allocated remotely from the

component. This implies that the subcomponents

have remotable types (or service types).

We use the MainWindow component (see visual

design in section 2) to illustrate some main

constructs of CompJava. Example I presents

schematically the code of the MainWindow

component.

Example I. Component MainWindow with

subcomponents MainWindowGUI, Discussion-

Window, LoginWindow and ConfirmLoginWindow,

component fragments, plugs and “wiring“

component MainWindow ofType MainWindowType {

//port eventIn provides MainWinEvent;

// port eventOut requires MainWinInput;

MainWindowGUIType m =

new MainWindowGUI(); *

DiscussionWindowType d =

new DiscussionWindow(); *

LoginWindowType l =

new LoginWindow(); *

ConfirmLoginWindowType cl =

new ConfirmLoginWindow(); *

plug<MainWin> pMainWin; **

plug<ConfirmLoginWin> pConfWin; **

plug<InnerEvent> pInnerEvent; **

attach This.eventIn to new MainWinEvent { ***

...

}

attach This.pInnerEvent to new InnerEvent { ***

...

}

connect This.pMainWin to m.mainWinIn;

****

connect m.loginOut to l.loginIn; *****

connect m.discOut to d.discIn; *****

connect m.mainEventOut to This.pInnerEvent;

****

connect This.pConfWin to cl.confIn; ****

connect cl.confLogEventOut to This.pInnerEvent;

****

connect d.discEventOut to This.pInnerEvent;

****

connect l.logEventOut to This.pInnerEvent; ****

}

At component initialization time, the

MainWindow creates the subcomponents

MainWindowGUI, DiscussionWindow,

LoginWindow and ConfirmLogin-Window (as

indicated by a *).

It declares the plugs pMainWin, pConfWin, and

pInnerEvent (as indicated by **). A plug is required

as intermediary to connect a port of a subcomponent

to a component fragment that implements the plugs

interface. A plug has an (interface) type; it is a kind

of a light-weight port for use within a component,

passing invocations from a subcomponent to a

component fragment or vice versa.

Further, MainWindow creates the component

fragment implementing the MainWinEvent interface

in the form of an anonymous class, attaching it to the

inside ot the eventIn port with the type

MainWinEvent of the component instance (denoted

by “This“), and the one implementing the

InnerEvent interface attaching it to the plug

pInnerEvent of type InnerEvent (as indicated by

***).

A component fragment implements an interface and

is either an anonymous class, an inner class (both as

defined by Java) or a method block (defined by

CompJava as a block containing only methods). An

attach-statement attaches the inside of a provided

port or a plug to a newly created component

fragment.

Further, MainWindow connects the ports of

subcomponents to plugs (as indicated by ****) or

among themselves (as indicated by *****) or with

the inside of a parent component port (not shown).

A connect-statement may connect a required port

of a subcomponent (instance), like loginOu of

MainWindowGUI m, to a provided port of a

subcomponent (instance), like loginIn of

LoginWindow l. The compiler checks all consistency

constraints. A connect-statement may also connect a

port of a subcomponent with the inside of a

VISUAL COMPOSITION OF COMPONENT SYSTEMS

135

matching port of the (parent) component or a

matching plug.

4 COMPOSING A CHAT

APPLICATION

This section describes the design of the chat client of

the running example. Apart from some coding

prototypes, the design was done as described in

section 2.3 by composing components from

subcomponents and component fragments,

specifying the component types with the port types,

the main responsibilities and the required wiring.

The CompJava Designer was still in a prototype

stage; so we had to simulate partially its work

constructing CompJava diagrams with other tools

and transforming them manually into code. A

current larger project is using the CompJava

Designer; first experiences are good.

4.1 Visual Design of Chat Application

The outmost component of the chat application has

the ChatApplType. We specify with the CompJava

Designer in a component type diagram that

ChatApplType defines no ports. In the sequel, we

describe the design process without referring to the

use of CompJava Designer.

We design the ChatAppl component (see Figure

3) to be composed from the service subcomponents

(more precisely: instances of them) with the type

ChatClientType and ChatServerType. When we

specify these two types, we design the basic working

mode of the system. We decide that the chat client

has only required ports, and correspondingly the

chat server only provided ports. Consequently, the

client polls the server for new messages and other

information from other clients.

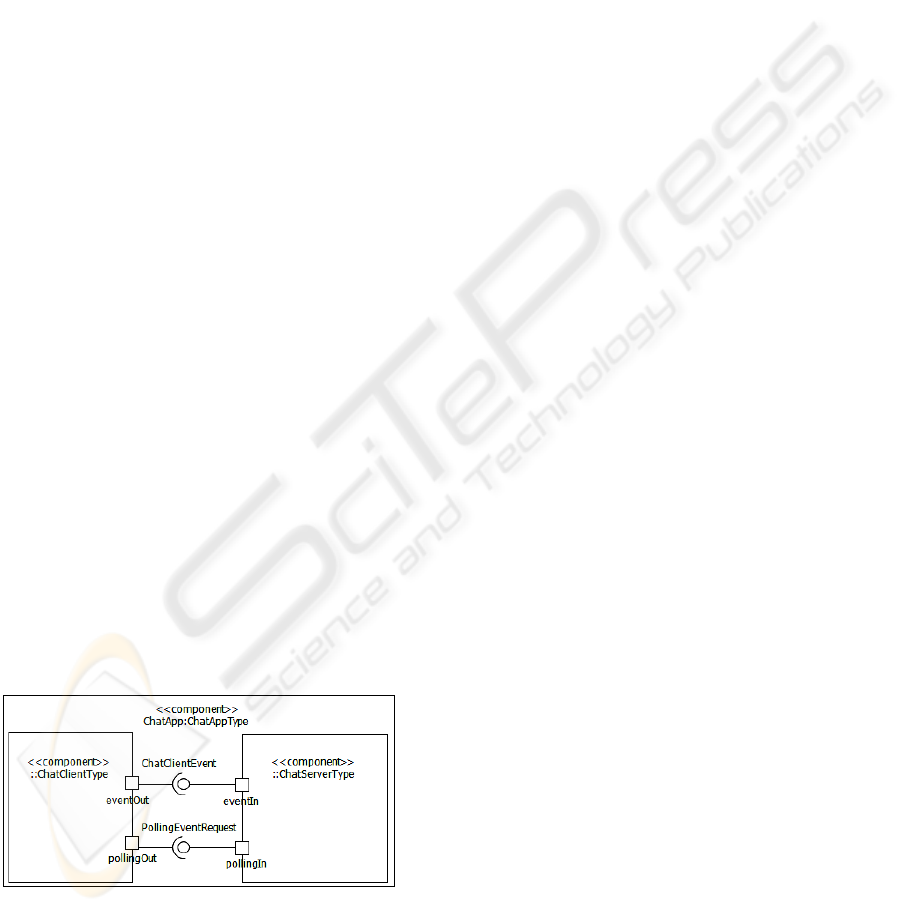

Figure 3: Design of the ChatAppl component composed

from service components with ChatClientType and

ChatServerType.

The next decision is whether client and server

have each one port or two ports. It goes together

with the specification of the port interfaces. It may

be required to look deeper into the design of the

client and server component in order to make a

sound decision.

We have defined two ports: a port with the interface

ChatClientEvent that is used (seen from the client

side) to send off messages or requests entered by the

client user, and another port with the interface

PollingEventRequest which is used to poll for new

messages for the chats a user participates in, and

other information.

After specification of the types ChatClientType

and ChatServerType, we design the ChatAppl

component as Figure 3 shows, connecting the

matching ports of the ChatClientType and

ChatServerType.

4.2 Visual Design of Chat Client

The ChatClient collaborates remotely with the

ChatServer over a Web service. It invokes the

ChatClientEvent service for sending messages or

requests entered by the user, and the

PollingEventRequest service for polling for events

of other users and new messages of the chats a user

participates in.

The ChatClient component has the

ChatClientType which defines its ports. It has a non-

distributed implementation, i.e. it is composed from

subcomponents allocated on the same network node.

Each of its subcomponents is designed only for local

collaboration, which allows using the more efficient

reference semantics. This is expressed visually by

the property non-distributed of the ChatClient

component and by the property non-remotable of its

subcomponent types. Both properties are the default

in a CompJava diagram.

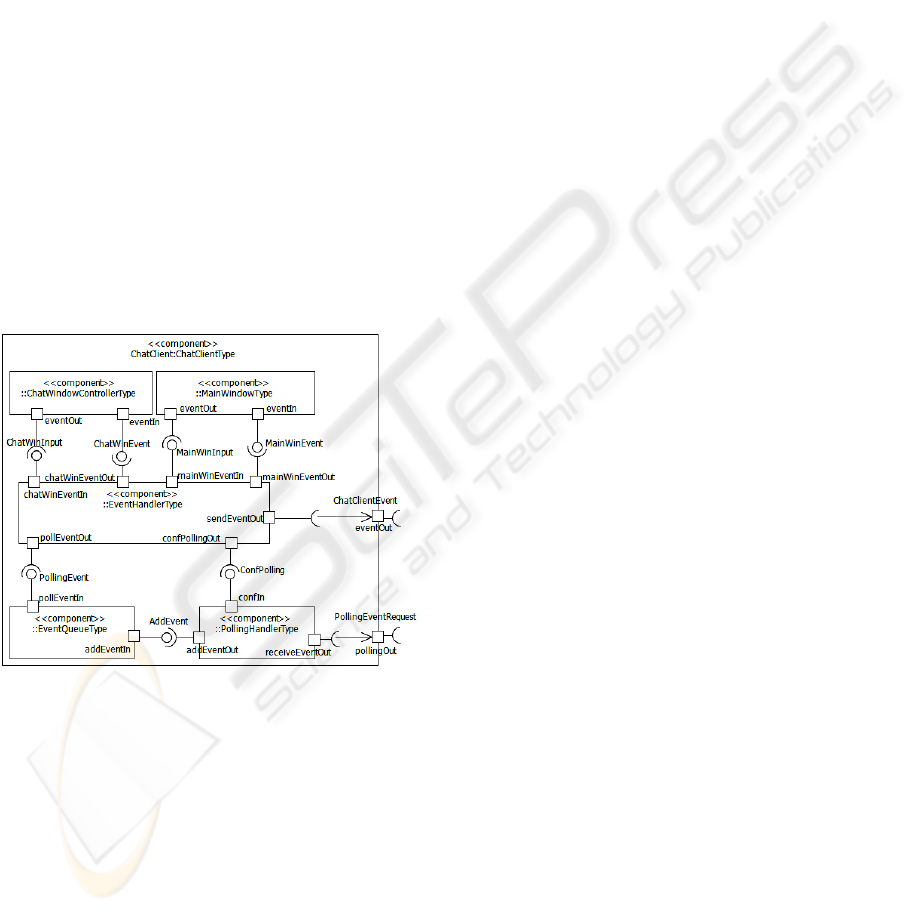

The ChatClient (see Figure 4) displays a main

window with sub-windows and a conference

window for each chat or conference, and it organizes

sending and receiving messages and events to and

from the server. It is composed from window-related

subcomponents with types MainWindowType and

ChatWindowController-Type, and from messaging-

related subcomponents with types EventHandler

Type, EventQueueType and PollingHandlerType.

A component of MainWindowType displays the

main window. As described, it receives new

information about events from other clients via the

provided MainWinEvent port, and it sends off

information about events from its user generated in

own threads via the required MainWinInput port. A

component of ChatWindowControllerType displays

the chat windows and may create and delete them,

ENASE 2008 - International Conference on Evaluation of Novel Approaches to Software Engineering

136

receiving and sending off new chat messages and

user events via the ChatWinEvent res. ChatWinInput

port.

A component of EventHandlerType receives

(from the windows) chat messages via its provided

ChatWinInput port and user events via the same and

the MainWinInput port, both in the form of operation

invocations originating from different window

threads. After adding mainly some administrative

information, EventHandlerType sends user messages

and events to the chat server via the required

ChatClientEvent port.

A component of PollingHandlerType has an own

thread; it polls for messages and events from the

chat server via the required PollingEventRequest

port and stores them in the EventQueue.

EventHandlerType fetches the incoming messages

and events via the eventIn port from the

EventQueueType in an own thread and passes them

after removing some administration information to

the respective window. The thread is in a wait-state

when the EventQueue is empty. EventQueueType

provides each a port for storing and fetching

messages and events.

Figure 4: ChatClient composed from MainWindow,

EventHandler, ChatWindowController, Event- Queue, and

PollingHandler.

The PollingHandler, EventQueue, and

EventHandler components are composed from Java

code in the form of component fragments, whereas

MainWindow and ChatWindowController are

composed from subcomponents and component

fragments.

4.3 Visual Design of Dynamic

Component Architectures

The ChatWindowController is a medium to low level

component with a dynamic component architecture. It

is composed from two component fragments and a

variable number of subcomponents

. It displays a chat

window for each chat, creating res. deleting chat

windows dynamically upon a corresponding user

interaction or upon receiving a corresponding user

event. It is composed from a variable number of

subcomponents of ChatWindowType, realized by a

ChatWindowType array, and from two component

fragments that serve as a kind of filter between the

ports of ChatWindowController and those of

ChatWindowType.

CompJava allows for dynamic architectures

which require a creation and connection of

components not only at component initialization

time, but also dynamically during the execution of

methods (see (H.A.Schmid, 2007) for details). It

allows declaring an array of component

type, like that

of ChatWindowType, and creating or deleting

subcomponent instances dynamically. It allows

declaring port arrays (not shown in the example) and

plug arrays. Each plug of the plug array

pWinControl of type WinControl is connected with

the winEventIn port of the corresponding

ChatWindowType

instance, and each winEventOut

port is connected to the plug pWinEvent of type

WinEvent.

The component fragment on top of Figure 5

implements the operations defined by the

ChatWinEvent interface, which are invoked via the

eventIn port. It passes via the pWinControl plug new

messages to the subcomponents of

ChatWindowType, and opens and closes an instance

of them when a user requires in the MainWindow. It

implements a simple administration of

ChatWindowType’d component instances in order to

reuse a closed instance when a new one is to be

opened.

The subcomponent of ChatWindowType contains

a chat window built with the Swing library that

displays the messages, and allows to type in new

messages and to close a chat by the owner.

The component fragment on bottom of Figure 5,

implements the WinEvent operations invoked from

the winEventOut port of the ChatWindowType

subcomponents via the pWinEvent plug. The

interface WinEvent defines two operations, one

passing a new message entered in a chat window of

ChatWindowType, and the other one removing a

chat window when a chat is closed by the owner.

Note that the CompJava Designer can generate for

VISUAL COMPOSITION OF COMPONENT SYSTEMS

137

the dynamic creation of subcomponents and the

connection of their ports only code samples but not

the code. The reason is that the creation may be done

at run-time e.g. in the methods of component

fragments.

5 RELATED WORK

Component Languages. CompJava is based on and

improves on local component language concepts

from ArchJava (J. Aldrich et al, 2002), ComponentJ

(J.C.Seco and L.Caires, 2000) and ACOEL

(V.C.Sreedhar, 2002). A version of ArchJava (J.

Aldrich et al, 2003) extends the syntax of connect

patterns and expressions, so that a user may realize

remote collaborations among components with user-

defined connector types. But this is quite complex

and may have the consequence that either structural

distribution problems are detected only at run-time,

or that a component may type-check correctly with

one kind of connector but not with another one.

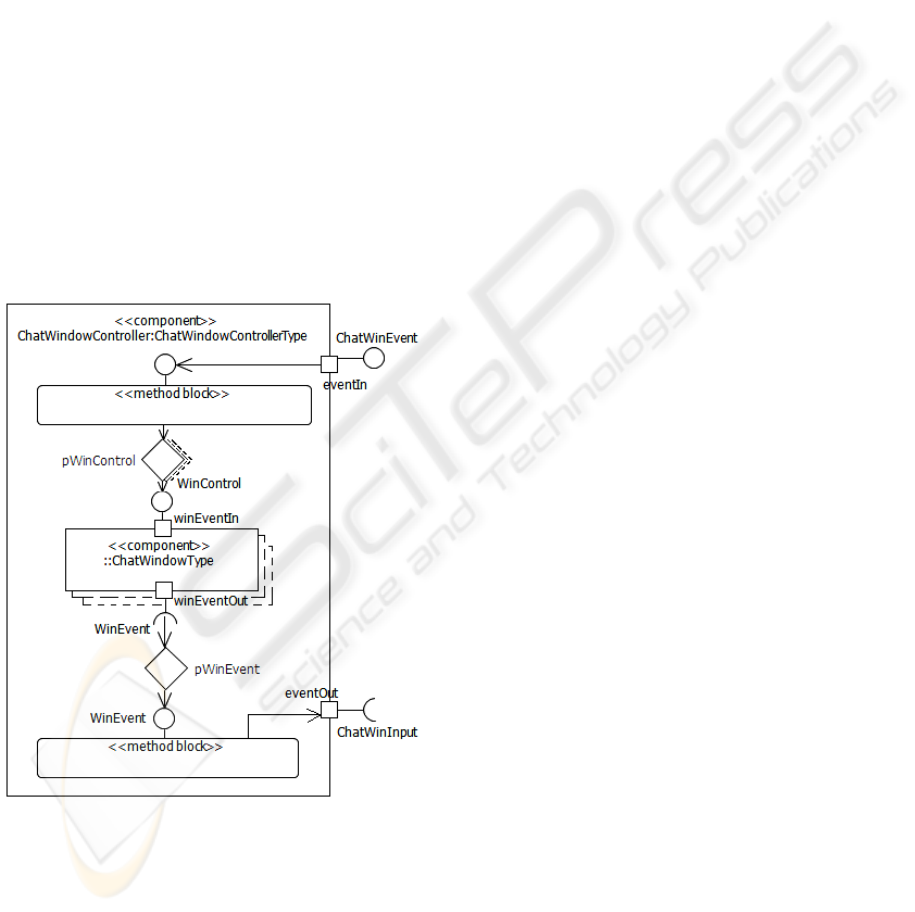

Figure 5: CompJava component diagram for

ChatWindowController composed from an array of

ChatWindow subcomponents, component fragments and

plugs.

Component Models. The new generation of

component languages connects required and

provided ports; it does not require or allow the

handling of component references like classical

component models: CORBA (K.Seetharaman,

1998), Enterprise JavaBeans (Sun Microsystems,

2001), Corba Component Model, DCOM (C.

Szyperski, 1997) and Dotnet. (W. Emmerich, 2002)

gives an overview on distributed component

technologies and their software engineering

implications. KOALA, a component technology for

resource-constrained environments like TVs (R.van

Ommering et al, 2000) is a local technology though

distribution via middleware may be embedded in it.

Connectors and Architecture Description

Languages (ADL). ADLs describe primarily local

systems as the ADL classification framework shows;

it does not have any distribution-related item as an

architecture modeling feature (N.Medvidovic and

R.P.Taylor). But e.g. (N. .Medvidovic et al, 1999)

uses connectors to encapsulate middleware and

provide remote access among components

(E.Dashofy et al, 1999).

The ADL classification framework distinguishes

connectors that are modeled explicitly as first class

entities, and implicitly modeled ones. CompJava has

the latter ones, parameterized by the interface type.

6 CONCLUSIONS

The graphical editor CompJava Designer allows a

seamless visual design and implementation of the

composition of relatively complex component

systems. It uses CompJava diagrams, an extension of

UML 2 component diagrams, which have proven

very valuable in order to visualize the compositional

structure of components for a better understanding

and communication. The transformation of a

CompJava component diagram into the CompJava

language is straightforward and precisely defined for

static architectures.

The CompJava Designer is based on the

component language CompJava, which pushes

composition of components a further step by

introducing component fragments that may

participate via plugs in the composition process. It

generates automatically the CompJava and Java

code.

The CompJava Designer and CompJava

component diagrams have proven their value and

practical applicability in relatively complex projects,

one being a chat application (M. Klenk, 2002),

another one an Internet component framework for

card games with dynamically attachable new games.

The CompJava Designer has been made available

recently; our first experiences are very encouraging.

ENASE 2008 - International Conference on Evaluation of Novel Approaches to Software Engineering

138

ACKNOWLEDGEMENTS

Our thanks go to Michael Klenk for the design,

implementation, and test of the chat application; to

Tobias Seckinger and Reiner Weinhold for

cooperating in the development of the CompJava

Designer; and to the Ministerium für Wissenschaft

und Forschung, Baden-Württemberg, for a partial

project support.

REFERENCES

J. Aldrich, C. Chambers, D. Notkin, 2002. Connecting

Software Architecture to Implementation. Procs ICSE.

J. Aldrich, C. Chambers, D. Notkin 2002. Architectural

Reasoning in ArchJava. Procs ECCOP, Springer

LNCS.

J. Aldrich, V.Sazawal, C. Chambers, D. Notkin, 2003.

Language Support for Connector Abstractions. Procs

ECCOP, Springer LNCS.

Special section on CORBA, 1998. Communications of the

ACM. Vol.41, No10.

E.Dashofy, N.Medvidovic, R.P.Taylor, 1999. Using Off-

The-Shelf Middlewareto Implement Connectors in

Distributed Software Architectures. ICSE’99.

Sun Microsystems, 2001. Enterprise JavaBeans

Specification Version 2.0. www.java.sun.com.

W. Emmerich, 2002. Distributed Component Technologies

and their Software Engineering Implications. Procs.

ICSE.

M. Klenk, 2006. Entwurf einer Chatapplikation mit der

Komponentensprache CompJava. Diploma Thesis,

Faculty for Informatics, University of Applied

Sciences Konstanz.

R. Monson-Haefel, 2001. Enterprise JavaBeans, O'Reilly,

Sebastopol.

N. .Medvidovic, D.S.Rosenblum, R.P.Taylor, 1999. A

Language and Environment for Architecture-Based

Software Development and Evolution.

N.Medvidovic, R.P.Taylor. A Classification and

Comparison Framework for Software Architecture

Description Languages.

R.van Ommering, F.van der Linden, J.Kramer, J.Magee,

2000. The KOALA Component Model for Consumer

Electronics Software. IEEE Computer.

R.van Ommering, 2002. Building Product Populations

with Software Component.

J.C.Seco, L.Caires, 2000. A Basic Model of Typed

Components. Proc. ECOOP, Springer LNCS.

K.Seetharaman, 1998. The CORBA Connection.

H.A.Schmid, M.Pfeifer, 2007: Engineering a Component

Language: CompJava. Selected Papers from ICSOFT

2006 Springer Lecture Notes.

V.C.Sreedhar, 2002. Mixin’ Up Components. Procs ICSE.

C. Szyperski, 1997: Component Software, Beyond Object-

Oriented Programming. Addison-Wesley.

OMG, 2007. Unified Modeling Language Specifications

2.1.1 UML component diagrams. www.uml.org

VISUAL COMPOSITION OF COMPONENT SYSTEMS

139
