MODELING OF SERVICE ORIENTED ARCHITECTURE

From Business Process to Service Realisation

Marek Rychl

y and Petr Weiss

Faculty of Information Technology, Brno University of Technology, Czech Republic

Keywords:

Service-Oriented Architecture, Business Process Model, Service Speciﬁcation, Composite Services.

Abstract:

This paper deals with modeling of Service-Oriented Architecture (SOA). SOA is an architectural style for

analysis, design, maintaining and integration of enterprise applications that are based on services. Services are

autonomous platform-independent entities that enable access to one or more capabilities, which are accessible

by provided interfaces. The goal of SOA is to align business and IT architectures. Hence, a new designed

service has to meet business requirements that are traditionally speciﬁed by a business process diagram. The

approach, presented in this paper, helps to bridge the semantic gap between business requirements and IT

architecture by using a method for transformation of business processes diagrams into services diagrams. In

particular, the method deals with process realisation based on services and it describes choreographing of

services towards fulﬁlling business goals.

1 INTRODUCTION

Service-Oriented Architecture is an architectural

style for aligning business and IT architectures. It is

a complex solution for analyses, design, maintaining

and integration of enterprise applications that

are based on services. Services are autonomous

platform-independent entities that enable access to

one or more capabilities, which are accessible by

provided interfaces. A new designed service has

to meet business requirements that are traditionally

speciﬁed by a Business Process Diagram (BPD).

This paper deals with modeling of business pro-

cess realisation. For this purpose, a method based

on service modeling is introduced. The aim of the

method is to transform business processes modeled

in the Business Process Modeling Notation (Object

Management Group, 2006a) into UML service dia-

grams. Those diagrams show how to choreograph ser-

vices to fulﬁl business goals. Furthermore, the trans-

formation method is designed considering fundamen-

tal SOA principles (Erl, 2005) such as loose coupling,

service independence, stateless and reusability. This

approach leads to easy extensibility of the proposed

method, e.g. by using business services templates

(Constantinides and Roussos, 2005), and allows link-

ing the services to underlaying component-based sys-

tems with support of formal speciﬁcation (Rychl

2007).

The remainder of this paper is organised as fol-

lows. In Section 2, the exemplary business process

is introduced in more detail. The Section 3 describes

service speciﬁcation according to the mentioned busi-

ness process. Section 4 focuses on some issues related

to modeling of composite services, such as passing

of data between services and holding states of ser-

vices that are participating in the choreography of

a composite service. Section 5 ﬁnishes transforma-

tion of the exemplary business process into a ser-

vice that provides requested business functionality.

Section 6 reviews main approaches that are relevant

to our subject and discuss advantages and disadvan-

tages of our approach compared with the reviewed

approaches. To conclude, Section 7 summarises the

presented approach, current results and outline the fu-

ture work.

2 BUSINESS PROCESS MODEL

It is evident that an input for the method of transfor-

mation of BPD into service diagrams is a business

process (BP). Figure 1 shows an exemplary “Pur-

chase Order” business process model (BPM). This

140

Rychlý M. and Weiss P. (2008).

MODELING OF SERVICE ORIENTED ARCHITECTURE - From Business Process to Service Realisation.

In Proceedings of the Third International Conference on Evaluation of Novel Approaches to Software Engineering, pages 140-146

DOI: 10.5220/0001765101400146

 SciTePress

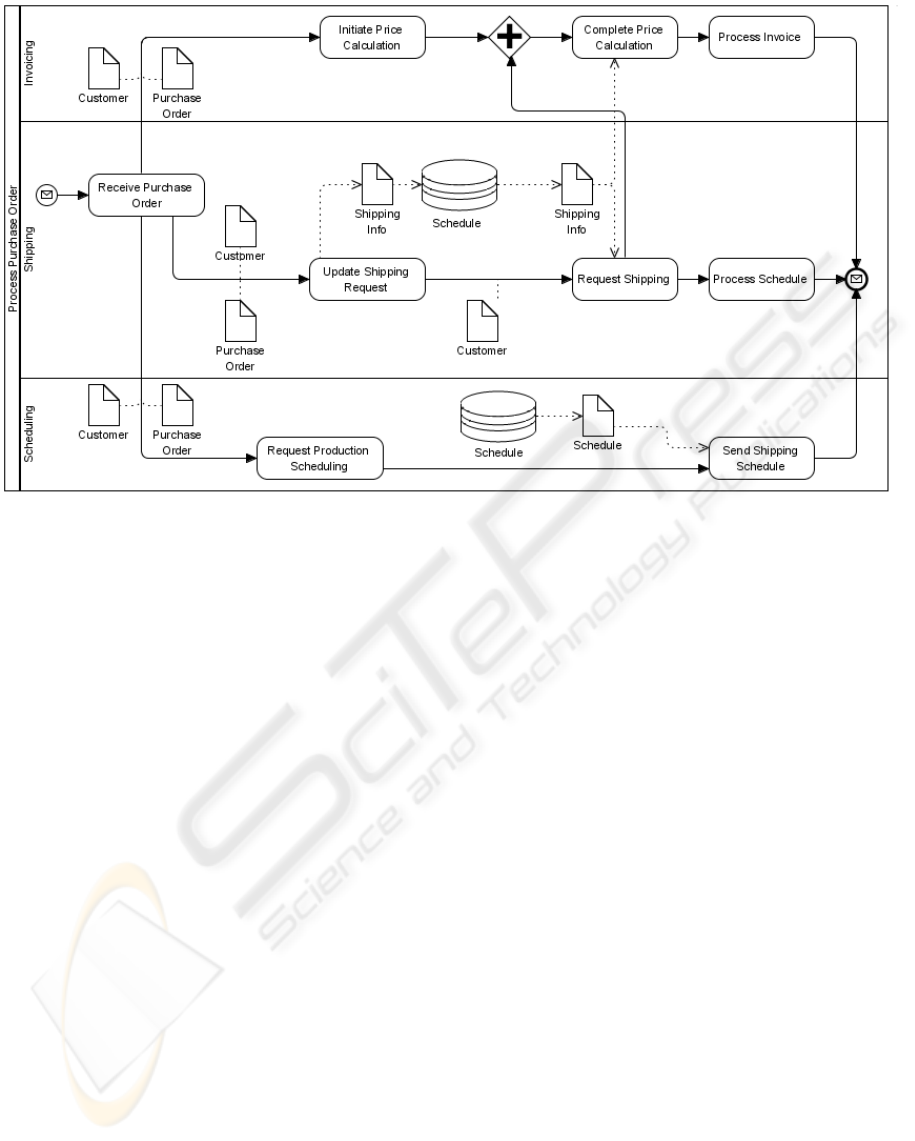

Figure 1: Business process model of the “Purchase Order” process.

example is adopted from (Object Management Group,

2006b).

As we can see the Figure 1, there are three

roles that are responsible for realisation of the

“Purchase Order” process: “Invoicing”, “Shipping”

and “Scheduling”. Processing starts by receiving a

purchase order message. Afterwards, the “Invoicing”

role calculates an initial price. This price is not

yet complete, because the total price depends on

where the products are produces and the amount of

the shipping cost. In parallel, the “Shipper” role

determines when the products will be available and

from what locations. After the shipping information

is known, the complete price can be evaluated.

At the same time, the process requests shipping

schedule from the “Scheduler” role. Finally, when

the complete price, shipping info and shipping

schedule are available, the invoice can be completed

and sent to the customer.

The next section describes the transformation of a

BP diagram into service diagrams (BPD2SD trans-

formation) in details.

3 MODEL TRANSFORMATION

According to (Arsanjani, 2004), the initial activity in

the development of a new SOA-based system is the

service identiﬁcation. It consists of a combination

of top-down, bottom-up, and middle-out techniques

of domain decomposition of legacy systems, existing

asset analysis, and goal-service modeling. The result

of the service identiﬁcation is a set of candidate ser-

vices. More details about service identiﬁcation can be

found in (Inaganti and Behara, 2007). In the context

of service oriented design, the service identiﬁcation is

a prerequisite for the BP2SD transformation. Since

this paper presents basics of the transformation and

uses a motivating example, the service identiﬁcation

was omitted.

The BPD2SD transformation consists of two

basic steps. The ﬁrst step is to identify which tasks

from the BPD represent service invocations and

therefore will be modeled as services in service

diagrams. This decision is closely associated

with the service identiﬁcation and takes into

account such aspects as which service providers

provide which services, Quality of Service (QoS)

requirements, security issues, etc. (Arsanjani,

2004) Such an analysis is beyond the scope of

this paper. Here, we will assume that following

tasks (from Figure 1) were identiﬁed as service

invocations: “Initiate Price Calculation”, “Complete

Price Calculation”, “Request Shipping”, “Request

Production Scheduling” and “Send Shipping

Schedule”. These tasks will be modeled as business

services in the next step.

MODELING OF SERVICE ORIENTED ARCHITECTURE - From Business Process to Service Realisation

141

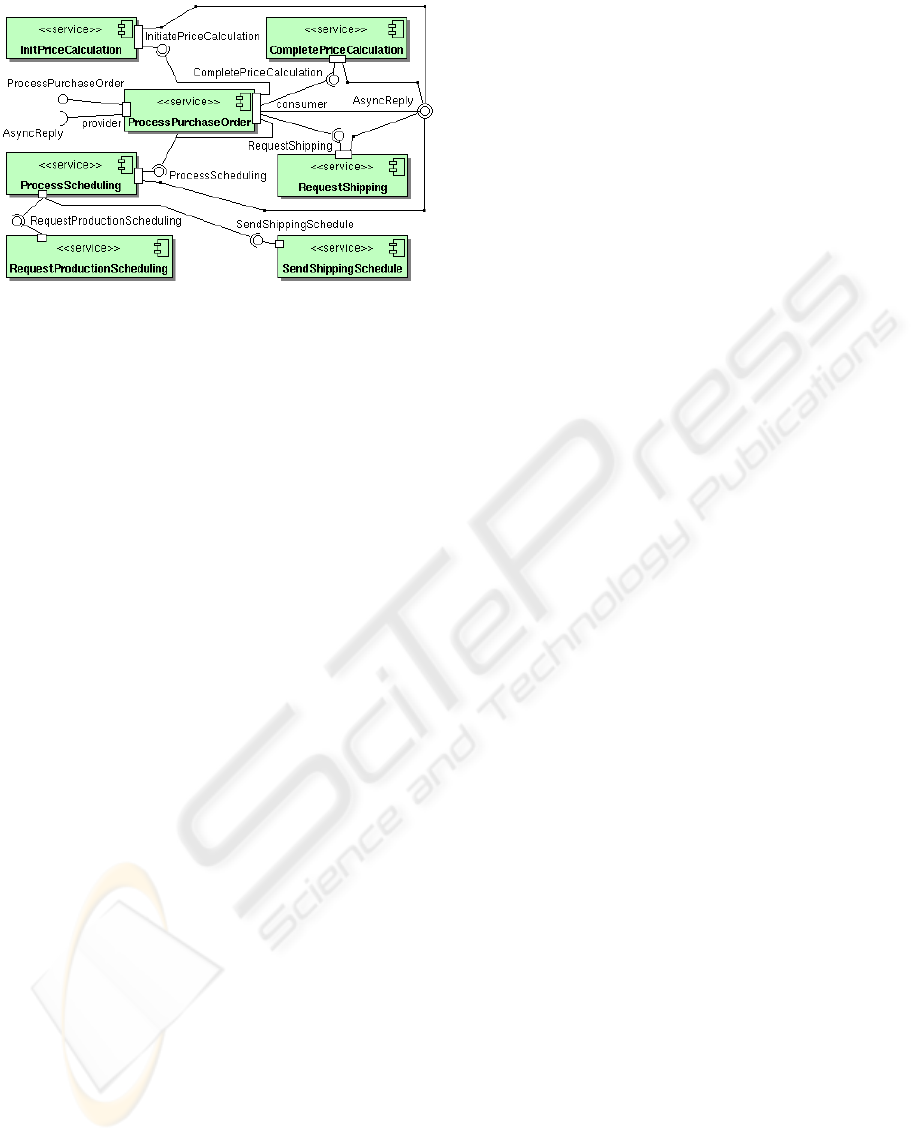

Figure 2: An overview of identiﬁed services, their interfaces

and connections.

The second step, the transformation process it-

self, is based on a technique, which is introduced in

(Amsden, 2005). The technique integrates business

process modeling and object modeling by providing

a Business Services Model (BSM) that is a mediator

between business requirements and an implementa-

tion. This paper proposes an extension of the above

mentioned technique and focuses more on service re-

alisation.

The Figure 2 shows an overview of iden-

tiﬁed services derived from the BPM (see

Figure 1). There are ﬁve primitive services:

InitPriceCalculation, CompletePriceCalculation,

RequestShipping, RequestProductionScheduling and

SendShippingSchedule and two composite services:

ProcessScheduling and ProcessPurchaseOrder.

Primitive services are derived according to service

invocation tasks, and are responsible for providing

functional capabilities deﬁned by the task. The

convention used in this paper is to name a primitive

service the same as the related task. A composite

service is an access point to choreography of other

primitive or composite services.

In this case, the ProcessScheduling service repre-

sents the business process itself and choreographs the

rest of above mentioned services. The ProcessPur-

chaseOrder demonstrates principle of composite ser-

vices by choreographing RequestProductionSchedul-

ing and SendShippingSchedule. Behaviour of these

services is described later in the text.

Each service in Figure 2 is modeled as a stereotype

service, which extends the UML class component

(Object Management Group, 2005). This concept is

introduced in (Weiss and Zendulka, 2007). Every

service interacts with its environment via interfaces.

During an interaction, service can act two different

roles: service provider or service consumer. These

two roles are distinguished in the service model by

means of a port. The provider port of a service im-

plements interfaces that specify functional capabili-

ties provided to possible consumers of the service,

while the consumer port requires interfaces of deﬁned

services to consume their functionality.

Each service provides at least one interface at

the consumer port (see Figure 2). Such an interface

involves service operations, which realise the

functional capability of the service. The parameters

of the service operations describe the format of

an incoming message. Details of all services

(denoted by stereotype service) including their

interfaces (stereotype interface) and relationships

are shown at Figure 3. The relationships between

services and interfaces are labelled by stereotype

use for interfaces of required services and by an

implementation relation for provided interfaces.

A service can be invoked in two modes:

synchronously and asynchronously. The mode,

which is used for a particular interaction, depends

on the format of incoming message that is sent

to the service (i.e. “a request”). For example, if

we want to use the InitPriceCalculation service in

synchronous mode, the message will contain only

basic service data (customerInfo and purchaseOrder).

For the asynchronous mode, it is necessary to add

the message identiﬁcation information (replyToURL

and requestID) that is used to identify a destination

service for a reply to the asynchronous request.

4 COMPOSITE SERVICES

In our approach, we will prefer a ﬂat model

to a hierarchical model of the service-oriented

architecture. It means that a composite service does

not enclose its “internal” services participating in

the choreography and does not delegate its interfaces

to them. It only represents a controller of these

services, i.e. the composite service communicates

with its neighbouring services at the same level of

hierarchy in the “producer-consumer” relationship

(see service ProcessScheduling in our example,

which can be viewed as a composite service

consisting of services RequestProductionScheduling

and SendShippingSchedule). The ﬂat model provides

better reusability of services, because the context

of a service is deﬁned only by its implemented (i.e.

provided) and required interfaces, not by its position

in the hierarchy. However, there are some problems

we must cope with, especially the issue of passing

of data between services that are participating in the

choreography of a composite service.

ENASE 2008 - International Conference on Evaluation of Novel Approaches to Software Engineering

142

Figure 3: Speciﬁcation of interfaces and implementations of all services and their relations.

MODELING OF SERVICE ORIENTED ARCHITECTURE - From Business Process to Service Realisation

143

The other characteristic feature of our approach

is the restriction on services’ interfaces to provide

only one functionality. Regardless, it is possible to

implement service with more interfaces (i.e. with

more functional capabilities), but the interfaces must

provide independent functionality. It means, services

are not allowed to hold any state information between

two independent incoming requests, in spite of which

interface the service was invoked on. Although

“stateless services” provide better reusability we

must cope with the issue of holding states of services

that are participating in the choreography in relation

with the state of the composite service (e.g. passing

of states between services InitiatePriceCalculation and

CompletePriceCalculation in our example).

The solution of both issues, the issue of passing of

data between services and the issue of holding states

of services that are participating in the choreography,

can be demonstrated on behaviour of the services

ProcessPurchaseOrder, InitiatePriceCalculation

and CompletePriceCalculation in our example (see

Figure 3). At ﬁrst the ProcessPurchaseOrder

service requests the service InitiatePriceCalculation.

Consequently, the service InitiatePriceCalculation

prepares a price calculation (the initial calculation)

and stores it for later use, i.e. the service changes a

state of the price calculation process (see Figure 1)

implemented by the composite service ProcessPur-

chaseOrder. This state must be transformed into an

initial state of the service CompletePriceCalculation,

which is requested subsequently by the service

ProcessPurchaseOrder and which completes price

calculation based on the initial calculation. The

service ProcessPurchaseOrder forwards returning

data (encoded state) of the ﬁrst service to the other

one. The merit of such design is independence of

requested services, although they share data and the

state.

5 THE SERVICE

ProcessPurchaseOrder

In previous sections, we have described speciﬁcations

of individual services that are participating in

the business process (see Figure 1). More

precisely, the services InitiatePriceCalculation,

CompletePriceCalculation, RequestShipping and

ProcessScheduling were described. This section

deals with composing those services into a single

service ProcessPurchaseOrder representing the

business process in its entirety. Speciﬁcation of

the ProcessPurchaseOrder service has to include

description of its structure (i.e. an architecture of the

service) and its internal behaviour (i.e. collaboration

of involved services and the “orchestration” of the

ProcessPurchaseOrder service).

The architecture of the ProcessPurchaseOrder

service is described in Figure 3. The service provides

ProcessPurchaseOrder interface, which allows

synchronous and asynchronous calls of the service,

and auxiliary AsyncReply interface for accepting

replies to asynchronous calls from required services.

These required services are represented by their

interfaces InitiatePriceCalculation, CompletePriceCal-

culation, RequestShipping and ProcessScheduling.

Connection of the services is noticeable also in

Figure 2.

The behaviour of the ProcessPurchaseOrder

service is described in Figure 4. After receiving

a request from a Consumer, the service asyn-

chronously calls services InitiatePriceCalculation,

RequestShipping and ProcessScheduling. When

both InitiatePriceCalculation and RequestShipping

notify (via the AsyncReply interface, see Figure

2) they have ﬁnished processing the requests,

the CompletePriceCalculation service is called

asynchronously with the result received from

InitiatePriceCalculation.

While the CompletePriceCalculation is running,

ProcessPurchaseOrder computes the “Process

Schedule” internal process in parallel (see Figure

5). After CompletePr iceCalculation notiﬁes it had

ﬁnished the computation, the “Process Invoice”

internal process is being computed parallel to the

“Process Schedule” process. As soon as both internal

processes “Process Schedule” and “Process Invoice”

are done and ProcessScheduling service notiﬁes

it is ﬁnished, ProcessPurchaseOrder ﬁnishes its

processing by sending a result (the invoice) back

to the consumer. The result is returned instantly if

the service has been called synchronously or it is

returned via the AsyncReply consumer’s providing

interface to the address, which has been included in

the asynchronous call.

6 DISCUSSION AND RELATED

WORK

The work presented in this paper has been inﬂuenced

by several different proposals. First of all, we

should mention UML proﬁles for SOA. (Amir and

Zeid, 2004) introduces a simple UML proﬁle that

is intended to use for modeling of web services.

(Johnston, 2005) provides a well-deﬁned proﬁle for

modeling of service-oriented solutions. (Ortiz and

Hern

andez, 2006) shows how services and their

ENASE 2008 - International Conference on Evaluation of Novel Approaches to Software Engineering

144

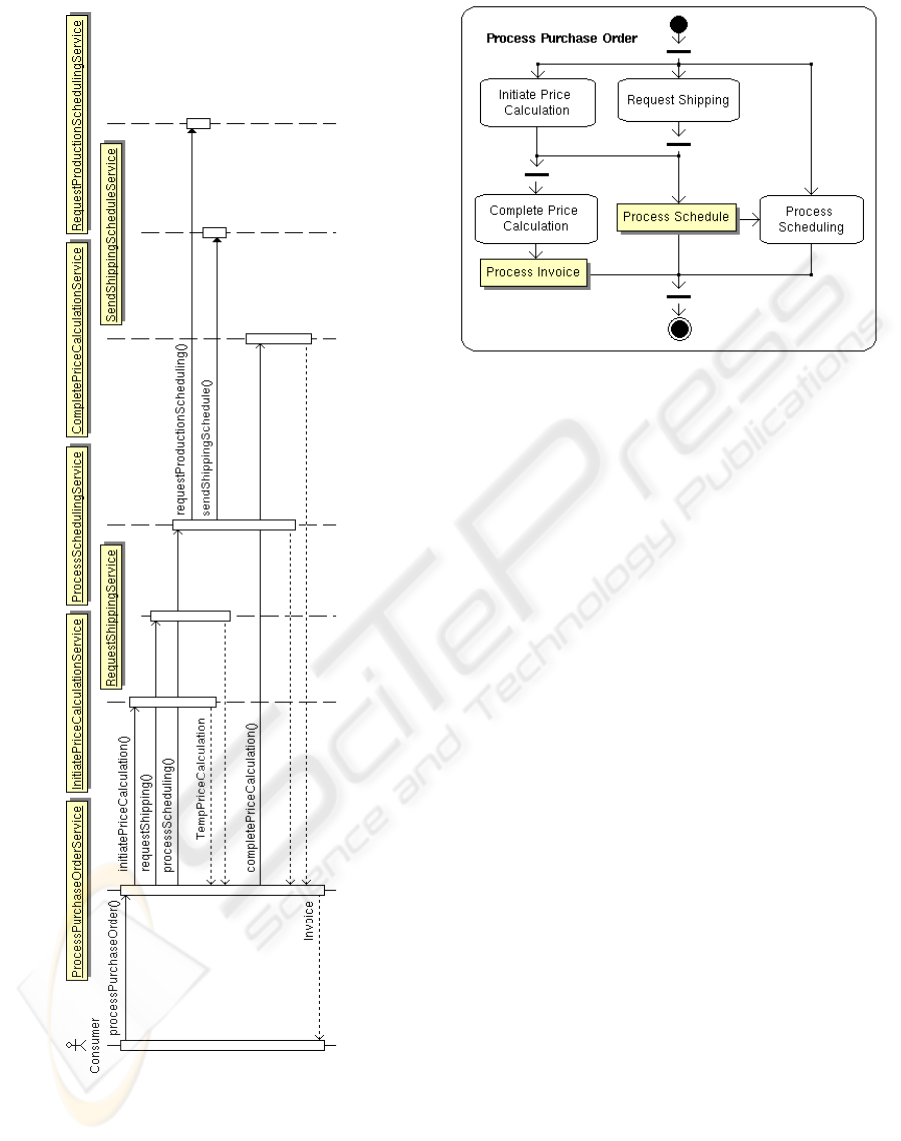

Figure 4: Behaviour of ProcessPurchaseOrder service as a

sequence of service calls.

extra-functional properties can be modeled by using

UML.

The ideas presented in those approaches are a

good starting point to model both the structural and

Figure 5: Behaviour of service ProcessPurchaseOrder in

the context of used services and internal processes.

the behavioural properties of services by means of

UML. However, modeling of services needs to take

into account some additional aspects. Primarily,

we have to know the connection between business

requirements and functional capabilities of modeled

services. (Murzek and Kramler, 2007) addresses this

as a problem of transformation between several BPM

languages. Particularly, ADONIS Standard Modeling

Language, Business Process Modeling Notation

(BPMN), Event-driven Process Chains and UML 2.0

Activity Diagrams are mentioned.

The relationship between BPMN and UML is

also introduced in (Amsden, 2005). The author de-

scribes a high-level mapping of a BPM to UML 2.0

BSM that represents service speciﬁcation between

business clients and information technology imple-

menters. For the purpose of service modeling, the

BSM is too general. Hence, our approach follows the

one presented in (Amsden, 2005) while considering

SOA principles. It focuses especially on modeling of

process realisation and service choreography.

(Object Management Group, 2006b) proposes a

similar concept to our approach. However, that con-

cept contains a number of incorrectness that solves

our approach. First, one of the fundamental SOA

principles, the stateless of services, is ignored. Ser-

vices are designed in such a way that they store data

affecting their functionality between two single in-

coming requests. Our approach solves this problem

by using a composite service (the principle of using

of composite services is described in Section 4).

Next, only synchronous communication is sup-

posed in (Object Management Group, 2006b). We

suppose both the synchronous and asynchronous in-

voking of a service, in our approach. In which way

MODELING OF SERVICE ORIENTED ARCHITECTURE - From Business Process to Service Realisation

145

is the service invoked depends on the format of the

incoming request (see Section 3).

And ﬁnally, in our approach, service’s functional

capabilities can be easily extend by adding a new pro-

vided interface to the consumer port without affecting

the previous service speciﬁcation.

7 CONCLUSIONS AND FUTURE

WORK

In this paper we outlined a method for modeling of

service oriented systems. The method deﬁnes how a

business process should be transformed into services

and how these services should collaborate to fulﬁl

business goals. Furthermore, we have proposed how

to model fundamental SOA principles by means of

UML, such as service stateless and reusability. Some

of those features are novel and have not been inte-

grated into the existing methods of modeling SOA.

The presented research is a part of a greater

project, which deals with modeling and formal

speciﬁcation of SOA and underlaying component-

based systems. The approach, which is presented in

this paper, is aimed at the modeling of the top layer

of several layers. Those layers spread from business-

oriented abstraction (represented by a system’s

business process diagram) to implementation of

individual primitive components at the bottom level.

Future work is mainly related to integration of the

presented approach with formal component models.

The integration allows formal veriﬁcation of a whole

modeled system (e.g. tracing of changes in a busi-

ness process model to the changes in components’

structure and behaviour related to known security is-

sues). Ongoing research includes also automation of

business process transformation into services by using

business service patterns.

ACKNOWLEDGEMENTS

This research has been supported by the Research

Plan No. MSM 0021630528 “Security-Oriented Re-

search in Information Technology”.

REFERENCES

Amir, R. and Zeid, A. (2004). A UML proﬁle for ser-

vice oriented architectures. In Vlissides, J. M. and

Schmidt, D. C., editors, OOPSLA ’04: Compan-

ion to the 19th annual ACM SIGPLAN conference

on Object-oriented programming systems, languages,

and applications, pages 192–193. ACM.

Amsden, J. (2005). Business services modeling: Integrating

WebSphere business modeler and rational software

modeler. IBM developerWorks.

Arsanjani, A. (2004). Service-oriented modeling and archi-

tecture: How to identify, specify, and realize services

for your SOA. IBM developerWorks.

Constantinides, C. and Roussos, G. (2005). Service-

Oriented Software System Engineering: Challenges

and Practices, chapter Service Patterns for Enterprise

Information Systems, pages 201–225. IGI Global,

Hershey, PA, USA.

Erl, T. (2005). Service-Oriented Architecture: Concepts,

Technology, and Design. Prentice Hall PTR, Upper

Saddle River, NJ, USA.

Inaganti, S. and Behara, G. K. (2007). Service identiﬁca-

tion: BPM and SOA handshake. BP Trends.

Johnston, S. (2005). UML 2.0 proﬁle for software services.

IBM developerWorks.

Murzek, M. and Kramler, G. (2007). Business process

model transformation issues. In Proceedings of the

9th International Conference on Enterprise Informa-

tion System.

Object Management Group (2005). UML superstruc-

ture speciﬁcation, version 2.0. OMG Document

formal/05-07-04, The Object Management Group.

Also available as ISO/IEC 19501:2005 standard.

Object Management Group (2006a). Business process mod-

eling notation (BPMN) speciﬁcation. OMG Final

Adopted Speciﬁcation dtc/06-02-01, The Object Man-

agement Group.

Object Management Group (2006b). UML proﬁle and

metamodel for services (UPMS), request for proposal.

OMG Document soa/2006-09-09, The Object Man-

agement Group, 140 Kendrick Street, Building A

Suite 300, Needham, MA 02494, USA.

Ortiz, G. and Hern

andez, J. (2006). Toward UML proﬁles

for web services and their extra-functional properties.

In IEEE International Conference on Web Services

(ICWS’06), pages 889–892. IEEE Computer Society.

Rychl

y, M. (2007). Component model with support of mo-

bile architectures. In Information Systems and Formal

Models, pages 55–62. Faculty of Philosophy and Sci-

ence in Opava, Silesian university in Opava.

Weiss, P. and Zendulka, J. (2007). Modeling of services

and service collaboration in UML 2.0. In Information

Systems and Formal Models, pages 29–36. Faculty of

Philosophy and Science in Opava, Silesian University

in Opava.

ENASE 2008 - International Conference on Evaluation of Novel Approaches to Software Engineering

146
