SOFTWARE RE-STRUCTURING

An Architecture-Based Tool

Violeta Bozhikova, Mariana Stoeva, Anatoly Antonov and Vladimir Nikolov

Technical University, Str.“Studentska” N

1, Varna, Bulgaria

Keywords: Software re-structuring, software decomposition, program understanding, software clustering algorithms.

Abstract: The practice shows that many software systems have been evolving for many years and are now large and

complex. Because the structure of these systems is usually not well documented, great research effort is

needed to find appropriate abstractions of their structure, that we can simplify their maintenance, evolution

and adaptation. A variety of techniques and tools are developed trying to effectively solve this problem. In

this paper an Architecture-Based Framework for software re-structuring is discussed. Next, how this

framework is implemented in an ever evolving and user-driven tool that can effectively support the software

re-structuring process is commented.

1 INTRODUCTION

Since many software systems are now large,

complex and poorly documented appropriate

abstractions of their structure are needed to simplify

program understanding and software re-structuring

(D. Doval et al., 1999). A lot of techniques and tools

are now developed to effectively support software

architecture decomposition than facilitating software

maintenance, software evolution and re-engineering.

Since software decomposition is known to be

NP-hard, obtaining a good partition by exhaustive

exploration of the search space is unlikely. That is

why the researchers focused on using heuristic

search techniques (B. S. Mitchell et al., 2002) to find

“good enough” solutions quickly.

A lot of software clustering approaches can be

found in the reverse engineering literature, each one

using a different algorithm to identify clusters.

Cluster analysis has been used in many disciplines to

support grouping of similar objects (highly

dependent objects) of a system. The resulting groups

are called clusters.

With Formal Concept Analysis (FCA) we can

identify similarities among a set of program objects

based on their attributes. Using Program Slicing we

can locate within the source code that objects that

use common data items.

We have developed an architecture-based

framework that integrates a group of heuristic

techniques to solve this problem. A tool is developed

(Божикова В.Т, 2001) that implements this

framework and can be used to effectively support

software re-structuring process. The newer version

of this evolving tool (V.Bozhikova et al., 2007) is

more interactive and flexible, enabling to better

manage the re-structuring process. We can choose

appropriate analysis technique; we can enter weights

of components; we can change the restrictive

conditions. In the paper, we briefly describe the

framework and show how this framework is

implemented in a software re-structuring tool. Using

such tools we hope effectively extend the usable life

of a legacy application recovering or re-organizing

its structure.

2 ARCHITECTURE

DECOMPOSITION

The problem of how to re-structure a software

system can be seen as an architecture decomposition

problem. Software architecture defines the

components of the software system and embodies

information (L. Bass et al., 1998), about how the

components interact with each other. Software

architecture is a collection of different structures

(module structure, process structure, conceptual

structure, uses structure, call structure, class

structure etc.), different kind of components

(modules, processes, procedures, objects…) and

269

Bozhikova V., Stoeva M., Antonov A. and Nikolov V. (2008).

SOFTWARE RE-STRUCTURING - An Architecture-Based Tool.

In Proceedings of the Third International Conference on Software and Data Technologies - SE/GSDCA/MUSE, pages 269-273

DOI: 10.5220/0001873402690273

 SciTePress

relationships among the components (calls,

synchronization relations, relation type inherits-

from…), more than one kind of context

(development time, runtime). Decomposition is one

of the main operations in the software architecture

theory. This operation is used to separate the

system’s structure or a large system’s component

into more, smaller ones sub-components. The result

of this operation is a higher-level software structure.

3 ARCHITECTURE-BASED

FRAMEWORK (ABFSR)

We have developed an architecture-based clustering

framework, called ABFSR that can be used to come

to a solution of the early defined problem. Central to

ABFSR are the architectural structures.

Some notions in the architecture-based

framework described below are adopted from

Symphony (A. van Deursen et al., 2004). Like

Symphony the process of ABFSR contains 2 stages.

Let us describe briefly this process:

1. Decomposition Design

2. Decomposition Performance

During the first stage:

• Target structure is selected;

• Source structure is defined;

• Mapping rules are defined;

• Evaluation techniques and reference

structures are defined.

The source structure can be extracted from

software artefacts (A. van Deursen et al., 2004),

such as source code, build files, configuration

information, documentation or traces. The target

structure is the structure that we hope to solve the

problem. The mapping rules define how the target

structure is created from the source structure and

depends on the analysis method used.

During the second stage the mapping rules are

applied to source structure to obtain the target

structure, earlier defined (during the reconstruction

design). This stage has only 2 steps:

• Knowledge extraction

• Information interpretation

During the knowledge extraction step, the

mapping rules, defined during reconstruction design

are applied to the source structure and a target

structure is obtained. During the next step the

created target structure is analyzed and evaluated.

Comparison with a reference structure is made.

Results from this stage lead to a refined

decomposition design, to choose a new analysis

method or to choose a new mapping rule to

eventually come to a satisfactory solution of the

problem.

4 A TOOL FOR SOFTWARE

RE-STRUCTURING

It is important to note that ABFSR has been

practically in use since 2001. The re-structuring tool

described in (Божикова et.al., 2001) is the first tool

version and the first implementation of this

methodology. Some advantages of the new version

of the tool for software restructuring may be

summarized as follows:

a) It is more interactive enabling the user to better

manage the re-structuring process. Figure 1 shows

the main window. Users can specify the source

structure as weighted oriented graph.

b) It is more flexible, enabling the user to choose

an appropriate analysis method and the appropriate

algorithm that based on a particular analysis method.

Figure 3 shows the window that appears when

choosing a cluster analysis method. Figure 4 appears

when a FCA method is chosen.

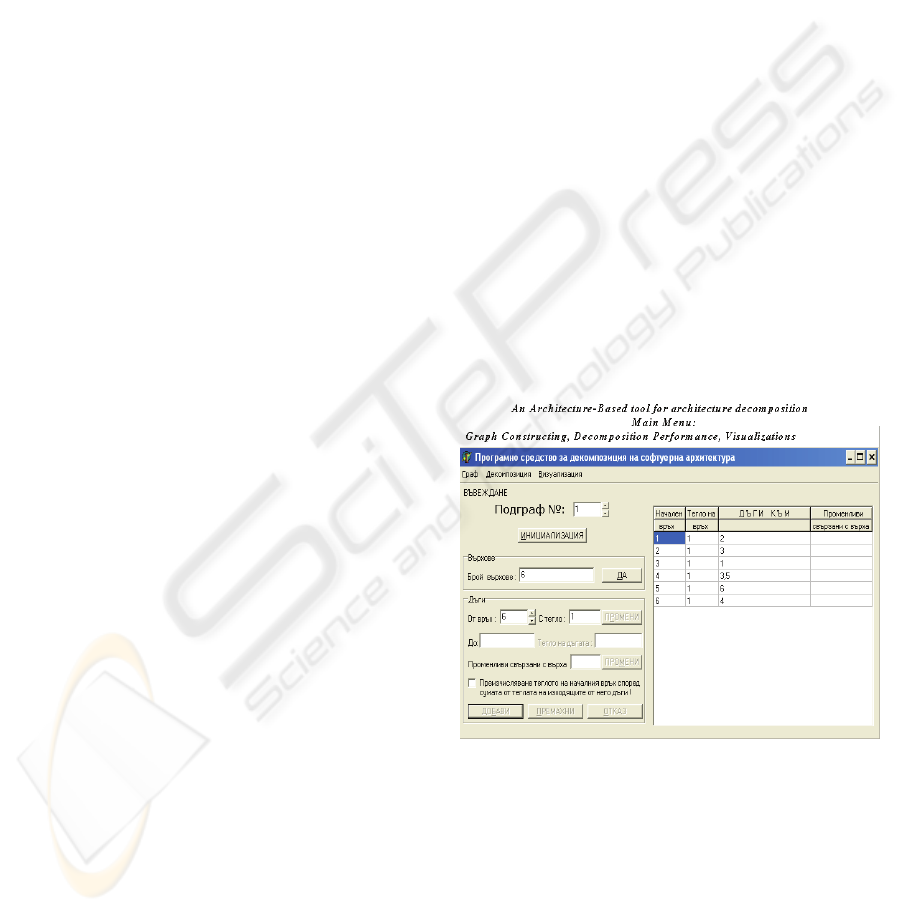

Figure 1: The main window.

When choosing a particular analysis method we

can use different mapping rules (algorithms) to

transform the source structure to a target structure.

Mapping rules (i.e. algorithms) depend on the

analysis method that is used. The tool enables the

user to create the target structure using: a cluster

analysis method (fig.2), FCA method and program

slicing technique (fig.3). For each analysis method

static relations between entities are taken as source

viewpoint. Special external tools can be used to

ICSOFT 2008 - International Conference on Software and Data Technologies

270

extract static information from software artefacts

and to present this information graphically

(Mancoridis et al., 2001). We start with inputting the

source structure presented as a weighted oriented

graph. Below the main window is presented (fig.1):

The re-structuring process is supported through a

set of heuristic algorithms. The task for finding the

optimal solution to the software re-structuring

problem is known to be NP-hard. That is why many

researchers focused on using different heuristic

techniques (Mancoridis, 2001) that find “good

enough” solutions quickly.

c) An improvement of the early included

algorithms is realized in the tool.

We aim at improving our algorithms

permanently. The “Tabu-Search” clustering

algorithm is (V.Bozhikova et.al, 2007) an

improvement of an early developed descent-hill

climbing algorithm for software clustering. It is

based on weighted Module Dependence Graph –

MDG=(X, U). The components of the source

structure are modelled as the set of graph’s nodes

(X, N=|X|), and the source code dependencies

(inherit, call, instantiated) are modelled as the set of

graph’s edges (U). The quality of the resulting target

structure is evaluated through a quality function that

measures the number “k” of the static dependences

between the clusters (1):

(1)

In the case, “k” is based on the “inter-

connectivity” - the solution with a lowest value of

“k” would be the best solution to the problem. Let x

denote the node with an index i (i=1…N) and a

weight of w

. Let “M” is the number of clusters in

the target structure. The weight W

(2) of each

cluster “i” is the sum of the weights of all nodes in

the cluster “i”. W

must be less then W

, where W

a user-defined restrictive condition.

WW≤

(2)

Figure 2.a shows the target structure that is a

result of re-structuring the presented MDG in (Doval

et al., 1999). We observe that our Tabu-Search

algorithm produces a partition with a better quality -

k=29, comparing the reference structure in figure 2-

b. The result of applying the similarity measurement

technique (Rainer Koschke et al., 2000) is also

encouraging: the similarity between the two

partitions is good.

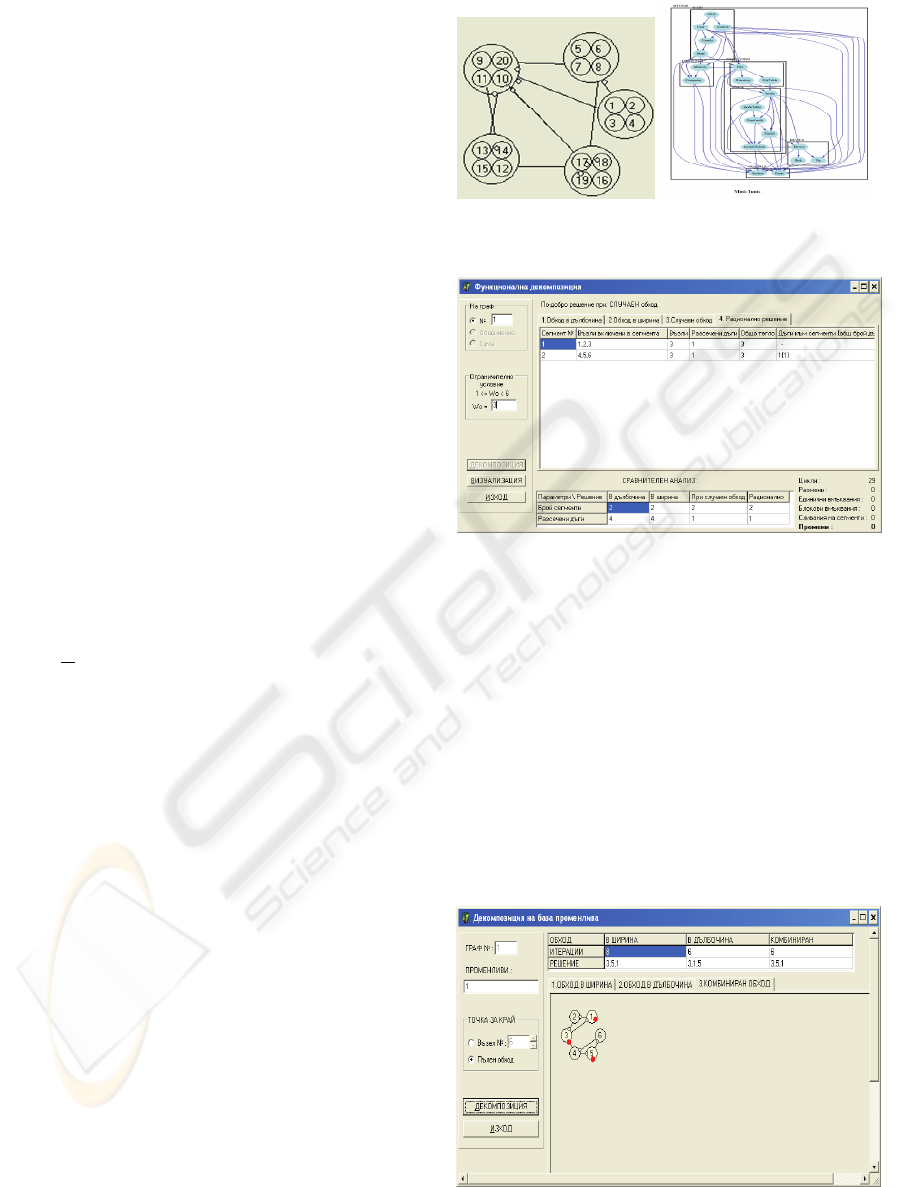

2.a) k=29 2.b) k=32

Figure 2: The target (a) and the reference (b) structures.

Similarity ≈ 66%.

Figure 3: Using a Cluster Analysis method.

We have developed an approach that integrates

FCA and Program Slicing and we show below

(figure 4) the window visualizing the target

structure. The source structure includes the smallest

architectural components – subprograms with their

features (the data used by the component, i.e. global

variables, constants and user-defined types). To find

the target view, our algorithm groups subprograms

having a common features, i.e. using a common set

of global data elements. These groups of

subprograms become candidates for modules, i.e.

buildings blocks for larger architectural components,

at the next higher architectural level.

Figure 4: Using a FCA method.

)1(min,

..1..1

∑∑

≠∀==

jikk

1.. 1..

min,

iMjM

kkij

==∀≠

∑∑

SOFTWARE RE-STRUCTURING - An Architecture-Based Tool

271

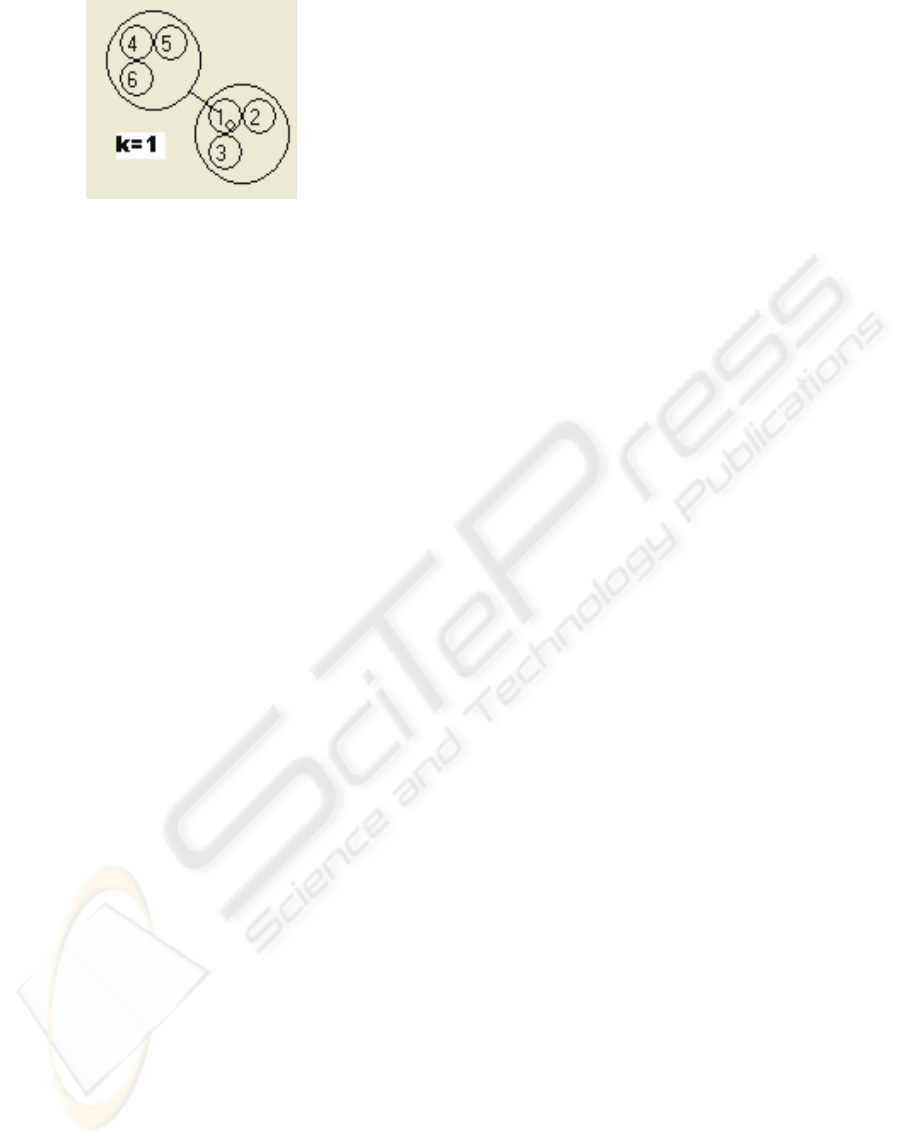

Figure 5: The visualized target structure using Cluster

Analysis Method

We find it is not convenient to create fully

automatic tools; we believe it is better to develop

user-driven tools. Our tool offers an improved and

more flexible user interface. To improve the final

result we can visualize the source structure (figure

1), three intermediate structures and the target

structure (figures 2a, 4 and 5). We consider

graphical visualizations an important aid to support

the processes of program understanding and re-

structuring.

5 EVALUATION TECHNIQUES

Now that a lot of approaches to software re-

structuring exist, the validation of produced target

structures is starting to interest the researchers.

Recently, researchers have begun developing an

infrastructure to evaluate clustering techniques, in a

semi-formal way by proposing similarity

measurements (Rainer Koschke et al., 2001),

(Mancoridis et al., 2001), (B. S. Mitchell et al.

2002). These measurements enable the results of

clustering algorithms to be compared to each other,

and preferably to be compared to reference structure

agreed upon (“benchmark” standard). We emphasize

that the reference structure need not be the optimal

solution in a theoretical sense. Rather, it is a solution

that is perceived as being “good enough”.

There are a lot of similarity measurements for this

purpose: Anquetil (Mancoridis et al., 2001) has

published a similarity measurement technique,

named “Precision and Recall”; Mojo has developed

a technique that measures the distance between two

decompositions of a software system by calculating

the number of operations needed to transform a

decomposition to an other; Tzerpos and Holt

introduce also a distance quality measurement based

on MoJo; Koschke and Eisenbarth (Rainer Koschke

et al., 2000) have developed a framework for

experimental evaluation of clustering techniques that

we have used in our case study (figure 2). We have

evaluated our algorithm on several small size

systems (where N≤20) with similar success to the

one demonstrated in figure 2. In the future, we

intend to conduct further validation of our technique

using other systems.

6 CONCLUSIONS

It is widely known that more than 50% of the costs

of a software system have to be attributed to

maintenance. There is an urgent need for methods

and tools which assist software understanding and

software restructuring, reducing the maintenance

costs.

In the paper our Architecture-Based Framework

(ABFST) for software re-structuring is briefly

described. ABFST puts a strong emphasis on

software architecture. We would like to point out

that having a framework like ABFST can help

practitioners by giving them guidance in performing

an architecture re-structuring. In addition, ABFST

can help researchers by providing a unified approach

to re-structuring, with consistent terminology and a

basis for improving, refining, quantifying, and

comparing re-structuring processes.

Next the paper describes our ever evolving tool as

an implementation of ABFST and marks some new

features. The paper demonstrates how the source

structure of a software system can be effectively re-

structured and understood using our tool (figure 2).

In the future, we plan to conduct and document more

intensive studies to demonstrate the effectiveness

and the limitations we find in the tool version. We

hope to further improve both its performance adding

new heuristics and its visualization futures.

ACKNOWLEDGEMENTS

This work is supported by a project in Technical

University of Varna, untitled “Software Intensive

Systems Research”, with number 481 /2008.

REFERENCES

A. van Deursen, C. Hofmeister, R. Koschke, L. Moonen,

and C. Riva. Symphony: View-driven software

architecture reconstruction, Proceedings of the Fourth

Working IEEE/IFIP Conference on Software

Architecture, Washington, 2004.

ICSOFT 2008 - International Conference on Software and Data Technologies

272

L. Bass, P. Clemens, R. Kazman, “Software architecture

in practice”, Addison-Wesley Longman, 1998.

Божикова В.Т., Карова М.Н., “Създаване,

визуализация и операции на програмни

структури”, Proceedings of the Int’l Scientific

Conference on Energy and Information Systems and

Technologies, Bitola, 2001, Vol.3., pp. 813-819.

Mancoridis, Mitchell, “Comparing the Decompositions

Produced by Software Clustering Algorithms using

Similarity Measurements”, IEEE Proceedings of the

2001 International Conference on Software

Maintenance (ICSM'01). Italy, 2001, pp. 744 -753.

Doval, Mancoridis, Mitchell. "Automatic Clustering of

Software Systems using a Genetic Algorigthm", by In

the IEEE Proceedings of the 1999 International

Conference on Software Tools and Engineering

Practice (STEP'99), Pittsburgh, PA, 1999. pp. 73-81

Rainer Koschke and Thomas Eisenbath, “A Framework

for experimental evaluation of clustering techniques”,

International Workshop on Program Comprehension,

2000.

B. S. Mitchell, S. Mancoridis, M. Traverso. “Search Based

Reverse Engineering” In ACM Proceedings of the

2002 International Conference on Software

Engineering and Knowledge Engineering (SEKE'02),

Ischia, Italy, 2002. pp. 431-438.

V. Bozhikova, M. Stoeva, “Applying Tabu-Search

heuristic for software clustering problem”,

ICEST’2007 - Proceedings of papers, Volume 2, pp

861-864, Ohrid, Macedonia.

SOFTWARE RE-STRUCTURING - An Architecture-Based Tool

273
