AUTONOMOUS DATA QUALITY MONITORING AS

A PROPERTY OF CODA ENTERPRISE ARCHITECTURE

Tereska Karran

Department of Informatics, University of Westminster, 115 New Cavendish Street, London,W1W 6UW, U.K.

Keywords: Information quality, enterprise architectures, CODA, business intelligence, autonomous data quality

monitoring, data mining.

Abstract: Organisations are driven to meet data quality standards by both external pressures and by internal quality

processes. However, it is difficult to add these to existing systems as part of enterprise architecture.

Moreover, where business intelligence is delivered autonomously, it is difficult to implement efficient data

quality processes. We discuss the value of making data quality part of enterprise architecture using CODA

and outline how this can be implemented by adding autonomous processing to specific architectural

elements.

1 INTRODUCTION

As database technology has developed and matured,

it has become possible to extract intelligent

information from data and to create self-adaptive

systems based on analysis of past and present

transactions. As a result, business information

systems have become more focused on meeting

information objectives at all levels of the

organization. This in turn implies managing

information flow within a complex architecture in

such a way that it mirrors the way that the

organization manages decisions. A great deal of

management decision-making is based on

information which is automatically extracted from

data stored within the database via a warehouse or

data mart. Therefore it has become increasingly

important to monitor and control the flow of data

through the organization because detail is lost as it

becomes increasingly aggregated and generalized.

During this process it is easy to lose track of the

ownership and responsibility for errors as well as

letting errors creep in. In line with this the auditing

and IT governance procedures have changed so that

it has become necessary to show the accuracy and

the ownership of data behind complex business

reports. It is no longer sufficient to audit operational

the core transactions within computer systems since

errors can occur as information is passed from level

to level (Sayana (2002)).

A successful enterprise needs a transparent data

architecture which incorporates a strategy for the

management of information quality (Rees &

Dineschandra. (2005)). However, this architecture

should also monitor information at each stage of the

data transformation process. Several serious failures

within organisations can be pinpointed as

originating in the mismanagement of information

(Sercu et al. (2006)). It often proves particularly

difficult to establish the causes because, in general,

flows of information cannot be easily traced due to

the lack of transparency in the architecture.

There are two solutions.

The first solution is to ensure that the data is fit

for the purpose. This involves establishing

objectives and data ownership at a business level

and then creating data cleaning processes for each

layer of the enterprise. Thus it becomes possible to

redefine data for each separate objective.

The second solution is to measure the data

quality at each level of the architecture. This

involves customised correction of data as it moves

through every level of the enterprise. However, it is

difficult to do this as a business process since the

warehouse aggregation and data gathering process is

usually set to operate as an autonomous process.

It would be most efficient to incorporate both

solutions within the enterprise architecture. If data

quality is part of a layered architecture, it becomes

possible to improve system performance globally.

112

Karran T. (2008).

AUTONOMOUS DATA QUALITY MONITORING AS A PROPERTY OF CODA ENTERPRISE ARCHITECTURE.

In Proceedings of the Third International Conference on Software and Data Technologies - ISDM/ABF, pages 112-117

DOI: 10.5220/0001875301120117

 SciTePress

Where data ownership is managed within the

architecture it is possible to manage data correction

in such a way that the data meets specific objectives.

2 A GENERIC ARCHITECTURE

FOR THE ENTERPRISE

An enterprise architecture needs to support the

mechanisms for turning source data into information

and then into knowledge that is useful for decision

making. BI architecture can be approached as a

number of transactional data sources connected and

integrated by an ETL layer feeding a data warehouse

that holds aggregated, transformed,

multidimensional data which in tern is used to feed

different data marts used for analysis such as

queries, OLAP, and data mining cubes.

Because of the multiple purposes to which

information is put, and because of the way that new

information can have multiple impacts, an enterprise

architecture can be seen as a type of complex non-

deterministic system. This allows us to use complex

system theory allows us to model the enterprise

architecture as consisting of multiple interacting and

semi autonomous databases (Ramanathan (2005)).

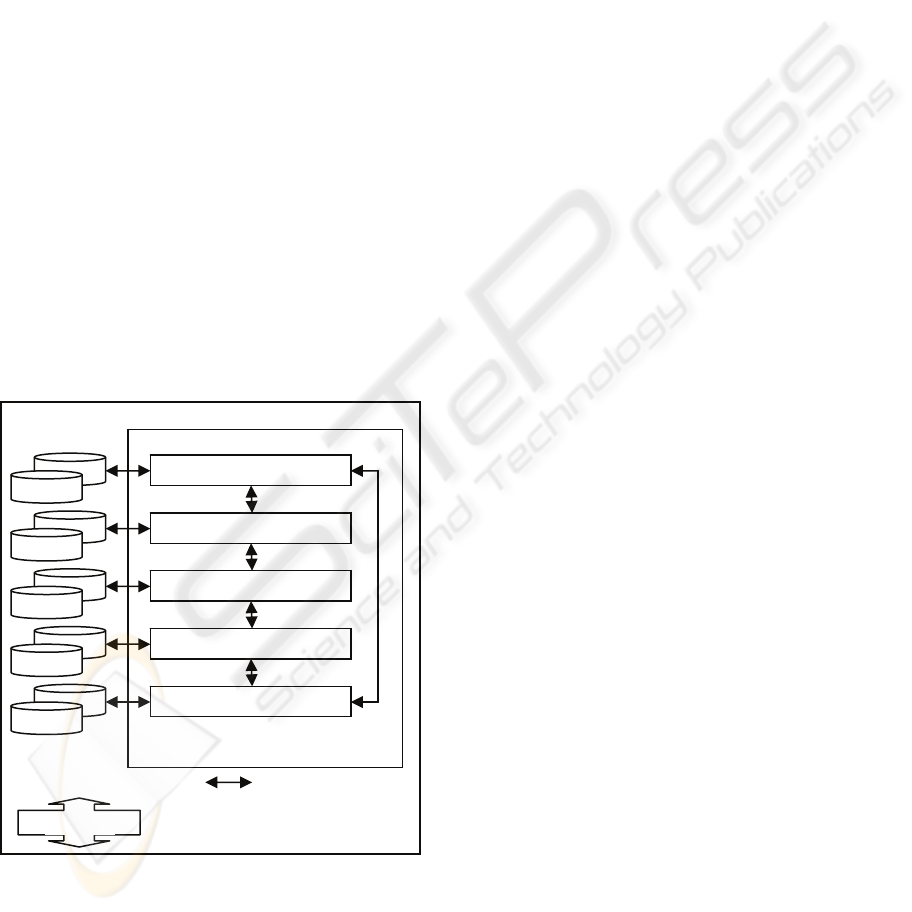

Figure 1: The CODA Architecture showing layers.

At the highest level, an architectural strategy for

data quality involves the autonomous and strategic

management of data passing through enterprise

layers. There are two steps for doing this effectively.

Firstly, the automatic filtering of information as it

enters the organization. Secondly, the controlled

manipulation of information flows within the

architecture matching the organizational decision

flows. There are several different enterprise

architectures on offer

Dill et al (2004) describe the ESA (Enterprise

Service Architecture) and show how the addition of

a service-oriented BI improves data quality

assurance. However, the processes are not viewable

and their impact on data flows is not easily

managed.

Wu et al (2007) have proposed a Service

Oriented Architecture which breaks legacy data

components down into service-oriented reusable

components communicating with each other using

XML messages. IEach of these has a specific

functionality such as Data Cleaning, Data

Transformation, Data Load and other services. The

architecture was used for assessing IT service

management performance. However, it does not

allow direct communication between data

integration and data analysis services except through

a centralised data store.

It is advantageous to have a cellular structure

with an viewable interface so that it is possible to

view the data transformations. Such a structure is

available in the CODA enterprise architecture.

CODA is a generic intelligent architecture for

use in enterprise applications (Karran et al (2003)).

It has been applied in a variety of research contexts

(Karran & Wright (2007)) (Karran &Justo (2003)).

It is designed to be added to existing systems with a

minimum of interference with existing information

processing. It also uses autonomous processes for

the self management of error. Most enterprise

architectures contain three layers, but at the macro

level CODA consists of five processing layers

(shown in figure 1).

2.1 CODA Layers

Each layer is made up of processing cells. The layer

functions can be loosely described as transactional,

decision support, executive information, knowledge

discovery and planning. These five layers

correspond to systemic functions described by Beer

and by Espejo (Beer (1998), Espejo & Gill (1999)).

2.2 CODA Cells

At the micro level the smallest atomic component of

the CODA architecture is a cell. The generic

Feedback loops Data access and filters

Interlayer filters

Command (Planning)

Control (knowledge discovery)

Monitor the monitors

Monitor Operations

erations

CODA

AUTONOMOUS DATA QUALITY MONITORING AS A PROPERTY OF CODA ENTERPRISE ARCHITECTURE

113

structure of a cell is shown in figure 2. The cell

grain depends on how the enterprise manages its

information processing involving stored data.

Hiding the details of the processing within a cell

wrapper enables the architect to concentrate on the

flows of information and the types of data flowing

between the cells with a view to making this process

autonomous.

The cell structure is the key to monitoring data

quality. Each cell is initiated with processing

objectives by an activating role (Megaache, Karran

& Justo (2002)). Each cell passes its execution

status (a minimum of three conditions: opportunity,

threat or normal, with a maximum of five) to a

senior cell for intelligent monitoring. As data passes

into a cell it goes through the cell filter and is given

a quality status (red, amber or green depending on

the quality settings defined at the filter). All threat

and opportunity data is automatically monitored as a

priority, while normal data is placed at a lower

priority. At the same time the process is given a

condition setting allowing senior cells to know how

well the objective is being executed.

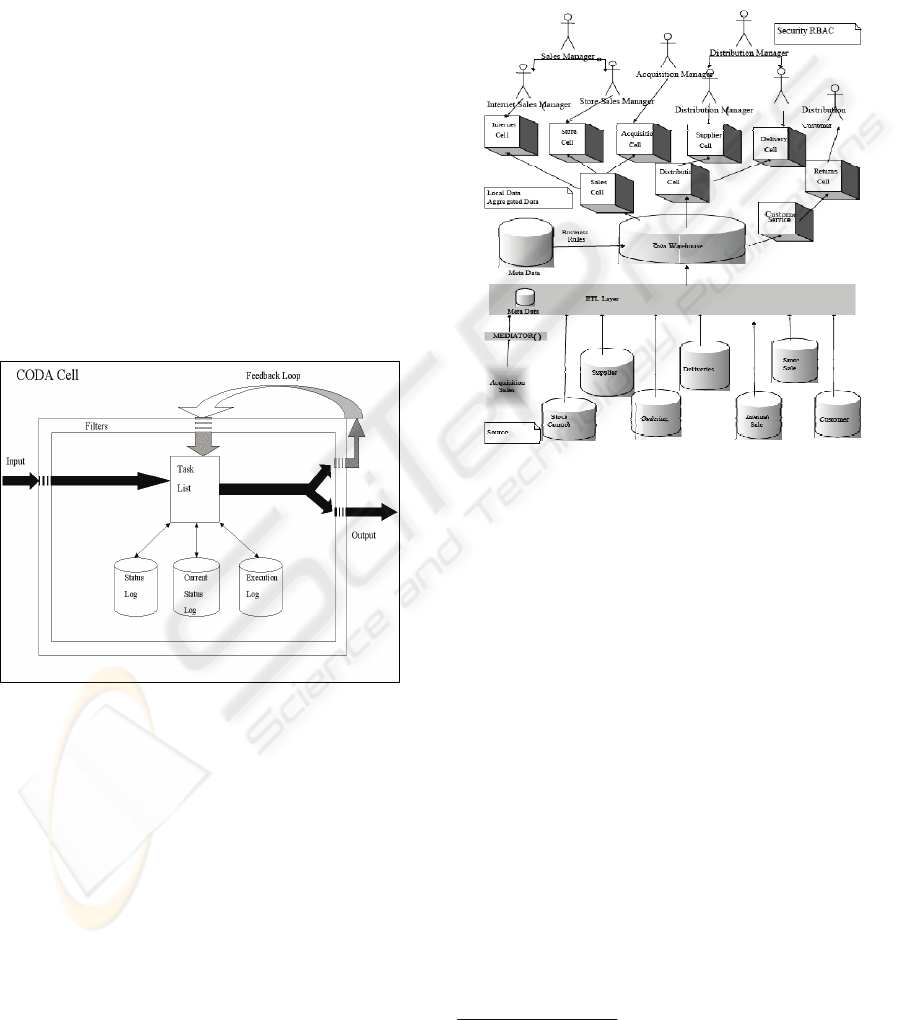

Figure 2: Structure of a CODA Cell.

2.3 Structure of a CODA Layer

Figure 3 shows the structure of a layer, managing

information for decision support objectives. Each

layer consists of multiple interacting component

cells which manage the information needed by a

specified user. The user is defined by the user

profile which consists of security protocols and

permissions as well as a history of accesses. Within

each layer the component cells continuously adapt

their behaviour based on critical tolerances which

are managed by cells at ‘senior’ layers.

An important advantage of layering the

information flows is that it becomes possible to add

new component ‘cells’ and test their effects on the

enterprise with the minimum of side effects (Bedau

(1997)). Once this has been established, it is

possible to design and test both individual elements

and the whole system in a variable environment

(Bedau (1996)).

Figure 3: Data Warehouse Architecture showing a

Decision support Layer composed of multiple cells.

3 ADDING AUTONOMOUS DATA

QUALITY MONITORING TO

AN ENTERPRISE

ARCHITECTURE

We have outlined how the management of

information quality is a key property of complex

enterprise architecture. The complete information

quality management process involves designing and

managing multiple views of the original input data

each with their own data quality requirements. Each

of these may be modified as a result of the

intelligence gained by cells at the higher layers.

Quality has to be strictly managed at each cell and

each layer because although the source input data is

likely to be highly detailed, it becomes highly

generalised as it moves through the decision layers

We assume that information is logically structured so that the

steps from the detail to the general are logical.

ICSOFT 2008 - International Conference on Software and Data Technologies

114

The first step is to wrap existing database

systems and data marts using a cell structure (Karran

& Wright (2007)). Each cell manages its data-flow

autonomously providing it has been initiated by a

role with the required access permissions. Each cell

can assess the data quality which passes through its

‘cell membrane’ and returns a quality value for data

it uses. Data which does not meet predefined quality

settings is transferred to holding bay for further

cleaning and at predefined intervals (depending on

user settings), the dirty data is passed to a higher

level cell for further cleaning. As well as dealing

with the error and the number of errors, the higher

level cell is able to assess and count the type of

errors reaching that layer. If necessary, a new data

cleaning filter can be added to the lower level cell to

prevent this type of error from occurring in future.

The layered cells allow the organization to

develop a strategy for managing day to day

transactions. At the same time the internal

monitoring procedures of the cell membranes allow

the organization to respond to unforeseen situations,

and to abnormal or incorrect data. At the higher

layers, the intelligence cells may base their decisions

on generalised versions of core information, but it is

also possible to drill through the underlying layers to

obtain the source data on which these decisions were

made. The rules for decision making are refined at

the control layer, depending on what is needed for

extrapolating rules about the environment,

monitoring patterns of behaviour, and adapting to

circumstances.

Data quality is a fundamental property of good

intelligence and is managed in a layered way so that

the source of the generalized rules can be retrieved

and tested if necessary. Since data quality is also

vital to ensure a holistic and speedy adaptive

response once new information has been discovered,

there are efficient feedback loops linking the layers.

The whole process is dynamic since decisions made

must result in improvement and the intelligence cells

can test this. The system will become increasingly

autonomous because it is possible for the top layer

to test the rules and predictions made by the lower

layers and to replace poorly performing strategies

with better adaptations based on analysis. This data

quality cycle holds true for any complex information

system and not only business enterprises.

4 ADDING AUTONOMOUS DATA

QUALITY MONITORING TO

AN ENTERPRISE

ARCHITECTURE

Testing of the architecture has so far been confined

to specific architectural elements. It is important to

note that there are several different strands to the

automation process for data quality. For example,

there is a distinction between architectural elements

which deal with the intrinsic quality and those which

deal with the data requirements of the user/role. For

example, in figure 3 above, each user has a security

profile detailing accesses and permission to cells. At

the same time, the enterprise layer has it own data

quality requirements. It is anticipated that each

layer will include a data mining tool which analyses

user accesses and transactions. It is envisaged that

this may become part of the meta data catalogue

which stores details about the quality of the data. It

should help to ensure that users receive the right

data in a timely manner. At the same time, it is

possible to monitor for potential unauthorised

access.

4.1 Managing Database Autonomy

The concept of managing databases autonomously is

still in its early stages. This is because the data held

by the organization is a primary resource and any

change is potentially dangerous to the integrity of

the existing systems. However, we have explored

how it is possible for a remote agent, initially the

database administrator, but potentially an

autonomous cell, to administer the database logs in

terms of simple errors, and other log conditions

(Karran & Wright (2007)). We have shown that it is

possible to design and build a CODA type cell

which is able to provide advice for the database

administrator away from the console.

4.2 Creating Autonomous Filters for

Managing Data Quality at ETL

Layer

The methods and principles of autonomously

filtering data have been applied using Oracle and

Excel formats for project metrics in a large software

house maintaining third party software(unpublished

research Ragaven (2005)).

The original source data was huge, error prone

and duplicated. Each project had a separate metric

AUTONOMOUS DATA QUALITY MONITORING AS A PROPERTY OF CODA ENTERPRISE ARCHITECTURE

115

spreadsheet. The template used as a starting point

for each new software maintenance project was not

accurate. The result was that time was spent in re-

defining MS Excel macros to generate derived data

for analytical purposes. Designing errorless macros

to do this work required expensive training, and,

because of high staff turnover, calculated

management reports contained inaccurate figures.

Lack of integration of data in multiple spreadsheets

made it difficult to spot patterns and trends to

estimate future project resource use, such as cost and

manpower. There was no security so that sensitive

data such as daily/hourly cost for staff were not

protected. Finally, there was no data integrity due to

the lack of efficient in-built validation in the

spreadsheet application. Backup and restore proved

difficult due to the vast number of individual

spreadsheets and where spreadsheets had shared

access, the system crashed regularly.

The solution was implemented in three stages.

The first step was to ensure quality of collected and

stored data. The second step was to filter and

consolidate data in a meaningful way for use at

decision support level. The third step was to add role

profiles to ensure that the right data should be

available in a secure way.

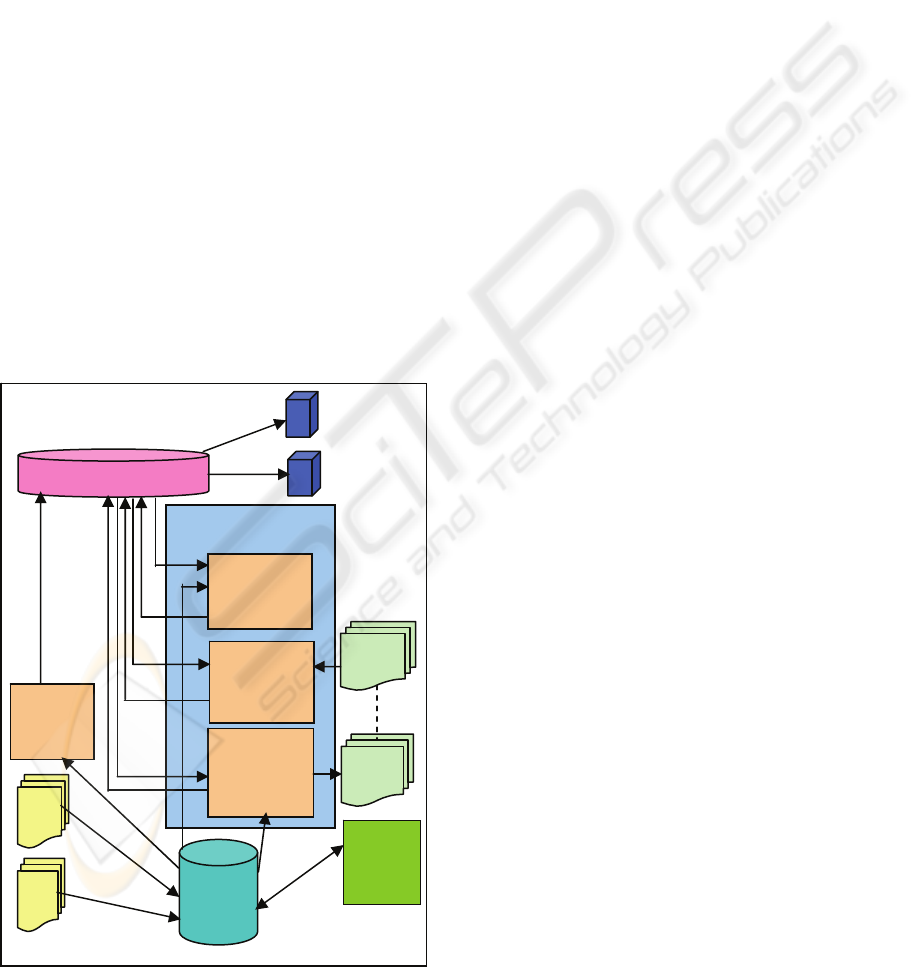

Figure 4: Autonomous Transformation of Data for the

Decision Support Layer (Ragaven 2005).

It was possible to ensure the quality of OLTP

data by creating a user-friendly graphical interface

as front-end filter for entering metrics together with

an appropriate database as back-end for storing data.

The front end, designed in Java-swing, allowed a

single point data entry system to record metric data

and the data was autonomously transformed to meet

the needs of the users at the decision support layer

(as shown in figure 4.). This data was moved to the

data warehouse using java processes to add missing

data and dimensions. The cleaned data was then

loaded to spreadsheets customised for specific

decision support roles.

The project showed that it was useful to apply an

autonomous data filtering program to a layer and to

tie data access to specified roles.

5 RESULTS

The project developed a single set of cells with

viewable and autonomous data cleaning interfaces.

The application involved a single role to manage an

ETL utilities workflow metrics system. The process

cells were designed using JAVA and extracted

transformed and loaded project metrics data into a

business intelligence data warehouse adding

multidimensional data structures. The data in the

business intelligence warehouse was used to support

management decisions involving project work

flows, risks and costing. The overall results obtained

from the system were meaningful because they

mirrored the workflow of the business decision

processes exactly. This was possible because the

Java based cells mirrored the role actions. The ETL

utility programs were fast, reliable and automatic

and transformed the OLTP core data in a way which

was intuitive and clear to the management roles

using it. The data moving between the cells is

viewable at all stages so that data quality can be

assured. For example, the date is defaulted to the

project inception date, and the system automatically

prompts for data quality checks. The information

available allows the user to check and confirm, not

only current system releases under test, but also past

system releases, which were under test.

By making the system both autonomous and

close to the business workflow test manager were

able to combine information drawn from multiple

sources and analyse metric data without complex

external checking of sources. For example,

chargeable, non-chargeable and overall cost for each

MS Access data

OLTP

(Oracle

Database)

ddl

dml

scripts

Java

Swing

Interface

(OLTP)

ETL Utility – Extract,

Transform and Load

Java program to

transform &

load data

interface for

data

warehouse

Java program to

extract &

populate

dimensions data

Java program to

transform &

update

dimensions data

Dimension

output files

Dimension

input files

Cross tab and

– multi-

dimensional

analysed

views

ICSOFT 2008 - International Conference on Software and Data Technologies

116

staff can be viewed in terms of staff ids for each

system release and this improves the understanding

of project actual costs. This provides useful

information to monitor performance of staff within

the organization because the data quality is reliable,

timely and up to date.

We were able to test the principles for cell

design and role activation for managing data quality

autonomously. The application showed that it is

possible to obtain good results for managing data by

separating OLTP and OLAP filters and attaching

data to a specified role. So far we have only

developed a single role view of the system. The next

stages will involve attaching quality status to data

and passing the data to a further layer. It will also

involve adding further roles and showing the

interactions between them.

6 CONCLUSIONS

The application of Beer’s model to an enterprise

architecture in the CODA application has so far

produced a number of interesting results. Initial

research suggests that the model has some bearing

on the problems facing large organizations in adding

data quality processes to existing enterprise

architectures. Initial trials have proved promising

and have been enthusiastically adopted by the

organizations involved.

REFERENCES

Bedau M.A., (1997) Emergent Models of Supple

Dynamics in Life and Mind. Brain and Cognition 34:

5-27.

Bedau, M. A., (1996) The Extent to which Organisms

Construct their Environments Adaptive Behaviour 4:

476-482.

Beer, S. (1989) The Evolution of a Cybernetic

Management Process in R. Espejo and R. Harnden

(Eds) Interpretations and Applications of Stafford

Beer’s VSM : 77-100. Wiley.

Cochran, W G (2001) Sampling Techniques, Wiley

Chatfield, C (2001) Time-series Forecasting, Chapman

and Hall/CRC Press

Dill et al., (2004). Service-oriented BI. SIGMOD. (online)

Availablefrom: http://portal.acm.org/citation.cfm?id

=1007568.1007683&coll=ACM&dl=ACM&type=seri

es&idx=SERIES473&part=series&WantType=Procee

dings&title=SIGMOD (Accessed 29 January 2008).

Espejo, R., Gill, A. (1997) The Viable System Model as a

Framework for Understanding Organisations. Phrontis

.com.

Karran, T., Wright, S., (2007) Towards Database

Autonomy: An Approach Using Complex Organic

Distributed Architecture (CODA) EEE’07 World

Comp 07

Karran, T., Madani K., Justo, G. R., (2003) CODA - Self

Learning and Adaptive Systems in Dillinger M. (ed)

Software Defined Radio, Wiley.

Megaache, S., Karran, T., Justo, G. (2000) A Role-based

Security Architecture for Business Intelligenc,

Conference Proceedings Tools 2000.

Moen, R D; Nolan, T W & Provost, L P (1991) Improving

Quality Through Planned Experimentation, McGraw-

Hill

Ragaven A. (2005) Developing Workflow Metrics for a

Workflow Metrics system (unpublished MSc project)

Rees, M. and Dineschandra, J. (2005) Monitoring Clinical

Performance: The role of software architecture.

Journal of Healthcare Management Science. Vol 8,

p197 – 203.

Sayana (2002) Auditing General and Application

Controls. Information Systems Control Journal. Vol 5.

Saaty, T (2001) Decision Making for Leaders: The

Analytic Hierarchy Process for Decisions in a

Complex World, Analytic Hierarchy Process Series

Vol. 2

Wu et al., (2007). A service-oriented architecture for

Business Intelligence. IEEE International Conference

on Service –oriented computing and applications.

(online) Available from: ieeexplore.ieee.org/

iel5/4273393/4273394/04273437.pdf (Accessed 19

January 2008).

AUTONOMOUS DATA QUALITY MONITORING AS A PROPERTY OF CODA ENTERPRISE ARCHITECTURE

117
